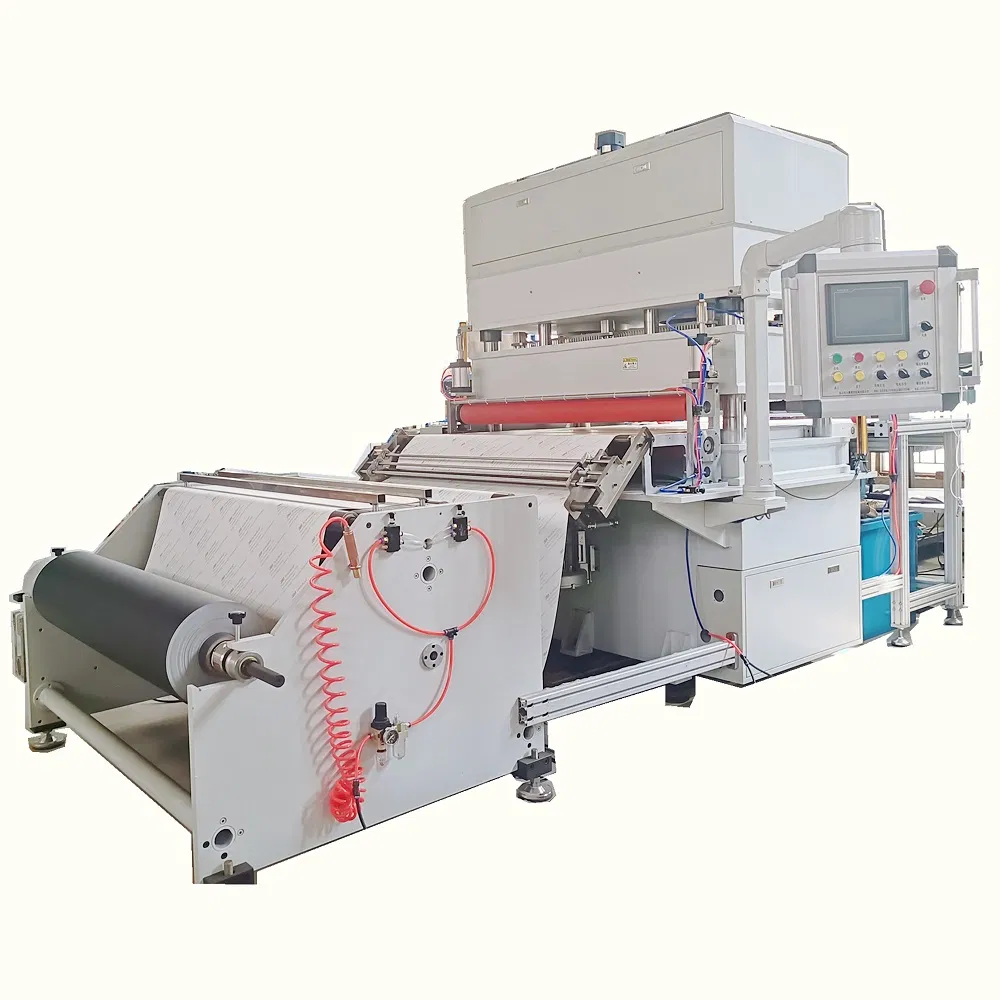

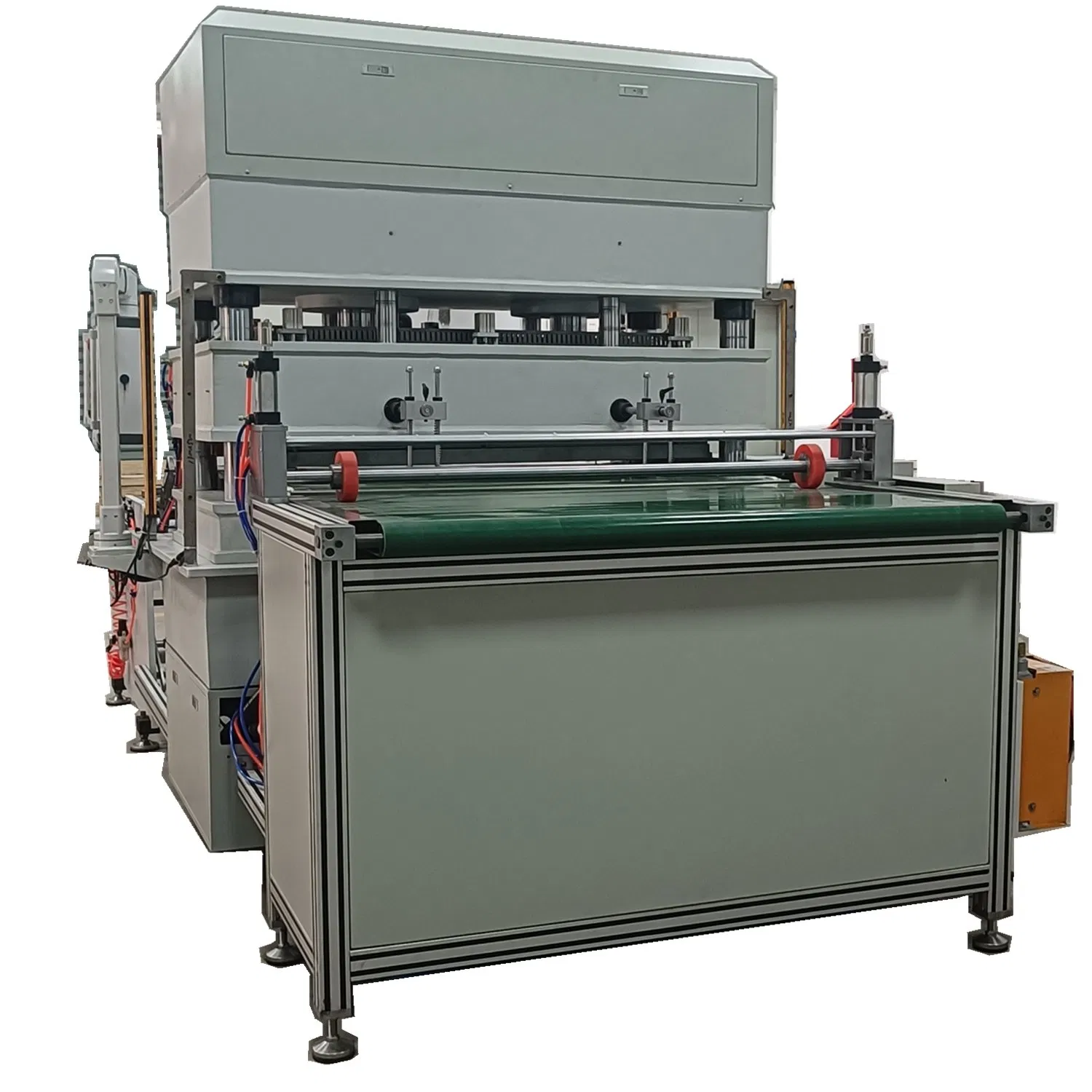

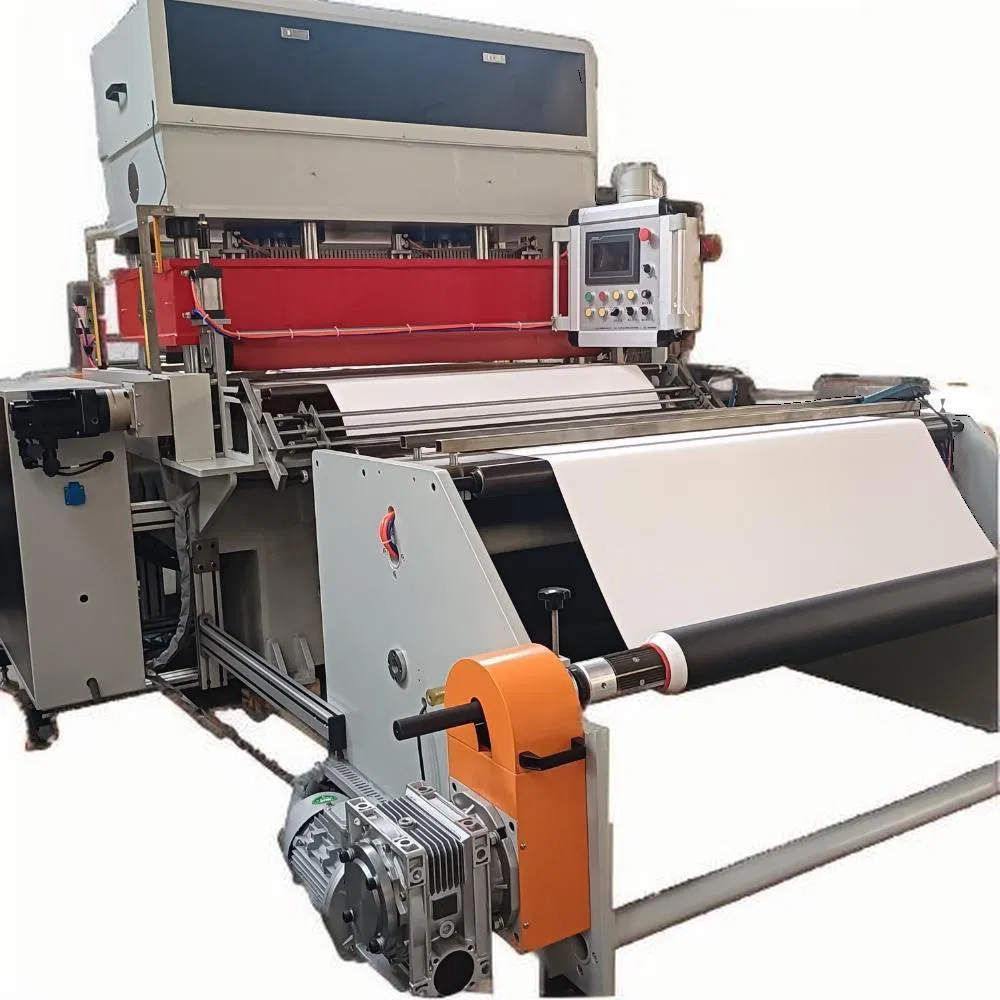

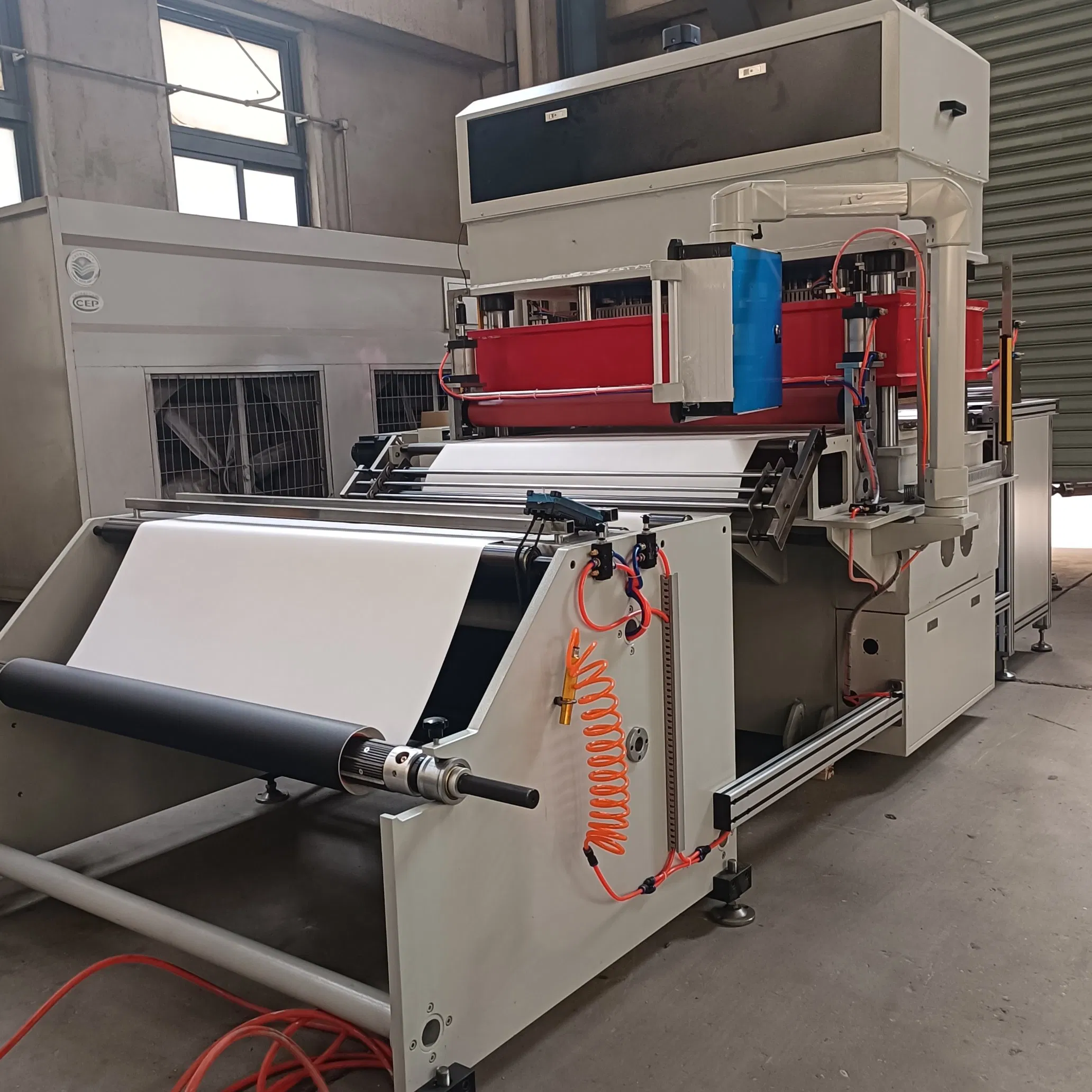

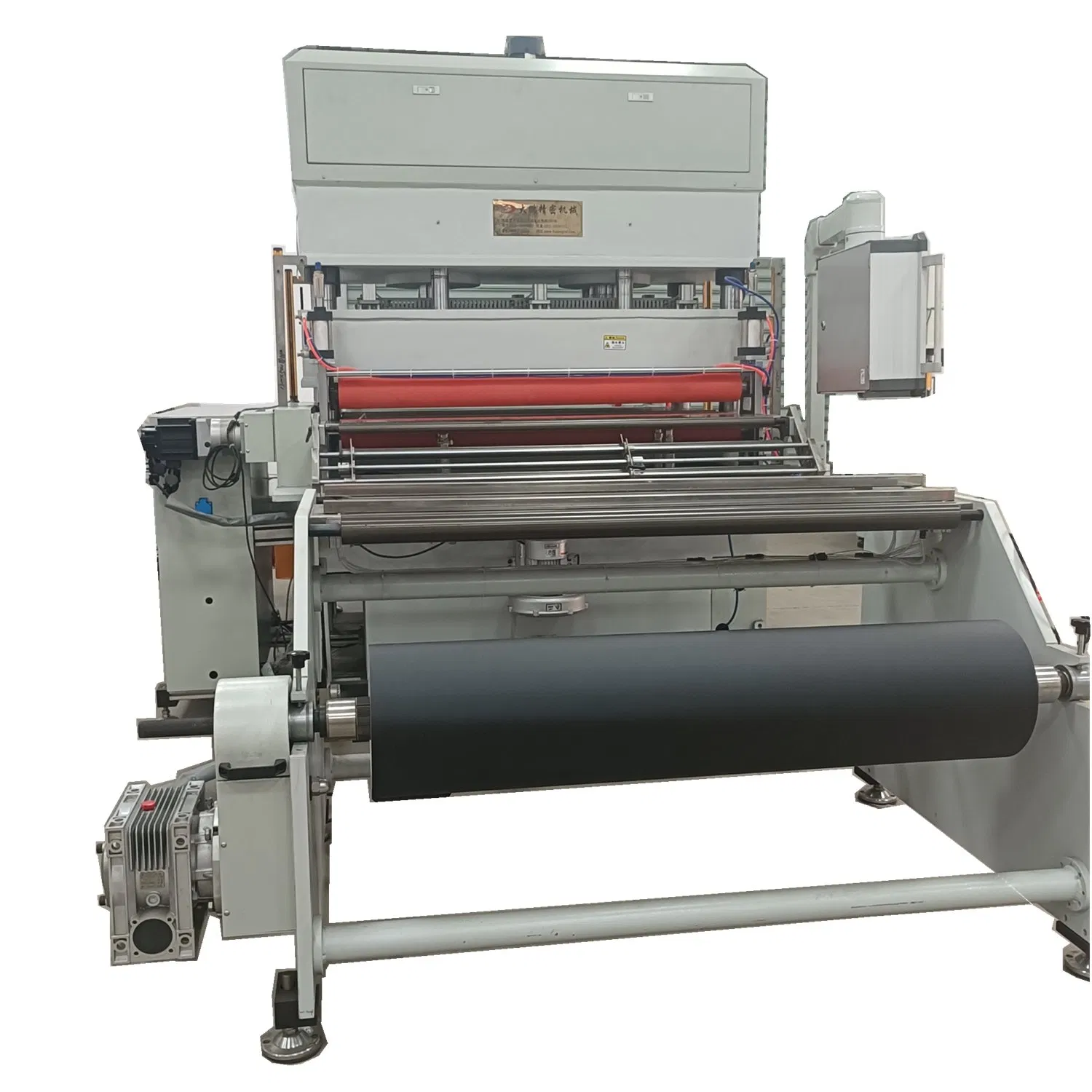

Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
1 / 5
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine

Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine

Customization: Available
After-sales Service: Video Technical Service , Spare Parts Offer Servic
Warranty: 36 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
1600J
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Die Cutting Tool
Wooden Laser Knife Mold
Automatic Grade
Automatic
Die Cutting Area
1600*700mm
Cutting Force
40ton
Cutting Speed
30 Times Per Minute
Precision
0.01mm
Unwinding Width
1600mm

Product Display

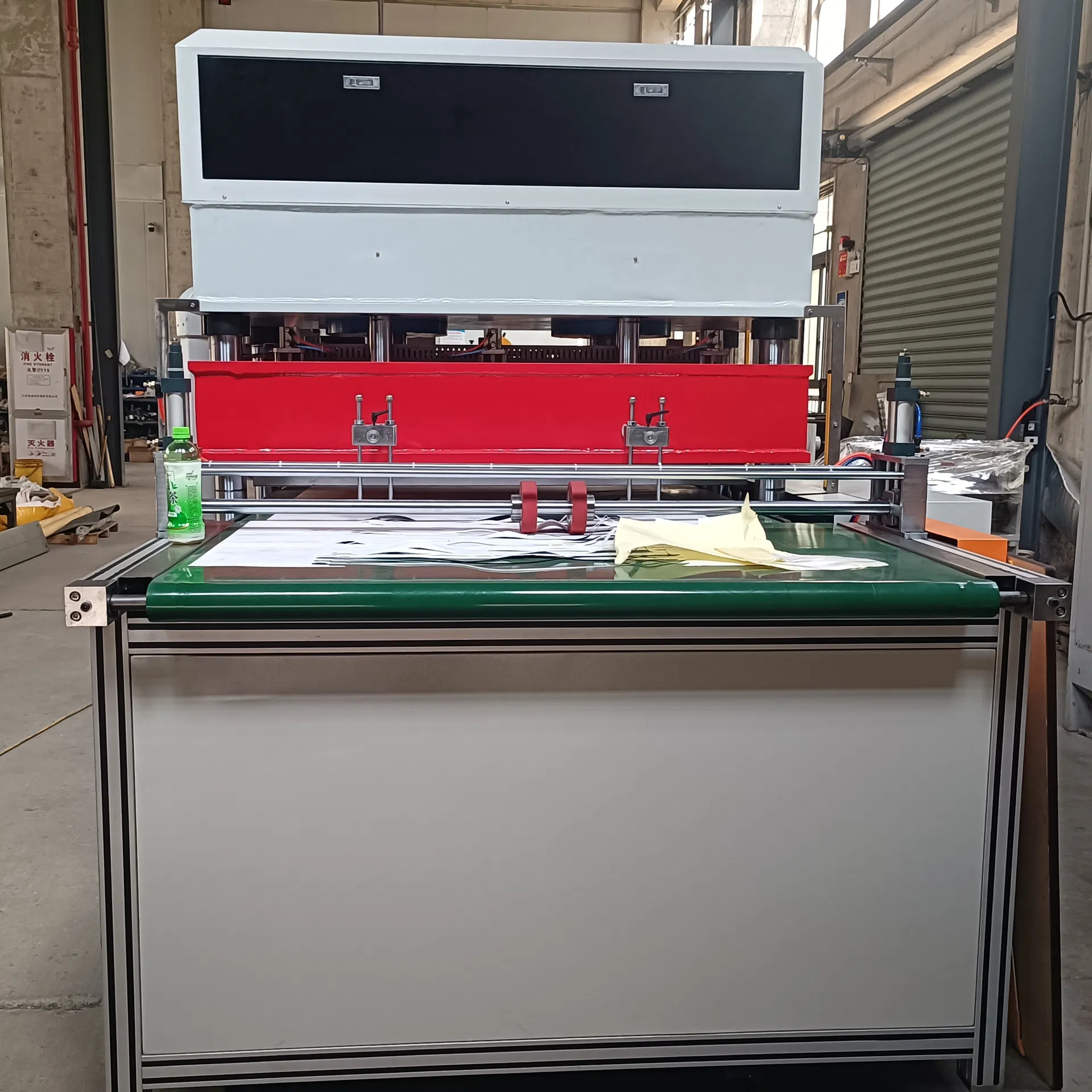

Machine Overview 1

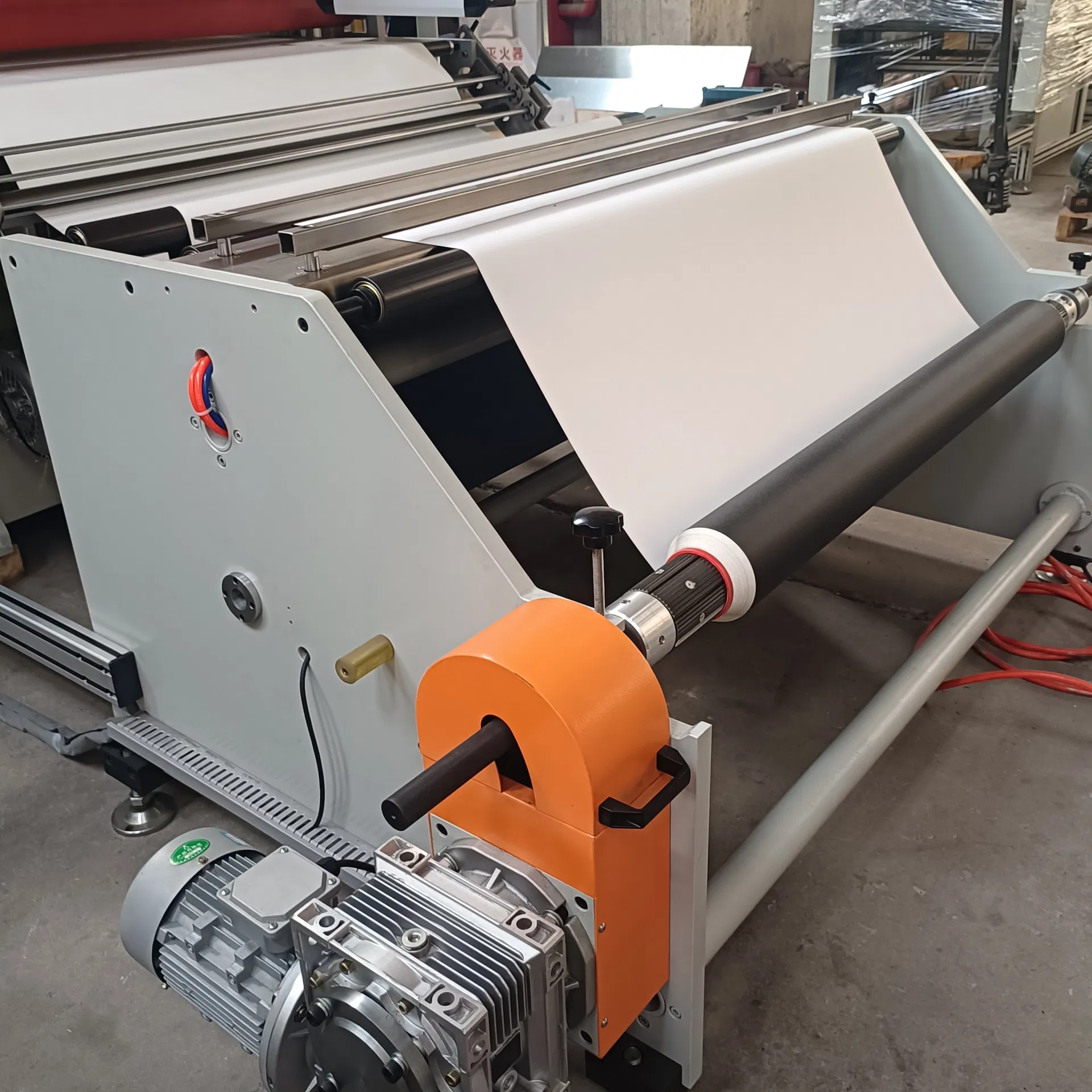

Machine Overview 2

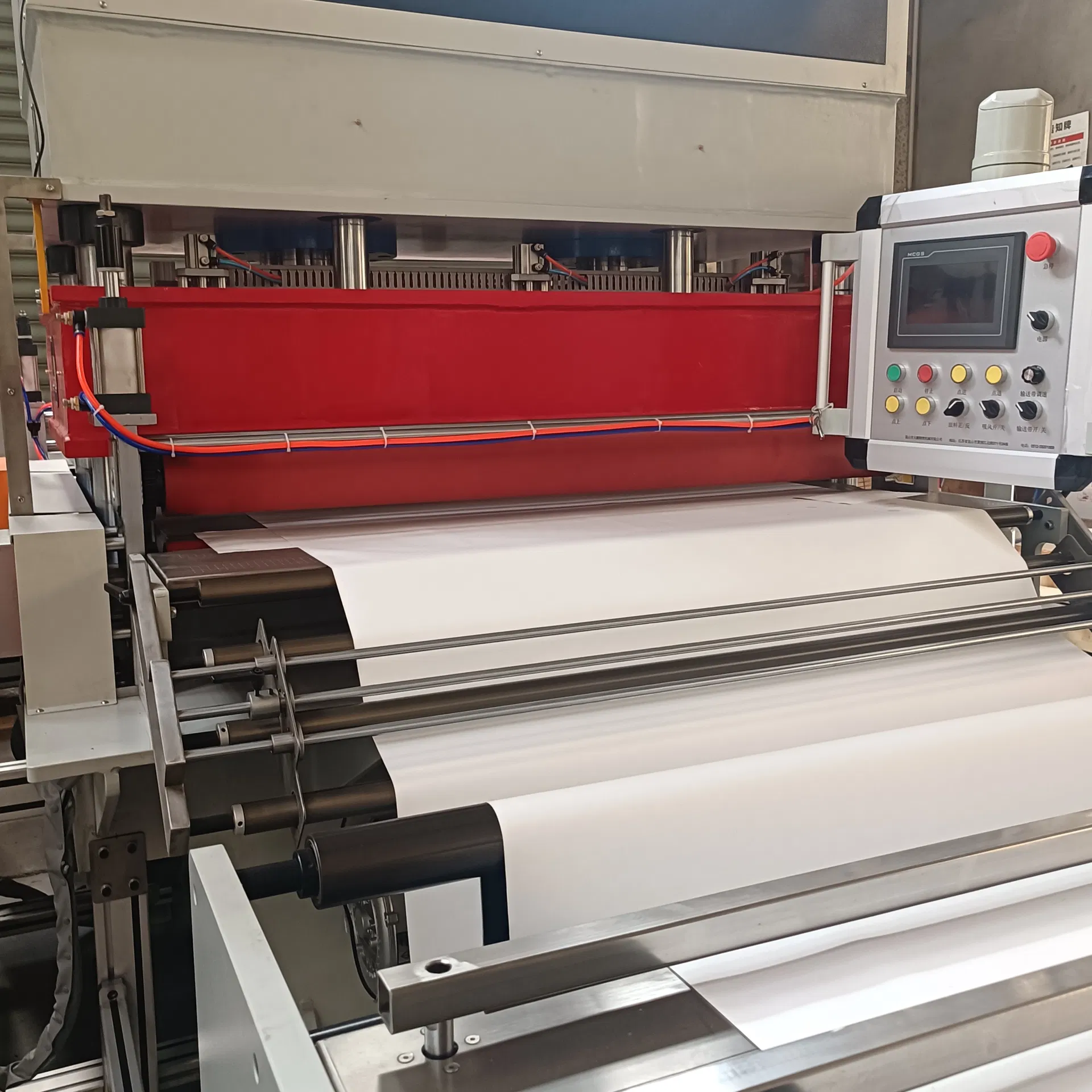

Machine Overview 3

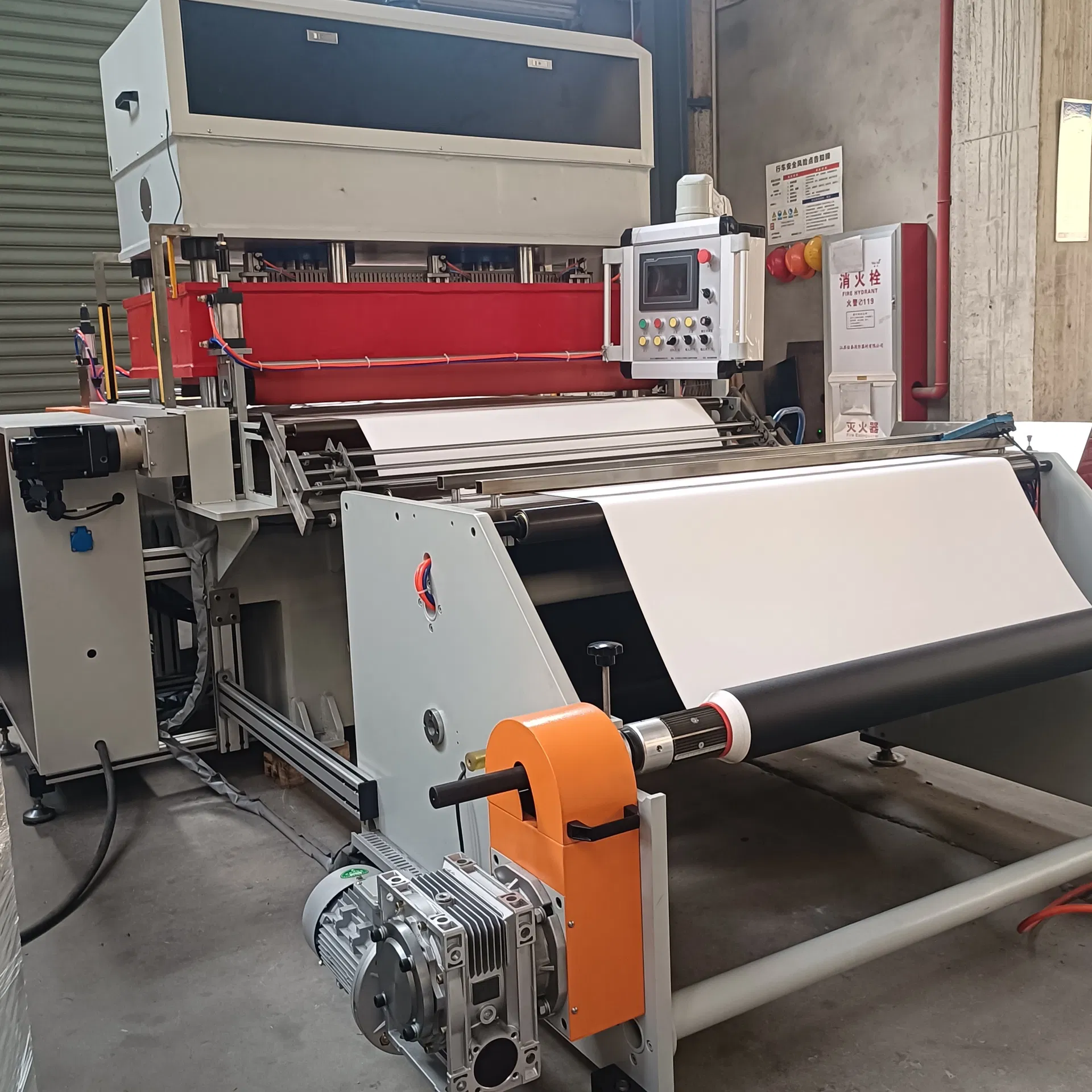

Machine Detail 1
Machine Detail 2

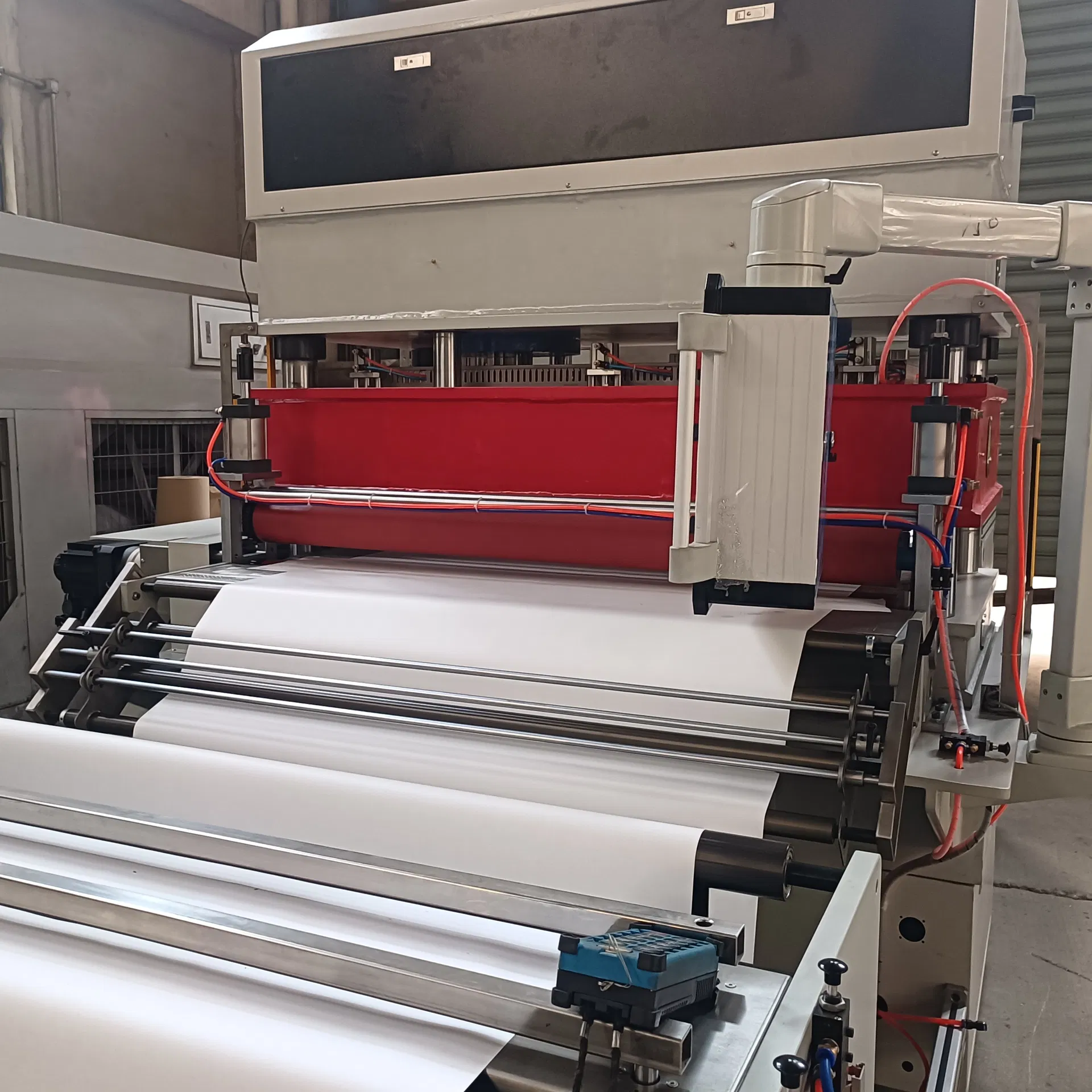

Machine Detail 3

Technical Parameters

ITEM NO. Pressure (Ton) Max Feeding Width (mm) Die Cutting Area (mm) Power (HP) Voltage Speed (times/min)
DP-30TA 30 1600 1600*700mm 11 3 phase AC380V 50HZ 35

Advanced Configuration

✔ Material Pulling Servo Motor (Mitsubishi Japan)
✔ PLC Control System (Mitsubishi Japan)
✔ Touch Screen Interface (MCGS)
✔ Photoelectric Safety Protection System
✔ Automatic Pressure Regulating Motor (Panasonic)
✔ High-Precision Oil Pump & Solenoid Valves (Taiwan)
✔ Automatic Waste Collection & Conveyor System

Smart Technology Highlights

Smart Control: Integrated Microcomputer + Touchscreen + PLC for seamless operation.

Efficiency: Dual servo drives and frequency control ensure faster, smoother, and more precise cutting.

Clean Cuts: Circular slitting with precision shims and imported cross-cutting knives provide a perfect finish every time.

Automated Stacking: Auto-lifting platform stacks sheets neatly, reducing labor and mess.

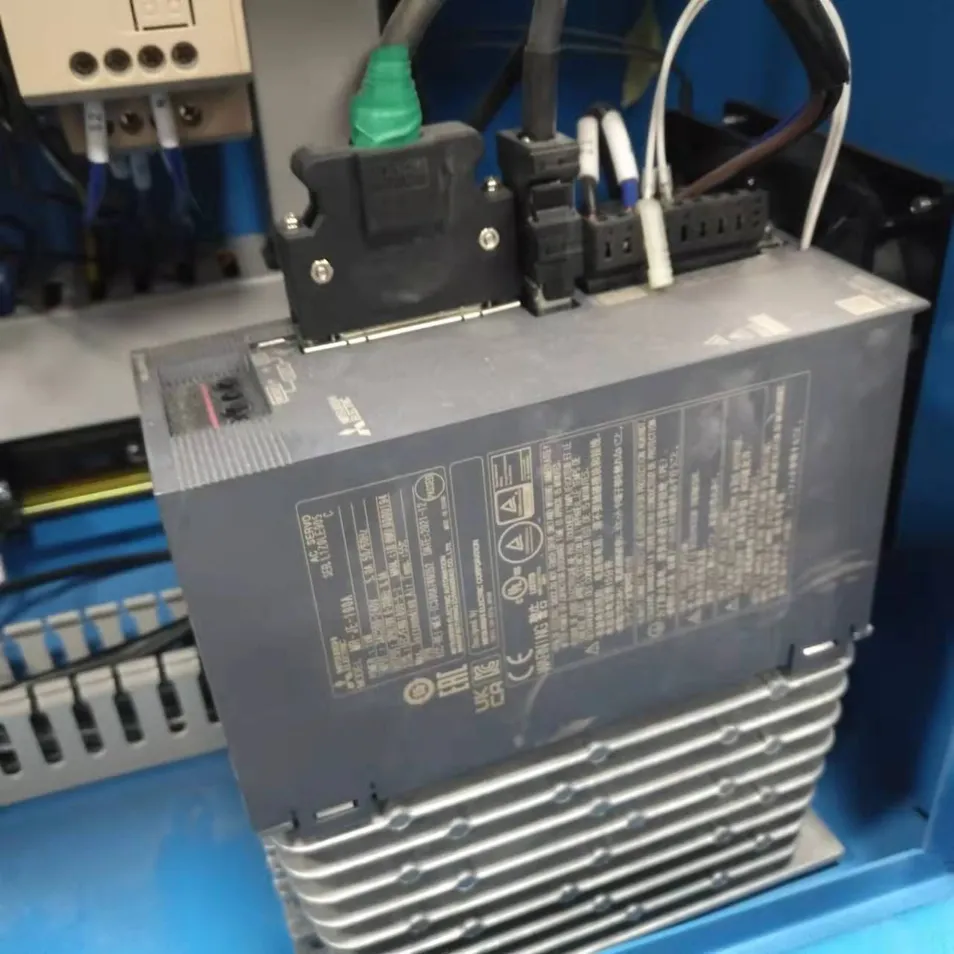

Component 1

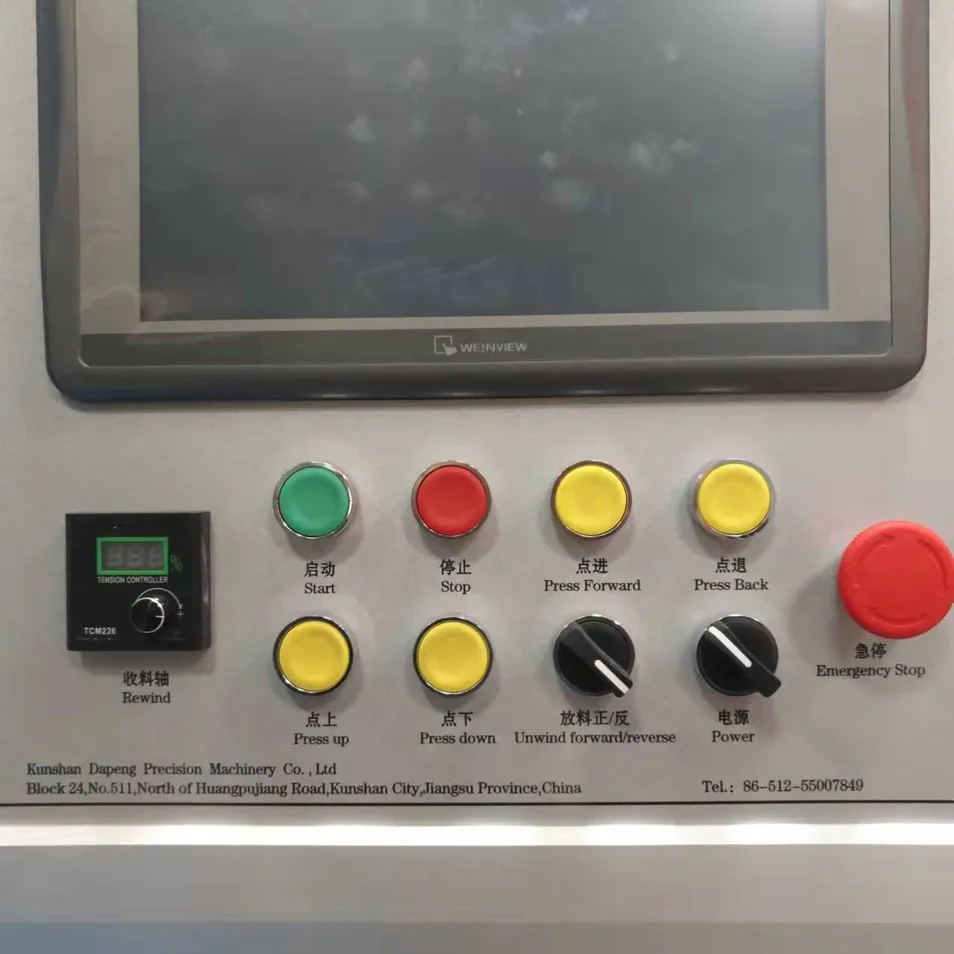

Component 2

Operation Video

Industrial Applications

Electronics: Ideal for shielding materials, insulating materials, conductive materials, and LCD glass.

Apparel & Footwear: Precise trimming and shaping for bags, hats, and shoes.

Plastics & Textiles: Efficient processing for ropes, strips, and various roll materials.

Packaging: High-precision cutting and creasing for nonwoven fabrics and paper packaging.

Frequently Asked Questions

What is the maximum cutting thickness for this machine?
The machine can handle materials up to 8mm thick, including plastic, silicone, or TPU.
Why does the hydraulic system operate at this specific speed?
As a large hydraulic machine, the steady speed ensures maximum precision (up to 0.01mm) and consistent force across the entire 1600mm width.
What materials are suitable for this die-cutting machine?
It is designed for paper packaging, stickers, heat insulation materials, non-woven fabrics, and electronic shielding materials.
Is the machine fully automatic?
Yes, it features a computerized control system with PLC and servo motors for automatic feeding, cutting, and waste collection.
Can the machine handle custom mold shapes?
Absolutely. It uses standard wooden laser knife molds, allowing for highly versatile and customized cutting shapes.
What are the power requirements?
The standard configuration requires a 3-phase AC380V 50HZ power supply to drive the 11HP main engine.
