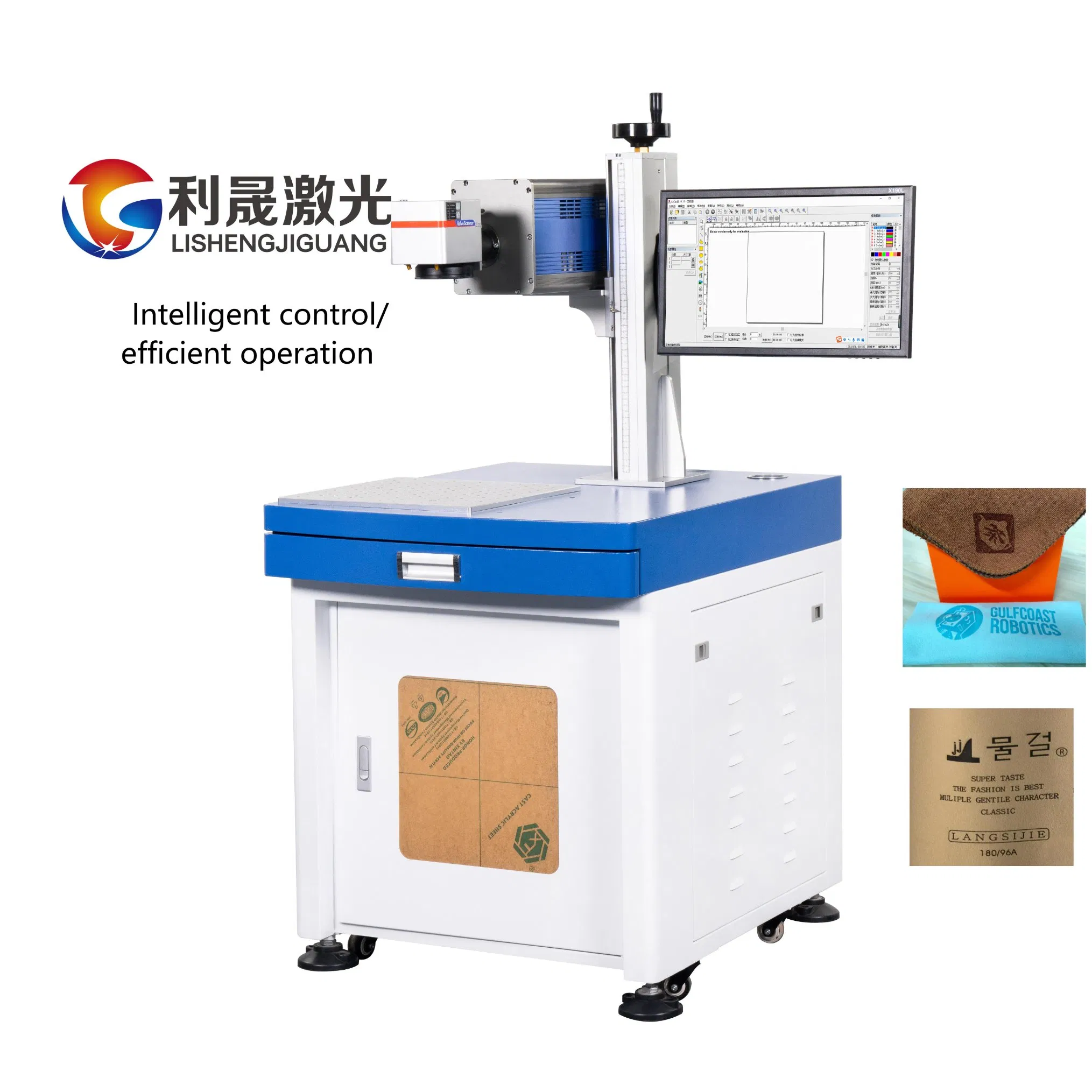

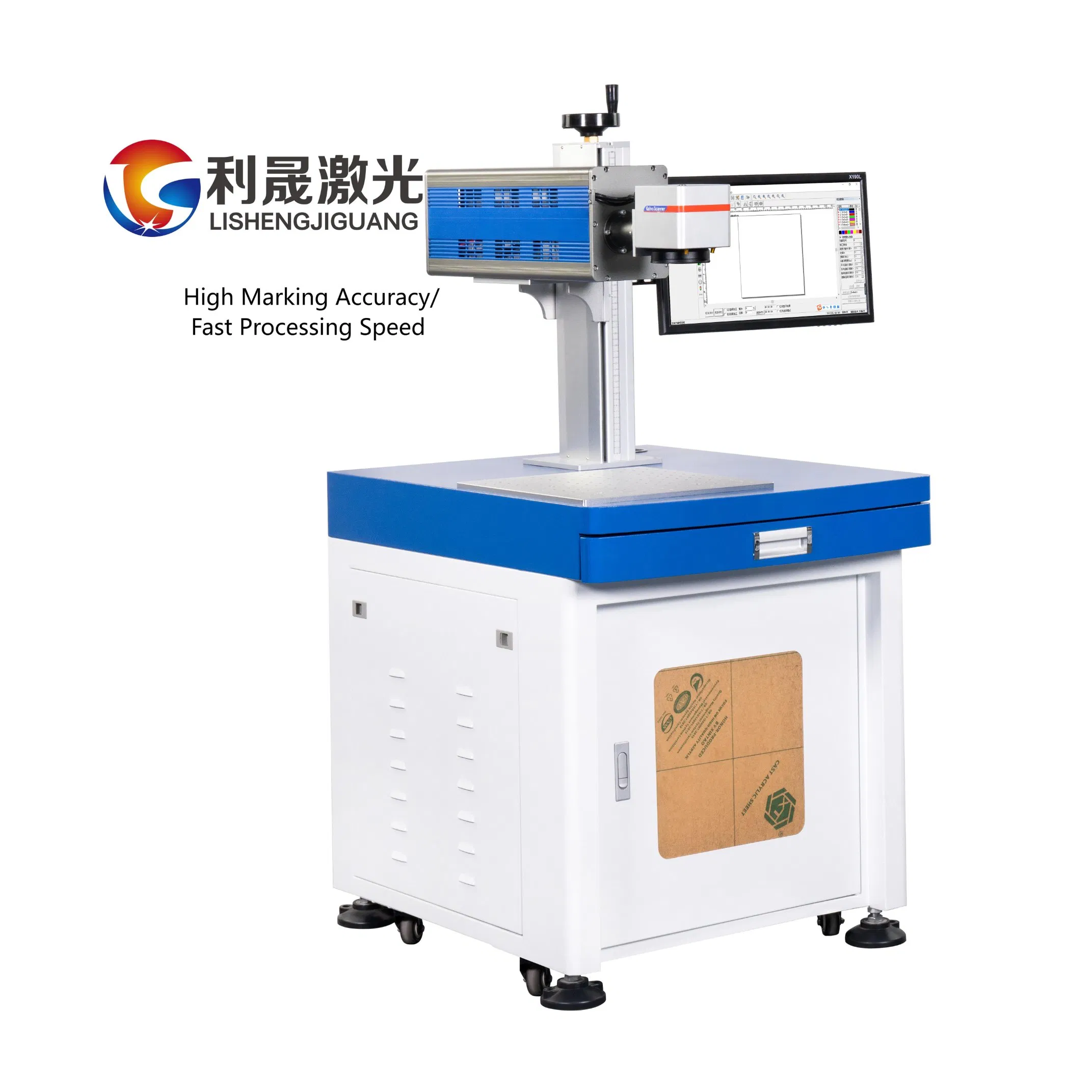

Advanced Gaseous CO2 Laser Engraving Machine System for Wood and Bamboo Products Laser Marking Machine

1 / 5

Advanced Gaseous CO2 Laser Engraving Machine System for Wood and Bamboo Products Laser Marking Machine

Customization:	Available
After-sales Service:	24 Hours Online After-Sales
Warranty:	2 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CO2-30W / CO2-60W

Laser Visibility

Invisible

Applicable Material

Nonmetal

Cooling System

Air Cooling

Technical Class

Pulse Laser

Marking Speed

Max 7000mm/s

Repeat Accuracy

±0.03mm

HS Code

84561000

💡 Product Introduction

CO2 laser marking machine, also known as gas laser marking machine, generates a wavelength of 10.6µm. CO2 lasers feature relatively high power and high electro-optical conversion efficiency. They use CO2 gas filled in a discharge tube as the medium for laser generation. When a high voltage is applied to the electrodes, a glow discharge is produced, enabling gas molecules to emit laser light. The laser beam irradiates the material surface, converting light energy into heat energy, which instantly vaporizes the material surface to form marks.

⚙ Technical Parameters

Equipment Model	LS-CO2-30W	LS-CO2-60W
Output Power	≥30W	≥60W
Wavelength	10.6µm/9.3µm	10.6µm/9.3µm
Marking Area	180x180mm (optional)	180x180mm (optional)
Marking Speed	≤7000mm/s	≤7000mm/s
Min Line Width	0.05mm	0.1mm
Repeat Accuracy	±0.03mm	±0.03mm
Power Requirement	220V±10% 50Hz	220V±10% 50Hz

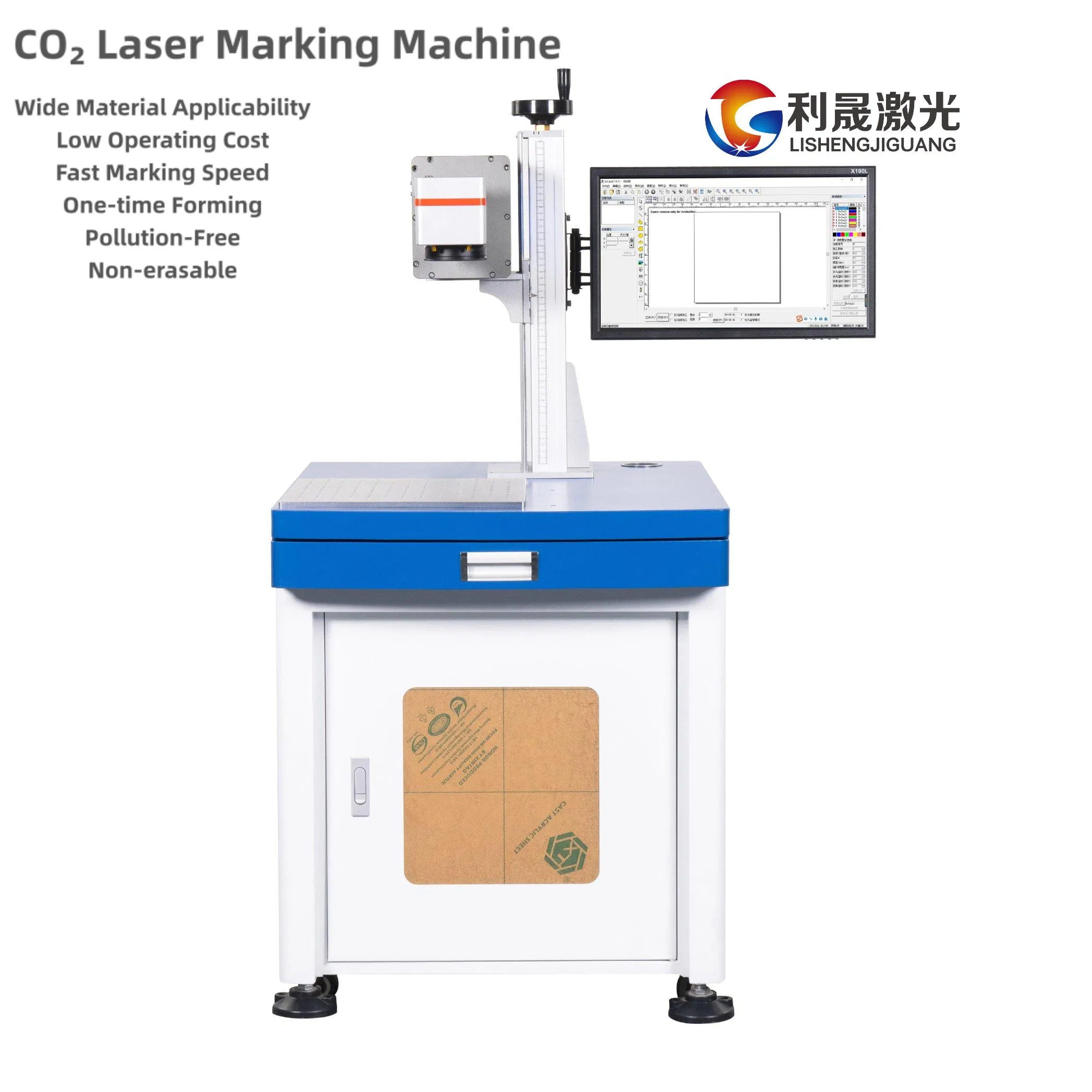

✔ Product Features

💎

Wide Applicability: Marking on paper, plastic, ceramics, wood, and leather.

💲

Low Operating Cost: Fast speed, one-time forming, no consumables.

✨

High Quality: Clear and aesthetic marks that are non-erasable.

🌋

Eco-Friendly: No harmful substances generated during processing.

🎯 Application Scope

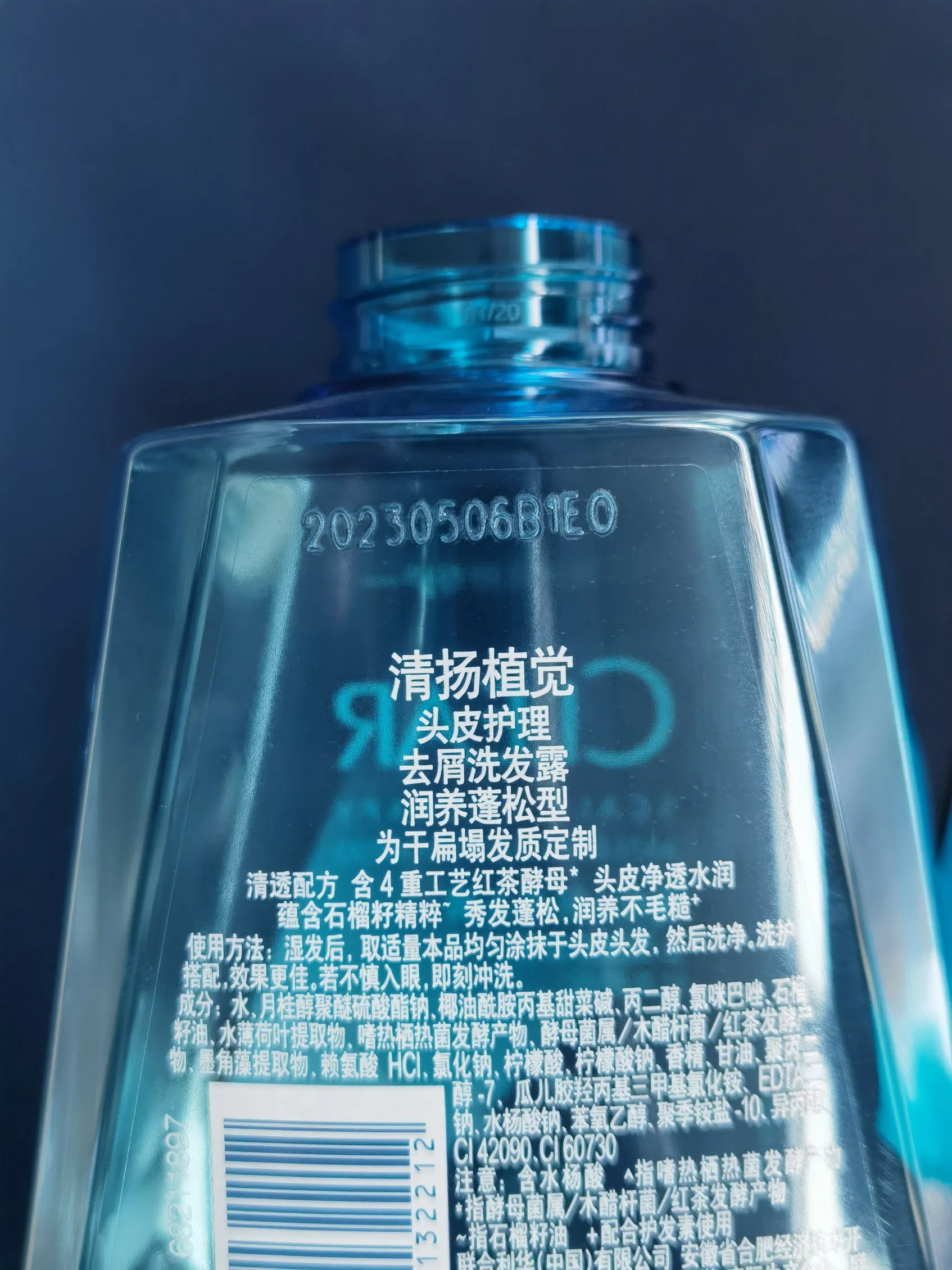

Widely used in food packaging, beverage packaging, pharmaceutical packaging, architectural ceramics, garment accessories, leather, fabric cutting, handicrafts and gifts, rubber products, electronic component packaging, and more.

❓ Frequently Asked Questions

Are you a manufacturer?

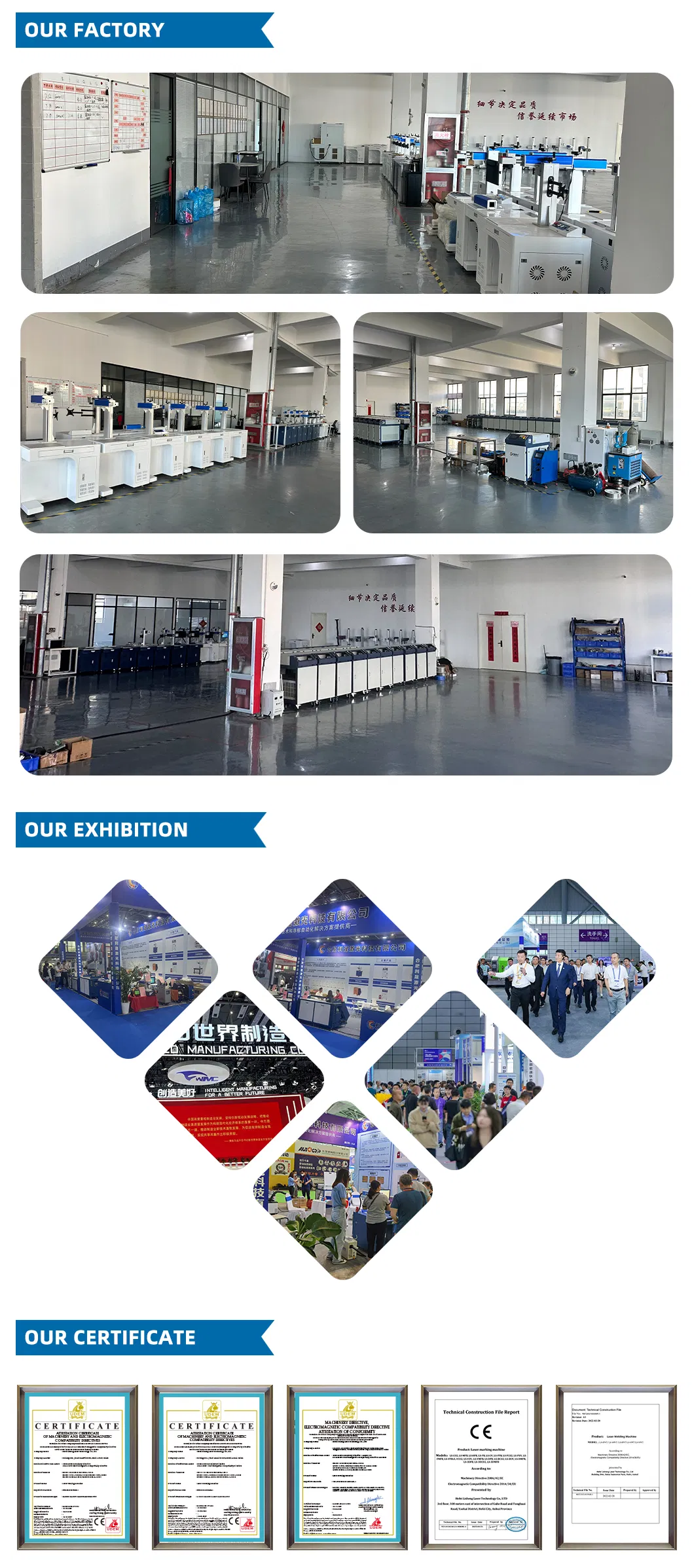

Yes, we are a professional Chinese manufacturer and factory specialized in laser industrial equipment.

How long is the delivery time?

For standard machines, it is typically 7-14 days. For customized solutions, it ranges from 15 to 30 days depending on specific requirements.

How can I know if this machine is suitable for my needs?

Before ordering, we provide technical consultations. You can share your material and marking requirements, and our team will recommend the most suitable model.

What is your warranty policy?

The equipment includes a 12-month warranty from the date of debugging. The core laser generator component is covered by a 24-month warranty.

Do you provide technical assistance after purchase?

Yes, we offer comprehensive after-sales support, including assistance with machine installation and remote training for your operators.

What happens if a part malfunctions during the warranty period?

During the warranty period, faulty components can be returned for free repair or replacement, excluding consumable parts or damage caused by human factors.
