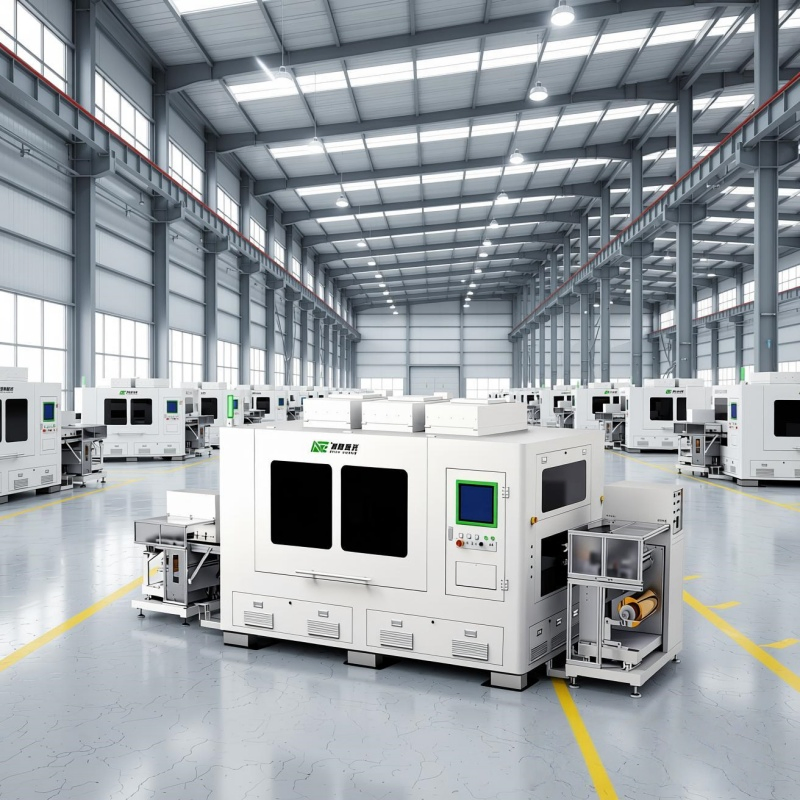

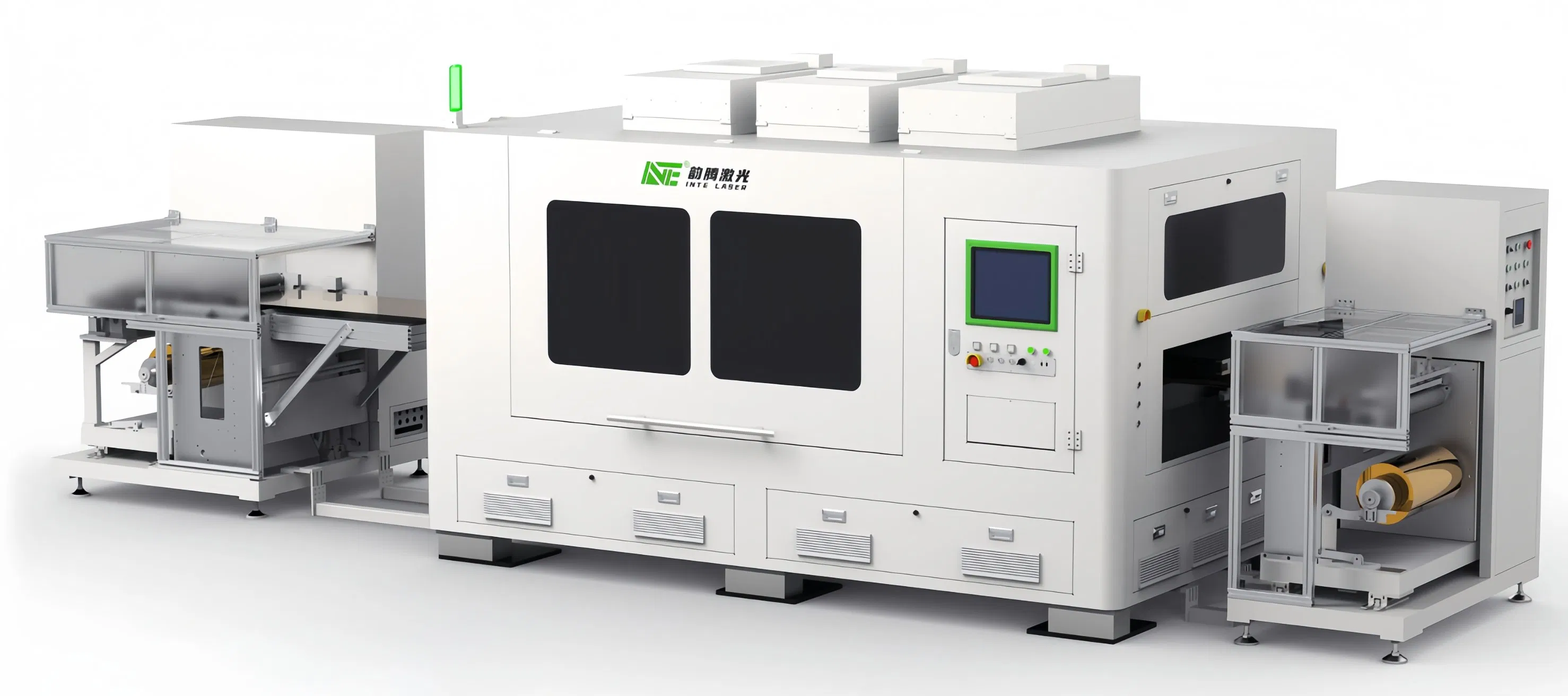

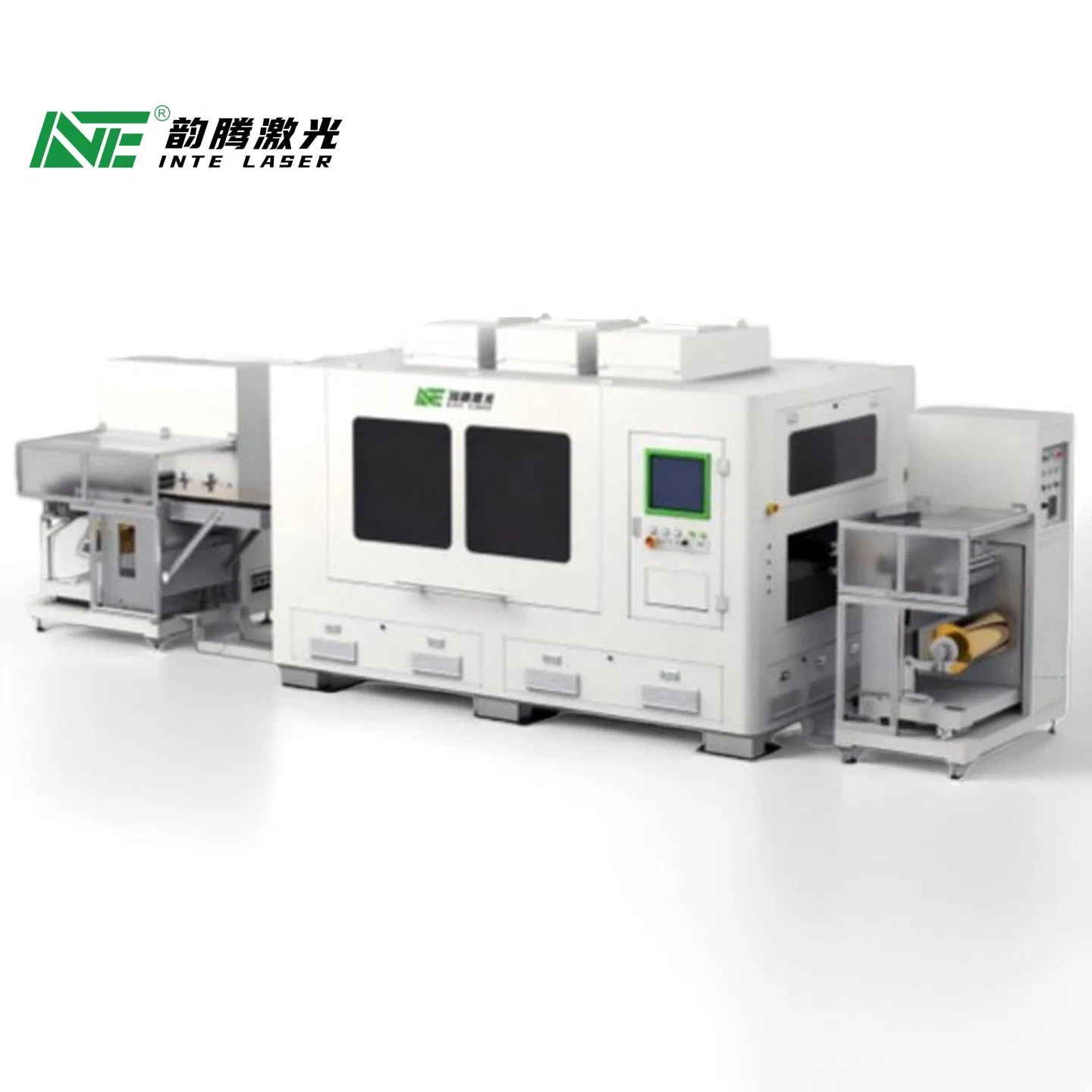

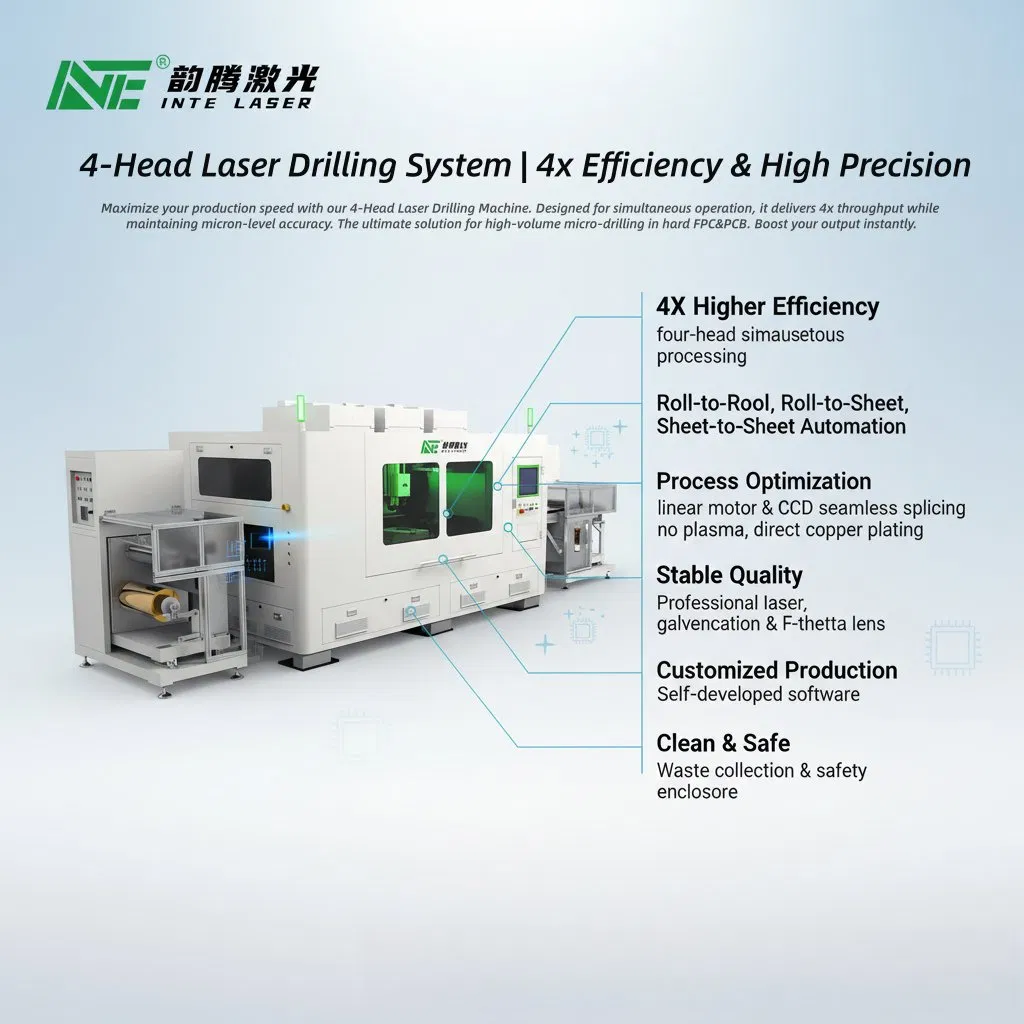

Advanced 4-Head Laser Drilling System: Cutting-Edge Technology for High-Speed PCB & Flexible Circuits

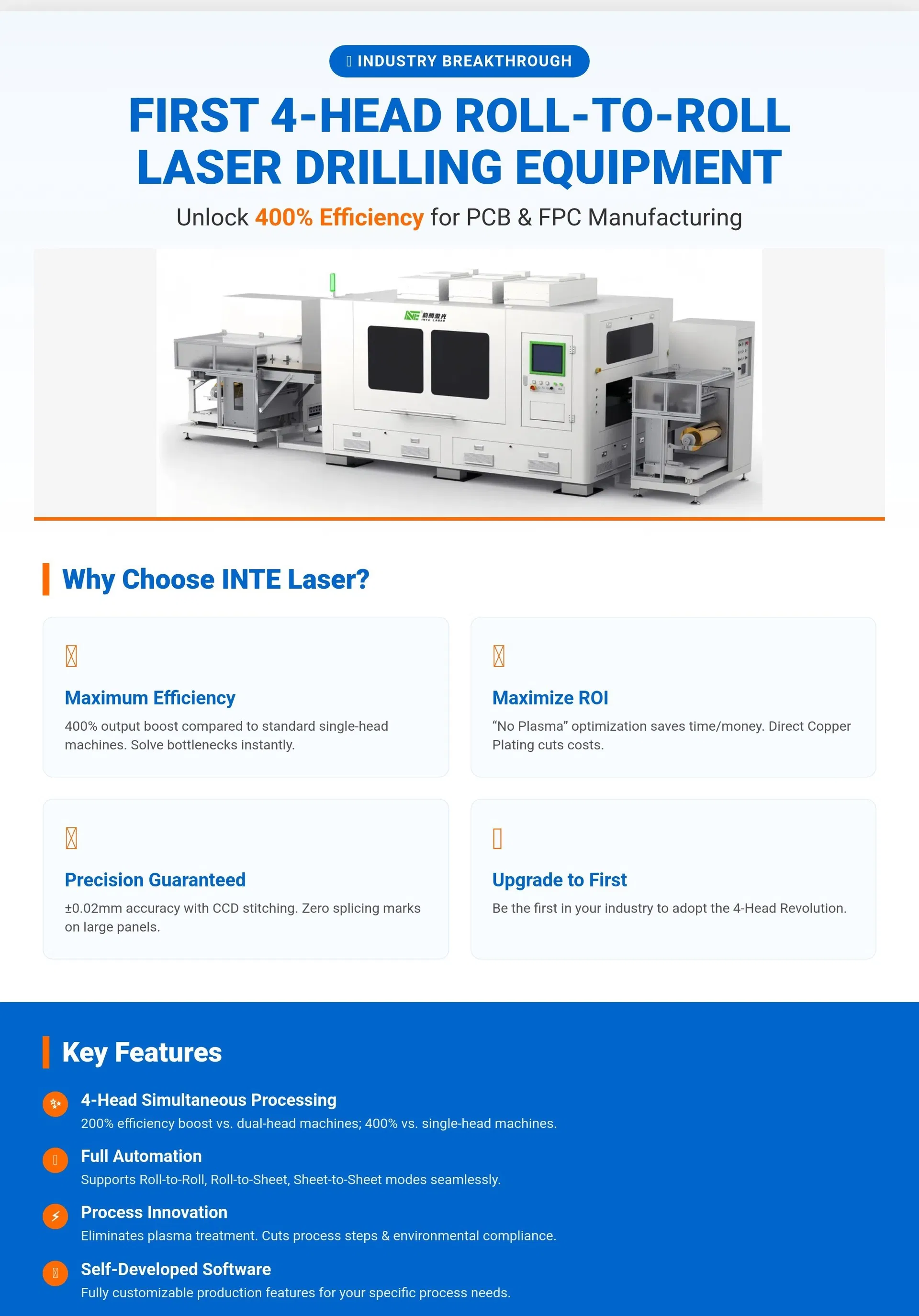

Industry-first multi-head technology delivers a 4x efficiency boost with simultaneous operation. Supports roll-to-roll, roll-to-sheet, and sheet-to-sheet automation. Featuring ±0.02mm accuracy and nanosecond/picosecond UV/green laser options, it is ideal for PCB, battery separator, and flexible circuit applications.
Breaks the efficiency bottleneck of traditional single-head equipment, enabling "one feed, four outputs" for massive productivity gains.
| Feature | Advantages | Business Benefit |
|---|---|---|
| 4-Head Synchronous | Four galvo scanners work simultaneously. | 4X Efficiency Boost & faster delivery. |
| Processing Flexibility | Handles Roll-to-Roll / Roll-to-Sheet / Sheet-to-sheet. | Maximize ROI for multiple markets. |
| ±0.02mm Precision | High-resolution servo motors & CCD vision. | Zero-Defect production & premium quality. |
| Picosecond UV Laser | "Cold" ablation with extremely small HAZ. | Superior hole quality without thermal damage. |
| Laser Type | Nanosecond UV, Picosecond UV, Picosecond green laser |
| Processing Area | 550mm × 1500mm (customized) |
| Machine Size | 7200mm × 2300mm × 2250mm |
| Accuracy | ±0.02mm |
| Electric Power | Main Unit +30kW Chiller +7kW Exhaust Fan +11kW |
| Machine Weight | 8000 KG |
| Environment | Humidity: 40% - 60%; Temperature: 22℃±2 |
Specializing in the independent research and development of laser generators, optical devices, and automation system integration. Providing innovative solutions for laser micromachining in industries such as PCB, semiconductors, and new energy batteries.
