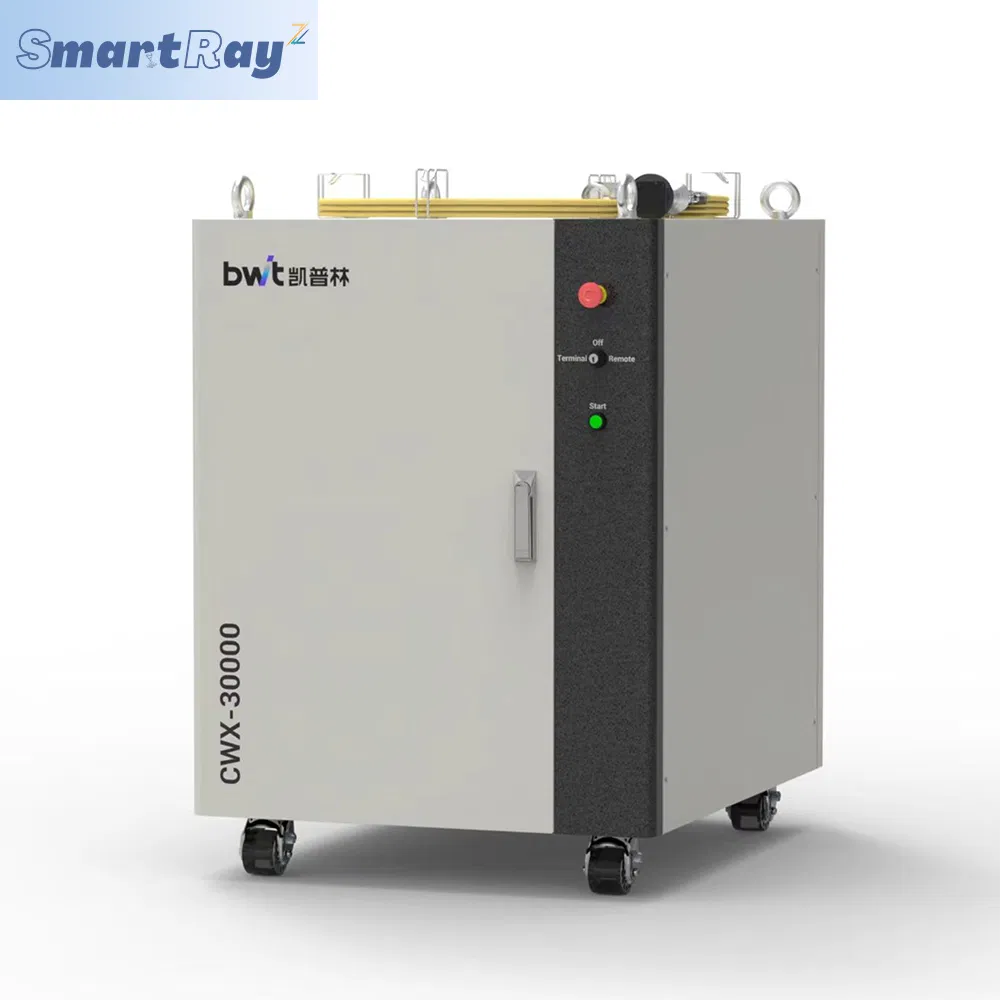

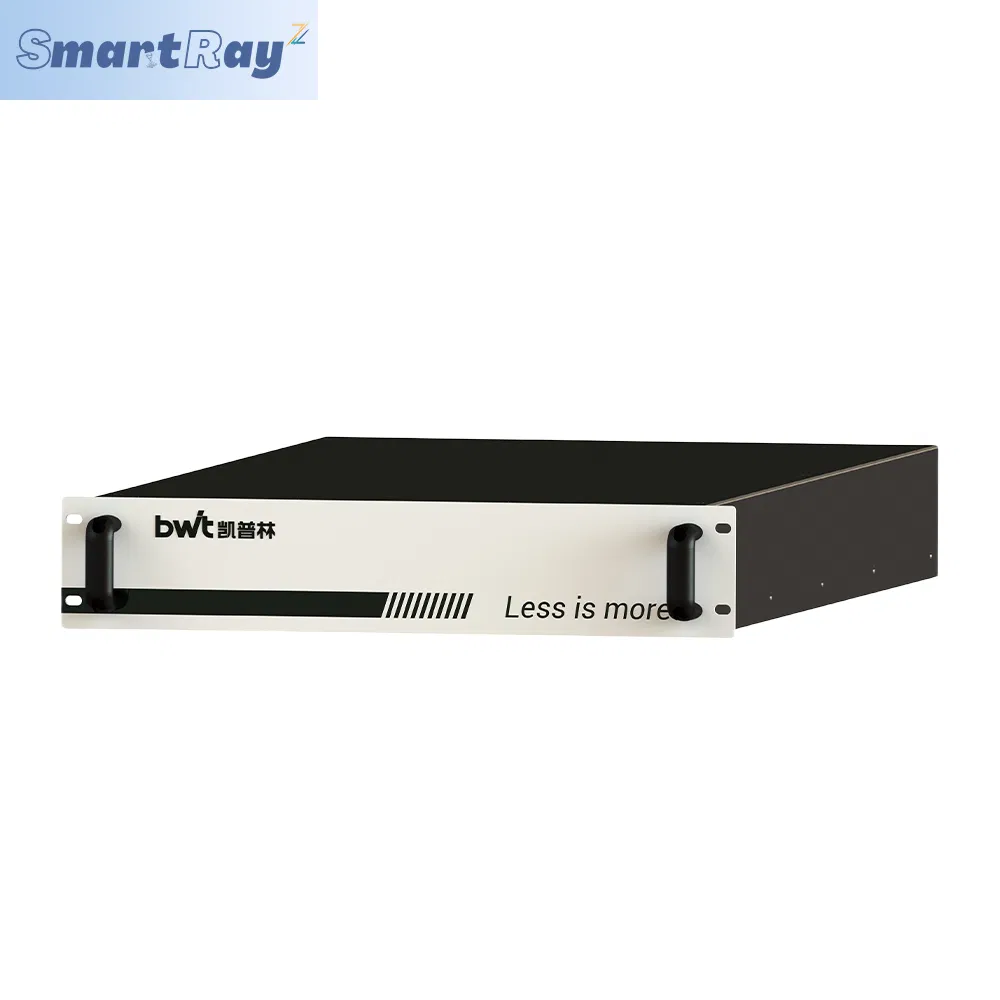

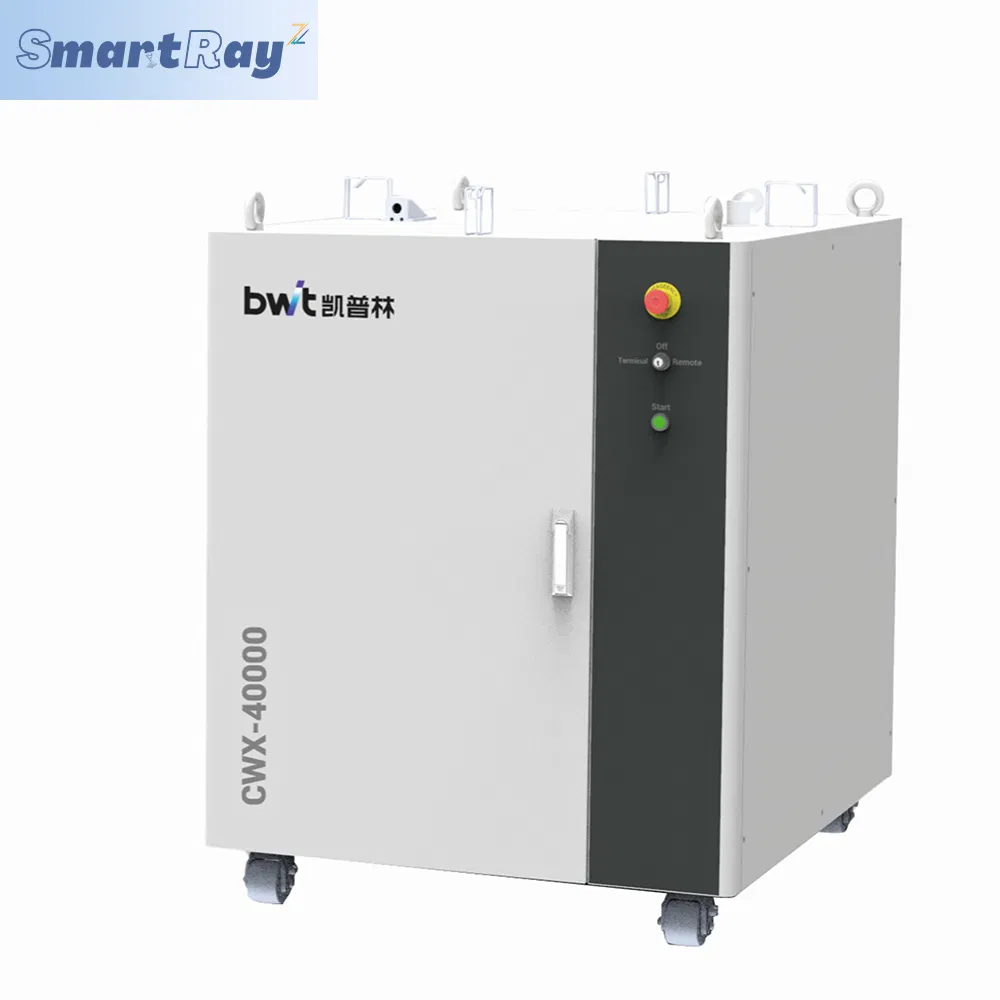

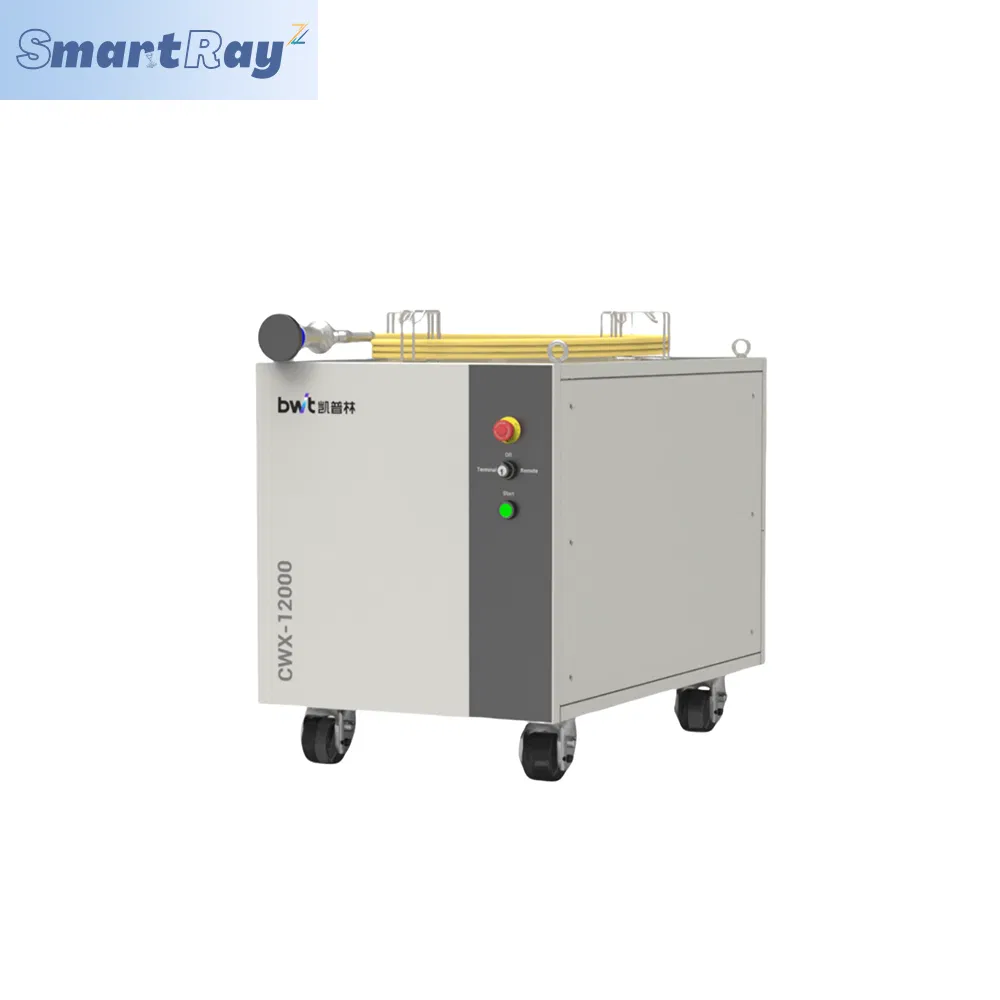

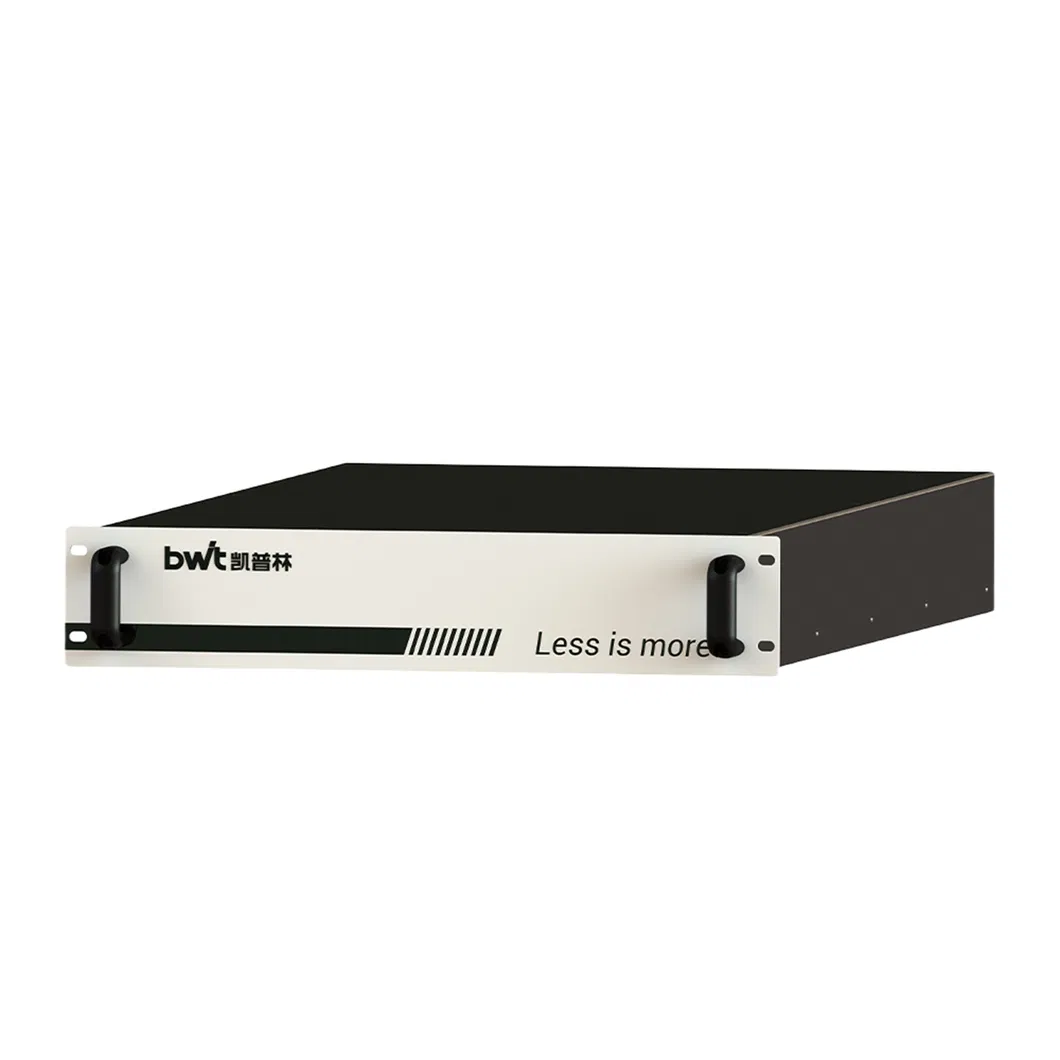

Advanced Smartray Bwt Fiber Laser System for Precision Cutting

Customization:	Available
Warranty:	2years
Package Type:	Carton Box

i

Basic Info

Model NO.

laser

Video Outgoing-Inspection

Provided

Delivery Time

7-15 Days

Laser Type

Bwt Laser Source

Sample

Yes

Working Voltage

220VAC

Mode

Single Module

Spare Parts Type

Fiber Laser Machine Parts

Power

1500W

MOQ

1PCS

Machinery Test Report

Not Available

Trademark

BWT

Origin

Shanghai

P

Product Description

Fiber Laser Nozzle
Diameter 28mm 32mm
$1.24 - 9.41

BOCI Original Protective Lens
D34T5 6kw - 40kw
$2.12 - 7.50

Laser Protective Glass
D20T2 20mm 1064nm
$0.90 - 7.95

O-Ring Washer
Dia 20 30 40 50
$1.74 - 5.88

Ceramic Rings
Dia 28 32mm
$1.79 - 4.05

Welding Nozzle
XH RF Handheld
$1.74 - 2.70

S

Specification List

Machine Characteristics

1Low cost, maintenance free

2Continuous and modulated pulse modes

3Excellent power stability

4Good beam quality for precision machining

5High electro-optical conversion efficiency

6Maximum modulation frequency up to 5 kHz

7Simple control interface

8Excellent system stability

Applications

✓Precision cutting & welding

✓Surface treatment & Drilling

✓Sheet metal processing

✓3D Printing (SLS/SLM)

✓Lithium Battery Production

Power	1500W
Wavelength	1080±10 nm
Cable Length	12 m or Customized
Beam Delivery	QBH or Customized
Guide Beam	Red
Operation Mode	Continuous or Modulated
Power Adjustment Scope	10%~100%
Max Modulation Frequency	5kHz
Voltage	Single Phase, 220V, AC, PE, 50/60Hz
Power Consumption	6.0kW

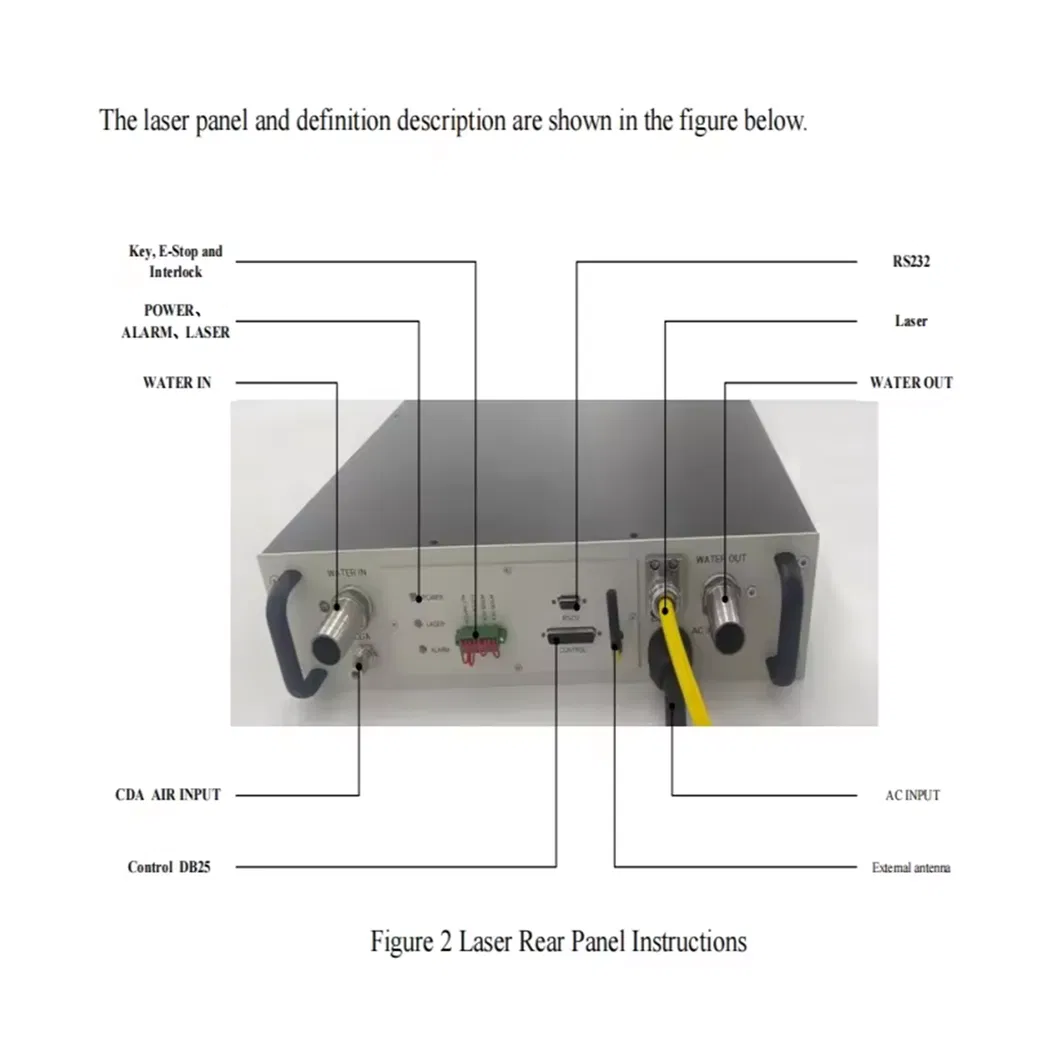

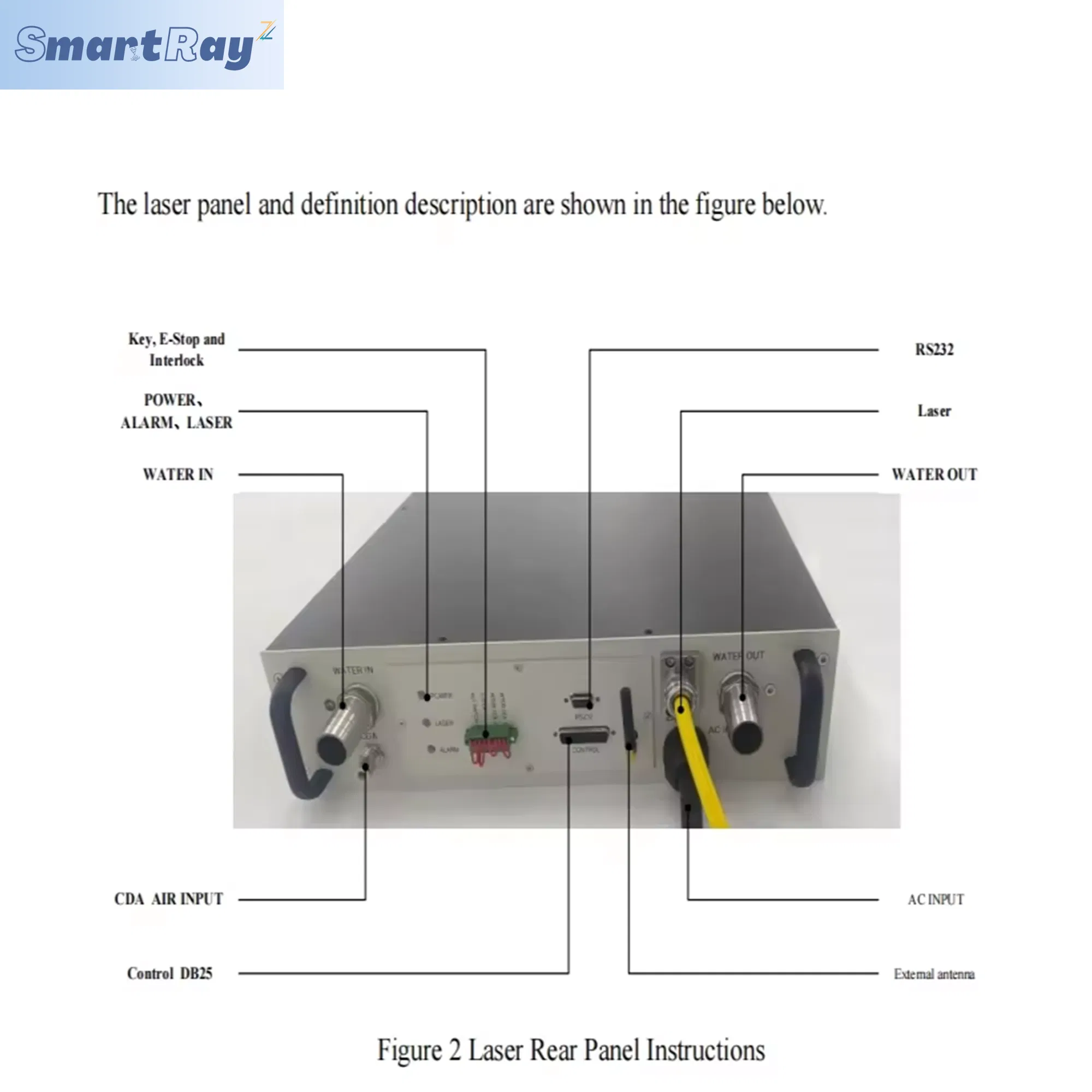

Control Interface	RS-232/AD
Weight	35kg
Outline Feature	153 mm * 482mm * 380mm

C

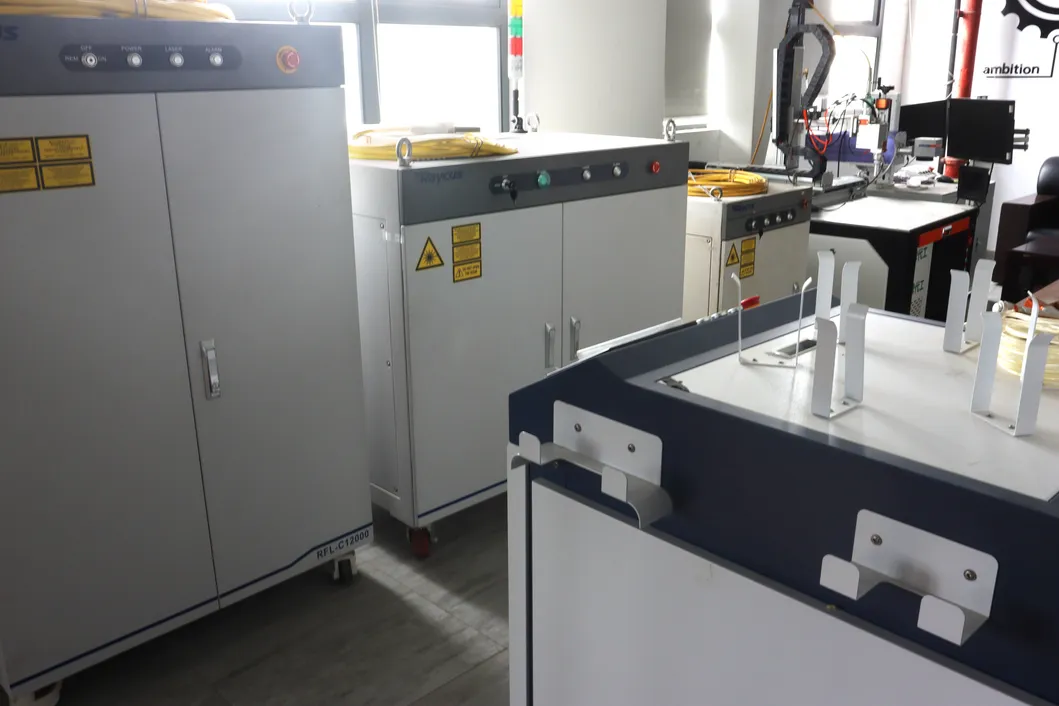

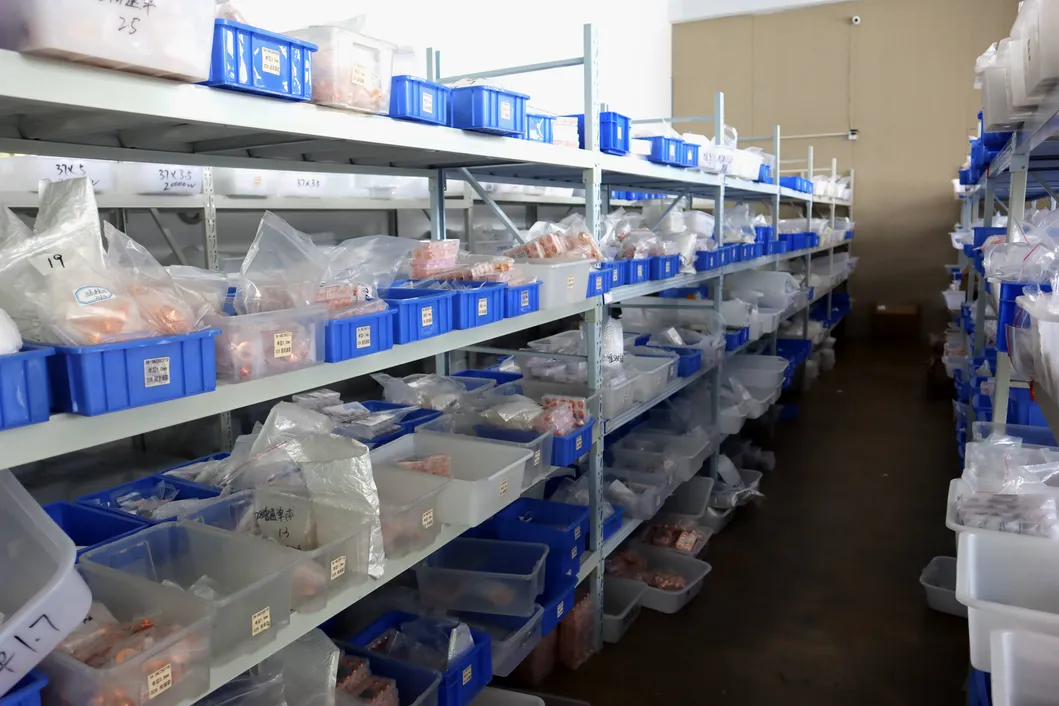

Profile

We are a manufacturing enterprise integrating production, research and development, and sales. Specialized in providing laser application solutions and laser accessories one-stop service for many years. Our team consists of engineering and technical personnel engaged in laser field demand analysis, supported by complete equipment and strong technical strength to provide high-quality products.

Our main business covers: laser cutting machine accessories, laser welding machine accessories, laser engraving machine accessories, and other equipment components including laser heads, protective lenses, nozzles, collimating focusing lenses, sensors, ceramic bodies, and radio frequency cables.

F

Frequently Asked Questions

What is your advantage?

We are a professional and reliable factory, selling and repairing all models of laser machines. Purchasing and OEM for consumable parts is welcomed. We can also retrofit machines for your demands.

What's your MOQ?

Stock items are available to order from 1-10 pieces. All new customers can benefit from competitive discounts regardless of the quantity purchased.

About trade terms and delivery time?

Normally T/T for bulk orders. Most goods are in stock with a delivery time of 1~3 working days depending on models and quantity.

How about the shipping?

We provide international Express door-to-door, Airline, and Ocean transportation. You can choose the shipping method you prefer based on cost and speed.

What are the payment terms?

We accept T/T (30% deposit, 70% before shipment), Trade Assurance, and 100% T/T in advance. For small orders, Western Union and Paypal are also accepted. For OEM, it is 50% deposit and 50% before shipment.
