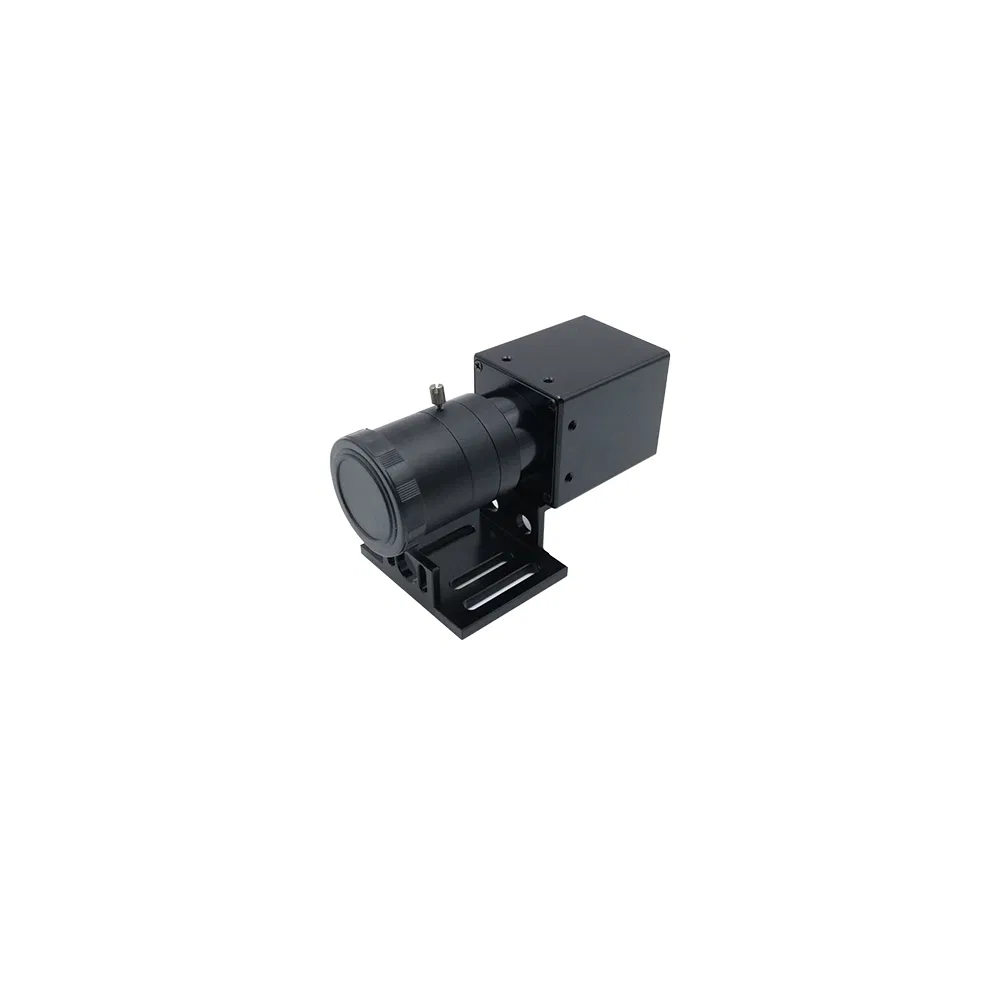

Advanced Visual CCD Laser Control System for Precision Cutting fabric

1 / 5

Advanced Visual CCD Laser Control System for Precision Cutting fabric

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ZY4164G-130

Type

Laser Control Card

Gross Weight

3kg

Product Materials

Plastic/Metal/Glass

Industrial Applications

Cardboard, Cloth, Leather, Acrylic, Wood

Advantages

Stable Performance, High Visual Accuracy, Edge Seeking

Power Supply

DC 24V Button Battery 3V

Software Environment

Windows (Except Vista)

Supported Formats

PLT, AI, DXF, DST, BMP, JPG, PNG

PWM Channel

0.1K-50K, Adjustable

Drive Capability

50mA

Origin

China

Product Overview & Advantages

Experience unparalleled precision with our cutting-edge product, offering stable performance that you can rely on. It boasts an impressive high-visual accuracy, seamlessly integrating the capabilities of edge seeking and template matching into one powerful tool.

⭐ High-Speed Camera

Choose between 1.3 megapixels or 5 megapixels industrial high-speed cameras with USB or Gigabit network interfaces.

⭐ Precision Alignment

Harness camera positioning with automatic template alignment cutting for ease of use.

⭐ Multi-Template Support

Identify up to 100 different templates simultaneously, boosting productivity and versatility.

⭐ Visual Positioning

Mark point function streamlines industry cutting processes with one-click coordinate generation.

⭐ Seamless Integration

Works with Photocopy Pass, Huicai, Ouke, and other professional studio software.

⭐ Versatile Cutting

Supports large graphics splicing, edge-seeking cutting, and adjustable LED light sources.

Product Application

Advanced Visual CCD Laser Control System

Industrial Applications: Versatile and adaptable, this product is perfect for materials including cardboard, cloth, leather, acrylic, wood, and more.

Detailed Specifications

Model Number	ZY4164G-130
Hardware Details

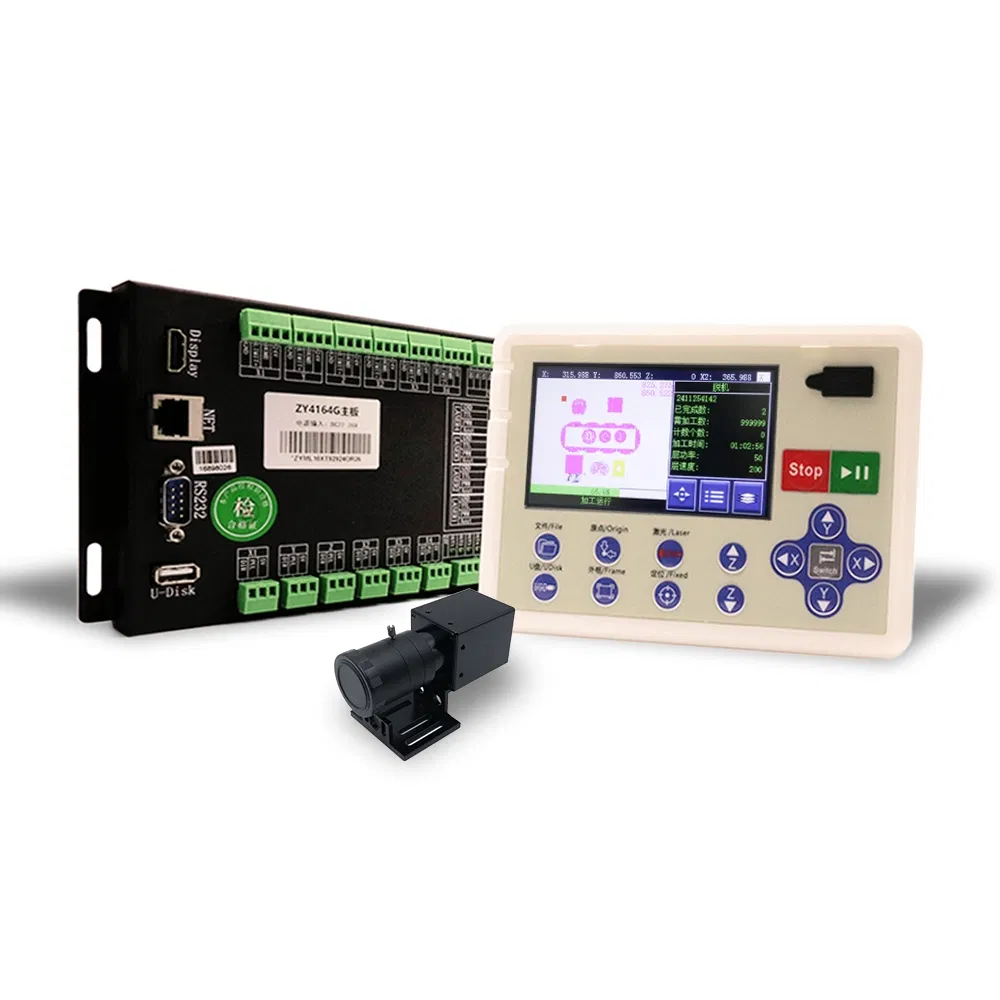

Camera (pixels)	1.3 million / 5 million

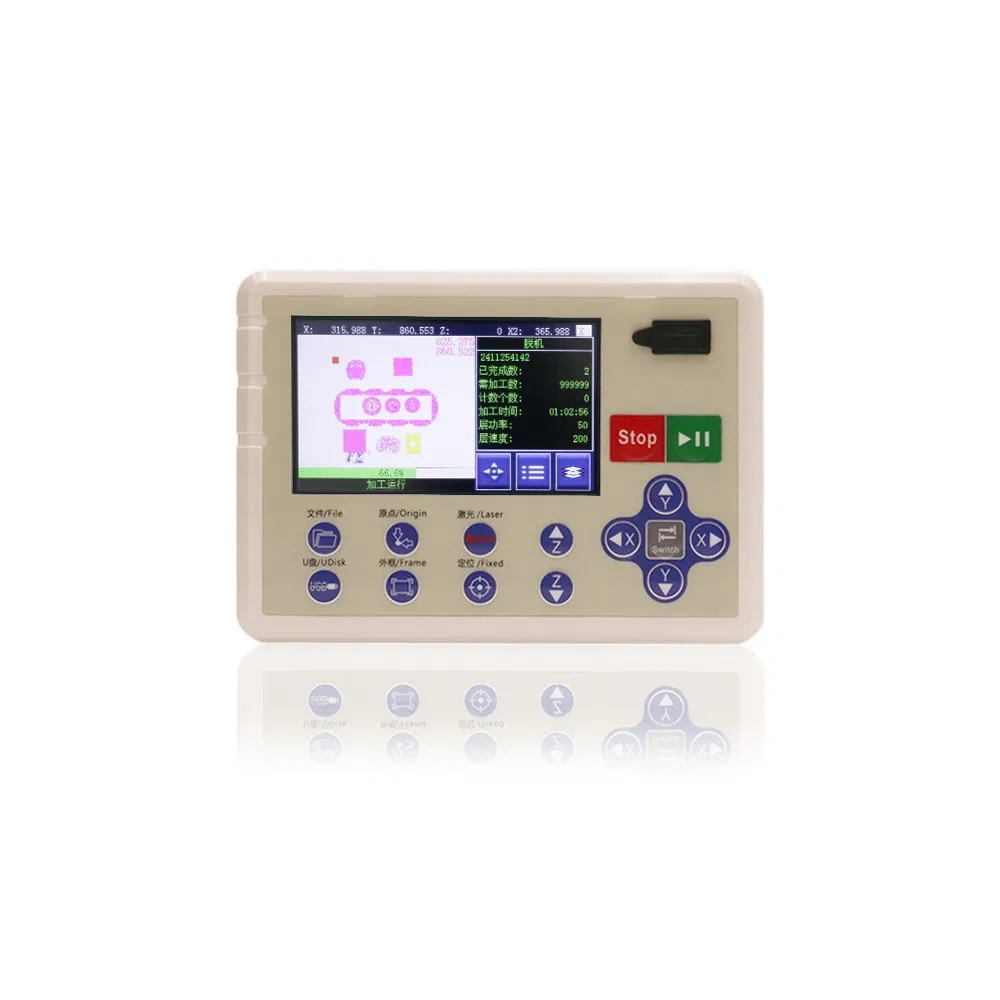

Screen Size	4.3 inches

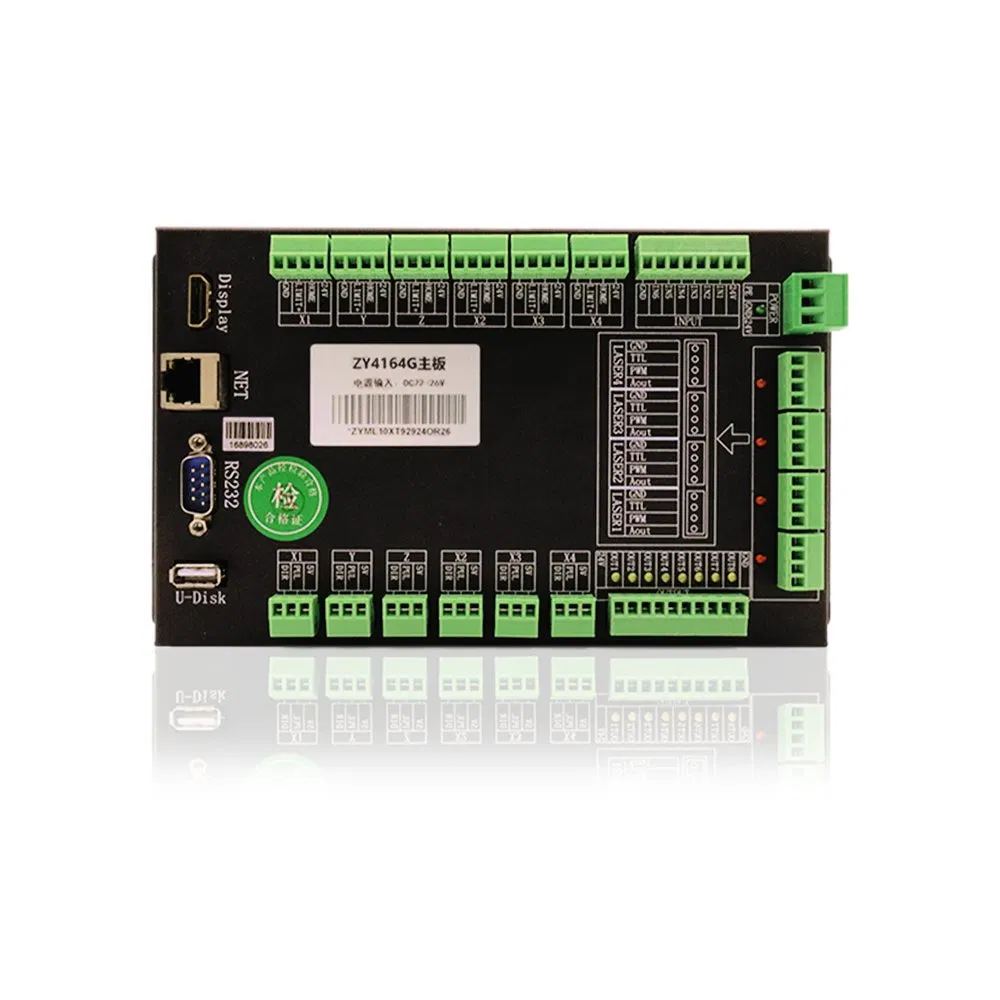

Universal Outlet / Input Port	8 Outlets / 6 Inputs
Control Axes	6-axis
Supported Lasers	4 Channels (Rf, CO2 Glass Tube)
Data Transmission	Network communication, U disk
Software & Logic Functions
Machine Vision / Counting	Supported
Z-axis Autofocus	Supported
Rotary Engraving / Mirror Cutting	Supported
Power off & Switch off Function	Supported
Multilingual Interface	Supported
Remote Control / IO Configuration	Supported

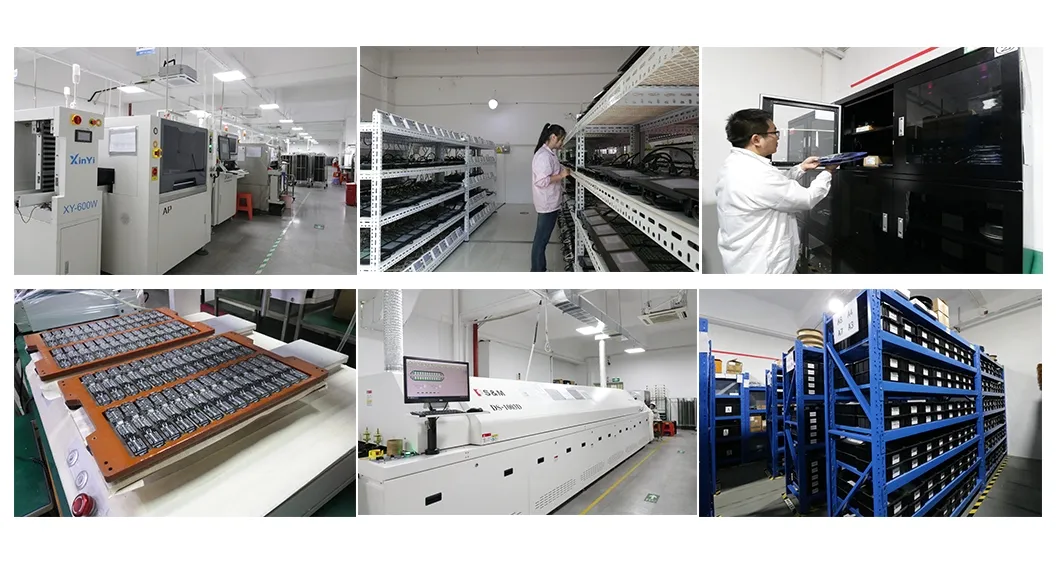

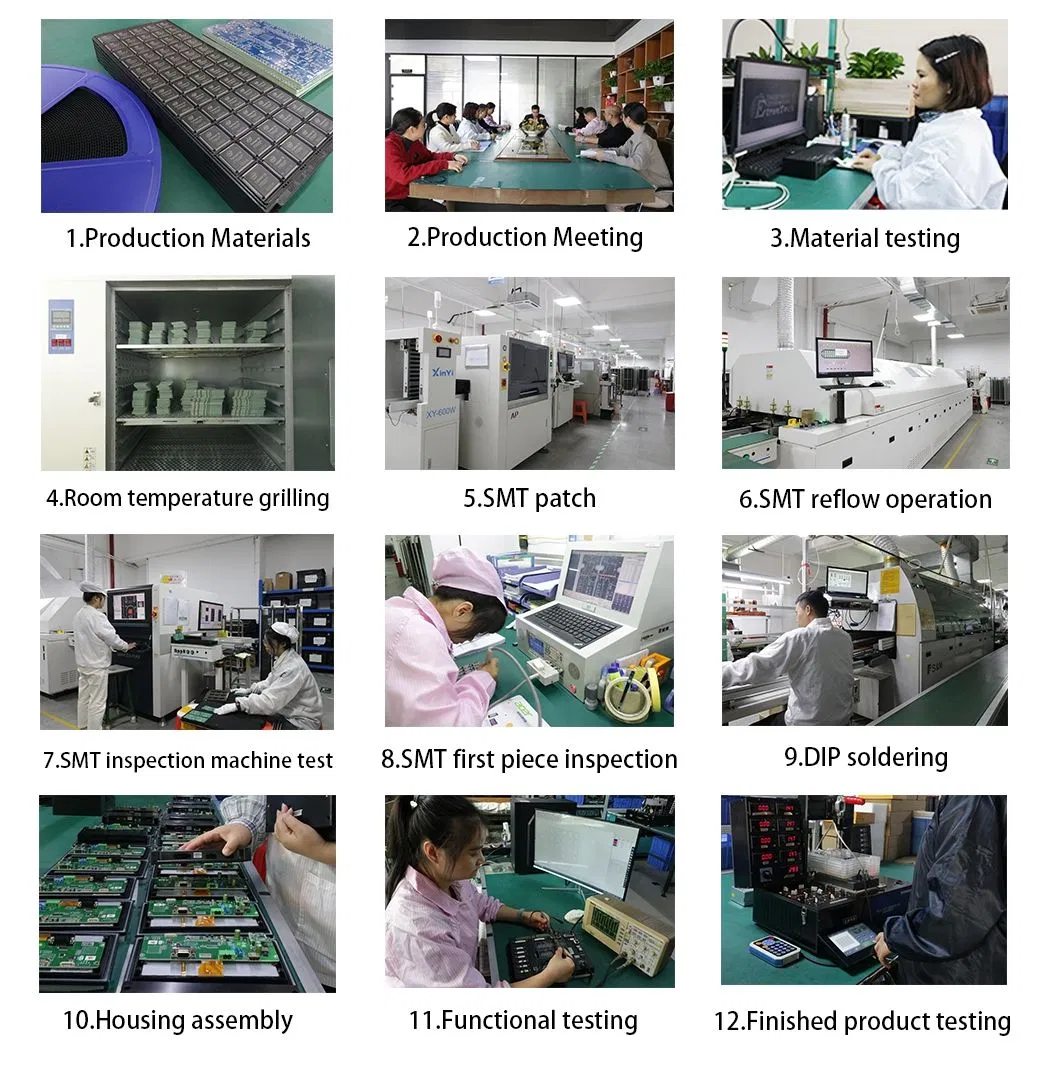

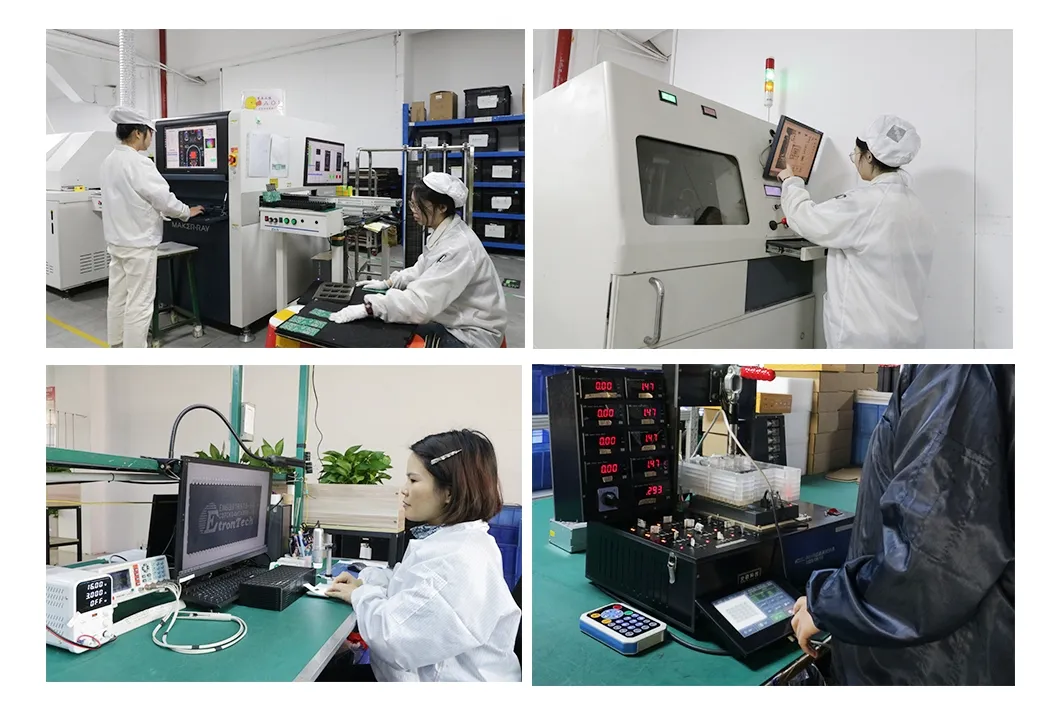

Production & Quality Control

Our commitment to excellence ensures that every product is meticulously tested by professional inspectors after production. We adhere to the highest standards to ensure precision and reliability in motion control and industrial automation.

Packaging & Logistics

Products are securely packed using protective materials such as foam-lined cartons and bubble bags to ensure pristine condition during transit. We offer flexible shipping via air freight, sea transport, and international express.

Frequently Asked Questions

Is your company a manufacturer or a trading company?

We are an industry-leading manufacturer and industry-trade integrated company. Since 2012, we have focused on R&D for motion control systems, industrial automation, and visual intelligent identification.

What is the cutting accuracy of the laser controller?

The precision of our non-metal laser cutting controller is unparalleled, with positioning accuracy reaching 0.001mm, achieved through sophisticated control algorithms and robust mechanical integration.

What types of materials can be processed?

Our technology supports a broad spectrum of non-metallic materials, including acrylic, wood, leather, plastic, and fabric. Parameters like laser power and speed can be tailored for each material type.

Can the laser power be adjusted in gradients?

Yes. Our advanced controllers facilitate nuanced laser power gradients, allowing users to configure parameters such as start/end power and gradient distance for intricate designs.

What international certifications do your products have?

Our products are designed to meet global standards, including CE (EMC & LVD), FCC, and RoHS certifications, ensuring safety, electromagnetic compatibility, and environmental protection.

What kind of after-sales technical support is provided?

We offer comprehensive remote support through digital channels, including email, instant messaging, and remote desktop tools for software troubleshooting. Each package also includes a detailed user manual.
