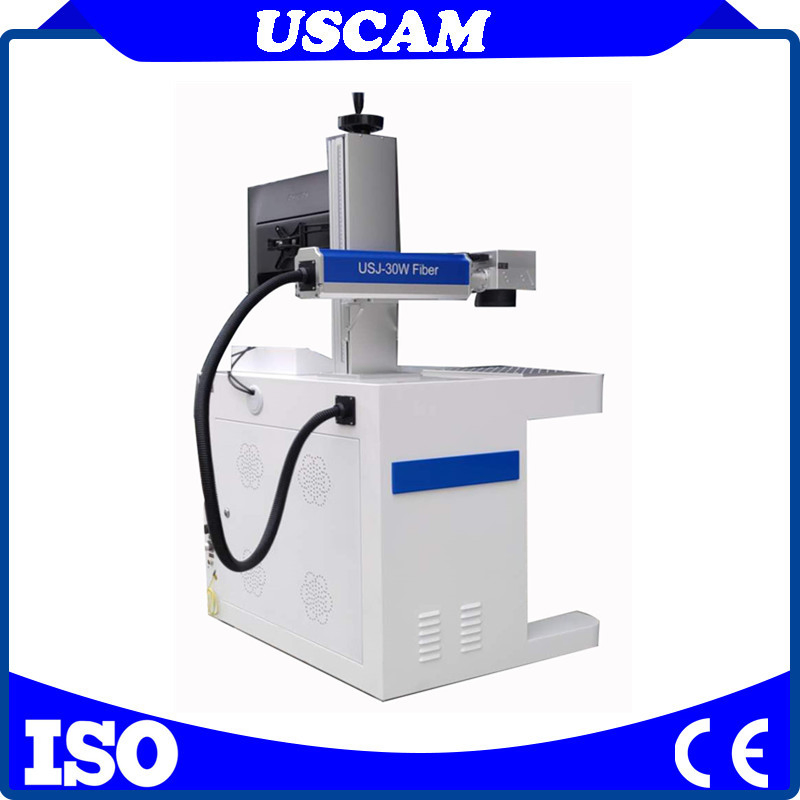

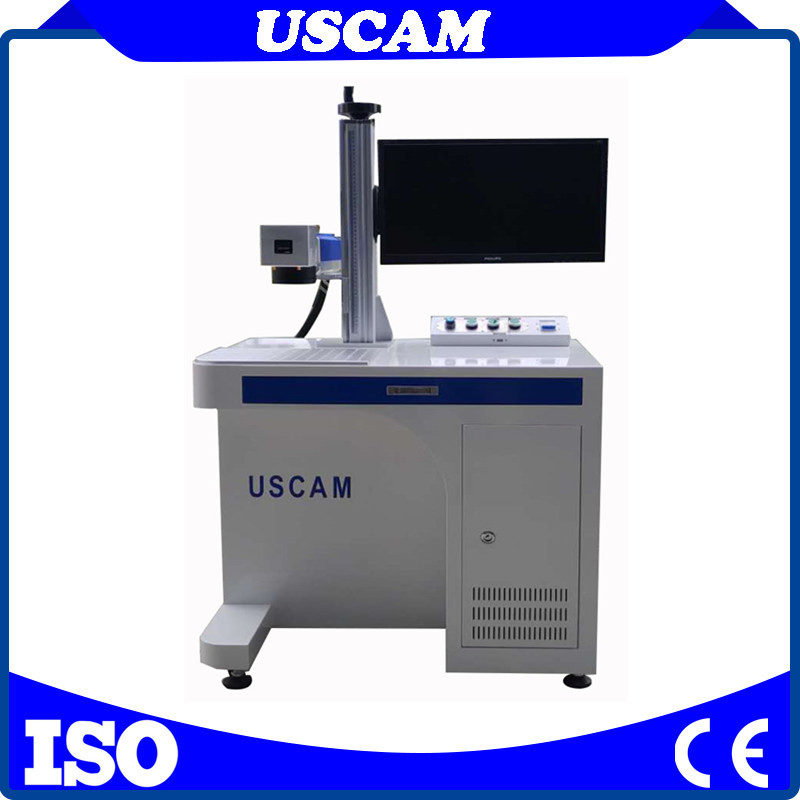

20W 30W 50W CNC Fiber Raycus Qb Series Diode Pump Fiber Laser Marking System

1 / 5

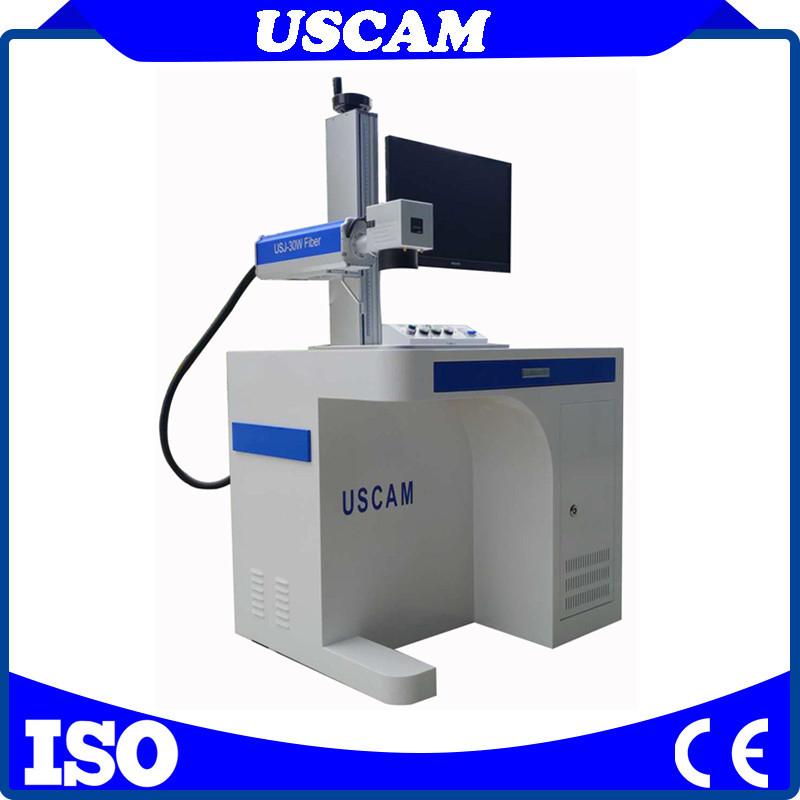

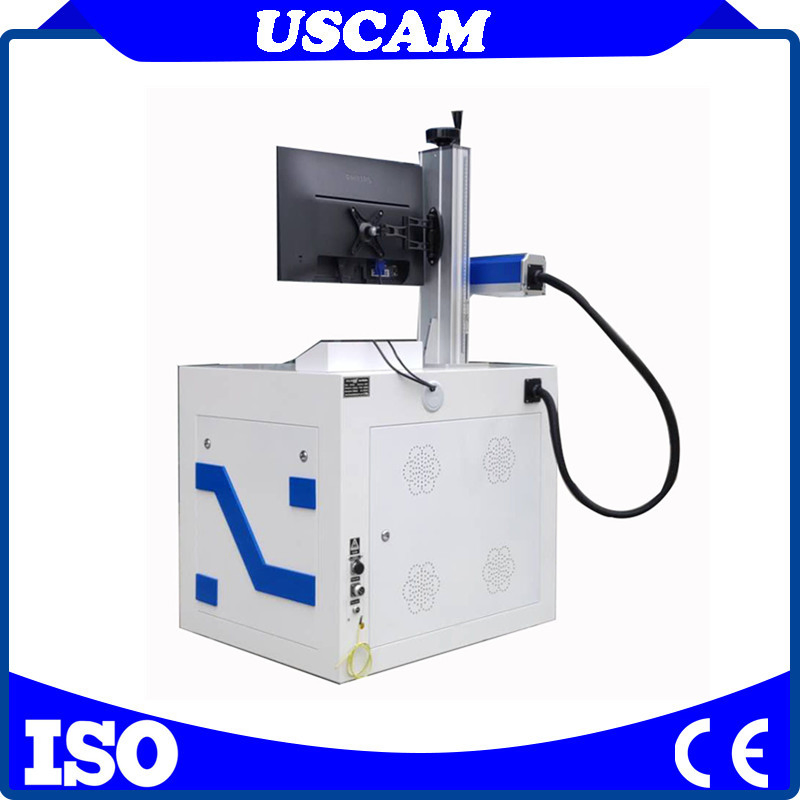

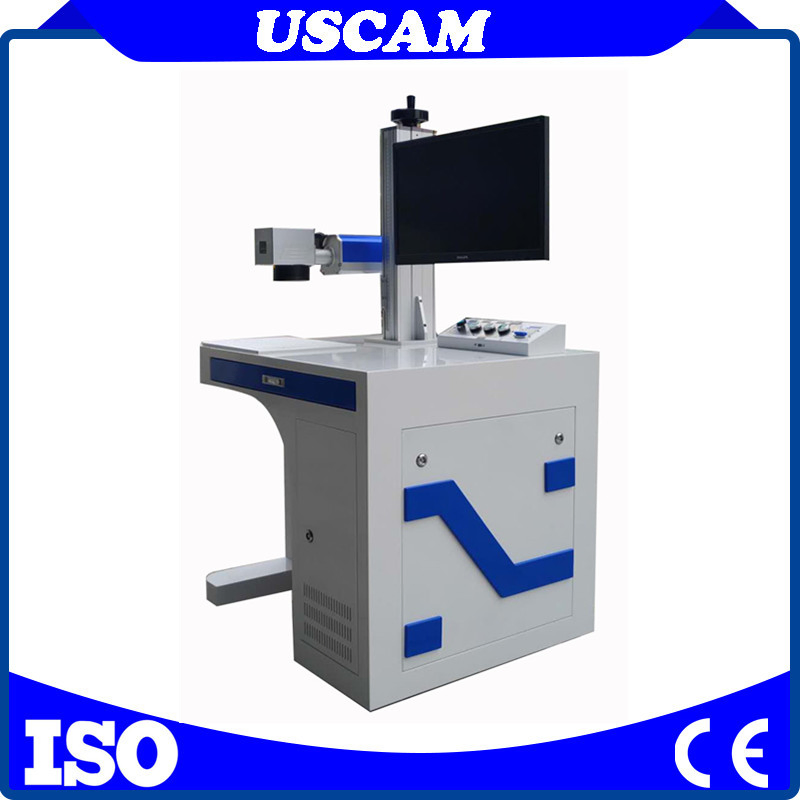

20W 30W 50W CNC Fiber Raycus Qb Series Diode Pump Fiber Laser Marking System

Customization:	Available
After-sales Service:	2 Years (Help Service Is for Whole Life)
Warranty:	2 Years (Help Service Is for Whole Life)

Send Inquiry

Product Description

Basic Specifications

Model

USJ-20w/30w/50w/100w

Laser Visibility

Visible

Applicable Material

Metal and Non-Metal

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser (1064nm)

Marking Method

Scanning Marking

Laser Power

20W / 30W / 50W / 100W

Power Brand

Raycus (Optional: JPT/IPG/MAX)

Marking Area

110x110mm to 400x400mm

Software

Original Ezcad

Laser Life

100,000 Hours

Control Card

Original BJJCZ

Voltage

110V/220V, 50Hz/60Hz

Product Description & Working Principle

Fiber laser marking machines use high-intensity laser beams to permanently mark surfaces. By evaporating surface material or causing chemical/physical changes, it exposes deeper layers to create exquisite patterns, trademarks, characters, and barcodes. This system is ideal for high-precision requirements in electronic components, ICs, hardware, jewelry, and auto parts.

Key Benefits: Compact size, air-cooled (no water required), maintenance-free, and exceptional beam quality.

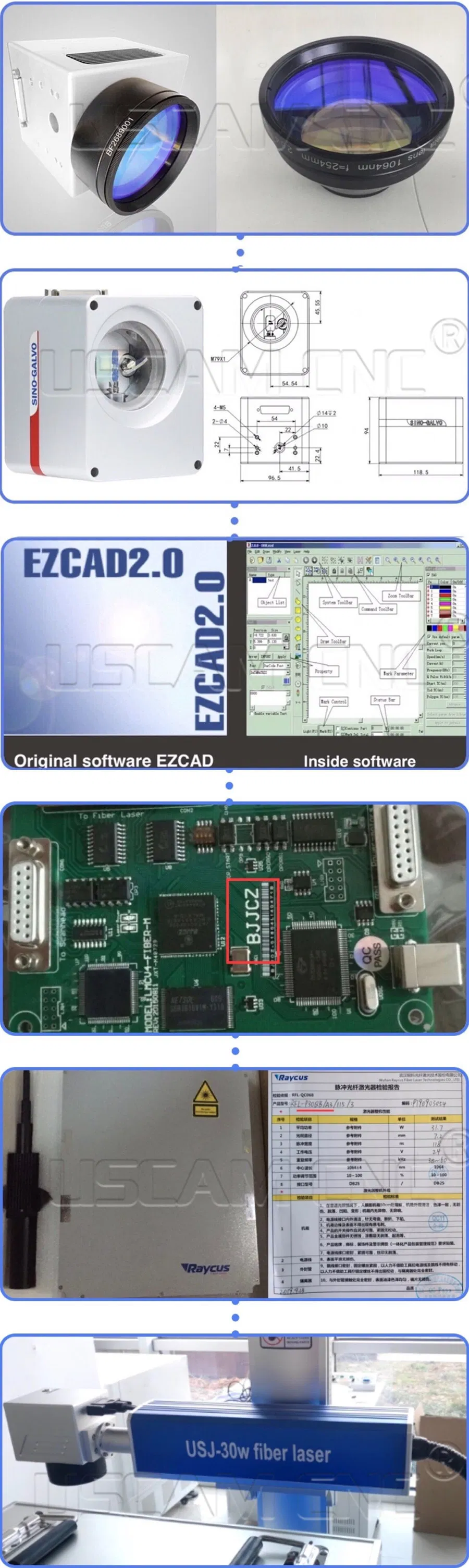

Standard Configuration

🔹 Working Area: 110*110mm / 200x200mm / 300x300mm / 400x400mm
🔹 Laser Source: 20w/30w/50w/100w Raycus QB (Optional: JPT/MAX/IPG)
🔹 Control System: Original BJJCZ with EZCAD Software
🔹 Cooling: Advanced Air Cooling System
🔹 OS Support: Windows 7 / 8 / 10 (32bit/64bit)
🔹 Warranty: 24 Months Quality Guarantee

Technical Parameters

Feature	Details
Marking Speed	≤7000mm/s
Response Time	0.5ms
Pulse Frequency	20-100KHz
Max Marking Depth	≤0.4mm
Min Line Width	0.01mm
Repeatability Accuracy	±0.002mm
Graphic Formats	BMP, JPG, GIF, TGA, PNG, AI, DXF, PLT, etc.

Application Industries & Materials

Widely used in electronic components, integrated circuits, tools, precision instruments, aerospace, PVC pipes, food packaging, and high-volume production lines.

Material Group	Fiber Laser (1064nm)	CO2 Laser (10.64um)
Metals (Aluminium, Steel, Brass)	✅ Yes	❌ No
Wood / Leather	❌ Limited	✅ Yes
Acrylic / Glass	❌ No	✅ Yes
Plastics (ABS, PET, Nylon)	✅ Yes	✅ Yes

Quality Assurance & Service

🛡️ 24-Month Warranty: Main parts (excluding consumables) replaced free of charge during the warranty period.

🛠️ Lifetime Support: Free technical support and professional Q&A even after the warranty expires.

🌍 Certifications: All machines are CE and FDA certified for international standards.

Frequently Asked Questions

How do I choose the right lens for my marking needs?

The choice depends on your required marking area. For example, the F160 lens is for 110x110mm, while the F290 lens covers 200x200mm. Note that larger lenses might require higher laser power for optimal results.

What materials are compatible with the Fiber Laser?

Fiber lasers are primarily designed for all types of metals (stainless steel, aluminum, brass, etc.) and many non-metal materials like ABS, PVC, and carbon fiber.

Is special training required to operate the machine?

The machine comes with an English manual and operation videos. Most users can master the software (Ezcad) quickly. We also provide free training at our facility if needed.

Does the machine require a cooling system?

This system uses a high-efficiency Air Cooling system, which means it is more compact and requires less maintenance compared to water-cooled systems.

What is the life expectancy of the laser source?

The fiber laser source has an exceptionally long lifespan of approximately 100,000 hours under normal operating conditions.

What are the payment and shipping processes?

Standard terms are 30% T/T in advance and 70% before delivery. Once production is finished, we provide test videos and pictures before you settle the balance and shipping is arranged.
