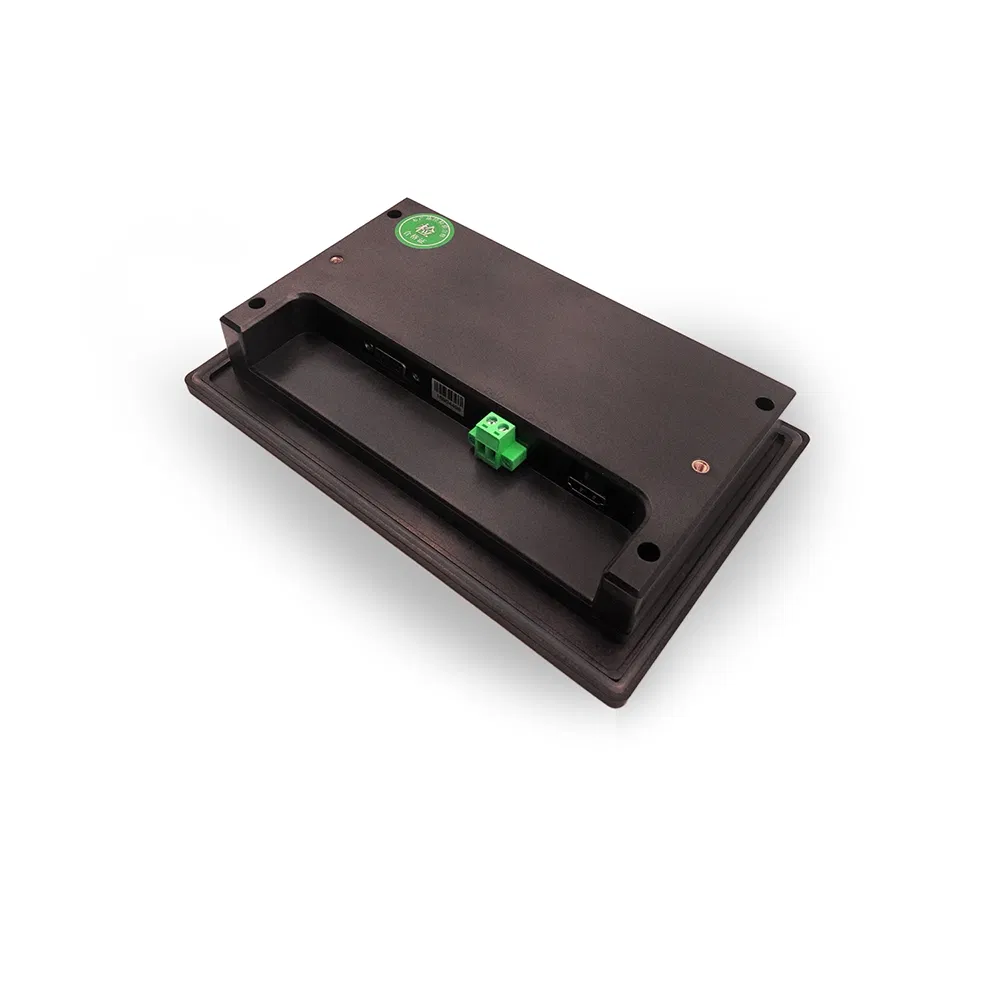

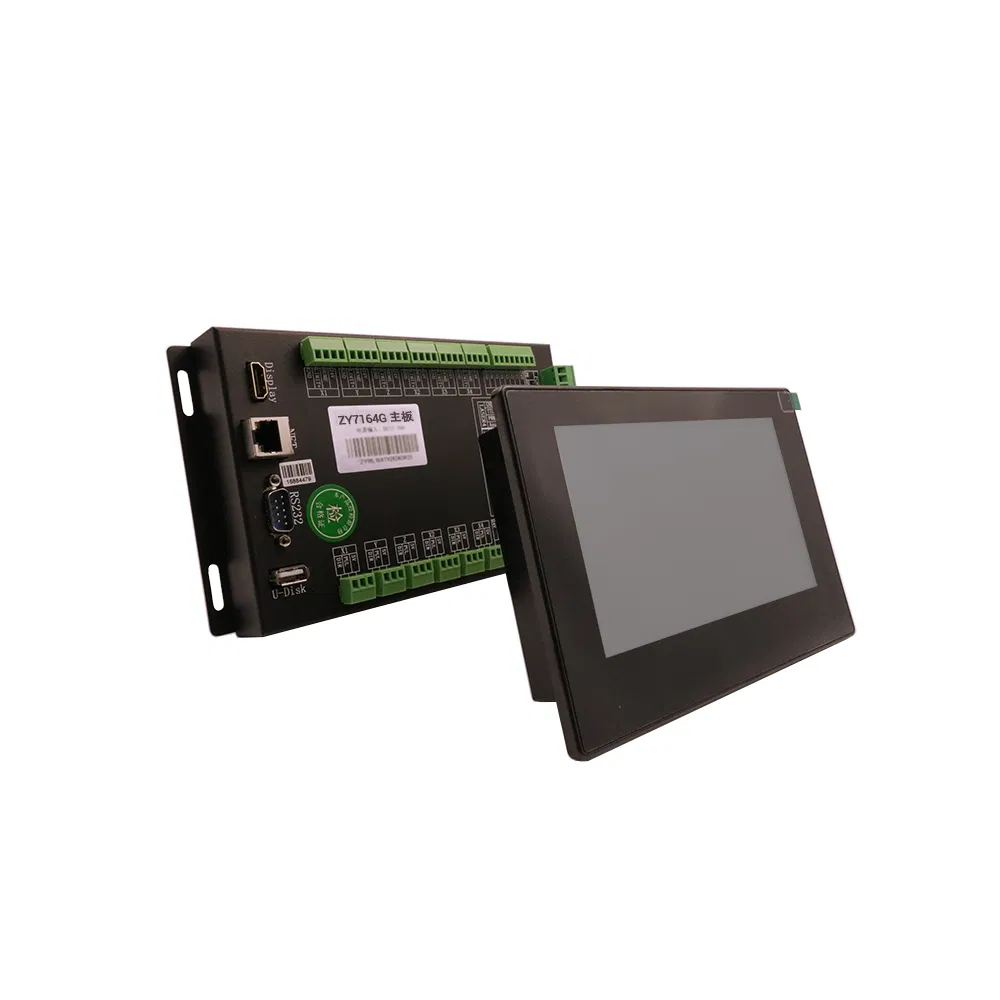

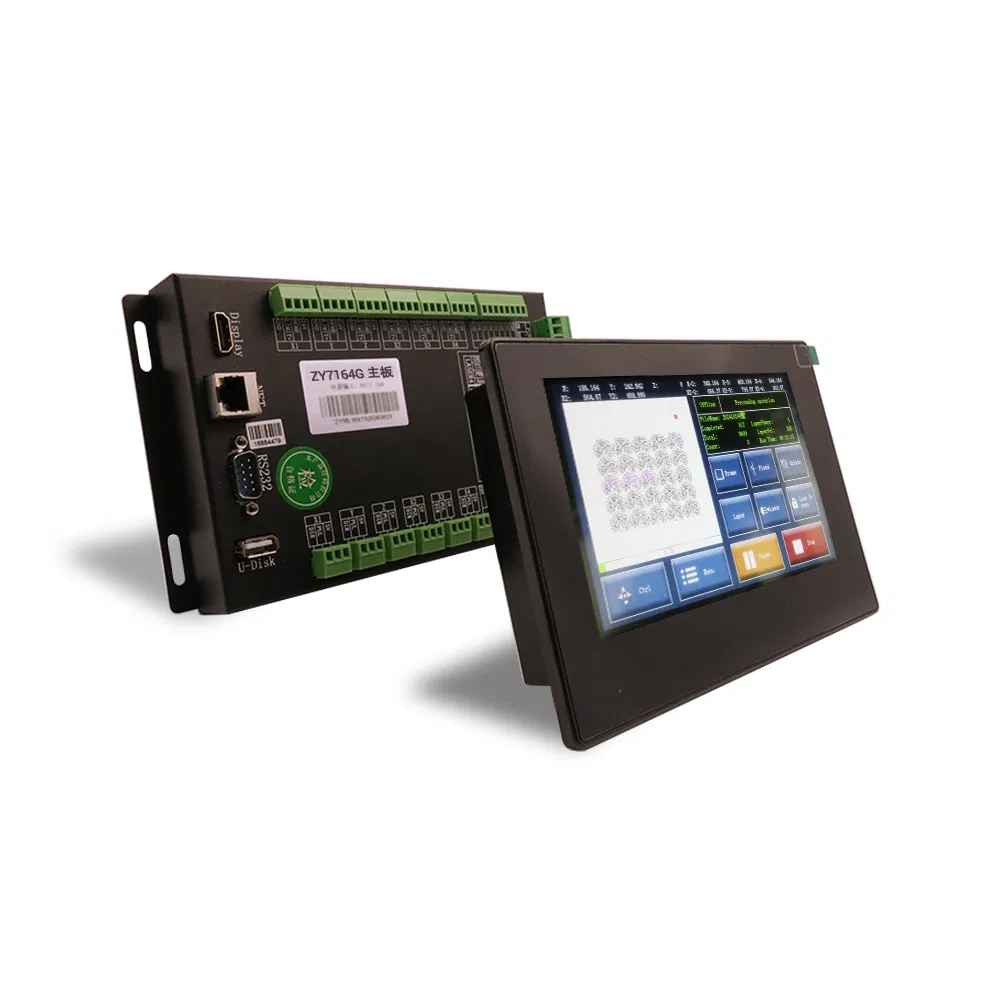

ZY7142G Laser Cutting Engraving Control System and Engraving

Basic Info.

Model NO.ZY7142G

TypeLaser Control Card

Packing Size260*210*90mm

Gross Weight2kg

Product MaterialsPlastic/Metal/Glass

Industrial AppsCardboard, Cloth, Leather, Acrylic, Wood

Power SupplyDC 24V / Button Battery 3V

Software Environ.Windows (Except Vista)

Supported FormatsPLT, AI, DXF, DST, BMP, JPG, PNG

PWM Channel0.1K-50K, Adjustable

Production Capacity10000 sets/Year

HS Code8537101101

Product Features & Advantages

1Support PLT, AI, DXF, JPG, JPEG and other file formats.

2Functions for smoothing graphics, filtering repeated lines, and closing graphics.

3Flexible path planning according to layers, starting points, and directions.

4Speed planning with real-time modification of processing power on the panel.

5Intelligent feeding system with automatic deviation correction for splicing quality.

6Supports large graphics processing with automatic split screen functionality.

7Intelligent interrupt function to ensure minimum interruptions and high quality.

8Supports multi-head, intelligent split, and mirror processing.

9Intelligent typesetting based on column spacing to maximize material saving.

10Supports single/double belt and multi-head intermovement modes.

11Convenient and simple projection calibration operation.

12High-precision algorithm with error as low as one pixel for accurate alignment.

Advantages: Stable performance; Low cost; Advanced image processing mode.

Product Application

Detailed Specifications

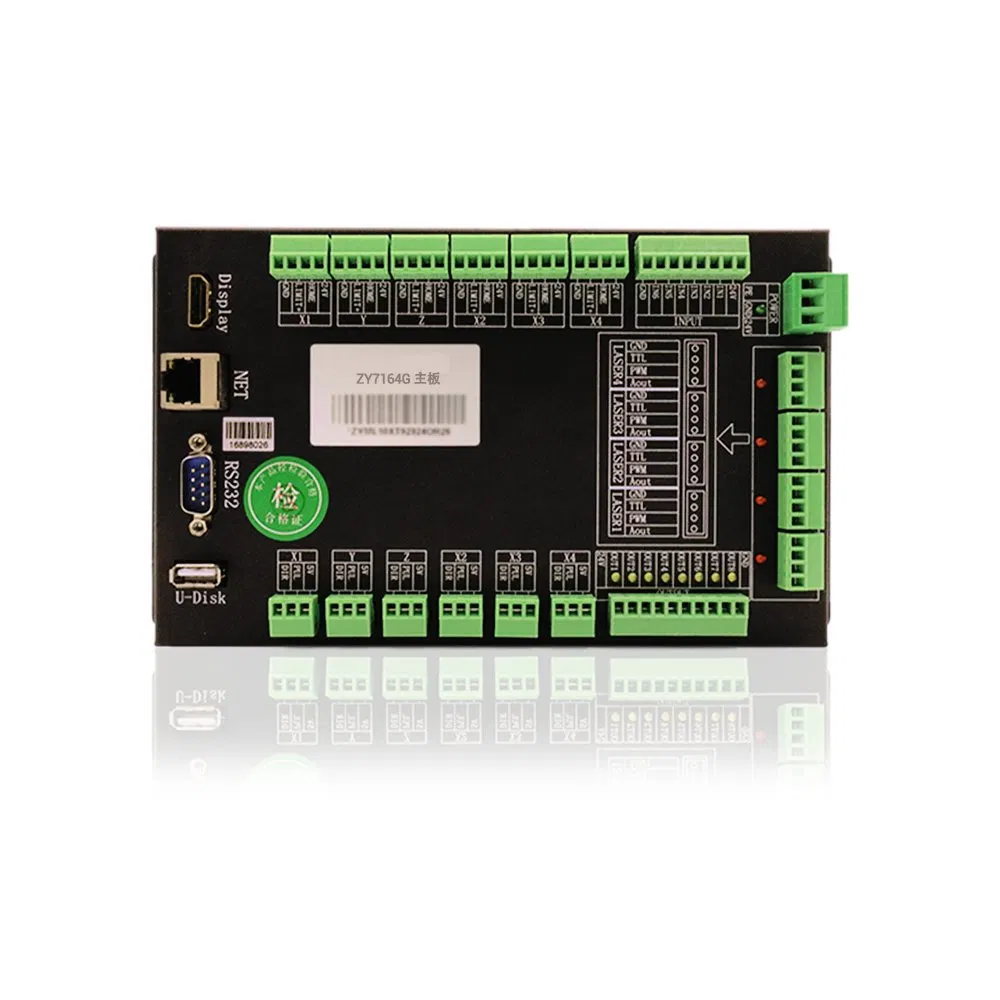

Hardware Configuration

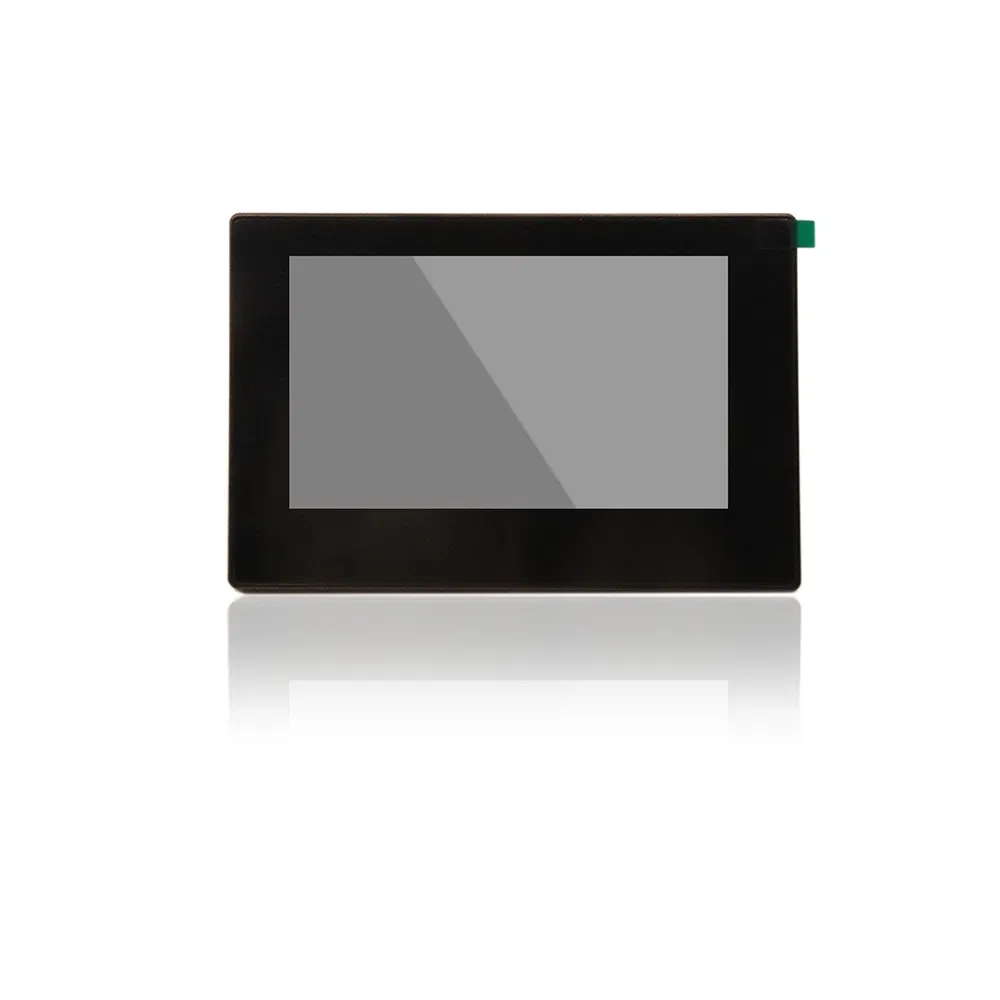

Screen Size	Seven inches
Control Axes	4-axis
Laser Support	RF laser, CO2 glass tube laser (up to 2)
Disk Space	500 MB
Data Transmission	Network communication, USB disk
System Functions
Diagnosis & Counting	Input-output diagnosis / Counting support
Autofocus & Positioning	Z-axis autofocus / Precision visual positioning
Special Cutting	Rotary engraving, Mirror cutting, Super format cutting
Feeding System	Automatic feed / Synchronous feed support
Multilingual	Support for all major languages

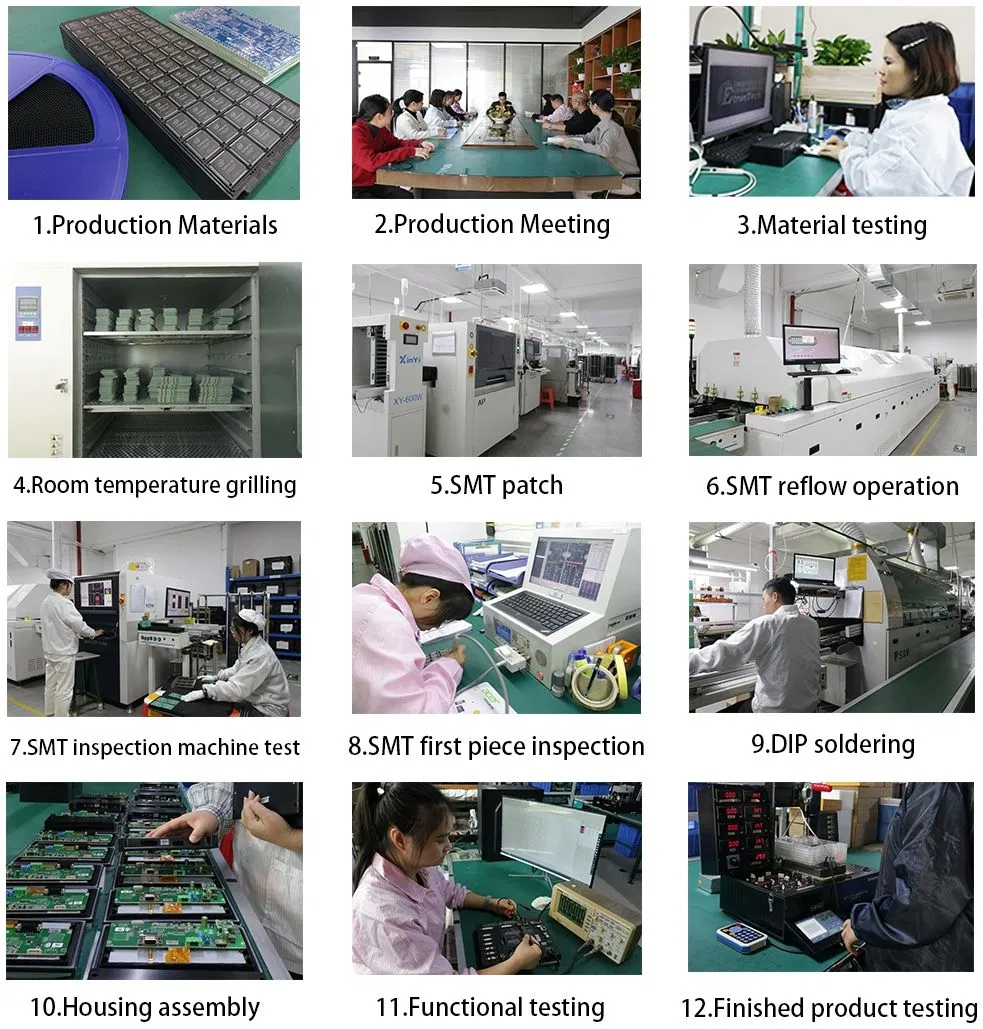

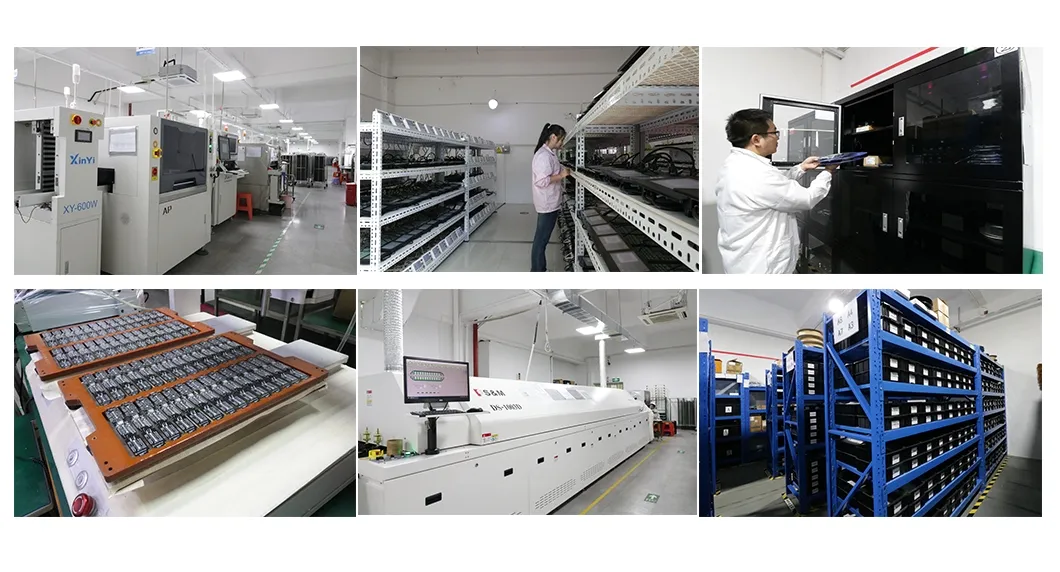

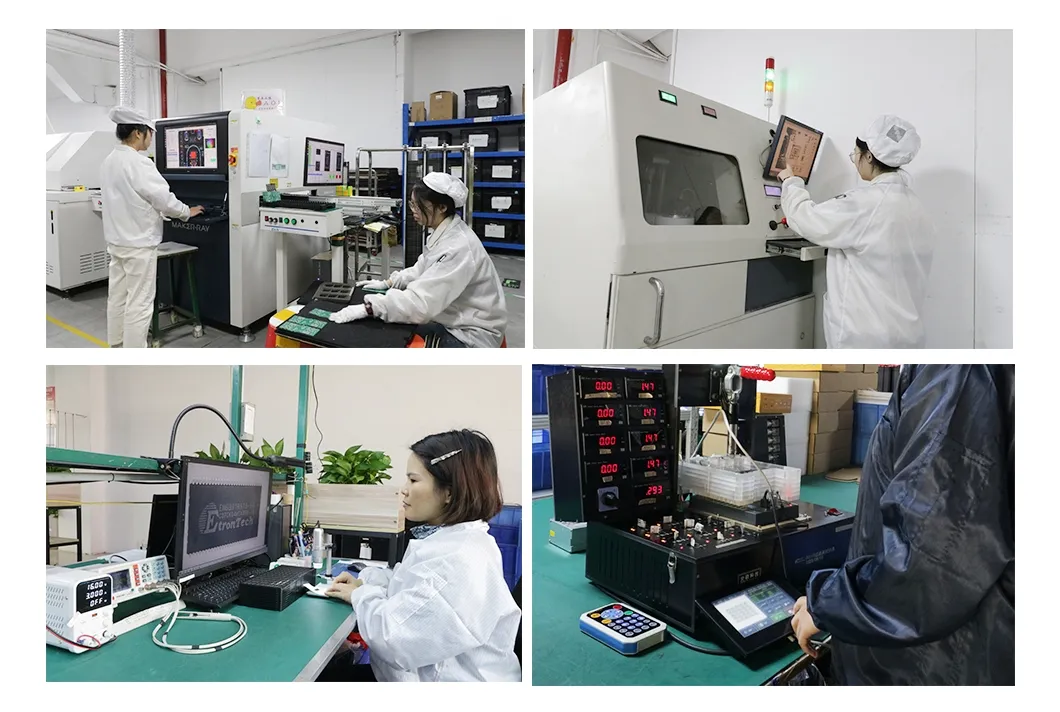

Manufacturing & Quality Control

Certification

Frequently Asked Questions

Can you offer OEM/ODM services?

Yes. We provide comprehensive OEM/ODM services including product appearance design, internal functional optimization, and customized software interfaces to help you bring products to market efficiently.

What is the cutting accuracy of the laser controller?

Under ideal conditions, the positioning accuracy can reach 0.001mm. This is achieved through advanced motion control algorithms and high-precision motor drives.

Which non-metallic materials can be processed?

The system supports a wide range of materials including acrylic, wood, leather, plastics, and fabrics. Different power and speed settings are provided for optimal results across varying densities.

Is laser power gradient control supported?

Yes, the controller can achieve precise gradation of laser power. This is essential for special engraving effects and adjusting light transmission in materials like acrylic.

What international certifications do the controllers have?

Our products are designed to meet international standards including CE (Safety & EMC), FCC (Electromagnetic Compatibility), and RoHS (Environmental Protection).

How is technical support provided?

We provide remote technical support via email and instant messaging. For software-related issues, we can offer guidance through remote desktop connections and detailed user manuals.
