Product Description

📊Basic Specifications
Model NO.
ZY7164G-130
Type
Laser Control Card
Packing Size
260*210*90mm
Gross Weight
2.8kg
Product Materials
Plastic/Metal/Glass, etc
Power Supply
DC 24V Button Battery 3V
Software Environment
Windows(Except Vista)
PWM Channel
0.1K-50K,Adjustable
💡Core Features

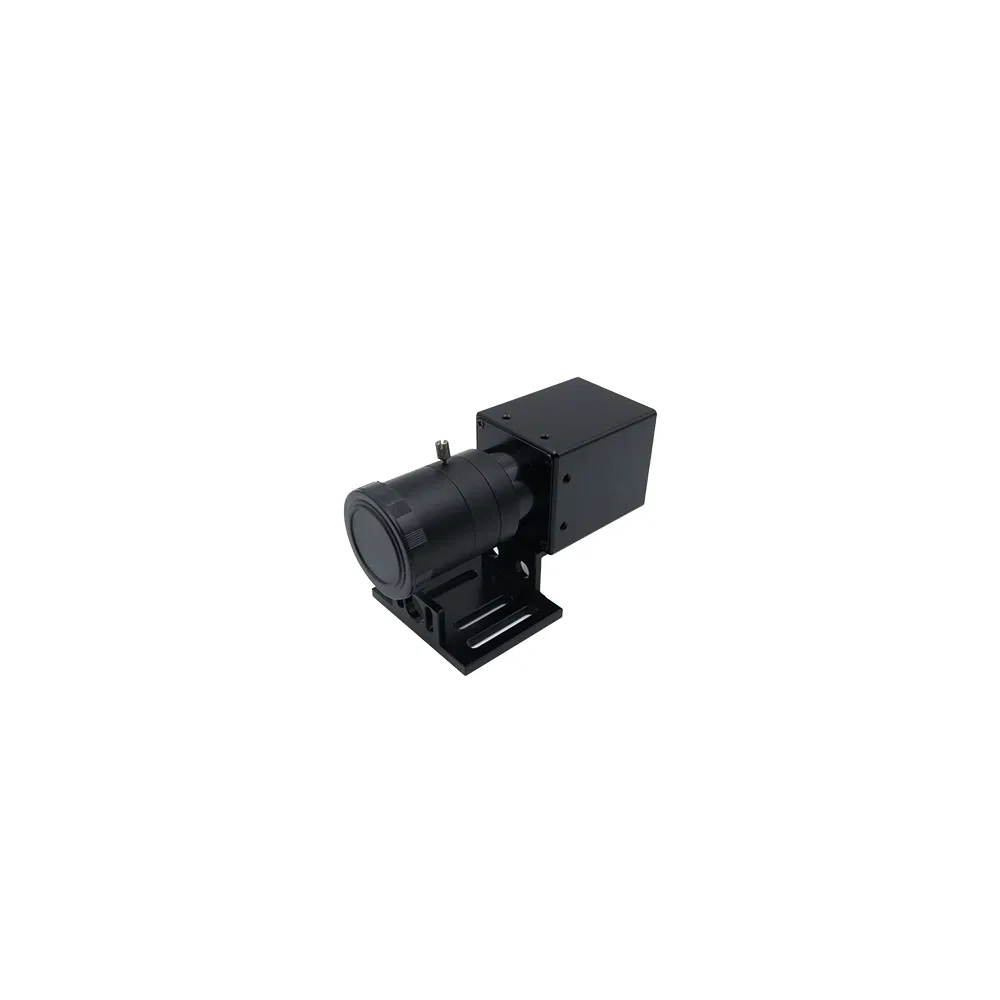

Freely choose between 1.3 megapixels or 5 megapixels industrial high-speed camera.
Camera positioning and automatic identification of template alignment cutting.
Customizable camera recognition for valid work areas.
Support for up to 100 different templates working simultaneously.
Graphics splicing support for identifying and cutting large format graphics.
Visual positioning by mark point specifically for the advertising industry.
Support for photo frame cutting and studio software docking.
Adjustable brightness LED light source with optional colors.
Advanced edge-seeking cutting functionality.
🌟 Key Advantages

1. Highly Stable Performance
2. Superior Visual Accuracy
3. Seek edge and template "Two-in-One" integration
4. Professional quality inspection protocols for every unit produced.

🖼️Product Application

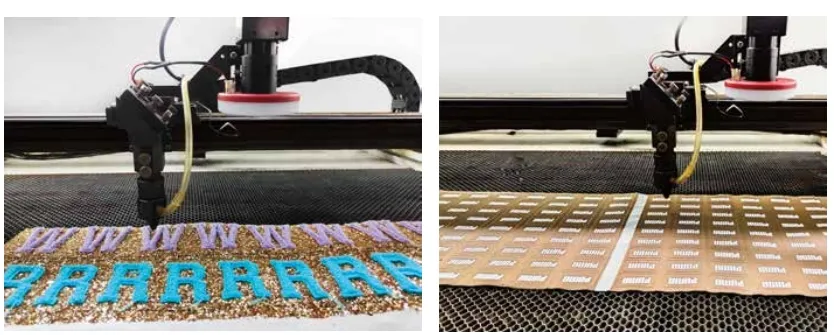

Visual Positioning Laser Cutting System

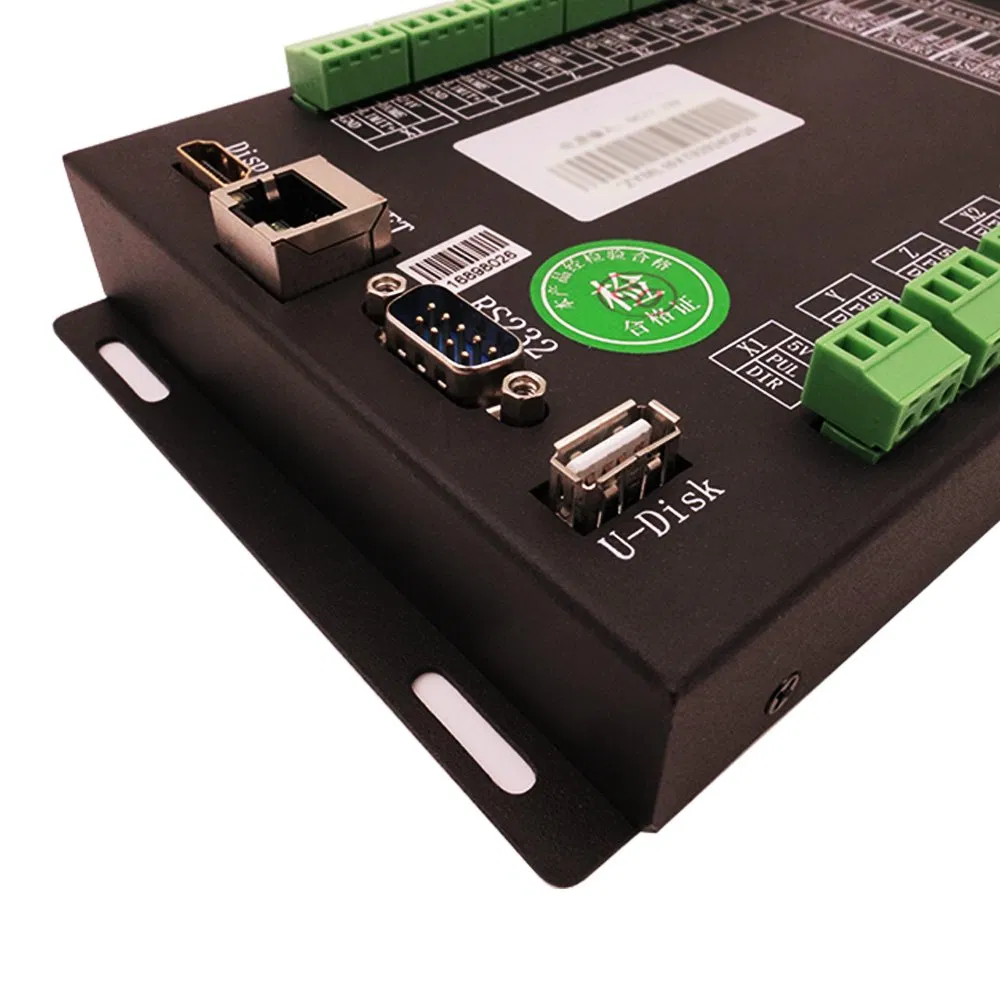

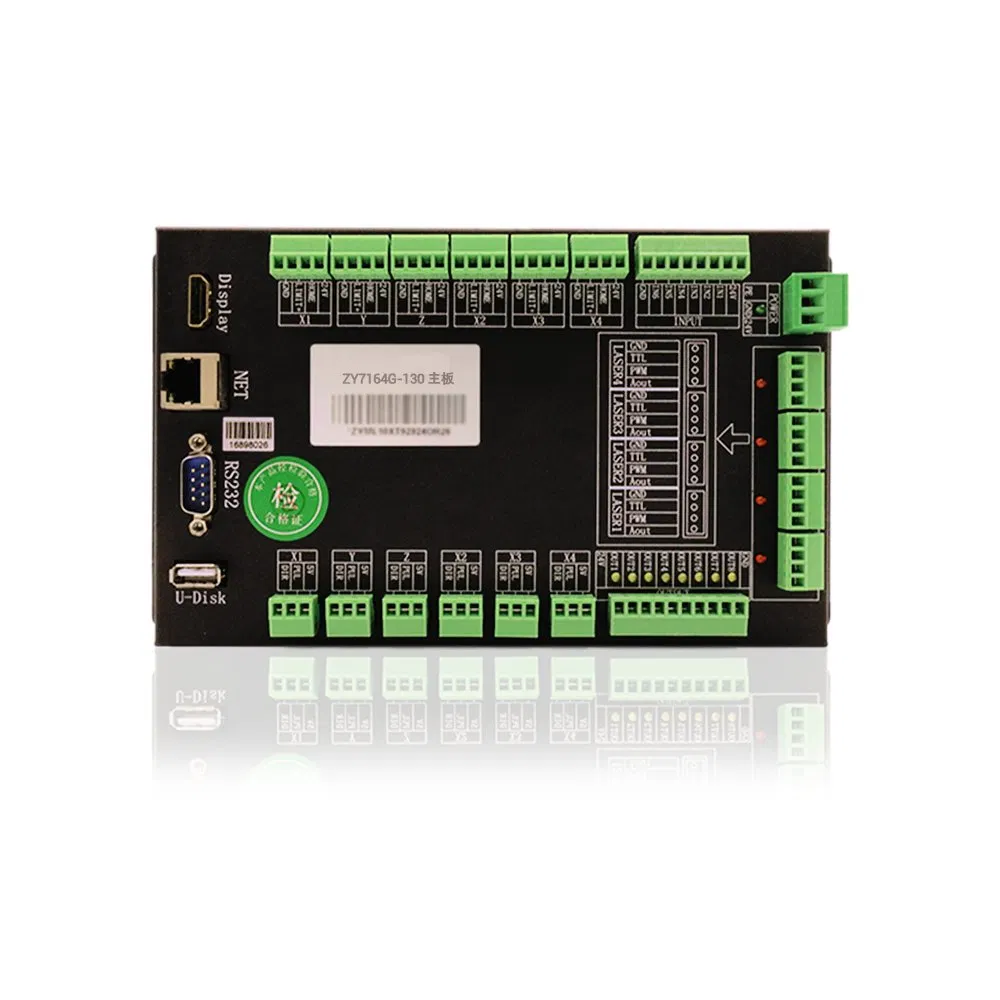

Laser Cutting Control System Detail
📋Technical Details
CategorySpecifications
Model numberZY7164G-130
Camera pixels1.3 million / 5 million

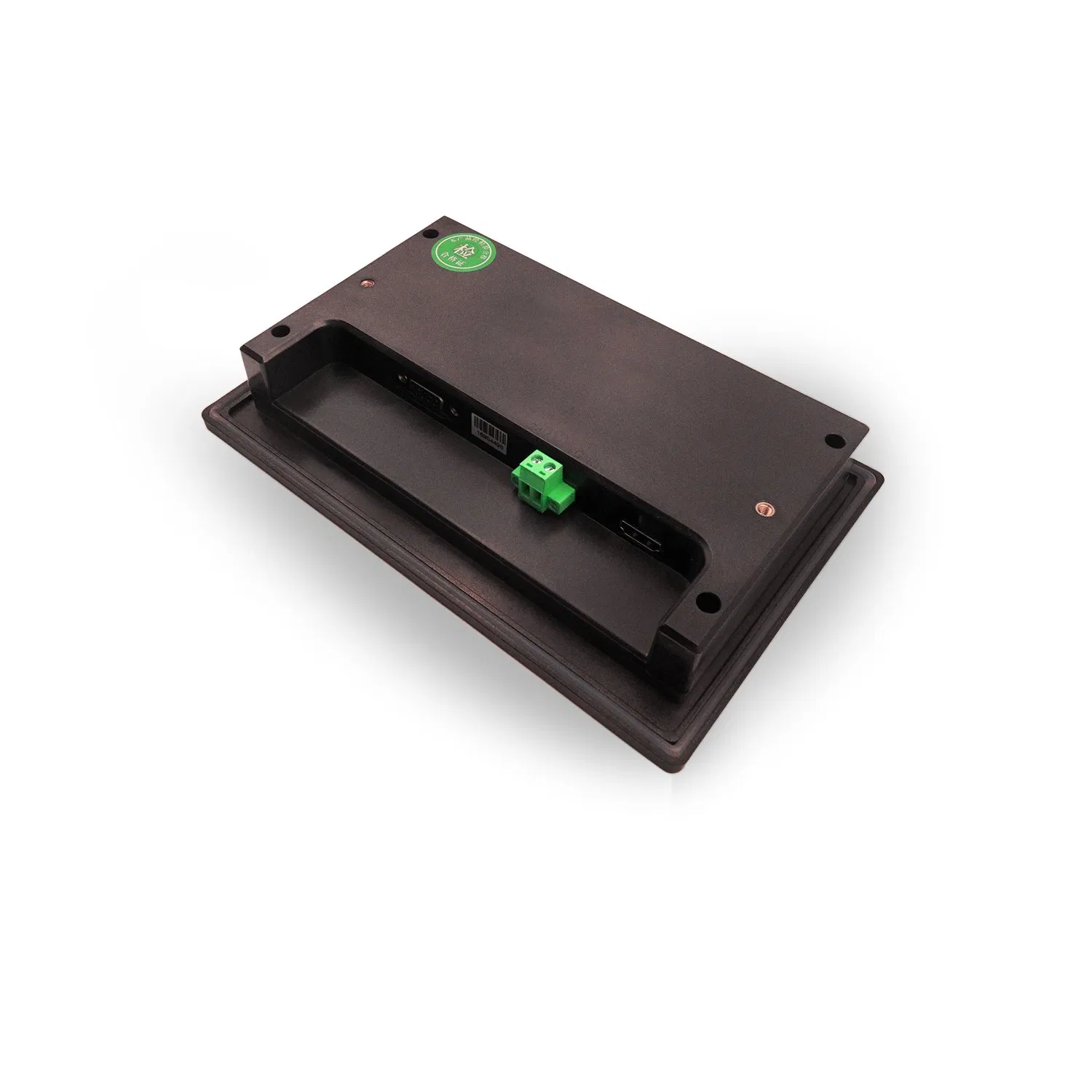

Screen7 inches
Control Axes6-axis
Supported LasersRf laser, CO2 glass tube laser (Up to 4)
Data TransmissionNetwork communication, USB disk
Z-axis AutofocusSupport
Rotary EngravingSupport
Mirror CuttingSupport
MultilingualSupport
🏭Production & Quality

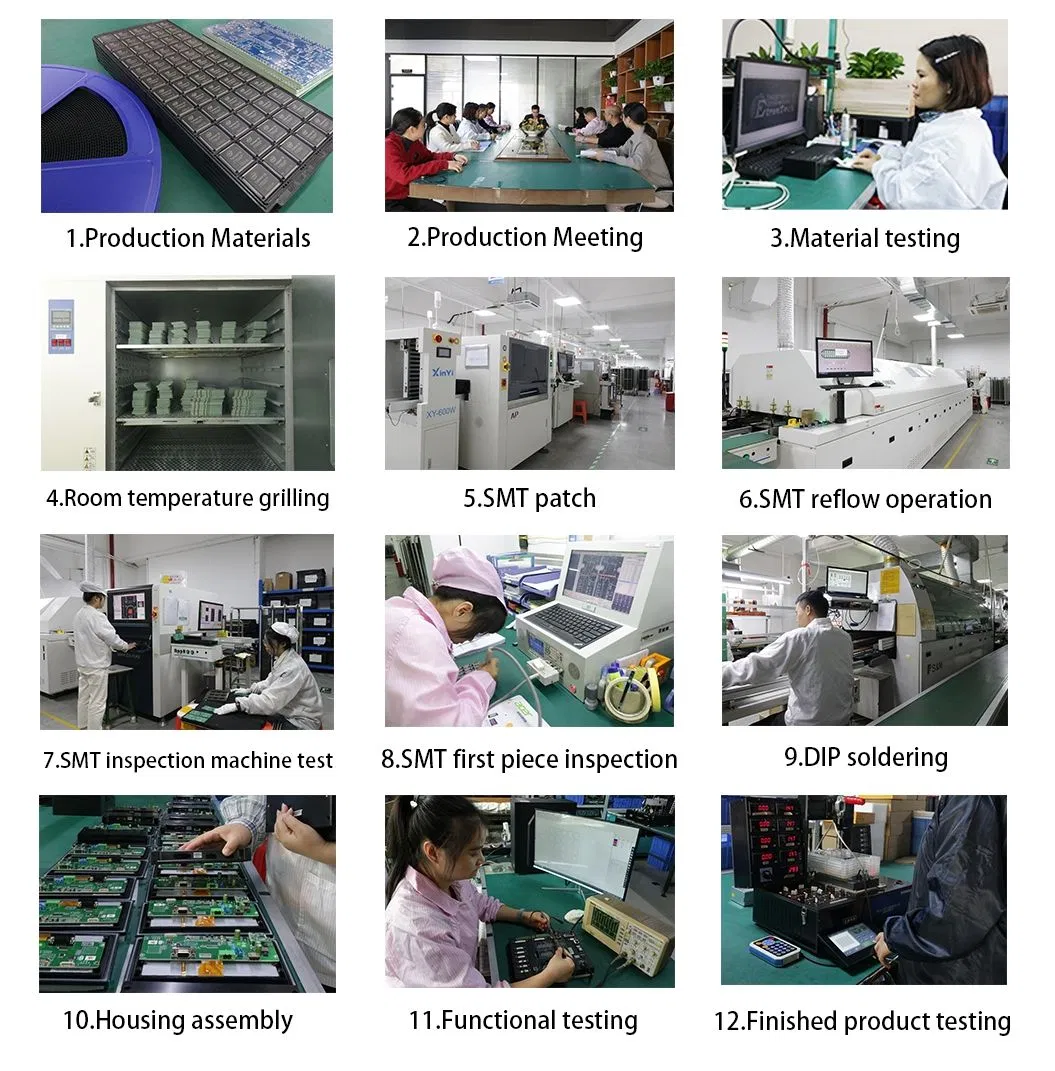

Production Process
Manufacturing Profile

We are a high-tech enterprise specializing in motion control systems, industrial automation development, and visual intelligent identification. With a professional R&D team and numerous patents, we provide advanced systematic solutions for laser equipment manufacturers globally.

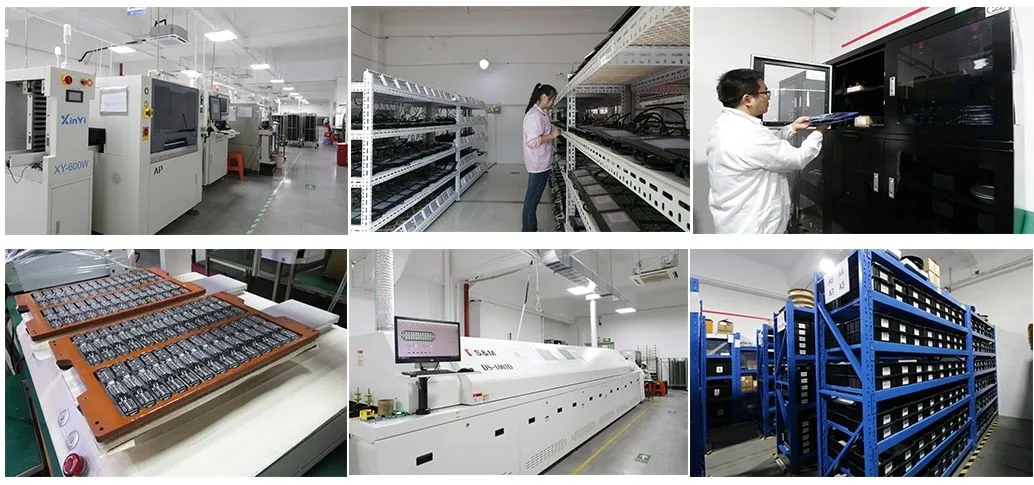

Production Strength
Certification Documents
📦Packaging & Shipping

All products are packed using high-quality cushioning materials to ensure safety during transit.

Packaging Detail
❓Frequently Asked Questions
Do you offer OEM/ODM services?
Yes, we are equipped with a professional R&D team for custom services, including hardware appearance design, internal functional module optimization, and software interface development.
What is the cutting accuracy of the laser controller?
Under ideal conditions, the positioning accuracy can reach 0.001mm, depending on the motor drive and mechanical transmission structure used.
Which non-metallic materials are supported?
The system supports a wide range of materials including acrylic, wood, leather, plastics, and fabrics. Laser power and speed can be adjusted specifically for each material density.
Can the system control laser power gradients?
Yes, the controller allows for precise gradation of laser power, which is ideal for specialized light transmission effects or complex engraving designs.
What international certifications do the controllers have?
Our products are designed to meet international standards and currently hold or are applying for CE, FCC, and RoHS certifications.
How is technical support provided?
We provide remote technical assistance via network tools, email, and instant messaging, including remote desktop support for software-related troubleshooting.
