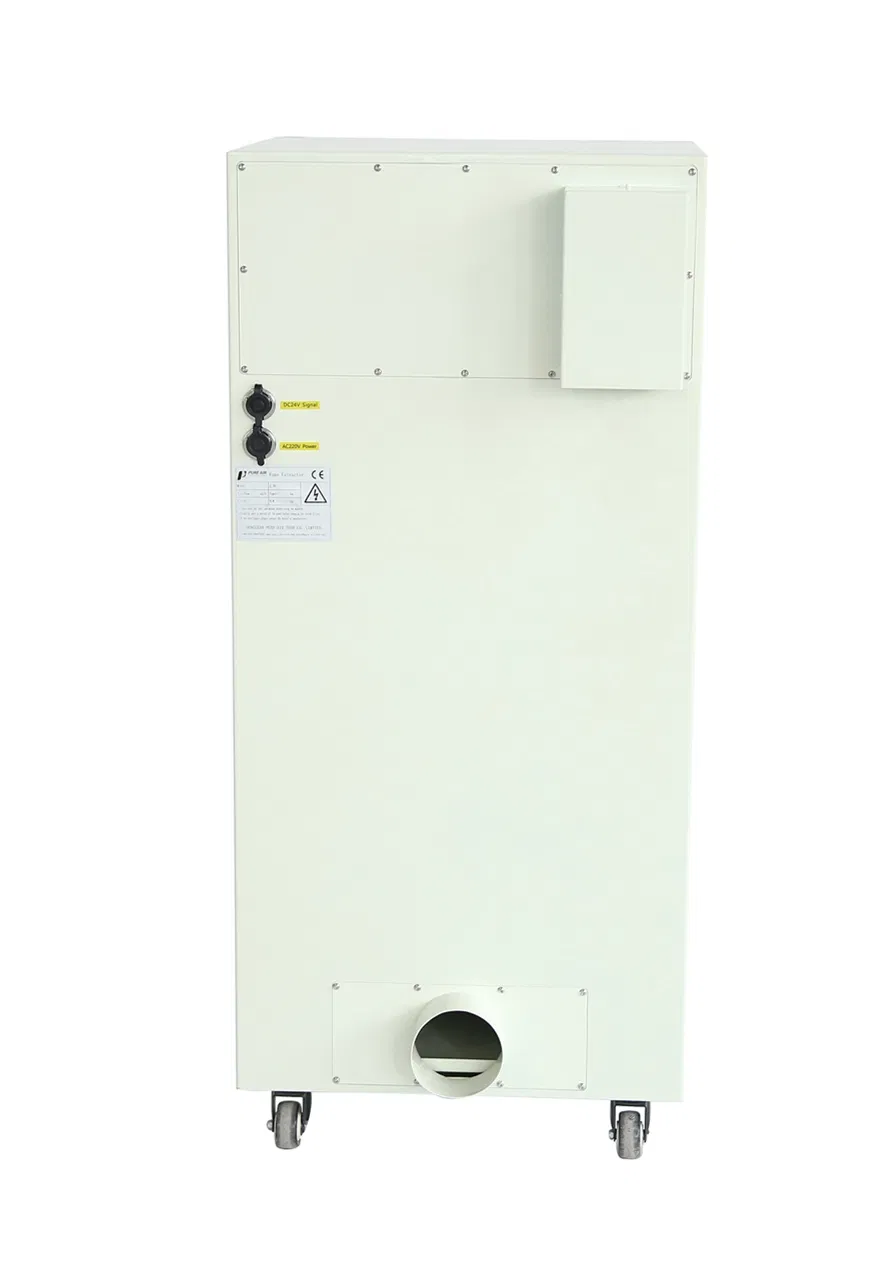

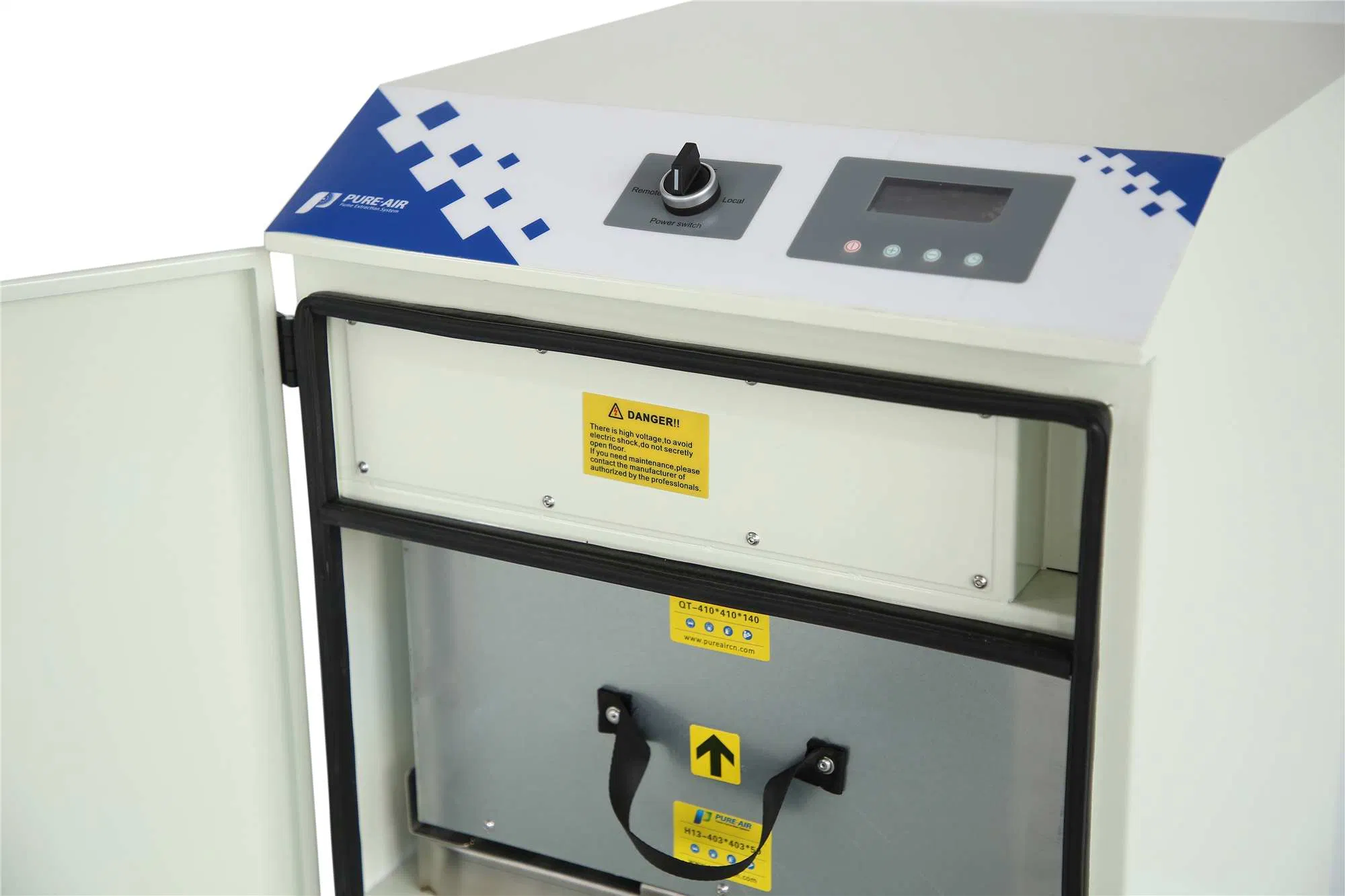

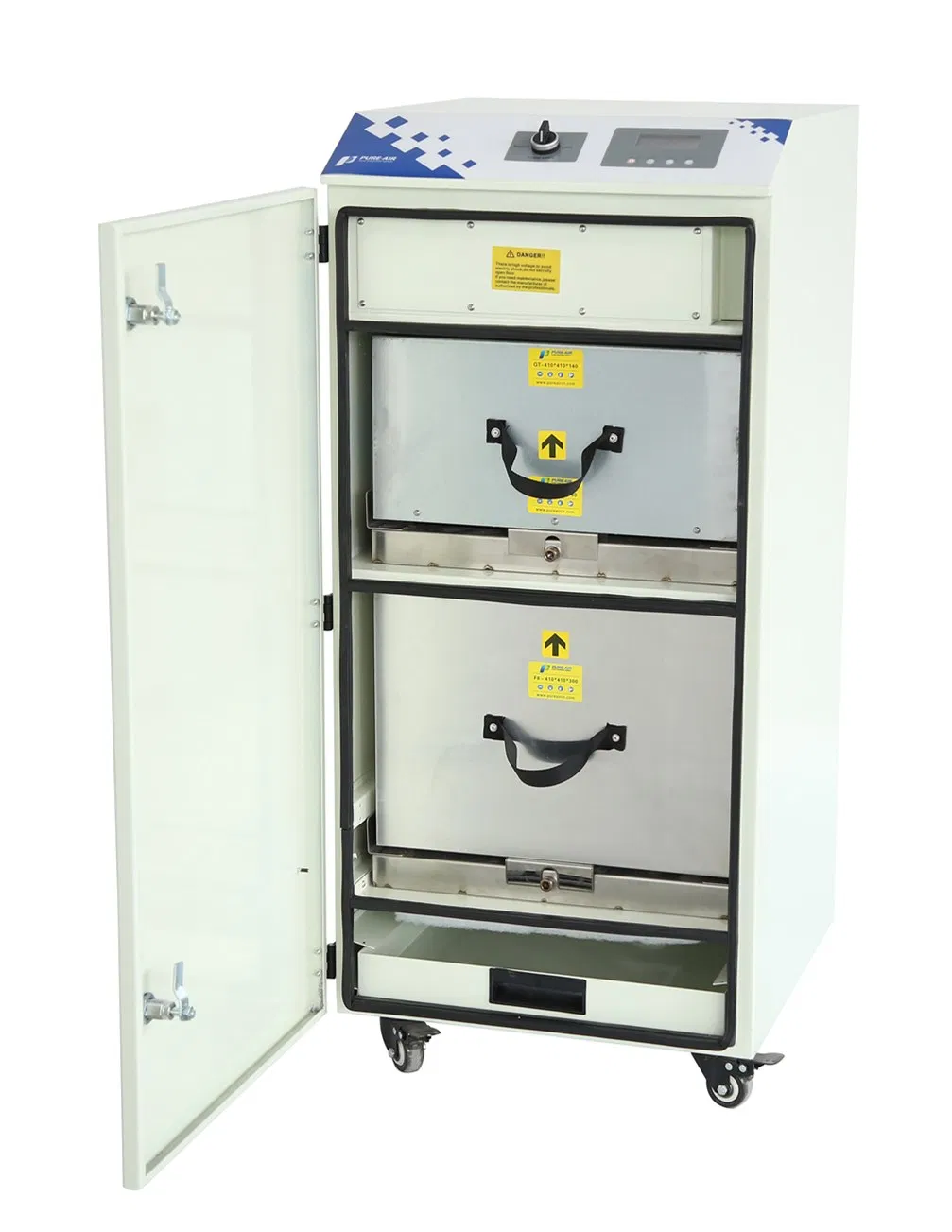

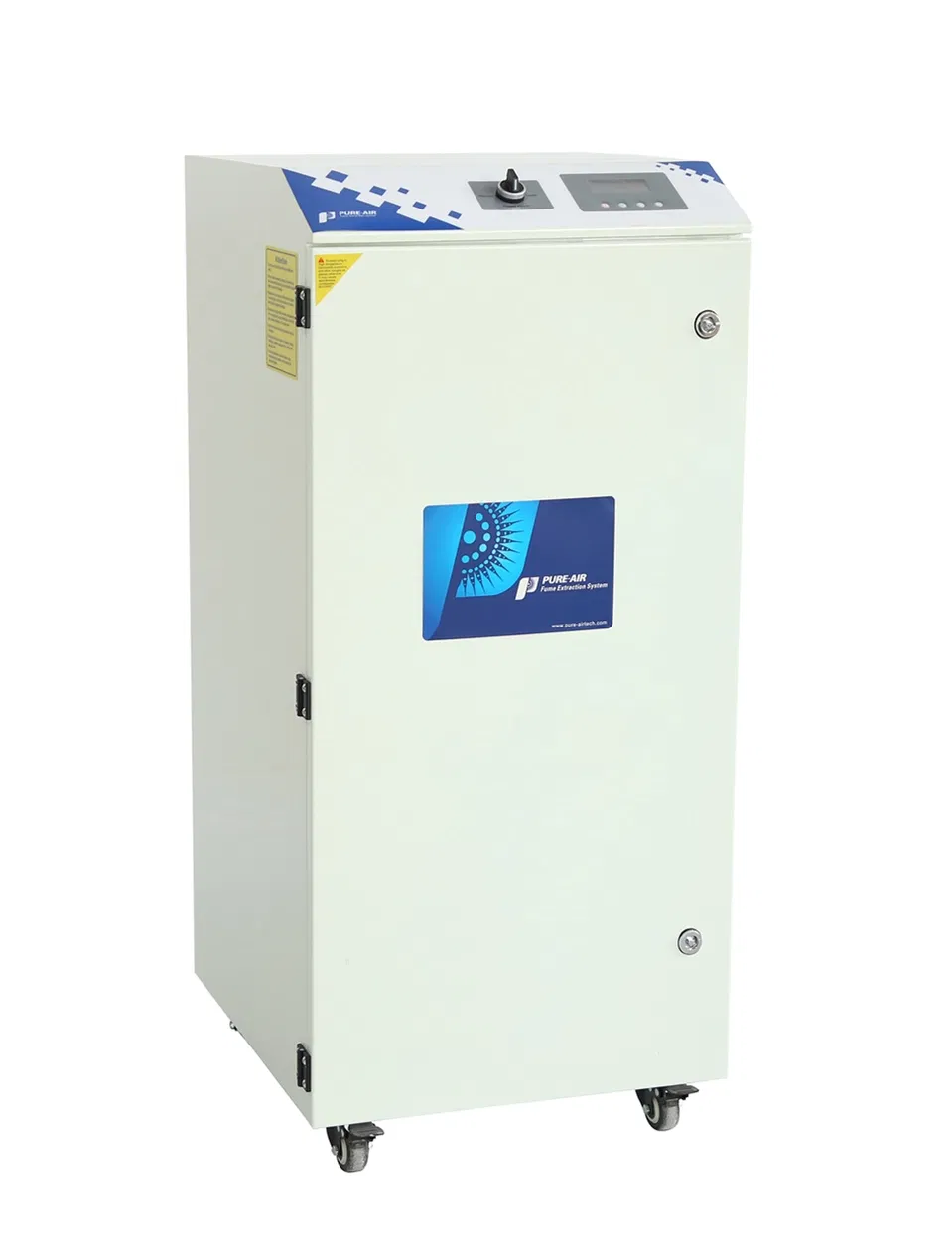

Laser Smoke Extractor System For CO2 Laser Cutting/Engraving Non-Metal

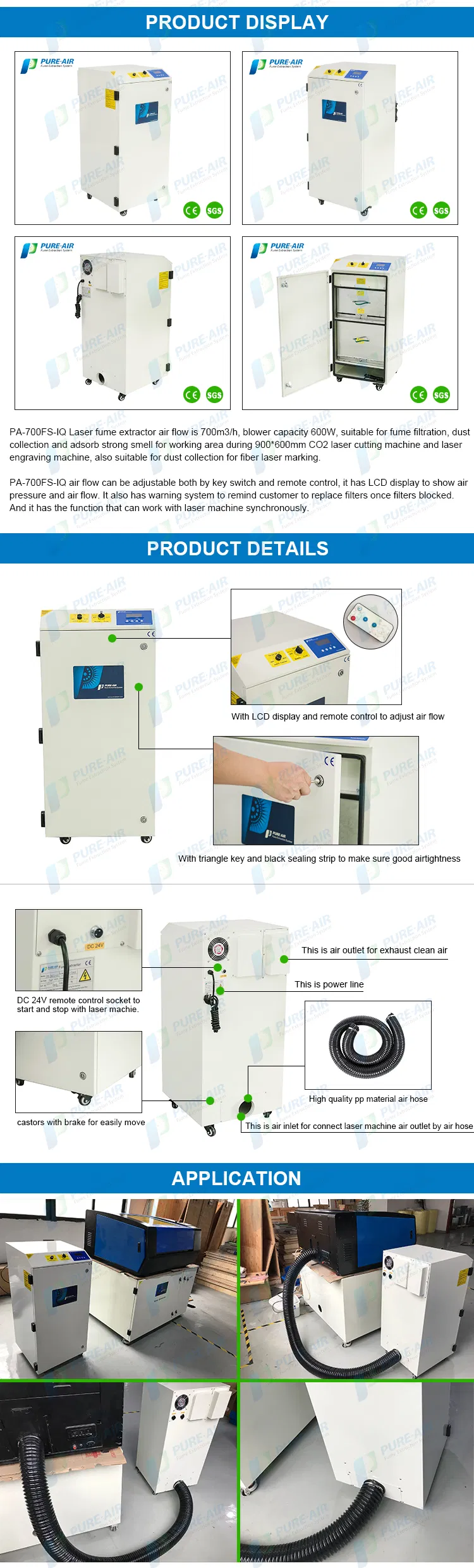

PA-700FS-IQ laser fume extractor is suitable for fume filtration and dust collection for laser cutting/engraving non-metal materials. It is perfectly designed for working areas within 900*600mm CO2 laser machines. This system provides exceptional performance in filtering fumes, collecting dust, and adsorbing strong odors generated during the processing of Acrylic, plastic, PVC, paper, marble, ABS, glass, rubber, wood, plywood, and MDF.
| Item | Technical Data | Remark |
|---|---|---|
| Fume & dust inlet | 150mm or 75mm | Single or Double inlets available |
| Max. air flow | 700m³/h | High-performance blower |
| Air pressure | 3800pa | High suction pressure |
| Running sound | ≤65dBA | Low noise operation |

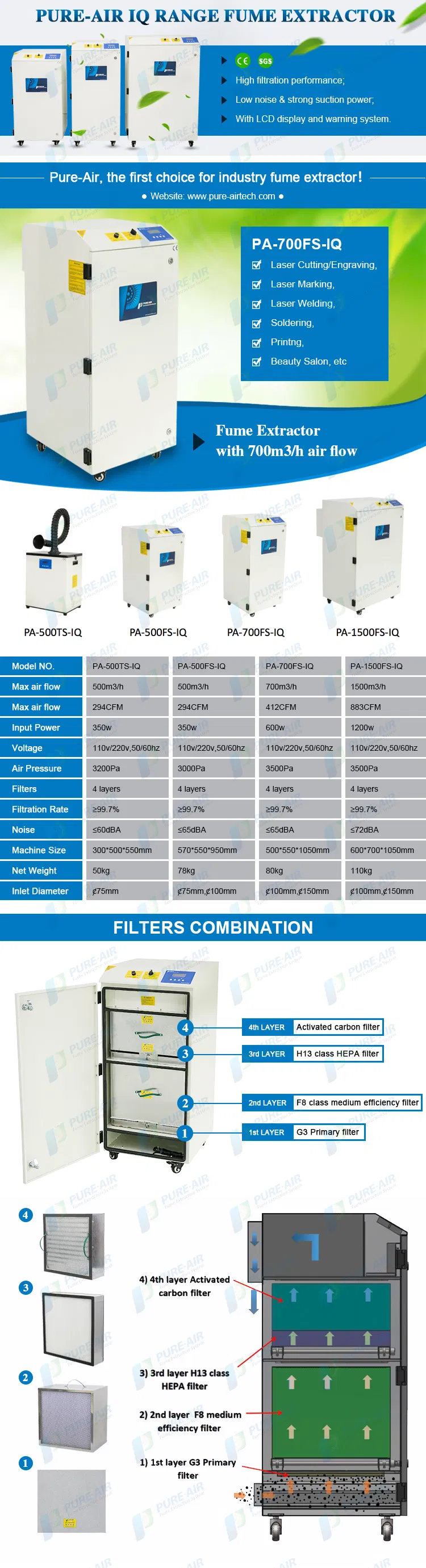

| F5 Primary filter | PA700-01 | Removes big/heavy particles (>=5 Micron) |
| F8 Medium filter | PA700-02 | Removes particles (>=1 Micron) |
| H13 HEPA filter | PA700-03 | Efficiency 99.997% for 0.3 microns |
| Gas filter | PA700-04 | Activated carbon for toxic gas & smell |
