Basic Specifications
Power Supply
DC 24V Button Battery 3V
Languages
All Languages Supported
Production
10,000 sets/Year
Product Overview

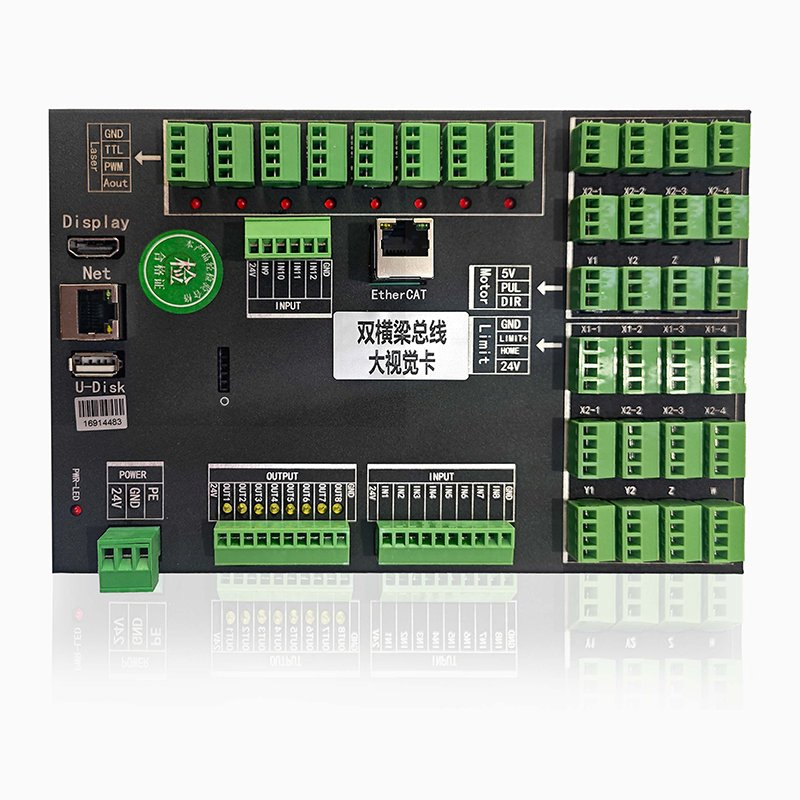

Model ZJE716-130 is equipped with a 130-pixel CCD and visual system functionality, powered by a robust motor configuration including 750W*3 plus 400W*1 servo motors. The core of the system is managed by a high-performance laser control card which coordinates motion commands, laser power control, and gas signals.

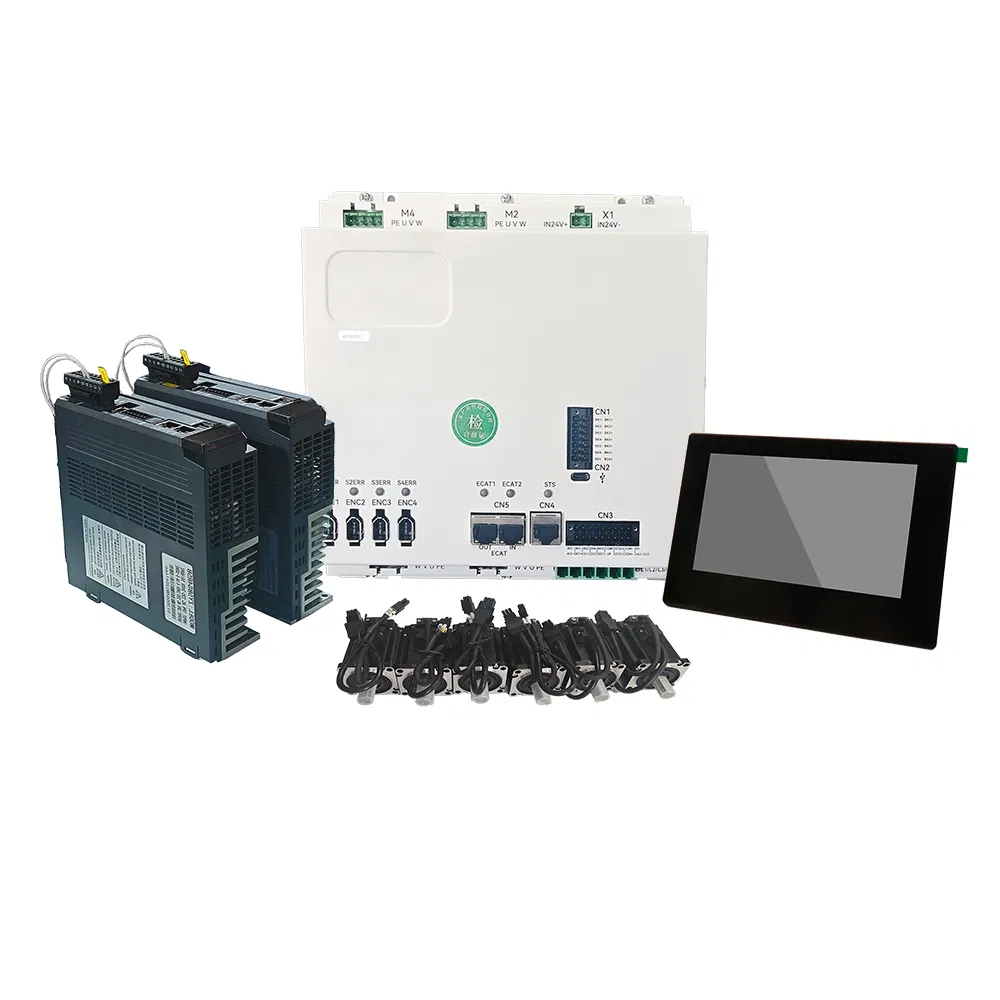

Integrated with the ZY6B4S05Q-5555 four-in-one drive and advanced servo systems, this architecture achieves precise multi-axis synchronization and high-speed response. This design significantly simplifies wiring, optimizes cabinet space, and provides exceptional real-time diagnostic capabilities.
Core Features
⚙️
Full Integration
Seamless control and execution integrated into a single architecture.
⚡
High-Speed Response
Microsecond communication latency ensures deterministic control.
🔧
Scalable Design
Highly modular components allow for easy system expansion.
🛡️
Anti-Interference
Robust immunity to electromagnetic interference with built-in diagnostics.
Industrial Applications
This system is widely utilized in precision manufacturing sectors, including:
✔ Cloth & Textile Cutting
✔ Leather Processing
✔ Glass & Wood Engraving
✔ PCB Etching & Steel Mesh
✔ Film & Copper Foil Cutting
✔ Craft & Artwork Marking
Technical Details

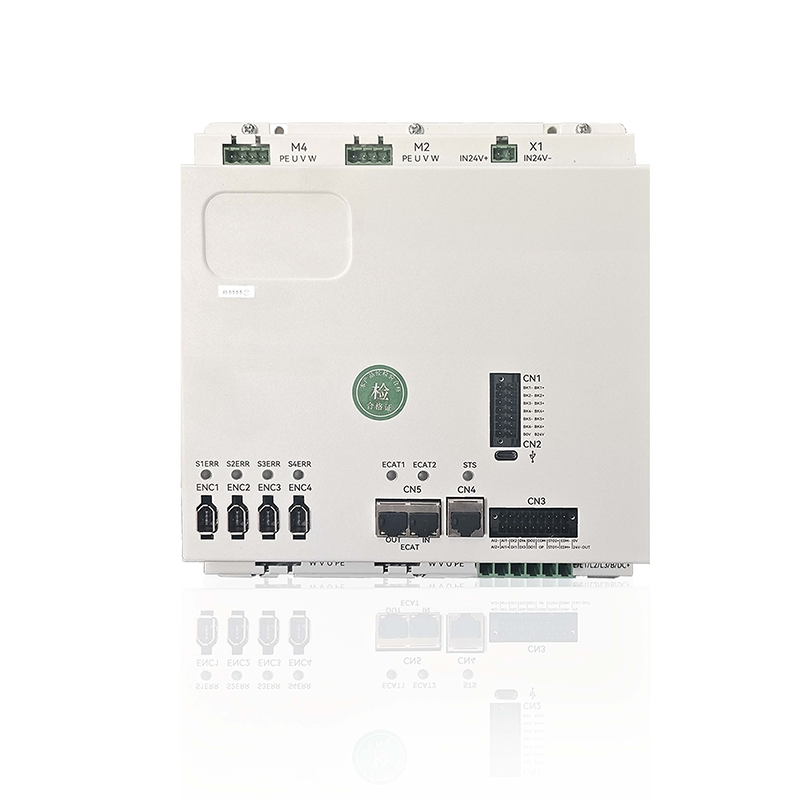

ZY6B4S05Q-5555 Four-in-One Drive: Supports four-axis synchronization with EtherCAT at a minimum cycle time of 0.125 ms. Accommodates both relative and absolute encoders with no homing required.
Single-Axis Servo Drive: EtherCAT-based with online/offline inertia identification and advanced multi-notch filtering.

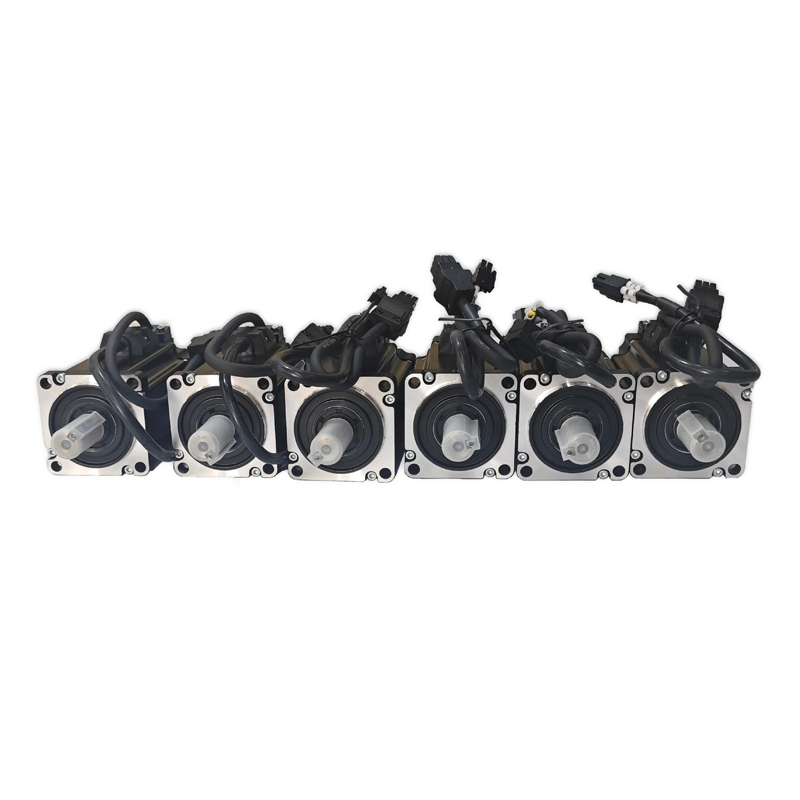

Servo Motor: Accurately adjusts position, speed, and torque according to precise control instructions.
Process & Quality

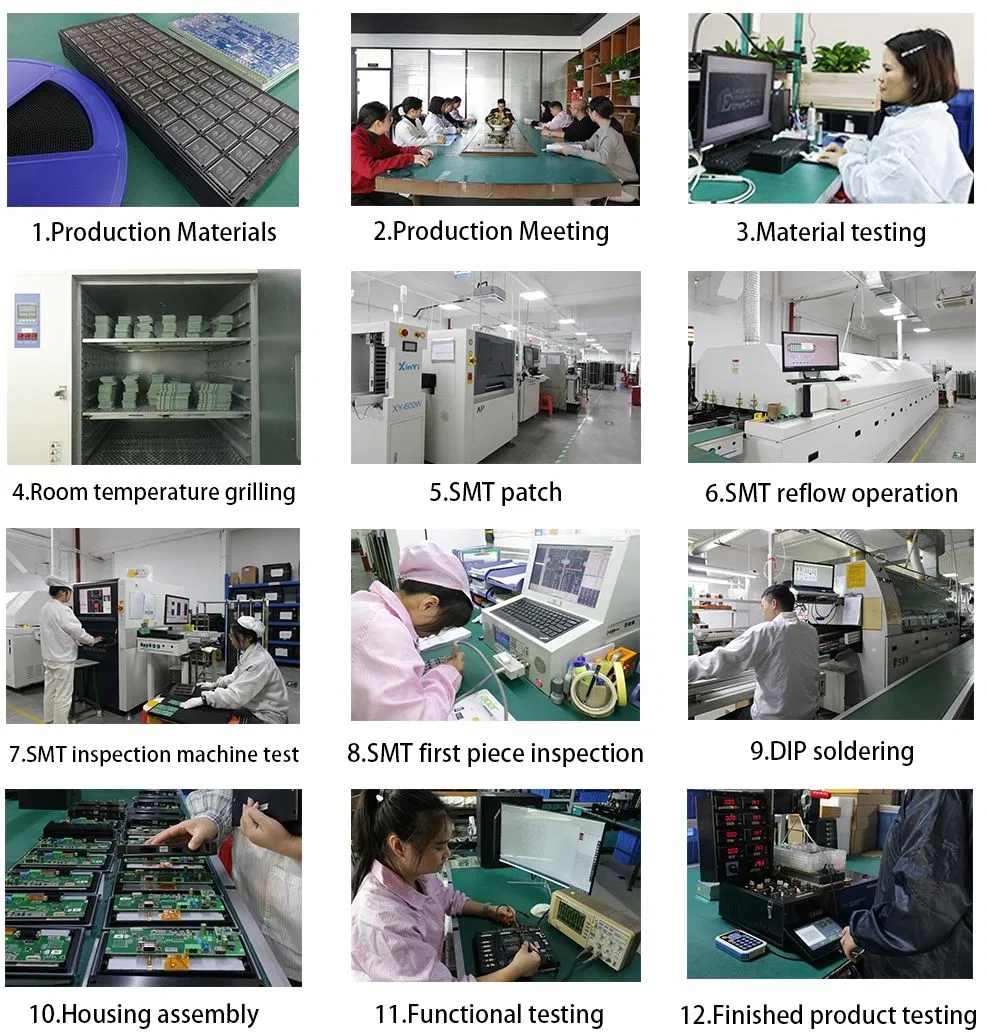

Production Process

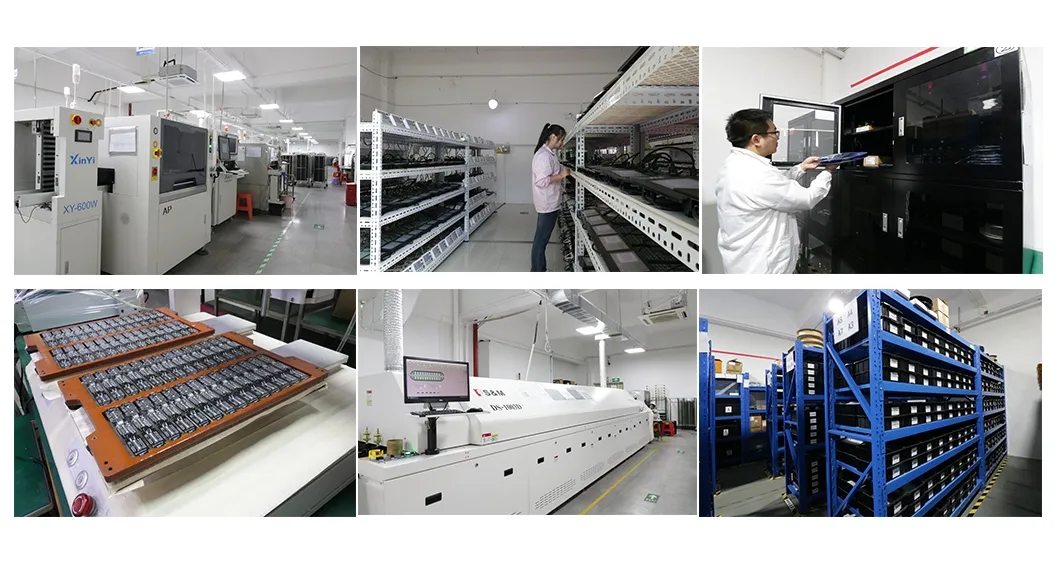

Production Strength
Quality Control System
Industry Certification
Packaging & Shipping
Delivery & Service
Delivery: Standard lead time is within 30 days post-confirmation. For stocked items, shipping can occur within 1-3 business days.
Shipping: Flexible options including International Express (DHL/FedEx), Ocean Freight, and Air Freight. We support CFR, CIF, or coordination with your own forwarder.
Technical Support: We provide remote consultation, installation guidance, and troubleshooting via desktop tools and instant messaging to ensure seamless operation.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are an original manufacturer with a strong R&D team and professional product development technology.
How long have you been in this industry?
We have nearly 14 years of experience, and our core technicians have over 20 years of expertise in industrial automation.
Is OEM or customization acceptable?
Yes, OEM and customized products are welcome. We provide full R&D support for tailored hardware and software interfaces.
What is the standard delivery time?
For items in stock, delivery is 1-3 business days. For customized orders, it is typically within 30 days.
How do you provide after-sales technical support?
Support is primarily provided remotely via internet communication, remote desktop tools, and detailed user manuals.
What are the shipping options available?
We mainly use International Express for speed. For large volume orders, sea freight is available as a cost-effective alternative.
