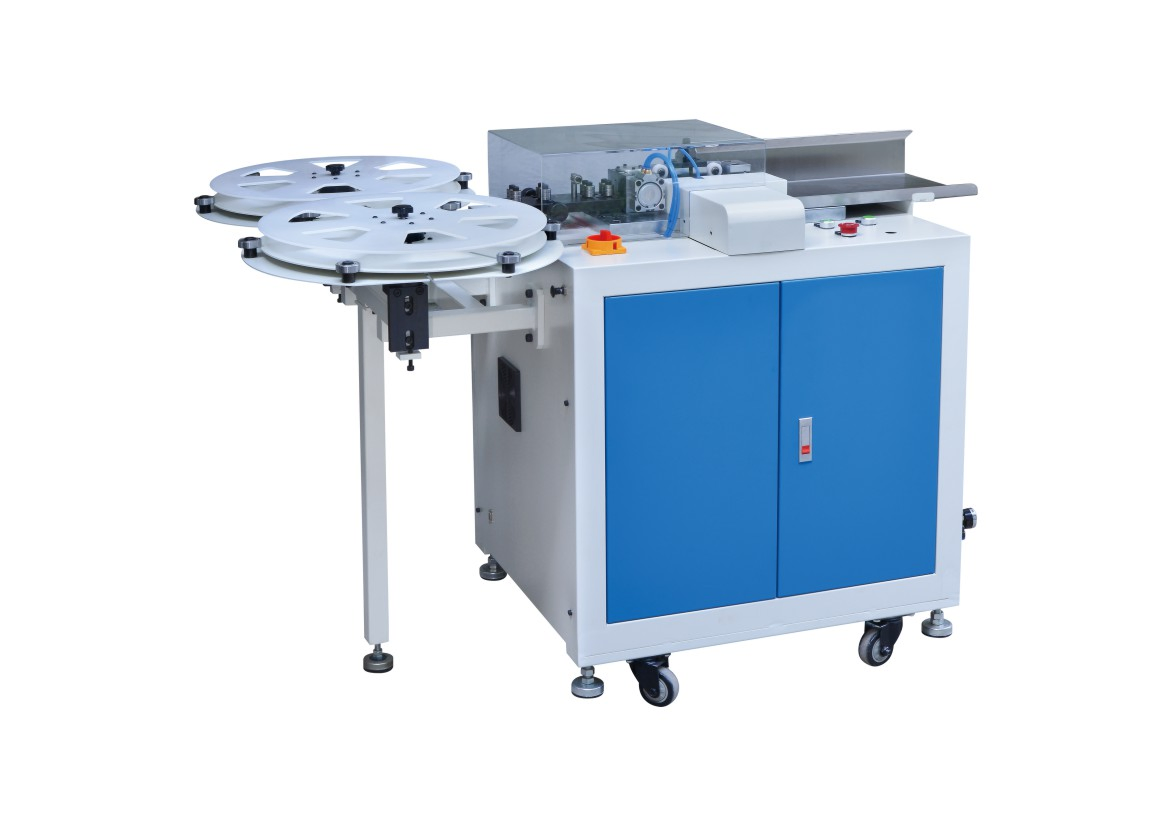

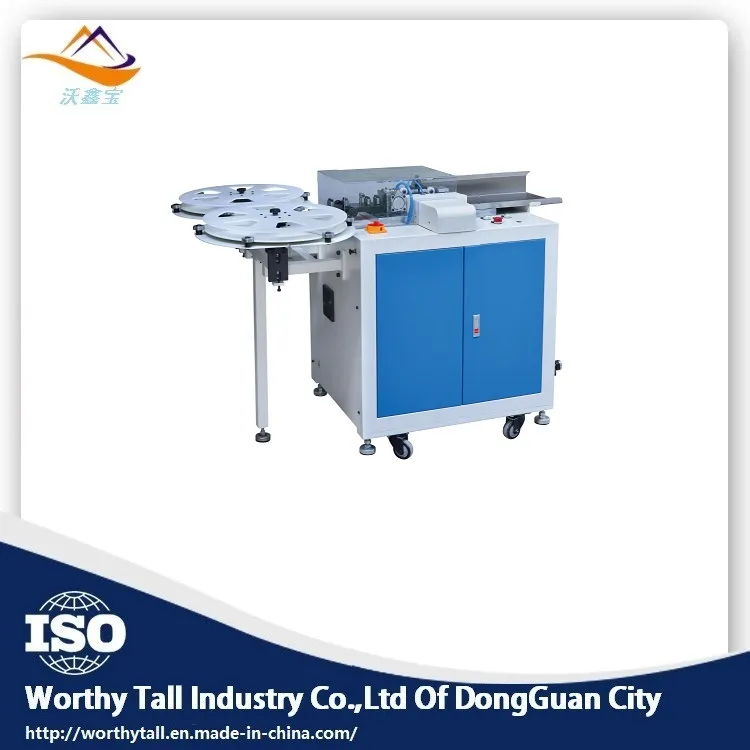

Auto Creasing Rule Cutting Machine for Laser Die Making

Customization:	Available
Species:	Die Cutting and Creasing Machine
Imprinting Type:	Rotary Platen

Basic Specifications

Model NO.:WT-QX03

Placing Form:Horizontal

Die Cutting Tool:Metal Mold

Automatic Grade:Semi-Automatic

Cutting Thickness:1.3PT 2PT 3PT 4PT

Speed:20m/Min

Power:220V 50/60Hz

Air Pressure:0.6MPa

File Format:Dxf, CDR, Plt, Dwg

Functions:Perforation Bridge Cutting

Rule Height:24mm

Weight:230kg

Technical Parameters

Technical Parameters	Blade thickness(mm)
	0.71 (VK_QX_A)		1.07(VK_QX_B)
Blade height(mm)	23-24mm		23-24mm
Maximum feeding speed	30m/min
Feeding Accuracy	0.03/300mm

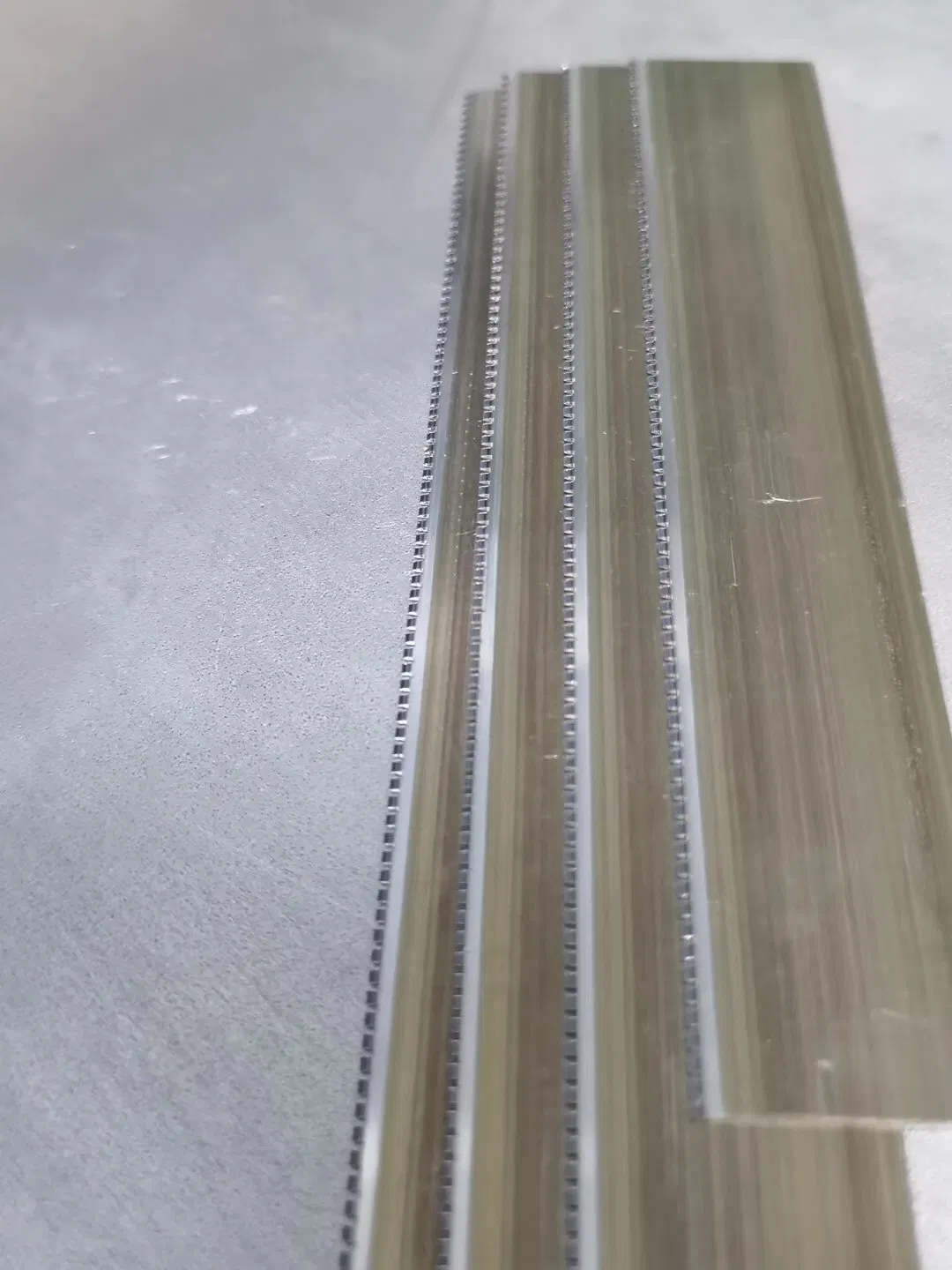

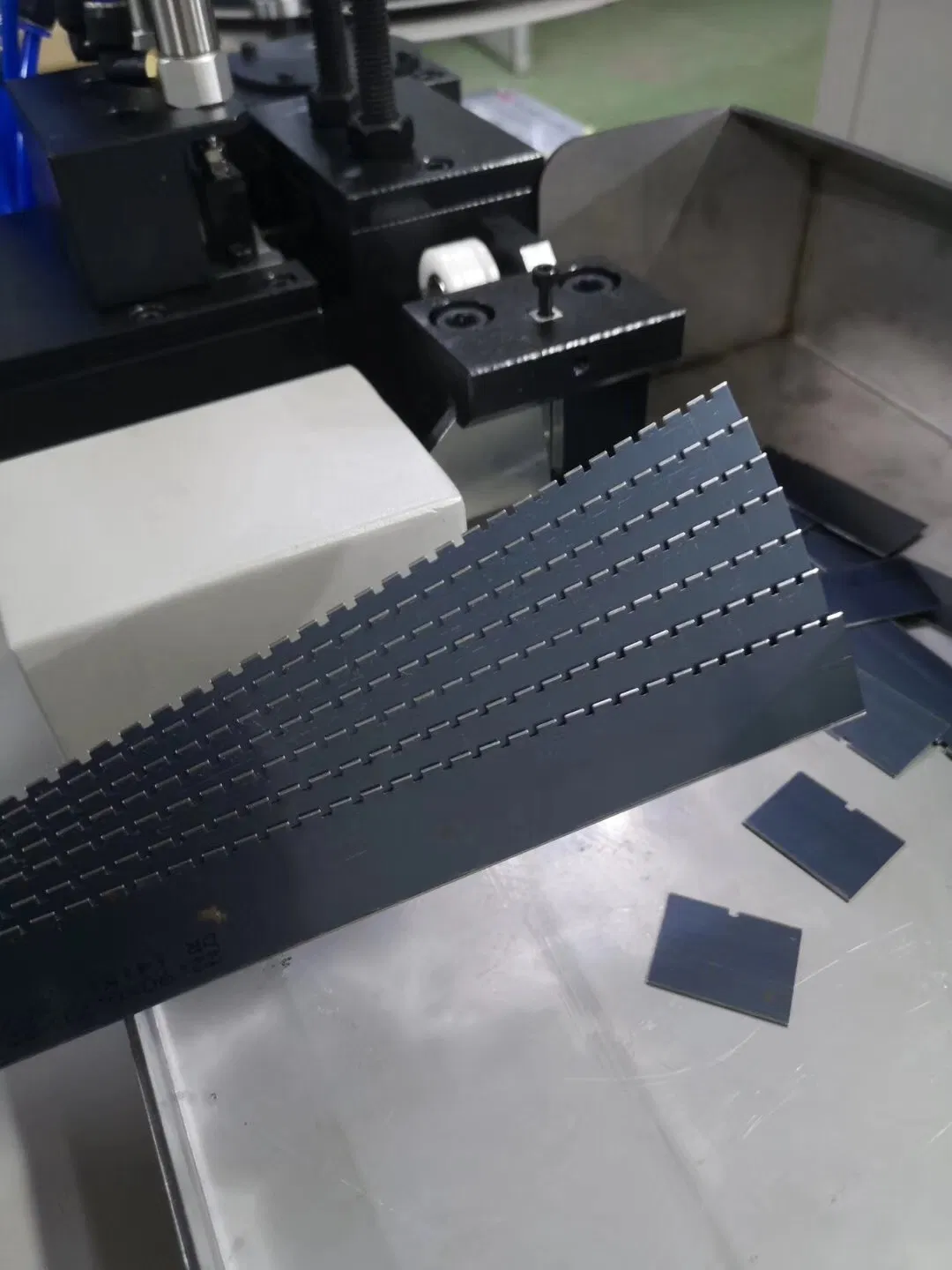

Bridge Mode	Automatic continuous Die Punch bridge, height adjustable (15-18mm), Width (5-10mm)
Cutting Mode	Automatic Die Punch cut with identification alarm and self Monitor
Rule Cassettes	2 Standard resistance-free rule cassettes
Weight / Size	230kg	Size	166011501540
Power / Air	110V-220V / 500W		0.6-0.8Mpa

Functions & Advantages

1

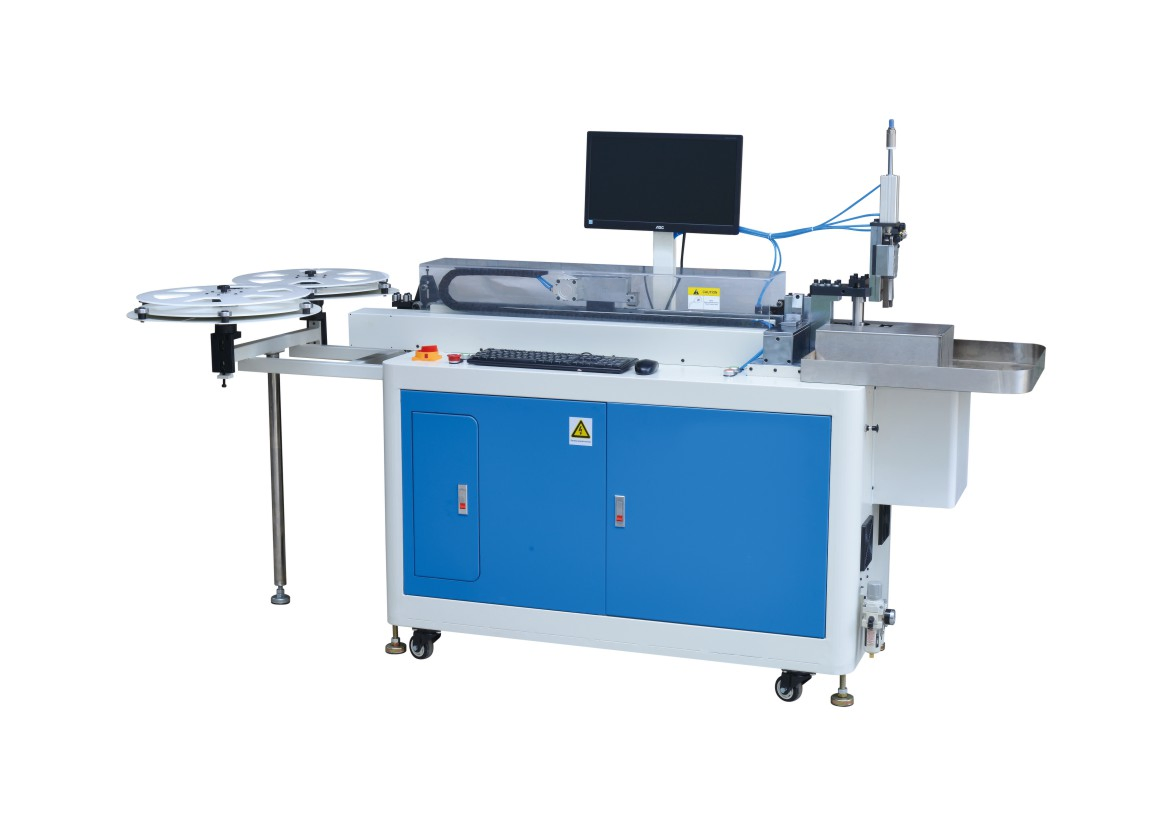

Connects directly to the computer of automatic bender machines without manual operation.

2

Intelligent cutting line program calculates differential lengths of creasing lines based on overlap patterns.

3

One-key selection of lines by color or layers; features automatic break off and shrink functions.

4

Multi-tasking capability: Bridging and cutting several groups of creasing lines simultaneously at high speed.

Training & Service

Training: Free of charge training for 7 days. Customers cover travel, food, and accommodation costs.

Technician dispatch for on-site installation and software training.
Remote installation and training via Team Viewer supported by English-speaking engineers.
12-month motherboard warranty with lifelong software support.

Frequently Asked Questions (FAQ)

What materials can this machine handle?

The WT-QX03 is designed for paper packaging materials, stickers, heat and electrical insulation materials, dust-proof materials, and EMI shielding materials.

What is the feeding accuracy of the machine?

The machine offers high precision with a feeding accuracy of 0.03mm per 300mm.

Does the machine support multiple file formats?

Yes, it is compatible with standard industrial formats including DXF, DWG, AI, CDR, and PLT.

What kind of bridge and cutting modes are available?

It features an automatic continuous Die Punch bridge with adjustable height (15-18mm) and an automatic Die Punch cut system driven by a gear motor.

What is included in the warranty?

We provide a 12-month warranty on the motherboard and lifetime free warranty for the software.

How is the training conducted?

Training lasts approximately 7 days and can be done either via on-site technician dispatch or remotely through Team Viewer with our English-speaking engineers.
