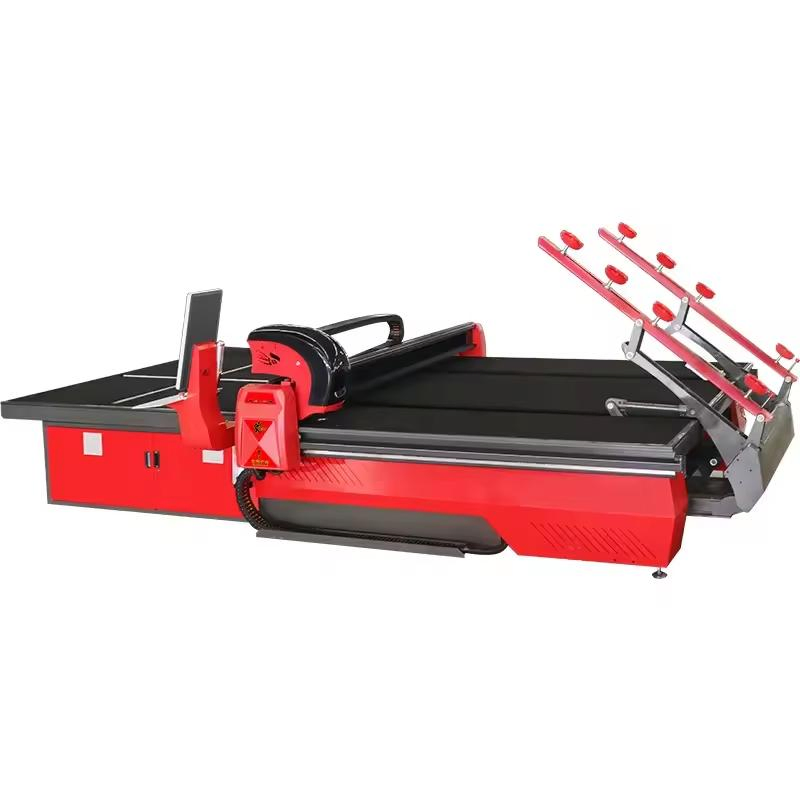

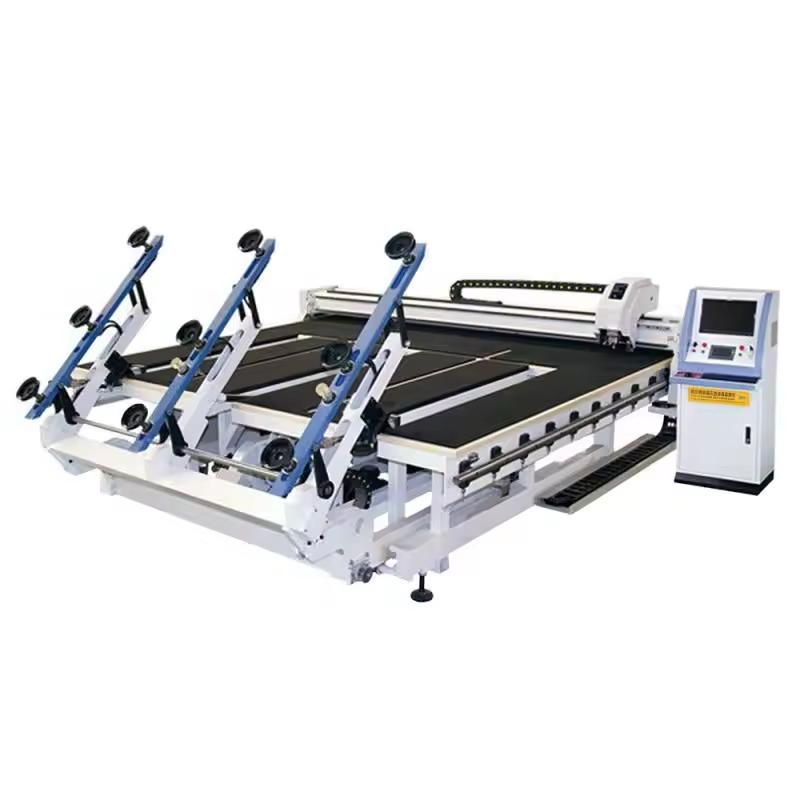

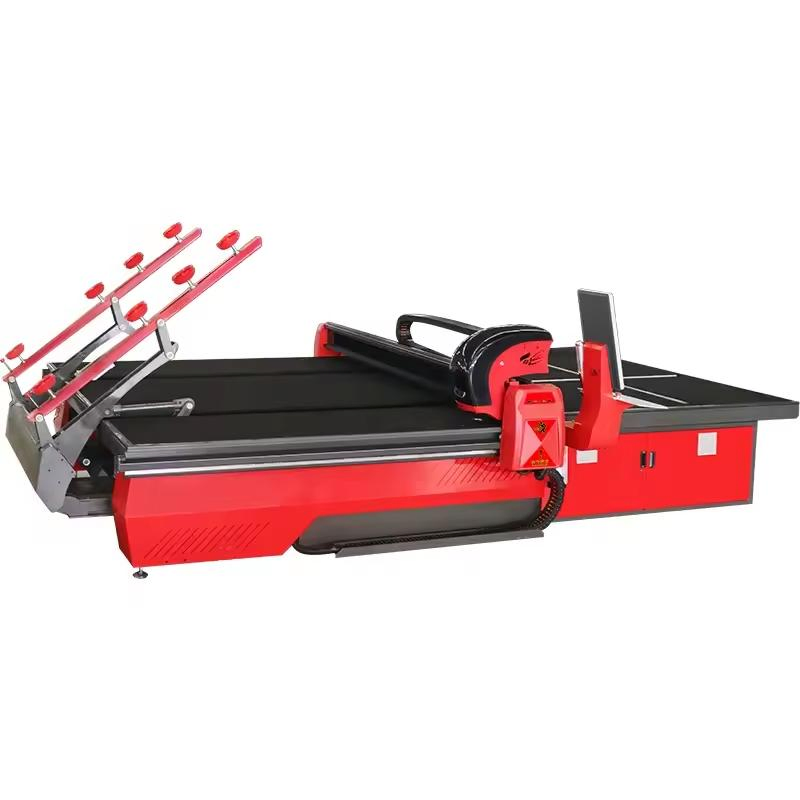

Full Automatic Advanced CNC Systems for Precision Glass Cutting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

TypeGlass Cutting Machine

StructureHorizontal

Control SystemPLC

Cutting Thickness2-19mm

Cutting Speed0-180m/Min

Loading Speed15-40 Seconds

Safety FeaturesEmergency Stop, Overload Protection, Safety Sensor

Production Capacity10000 Pieces/Year

CNC Glass Cutting Machine Series

Loading, Deliver, Cutting & Break off the table - 4 in 1
Loading, Delivery & Cutting - 3 in 1
Loading & Cutting - 2 in 1

Quality Factors: How to Identify a Superior Machine

Choosing the right glass cutting machine is critical for production efficiency. Here are the key technical advantages of our systems:

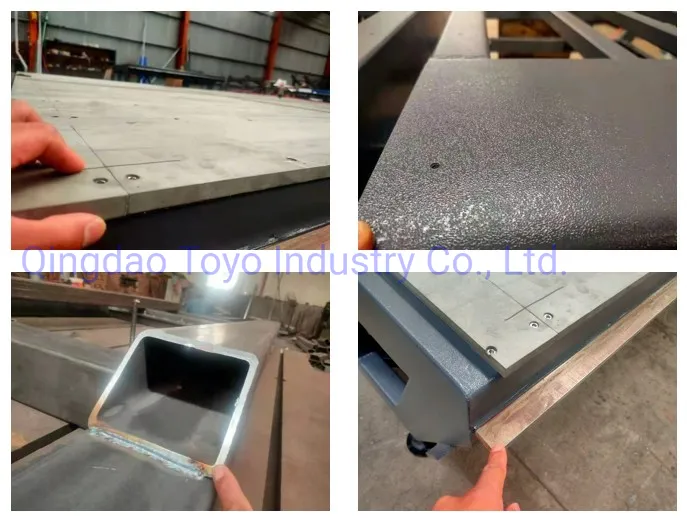

1. High-Precision Countertops

Our countertops are constructed from PVC resin plate, offering high hardness, zero deformation, and resistance to water and oil. Unlike foam or density boards, which are prone to moisture damage and warping, our PVC boards are processed via precision centers to ensure a super-smooth surface, vital for cutting glass as thin as 2mm without cracking.

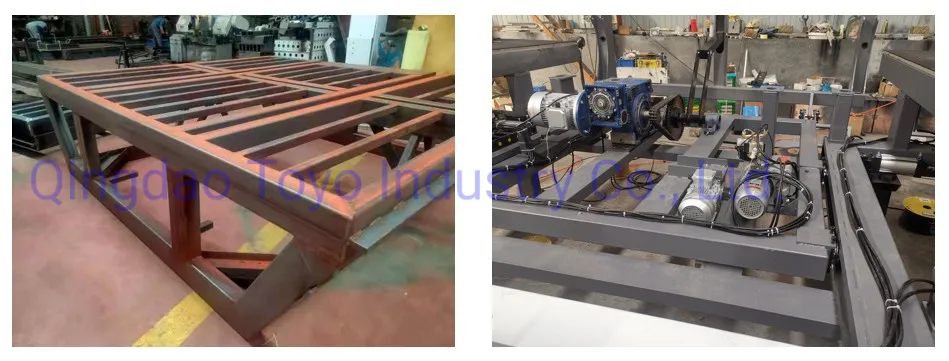

2. Annealed Frame Structure

The entire frame undergoes annealing treatment after welding to release internal stress, preventing future deformation and ensuring long-term cutting accuracy (≤0.2mm). We utilize annealed steel beams rather than unstable aluminum beams. The linear guides are installed flat to distribute force evenly, ensuring long life and silent operation.

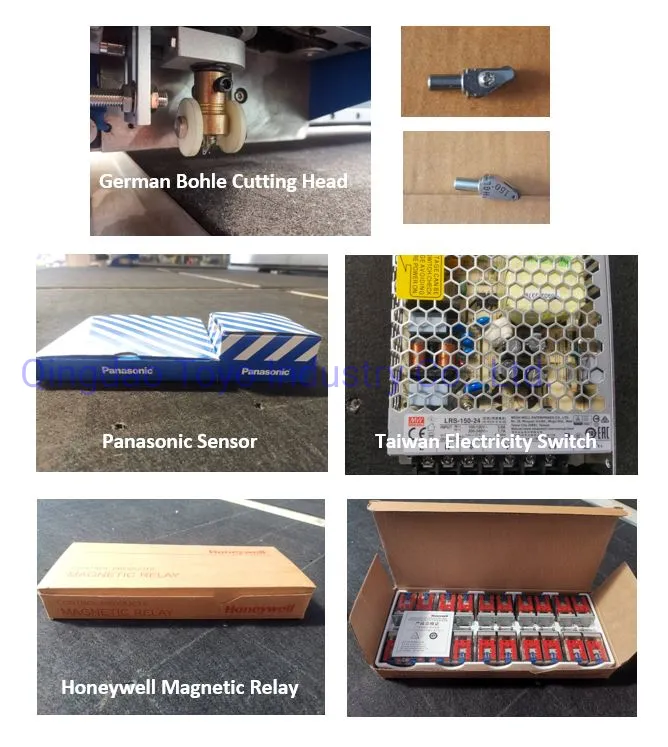

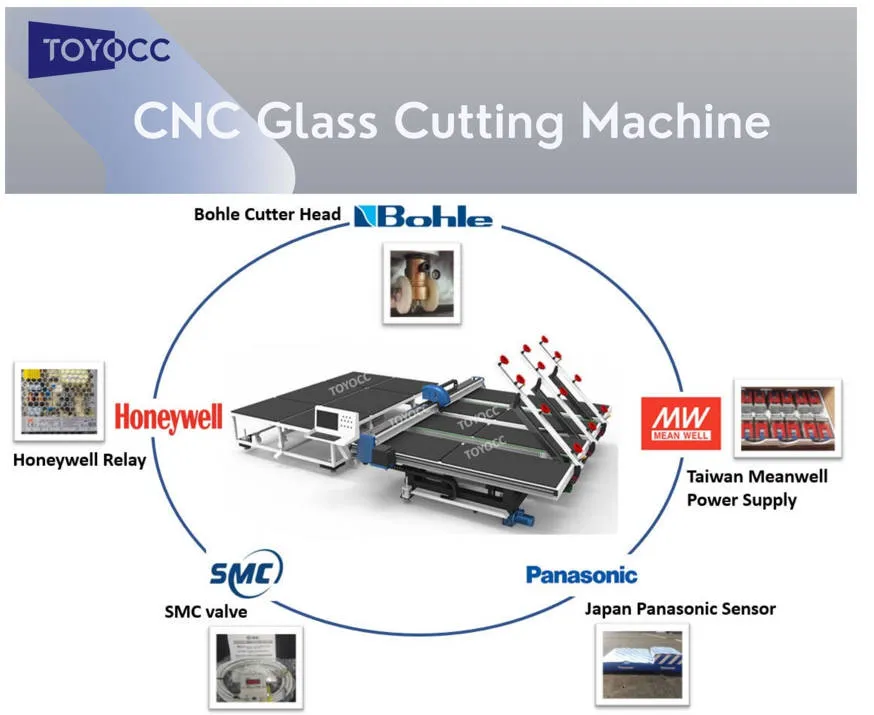

Core Component Configuration

Japan Panasonic Sensor
German Bohle Cutter Head
American Honeywell Electrical Relays
Taiwan AirTAC Air Cylinder
Taiwan Meanwell Power Supply
Japan Mitsubishi PLC
Dual Motor Cutting Head Drive
360-degree Rotation Capability

Technical Parameters: Cutting Machine

Technical Parameters	TYJT-2420	TYJT3628
Dimensions	363047001400mm	391047001450mm
Working Table Height	850mm	850mm
Max Processing Size	2440*2000mm	3660*2800mm
Cutting Thickness	2-19mm	2-19mm
Cutting Speed	0-180m/min	0-180m/min
Voltage & Air Pressure	380V/50HZ, 0.6MPA	380V/50HZ, 0.6MPA
Installed Power	11.8 KW	11.8 KW
Net Weight	3000KG	3100KG

Technical Parameters: Break-off Table

Technical Parameters	TYJT-2420	TYJT3628
Dimensions	25002000810mm	26004020810mm

Advanced Operational Details

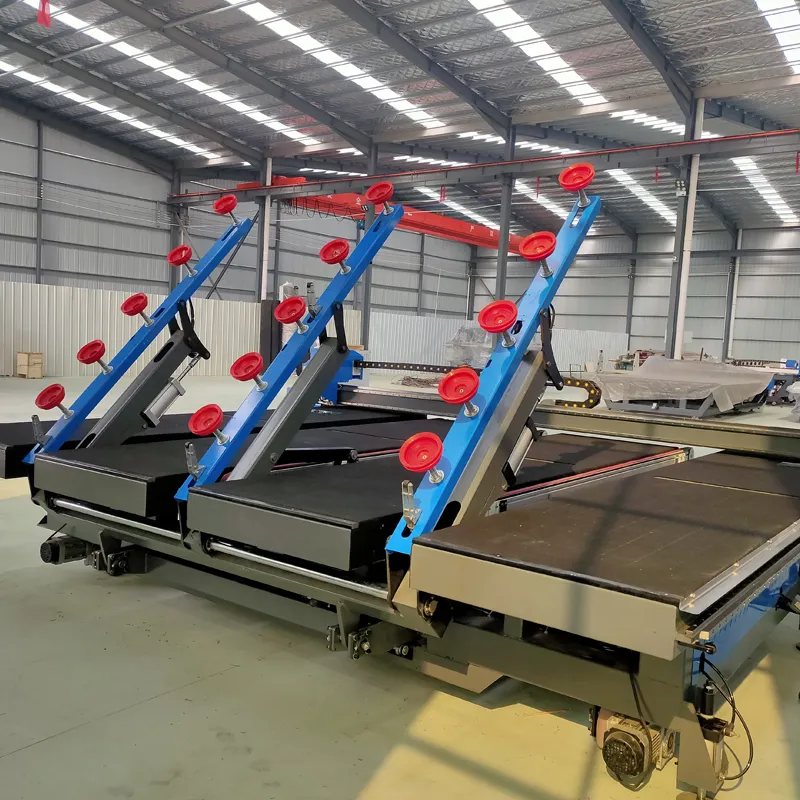

Smart Suction System

One-touch operation: The machine automatically raises the boom, finds the glass angle, and monitors suction to safely lift and scan the glass sheet for optimized cutting.

Smart Typography Software

Simply input the glass size and desired shapes into the control panel. The system optimizes the layout automatically, maximizing material usage and saving time.

High-Speed Automatic Cutting

Equipped with a German Bohle head capable of 360-degree rotation, enabling the machine to cut any complex shape with high precision under computer control.

Air Floating Platform

Features over one hundred evenly distributed air holes on the cutting table. This ensures a stable air cushion, making it effortless to move large glass sheets.

Visual Presentation

Certification & More Models

Frequently Asked Questions

What is the range of glass thickness the machine can cut?

The machine is designed for precision cutting of glass thicknesses ranging from 2mm up to 19mm, utilizing an air pressure control system.

How accurate is the CNC cutting system?

Thanks to our annealed frame structure and high-quality linear guides, the cutting accuracy is guaranteed to be ≤0.2mm.

What brands of electrical components are used?

We use world-class components including Japan's Panasonic sensors, Mitsubishi PLC, German Bohle cutter heads, and American Honeywell electrical relays.

Is the machine easy to operate for custom shapes?

Yes, the 360-degree rotating cutter head combined with our smart typography software allows you to input any shape for automatic, optimized cutting.

What makes your machine countertop different from competitors?

We use PVC resin plates which are waterproof, oil-proof, and highly resistant to deformation. Many competitors use foam or density boards which warp easily when exposed to humidity.

What is the cycle time for loading glass?

The automated loading system typically takes between 15 to 40 seconds to position a new sheet of glass onto the cutting table.
