| Model NO. |
TYJT-2420 / TYJT-3628 |
| Safety Features |
Emergency Stop Button, Overload Protection, Safety Sensor |
| Cutting Thickness |
3-19mm |
| Cutting Speed |
0-180m/Min |
| Loading Speed |
15-40 Seconds |
| Table Height |
850mm |
| Control System |
PLC |
| Production Capacity |
10000 Pieces/Year |

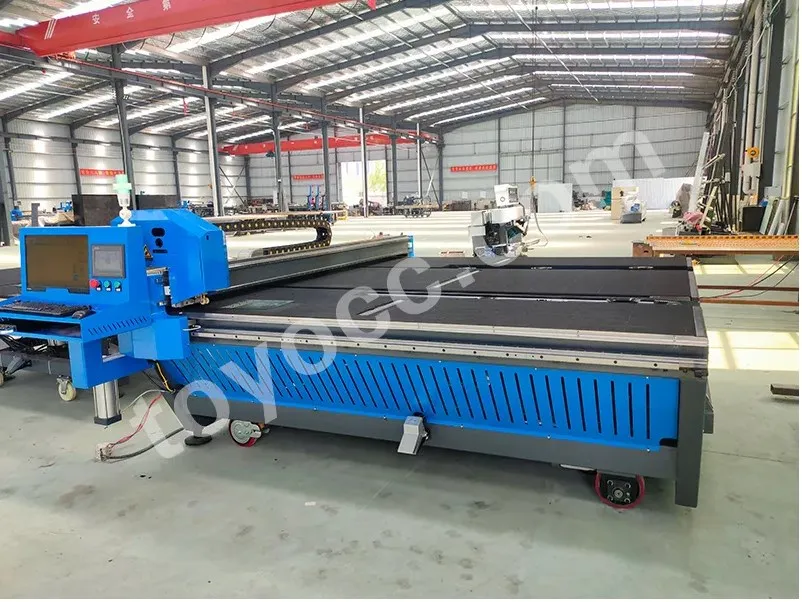

CNC Cutting Machine Series
2 in 1 / 3 in 1 / 4 in 1 Integrated Systems

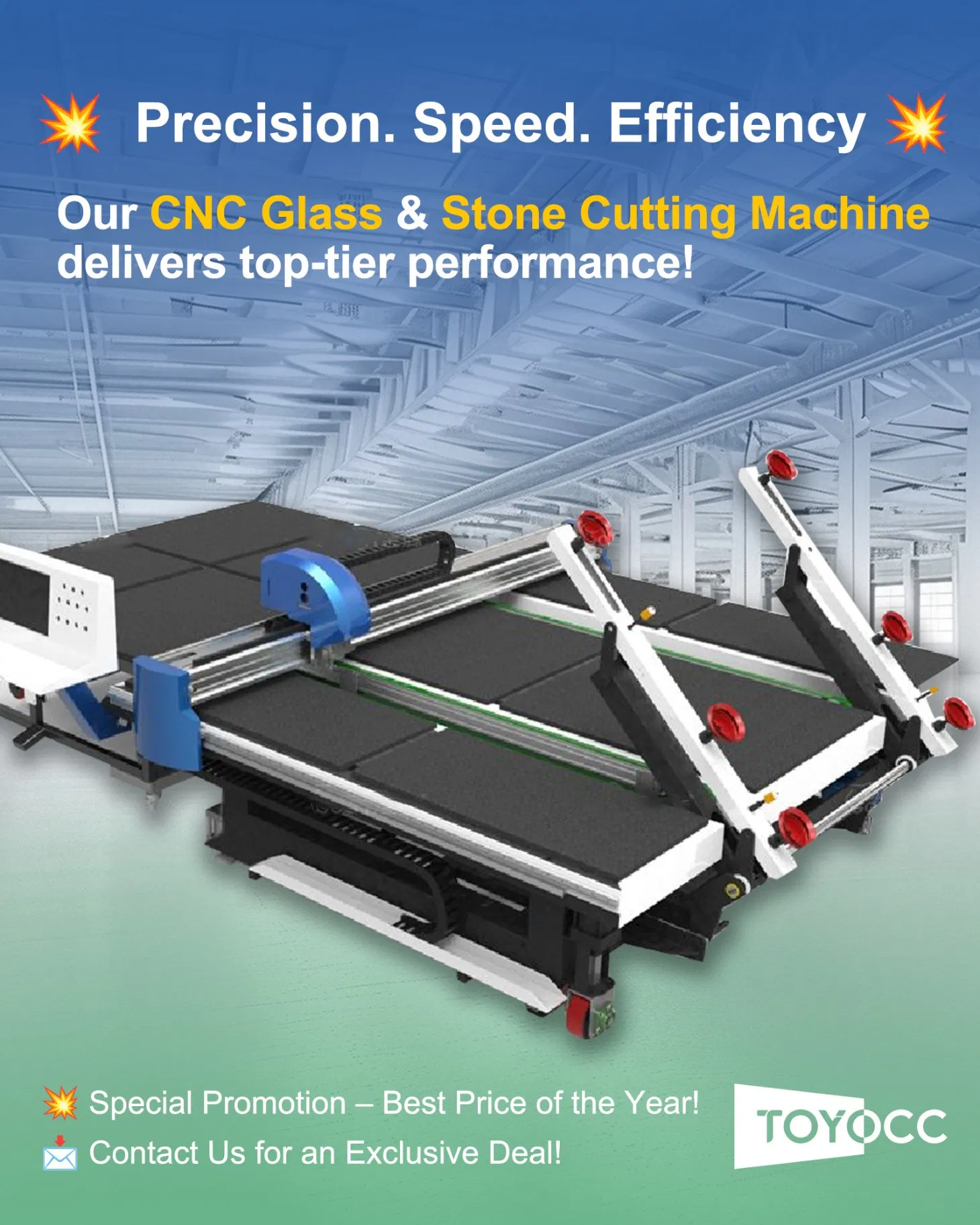

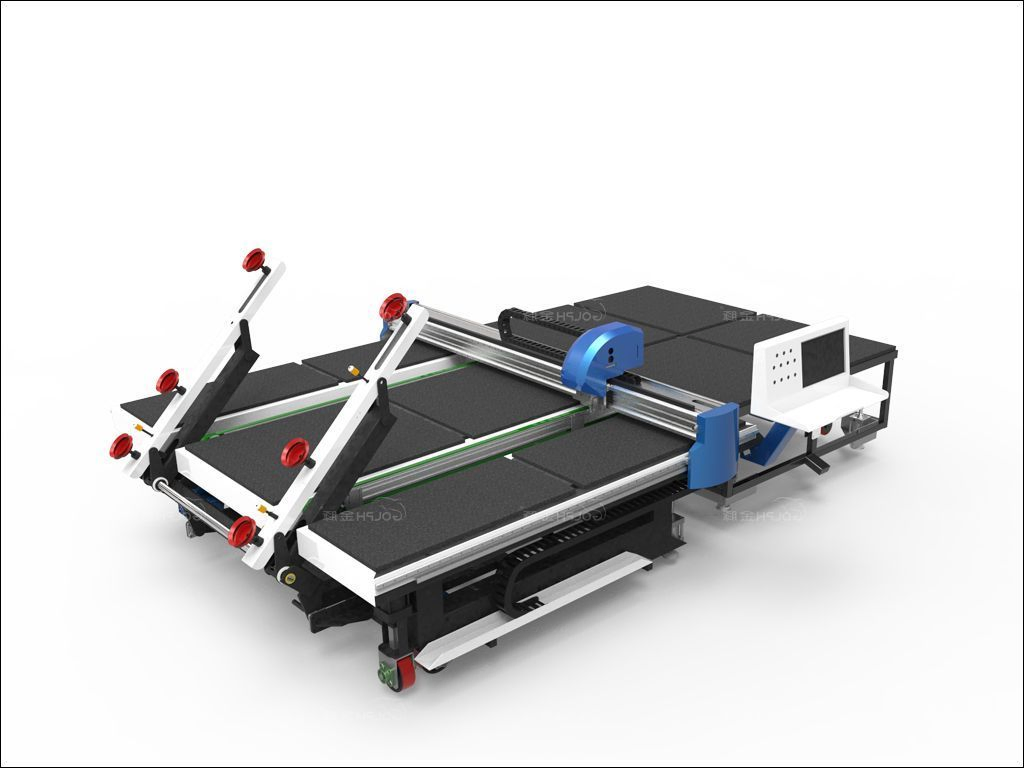

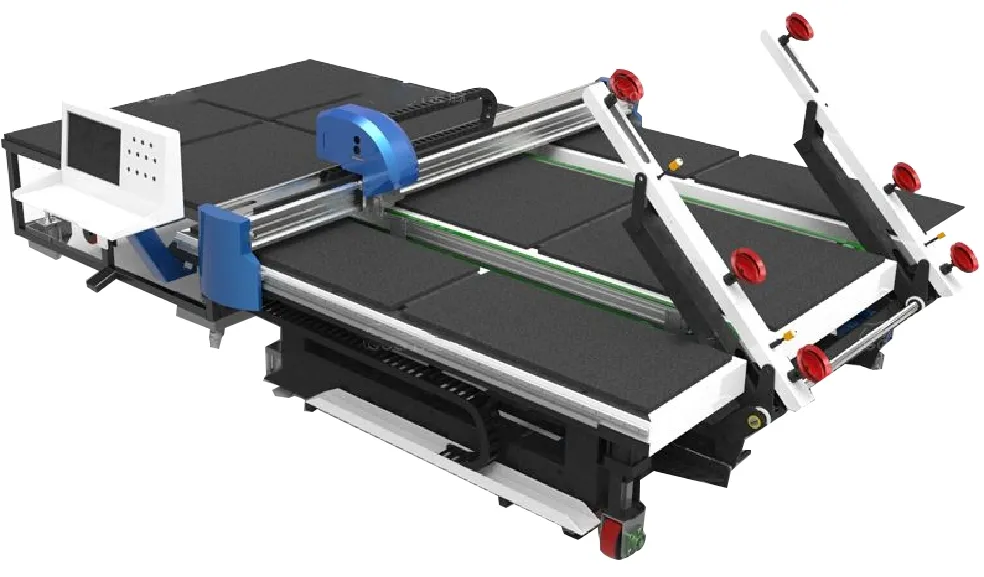

The Automatic Glass Cutting system is a highly intelligent solution designed for efficient handling and precision cutting of large, thick glass sheets. It integrates loading, positioning, and cutting in one streamlined process, offering enhanced safety, speed, and accuracy.
-
✔

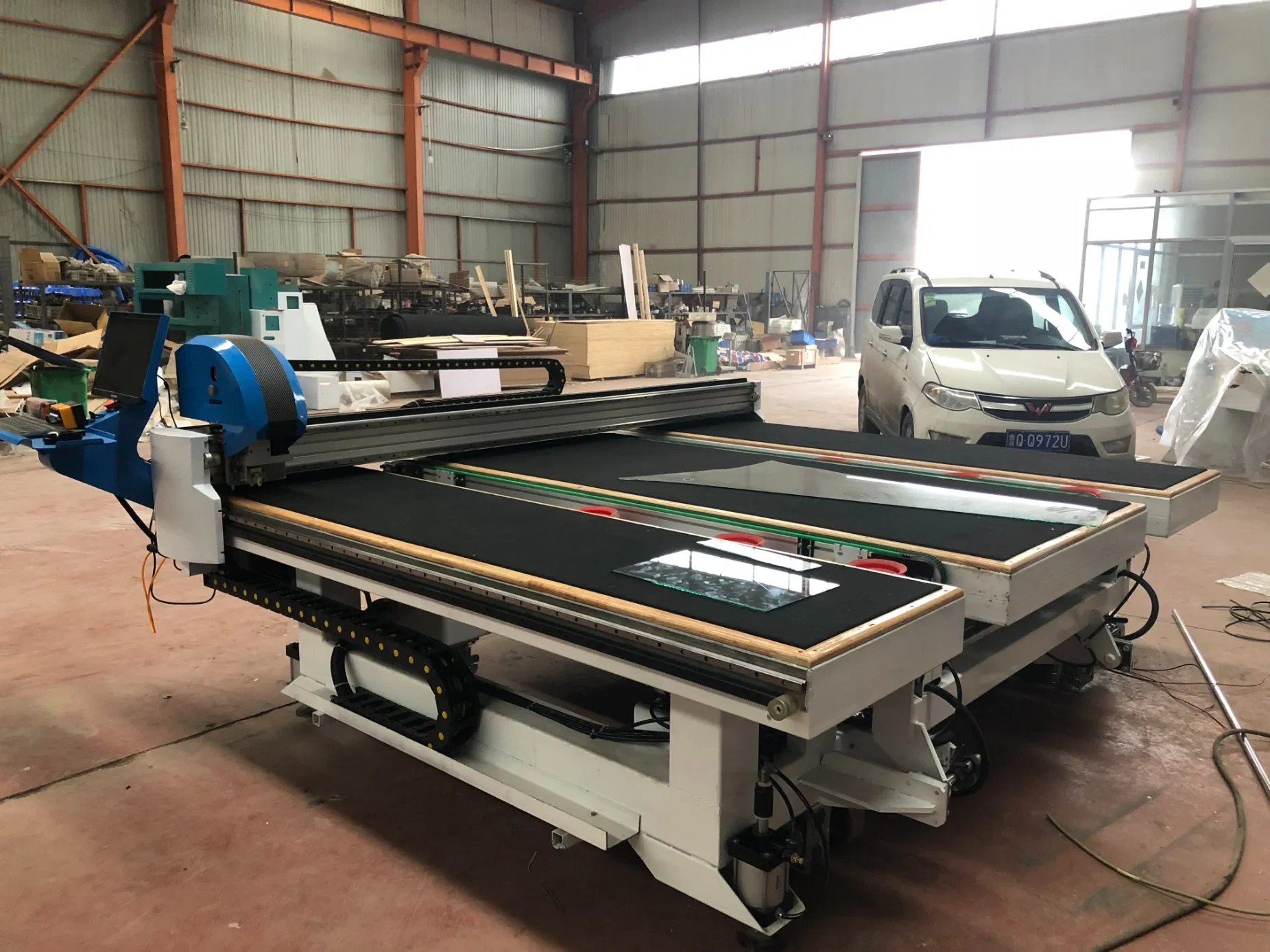

Integrated Loading + Cutting System
Absorbs vertically placed glass via suction cups and converts it to horizontal automatically.
-
✔

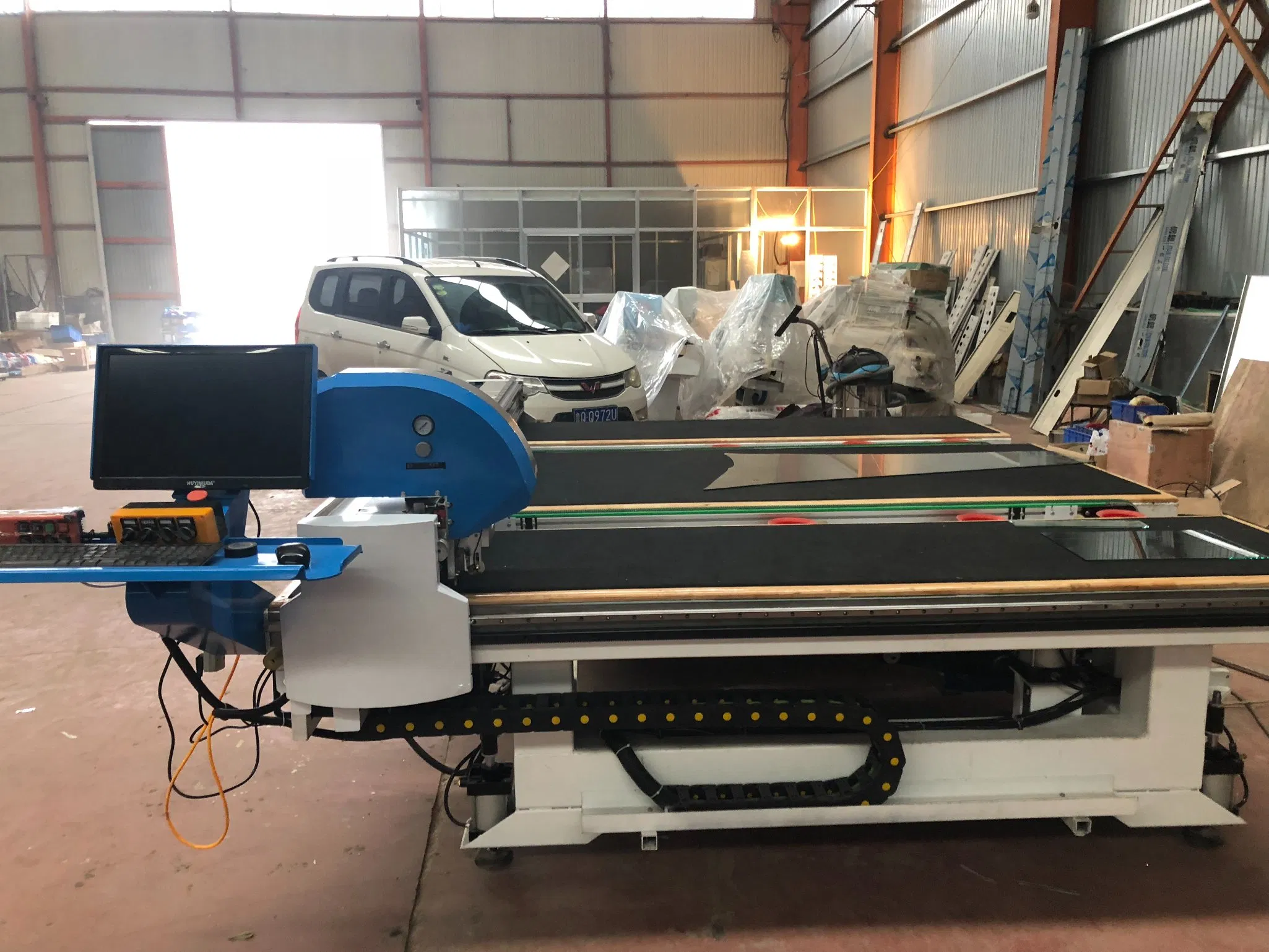

Dual Control System
Combines PLC microcomputer for loading and CNC system for cutting.
-
✔
High-Precision Cutting
German-imported cutter wheel with collision-protection and 360° rotation.
| Parameters |
TYJT-2420 |
TYJT3628 |
| Max Processing Size |
2440*2000mm |
3660*2800mm |
| Cutting Speed |
0-180m/min |
0-180m/min |
| Installed Power |
11.8 KW |
11.8 KW |
| Net Weight |
3000KG |
3100KG |

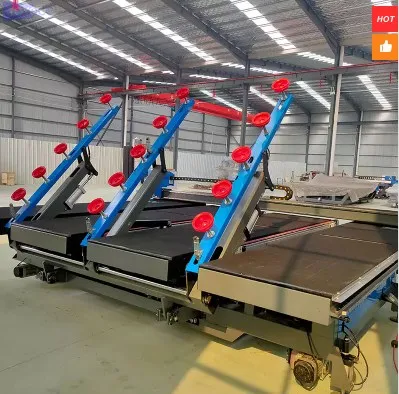

Smart Suction
One-touch start automatically raises the boom, rotates to find positions, and scans the glass sheet for cutting.
Smart Typography
Input glass sizes into the control panel; the machine optimizes the layout to improve efficiency and save material.

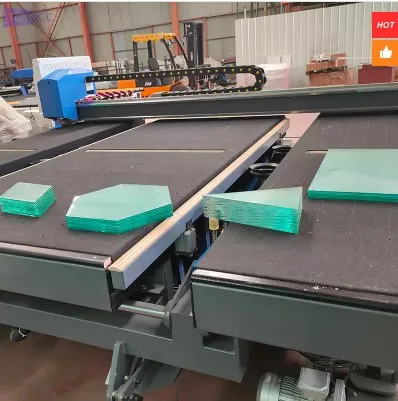

Automatic Cutting
Features a German Boler head capable of 360-degree rotation to cut any complex shapes via computer control.
- Japan Panasonic sensors for precision detection.
- German Bole cutter head for superior edge quality.
- American Honeywell relays for stable electrical performance.
- Full 360-degree movement and workshop mobility.
Q: What types of glass cutting machines do you offer?
A: We offer a full range of glass cutting machines, including automatic float glass cutting tables, CNC cutting centers, shape cutting machines, and laminated glass cutting systems.
Q: How accurate is the cutting performance?
A: Our CNC cutting machines use servo motors and high-precision guide rails to achieve cutting accuracy within ±0.2 mm.
Q: Can your cutting machine handle laminated glass?
A: Yes, we offer specialized laminated glass cutting machines equipped with heating systems to cut the PVB or SGP interlayer with precision.
Q: What control system does your cutting machine use?
A: Our machines use advanced CNC control systems that support DXF file imports, automatic optimization, and real-time monitoring.
Q: Is it easy to operate the machine for a new user?
A: Yes. The machines feature an intuitive interface and one-click operation. We provide detailed manuals and training videos for quick onboarding.
Q: Do you provide installation and after-sales service?
A: Yes, we offer installation support, online video guidance, a 2-year warranty, and lifetime technical support for all our machines.
