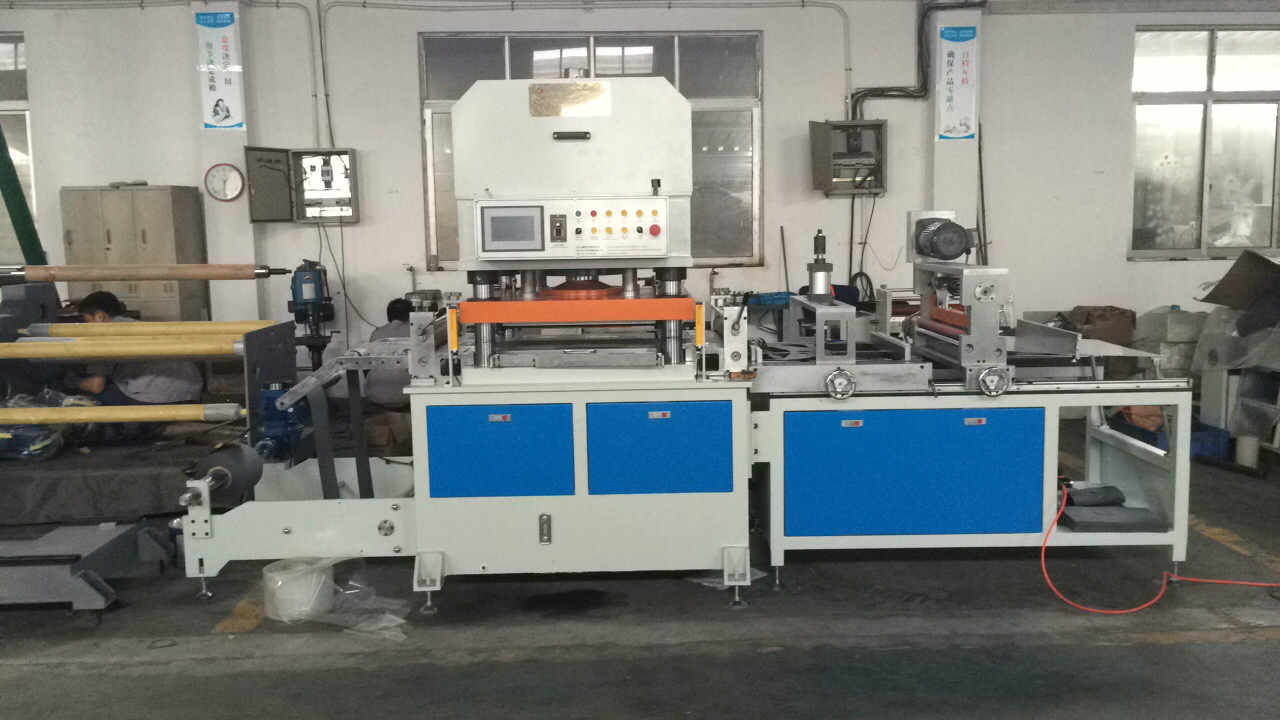

Automotive Use Oil Resistant Gaskets Die Cutting Machine

1 / 5

Automotive Use Oil Resistant Gaskets Die Cutting Machine

Customization:	Available
Species:	Round Applanation Die Cutting Machine
Imprinting Type:	Platen

Send Inquiry

Product Description

Basic Specification

Model NO.

DP-650J

Placing Form

Horizontal

Die Cutting Tool

Laser/Wooden/Steel Mold

System

Computerized / Automatic

Cutting Size

650X600mm / 800X600mm

Cutting Pressure

40 Ton

Feeding Width

650mm

Driven Motor

7.5kw

Production

30 Set Every Month

HS Code

844110000

Product Description

Automotive Use Oil Resistant Gaskets Die Cutting Machine
High efficiency hydraulic die cutting machine designed for precision and durability in industrial applications.

★Key Features

Special body mechanism design for stability.
Electric control system adopts world-famous brand PLC and man-machine interface.
Hydraulic control system with quick loop and noise reduction technology.
Imported single-chip microcomputer control of feeding for extreme accuracy.
Infrared safety electric eye system and multi-function security devices.
Two-stage pressure function ensures accurate and stable output.
Automatic feeding increases efficiency by 3-4 times compared to general presses.

★Applications

Used for cutting PVC, fabric, cardboard, rubber, sponge, bags, non-woven, and other non-metallic materials. Ideal for paper packaging, stickers, insulation materials, EMI shielding, and earthquake-proof products.

Model	Working Area	Max Tonnage	Max Feeding Width	Drive Motor	Weight	Position Accuracy
DP-650	650mm*600mm	40t	650mm	5.5KW	3 Ton	±0.01 mm
DP-650	850mm*600mm	40t	850mm	7.5KW	3.4Ton	±0.01 mm
DP-650	1000mm*800mm	80t	1000mm	11.2KW	4.5Ton	±0.01 mm

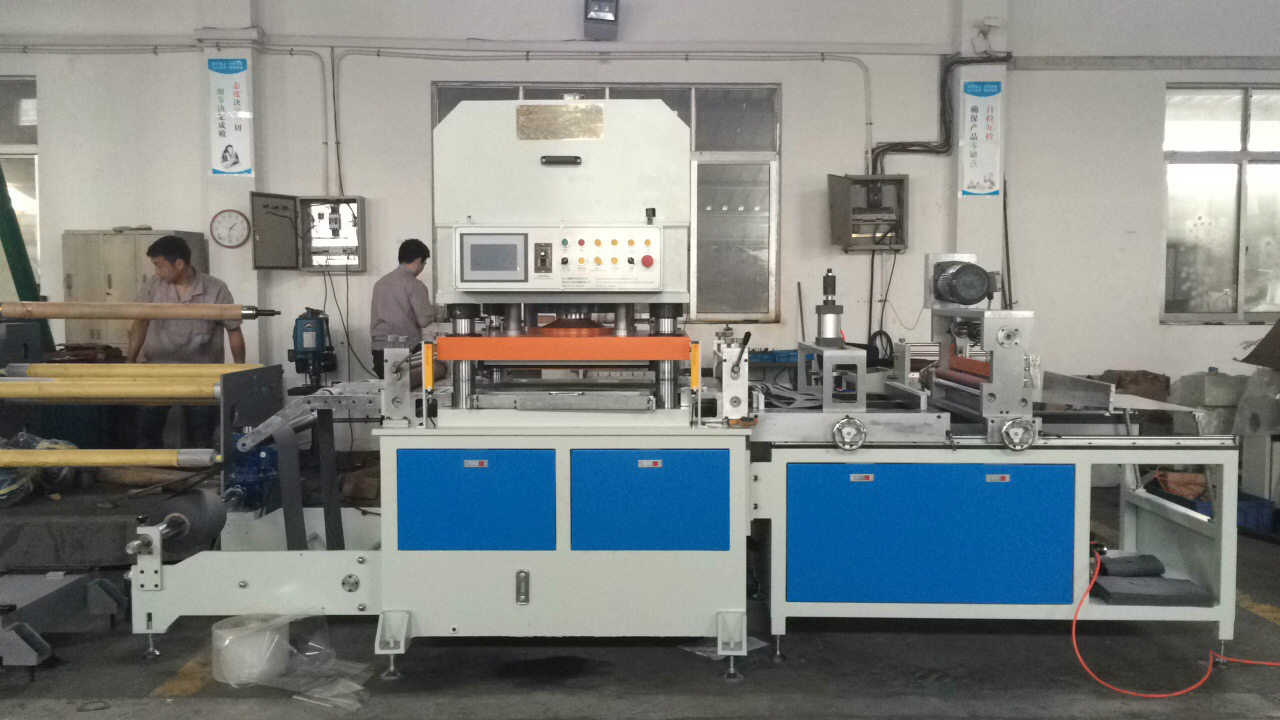

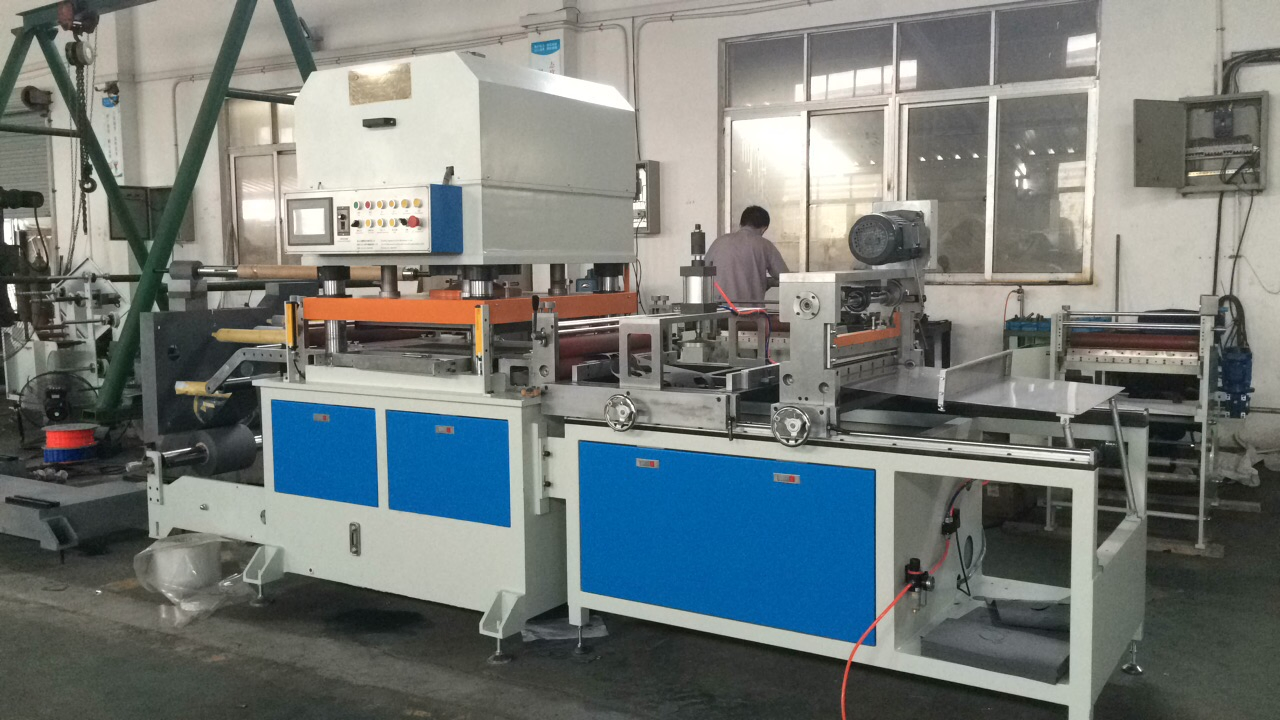

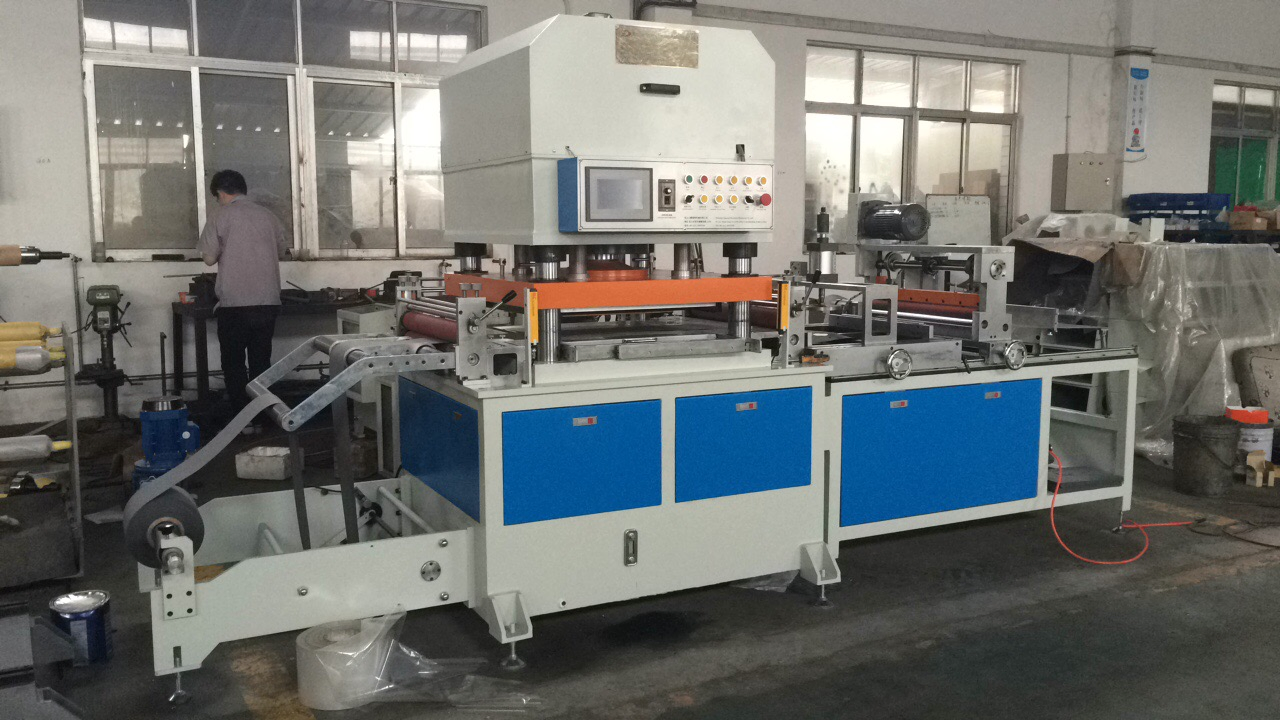

Visual Display

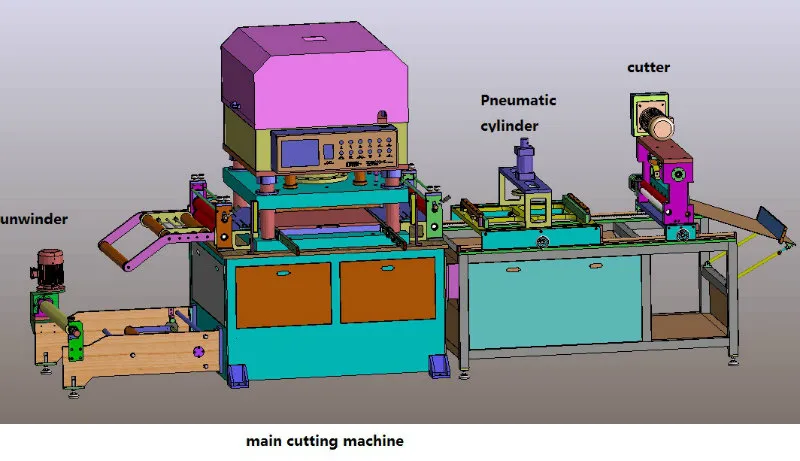

Operation & Design Overview:

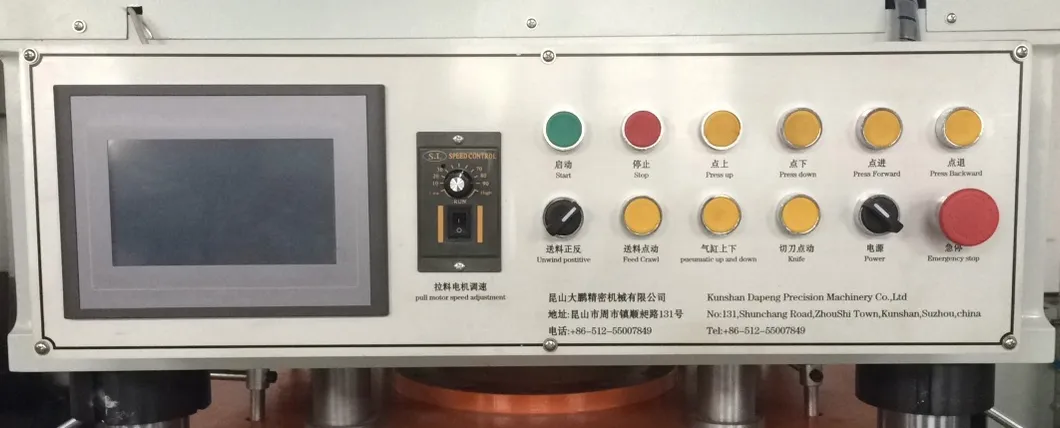

Operation part of the gasket die cutting machine

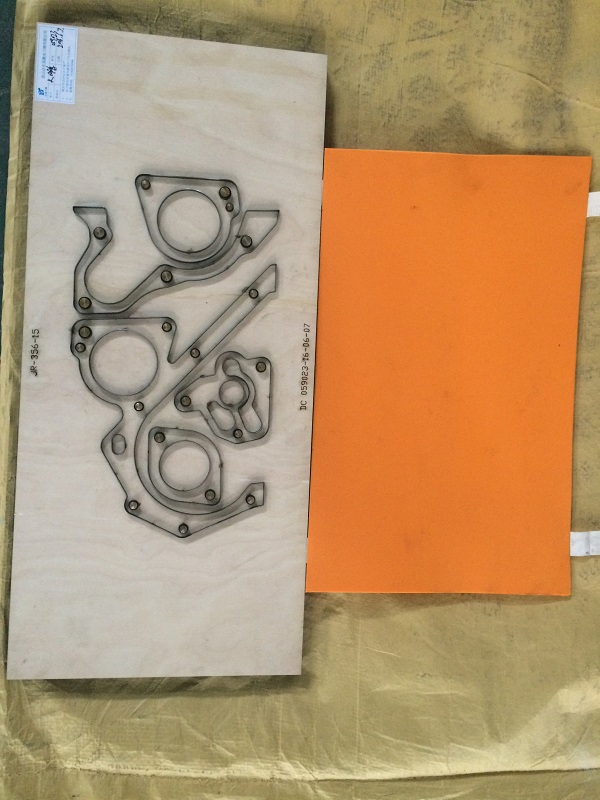

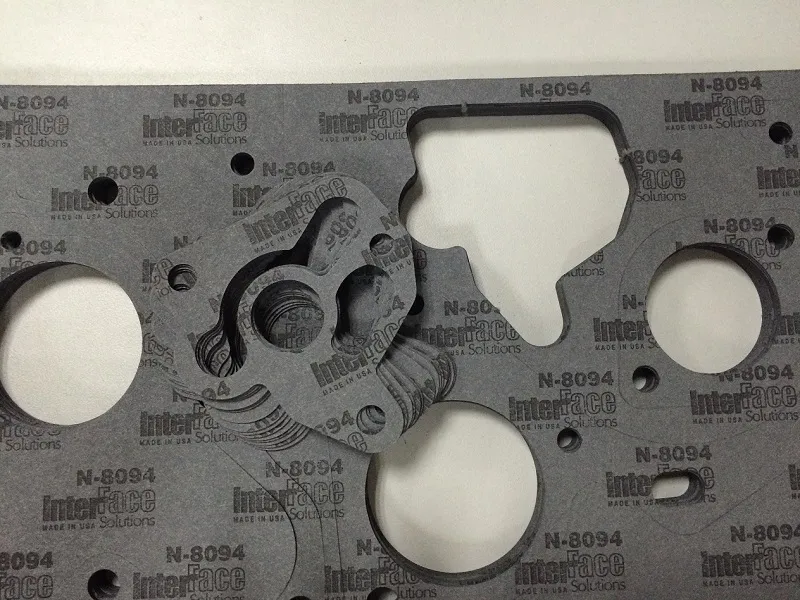

Samples & Moulds:

Configuration Data

Material Pulling Servo Motor

PLC & Touch Screen Control

Photoelectric Safety System

Automatic Pressure Regulating Motor

PU Material Pulling Roller

Hydro-cylinder & Oil Pump System

Guillotine System

Feeding Platform with Roller

Frequently Asked Questions

What materials can this machine cut?

It is designed to cut non-metallic materials including PVC, fabric, cardboard, rubber, sponge, non-woven materials, and various insulation or EMI shielding materials.

How does the machine ensure operator safety?

The machine is equipped with an infrared safety electric eye system and multi-function security devices to ensure maximum protection during operation.

What is the positioning accuracy of the DP-650?

The machine offers high precision with a positioning accuracy of ±0.01 mm, controlled by an imported single-chip microcomputer system.

Can the feeding length be adjusted?

Yes, the computerized PLC system allows you to easily set the specific feed length and number of cuts via the man-machine interface.

Is the machine suitable for high-volume production?

Absolutely. With its automatic feeding system, it is 3-4 times more efficient than standard manual presses, making it ideal for mass production.

What types of molds are compatible?

The machine is compatible with Laser Die Cut Molds, Wooden Knife Molds, and Steel Molds to suit different application requirements.
