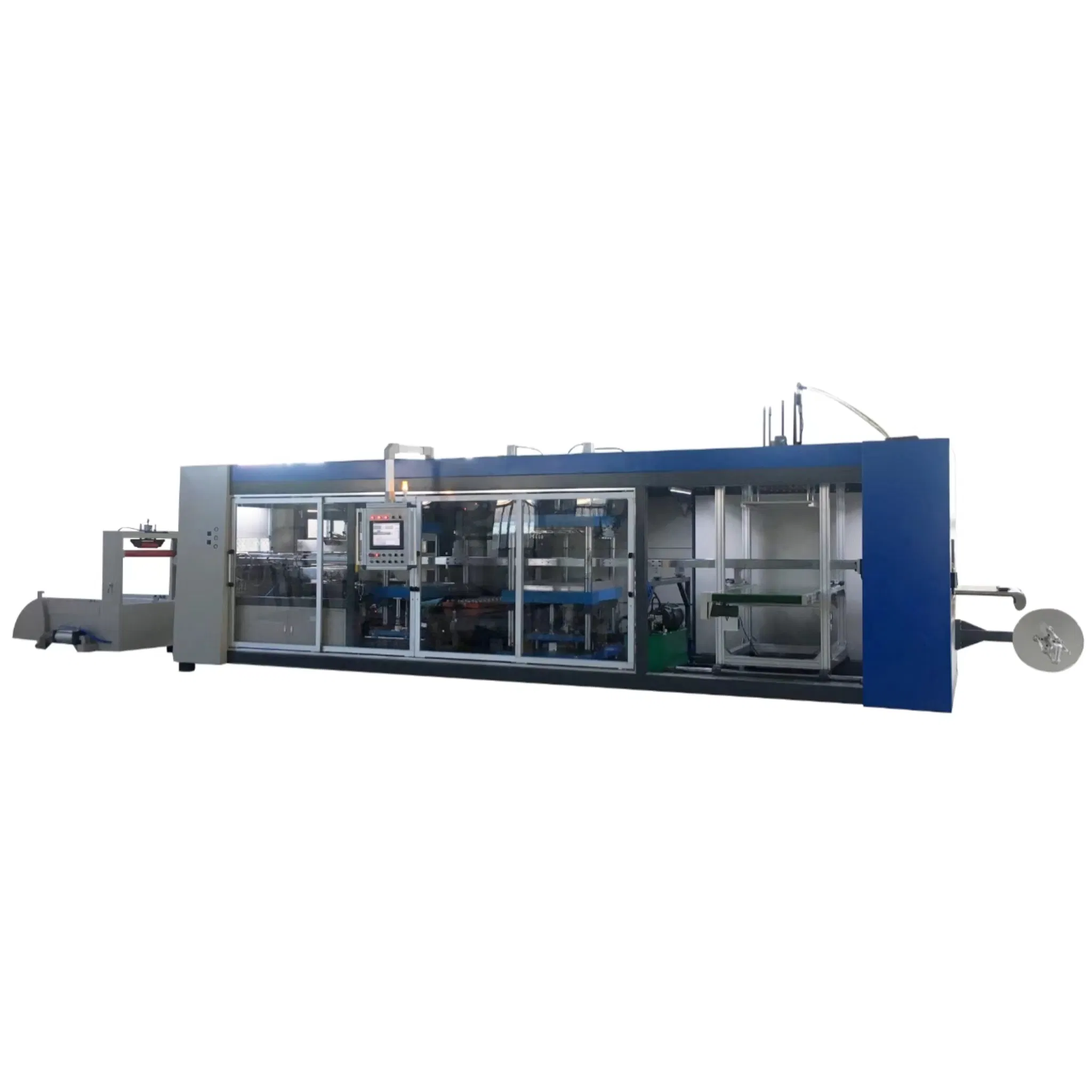

Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production
1 / 5
Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production
Efficient Vacuum Forming System for Plastic Cup Production

Efficient Vacuum Forming System for Plastic Cup Production

Warranty: 1 Year
Automation: Automatic
Raw Material: ABS
Send Inquiry

Product Description

📊 Basic Information
Model NO.
PDVF-ZFY600
Shaping Mode
Die Molding
Driven Type
Electric
Computerized
Computerized
After-sales Service
1 Year
Color
Blue
Customs Code
8477409000
Output
200PCS/Year
Transport Package
Simple Packaging or Wooden Crates
Specification
Forming area: 600mm*710mm
Production Capacity
200PCS/Year
⚙️ Technical Specification of PD-ZFY600
NO. Technical Specification Technical Parameters
1Maximum molding area600mm×710mm
2Minimum molding area340mm×410mm
3Widest sheet780mm
4Narrowest sheet340mm
5Molding thickness0.2-2.0mm
6Height of molding upper table120mm
7Height of molding lower table120mm
8Upper furnace length1850mm
9Lower furnace length1850mm
10Stacking Height500mm
11Height of cutting upper die table120mm
12Height of cutting lower die table120mm
13Maximum cutting force80T
14Cutting methodLaser wood molding / Aluminum frame with knives / Hardware Stamping Knives
15Total power of the upper furnace66KW
16Total power of the lower furnace66KW
17Pull motor5.5KW
18Total power of equipment146KW (normal use power: 60KW-90KW)
19Vacuum volume200m3/h
20Molding cooling methodWater-cooled + Air-cooled
21Total gas supply (external)0.8Mpa
22Power supply380V/50HZ (three-phase four-wire 70 m2)
23Main RackChannel steel, steel plate, angle iron, pig iron, stainless steel
24Sheet metal of fuselageBaked and plated finishes
25Total weight15T
26Machine SizeApprox. 12000 x 2500 x 2800mm
🔍 Product Showcase

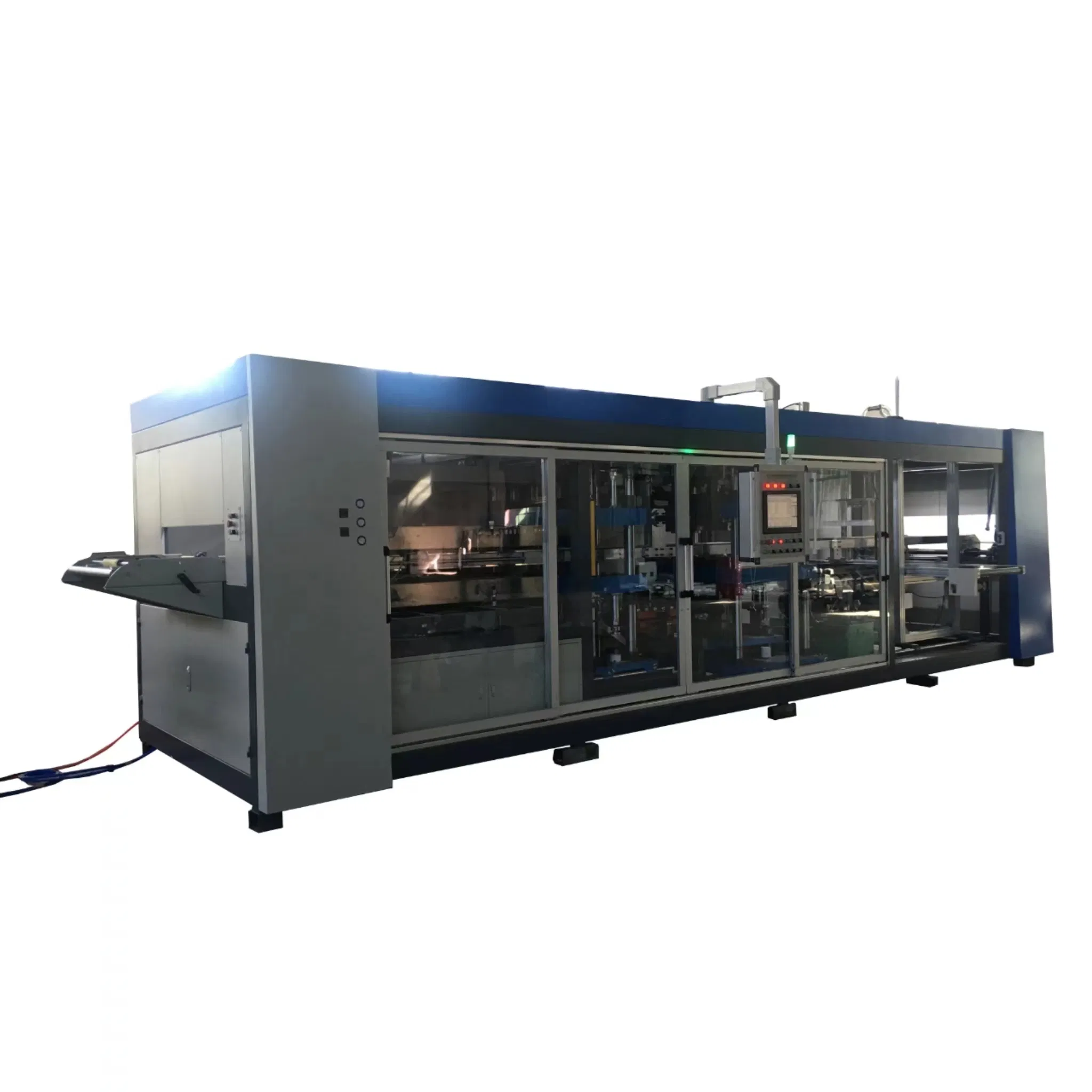

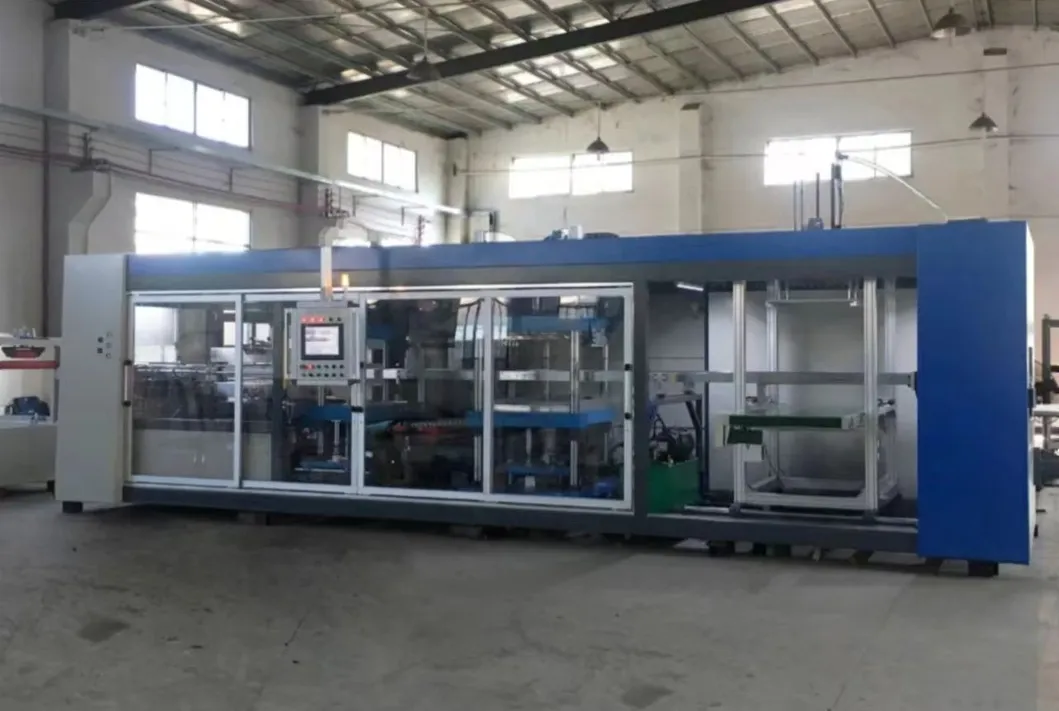

PD-ZFY600 Positive and Negative Pressure Suction Moulding Machine
Positive and Negative Pressure Suction Moulding Machine

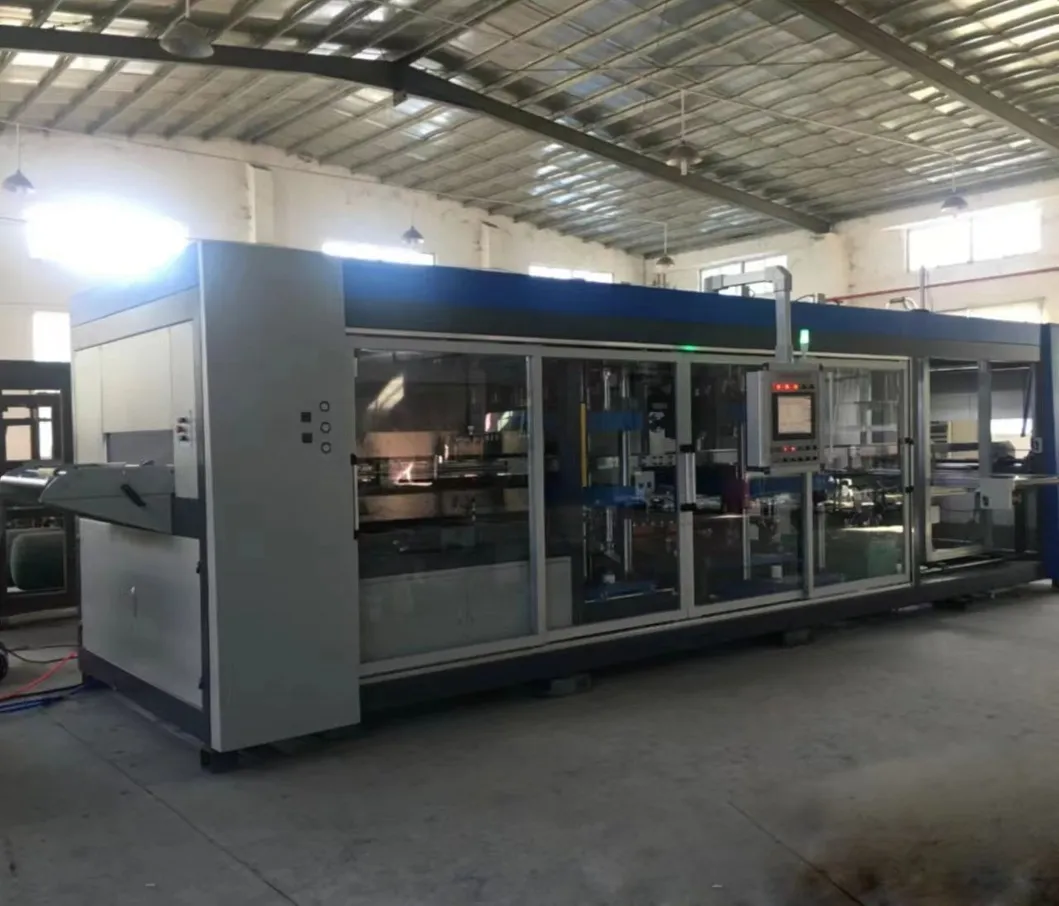

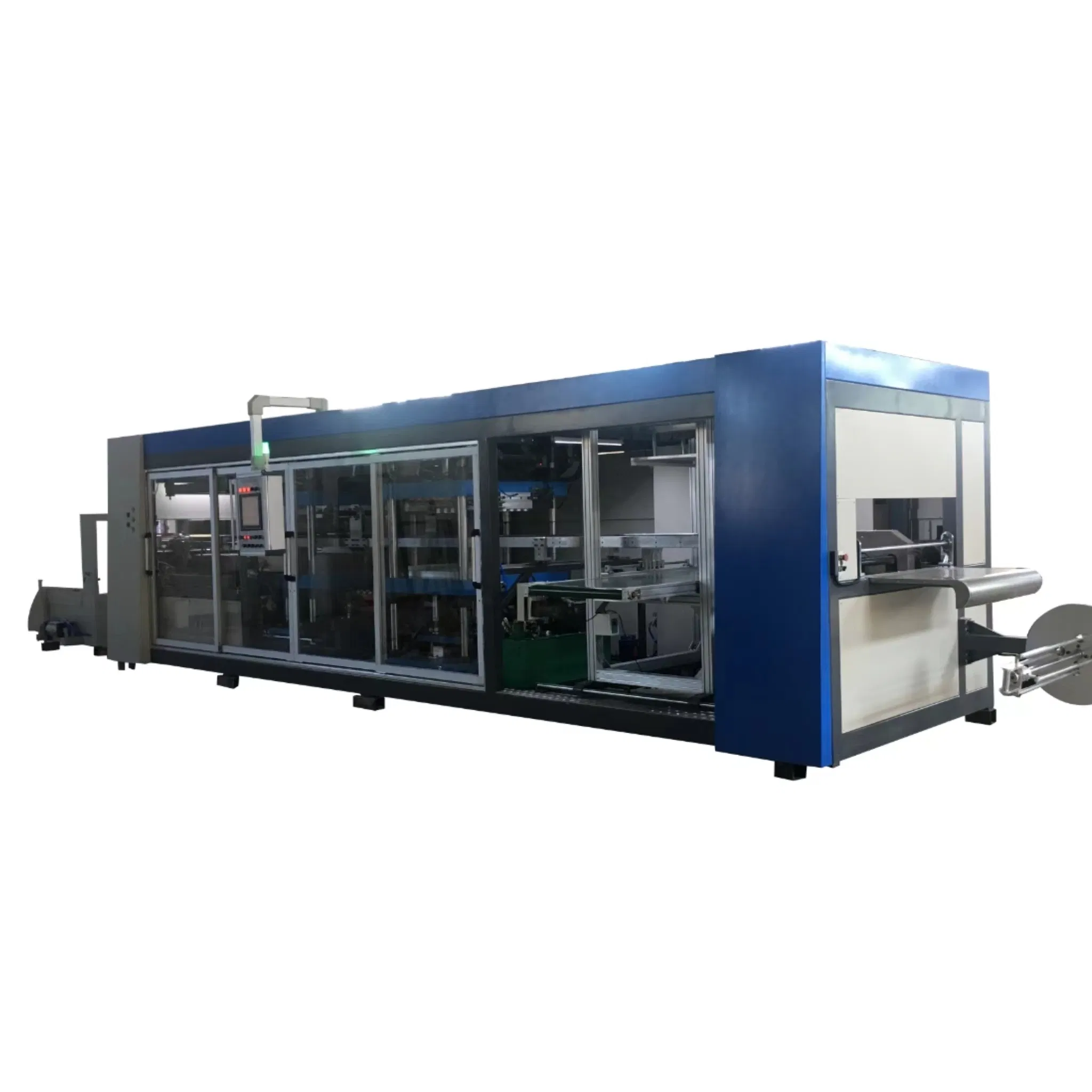

Vacuum Forming System

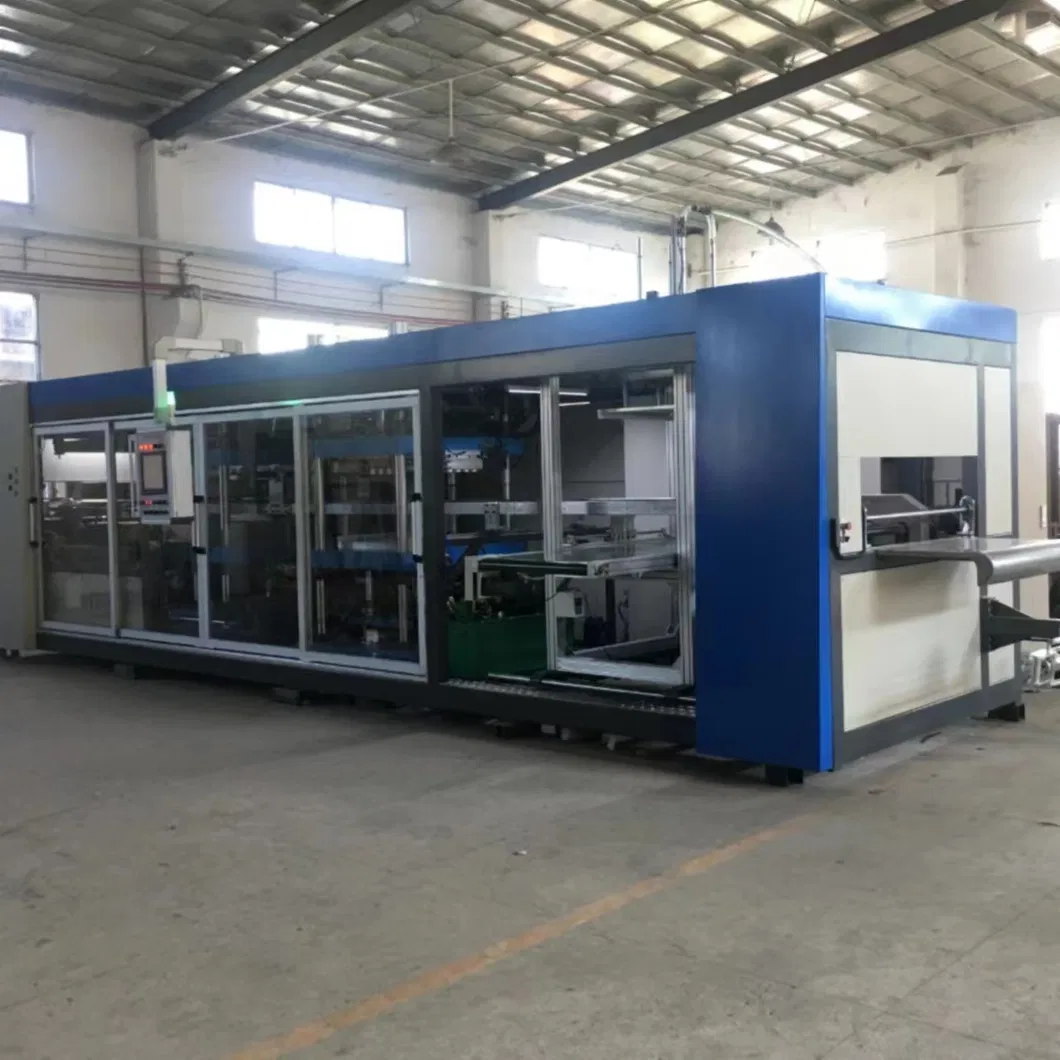

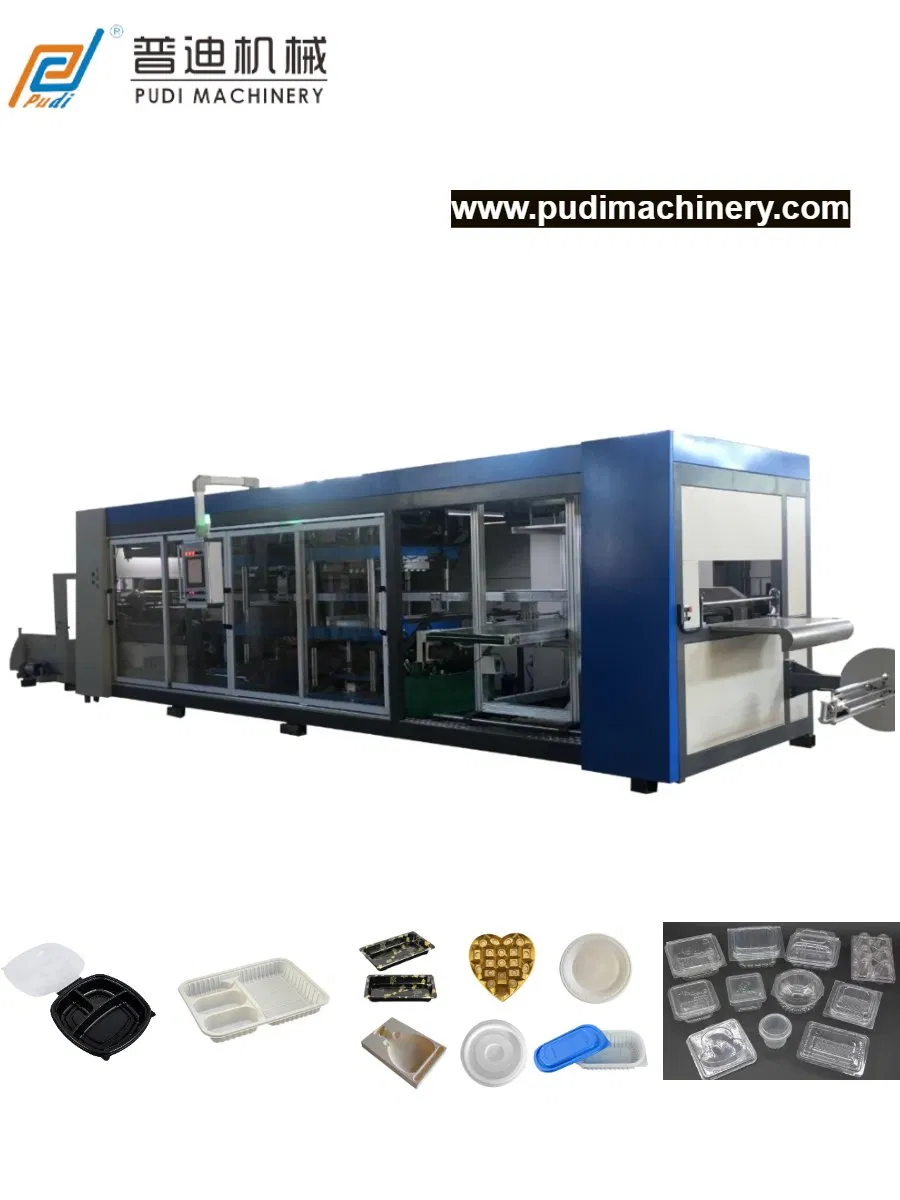

Plastic Cup Production System
💎 Key Features & Configuration
I. Features: PD-ZFY600 high-efficiency program-controlled plastic molding machine integrates mechanical, electrical, and pneumatic systems. It features industrial programmable PLC control with HMI. Feeding, heating, molding, punching, and stacking are completed in one cycle, significantly reducing labor and improving productivity.

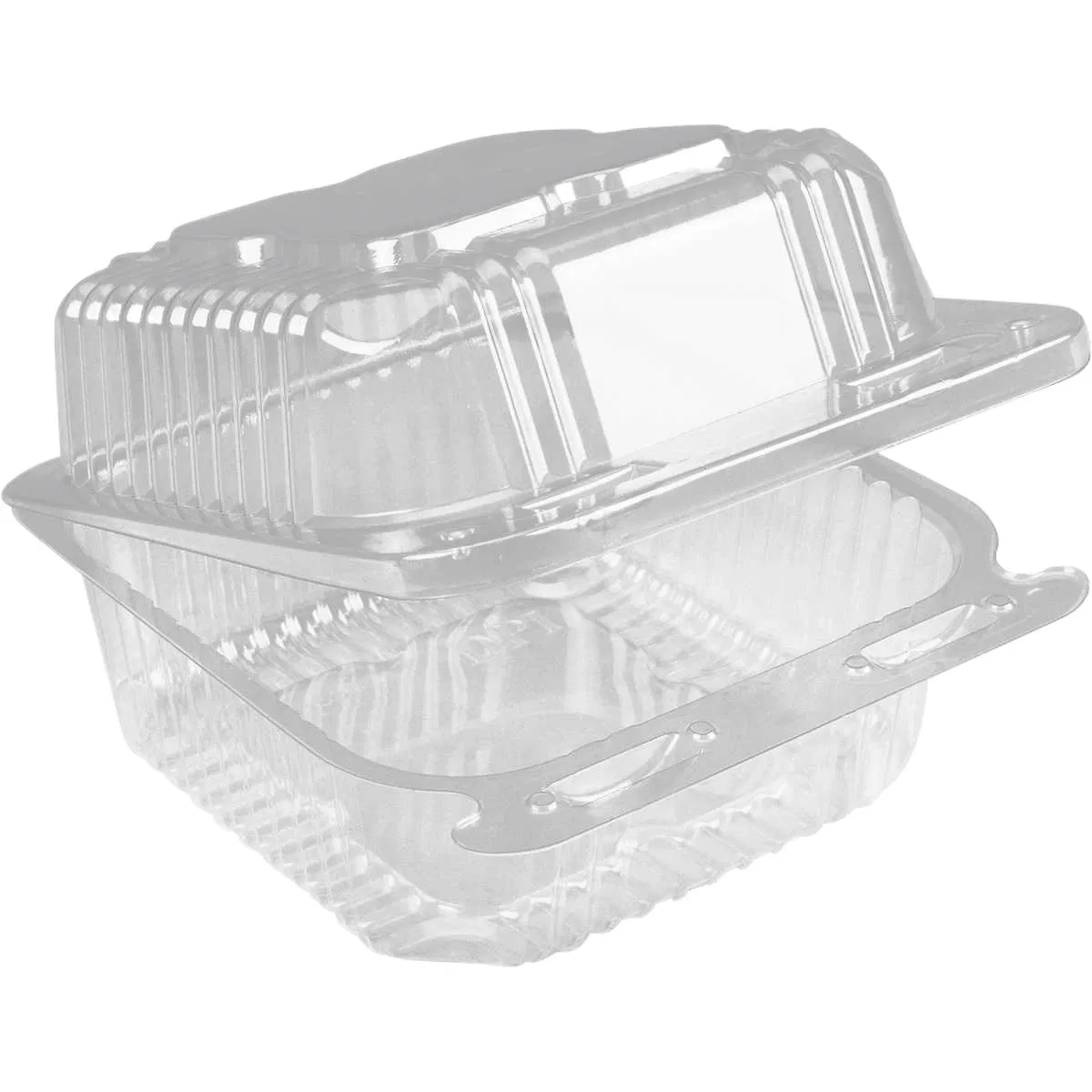

II. Applications: Suitable for HIPS, PS, PP, PVC, PET, ABS sheets. Perfect for manufacturing boxes, plates, trays, bowls, and industrial packaging.

III. Safety Facilities: Equipped with multi-point "Emergency Stop", safety door protection with manual locking, and over-current/over-voltage protection circuits.

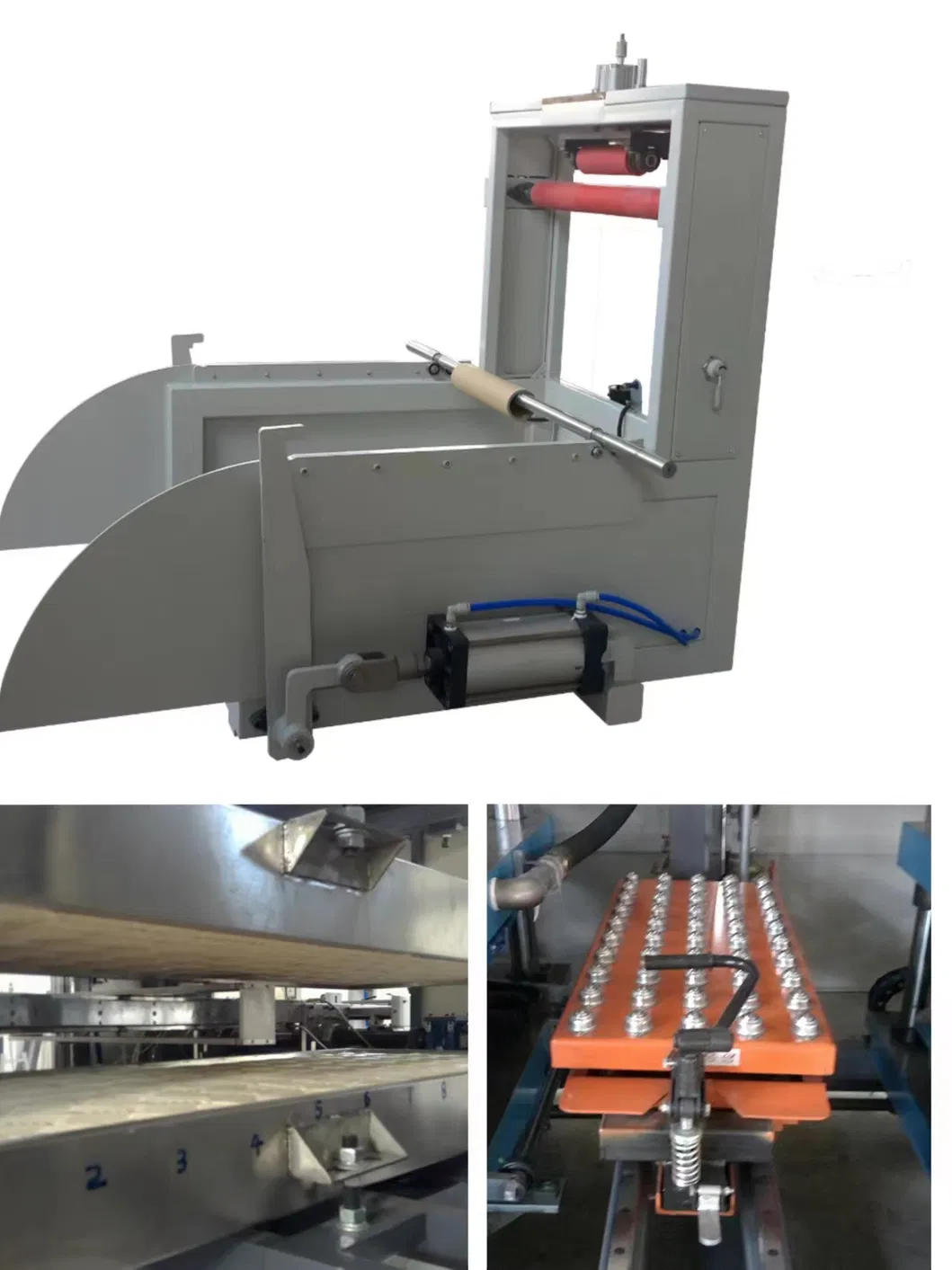

Machine Detail 1

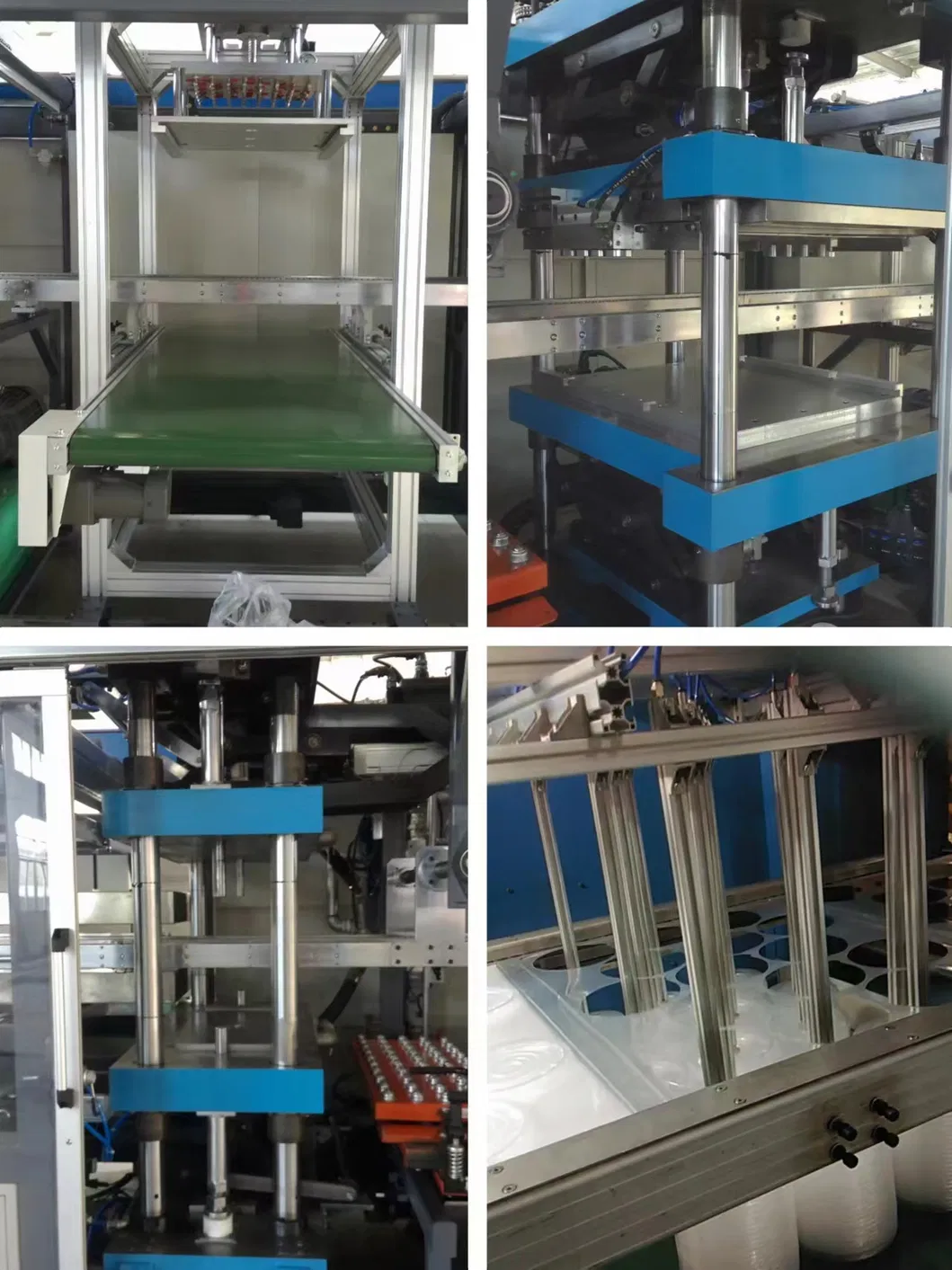

Machine Detail 2

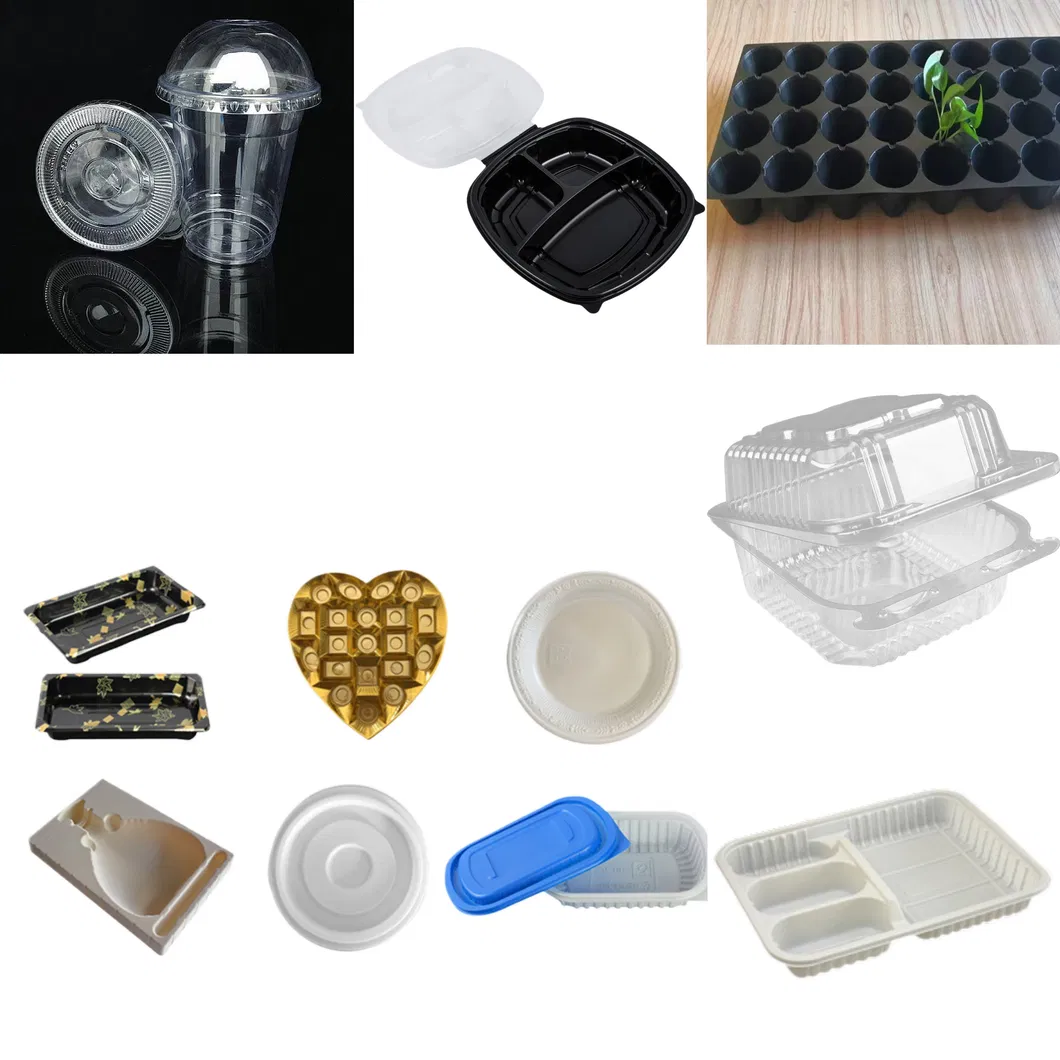

💡 Application Scenarios
Application Scenarios
Why Choose Our Solutions?
• Professional Technical Team: 20 years of R&D and production experience.
• Customized Service: One-stop vacuum forming solutions tailored to your needs.
• Quality Assurance: Mechanical parts produced via independent CNC machining.
• Worry-free Service: Full installation, commissioning, and training support.
Patent Certificate 1
Patent Certificate 2
📦 Logistics & Transport
Logistics and transport
❓ Frequently Asked Questions (FAQ)
What materials can the PD-ZFY600 machine process?
The machine is suitable for HIPS, PS, PP, PVC, PET, ABS, and other plastic sheet molding materials.
What is the maximum molding area of this equipment?
The maximum molding area is 600mm × 710mm, with a sheet thickness range of 0.2mm to 2.0mm.
Does the machine support automatic stacking?
Yes, the machine features a three-station design including molding, cutting, and automatic decomposition/stacking.
What kind of after-sales service is provided?
We provide a one-year warranty for the whole equipment (excluding wearing parts) and lifetime maintenance support.
What are the power and air requirements for installation?
It requires a 380V/50HZ three-phase power supply and a compressed air source with a pressure of 0.6-0.8 MPa.
Can the machine specifications be customized?
Yes, we can customize any model according to your specific production requirements and product designs.
