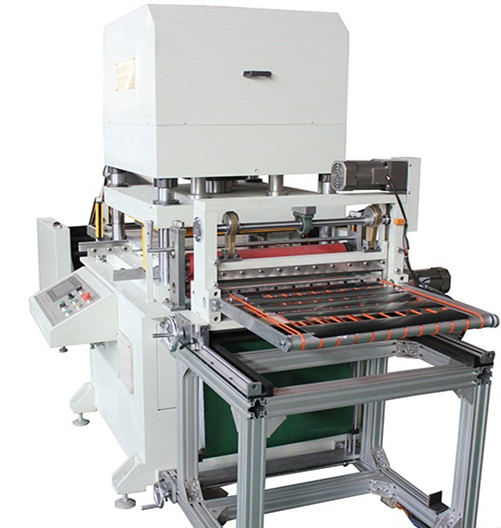

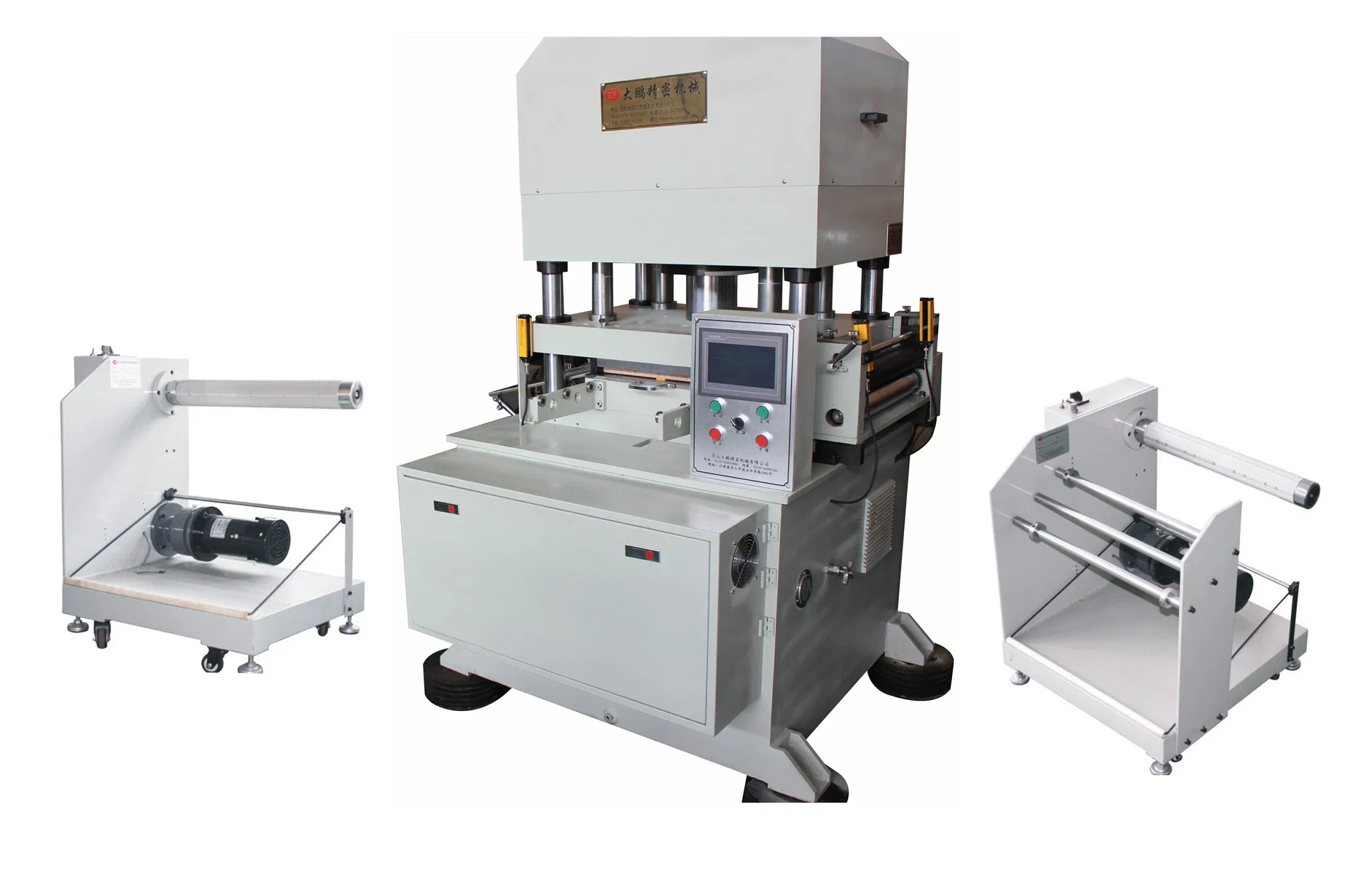

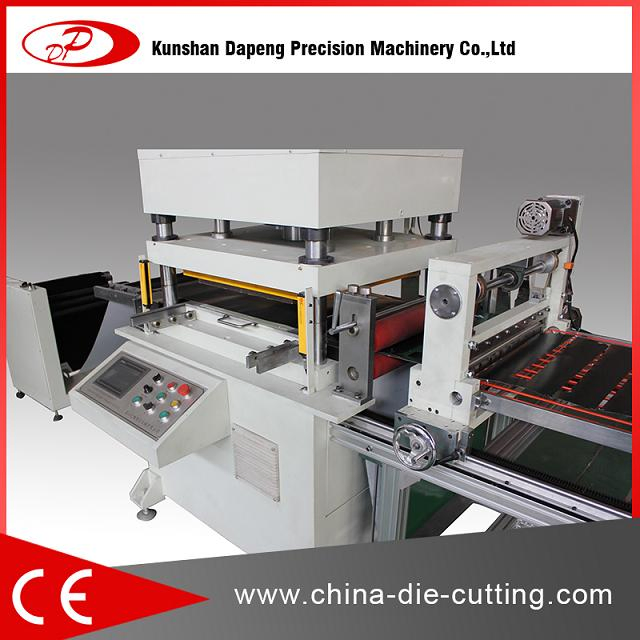

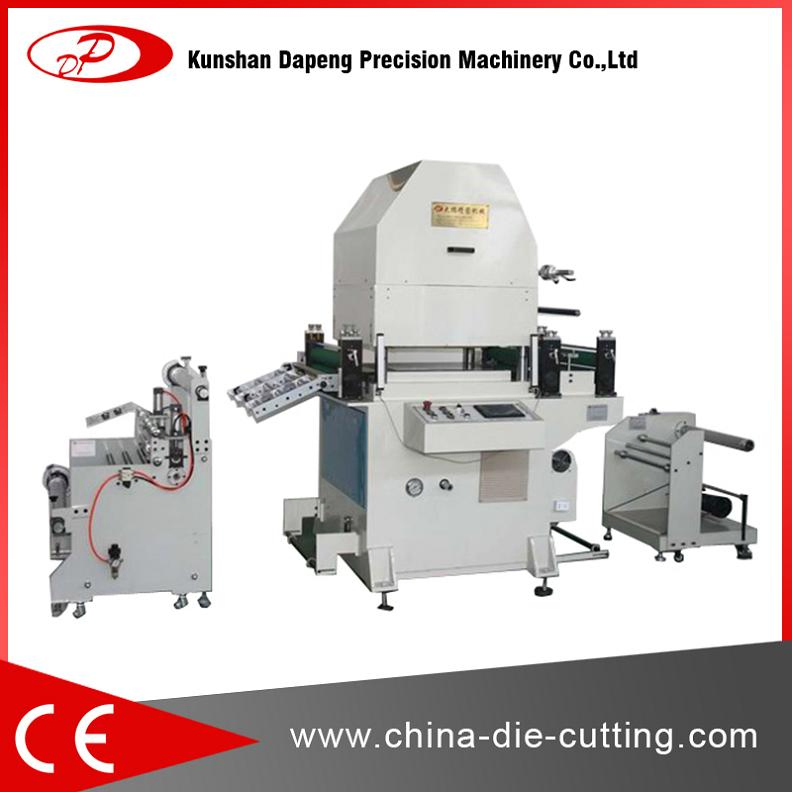

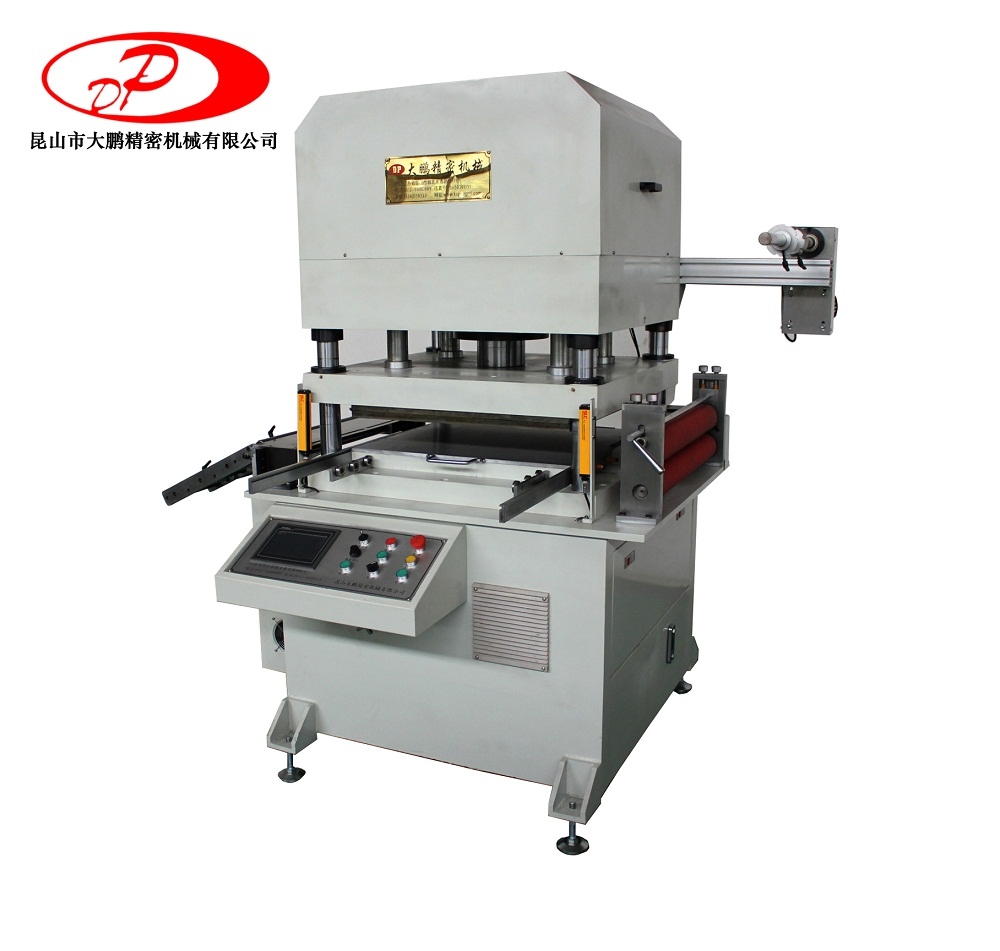

EMI Shielding Foam Gasket Die Cutting Machine

Customization:	Available
Species:	Hydraulic Flatbed Die Cutting Machine
Imprinting Type:	Platen

Basic Information

Model NO.

DP-100Ton

Placing Form

Horizontal Template

Die Cutting Tool

Laser Die Mould

Grade

Automatic / Computerized

Cutting Size

650X600mm / 800X600mm

Cutting Pressure

40ton - 150ton

Speed

30 Times Per Minute

Material Max Width

1000mm / 800mm / 650mm

Stroke

100mm

HS Code

844110000

Capacity

30 Sets Per Month

Product Description

Gasket Die Cutting Machine for EMI Shielding Foam

This high-efficiency hydraulic die cutting machine is engineered for precision and stability. It features a specialized body mechanism and utilizes world-renowned brands for its electronic and hydraulic control systems.

Advanced PLC and man-machine interface control system.

Quick loop hydraulic system for enhanced efficiency.

Hydraulic motor drive for noise reduction and speed stability.

Imported single-chip microcomputer control for accurate feeding.

Infrared safety electric eye system and multi-function security devices.

Two-stage pressure adjustment for stable operation.

High efficiency: 3-4 times faster than general presses.

Precision feeding registration system (± 0.03 mm).

Application Scope

Extremely suitable for cutting multiple layers of non-metallic materials in a single stroke, including:

EMI Shielding Materials & Foam
PVC, Fabric, and Rubber
Cardboard and Paper Packaging
Stickers and Adhesive Products
Heat Insulation & Insulating Materials
Sponges, Bags, and Non-woven materials

Technical Specifications

Model	Working Area	Max Tonnage	Max Feeding Width	Drive Motor	Weight	Outline Dimension	Position Accuracy	Power
DP-650 (Standard)	650mm*600mm	40t	650mm	7.5HP/5.5KW	3 Ton	194015001790mm	±0.01 mm	380V 50HZ
DP-650 (Large)	850mm*600mm	40t	850mm	10HP/7.5KW	3.4Ton	214015001790mm	±0.01 mm	380V 50HZ
DP-650 (HD)	1000mm*800mm	80t	1000mm	15HP/11.2KW	4.5Ton	229015001790mm	±0.01 mm	380V 50HZ

Key Configuration Components

Servo Motors: YASKAWA (Japan)

PLC: Mitsubishi (Japan)

Touch Screen: Taiwan Origin

Safety Photoelectrics: Taiwan Origin

Regulating Motor: Panasonic

Hydraulic System: Danxin (Taiwan)

Specialized Slitting & Feeding Systems

Automatic Waste Discharge Device

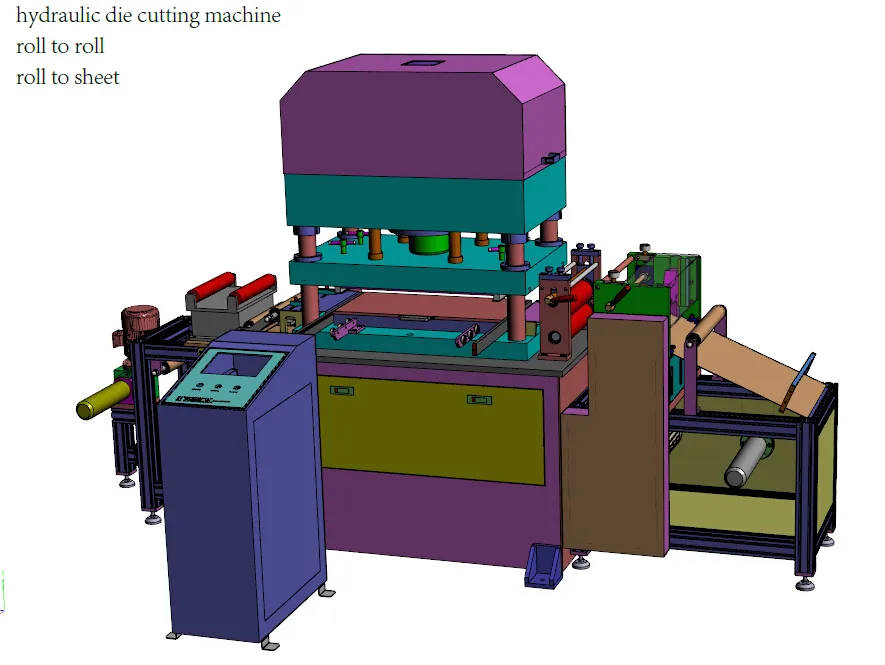

EMI Shielding Foam Gasket Die Cutting Machine - View 1

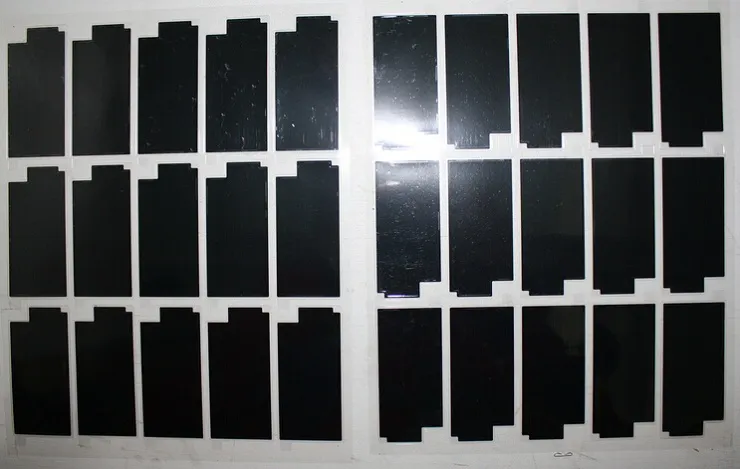

EMI Shielding Foam Gasket Die Cutting Machine - View 2

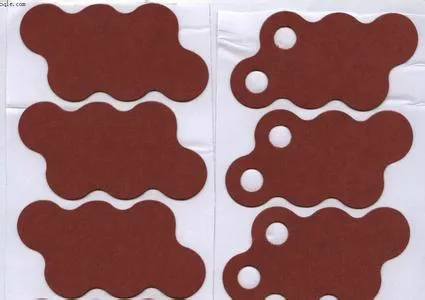

EMI Shielding Foam Gasket Die Cutting Machine - View 3

Frequently Asked Questions

What types of materials can this die cutting machine process?

It is designed for non-metallic materials including EMI shielding foam, PVC, fabric, cardboard, rubber, sponge, and various paper packaging materials.

What is the cutting precision of the machine?

The machine features a high-precision positioning mechanism with an accuracy of 0.01mm and a feeding registration system accuracy of ±0.03mm.

Does the machine support both kiss cutting and through cutting?

Yes, with its import-standard cutting positioning mechanism and HRC40 steel plate, it can perform both through cutting and precision kiss cutting.

What safety measures are integrated into the system?

The machine is equipped with an infrared safety electric eye system, magic eye protection devices, and multiple security interlocks to ensure operator safety.

How efficient is this automatic model compared to manual presses?

The automatic feeding system provides 3 to 4 times the efficiency of a general press, significantly reducing labor requirements and increasing output.

What brands of components are used in the machine?

The machine utilizes high-quality international components, including Mitsubishi PLC, Yaskawa Servo Motors, and Panasonic regulating motors.
