Fiber Laser Marking System Marking on Material

1 / 5

Fiber Laser Marking System Marking on Material

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.

GSL-6150

Laser Visibility

Invisible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser

Laser Classification

Solid Laser

Type

Optical Fiber Laser Marking Machine

Marking Method

Scanning Marking

Laser Power

20W 30W 50W 100W

Max.Marking Speed

8000mm/S

Applicable

Metal and Non-Metal Materials

Laser Source

Raycus Max Jpt Laser Source

Lifetime of Source

100,000hrs

Wavelength

1064nm

Optional Marking Area

110*110mm/200*200mm/300*300mm/400*400mm

Material

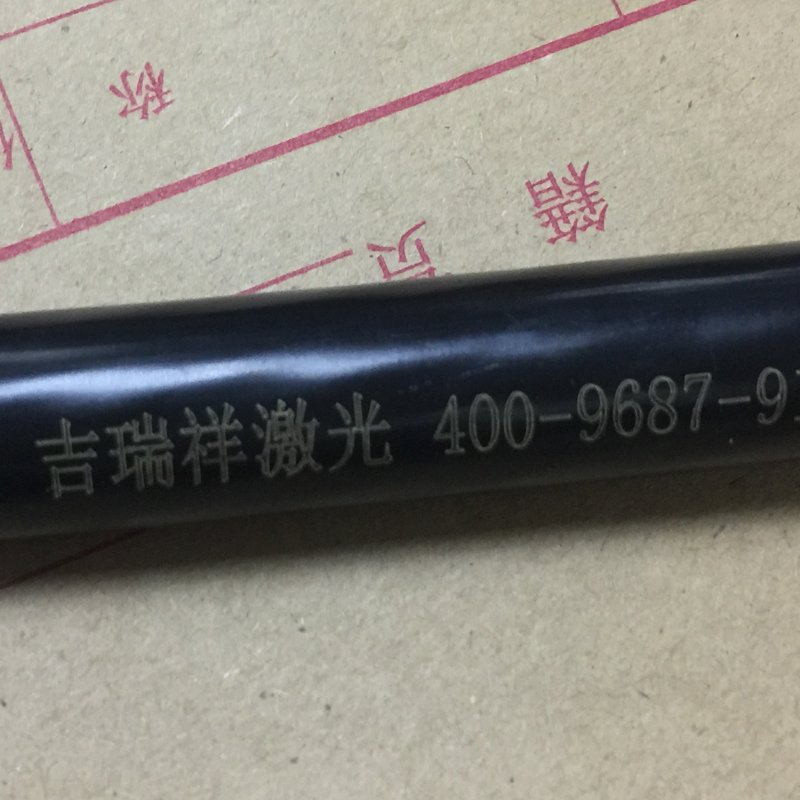

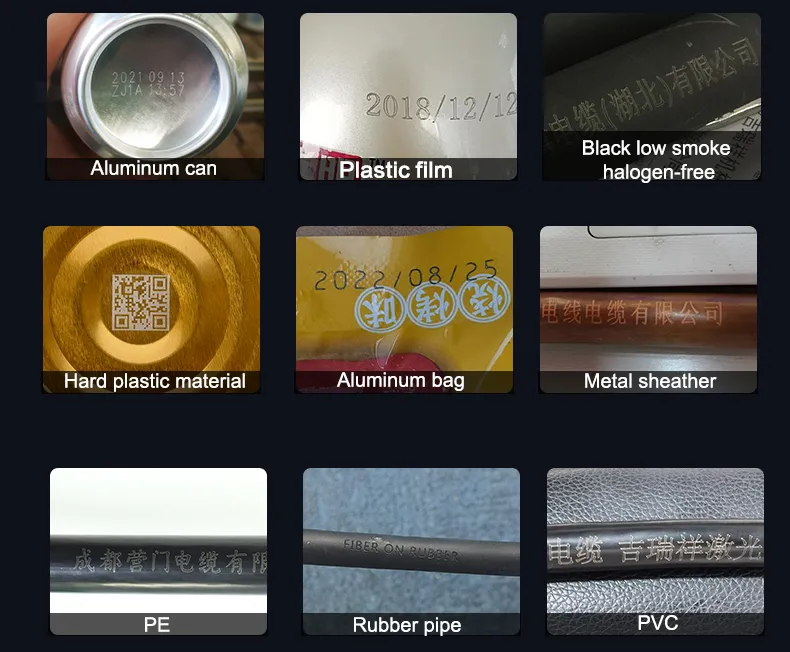

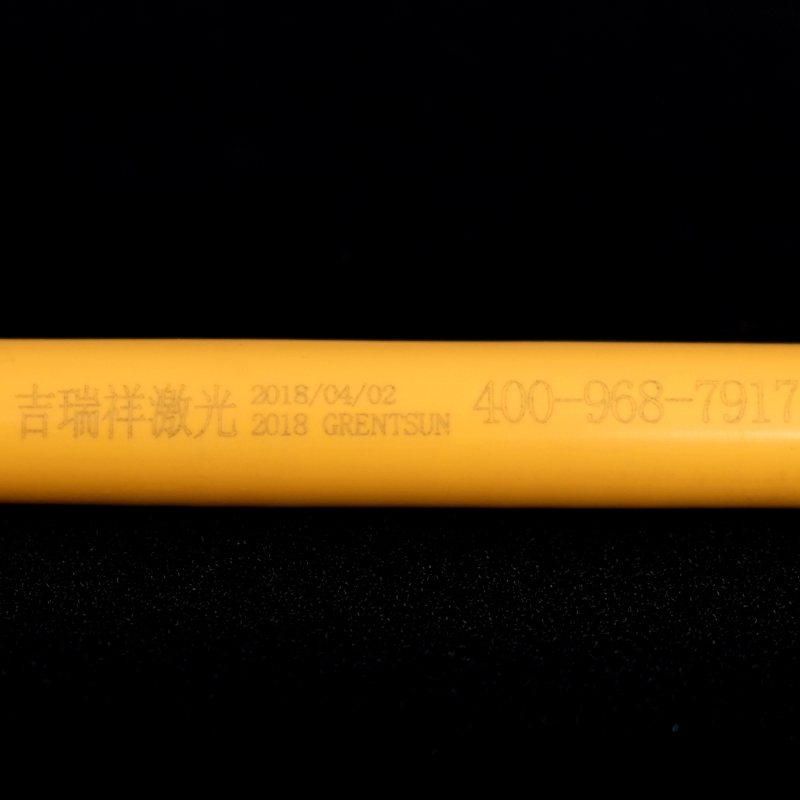

Metal Tin,Plastic PVC PP Pipes Cables

Trade Method

OEM ODM

Certification

CCC, PSE, FDA, RoHS, ISO, CE

Product

2024 100% New

Marking Depth

0 ~0.5mm

Transport Package

Wooden Box

Specification

76*32*92 cm

HS Code

8456110090

Production Capacity

600000 Pices/Year

📦

Packaging & Delivery

Package Size

76.00cm * 32.00cm * 85.00cm

Package Gross Weight

50.000kg

📝

Product Description

⚙️

Product Parameters

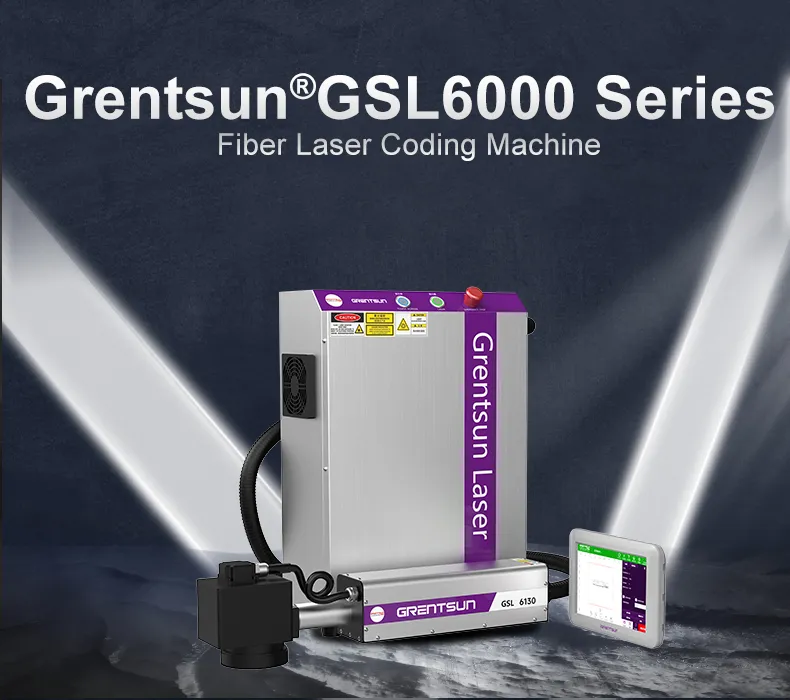

Name of Series	GSL 6000 Series Fiber Laser coding machine
Laser Power	20W/30W/50W/100W
Laser Wavelength	1064nm
Laser beam quality	M2:1.4
Repeat Positioning Accuracy	0.005mm
Min. Linear Width	0.01mm
Marking Depth	0.01-1mm
Max.Marking Speed	12000 mm/s (depending on configuration)
Standard Marking Area	175x175mm, 200x200mm... (optional)
Rated Voltage	220v~50/60HZ
Cooling	Air cooling
Lifetime of source	100,000 hours
Warranty	1 year
Gross Weight	70kg
IP Level	IP54 (IP65 Optional)

🚢

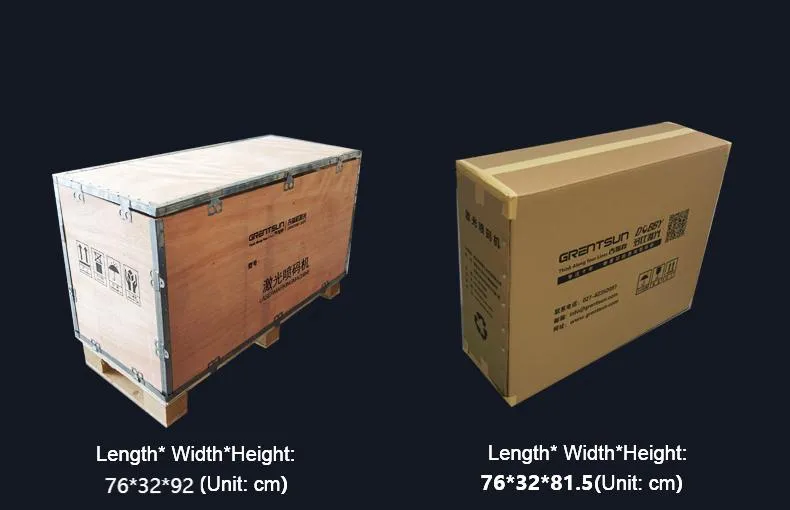

Packaging & Shipping

🏆

Certifications

Frequently Asked Questions

How can I get the most suitable machine for me?

Please provide details about the material you want to process and your planned application. Our technical team will analyze your requirements and provide the best recommendations based on your specific needs.

What are the advantages of your machine compared to others?

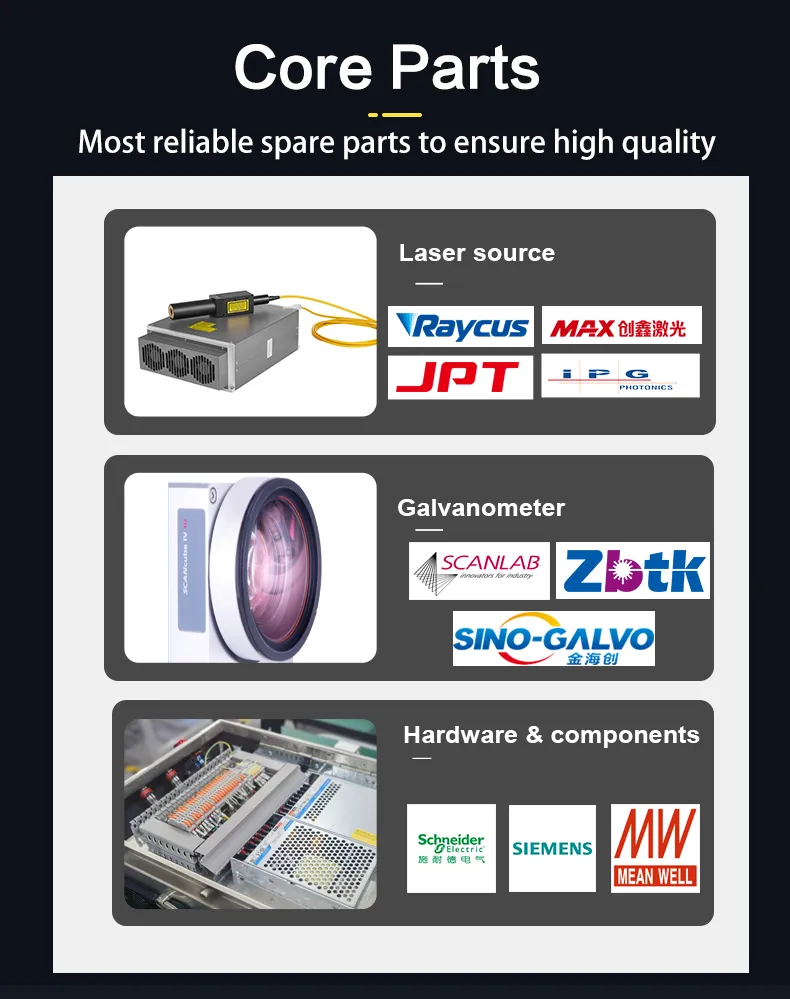

Our portable fiber laser marker features a high-quality Raycus laser source, genuine BJ Jcz control cards for stability, and original EZCAD software for powerful, user-friendly operation. We prioritize premium components to ensure long-term reliability.

What payment methods are accepted?

We accept payments via Telegraphic Transfer (T/T) and other standard trade insurance options to ensure a secure transaction process.

Is the machine easy to operate for a first-time user?

Yes, the EZCAD software is very user-friendly. We provide comprehensive manuals and instructional videos. Additionally, our technicians offer remote support via digital tools to guide you through setup and operation.

What is the warranty and support process if the machine breaks down?

The machine carries a 1-year warranty, while the Raycus laser source is covered for 2 years. In case of issues, our technicians will troubleshoot based on your feedback. Non-consumable parts with manufacturing defects are replaced free of charge.

How do you handle technical problems on-site?

If any issues occur under normal use within the warranty period, we will provide the necessary parts at no cost. Our team provides step-by-step guidance to ensure the problem is resolved efficiently.
