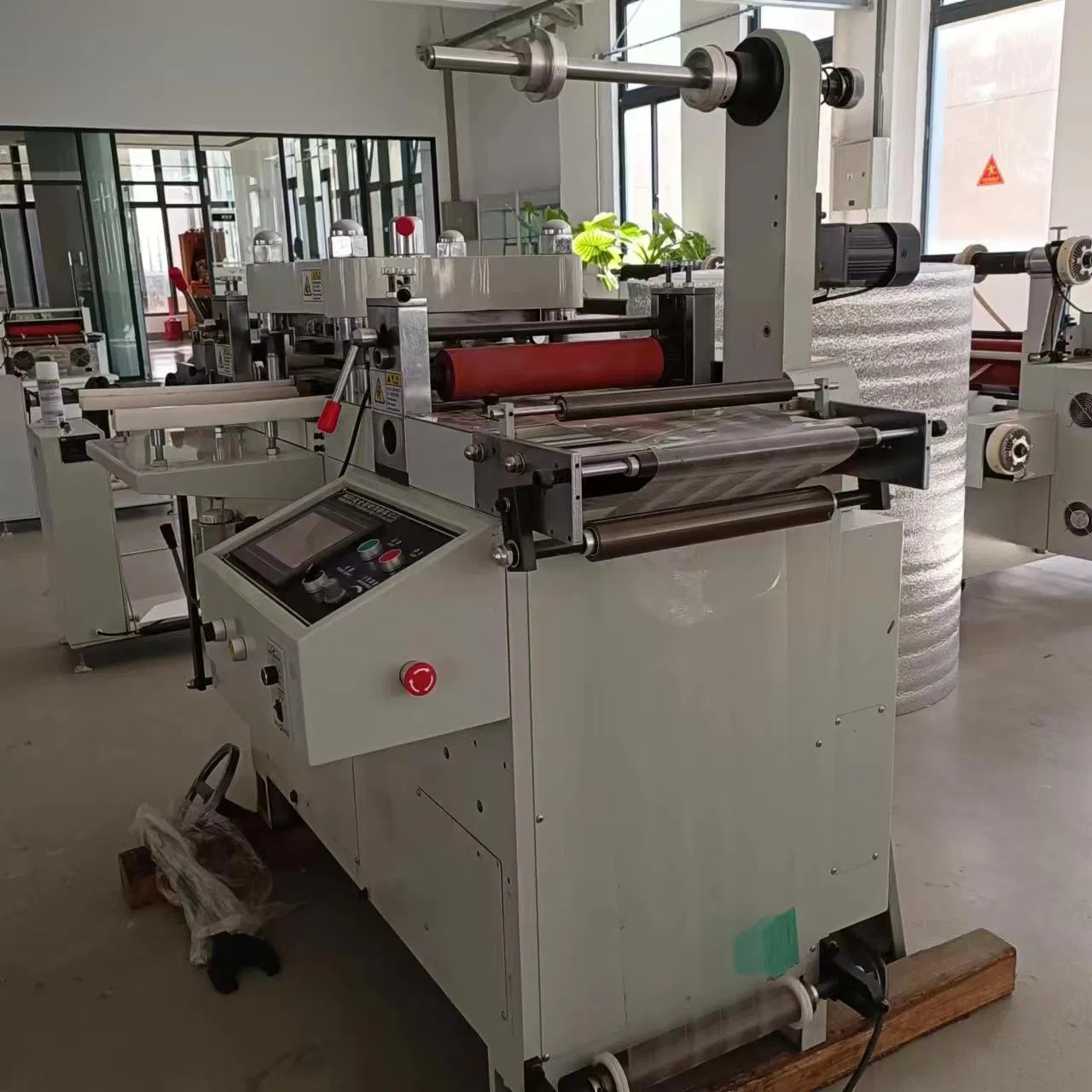

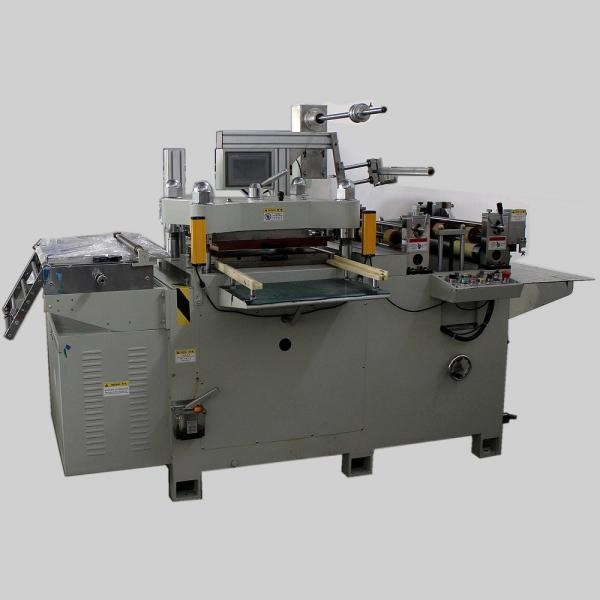

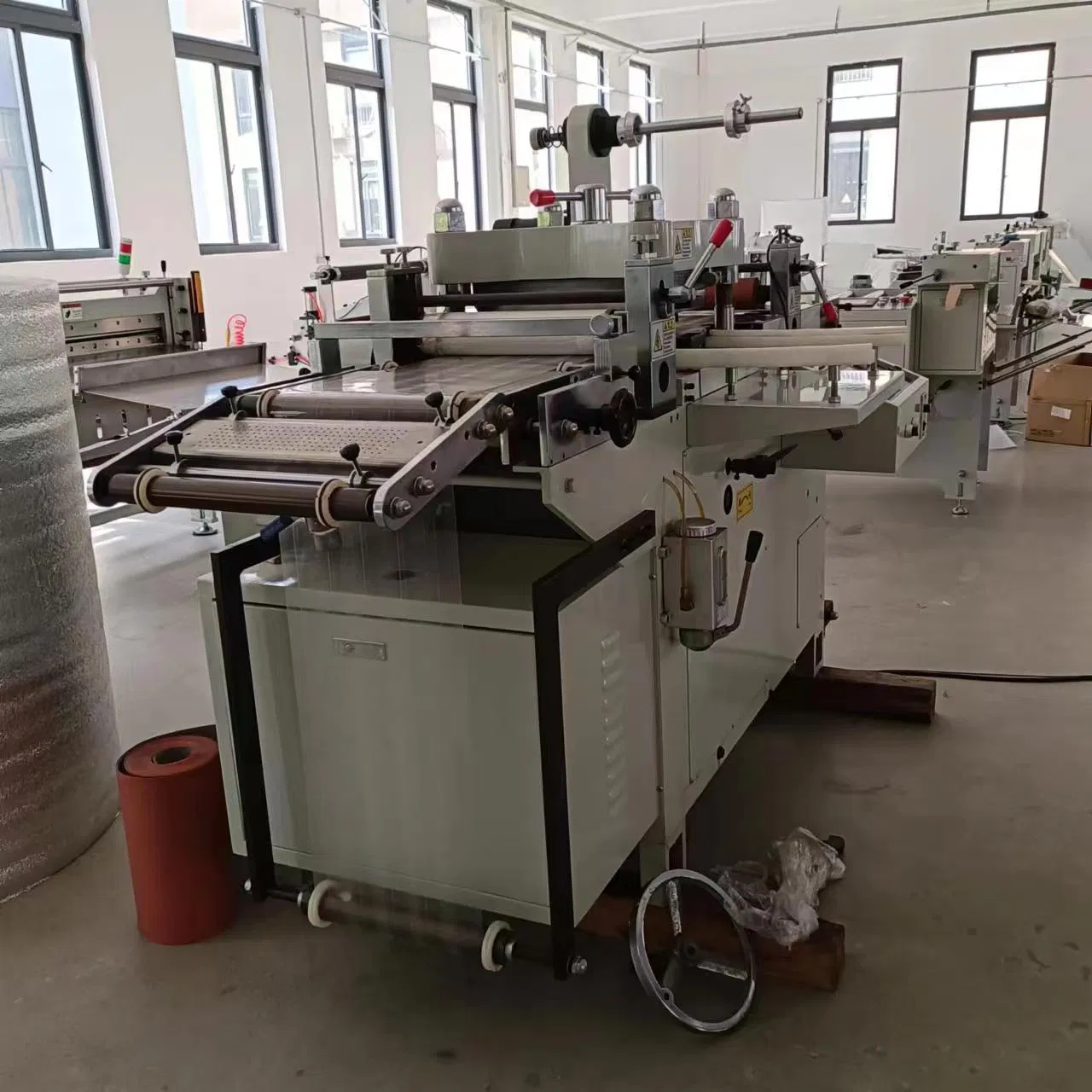

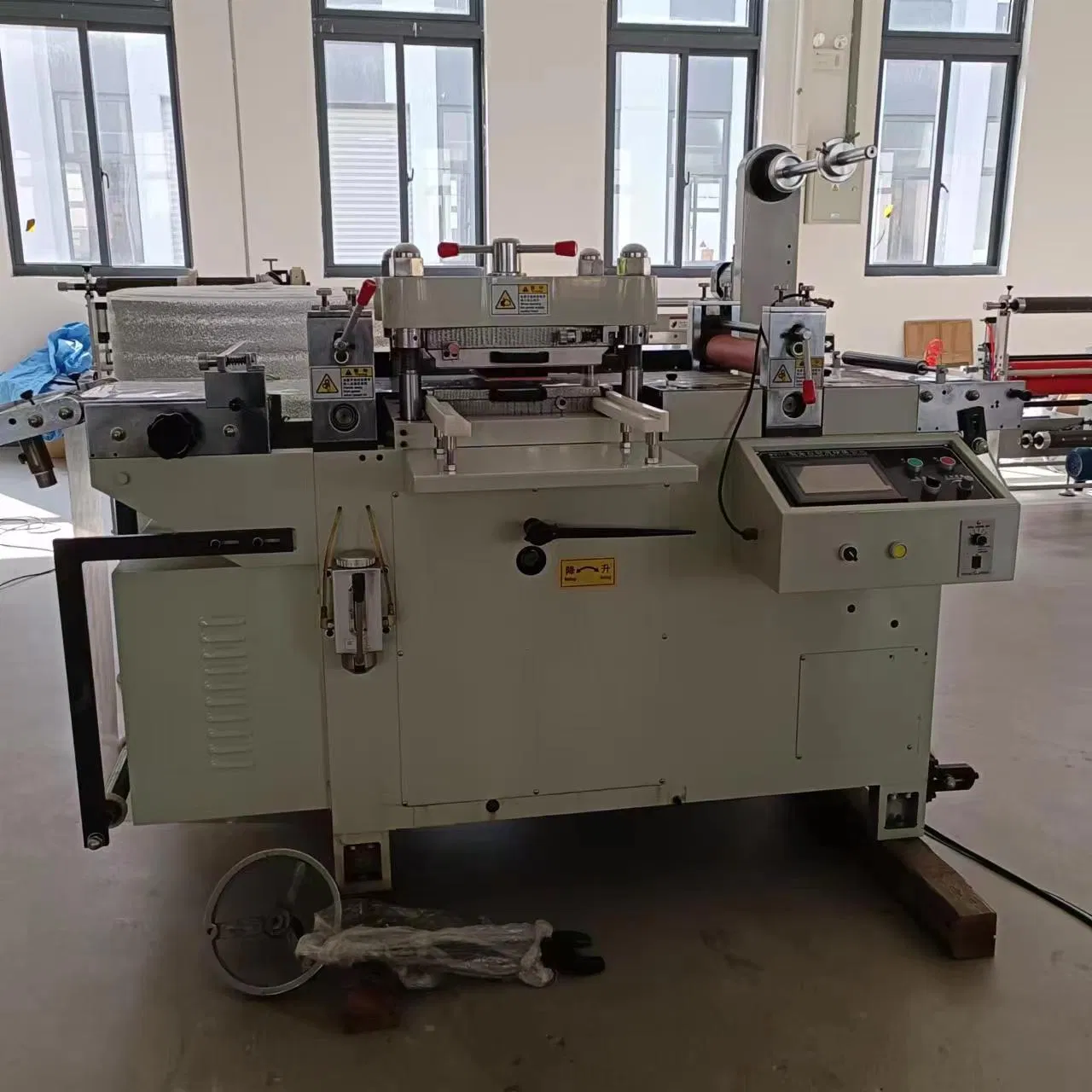

Film Screen Protector Die Cutting Machine Also for Foam (DP-320B)

1 / 5

Film Screen Protector Die Cutting Machine Also for Foam (DP-320B)

Customization:	Available
After-sales Service:	Video Technical Service , Spare Parts Offer Servic
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

DP-320B

Species

Flatbed Die Cutting Machine

Imprinting Type

Platen

Template Form

Horizontal

Die Cutting Tool

Steel Plate or Wood Laser Mould

Computerized

Yes

Automatic Grade

Automatic

Cutting Force

About 8 Ton

Unwinding Function

Yes

Laminating Function

Optional

Main Engine Power

2.2 Kw

HS Code

8441100000

★

Product Description

DP-320B Mirror Screen Protector Die Cutting Machine is specifically designed for high-precision processing of foam and various insulating materials. Developed on the basis of advanced imported technology, this machine features a whole-cast body for powerful pressure and stable operation.

Functional Characteristics

Whole-cast machine body ensures durability and firm operation.
Integrated oil gear box reduces abrasion and extends machine life span.
Automatic screen-adjusted press itinerary and material pull length.
Equipped with high-quality Mitsubishi PLC control system.

Scope of Application

Ideal for die cutting and forming of:

PVC, Film, Mylar, Polyester
Copper foil, Aluminum foil
Foam, Vinyl, Screen protective films
EMI Shielding and Earthquake products

⚙

Technical Specifications

Parameter	Specification (320B)
Max Feeding Width	320 mm
Cutting Area	320 * 300 mm
Cutting Speed	30 - 170 T/M
Position Accuracy	±0.10 mm
Main Engine Power	2.2 KW
Machine Size	2750 * 1250 * 1400 mm
Machine Weight	1500 KG
Rewinding Diameter	500 mm
Voltage	380 V

📷

Product Display

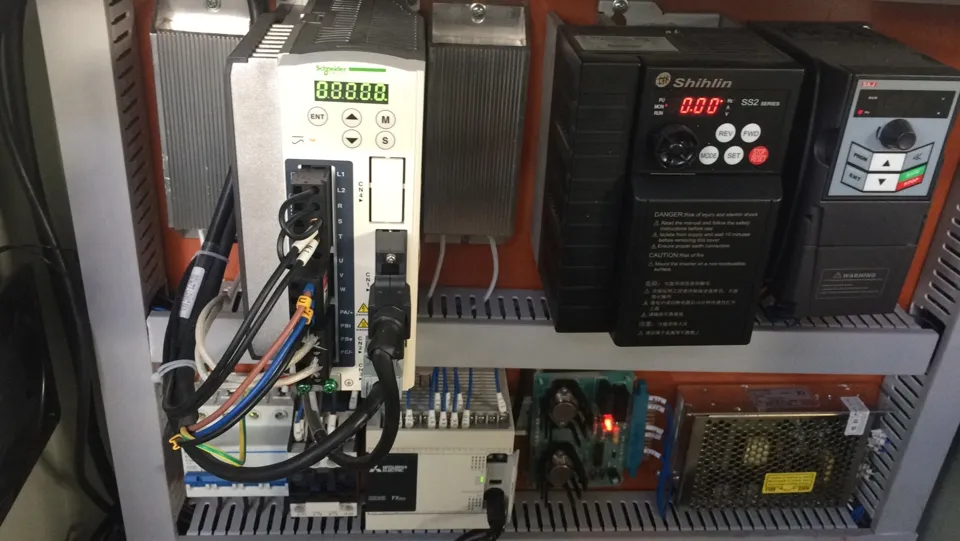

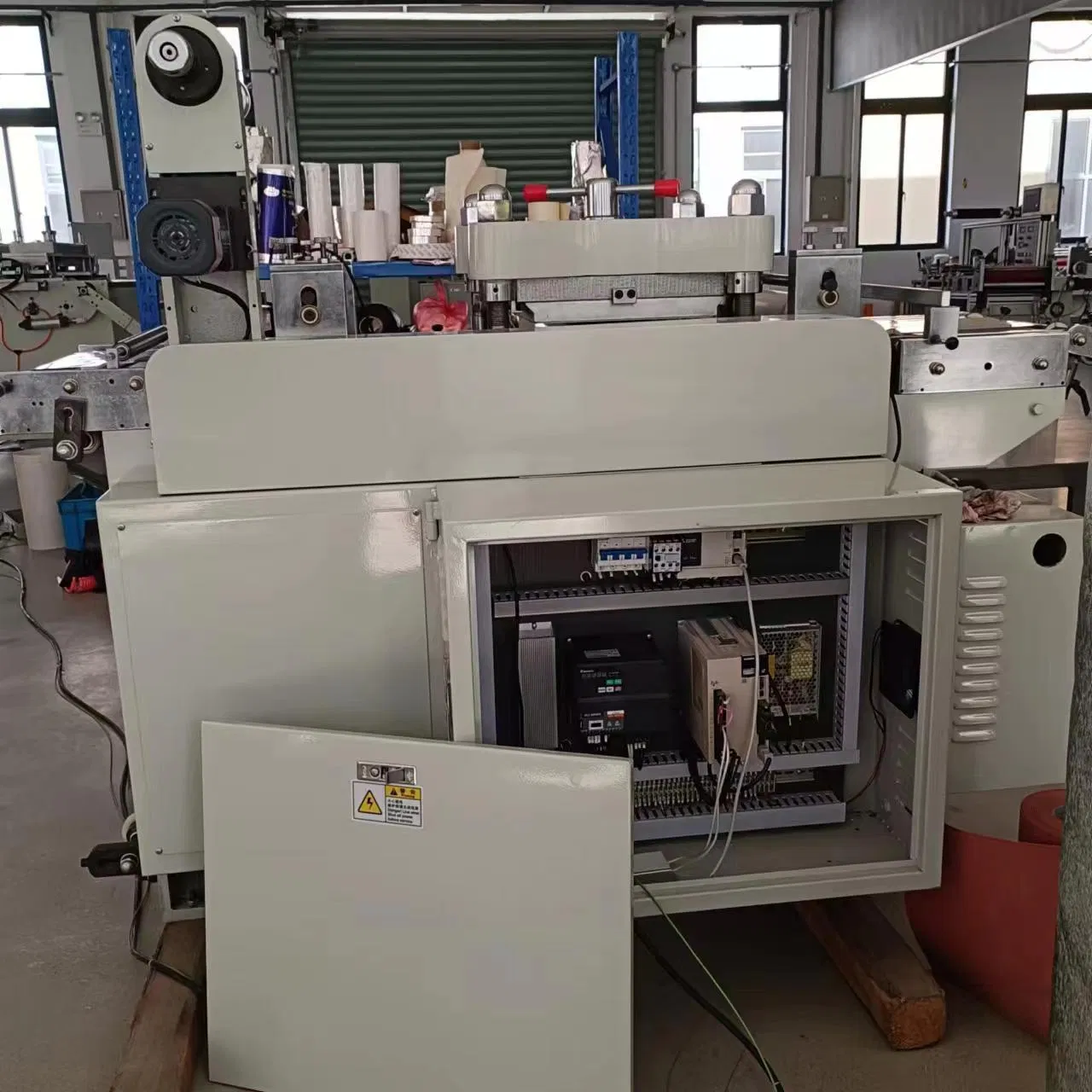

Mitsubishi PLC System

Frequently Asked Questions

What materials can the DP-320B process?

The machine is versatile and can cut PVC, film, Mylar, copper foil, aluminum foil, foam, vinyl, polyester, and various insulating or electronic screen protective materials.

What is the maximum cutting speed of this machine?

The DP-320B offers a high-speed performance ranging from 30 to 170 times per minute (T/M).

How is the mold adjustment handled?

Mold adjustment is made more convenient through the digital screen, which automatically adjusts the press itinerary and material pull length.

What is the positioning accuracy of the DP-320B?

The machine achieves a high precision positioning accuracy of ±0.10 mm.

Does the machine require a specific type of die tool?

It is compatible with both standard steel plate moulds and wood laser moulds, providing flexibility for different production needs.

What is the monthly production capacity for this model?

The production capacity is approximately 50 sets per month.
