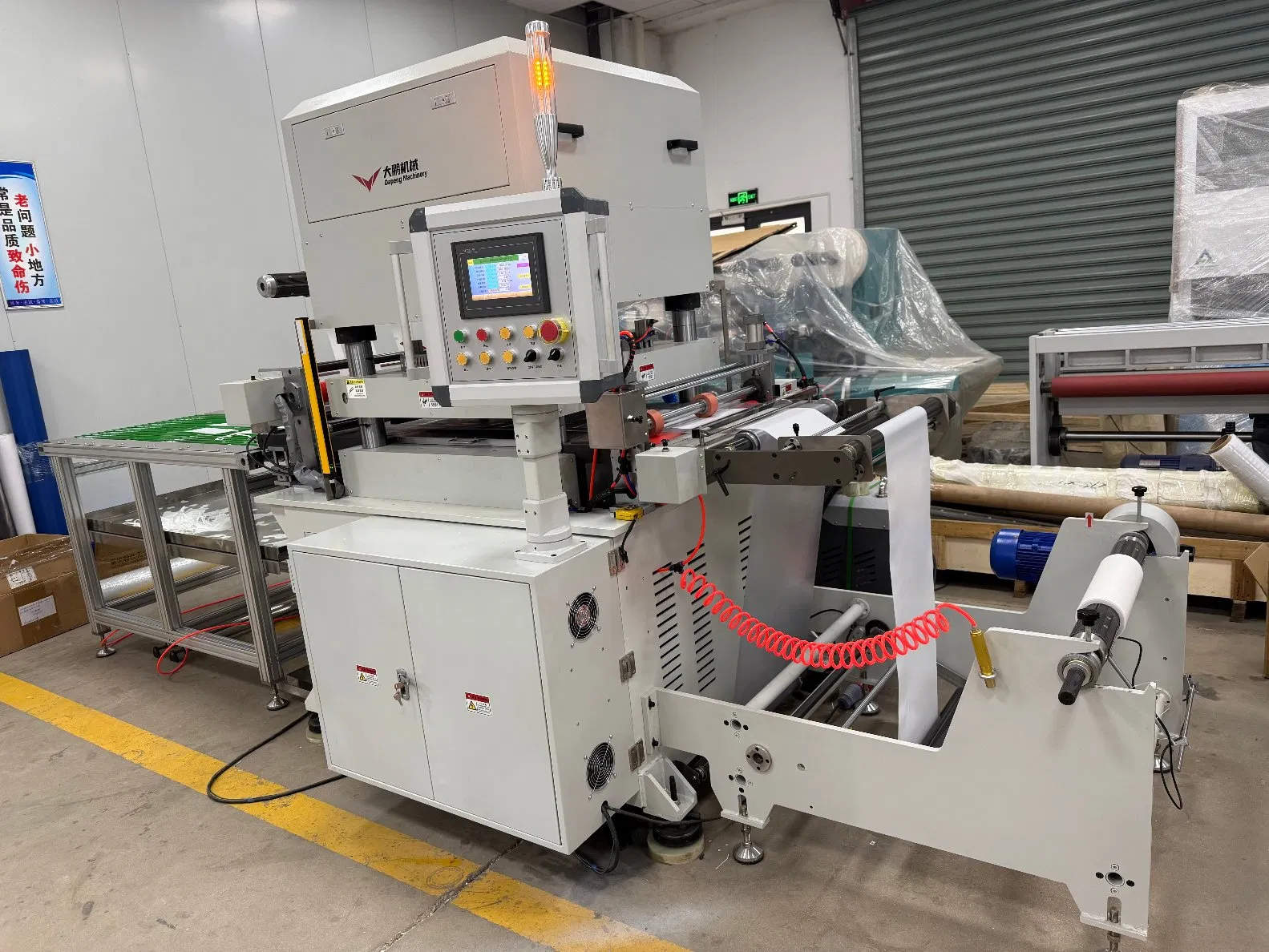

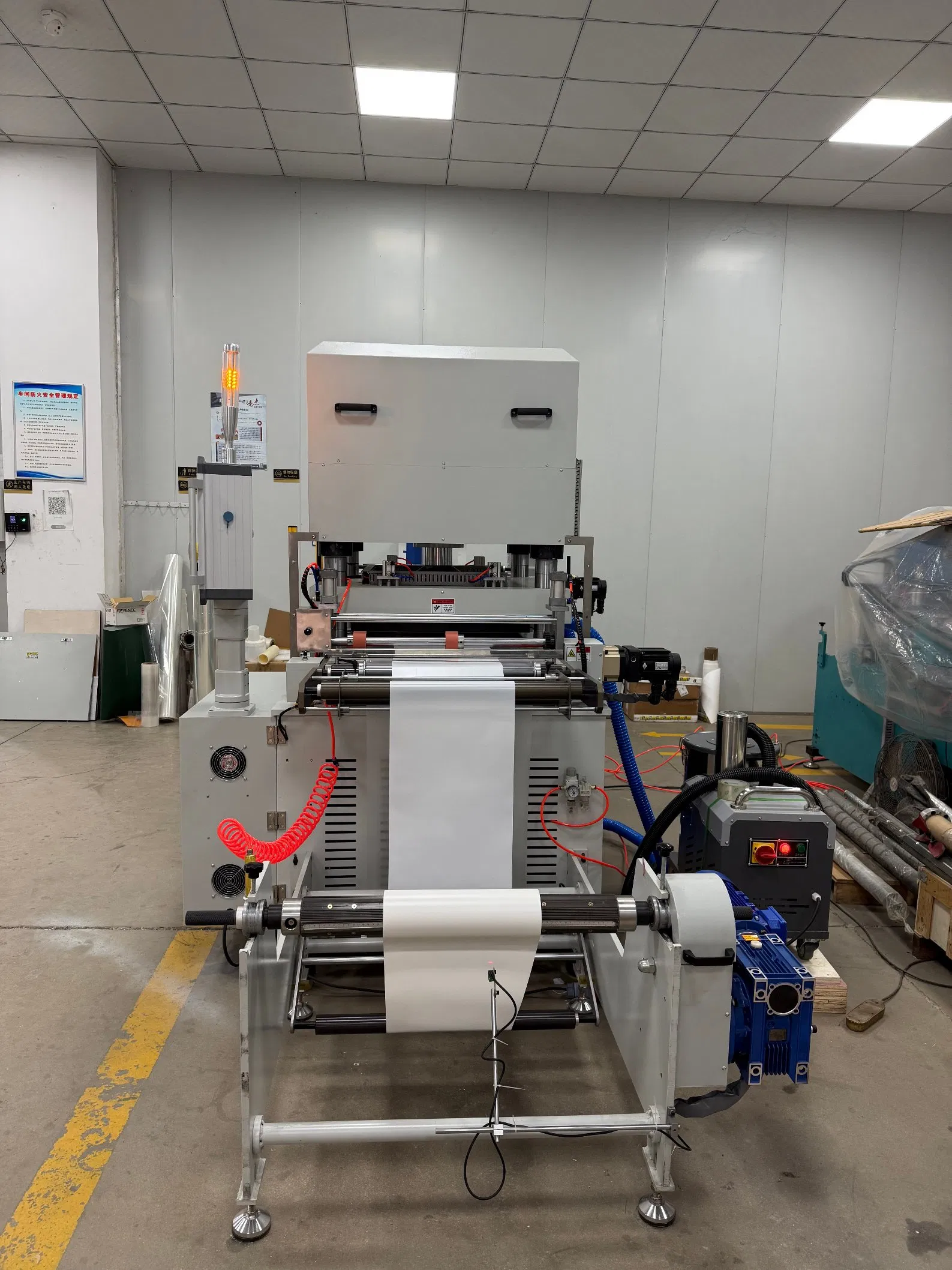

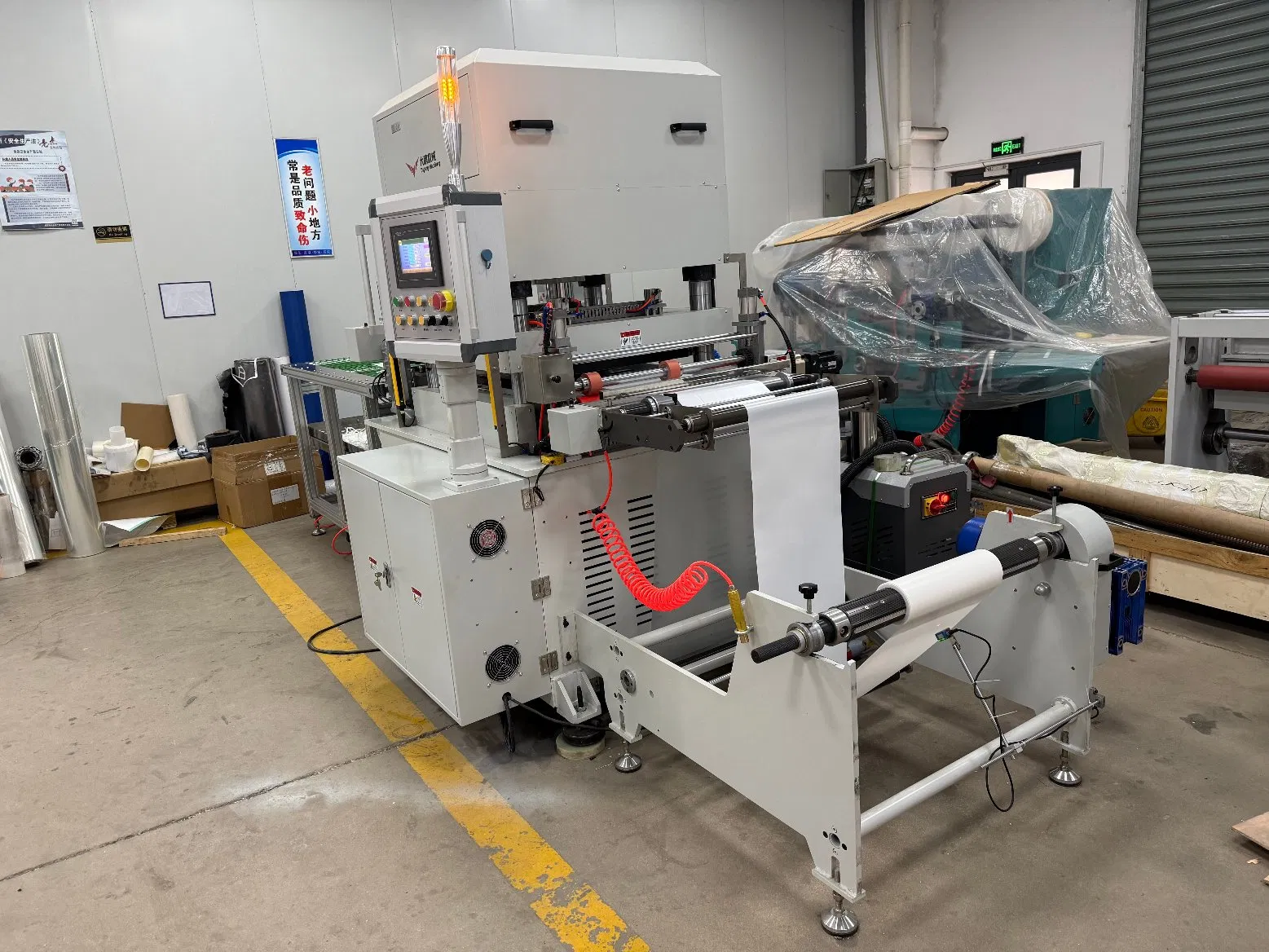

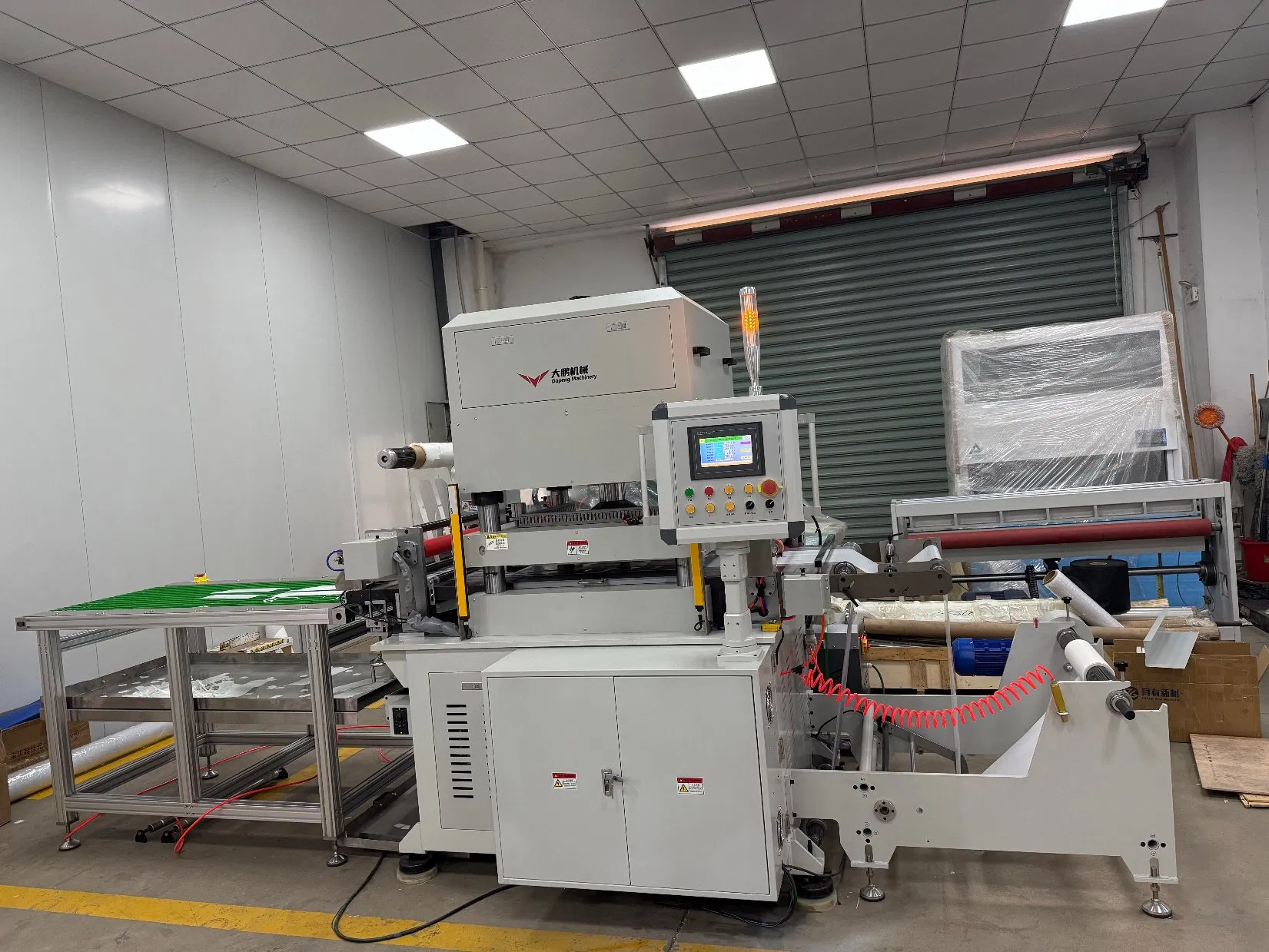

Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
1 / 5
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter
Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter

Factory Sale Roll Self Adhesive Label Sticker Paper Flat Bed Die Cutting Machine Flatbed Die Cutter

Customization: Available
After-sales Service: Video Technical Service , Spare Parts Offer Servic
Warranty: 12 Month
Send Inquiry

Product Description

Basic Information
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Template Form
Horizontal
Die Cutting Tool
Metal Mould or Wood Laser Mold
Computerized
Yes
Automatic Grade
Automatic
Size
800X800mm
Driven Type
Hydraulic and Electric
Driven System
Servo Motor
Power
40 Ton--100ton
HS Code
844110000
Capacity
50 Sets/Month
Product Description

Automatic Induction Cap Seal Liner, Hung Tabs, and Foam Tape Die Cutting Machine.

This high-precision equipment adopts an imported motor and static eliminator to receive the bottom sheet. The entire workflow—including feeding, filming, die cutting, waste draining, slitting, and rolling—is completed through integrated computer control in a single turn.

Key Features & Functions
  • Four columns Fixing Settings System
  • Air Cold Pressing Settings System
  • Oil temperature cooling device & touch screen
  • High-precision abrasive steel plates
  • Semi-die cut and full-die cut capabilities
  • Electronic positioning (Accuracy 0.01 - 0.03 mm)
  • PLC + man-machine automatic programming
  • Shockproof board for stable operation

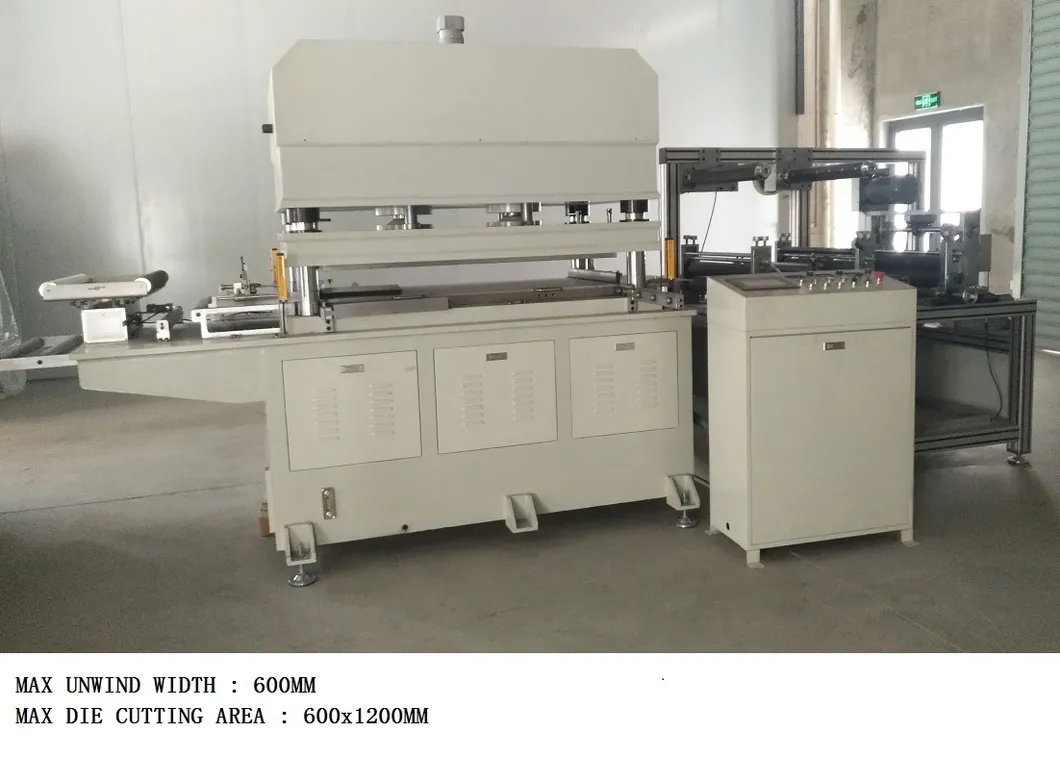

Die Cutting Machine 1

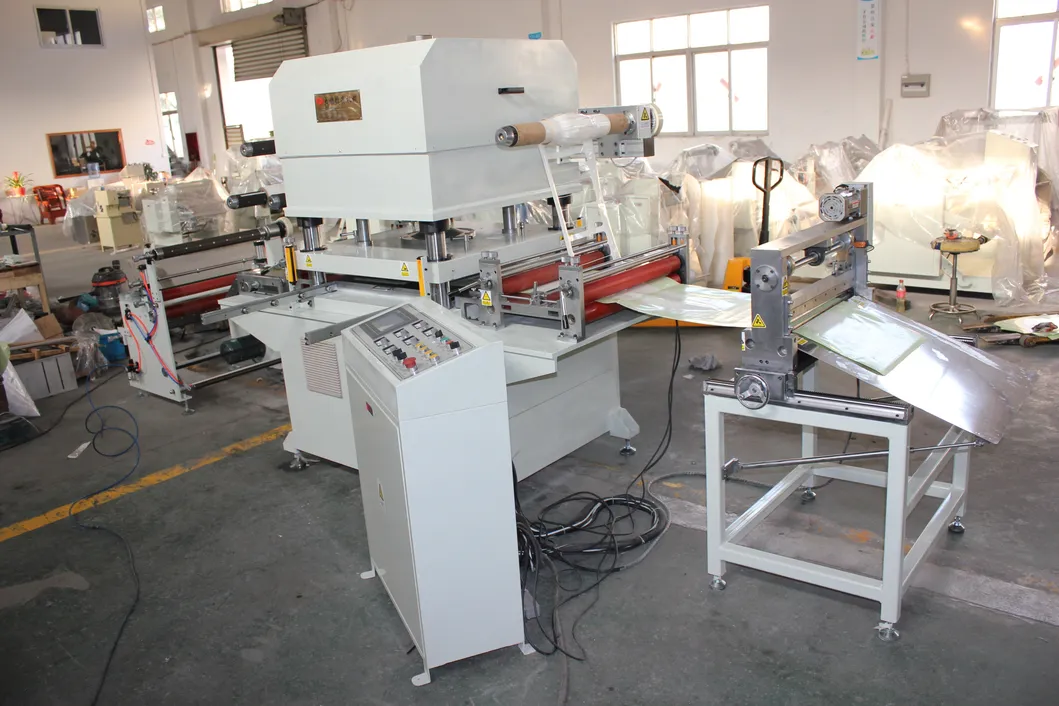

Die Cutting Machine 2

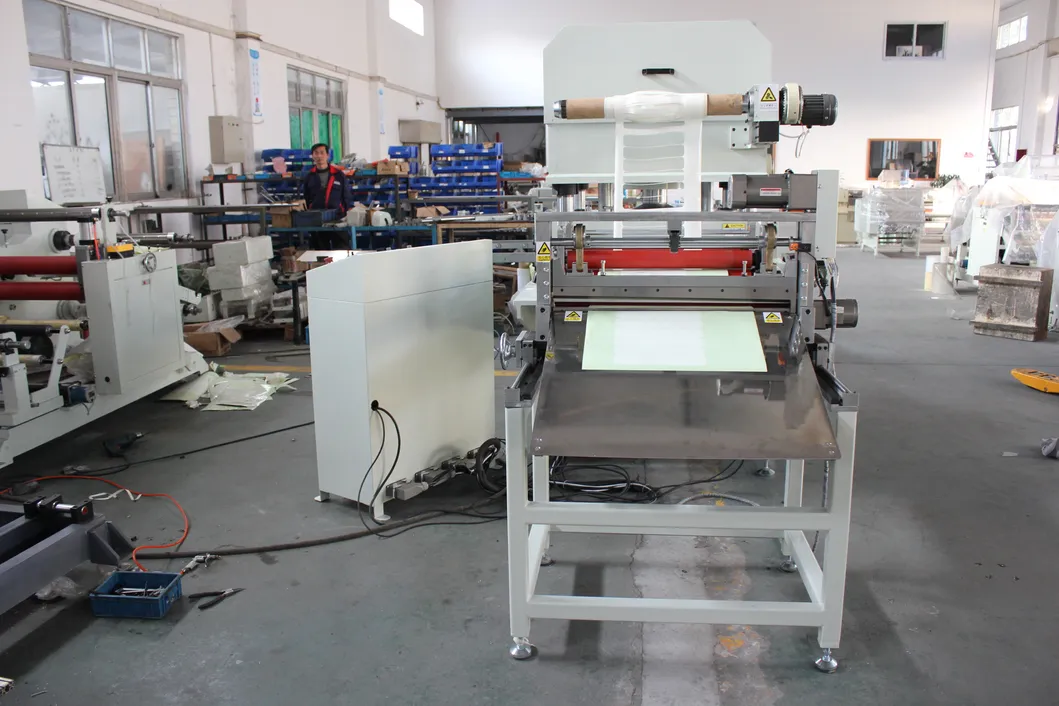

Die Cutting Machine 3

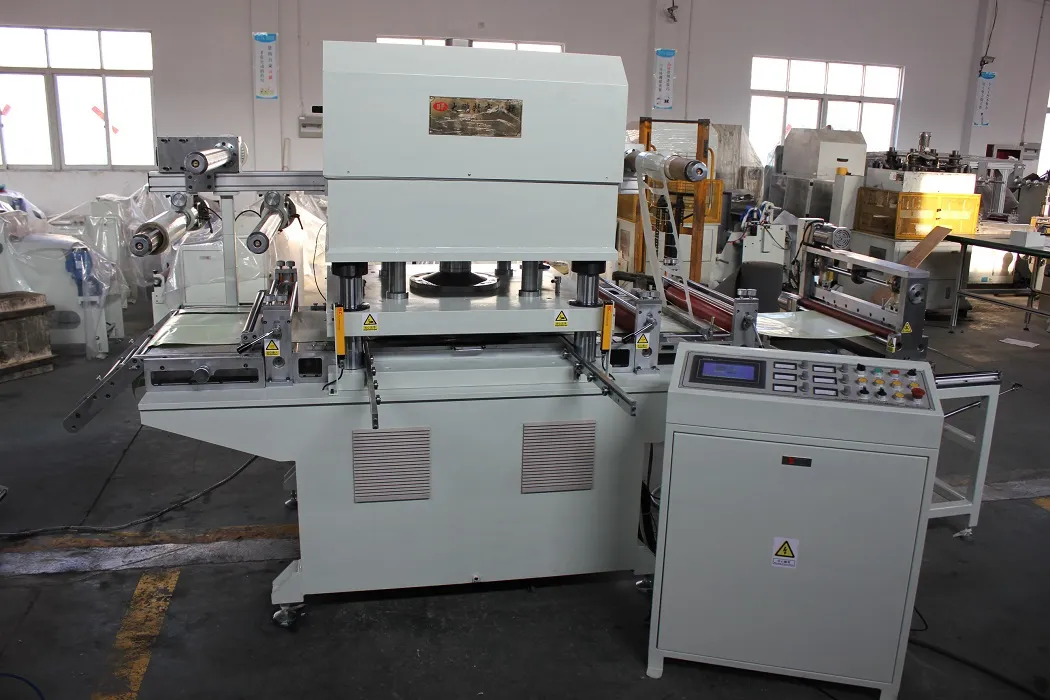

Die Cutting Machine 4
Application Scope

This machine is ideal for punching electronic materials including: Aluminum foil, PET, Protective film, Mylar, PVC, Foam, and Copper foil. It is widely used for photoelectric display screens (Bright Enhancement Film, Polarizer, Diffuser), printed circuit boards, and precision screens.

Technical Specification
Model Working Area Max Tonnage Max Feeding Width Drive Motor Weight Position Accuracy
DP-650 (Standard) 650mm*600mm 40t 650mm 7.5HP/5.5KW 3 Ton ±0.01 mm
DP-650 (Medium) 850mm*600mm 40t 850mm 10HP/7.5KW 3.4 Ton ±0.01 mm
DP-650 (Large) 1000mm*800mm 80t 1000mm 15HP/11.2KW 4.5 Ton ±0.01 mm
Frequently Asked Questions
What is the positioning precision of this machine?
The machine features high-precision electronic positioning with an accuracy controlled between 0.01 to 0.03 mm.
Does the machine support both kiss cutting and through cutting?
Yes, both kiss cutting (semi-die cut) and through cutting (full-die cut) are available and can be adjusted via the PLC system.
What materials can be processed?
It applies to various insulating materials such as electronic shield materials, PVC, PET film, Mylar, copper/aluminum foil, and foam.
What is the maximum production speed?
The machine can reach a cutting speed of approximately 20 to 90 punches per minute, depending on the material and design.
Is the machine stable during high-speed operation?
Yes, the machine body is designed with a shockproof board installed at the under-chassis and anti-vibration feet to ensure stability and reliability.
How is the machine controlled?
It utilizes a PLC + man-machine automatic programming control system with an integrated oil system and photoelectric protection.
