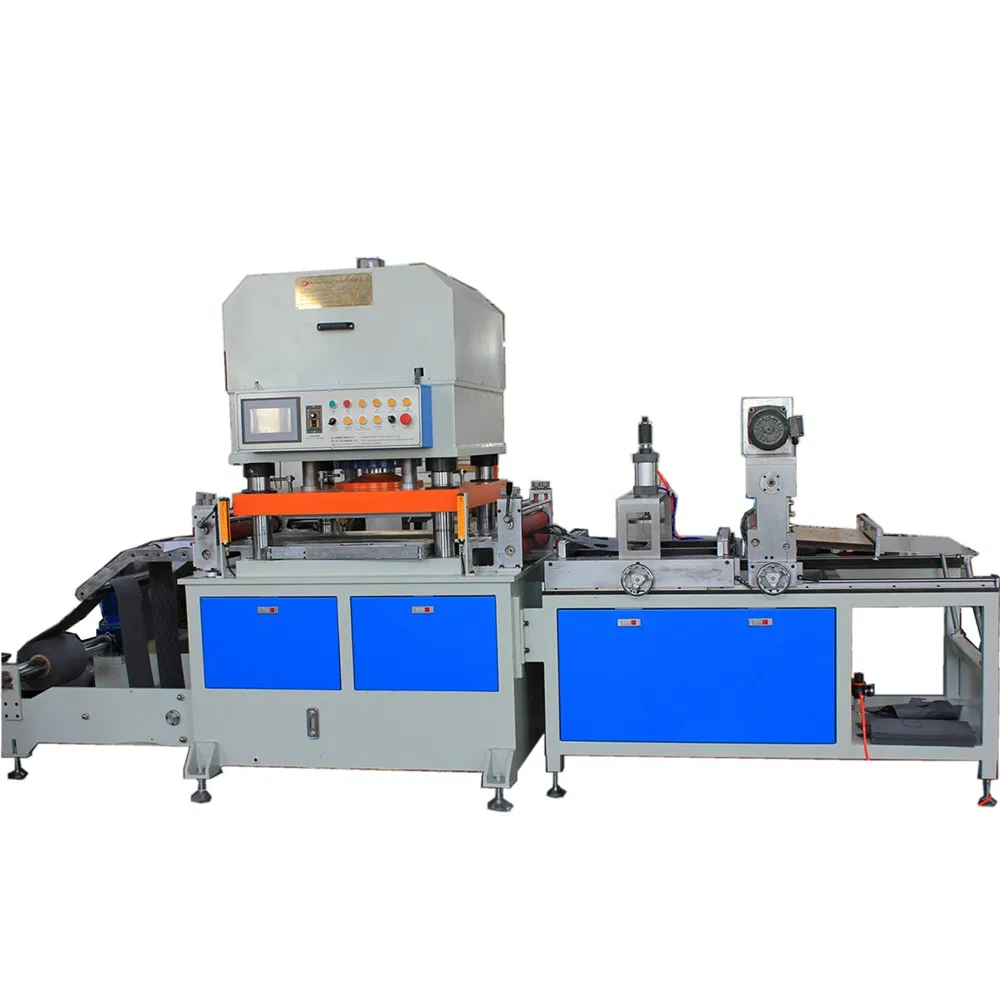

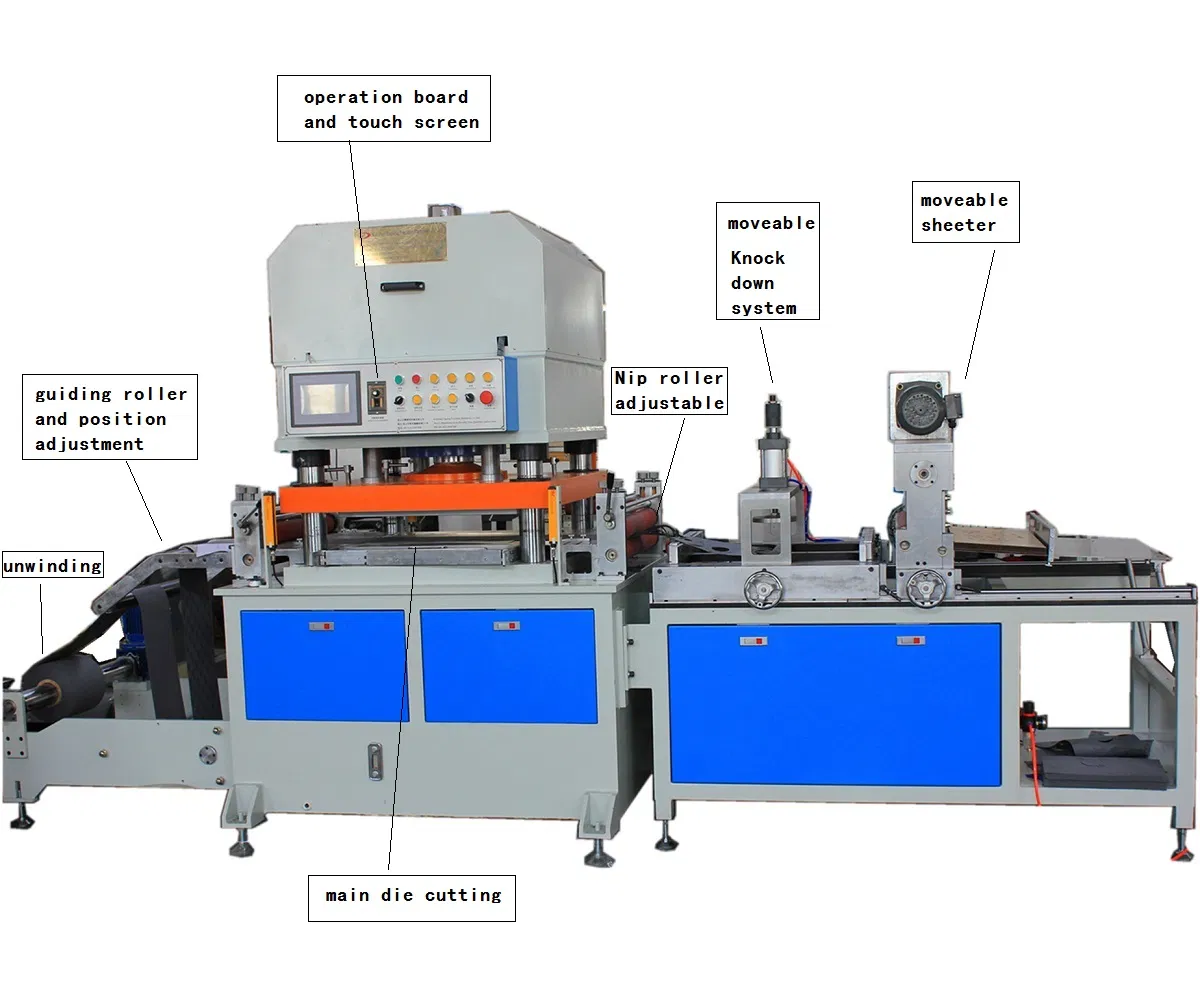

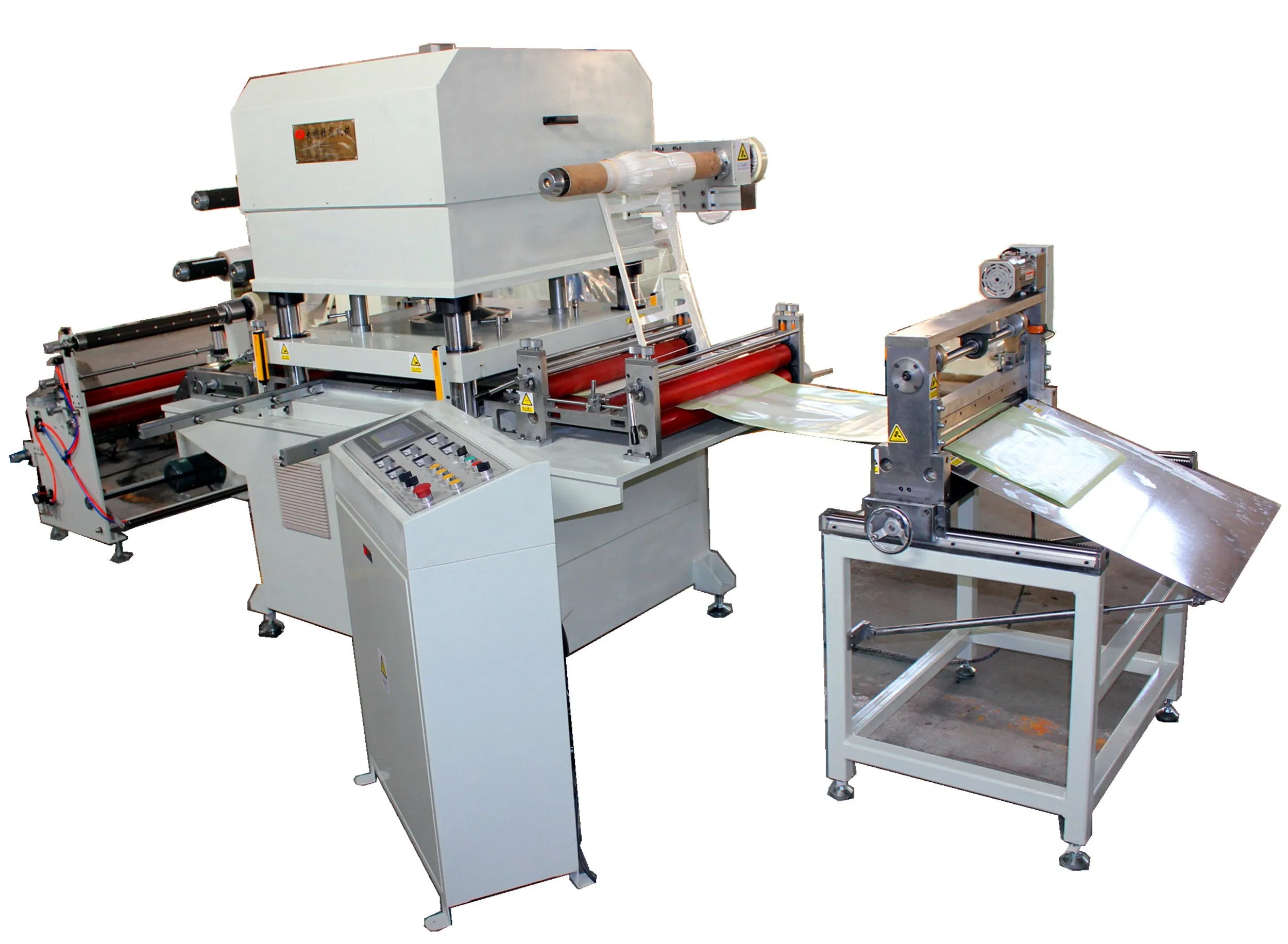

Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
1 / 5
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood
Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood

Free Die Cut Paper Cutter Guillotine Machine for Leather/EVA Foam/Plywood

Customization: Available
Species: Round Applanation Die Cutting Machine
Imprinting Type: Platen
Send Inquiry

Product Description

Basic Specification

Model NO.
650TA
Placing Form
Horizontal
Die Cutting Tool
Laser/Wooden/Steel Mold
Control System
Computerized Automatic Grade
Cutting Pressure
40 Ton
Feeding Width
650mm
Driven Motor
7.5kw
HS Code
844110000
Production Capacity
30 Set Every Month
Application
Paper, Stickers, Insulation, EMI Shielding, Dust-proof Materials

Product Description

Best selling high efficiency hydraulic die cutting machine designed for precision cutting of leather, EVA Foam, plywood, and various non-metallic materials.
●
Advanced Control: Adopts world-famous brand PLC and man-machine interface for intuitive operation.
●
High Efficiency: Hydraulic control system adopts quick loop with two-stage pressure adjustment.
●
Precision Feeding: Single-chip microcomputer control ensures accurate precision and simple setting of length.
●
Safety First: Equipped with infrared safety electric eye system and multi-function security devices.
●
Noise Reduction: Uses imported hydraulic motors for stable rotation and low noise levels.
●
Labor Saving: Automatic feeding increases efficiency by 3-4 times compared to general presses.
Model Working Area Max Tonnage Max Feeding Width Drive Motor Weight Outline Dimension Position Accuracy Power
DP-650 650mm*600mm 40t 650mm 7.5HP/5.5KW 3 Ton 1940mm*1500mm*1790mm ±0.01 mm 380V 50HZ
DP-650 850mm*600mm 40t 850mm 10HP/7.5KW 3.4Ton 2140mm*1500mm*1790mm ±0.01 mm 380V 50HZ
DP-650 1000mm*800mm 80t 1000mm 15HP/11.2KW 4.5Ton 2290mm*1500mm*1790mm ±0.01 mm 380V 50HZ

Product Display

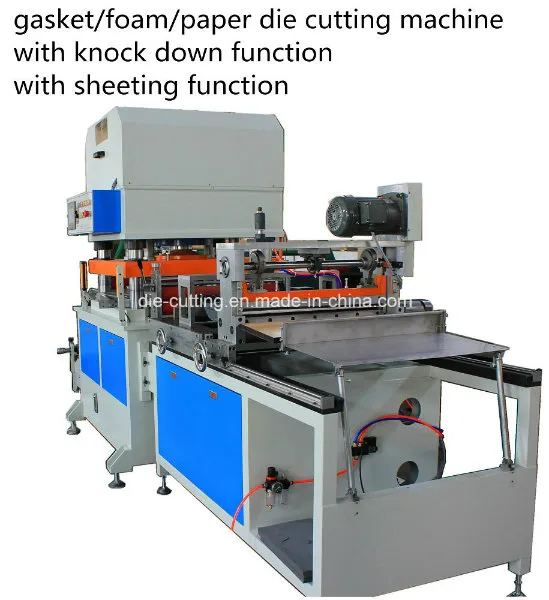

Die Cutting Machine 1
Die Cutting Machine 2

Sample Exhibition

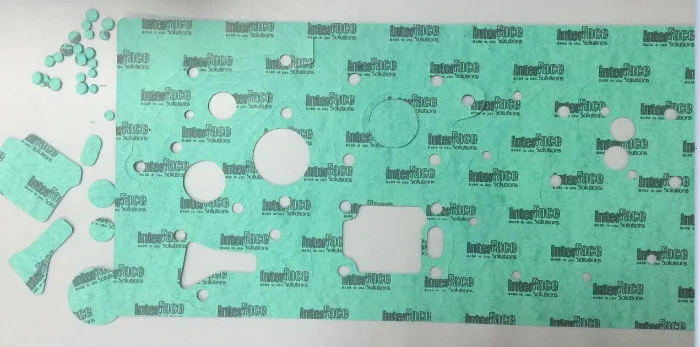

Sample 1
Sample 2

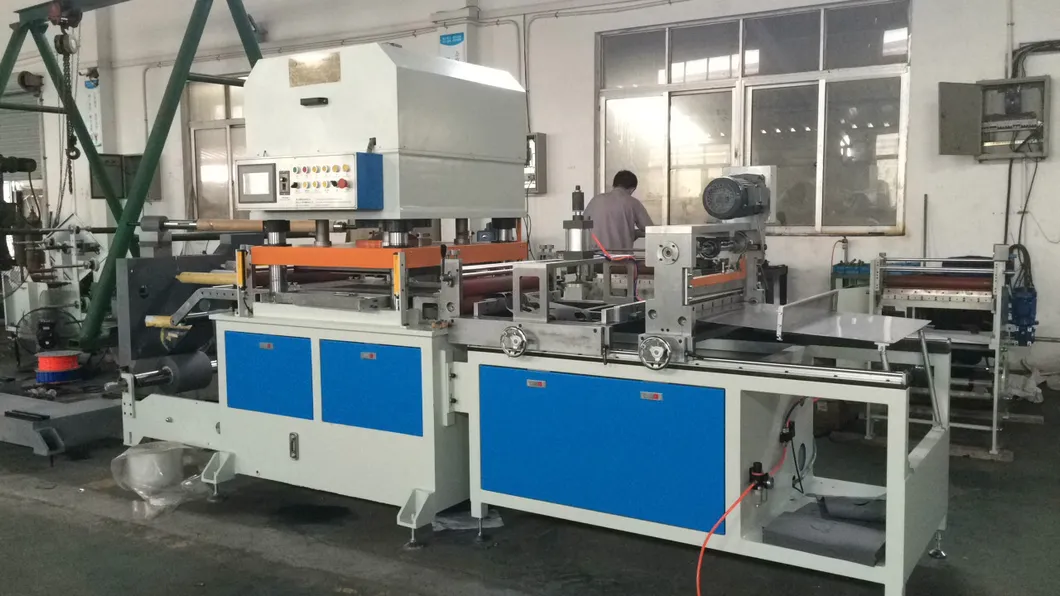

Sample 3

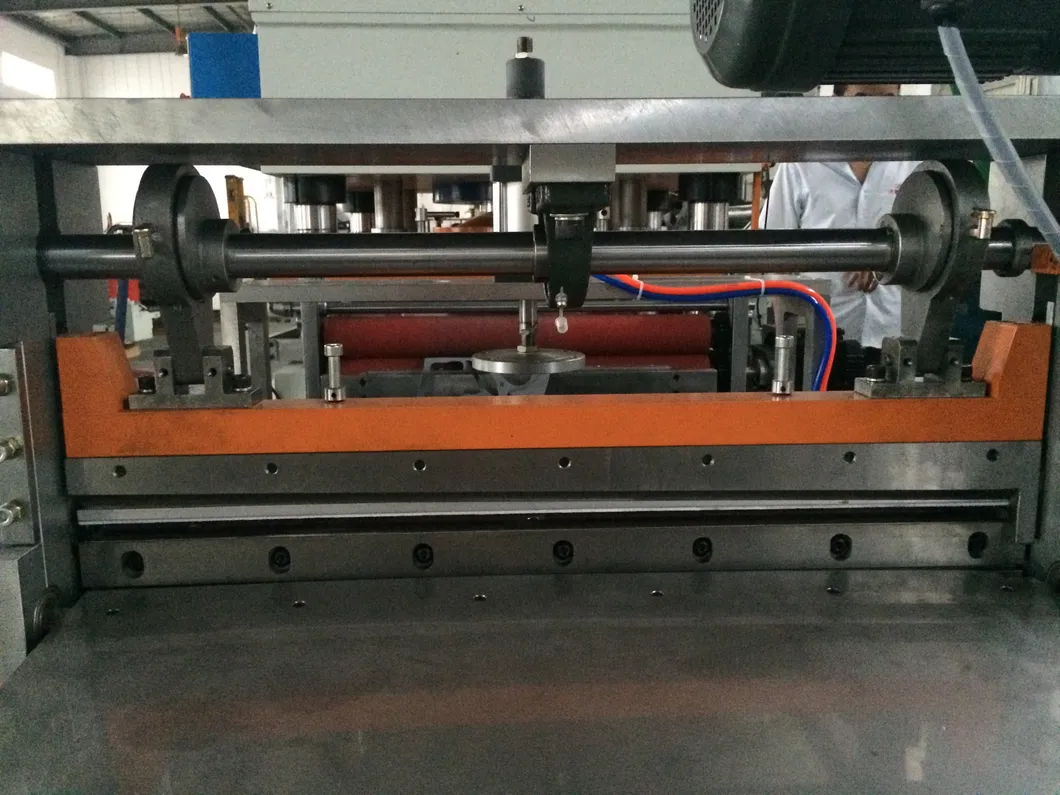

Sample 4

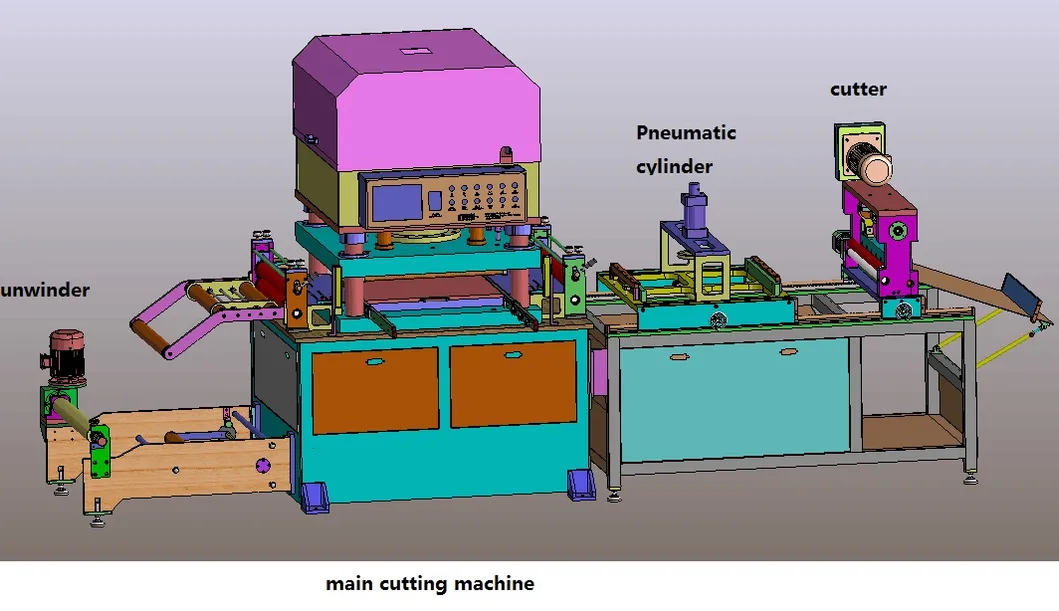

Sample 5

Frequently Asked Questions

What materials can this hydraulic die cutting machine process?
It is ideal for cutting non-metallic materials such as PVC, fabric, cardboard, rubber, sponge, non-woven materials, EVA foam, leather, and plywood.
What is the positioning accuracy of the machine?
The machine features a high-precision system with a positioning accuracy of ±0.01 mm.
Is the machine easy to operate for new users?
Yes, it uses a computerized PLC and man-machine interface, making operation simple. You can easily set the feed length and quantity.
What safety features are integrated into the system?
The machine is equipped with an infrared safety electric eye system and multiple safety protection devices to ensure operator security.
What are the available sizes for this model?
We offer several variations with working areas ranging from 650mm*600mm to 1000mm*800mm, with tonnage options up to 80t.
How does the automatic feeding system improve efficiency?
The automatic feeding system is designed to be 3-4 times more efficient than standard manual presses, significantly saving labor costs.
