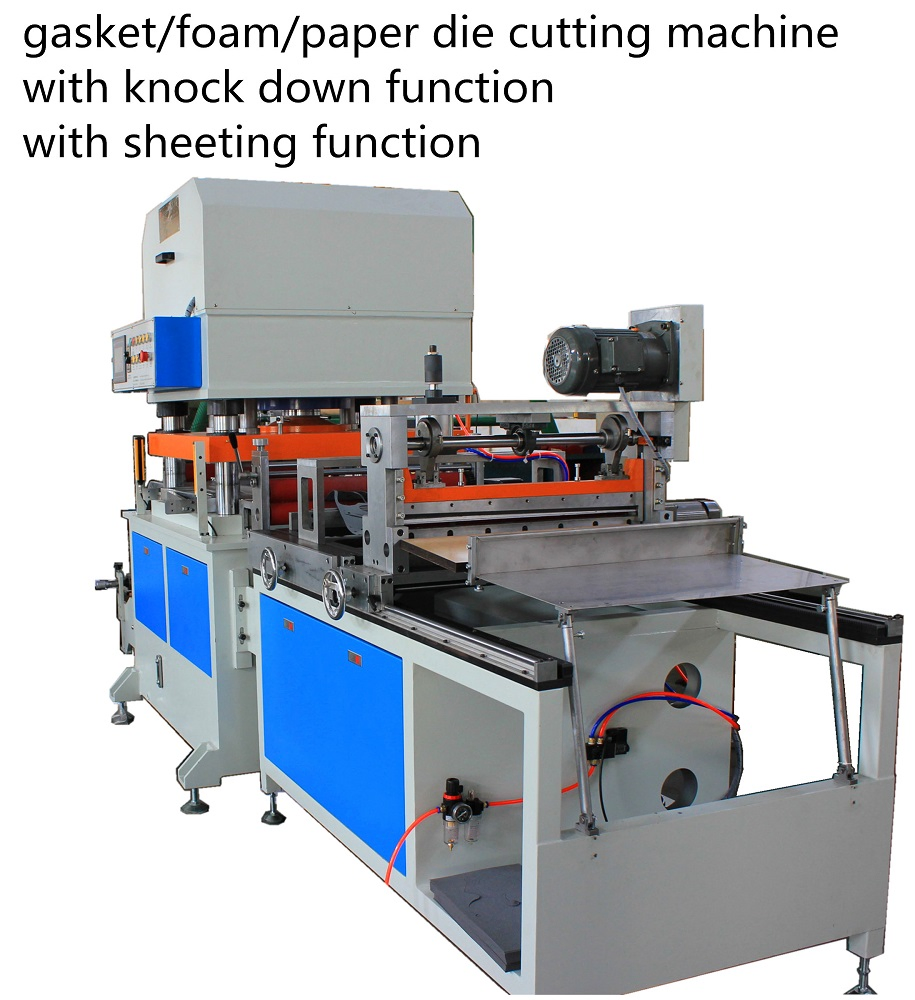

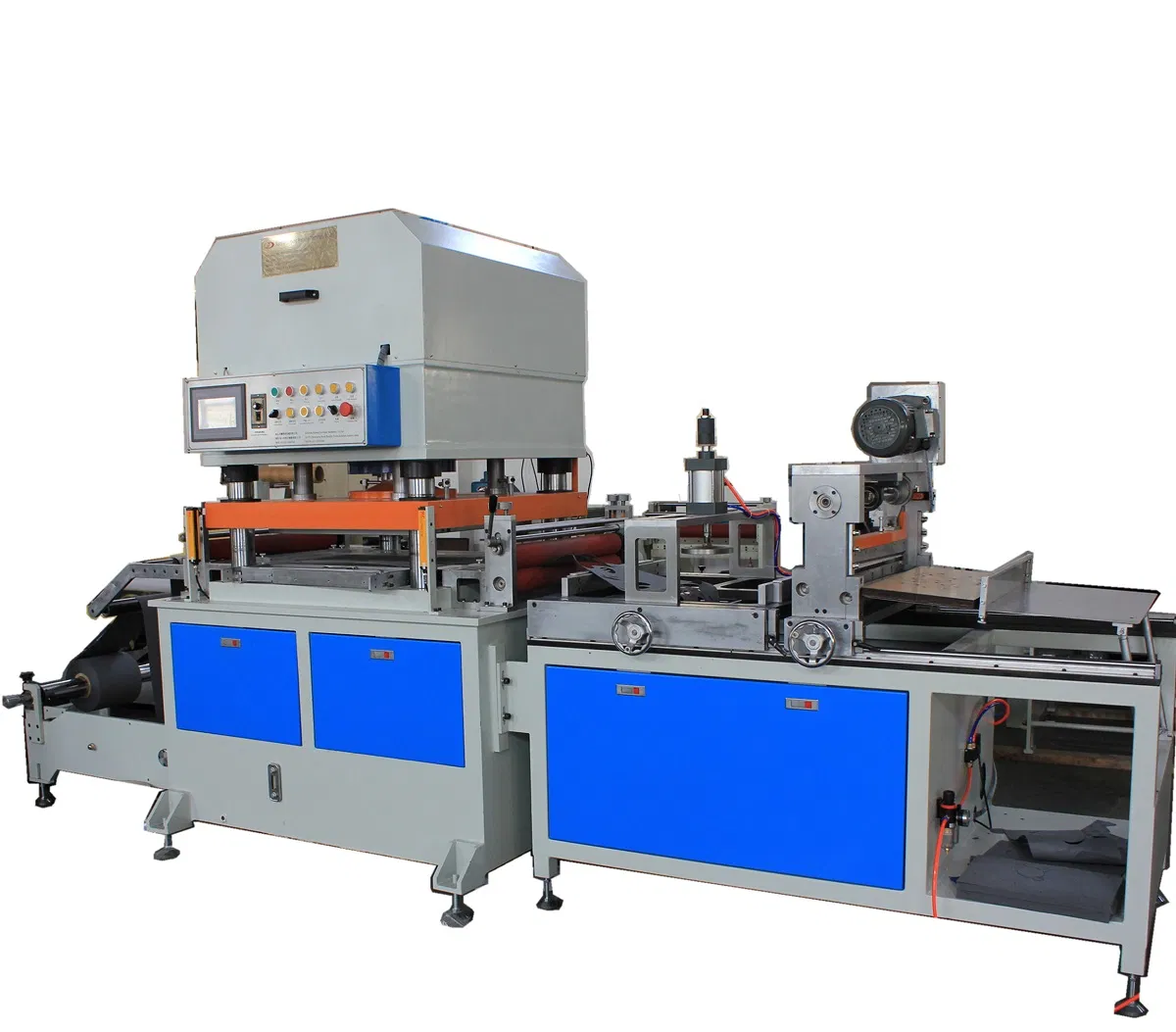

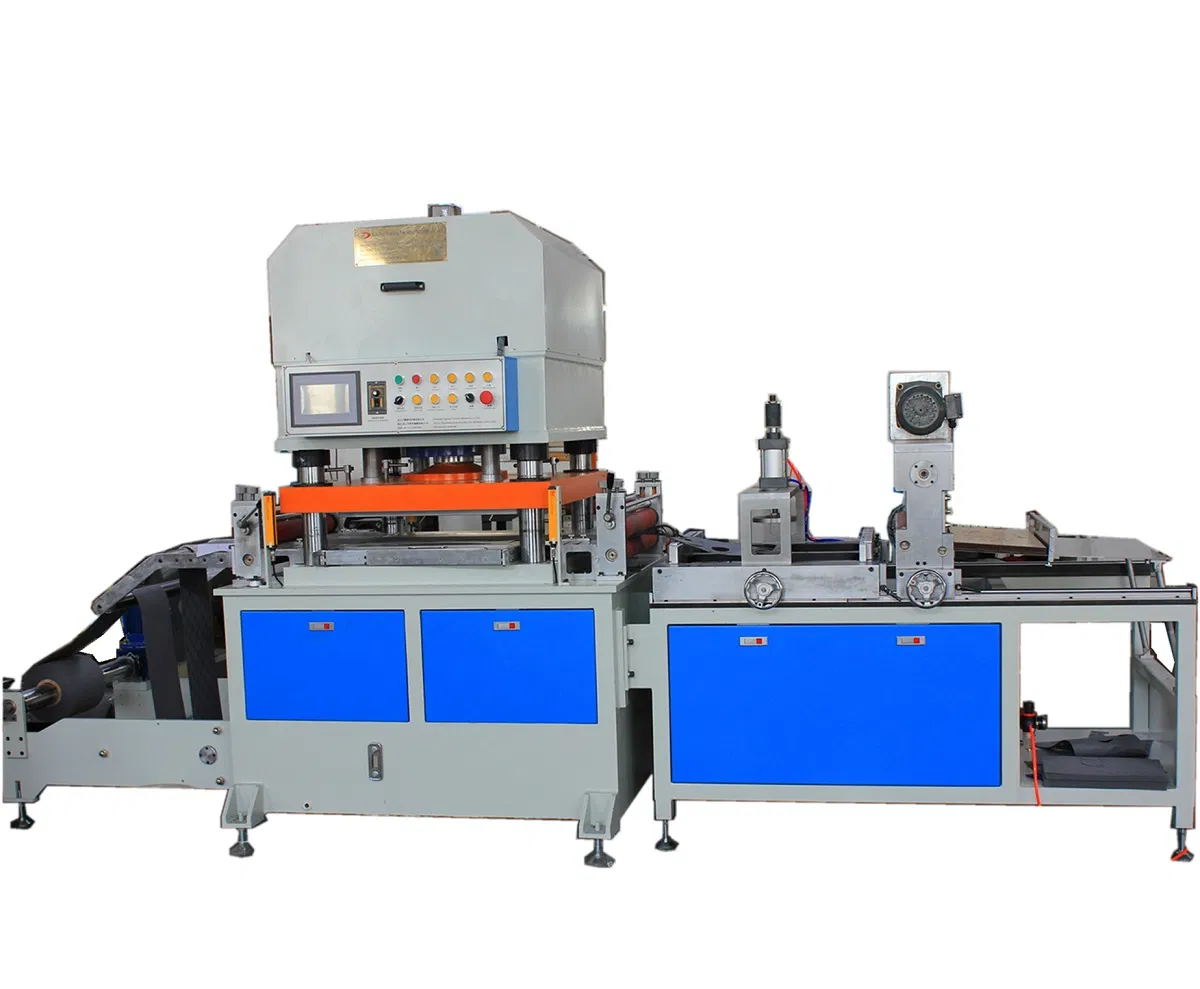

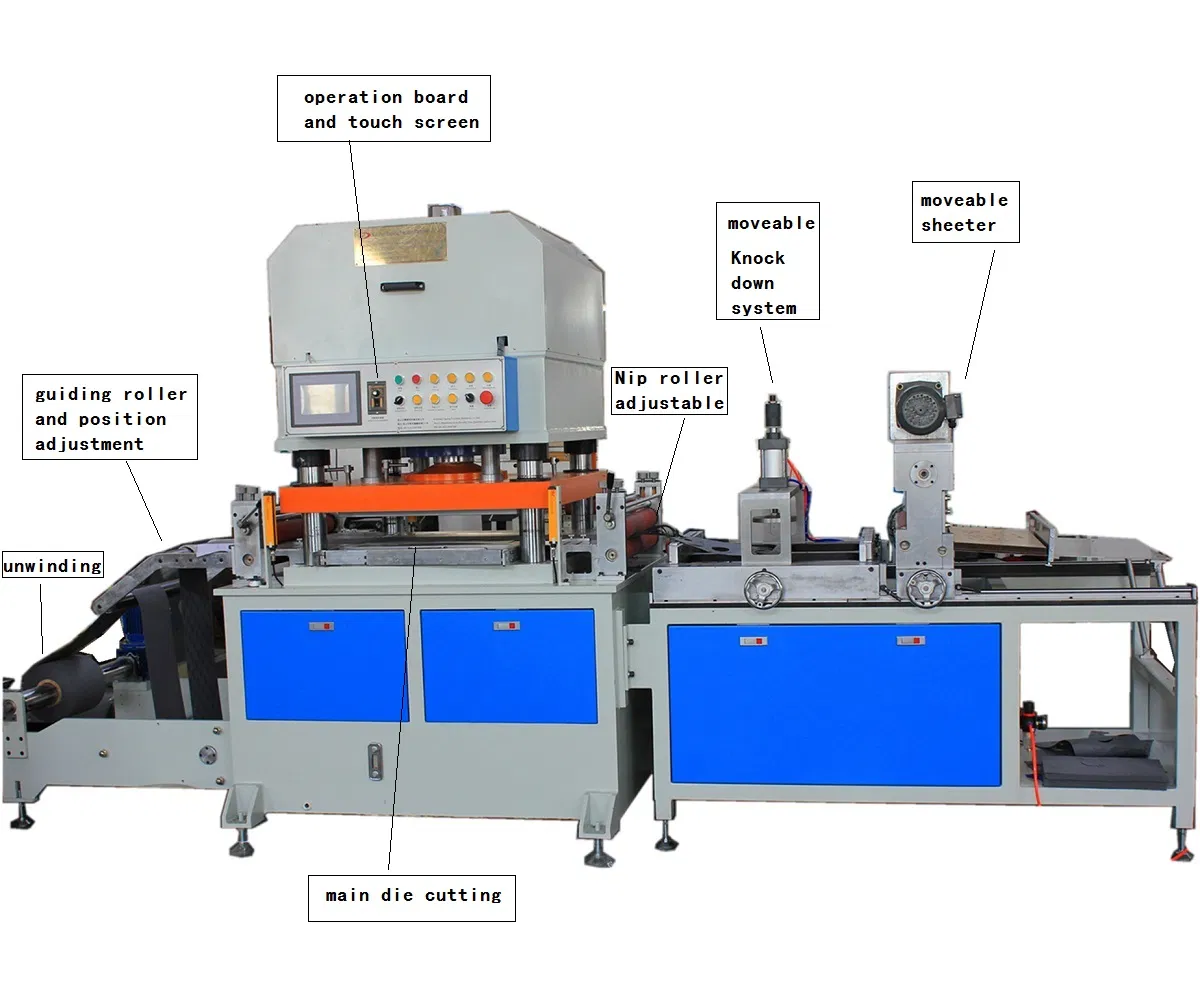

Model NO.:DP-700J
Placing Form:Horizontal
Die Cutting Tool:Wooden Laser Knife Mold
Computerized:Yes
Automatic Grade:Automatic
Die Cutting Area:700*700mm
Unwinding Width:700mm
Cutting Force:40ton
Cutting Speed:30 Times/Min
Precision:0.01mm
HS Code:8441100000
Production Cap.:50 Sets/Month
Mitsubishi PLC (Japan)
Taiwan Touch Screen
Photoelectric Safety (4 Sets)
Automatic Pressure Regulating Motor
Taiwan Chyun Tseh Main Motor
Taiwan Danxin Oil Pump
Taiwan Delta Servo Motor
Electronic Pressure Sensors
Air Cooling System
Automatic Unwinding/Rewinding (1200mm)
Frequently Asked Questions
What is the cutting precision of this machine?
The machine features electronic positioning with a precision control between 0.01mm and 0.03mm, ensuring high accuracy for sensitive materials.
What materials are suitable for this die-cutting machine?

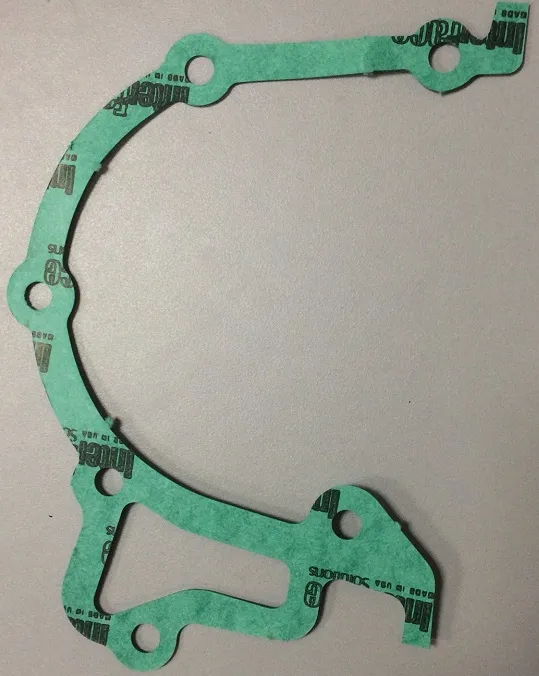

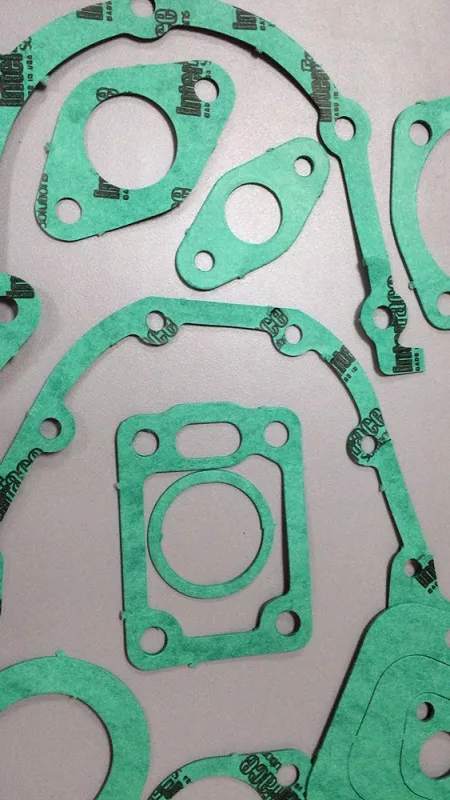

It is designed for paper packaging, stickers, heat insulation materials, and electronic components like aluminum foil, PET, and protective films.
Does the machine support both kiss-cutting and through-cutting?
Yes, the DP series supports both through-cutting and kiss-cutting for various precision components.
What safety features are included?
The machine is equipped with 4 sets of Taiwan-made photoelectric safety sensors and a PLC-based integrated oil system control for operator protection.
Can the cutting force be customized?
Yes, while the standard force ranges from 40 to 80 tons, customization options are available to meet specific production requirements.
What is the warranty period for this equipment?
We provide a 12-month after-sale warranty service (excluding wear items) and lifetime technical support with a 24-hour response time.
