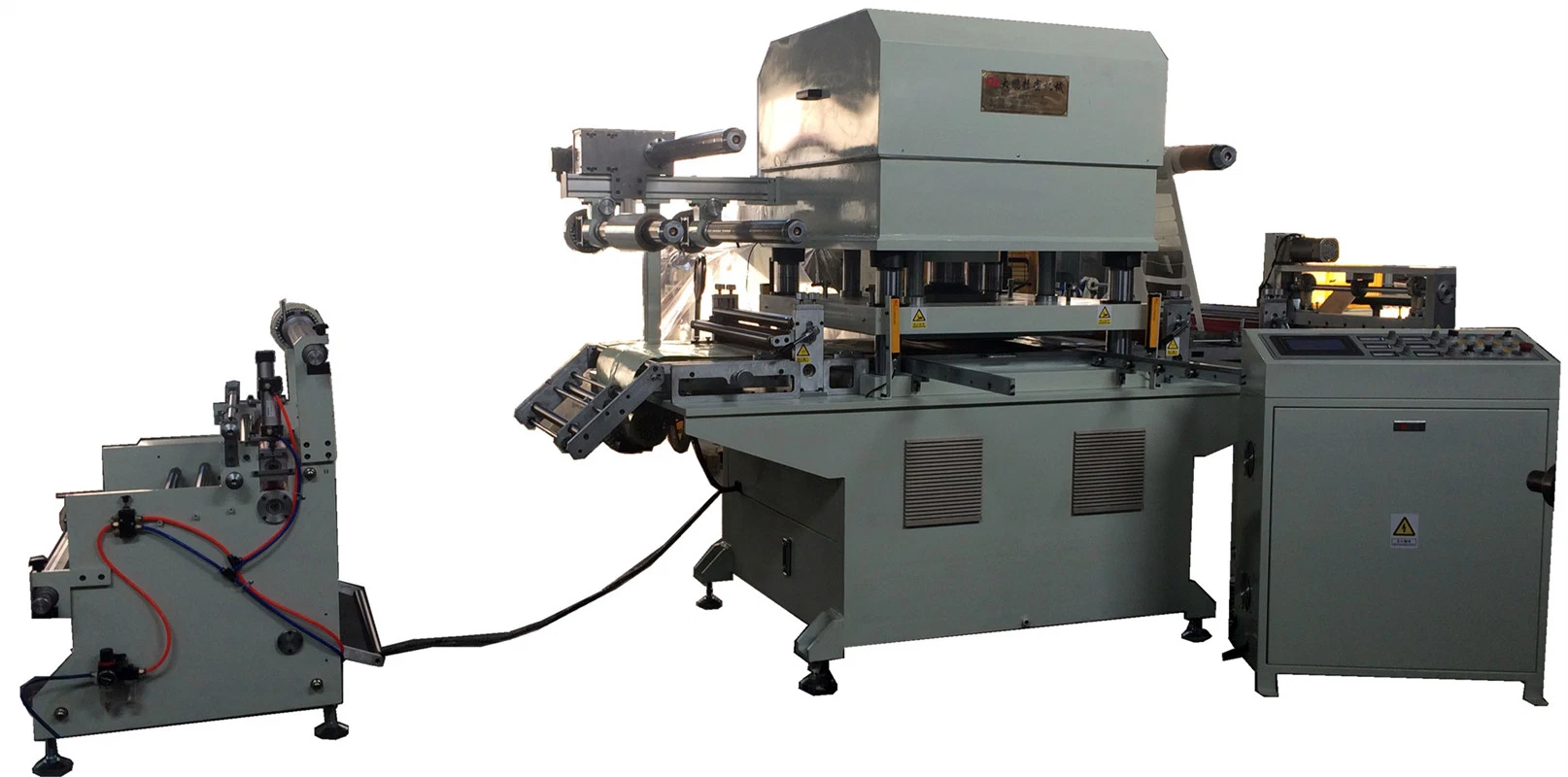

Automatic Hydraulic Press Car Sticker Cutting Machine

1 / 5

Automatic Hydraulic Press Car Sticker Cutting Machine

Customization:	Available
Species:	Roll to Roll Full Automatic Hydraulic Die Cutting
Imprinting Type:	Platen

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

DP-60T

Placing Form

Horizontal

Die Cutting Tool

Wooden Laser Mould

Computerized

Yes

Automatic Grade

Automatic

Warranty Period

12 Months

Die Cutting Area

700*700mm

Cutting Force

60 Ton

HS Code

844110000

Capacity

50 Sets/Month

⚙️

Product Description

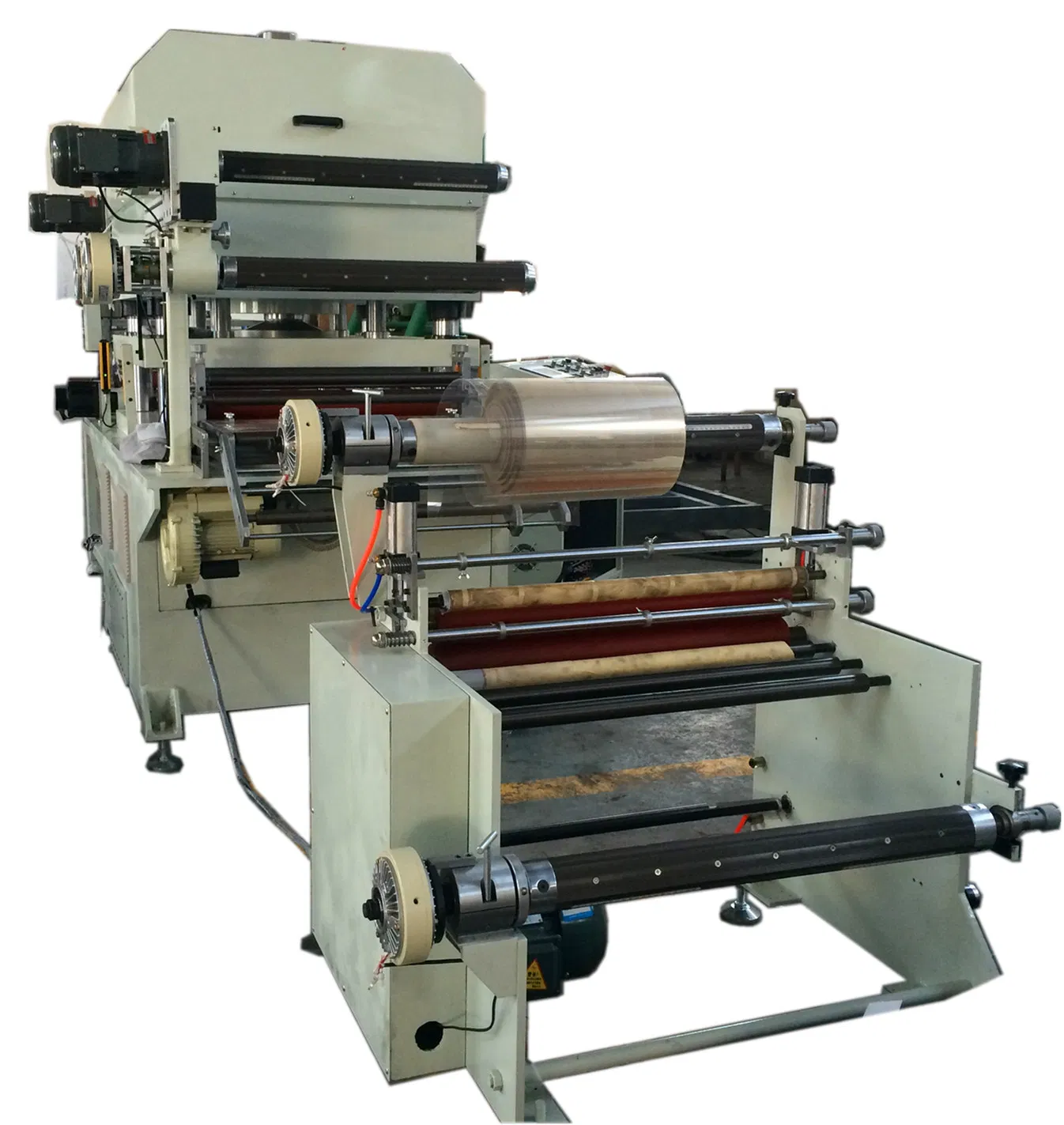

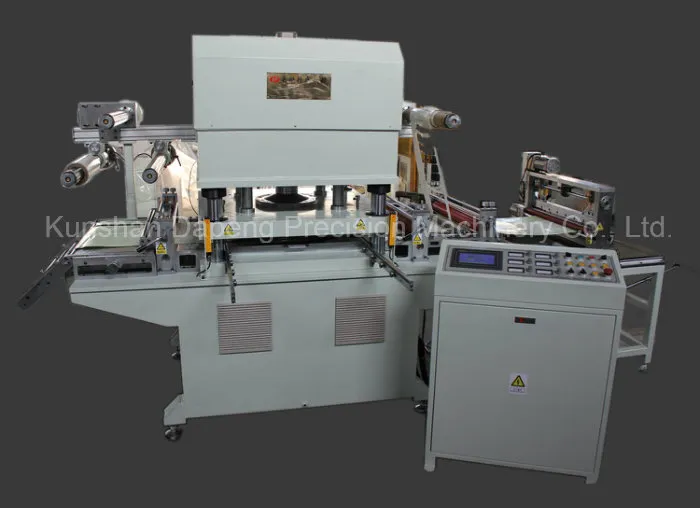

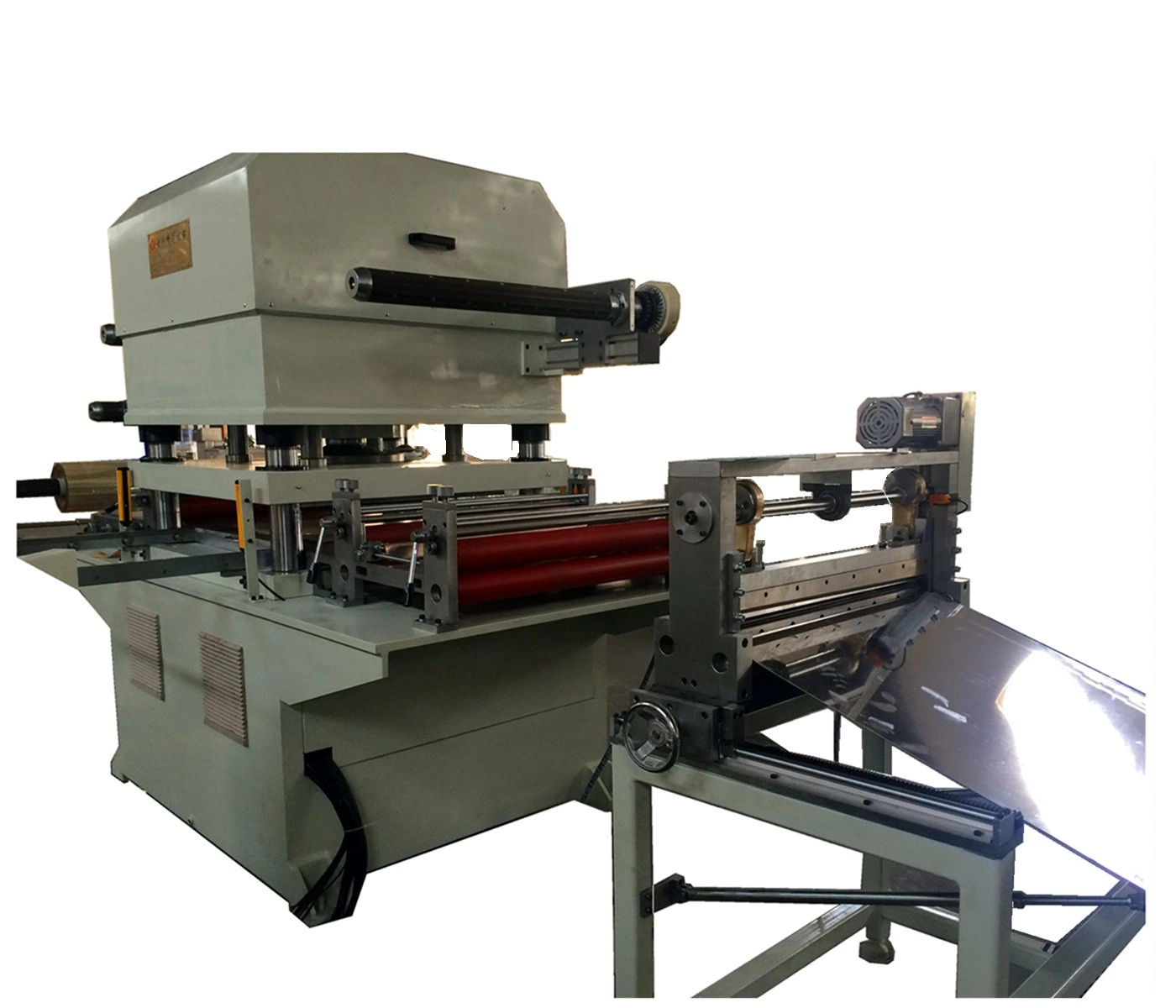

Roll to Roll Full Automatic Hydraulic Die Cutting Machine

Powerful, Precise, Fast. Suitable for various roll materials. Available in powers from 8 tons to 80 tons with cutting surfaces up to 1000mm*800mm.

Functional Characteristics:

Flexible and convenient operation with Photoelectric registering system.
Equipped with Programmable Logic Controller (PLC).
Kiss Cut and Through Cut both available.
Anti-vibration machine feet for stable operation.
Cutting speed up to 20-90 punches per minute.

🛠️

Technical Characteristics

Roll to roll direct die cutting with automatic deviation correction (accuracy within 0.05mm).
No need for separate slicing or positioning pins; automatic die-cut and discharge.
Full servo control with adjustable jumping distance; pressure depth precision up to 0.01mm.
Standard die base design for excellent tool compatibility and cost savings.

Model	Working Area	Max Tonnage	Feeding Width	Drive Motor	Position Accuracy
DP-650	650mm*600mm	40t	650mm	7.5HP/5.5KW	±0.01 mm
DP-850	850mm*600mm	40t	850mm	10HP/7.5KW	±0.01 mm
DP-1000	1000mm*800mm	80t	1000mm	15HP/11.2KW	±0.01 mm

🖼️

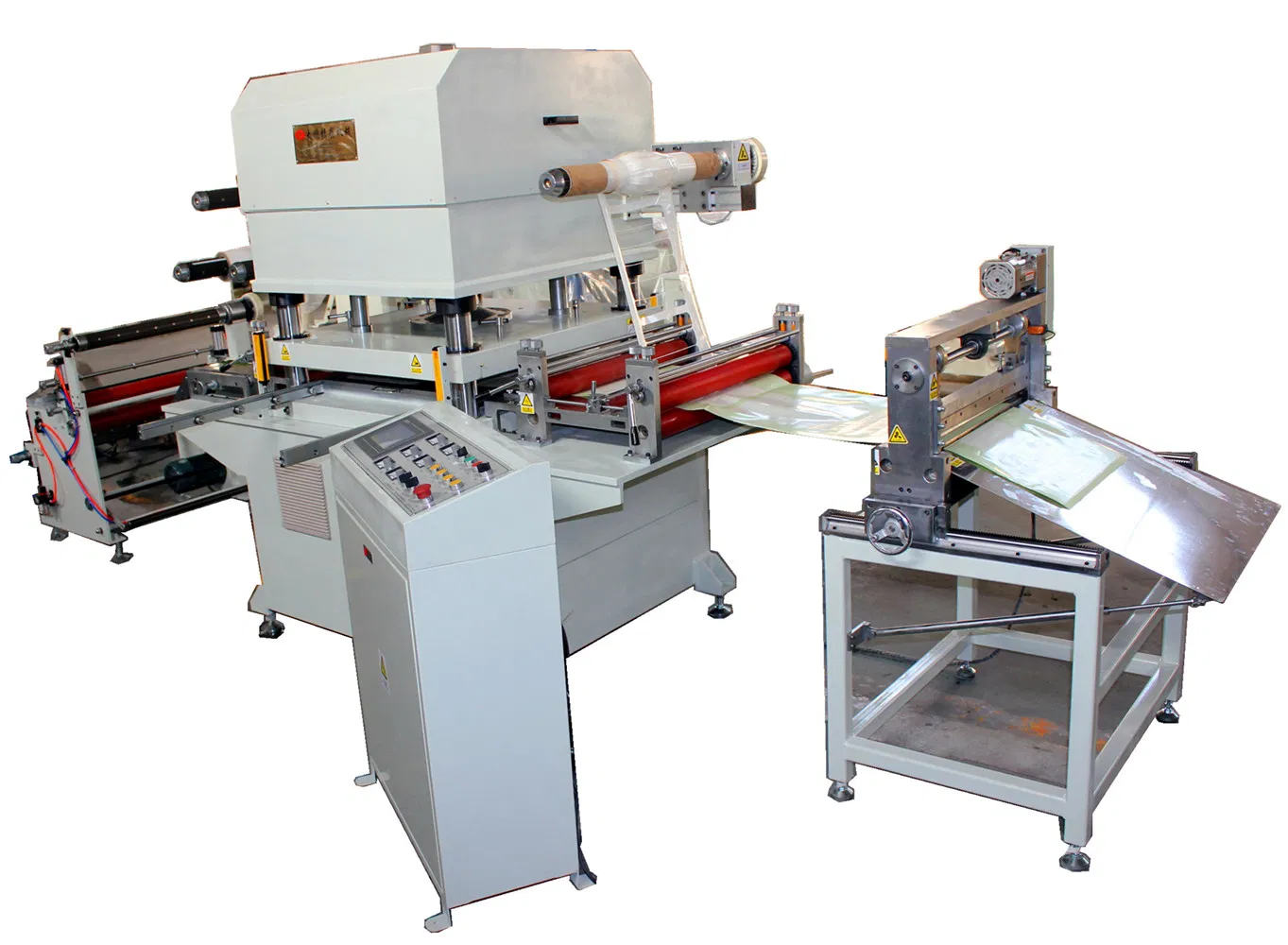

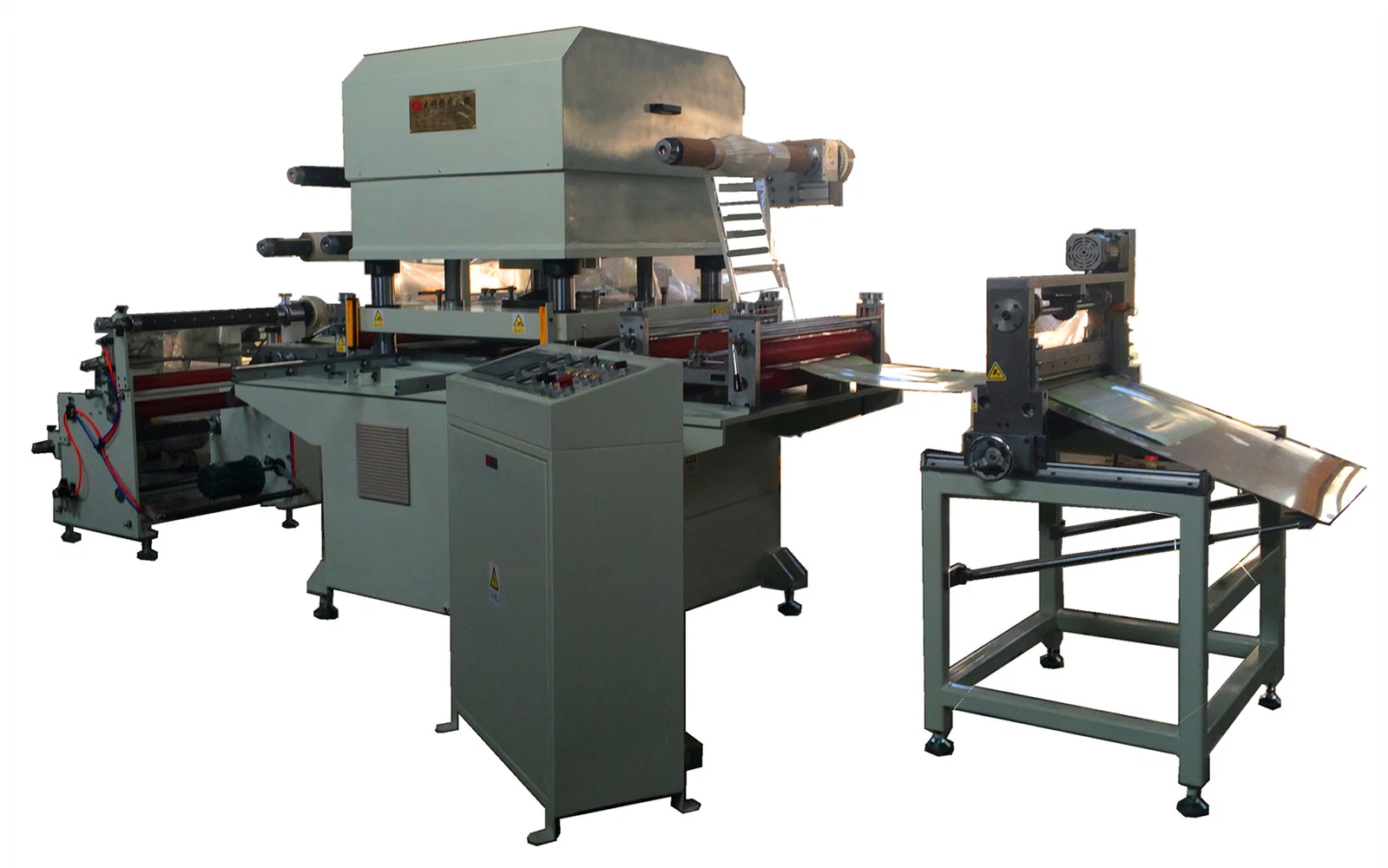

Product Display

❓

Frequently Asked Questions

What materials can this hydraulic die cutting machine process?

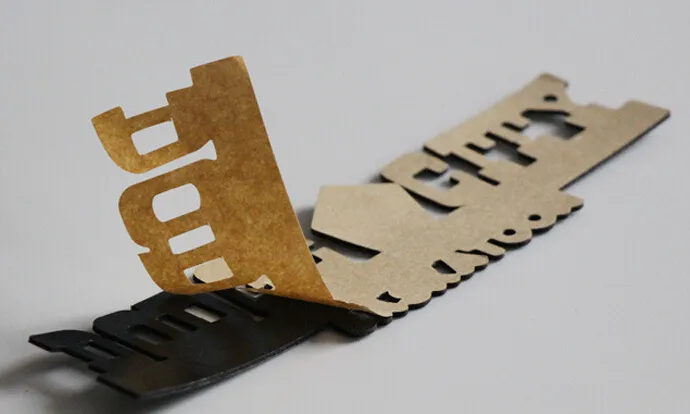

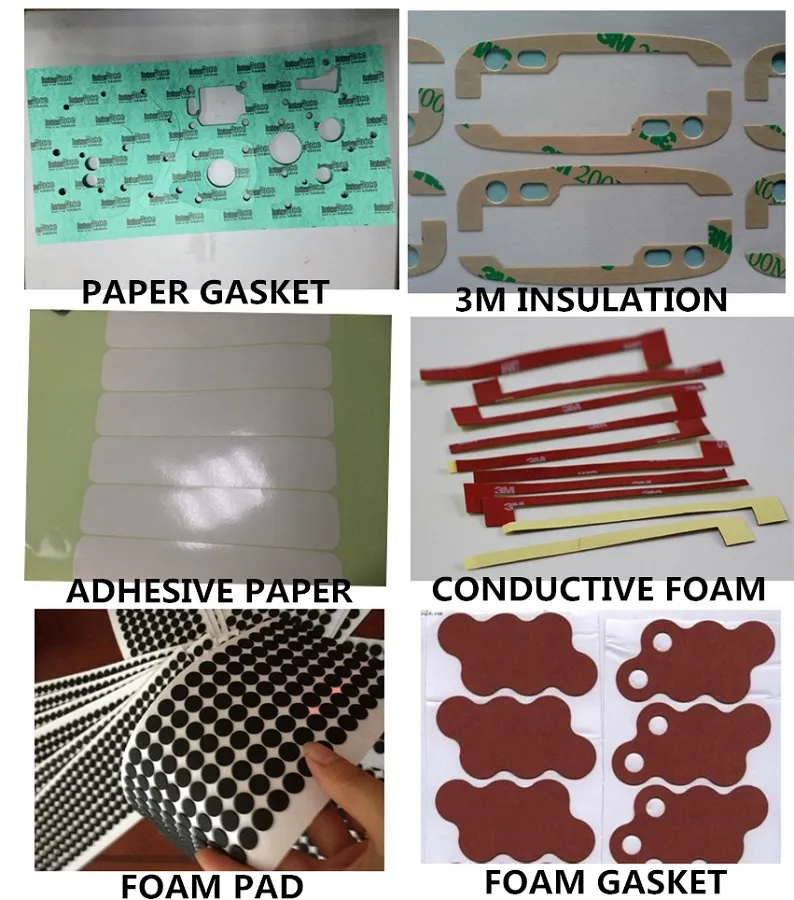

It is suitable for a wide range of materials including rubber, plastic, paper board, aluminum foil, copper foil, PET, protective film, Mylar, gaskets, and silicon tape.

What is the cutting precision of the DP series?

The machine features high-precision servo control, achieving a depth precision of up to 0.01mm and a repeat position accuracy within 0.05mm.

Can the machine perform both kiss cutting and through cutting?

Yes, the machine is designed to handle both kiss cutting (cutting the top layer only) and through cutting (cutting through all layers) effectively.

Does the system support automatic material alignment?

Yes, it includes an automatic deviation correction system and a photoelectric registering system to ensure precise alignment during roll-to-roll processing.

What is the standard warranty for this equipment?

The machine comes with a standard 12-month warranty period starting from the date of delivery.

What is the production capacity for this model?

The production capacity is approximately 50 sets per month, ensuring reliable supply for large-scale operations.
