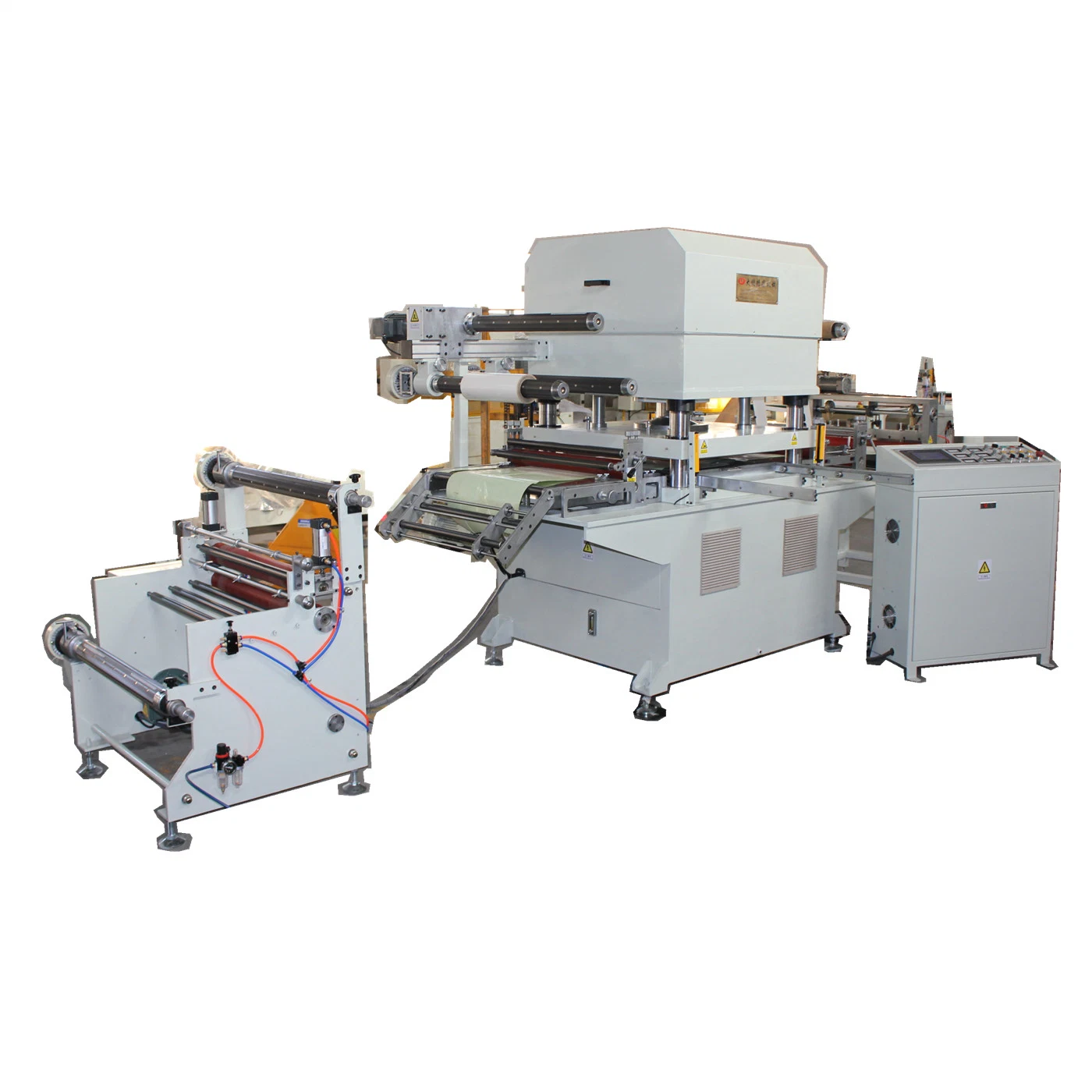

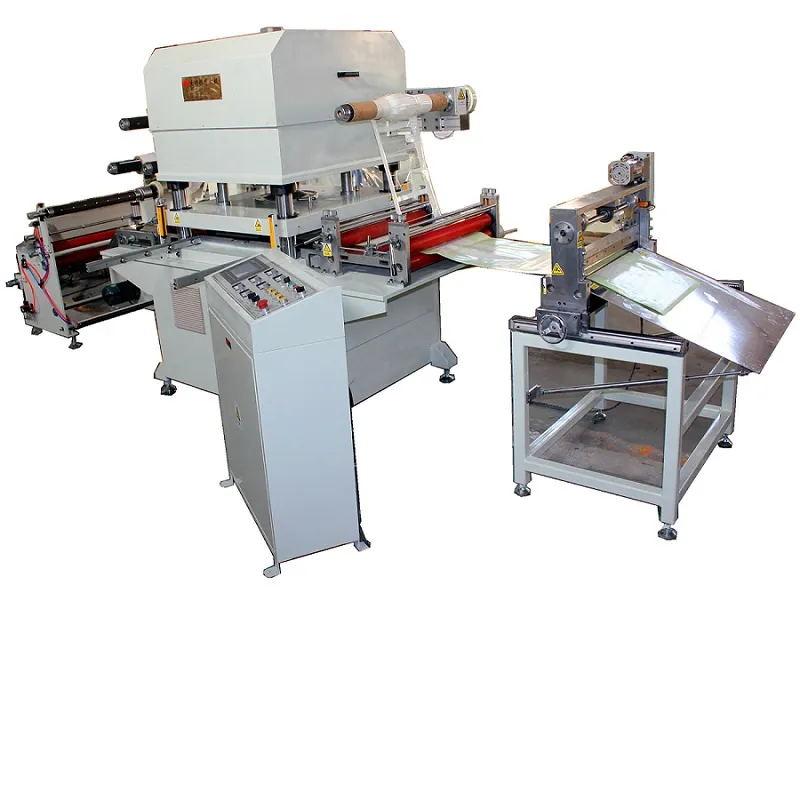

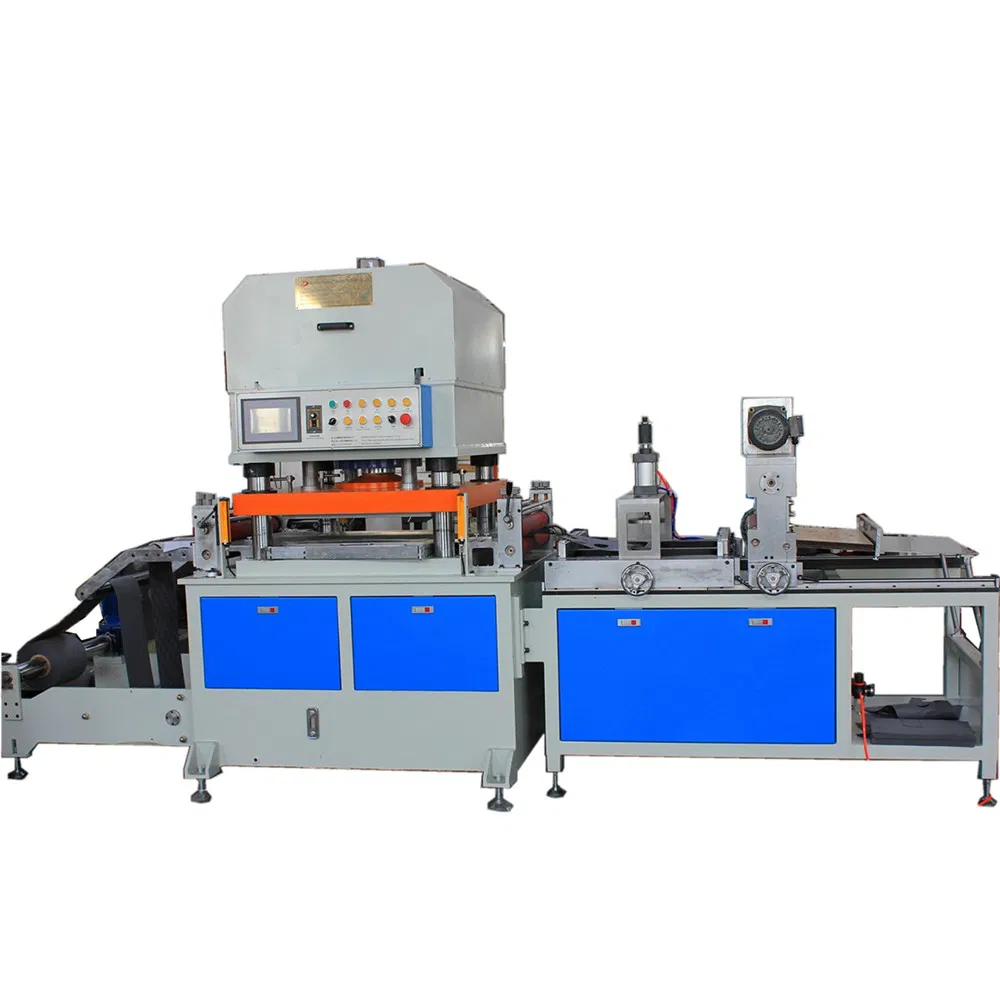

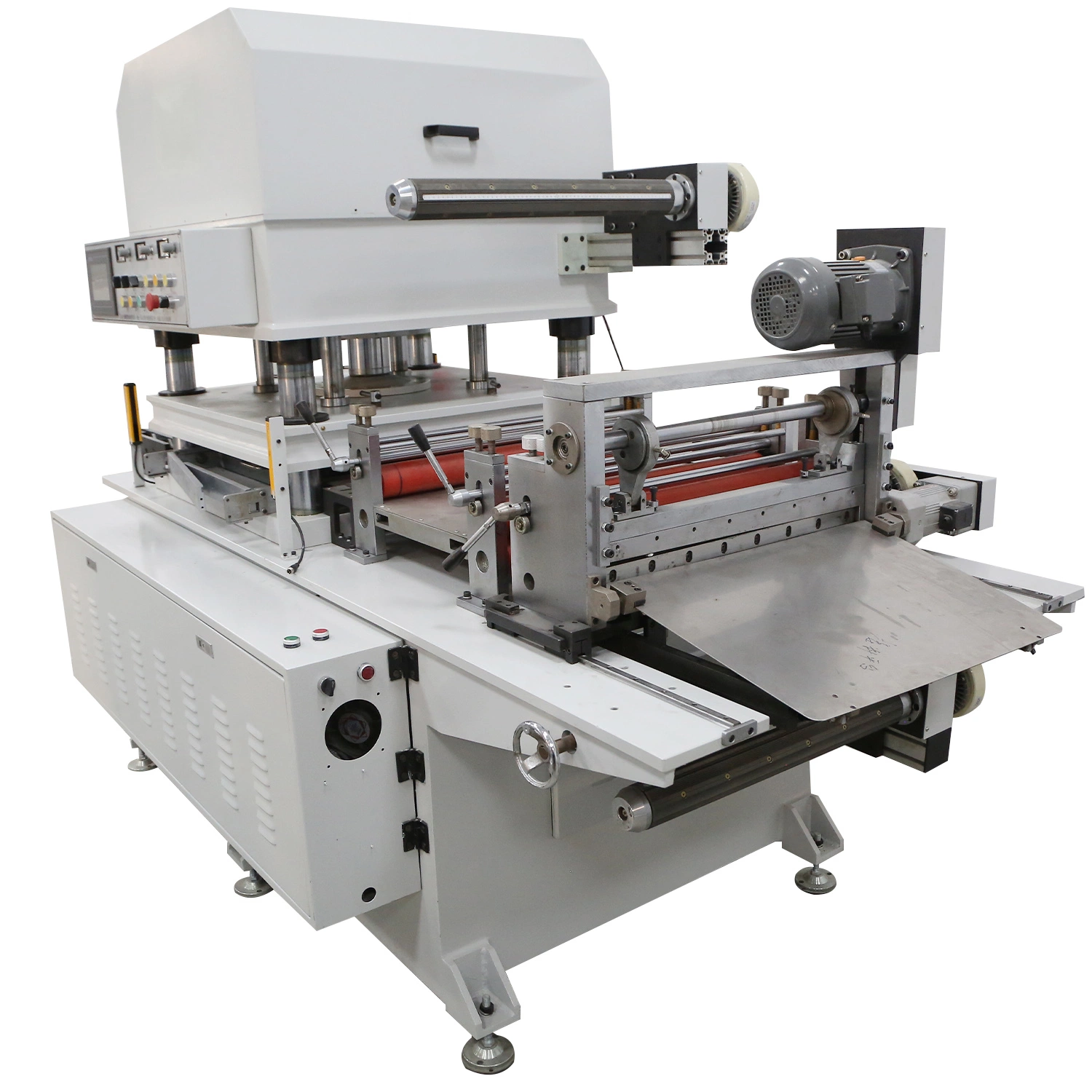

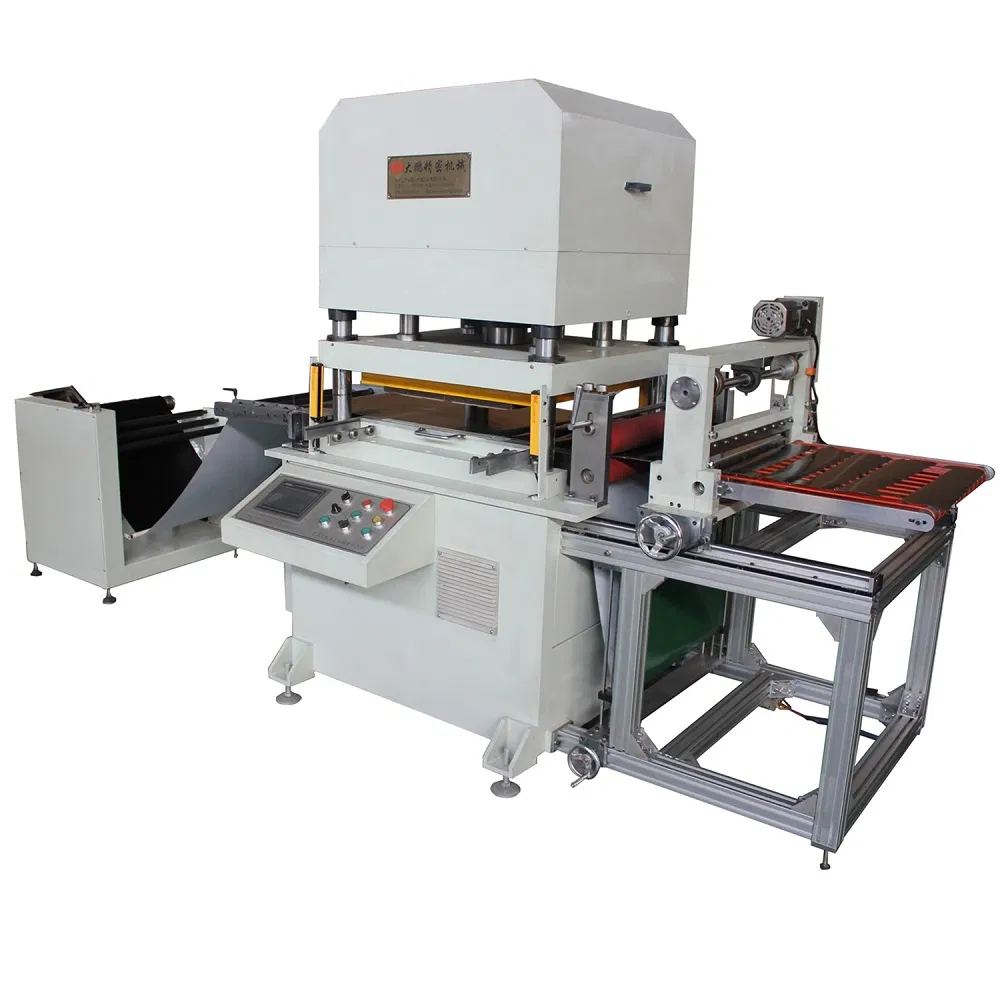

Induction Cap Seal Liner, Foam Tape Die Cutting Machine

1 / 5

Induction Cap Seal Liner, Foam Tape Die Cutting Machine

Customization:	Available
After-sales Service:	Video Technical Service , Spare Parts Offer Servic
Warranty:	12 Month

Send Inquiry

Product Description

Basic Specifications

Model NO.

DP-650J

Species

Die Cutting and Creasing Machine

Imprinting Type

Platen

Placing Form

Horizontal

Die Cutting Tool

Metal Mould or Wood Laser Mold

Computerized

Yes (Computerized)

Automatic Grade

Automatic

Driven Type

Hydraulic and Electric

Driven System

Servo Motor

Power Range

40 Ton - 100 Ton

HS Code

844110000

Production

50 Sets/Month

Product Overview

Induction Cap Seal Liner, Hung Tabs, Foam Tape Die Cutting Machine (Automatic Die Cutter)

Our imported motor system, equipped with a static eliminator, efficiently manages bottom sheet receiving. The entire workflow—including feeding, filming, die cutting, waste draining, slitting, and rolling—is fully synchronized and managed via advanced computer control in a single cycle.

✓

Precision Control
Electronic positioning with accuracy controlled within 0.01 to 0.03 mm.

✓

Stable Operation
Shockproof board installed at under-chassis ensuring a stable and reliable machine body.

✓

Advanced UI
PLC + man-machine automatic programming control with integrated oil system and photoelectric protection.

✓

High Speed
A cutting speed capable of reaching 20-90 punches per minute.

Scope of Application

This machine applies to punch electronic materials such as aluminum foil, PET, protective film, and Mylar through through-cutting or kiss-cutting. It is ideal for:

Electronic shield materials
PVC, Foam, Mylar, Film
Copper & Aluminum foil
Photoelectric display screens
Bright Enhancement Film & Polarizers
Printed circuit boards (PCB)

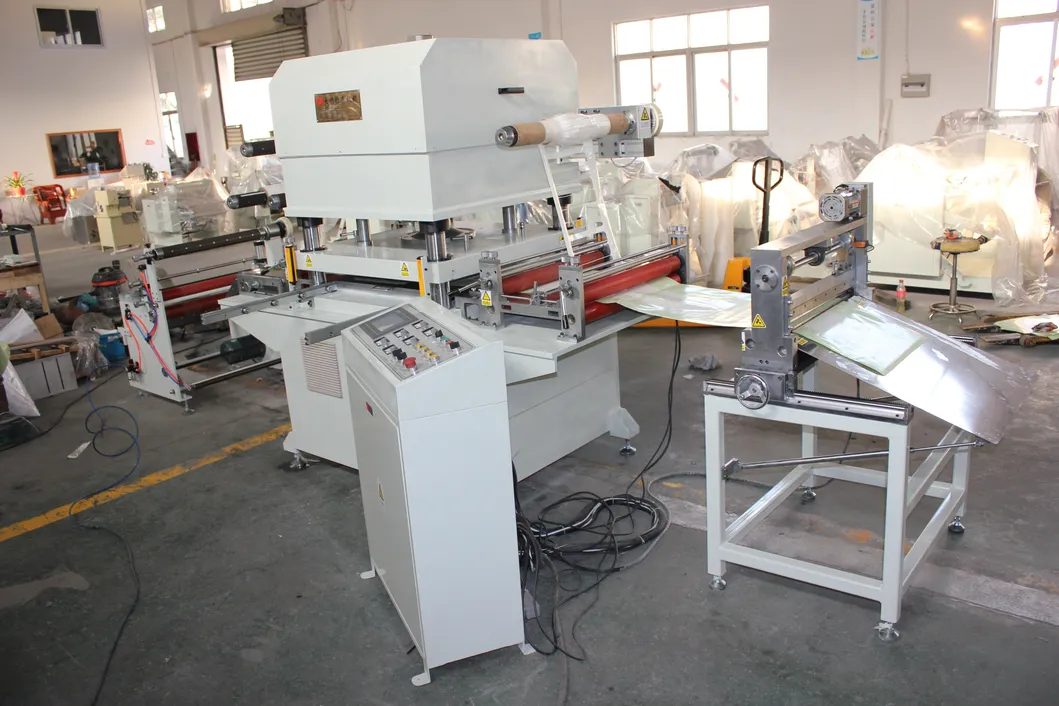

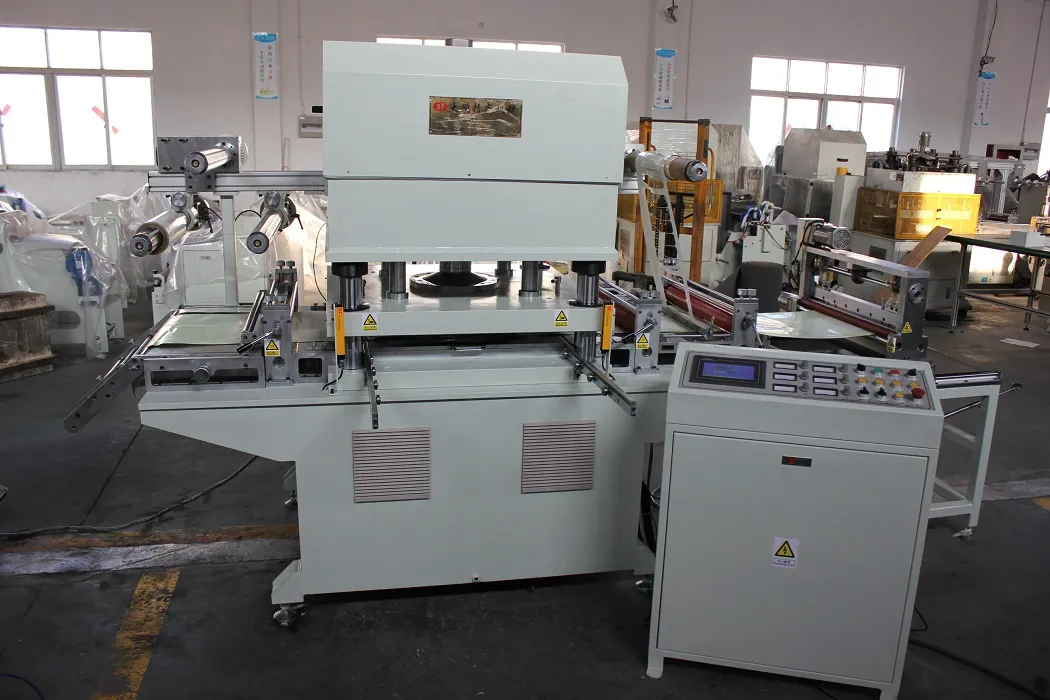

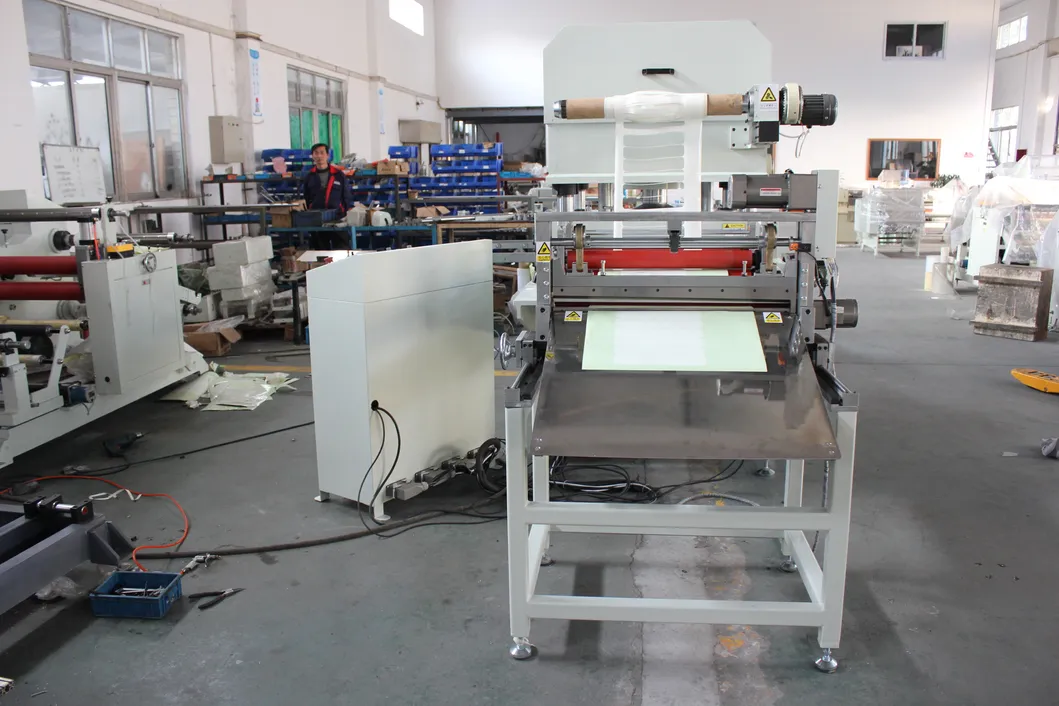

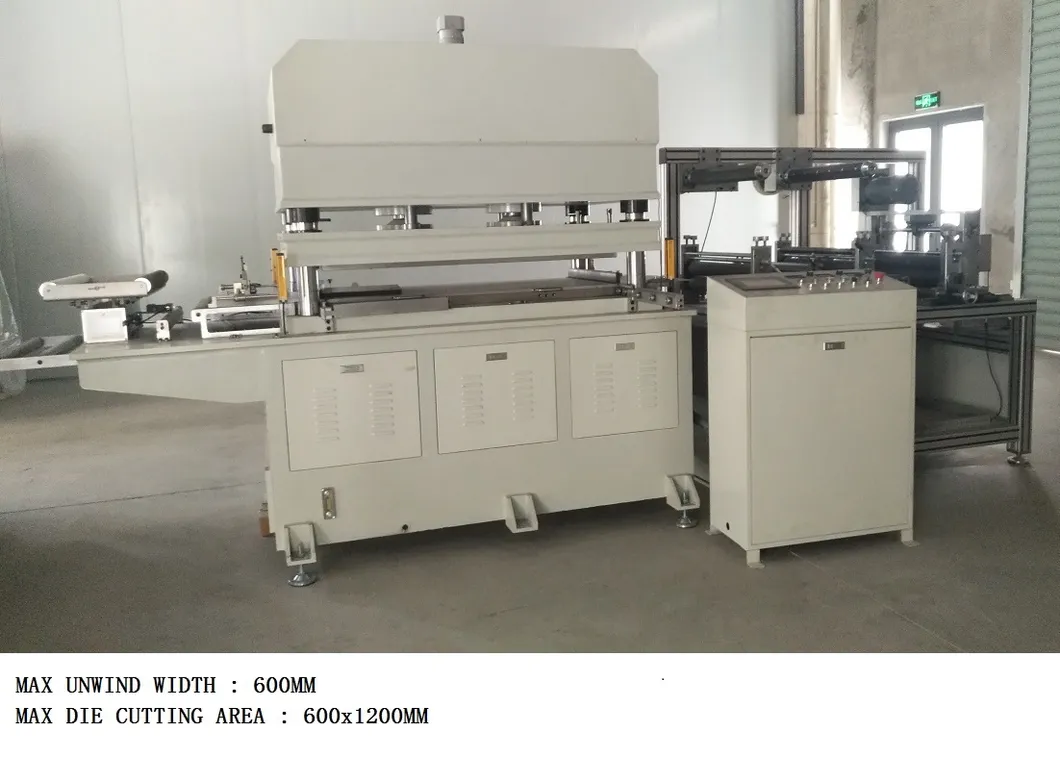

Product Visuals

Technical Parameters

Model	Working Area	Max Tonnage	Max Feeding Width	Drive Motor	Weight	Position Accuracy
DP-650	650mm*600mm	40t	650mm	7.5HP/5.5KW	3 Ton	±0.01 mm
DP-650	850mm*600mm	40t	850mm	10HP/7.5KW	3.4Ton	±0.01 mm
DP-650	1000mm*800mm	80t	1000mm	15HP/11.2KW	4.5Ton	±0.01 mm

Frequently Asked Questions

What types of materials can the DP-650J process?

The machine is versatile and can handle various insulating materials including electronic shield materials, PVC, film, Mylar, copper foil, aluminum foil, and foam.

Does the machine support both kiss-cutting and through-cutting?

Yes, the DP-650J is designed to support both kiss-cut and through-cut operations, making it suitable for complex precision component forming.

How accurate is the positioning system?

The machine features electronic positioning with a precision control of 0.01 to 0.03 mm, and push-board back-and-forth precision within 0.02 to 0.05 mm.

What is the maximum production speed?

The machine offers flexible operation with a cutting speed ranging from 20 to 90 punches per minute, depending on the material and complexity.

What control systems are integrated into the machine?

It utilizes a PLC (Programmable Logic Controller) combined with a man-machine interface for automatic programming, ensuring high efficiency and easy operation.

Is the machine stable during high-speed operation?

Yes, the machine body is designed for stability with a shockproof board installed at the under-chassis to ensure reliability during high-speed stamping.
