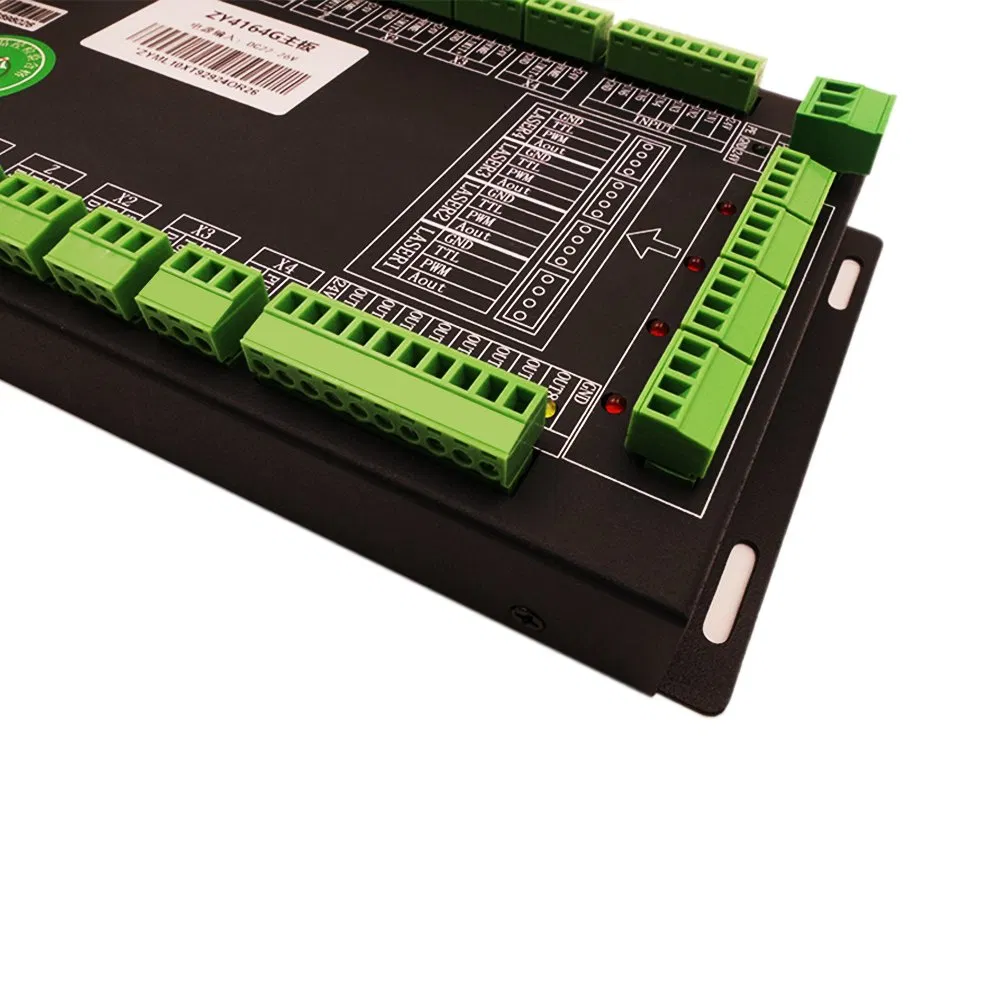

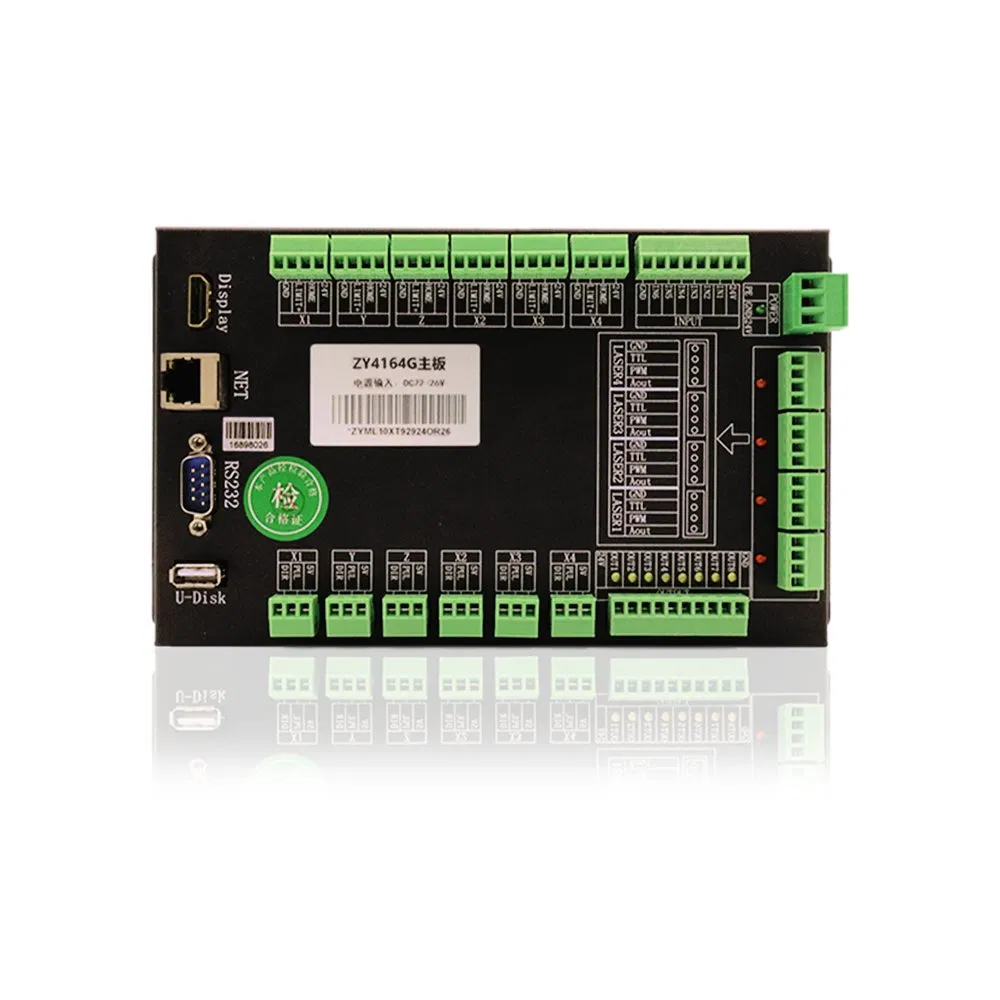

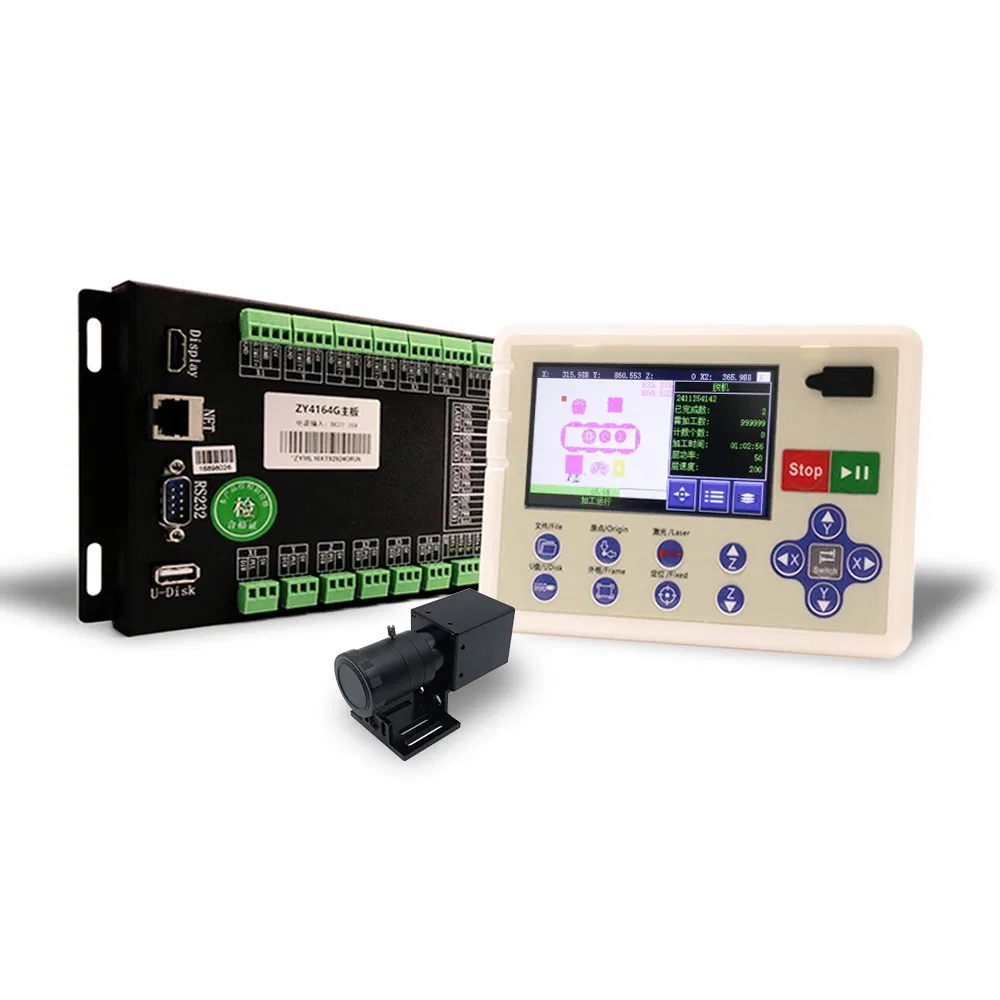

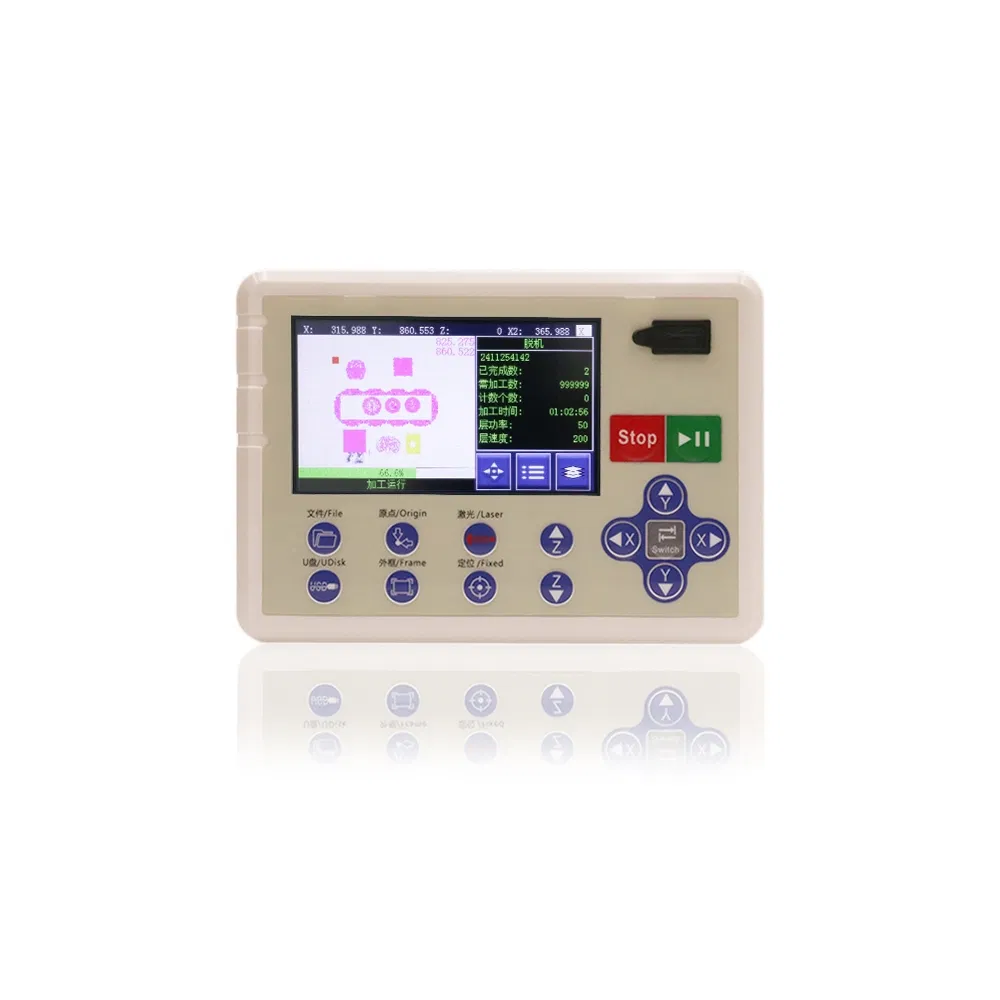

Advanced Laser Cutting Control System for Leather and Wood

Basic Specifications

Model NO.

ZY4164G-130

Type

Laser Control Card

Materials

Plastic/Metal/Glass

Gross Weight

3kg

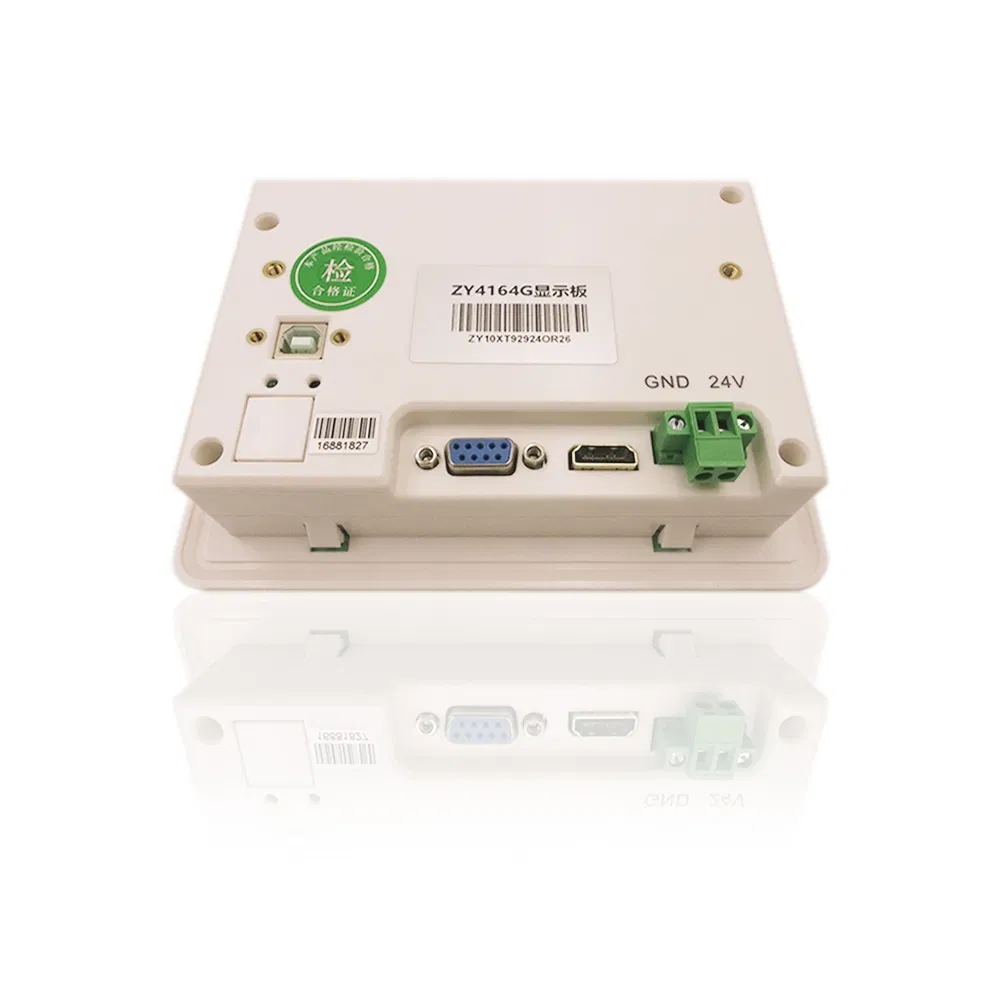

Power Supply

DC 24V Button Battery 3V

Software Env.

Windows (Except Vista)

PWM Channel

0.1K-50K, Adjustable

Drive Capability

50mA

Key Advantages & Features

Performance: Stable performance; High visual accuracy; Seek edge, template two in one.

Industrial Applications: Cardboard, cloth, leather, acrylic, wood, etc.

Freely choose between 1.3 megapixels or 5 megapixels industrial high-speed camera.
Camera positioning, automatic identification of template alignment cutting.
Support multiple template identification (up to 100 templates simultaneously).
Graphics splicing for identifying and cutting large graphics.
Visual positioning by mark point for advertising industry.
Adjustable brightness LED light source.

Technical Parameters

Hardware Specifications
Camera (pixels)	1.3 million /5 million
Screen	4.3 inches
Control Axes	6-axis
Disk space (MB)	500
Supported Lasers	Rf laser, CO2 glass tube laser
System Functions
Machine vision	Support
Z-axis autofocus	Support
Power off & Switch off protection	Support
Rotary engraving cutting	Support
Mirror cutting	Support

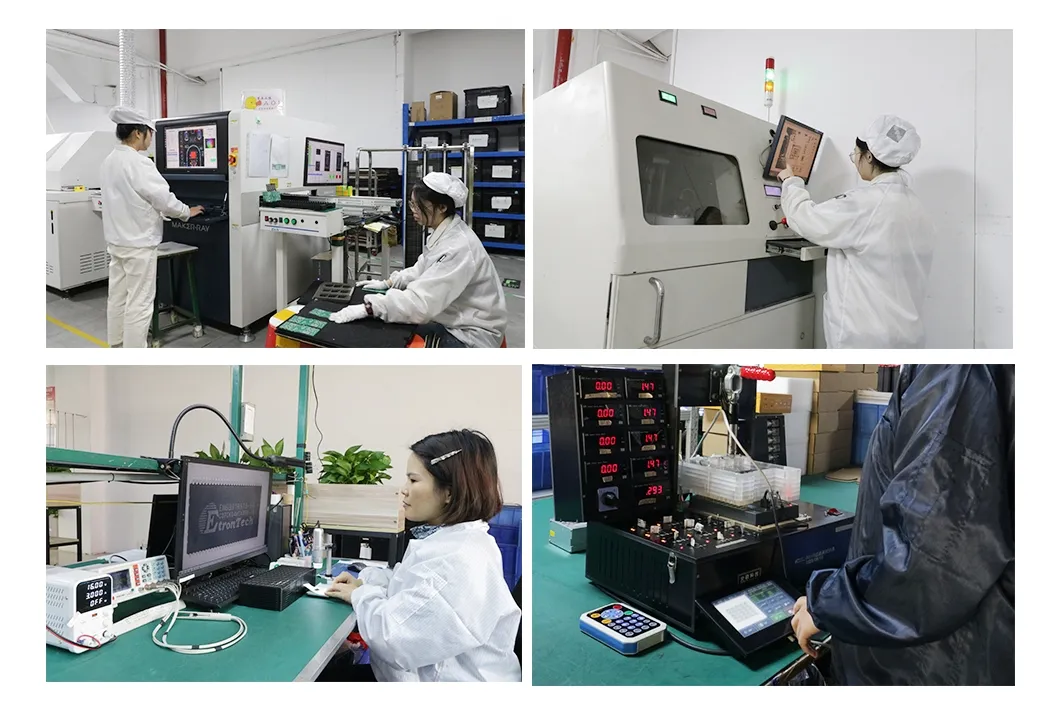

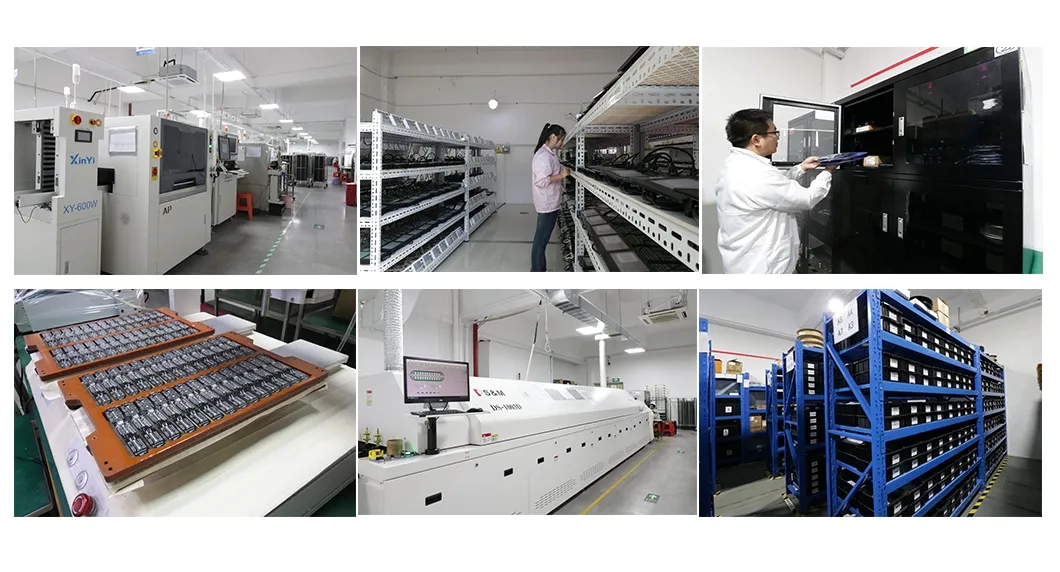

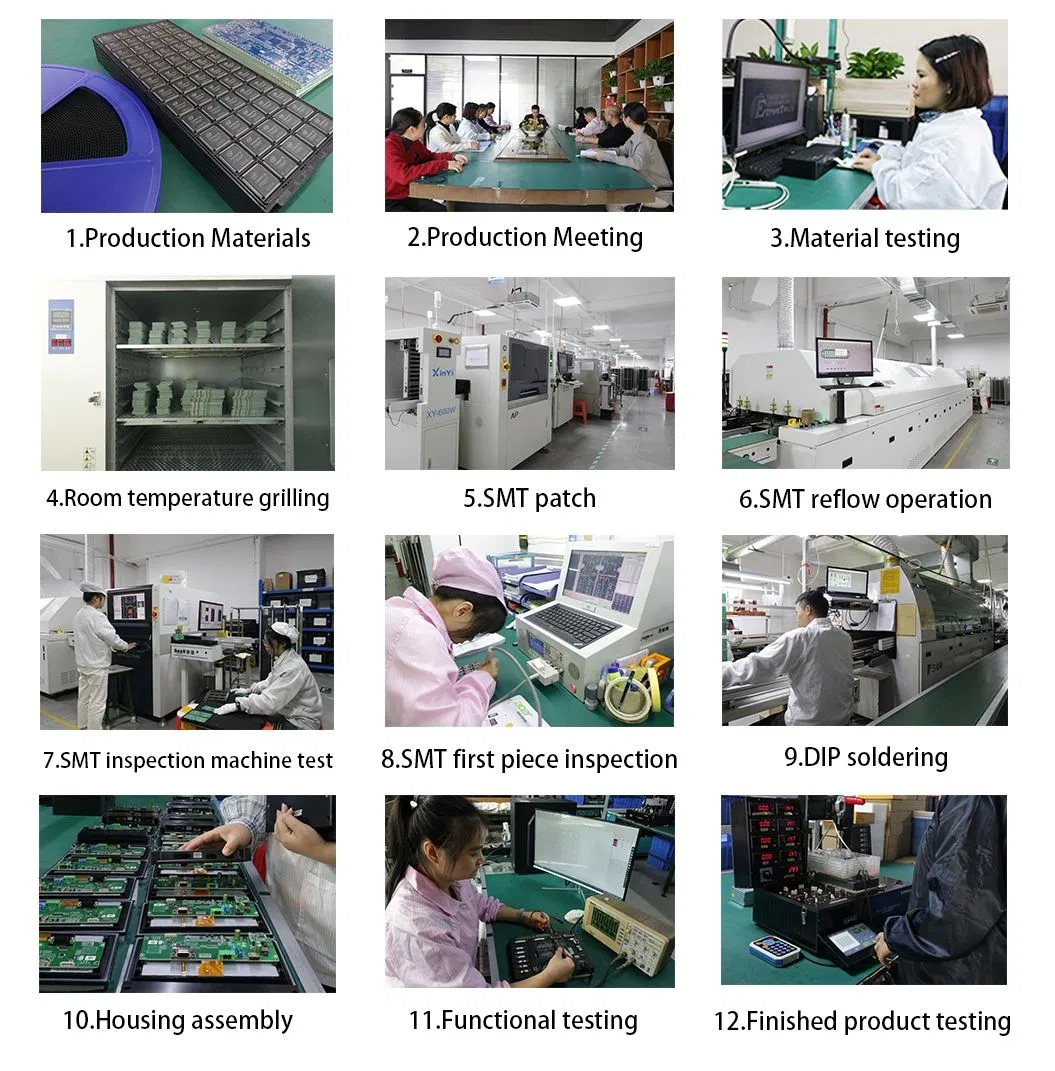

Manufacturing & Quality Control

Certification & Packaging

Frequently Asked Questions

What are the available OEM/ODM services?

We provide comprehensive customized services including product appearance design, internal function module optimization, and user-friendly software interface development to help you bring products to market efficiently.

What is the cutting accuracy of the laser controller?

Under ideal conditions, the positioning accuracy can reach 0.001mm. This is achieved through high-precision motor drives, advanced control system algorithms, and robust mechanical transmission structures.

Which non-metallic materials are supported?

The system supports a wide range of materials including acrylic, wood, leather, plastic, and fabric. Parameters like laser power and cutting speed can be adjusted specifically for each material density.

Can the system control laser power gradients?

Yes, the controller can achieve laser power gradation. This is essential for special engraving effects or creating acrylic products with gradual light transmission.

Which international certifications do the products hold?

Our controllers are designed to meet international standards including CE (safety and health), FCC (electromagnetic compatibility), and RoHS (environmental protection).

How is technical support provided?

We offer remote technical support via email and instant messaging. For software issues, remote desktop connections are used to provide immediate troubleshooting guidance and solutions.
