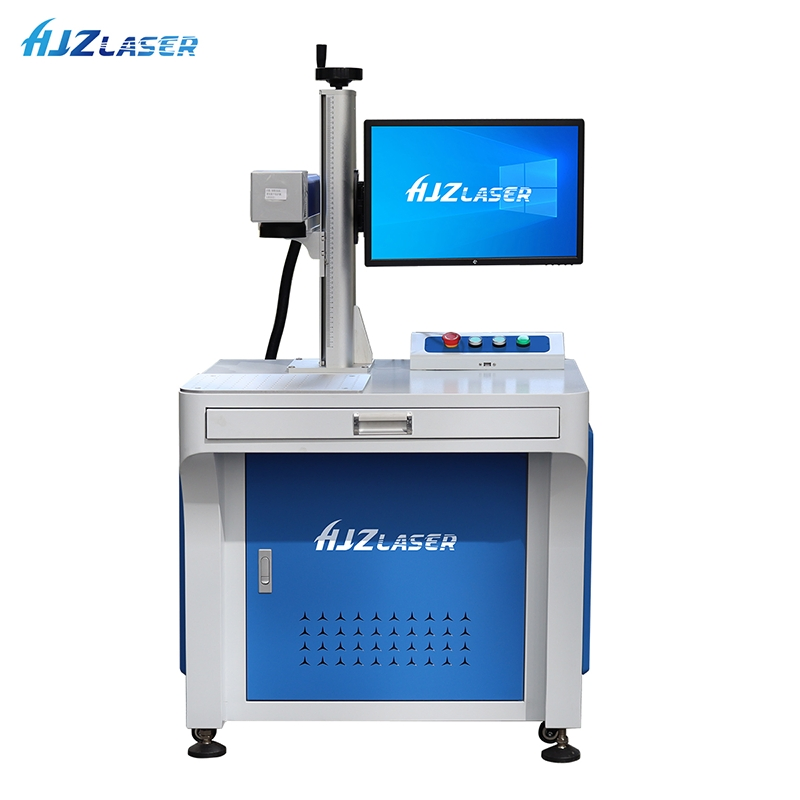

Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
1 / 5
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System

Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System

Customization: Available
After-sales Service: Lifetimer Service
Warranty: 3 Years
Send Inquiry

Product Description

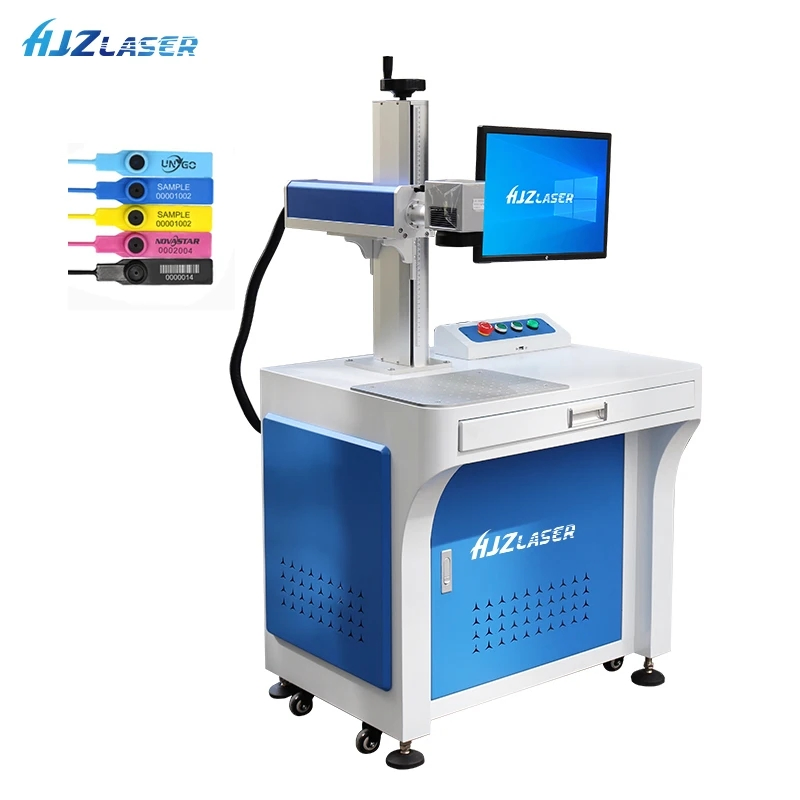

Metal Laser Engraving Etching Numbering Coding Machine 20W 30W 50W Fiber Laser Marking System
Fiber Laser Marking System
Basic Specifications
Model NO.
HJZ-DB-04
Applicable Material
Metal & Some Non-Metal
Cooling System
Air Cooling
Laser Source
Fiber Laser (Raycus)
Output Power
20W, 30W, 50W
Engraving Speed
9000mm/S
Marking Area
110*110mm to 300*300mm
Operating Voltage
110-240V
Certification
CE, FDA
Lifespan
Over 20,000 hours
Main Features
  • High-Performance Laser Source: Compatible with Raycus, JPT, IPG, or MAX brands.
  • Advanced Control System: Original EZCAD 2.14.9 or EZCAD 3 version software.
  • Precision Galvo Head: Sino-galvo JD2206 / 3D Feeltek / 3D JCZ for rapid marking.
  • Flexible Column Stand: Manual or Electric options (50cm / 68cm / 80cm).
  • Graphic Support: Wide range of formats including Ai, BMP, Dst, Dwg, Dxf, Dxp, and more.

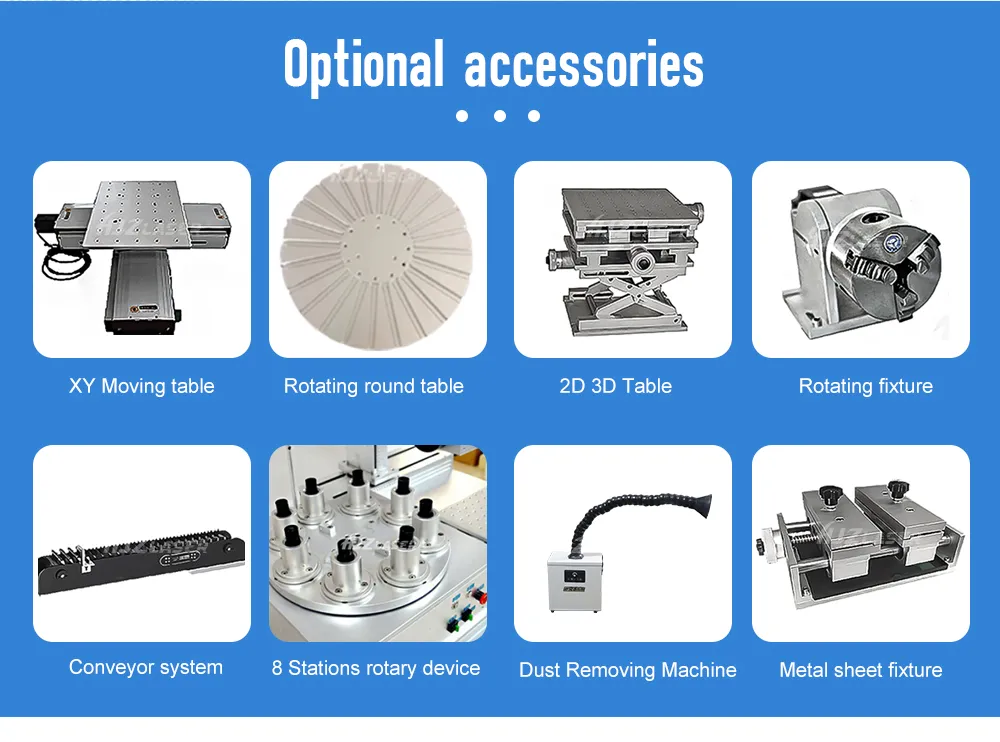

  • Optional Add-ons: Rotary fixtures (50mm-200mm), Cyclops Camera for auto-recognition, Conveyor tables, and Vacuum systems.
Technical Data
Parameter Item Detail Specifications
Item / ModelHJZ-DB-04 (20/30/50/60/70/100W)
Laser Wavelength1064nm
Max. Marking Depth≤0.4mm
Min. Line Width0.01mm
Min. Character0.15mm
Resolution Ratio0.01mm
Software SupportCorelDraw, Photoshop, AutoCAD
Unit Power≤500W
Dimensions420*320*800mm
Net Weight45 KGS / 55 KGS
Laser Detail 1

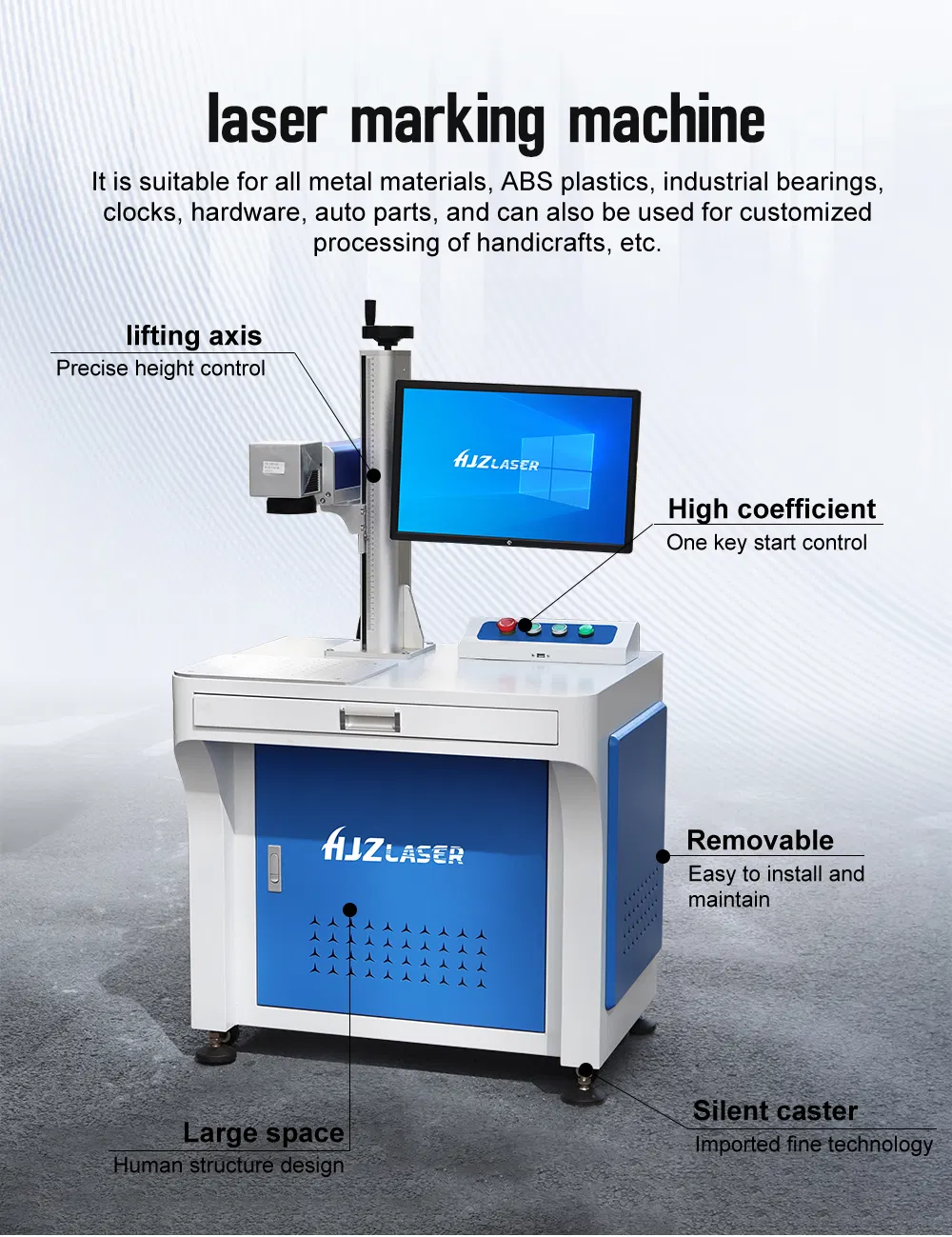

Laser Detail 2

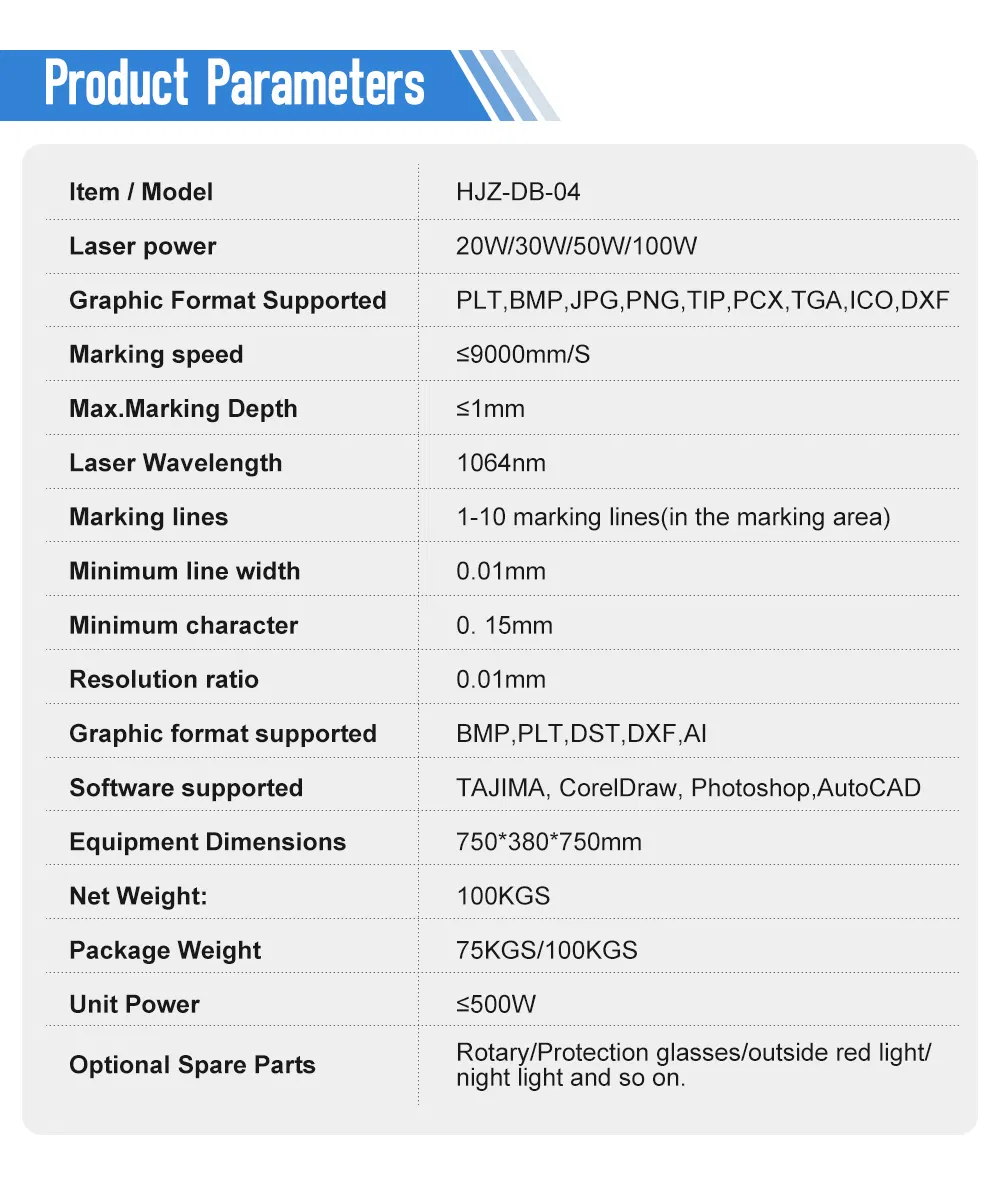

Laser Detail 3

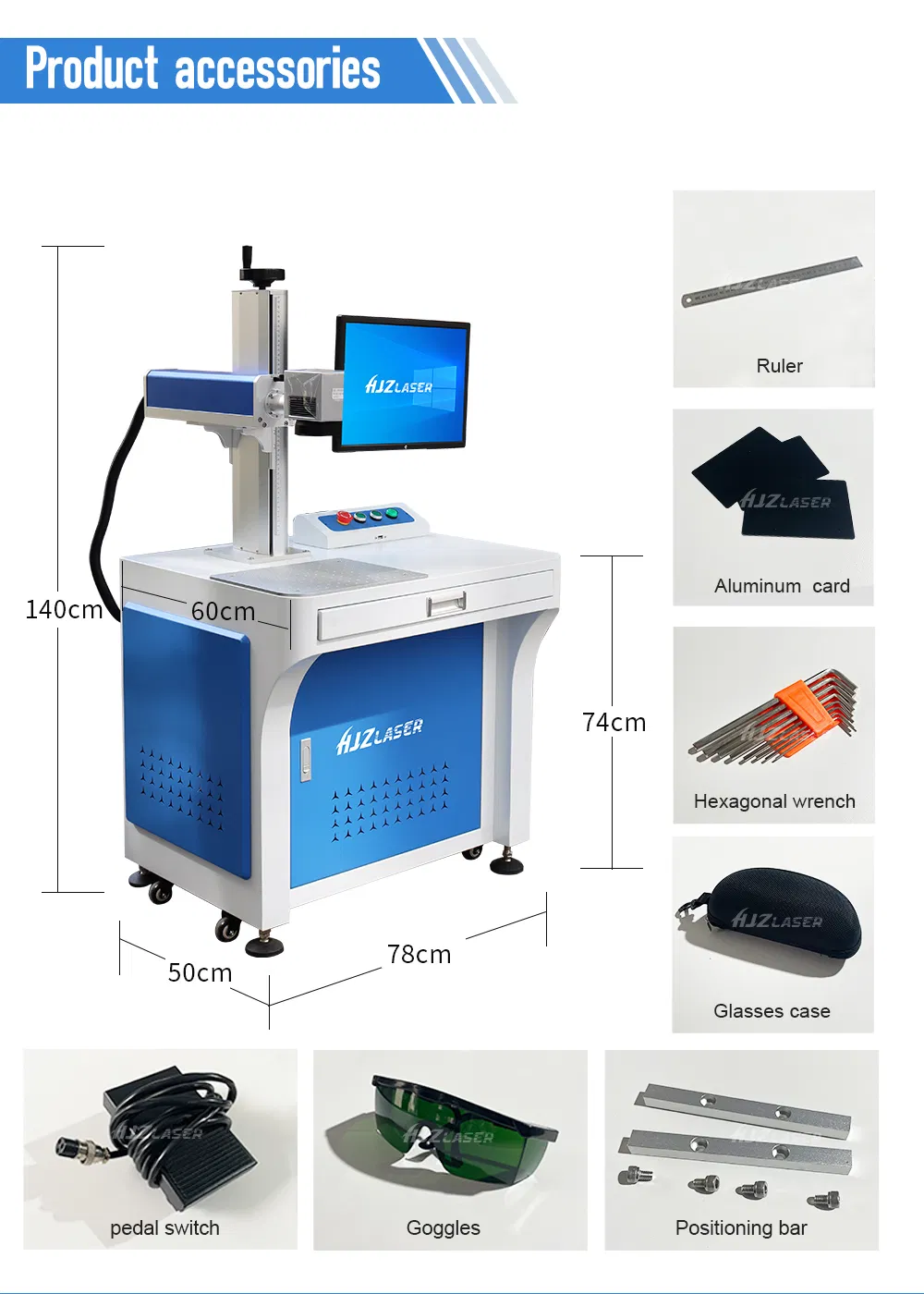

Laser Detail 4
Laser Detail 5

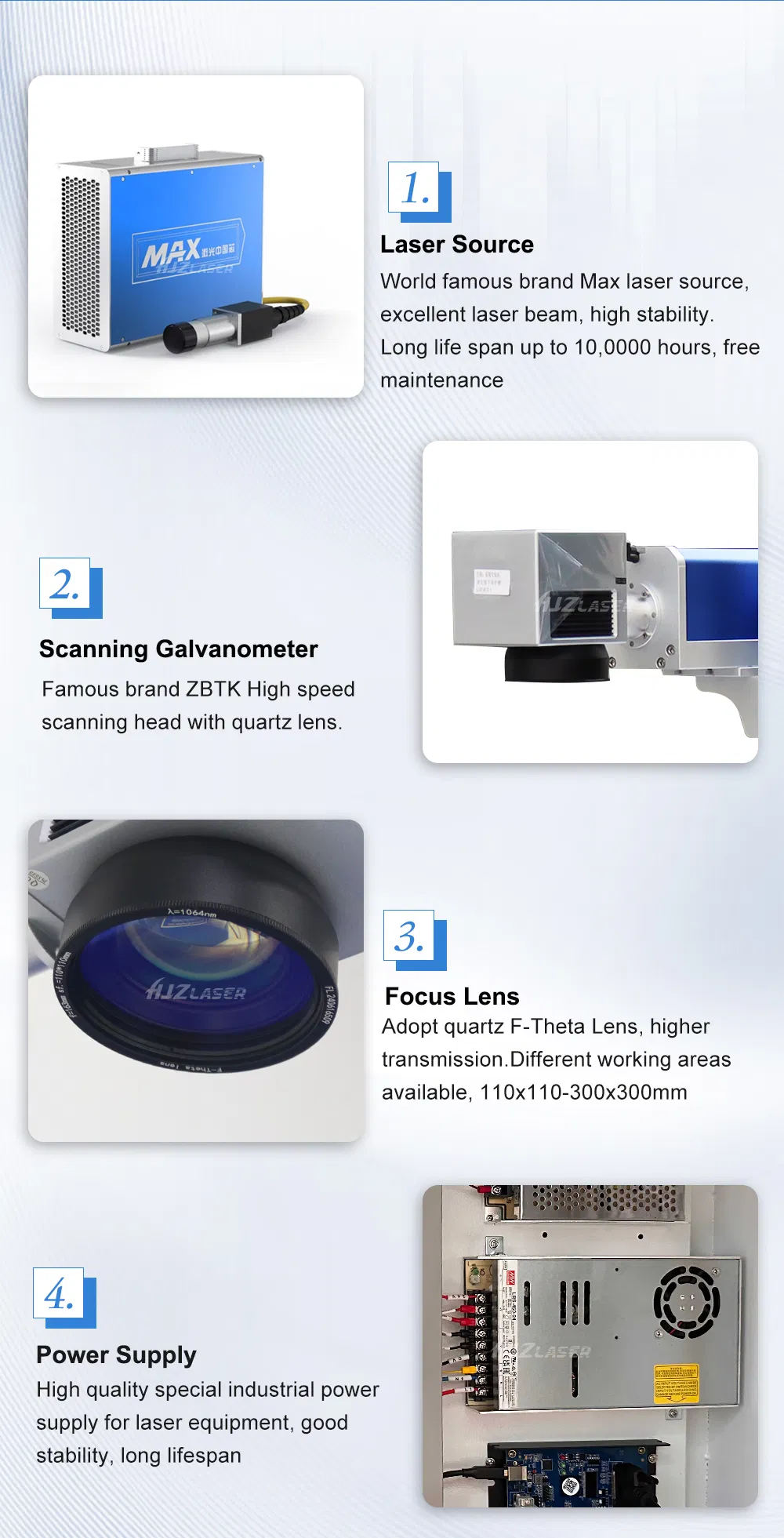

Laser Detail 6

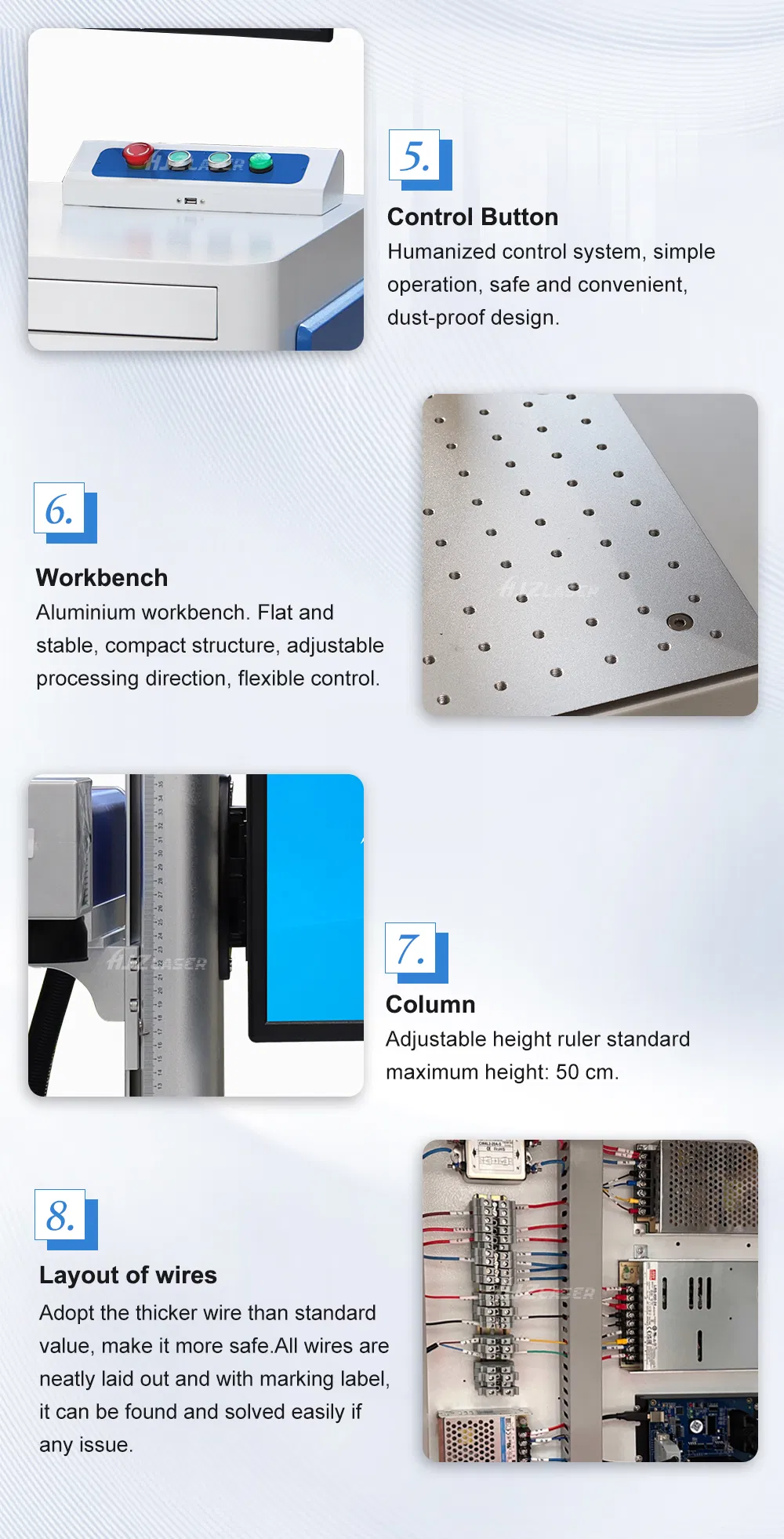

Laser Detail 7
Packaging & Delivery
Package Size
80.00cm * 90.00cm * 100.00cm
Gross Weight
100.000kg
Packing Type
Standard Plywood Packing for Export
Delivery Time
1-3 Days
Packaging Detail
Shipment
Frequently Asked Questions
Q1: What materials can this fiber laser marking machine process? A: It is primarily designed for all types of metal (stainless steel, aluminum, brass) and some non-metal materials like hard plastics.
Q2: What is the expected lifespan of the laser source? A: The Raycus/Fiber laser source features a long lifespan of over 20,000 hours, ensuring reliable long-term operation.
Q3: Does the machine come with software? A: Yes, it includes the original EZCAD software, which is compatible with design programs like AutoCAD, CorelDraw, and Photoshop.
Q4: Is the cooling system difficult to maintain? A: Not at all. This machine uses an air-cooling system, which is highly efficient and requires virtually no maintenance compared to water-cooled systems.
Q5: What graphic formats are supported for engraving? A: It supports a wide range of formats including PLT, BMP, JPG, PNG, DXF, AI, and more.
Q6: How long is the delivery time for a standard order? A: Standard machines are typically ready for shipment within 1 to 3 days after order confirmation.
