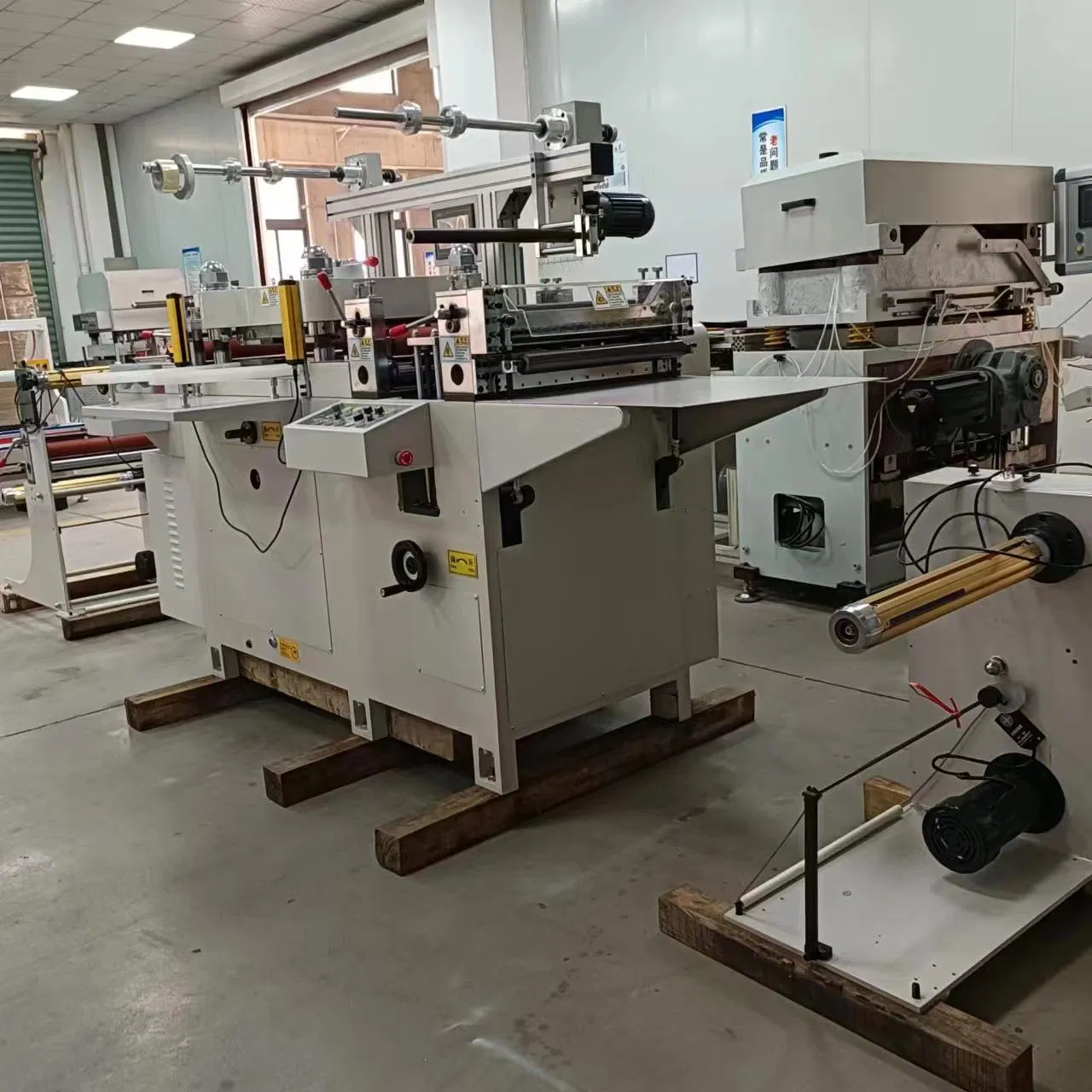

Roll Film Die Cutting Machine (DP-420BII)

1 / 5

Roll Film Die Cutting Machine (DP-420BII)

Customization:	Available
After-sales Service:	Video Technical Service , Spare Parts Offer Servic
Warranty:	12 Months

Send Inquiry

Product Description

Overview & Basic Info

Model NO.:DP-420BII

Species:Round Applanation Die Cutting Machine

Imprinting Type:Platen

Template Placement:Horizontal

Die Cutting Tool:Wooden Laser Mould

Computerized:Yes

Automatic Grade:Automatic

Application:Paper Packaging, Stickers, Insulation, EMI Shielding

Unwinding Width:10-410mm

Die Cutting Area:410*450mm

📦

Packaging & Delivery

Package Size:200.00cm * 200.00cm * 200.00cm

Gross Weight:2500.000kg

Package Type:Wooden Case

⚙️

Product Description

Washable Invisible Shield Screen Covered Die Cutting Machine (DP-420BII)

Functional Characteristics:
The machine body is cast as a whole, ensuring powerful pressure, stable operation, and durability. It features an oil gear box to reduce abrasion and prolong lifespan. Material length and press itinerary are automatically adjusted via the screen for convenient mold adjustment.

Scope Applicable: Developed for die cutting and forming of insulating materials such as PVC, film, Mylar, copper foil, aluminum foil, foam, vinyl, and polyester. Ideal for screen protective films in the electronic industry.

📊

Technical Parameters

Model	Max Feeding Width (mm)	Cutting Area (mm)	Cutting Speed (T/M)	Accuracy (mm)	Power (kw)	Voltage (V)
DP-320BII	320	300*300	30-170	±0.10	2.2	220
DP-420BII	420	400*400	30-170	±0.10	3.0	380

📷

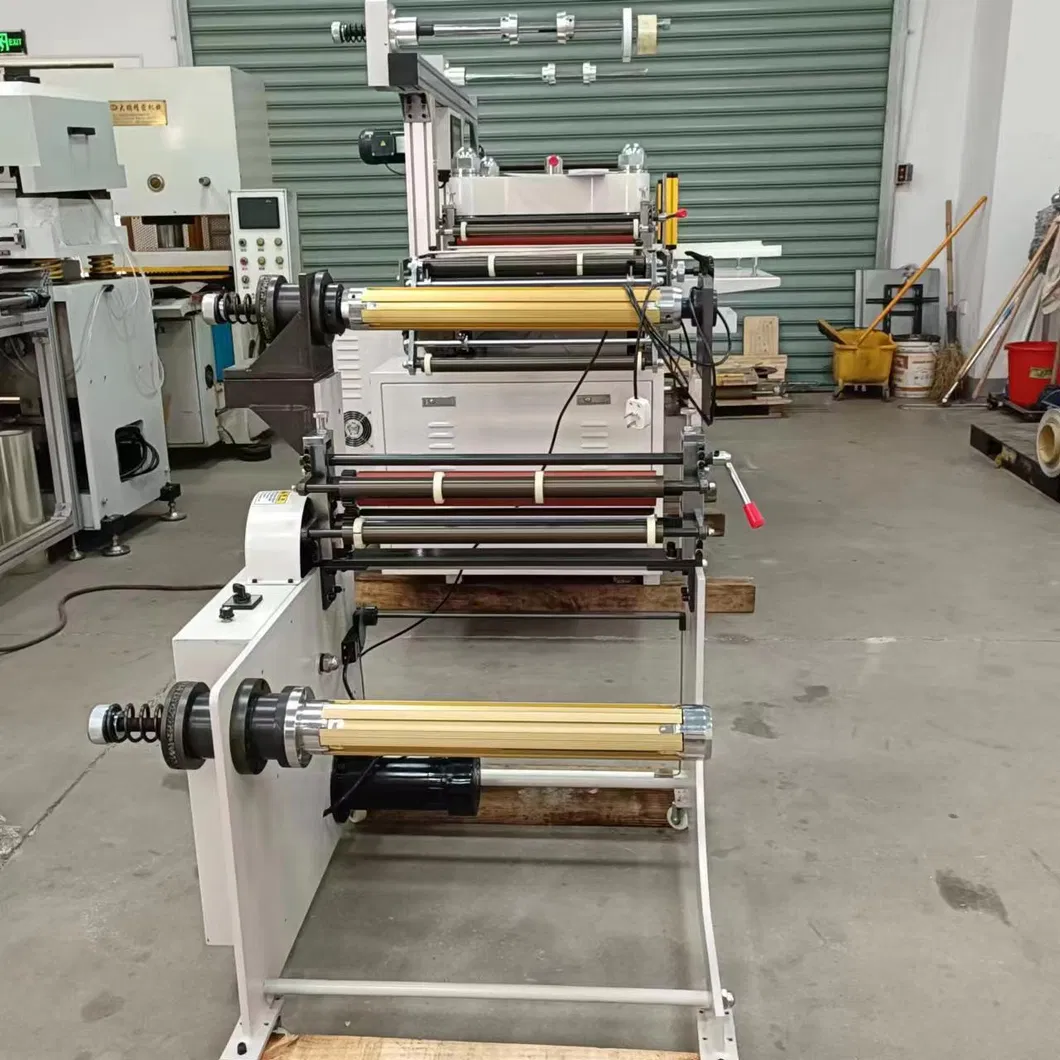

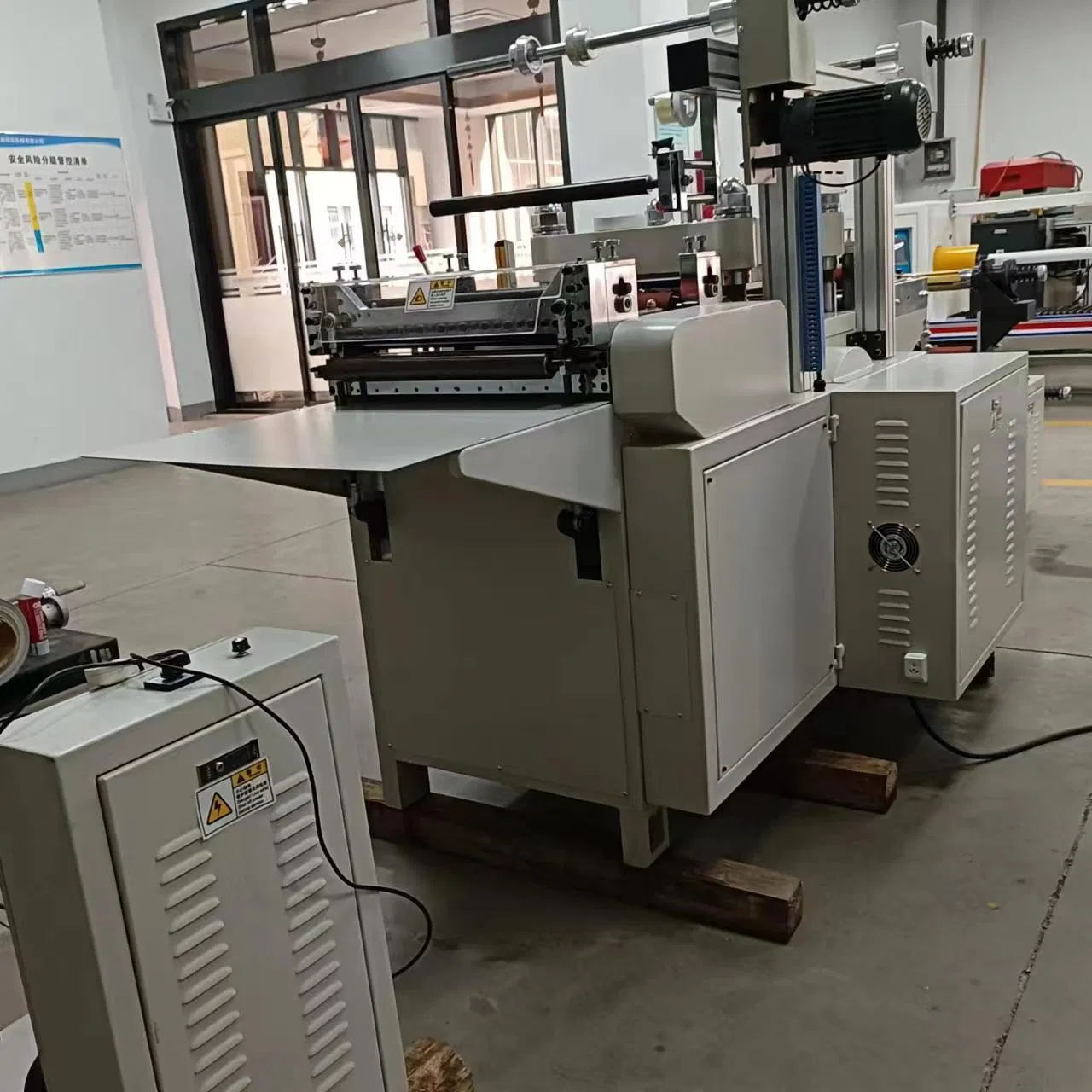

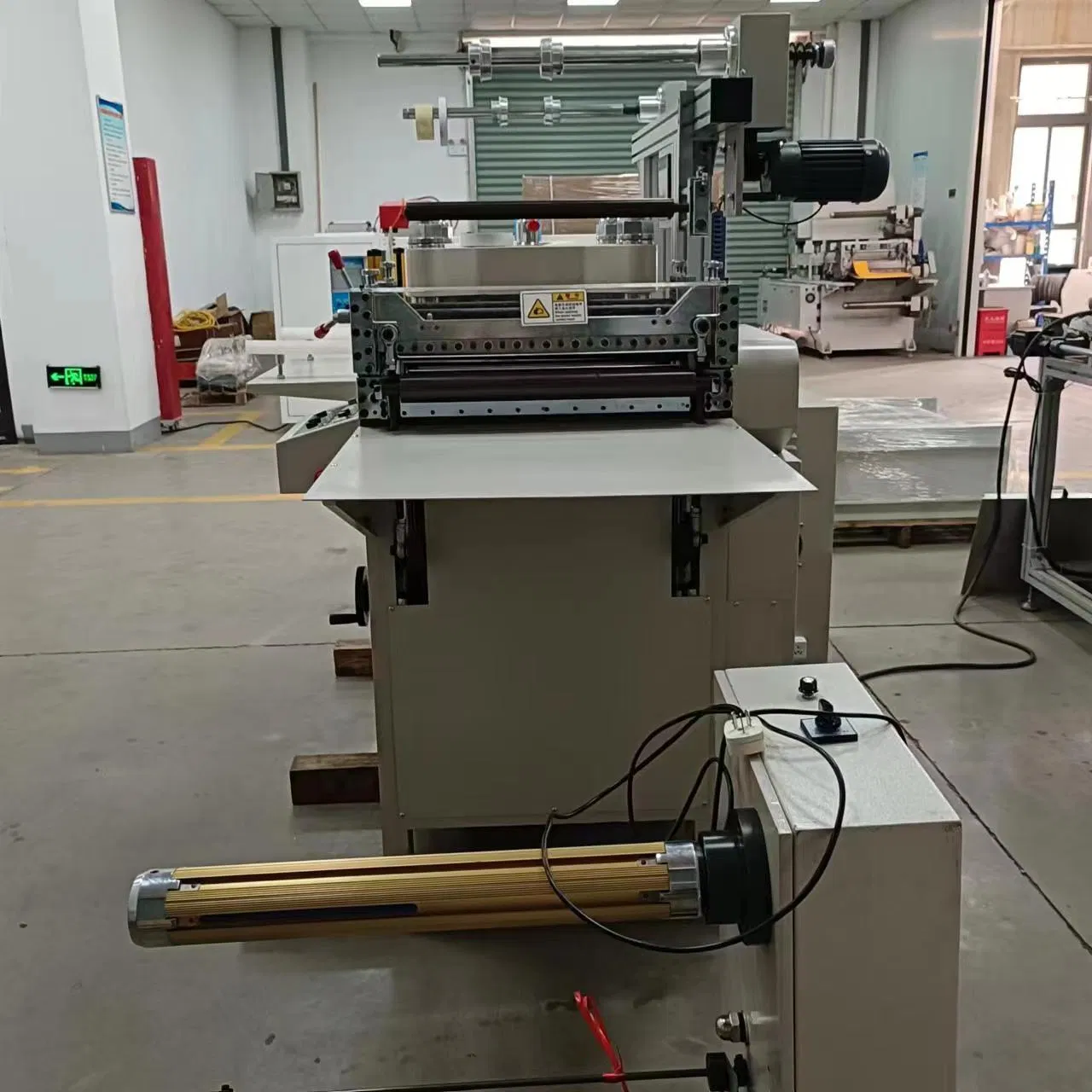

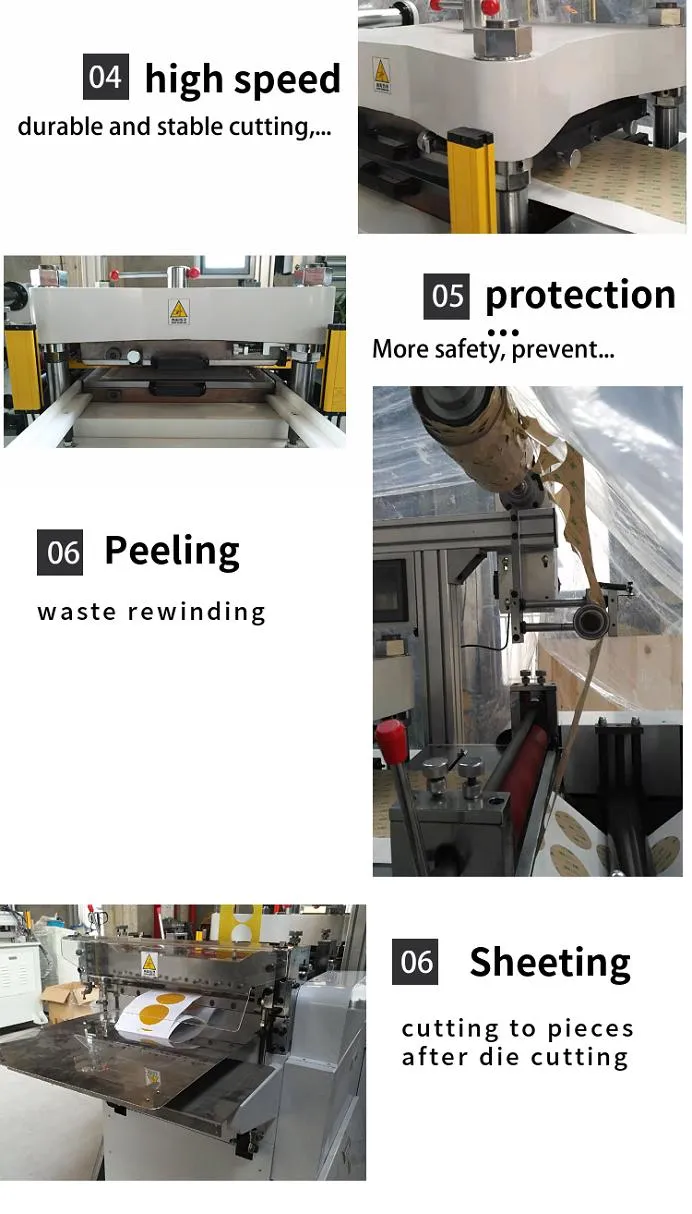

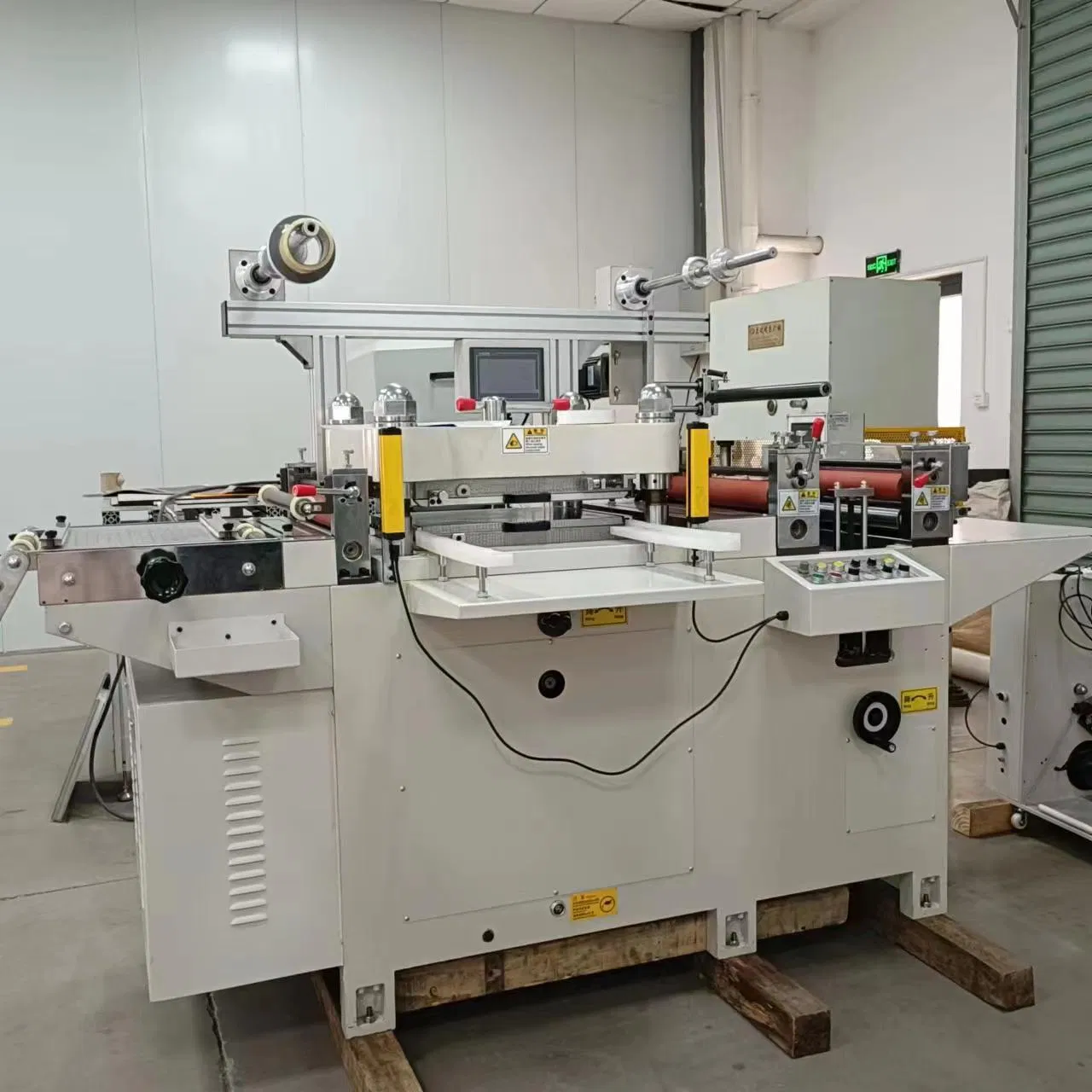

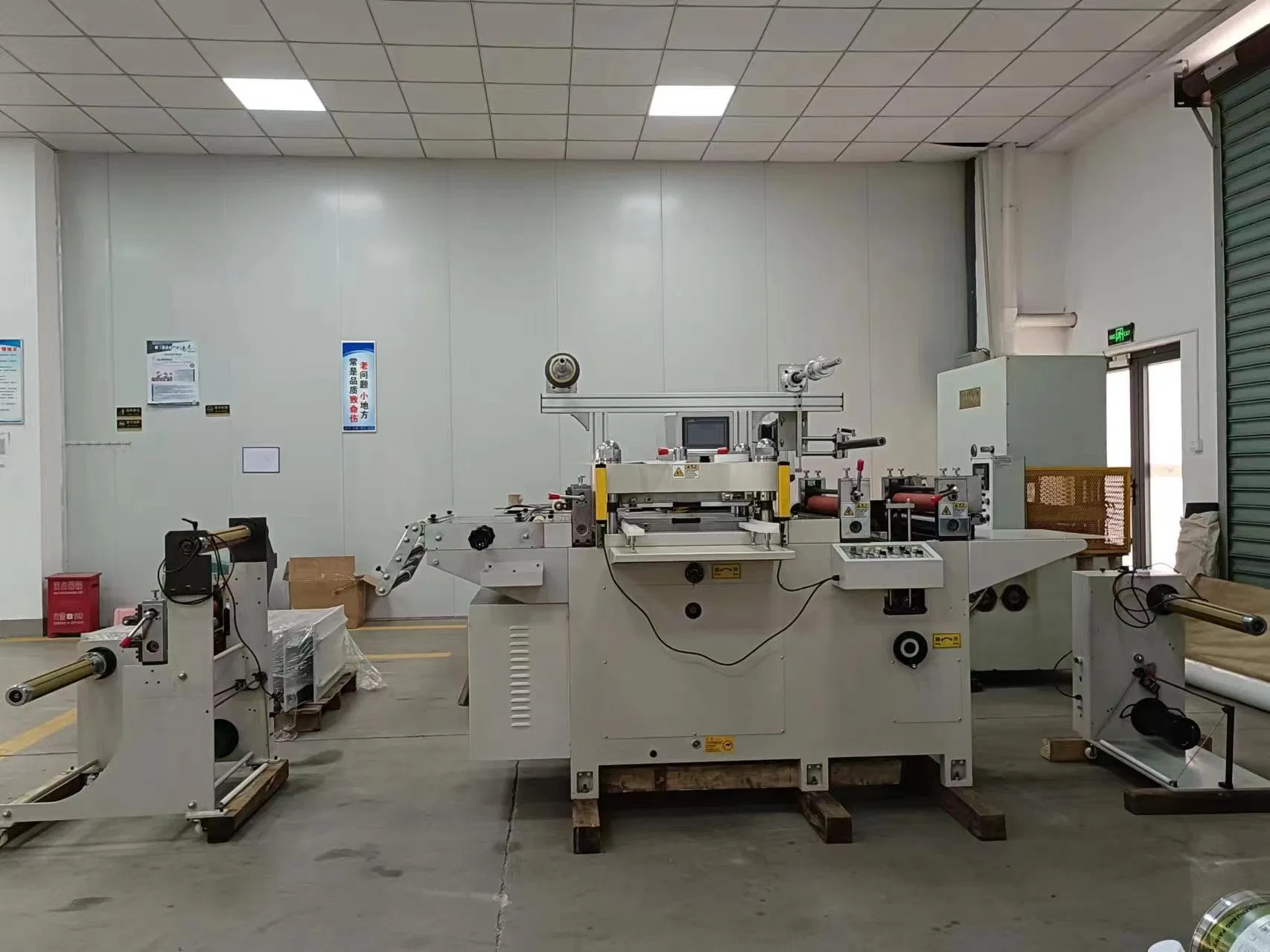

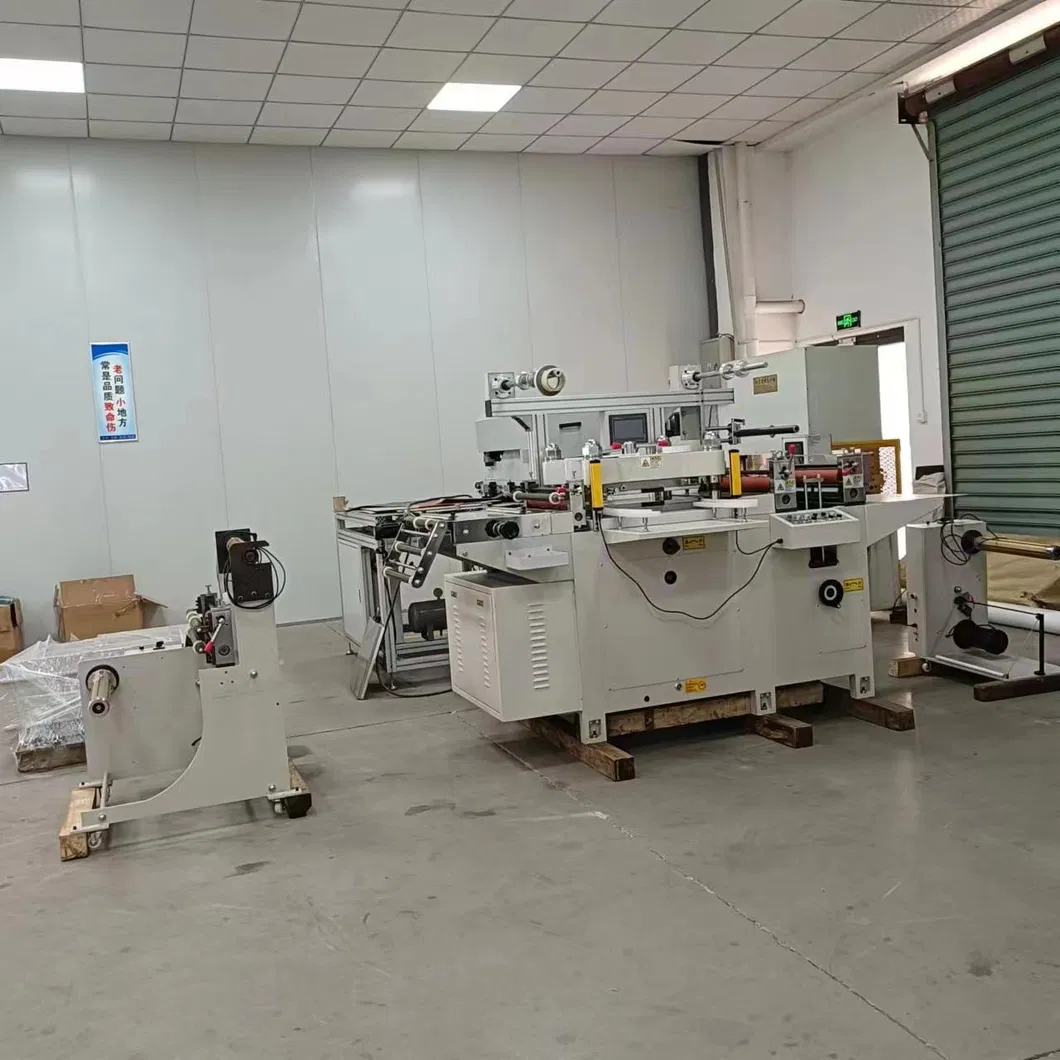

Detailed Photos

Frequently Asked Questions

What materials are compatible with the DP-420BII die cutting machine?

It is designed for various insulating and packaging materials, including PVC, film, Mylar, copper foil, aluminum foil, foam, vinyl, and polyester.

What is the cutting precision of this equipment?

The machine offers a high position accuracy of ± 0.1mm, ensuring precise cuts for electronic components and shield materials.

Does the machine support multi-layer processing?

Yes, the machine supports multi-layer sticking, partial sticking, and multi-strip tape sticking as part of its multi-function capabilities.

What is the maximum operating speed of the die cutter?

The cutting speed ranges from 30 to 170 times per minute (T/M), depending on the specific model and material used.

Is the operation of the machine fully automated?

Yes, it is a computerized, automatic grade machine where feeding, filming, die cutting, waste draining, and rolling are completed in one turn via computer control.

What kind of maintenance does the machine require for a long life span?

The machine includes an oil gear box that reduces abrasion during operation. Regular maintenance of this system significantly prolongs the life span and enhances utilization.
