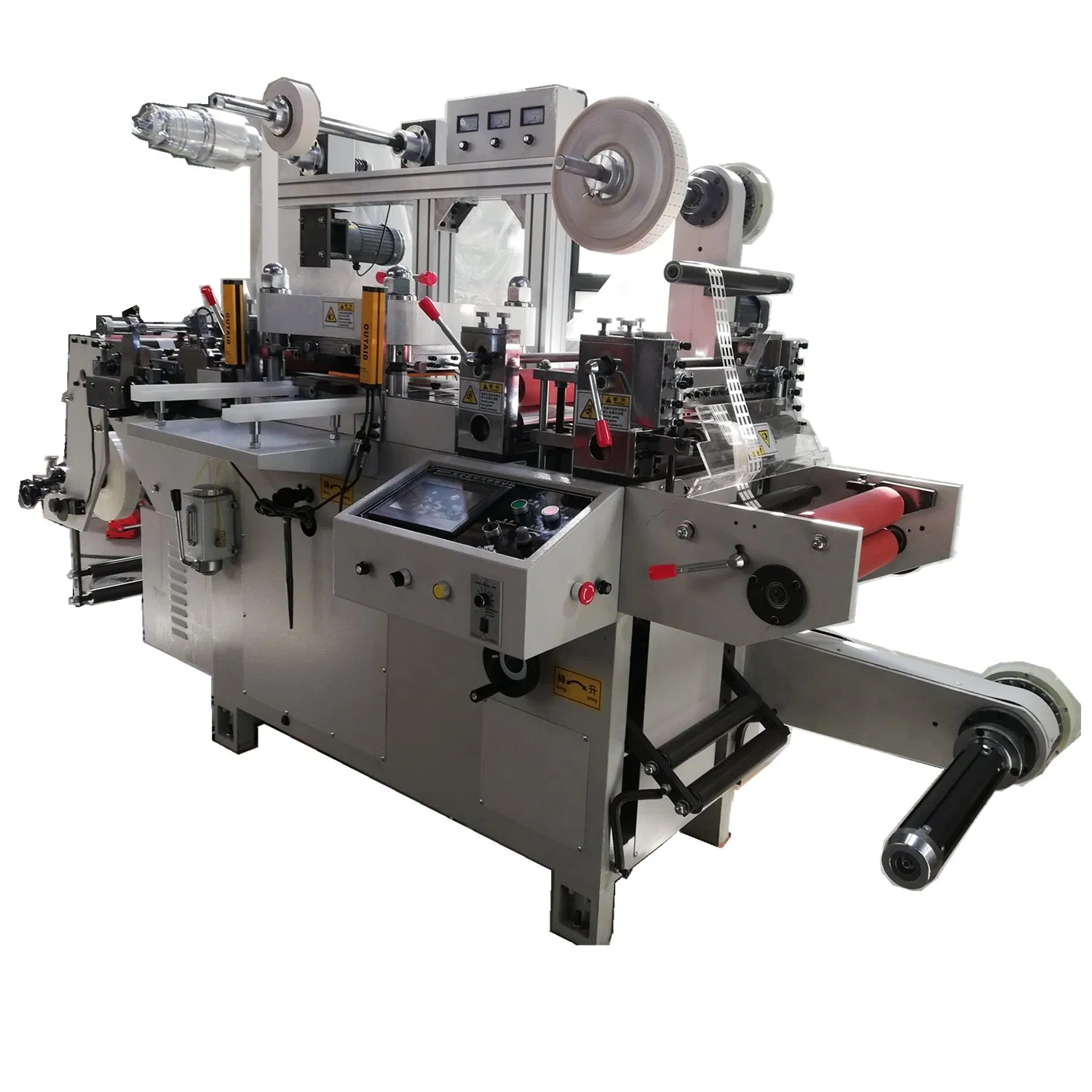

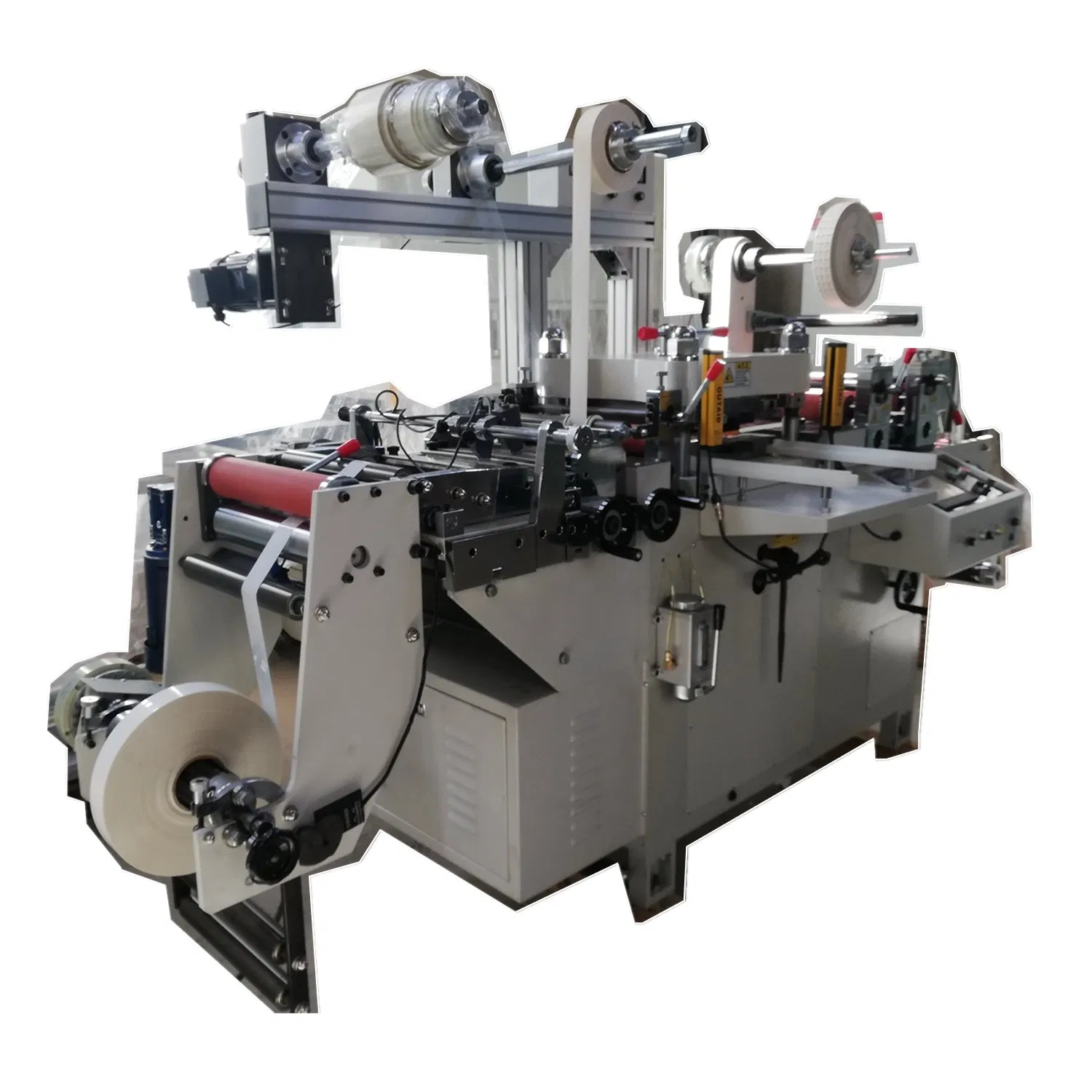

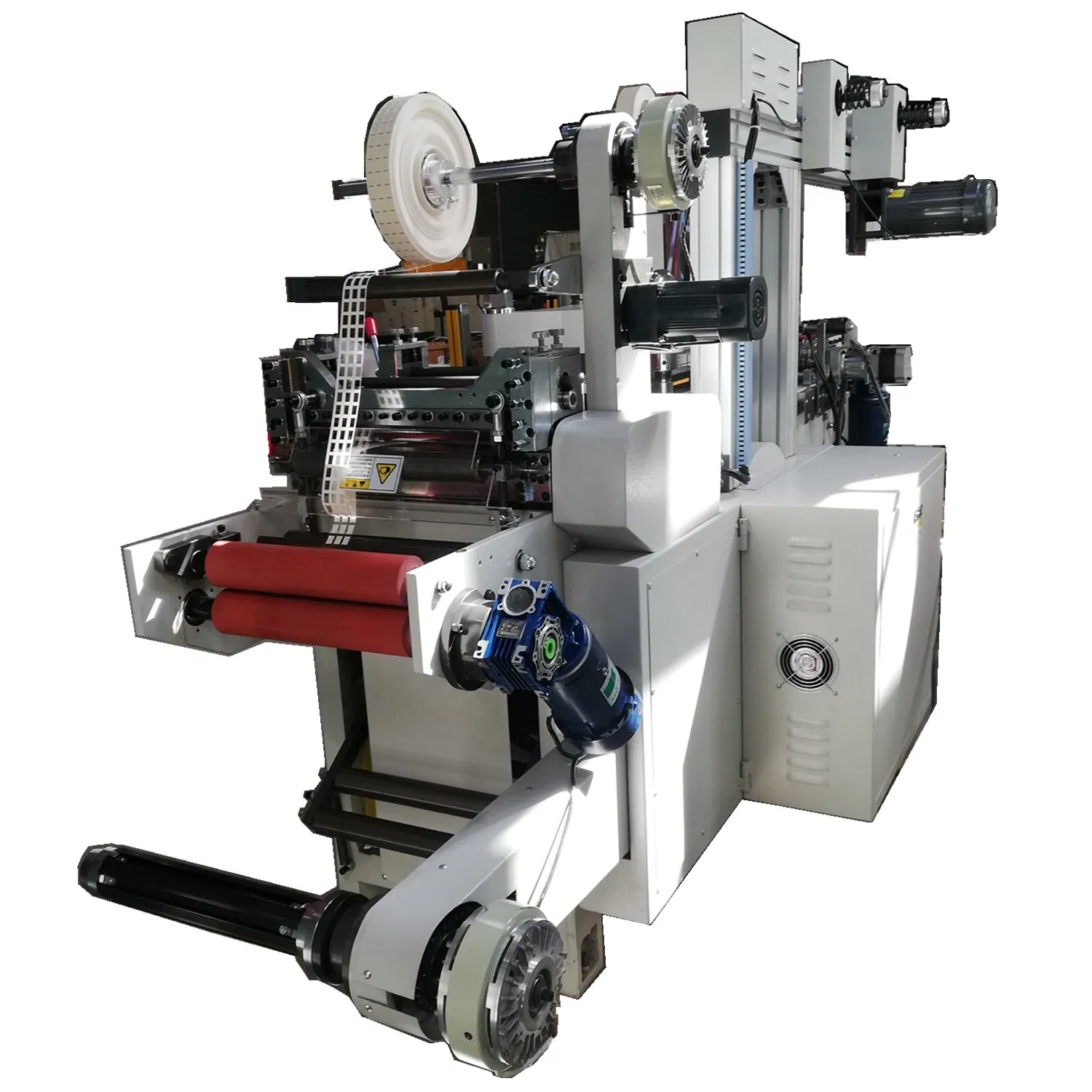

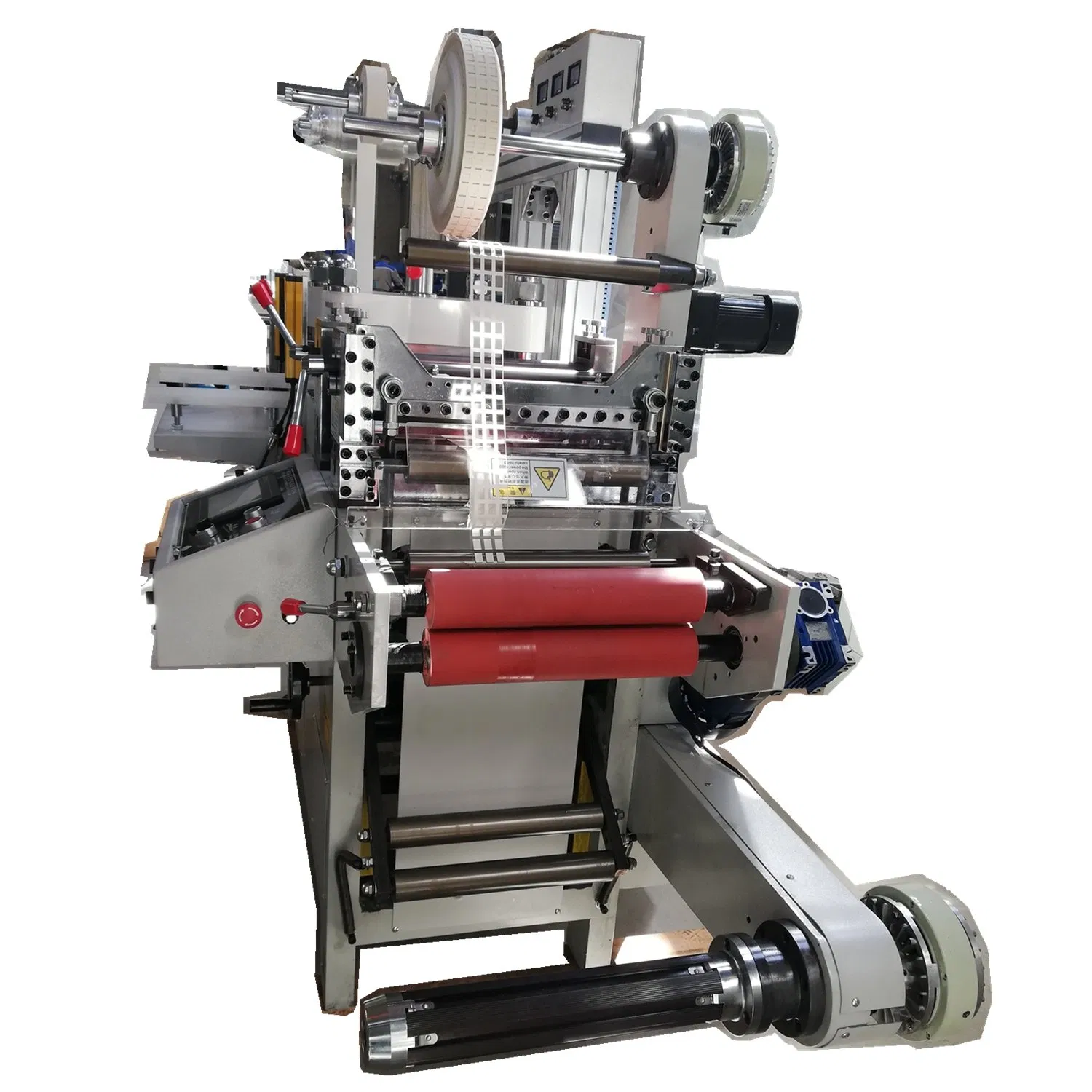

Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
1 / 5
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)
Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)

Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)

Customization: Available
After-sales Service: Video Technical Service , Spare Parts Offer Servic
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
DP-320B
Species
Flat Bed Die Cutting Machine
Imprinting Type
Platen
Placing Form
Horizontal
Die Cutting Tool
Laser Wooden Die Mould
Computerized
Yes
Automatic Grade
Automatic
Cutting Area
320*300mm
Unwinding Width
320mm
Cutting Precision
0.01mm
HS Code
8441100000
Capacity
50 Sets/Month
Packaging & Delivery
Package Size
280.00cm * 220.00cm * 180.00cm
Gross Weight
2500.000kg
Transport Package
Wooden Case
Product Description

LCD Backlight Film Auto Die Cutting Machine

The machine body is cast on the whole, offering powerful pressure, stable operation, and long-term durability. It features an integrated oil gear box that significantly reduces abrasion during operation, extending the machine's lifespan and enhancing utilization ratios. Press itinerary and material pull length are automatically adjusted via the screen for maximum convenience.

Functional Characteristics
  • High Precision: Punching pressure accuracy up to 0.003mm; feed precision error ± 0.05mm.
  • Large Blanking Force: Utilizes German power systems and high reduction ratio motors for up to 12 tons of force.
  • High Speed: Fastest operating rate reaches 150-170 beats per minute.
  • Automation: Digital touch screen control for regulator systems and cutter pressure input.
  • Safety Systems: Equipped with 3 light curtains and masking screens for automatic shutdown protection.
Technical Specifications
Application Scope

This product is specifically developed for the die cutting and forming of various insulating and electronic materials, including:

PVC, Film, Mylar, Copper Foil, Aluminum Foil, Foam, Vinyl, Polyester, and Screen Protective Films.
Detailed Photos

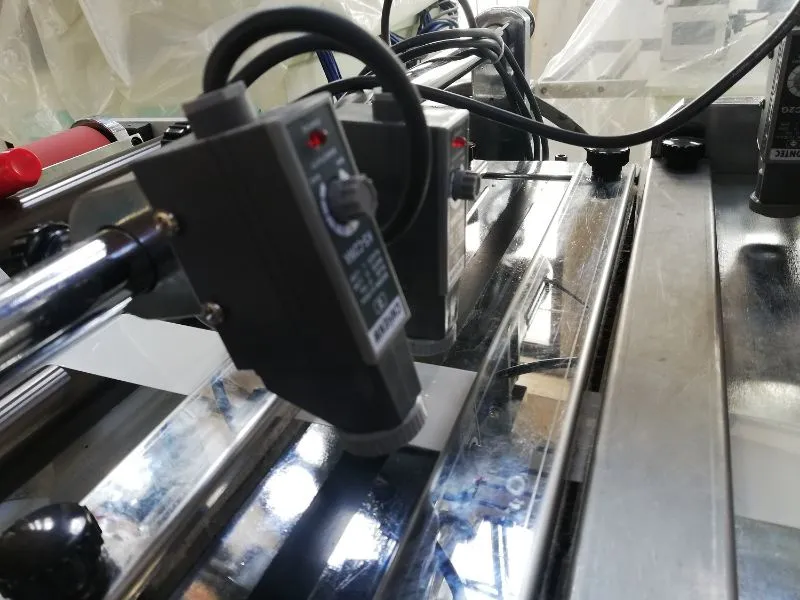

Die Cutting Machine 1

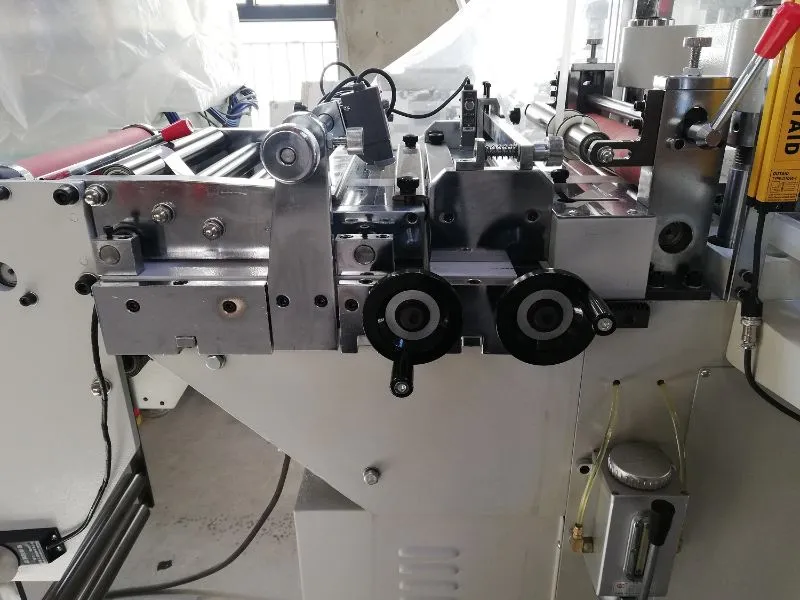

Die Cutting Machine 2

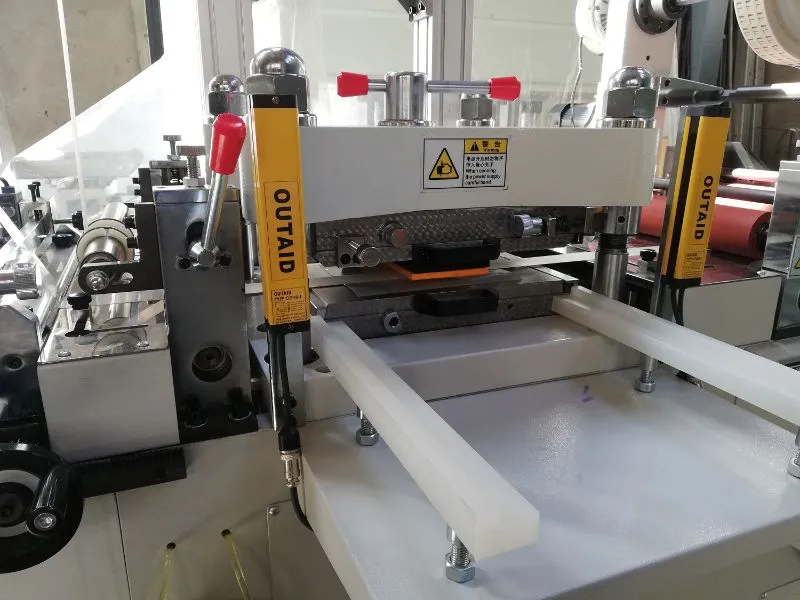

Die Cutting Machine 3

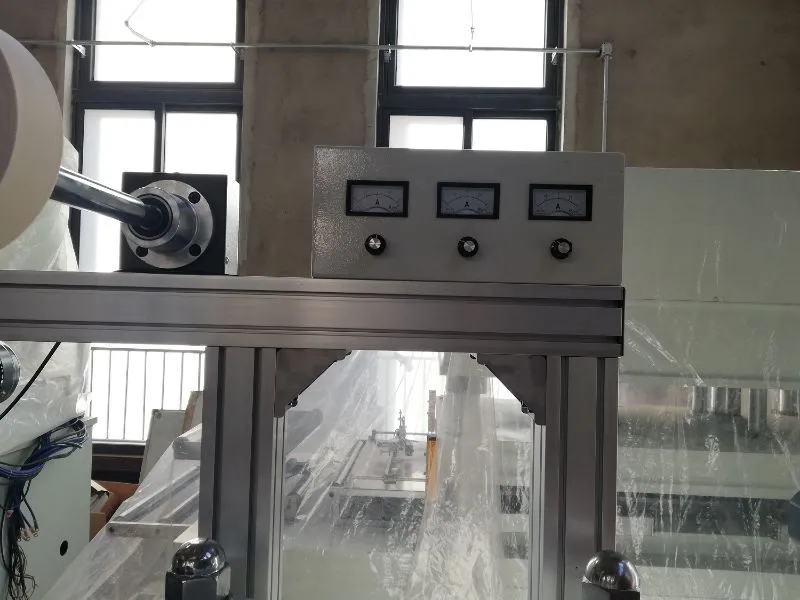

Die Cutting Machine 4

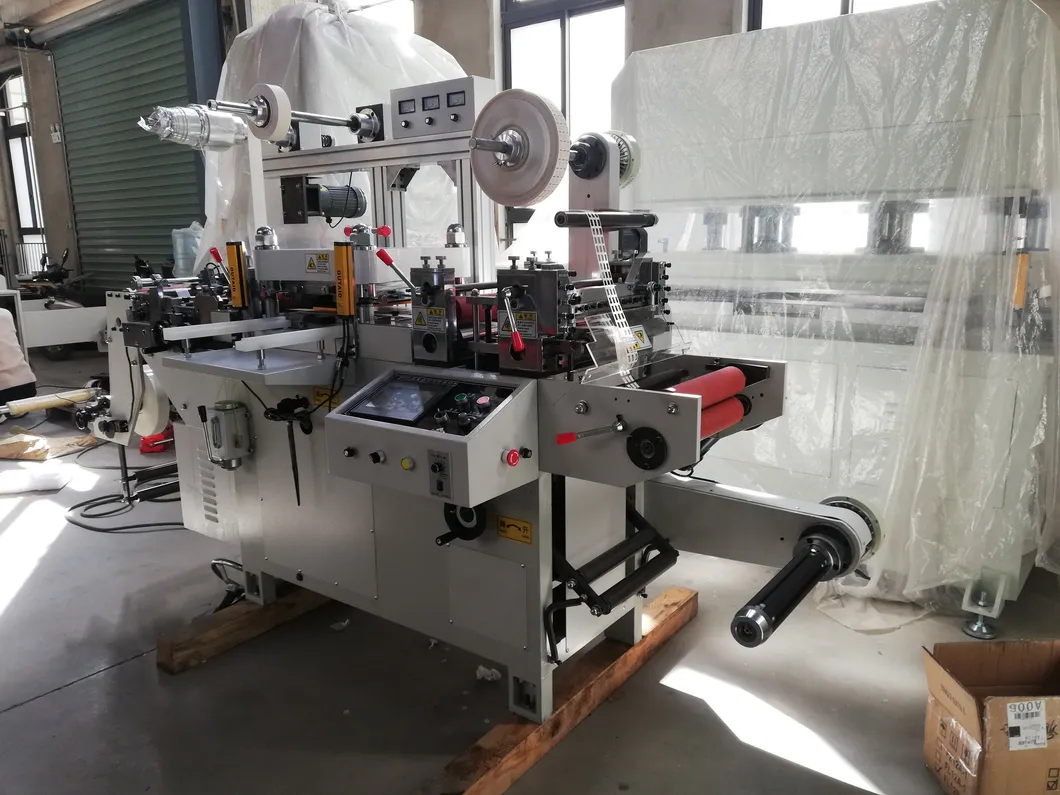

Die Cutting Machine 5

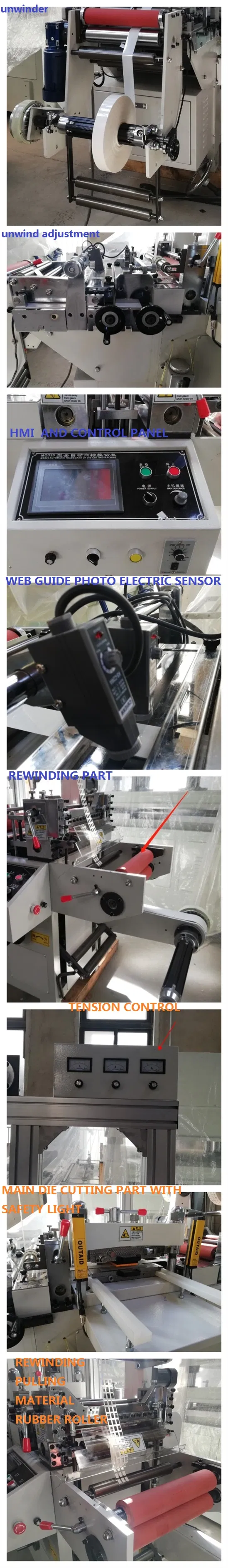

Die Cutting Machine Details
Frequently Asked Questions
What materials are compatible with the DP-320B?
The machine is ideal for insulating materials like PVC, Mylar, copper/aluminum foil, foam, vinyl, and screen protective films.
How does the automatic adjustment work?
The press itinerary and material pulling length are controlled through a digital touch screen, making mold adjustments convenient and precise.
What is the cutting precision of this machine?
The DP-320B offers a high position accuracy of ± 0.1 mm and a punching pressure precision up to 0.003mm.
Is the machine safe for operators?
Yes, it features a high safety standard with 3 light curtains on the stamping surface and a dual-hand start button requirement to prevent misuse.
What is the maximum production speed?
The host machine can operate at a maximum rate of 170 beats per minute, depending on the material and complexity.
Can different types of molds be used?
Yes, it is compatible with high knives, low knives, and various metal molds, supporting standardized installation.

Related Products

Conductive Foam, Flame Retardant Material Hydraulic Die Cutting Machine

Conductive Foam, Flame Retardant Material Hydraulic Die Cutting Machine
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials

1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
Multilayer Laminating Function Die Cutting and Kiss Cutting Machine

Multilayer Laminating Function Die Cutting and Kiss Cutting Machine
1530 Metal Fiber Laser Cutting Machine with Servo Motor for Different Insulation Materials

1530 Metal Fiber Laser Cutting Machine with Servo Motor for Different Insulation Materials
Plastic Roll Cutting Machine Rubber Die Cutting Machine

Plastic Roll Cutting Machine Rubber Die Cutting Machine
Automatic Flatbed Hydraulic Die Cutting Machine for Chromo Labels, Product Labels

Automatic Flatbed Hydraulic Die Cutting Machine for Chromo Labels, Product Labels
Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine

Ceramic Fiber Sealing Pad Hydraulic Die Cutting Machine
Automatic Self-Adhesive Stickers Laser Anti-Counterfeit Flat Bed Label Die-Cutting Machine

Automatic Self-Adhesive Stickers Laser Anti-Counterfeit Flat Bed Label Die-Cutting Machine
Laser Anti-False Film and Solar Film Die Cutting Machine

Laser Anti-False Film and Solar Film Die Cutting Machine
HDPE Fixed Liner Die Cutting Machine PP Packing Liner Hydraulic Cutting Machine

HDPE Fixed Liner Die Cutting Machine PP Packing Liner Hydraulic Cutting Machine
Max Feeding Width320 mm
Cutting Area320 * 300 mm
Cutting Speed30-170 T/M
Position Accuracy± 0.1 mm
Power of Main Engine2.2 kw
Voltage220V
Standard ConfigurationUnwinder — Die Cutting Machine — Sheet Cutter
