Basic Info.
Application
Home Appliance, Environmental Equipment, Textile Machinery, Food Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal and Nonmetal
Structure Type
Gantry Type
Laser Classification
Gaseous Laser
Laser Technology
Laser Control Fault Cutting
Engraving Machine Type
Laser Engraving Machine
Certification
SGS, CE, ISO 9001
Motor
Stepper Motor or Servo Motor
Rail
Square Rail Taiwan Hiwin
Transport Package
Plywood Packing
Specification
ce/ FDA/SGS
Production Capacity
50sets/Month
💡

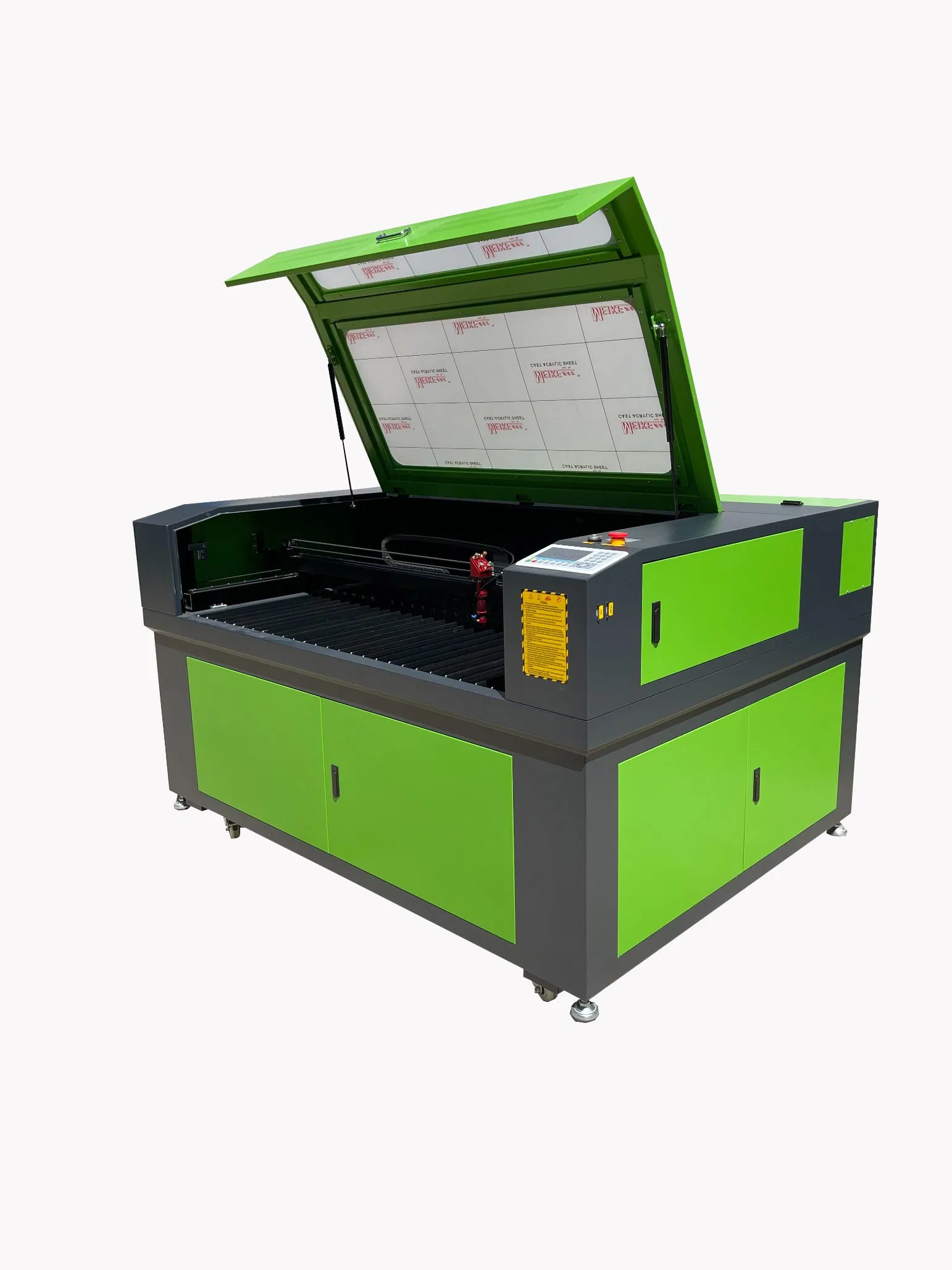

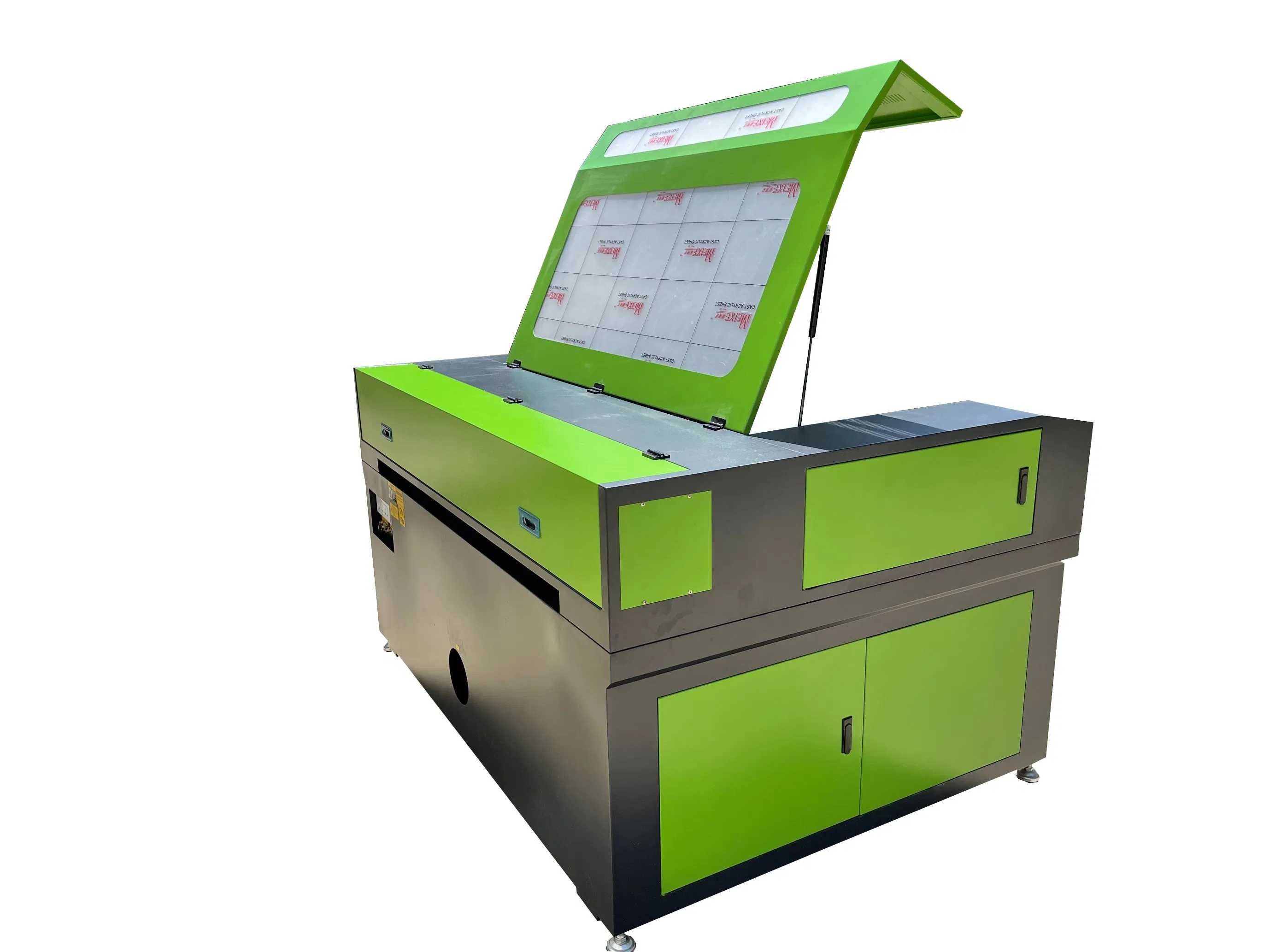

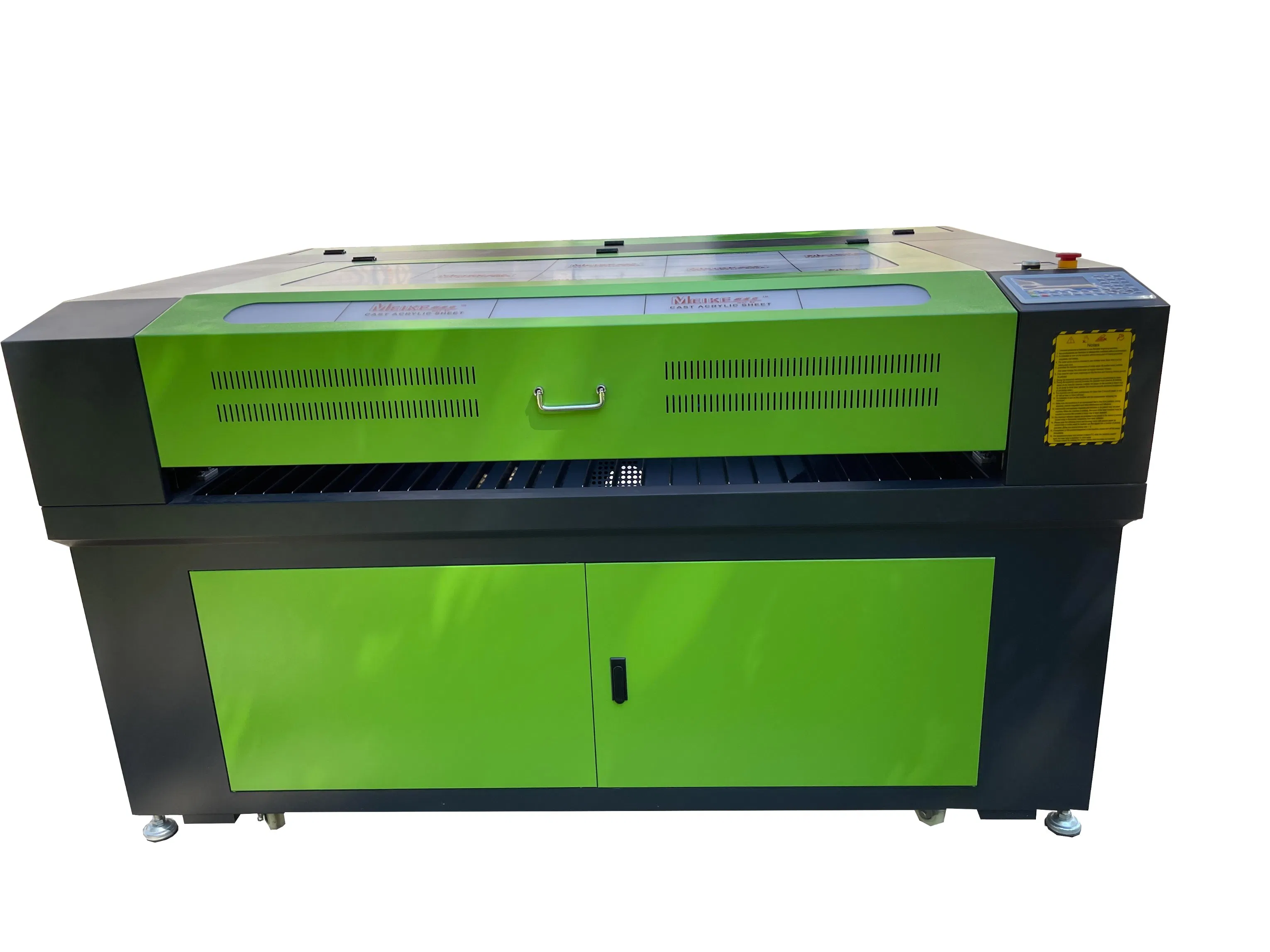

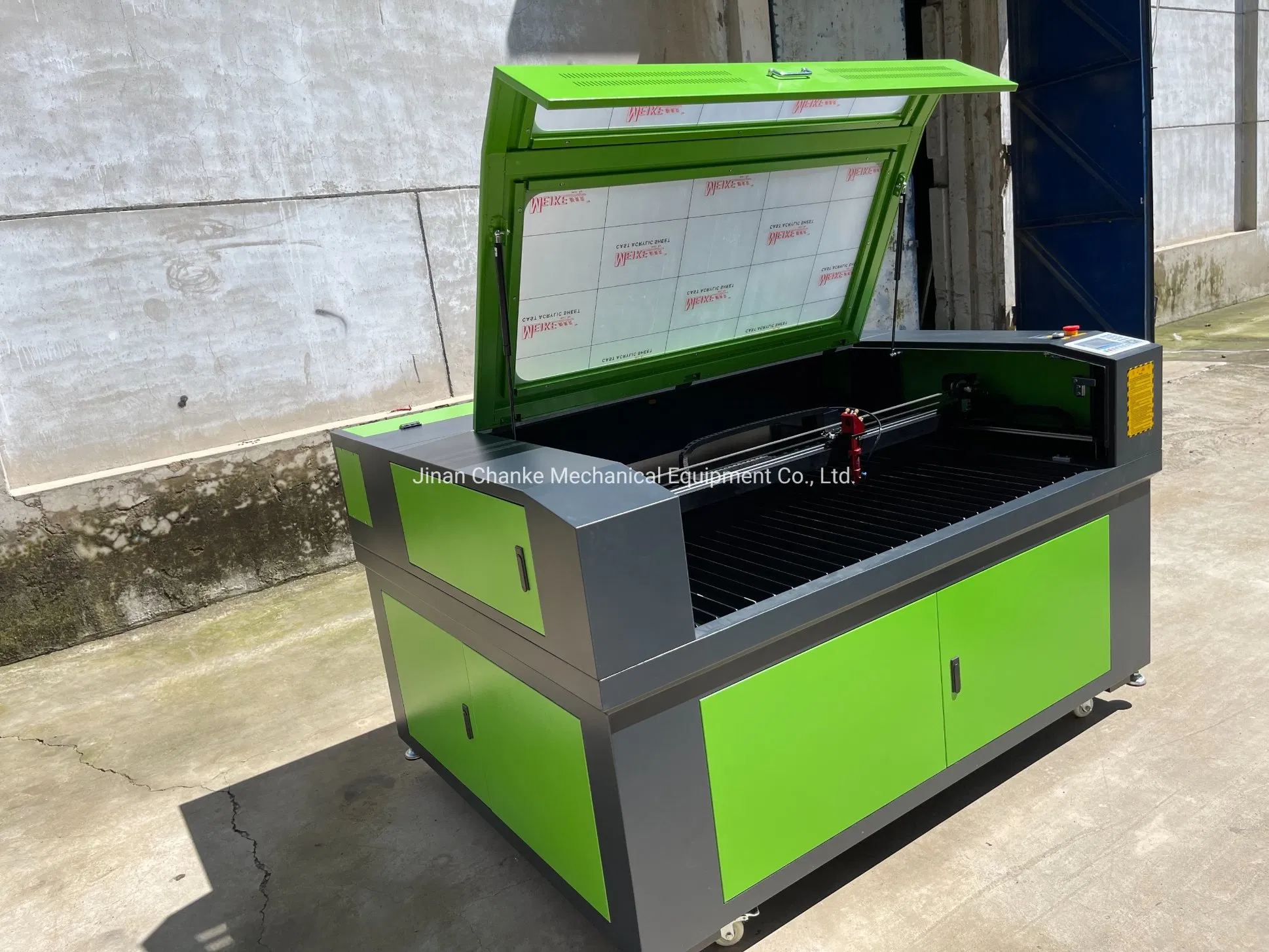

Experience the precision and versatility of our 1300x900mm laser cutting machine, equipped with a powerful 130W RECI (Z6) laser tube. This exceptional machine effortlessly cuts through 1.5mm sheet metal and a variety of nonmetal materials, making it a quintessential tool for diverse cutting needs.
Unlock limitless possibilities with our dual-function laser cutter. Whether it's metal or nonmetal like acrylic, paper, wood board, fabric, and other materials, this machine handles it all with impeccable ease.
✨
Multifunctionality: Not only does it cut, but it also engraves with precision, addressing a common query from our customers.
Material Thickness Capabilities:
- Metal: Capably cuts up to 1.2mm.
- Acrylic: Seamlessly cuts up to 25mm.
- Wood Board: Efficiently cuts 10-15mm. Our 90W RECI (Z2) laser tube handles 5-8mm hard wood, such as MDF, with ease.
- Glass Engraving: While it doesn’t cut glass, it excels in engraving beautifully.
Specifications & Features
- Enhanced cutting precision with imported linear guide rail and step motor.
- Speed-reducing driver system for smoother incisions.
- High-precision focus lenses and metal reflect mirrors sourced from America.
- Customizable in different colors and shapes to meet specific needs.
Applicable Industries
Perfect for billboards, artistic gifts, crystal ornaments, paper cutting, bamboo and wooden products, garment and leather, embroidery, decoration, and upholstery industries.
| Model | 1300x900mm 130w 1.5mm sheet metal and nonmetal laser cutter |
| Working area | 130cm*90cm / 47in*35in (L*W) |
| Laser power | 130W |
| Laser type | CO2 sealed laser tube, water-cooled |
| Engraving speed | 25-24000mm/min |
| Cutting speed | 50-5000mm/min |
| Power supply | 220V±10% / 50HZ, 110V±10% / 60HZ |
| Min. shaping character | Letter 1.0 x 1.0mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI, CDR |
| Software supported | CorelDraw, PhotoShop, AutoCAD |
| Laser Output Control | 1-100% software setting |
| Scanning Precision | 2000DPI |
| Resolution ratio | <0.01mm |
| Net Weight | 350KG |
| Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device, Industry chiller, DSP off-line operation |
Frequently Asked Questions
Q1: Can this machine cut both metal and non-metal materials?
Yes, this dual-function laser cutter is designed to handle up to 1.5mm sheet metal as well as various non-metal materials like acrylic, wood, and fabric.
Q2: What is the maximum thickness for acrylic cutting?
The machine can seamlessly cut through acrylic sheets with a thickness of up to 25mm.
Q3: Does the machine support glass cutting?
The machine excels at engraving glass with high precision, but it is not intended for cutting glass. For glass cutting, specialized CNC routers are recommended.
Q4: What laser tube is used in this model?
It is equipped with a high-performance 130W RECI (Z6) CO2 sealed laser tube, which is water-cooled for stable operation.
Q5: Which graphic formats and software are compatible?
It supports formats like BMP, PLT, DST, DXF, AI, and CDR. Compatible software includes CorelDraw, PhotoShop, and AutoCAD.
Q6: What type of cooling system does the machine use?
The system uses a water-cooling mechanism to maintain the optimal temperature of the laser tube during continuous operation.
