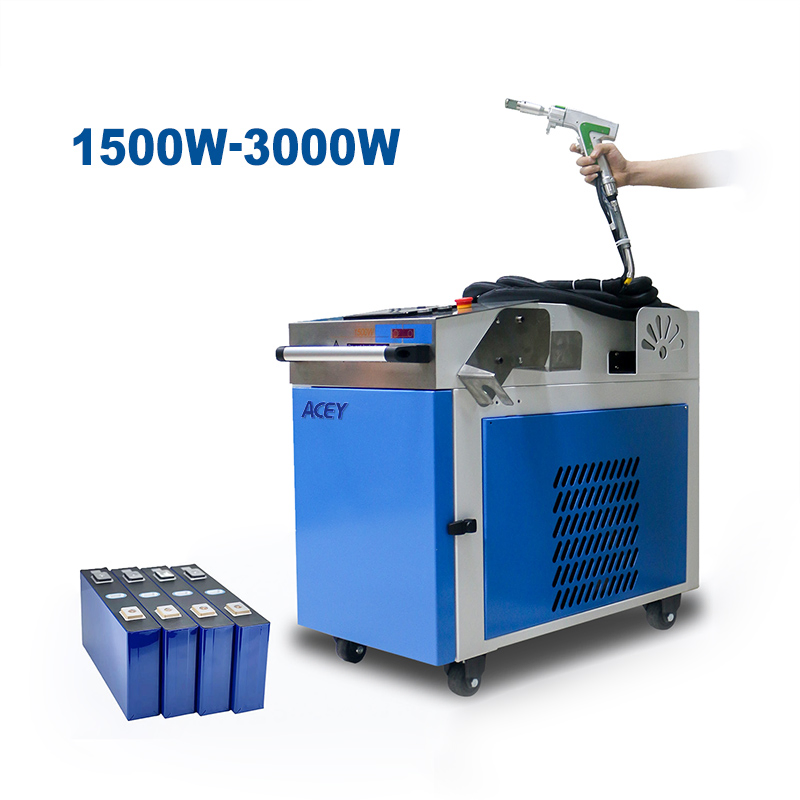

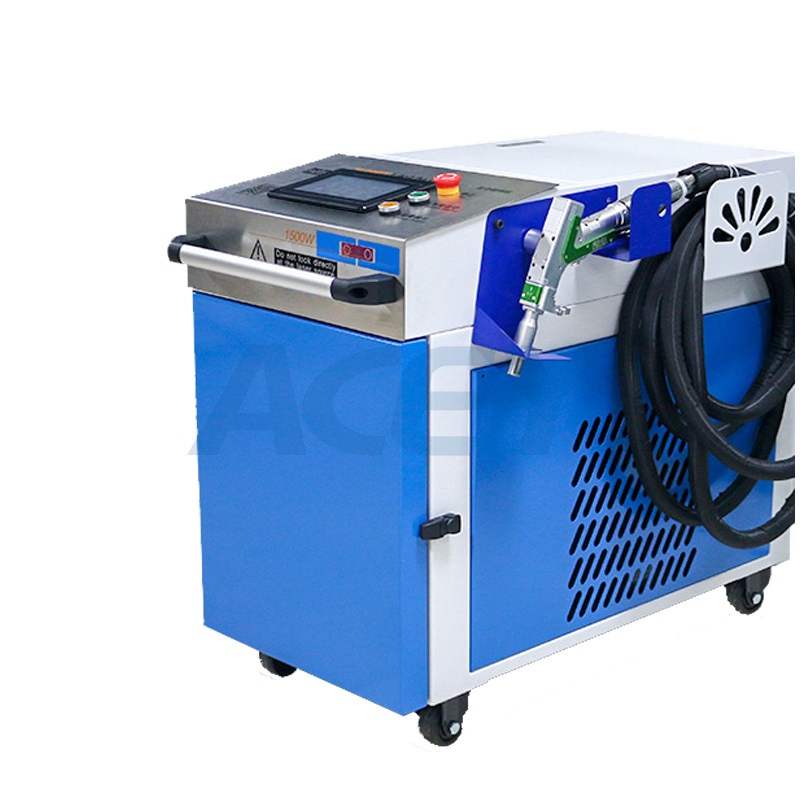

3000W Chinese Cheap Laser Welder 3 in 1 Handheld Laser Welding Machine for Aluminum Copper

1 / 5

3000W Chinese Cheap Laser Welder 3 in 1 Handheld Laser Welding Machine for Aluminum Copper

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Model NO.

ACEY-HLW3000

Application

Manufacturing Industry, Battery Pack Assembly

Technical Class

Continuous Wave Laser

Control

Manual

Power Density

Heat Conduct Welding

Laser Classification

Optical Fiber Laser

Product Name

Handheld Fiber Laser Welding Machine

Laser Type

Fiber Laser Source

Laser Wavelength

1070nm

Key Selling Points

High-Accuracy

Laser Power

1500/2000/3000W Optional

Condition

New

Dimensions

58X110X80mm

155kg

133kg

Packing Size

112X71X100cm

Transport Package

Internal Anti-Collision, External Plywood Case

Production Capacity

500 Sets/Month

Product Description

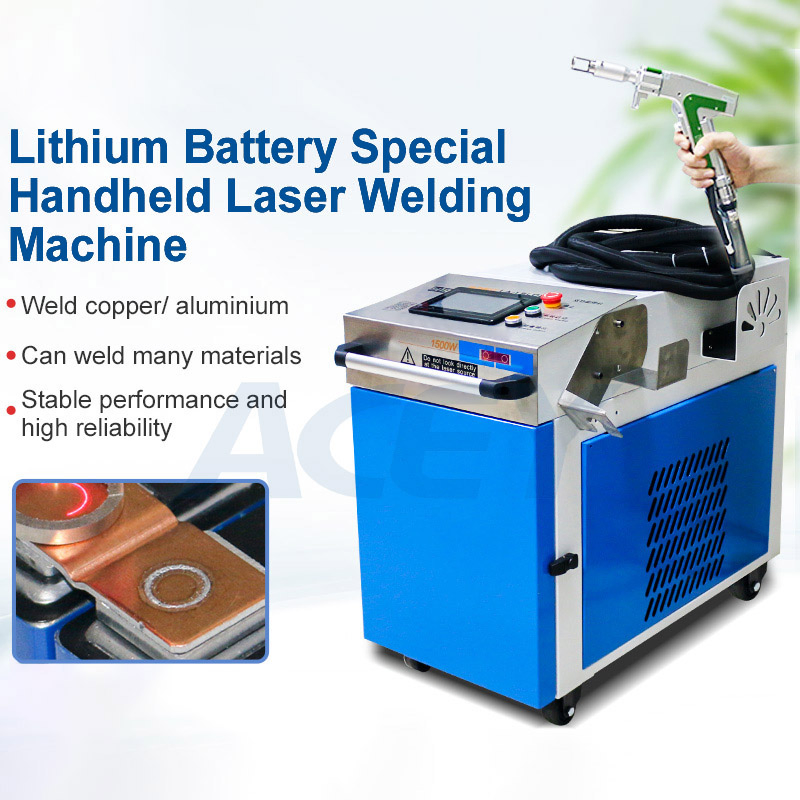

3000W High Efficiency 3 in 1 Handheld Laser Welding Machine

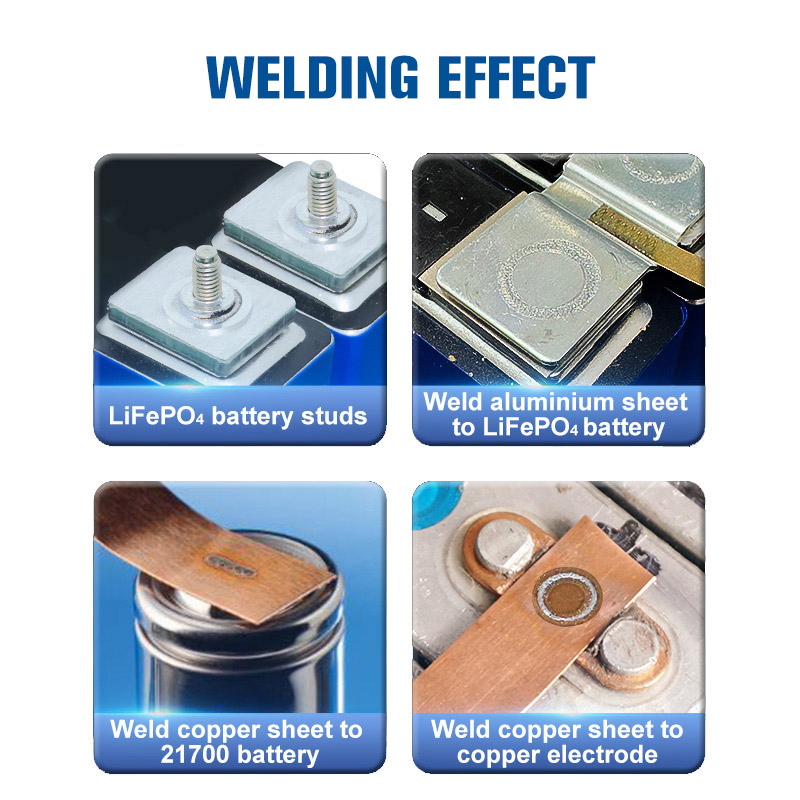

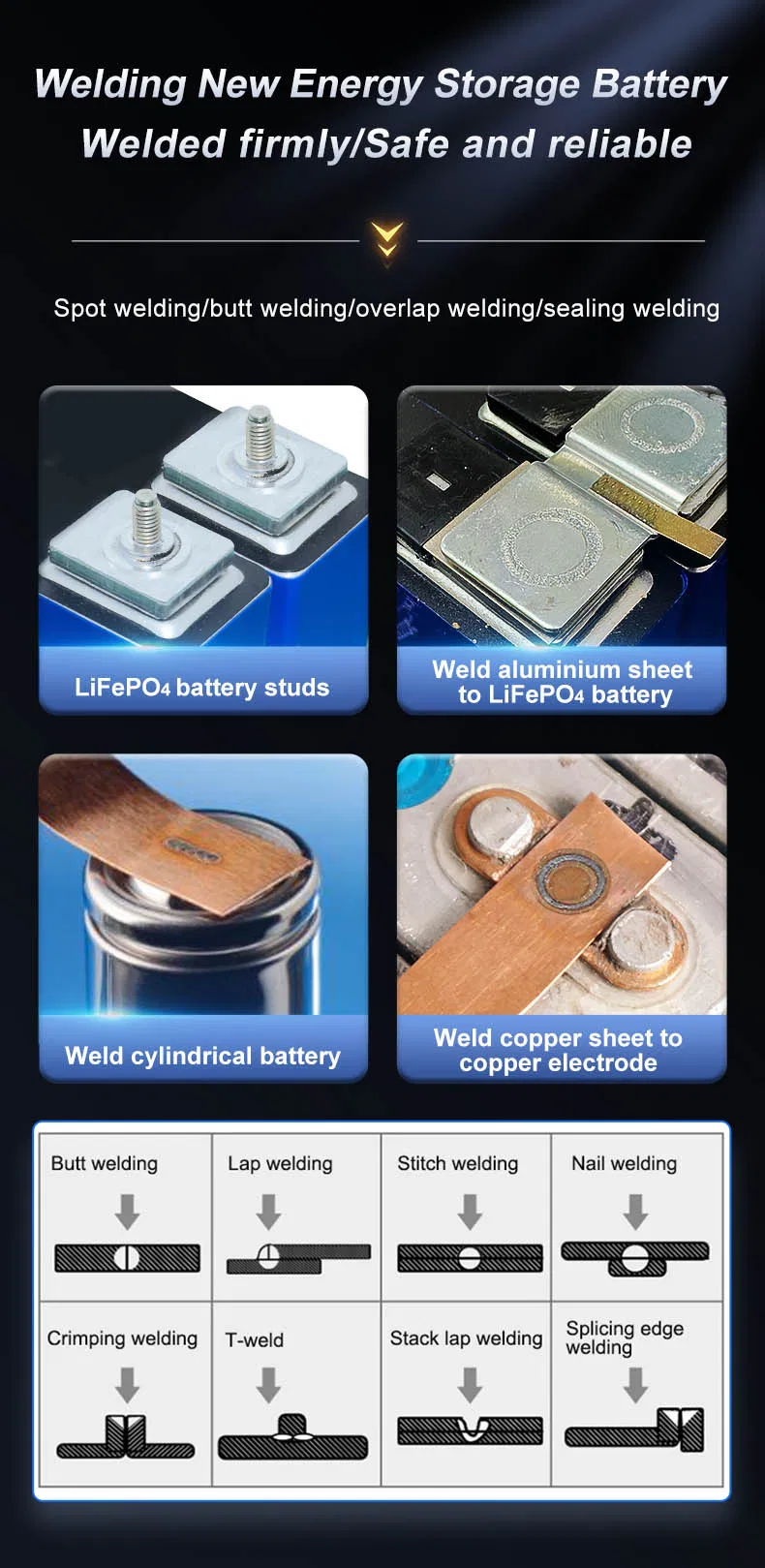

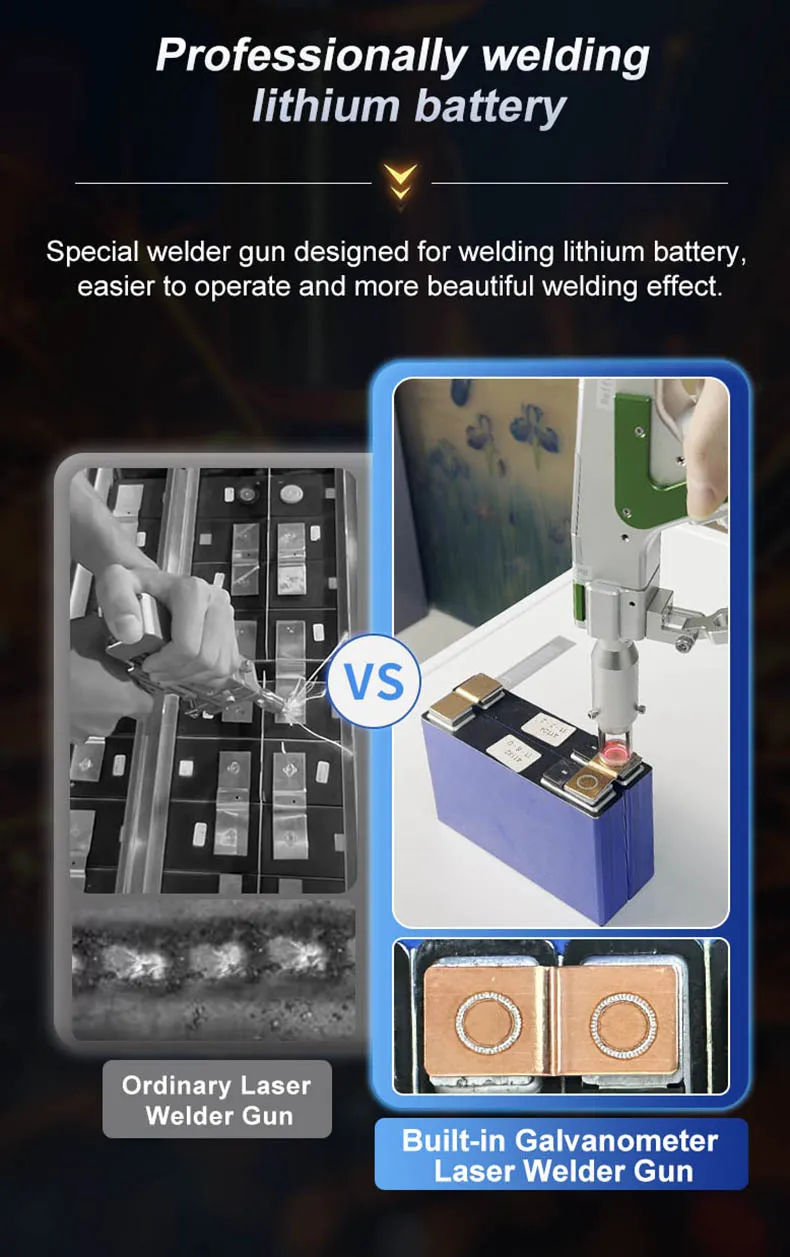

Lithium Battery Special Laser Welding Machine adapts handheld welding with built-in biaxial galvanometer device. It can spot weld aluminum, nickel, copper and other materials on lithium battery electrodes. Precise and reliable welding reduces the contact resistance of lithium batteries during assembly and improves the output and performance of lithium battery packs. It has an 8-meter-long cable, which can easily weld large-sized battery packs for new energy vehicles and reduce the requirements for operating equipment.

Features

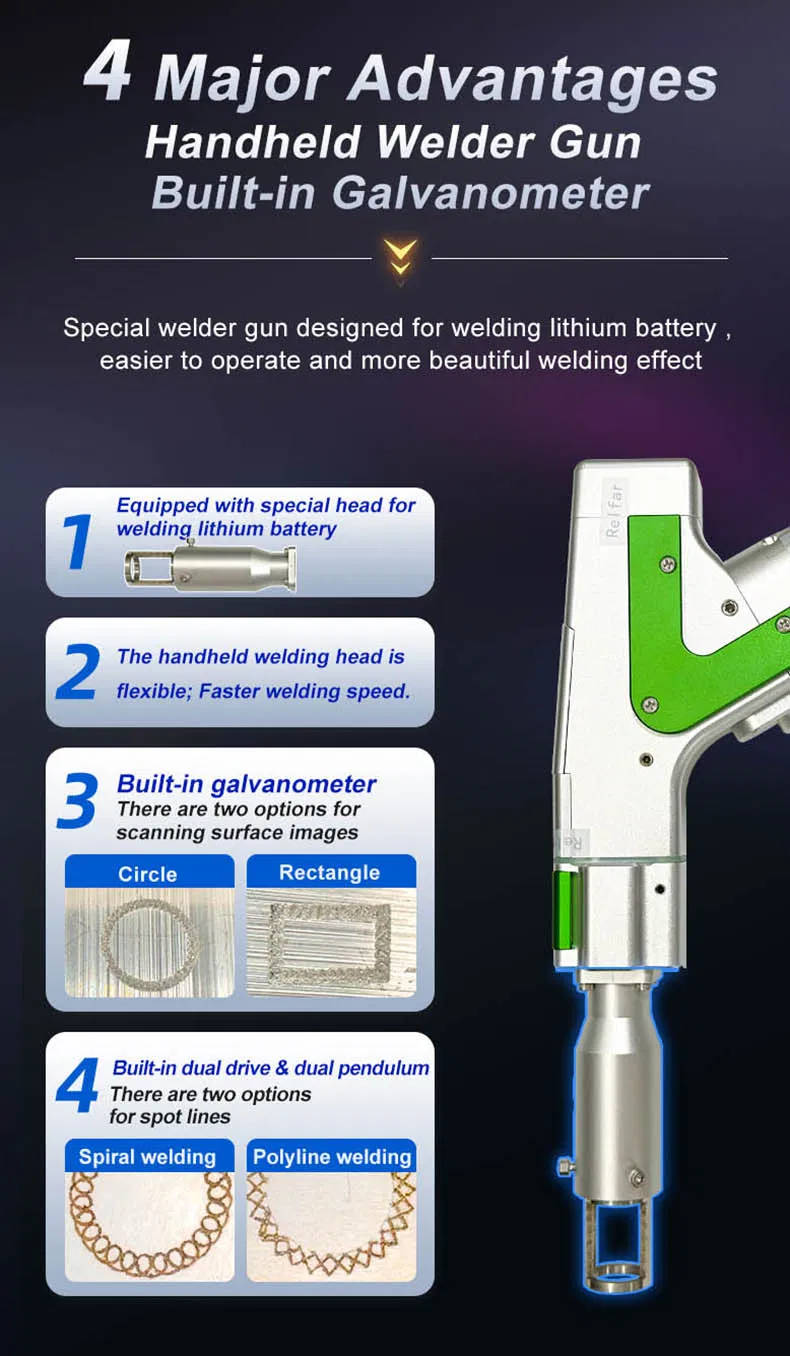

The welding gun with built-in biaxial galvanometer device achieves precise positioning of tiny welding spots.
High-speed swinging lenses guide the laser for welding, significantly improving production efficiency.
Achieve multi-shape welding through program control, flexibly adapting to complex requirements.
Equipped with software of graphics processing functions for easier operation.
Advanced control system and high-quality lenses ensure stability for long-term continuous work.
Suitable for welding and cutting various metals such as stainless steel, tungsten steel, and aluminum alloy.
Output energy waveform control to achieve ideal welding effects based on different materials.
Switchable copper nozzles allow for easy welding of special-shaped materials.

Product Parameters

Product name	Handheld Galvanometer-Type Laser Welding Machine
Supply voltage	AC 110V or 220V	Power consumption	≤6KW
Output power	3000W	Laser wavelength	1070±10nm

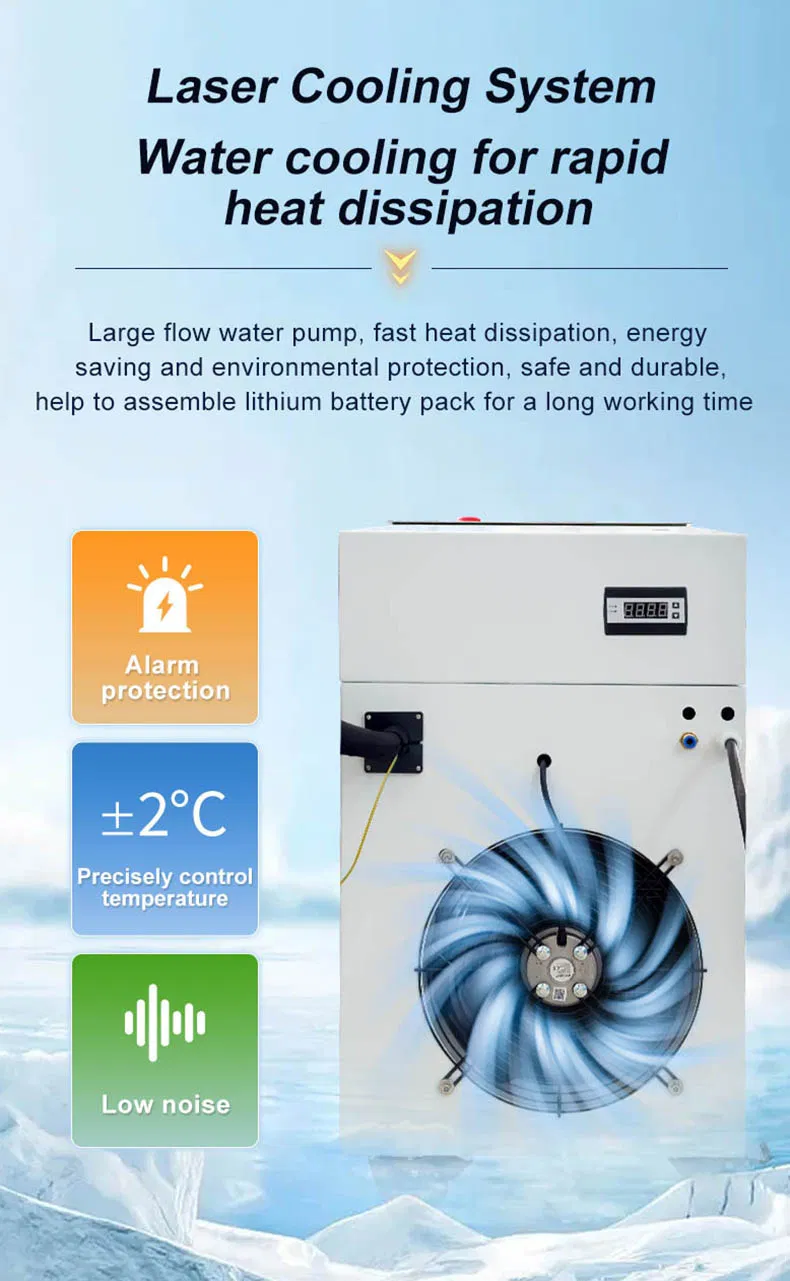

Cooling system	Water cooling	Welding head weight	0.9KG
Size	5811080cm	Machine weight	133KG

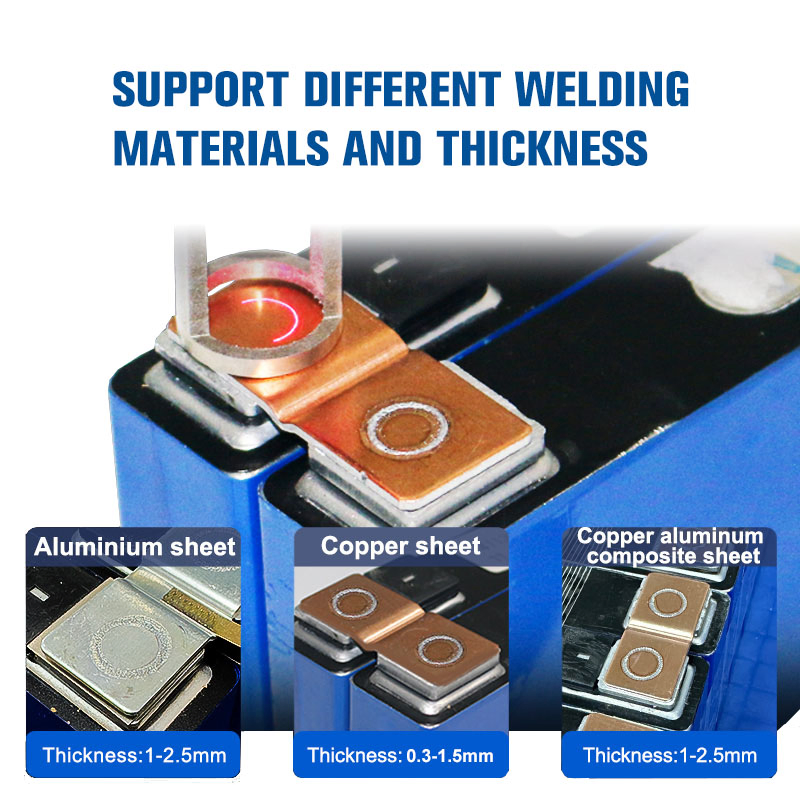

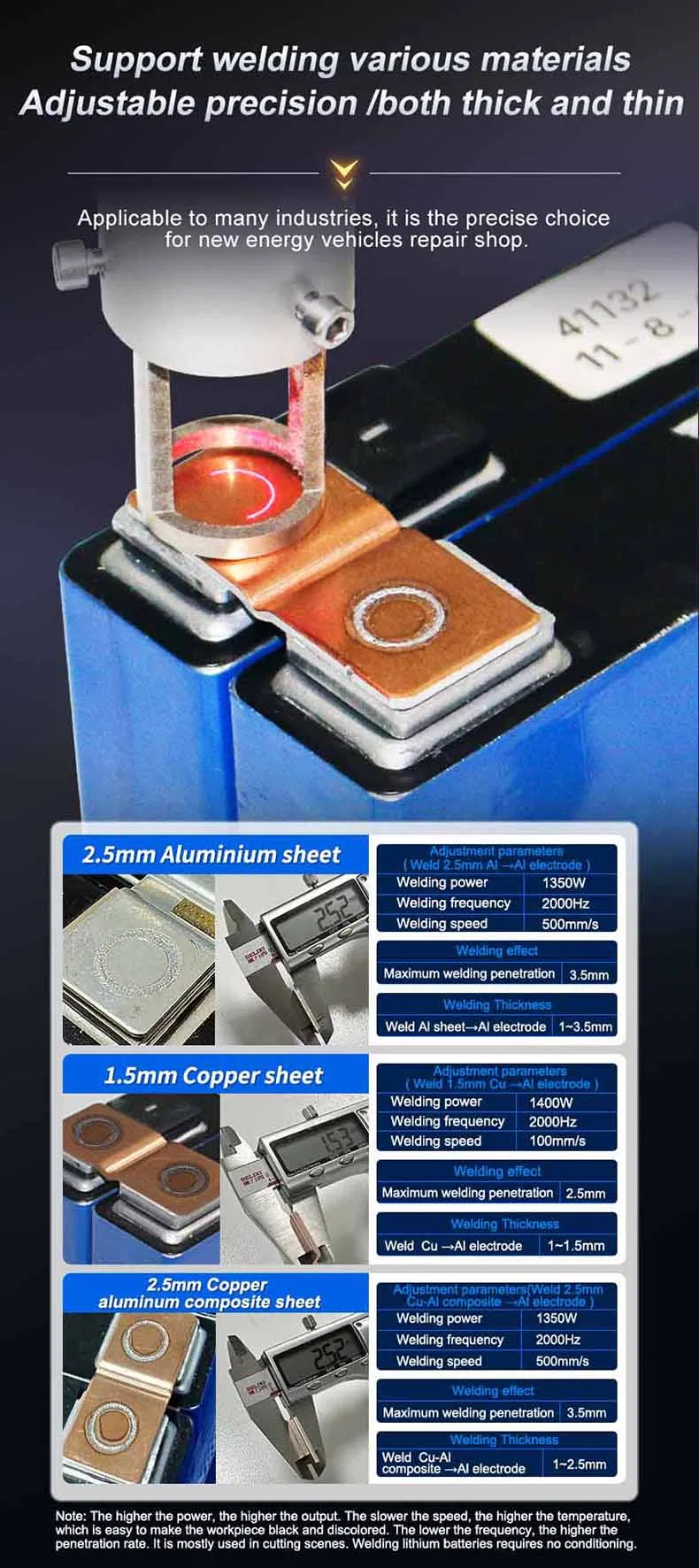

Welding Parameters

Copper aluminum composite sheet → aluminum
Thickness(mm)	Power (W)	Speed (mm/s)	Frequency (Hz)
1	600	500	2000
1.5	825	500	2000
2	1125	500	2000
2.5	1350	500	2000
Pure aluminum → aluminum
Thickness (mm)	Power (W)	Speed (mm/s)	Frequency (Hz)
1	600	500	2000
1.5	825	500	2000
2	1125	500	2000
2.5	1350	500	2000
Copper → Copper
Thickness (mm)	Power (W)	Speed (mm/s)	Frequency (Hz)
1	800	500	2000
1.5	1500	500	2000

Gallery & Applications

Frequently Asked Questions

How to order?

Please send us your purchase order by email or call our sales. We need to know product details (quantity, specification) and shipping information (company name, address, phone number, destination port) before sending your Proforma Invoice.

How to control quality?

All raw materials are checked by IQC (Incoming Quality Control). Each step in the process undergoes IPQC (Input Process Quality Control) patrol inspection. Finally, QC performs a full inspection before packing, and OQC does a final check before shipment.

How do I install and operate the machine myself?

The system is integrated. Once you receive it, simply connect it to the power supply. English software and a complete user manual are included to help you learn the operation quickly.

How do I get technical support after purchase?

We provide online technical support in English through messaging apps or email. Remote assistance via software is also available if needed.

What's the warranty for the items?

The equipment comes with a one-year (12 months) warranty. If any part is damaged within this period due to non-human factors, we provide replacement parts free of charge.

Can I customize products?

Yes, both OEM and ODM services are available. We provide standard and customized machines tailored to your specific requirements.
