| Parameter | Details |
|---|---|
| Model NO. | MK |
| Applicable Industries | Battery Making |

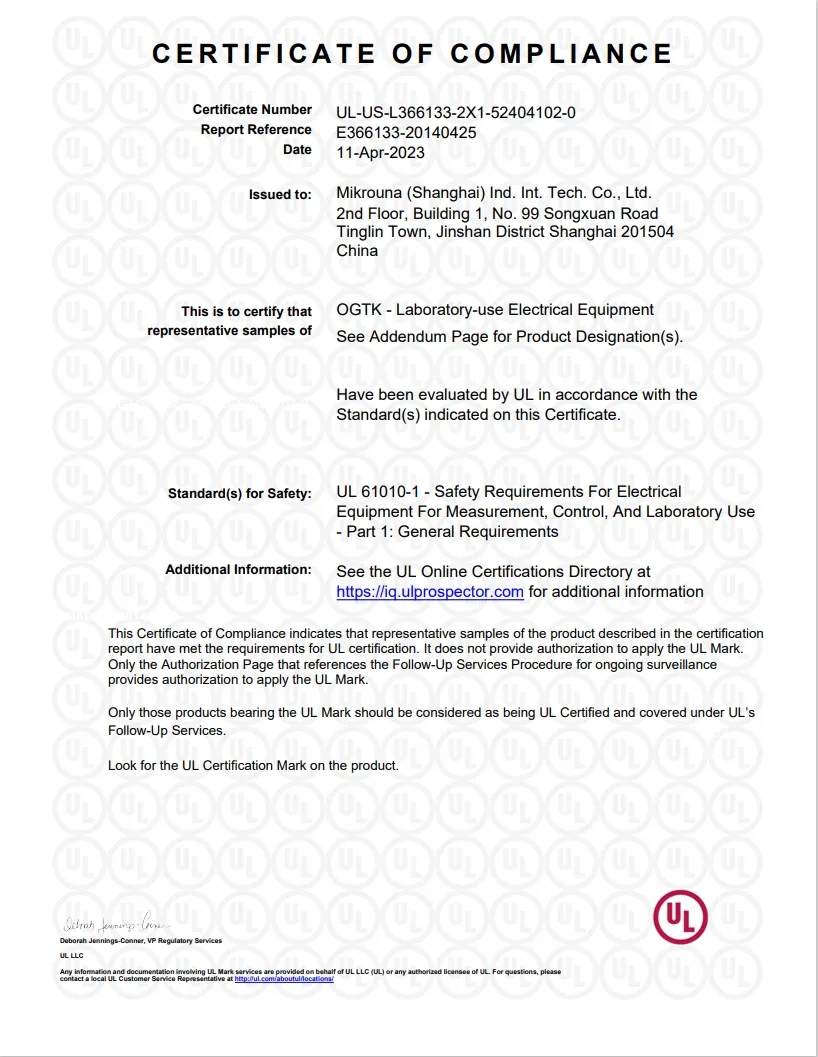

| Certification | CE, UL, ISO9001 and So on |
| Color | International Warm Grey |
| Dimension | Customization |
| Output | 12ppm |
| Equipment Excellence Rate | ≥99.6% |
| Electrode Location Mode | Mechanical Positioning |
| Single Piece Efficiency | 0.5-1s/PCS |
| Stacking Table Structure | Air Cylinder Pressure Claw |
| Ultrasonic & Missing Angle Detection | Standard |
| Alignment of Adjacent Electrode | ≤±0.2mm |
| Overall Alignment of Electrode | ≤±0.4mm |
| Dusting Mode | The Top of The Equipment Is Equipped with FFU |
| Transport Package | Fumigation-Free Wooden Box / Vacuum Moisture-Proof |

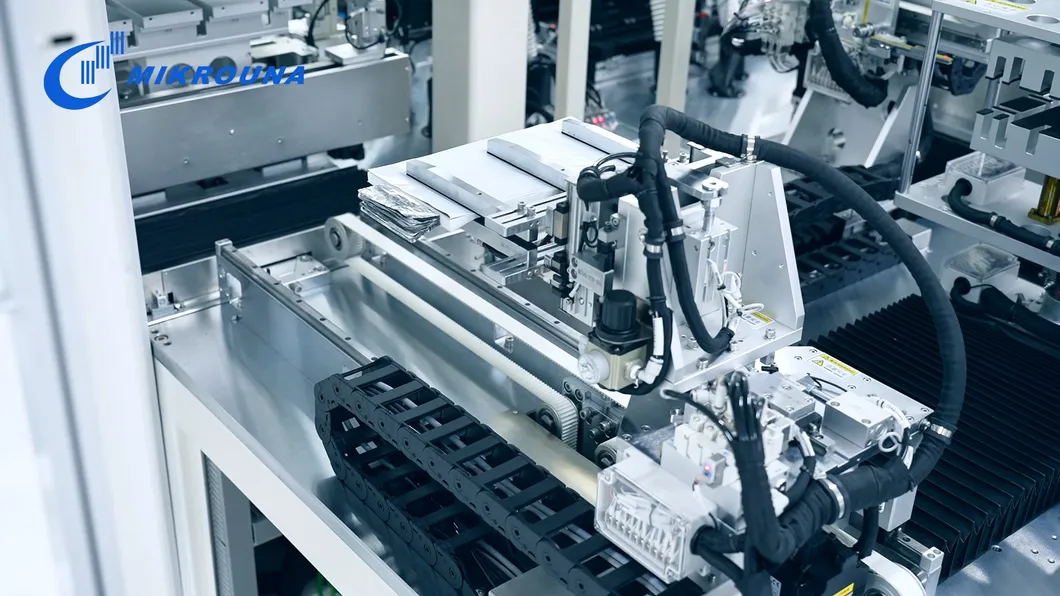

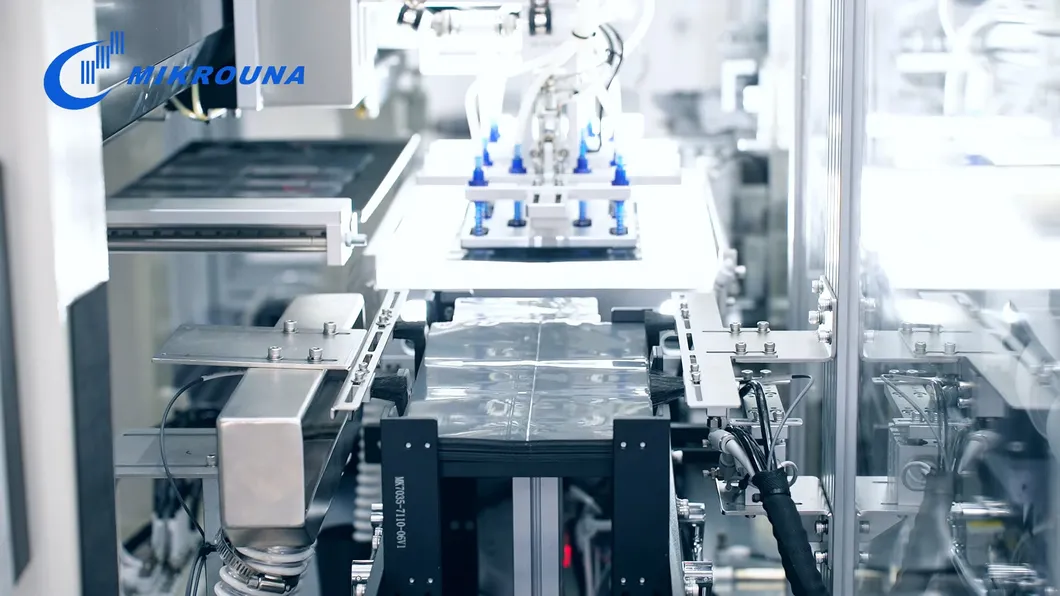

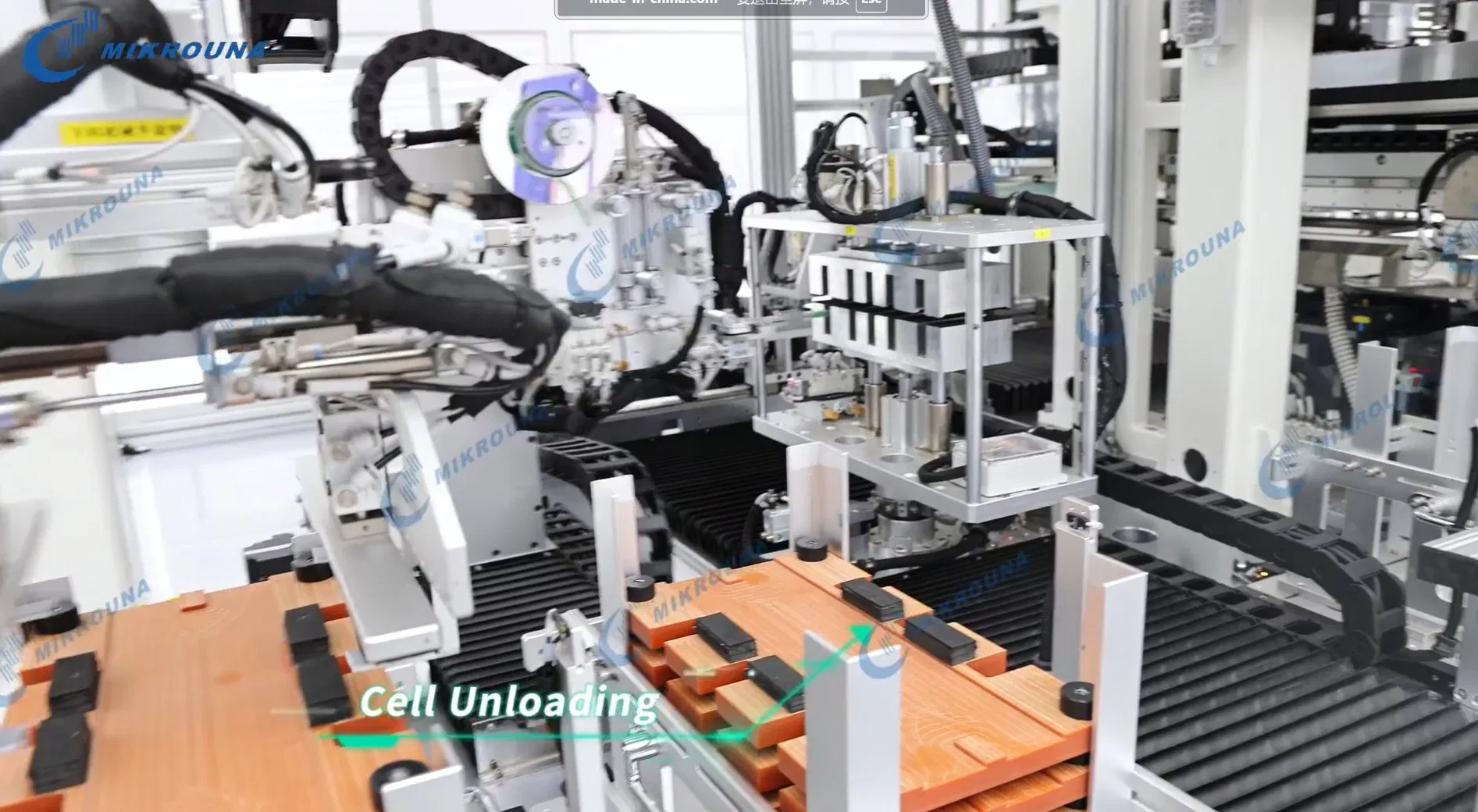

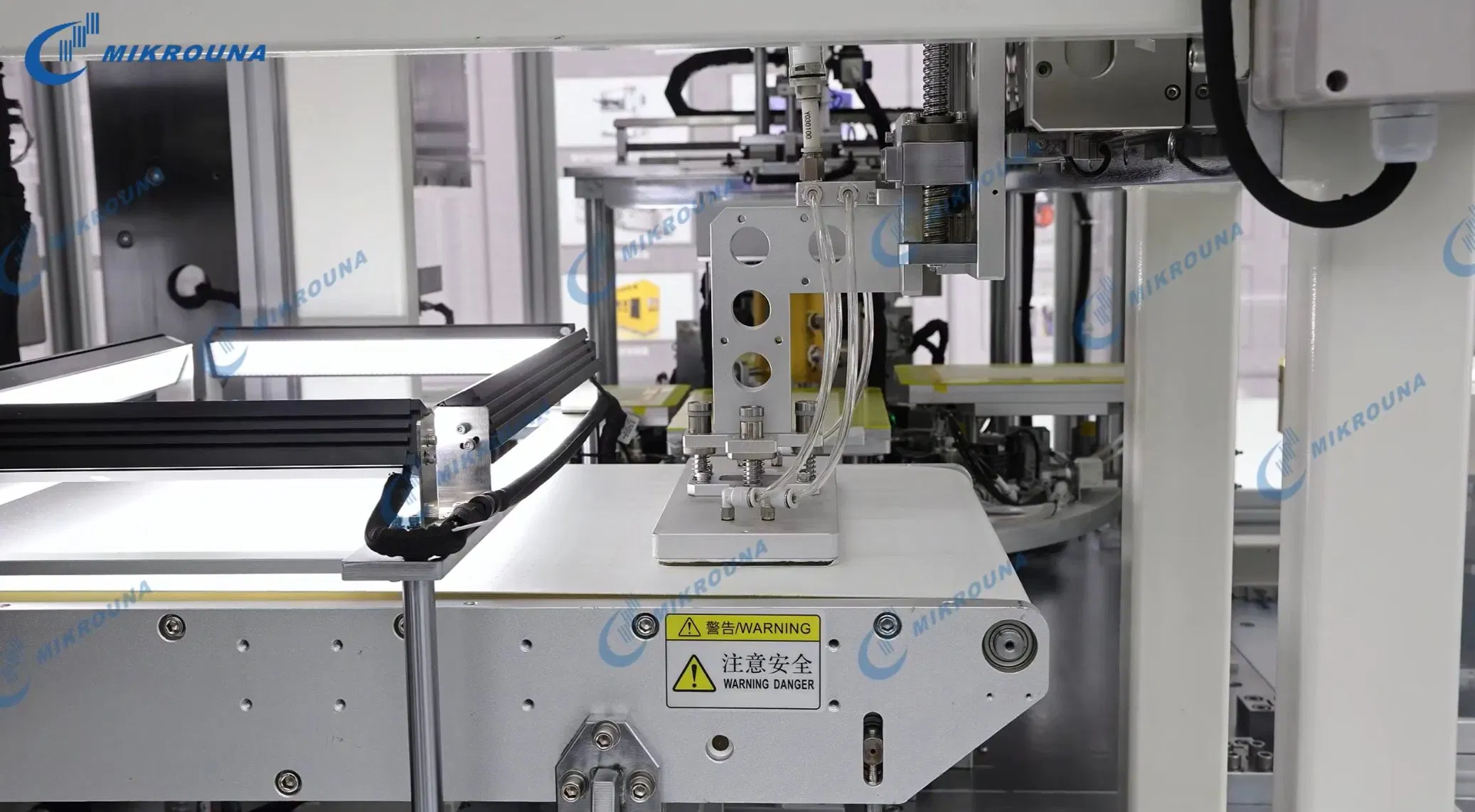

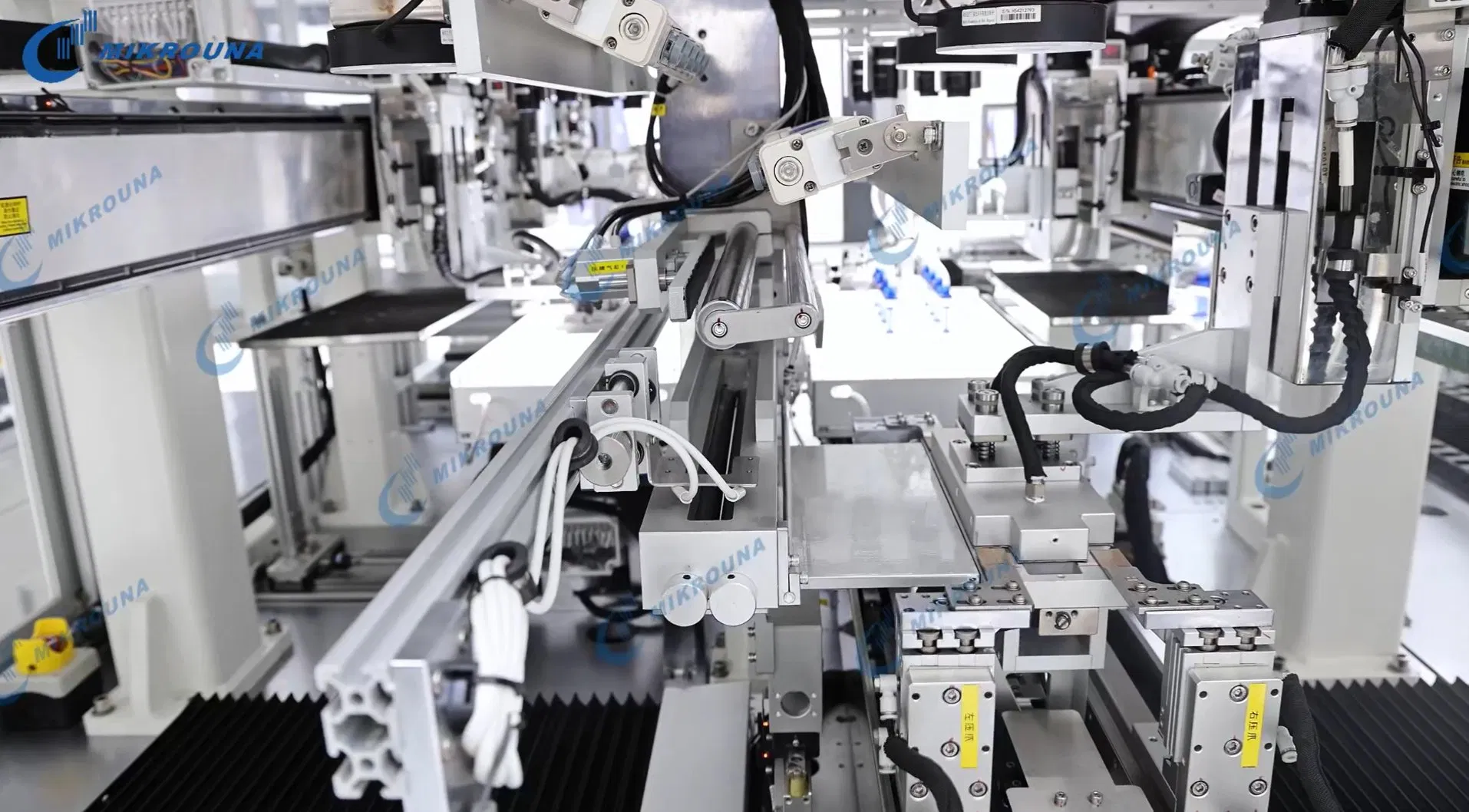

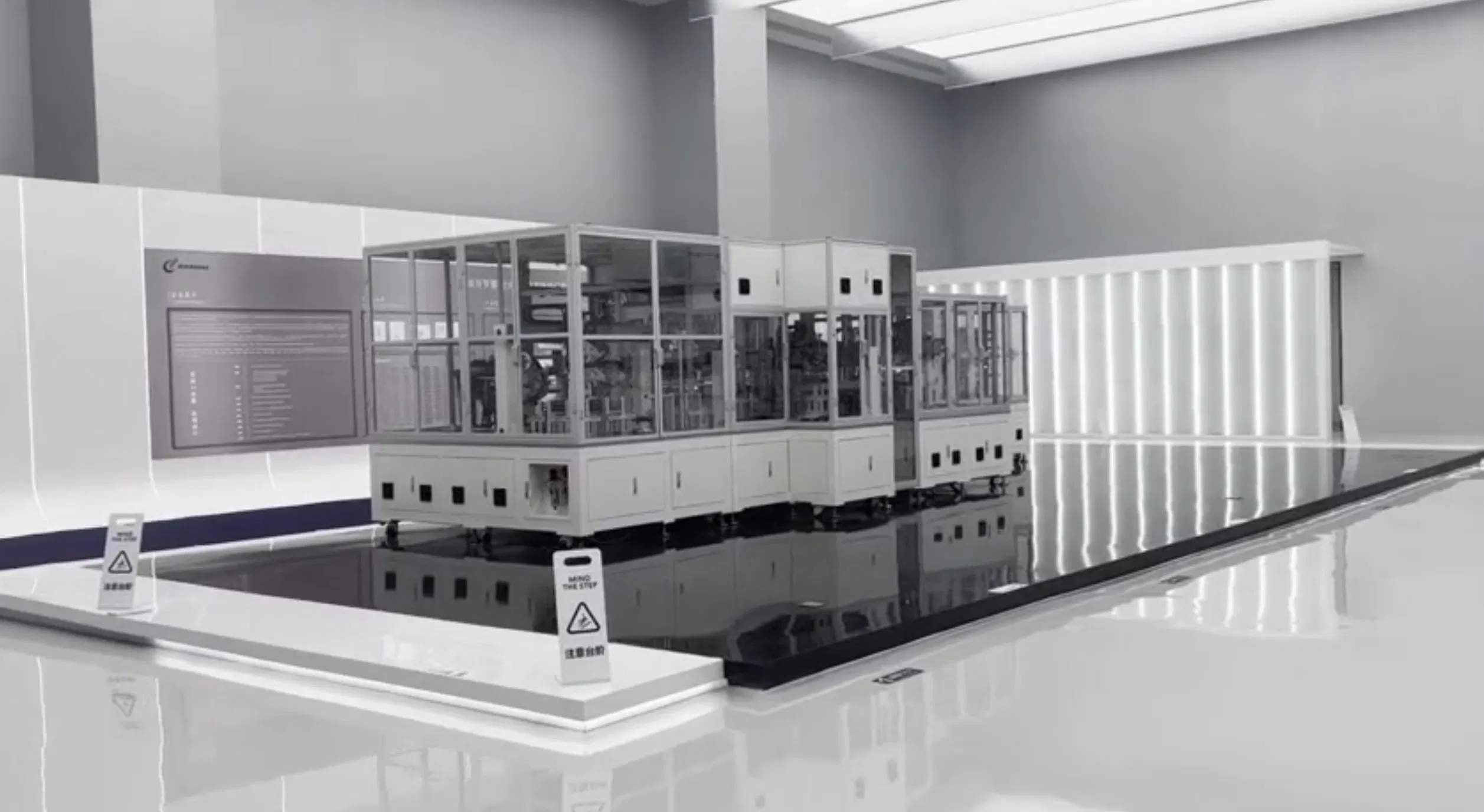

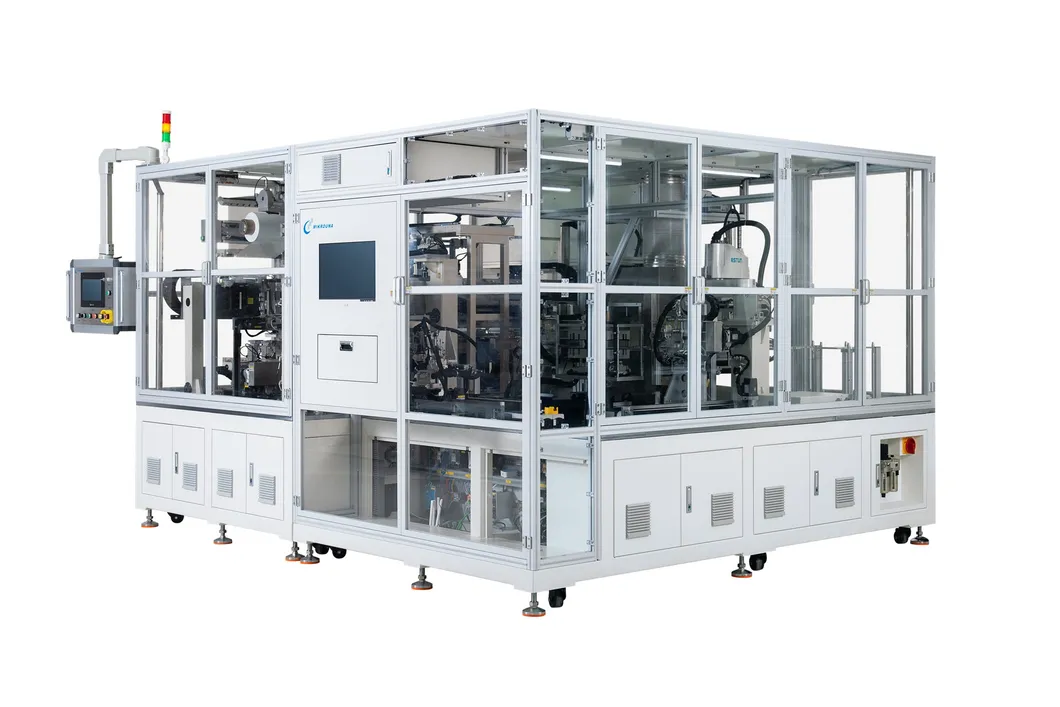

Lithium-ion Battery Electrode Cutting & Stacking Integrated System
Designed for the manufacturing of lithium metal battery cells, it enables the automatic stacking of cathode, separators, and lithium metal anode. The stacking speed can reach 1pc/1s (for lithium metal sheets) and 1pc/0.6s (for lithium battery electrode sheets).

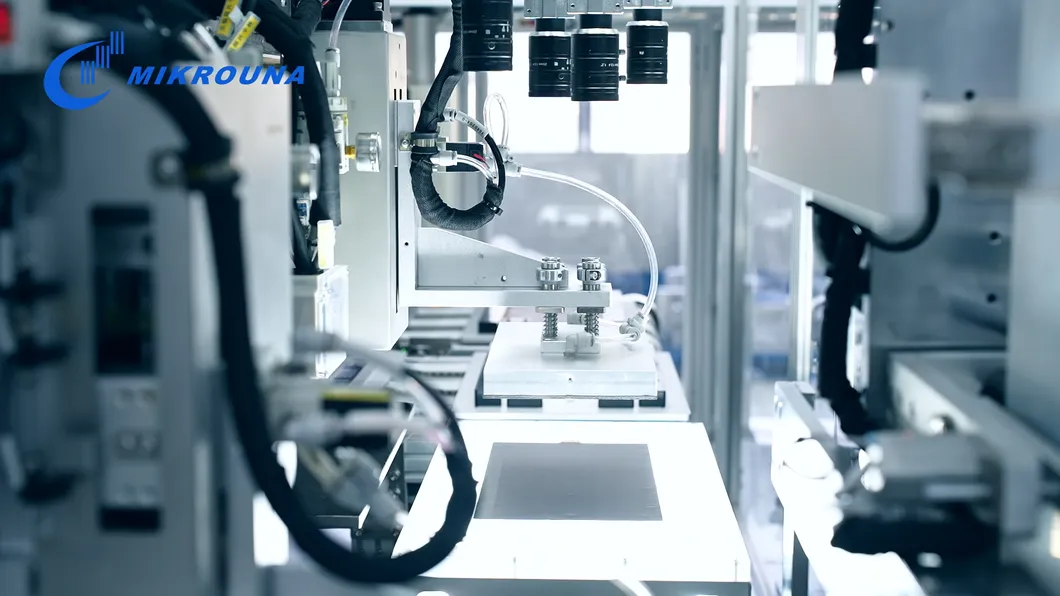

Equipped with a CCD positioning mechanism to ensure the accurate stacking of electrode sheets. The system features auto-loading, automatic unwinding, CCD deviation correction, and automatic stacking, realizing automated production from material loading to unloading.
The system is applicable in drying room environments (-45ºC dew point). When used in conjunction with a sheet-making machine, it is also compatible with the stacking of Si-C or Graphite cathode cells.

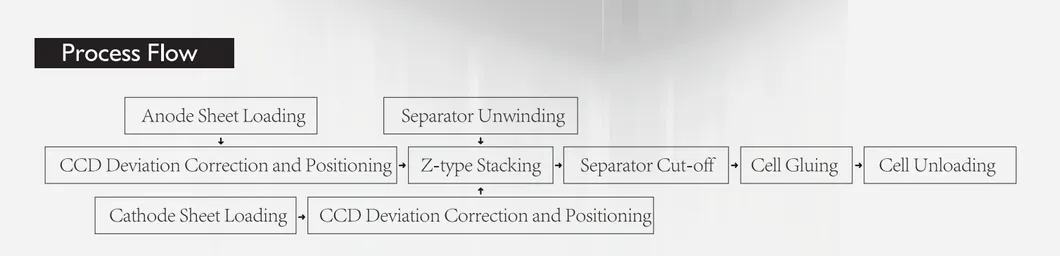

Process Flow:
| Item | 150 Type Specifications |
|---|---|
| Electrode location mode | Mechanical positioning |
| Single piece efficiency | 0.5-1S/PCS |
| Compatible electrode size | L70-150mm / L50-100mm |
| Stacking table structure | Air cylinder pressure claw |
| Ultrasonic & missing Angle detection | Standard |
| Alignment of adjacent electrode | ≤±0.2mm |
| Overall alignment of electrode | ≤±0.4mm |
| Separator cut-off and reverse closure | ≤12S |
| Dusting mode | Top FFU dust removal |
| MES function | Dockable with MES system |
Strength and Personnel:
The company employs over 700 people, including more than 200 engineering and technical personnel and 400+ skilled workers. Our core technical team consists of graduates from prestigious domestic universities.
Packaging: We use fumigation-free wooden boxes and vacuum moisture-proof packaging to ensure equipment safety during transit.
Service: We offer a 12-month trouble-free warranty and lifetime online support. Onsite support is also available upon request.
