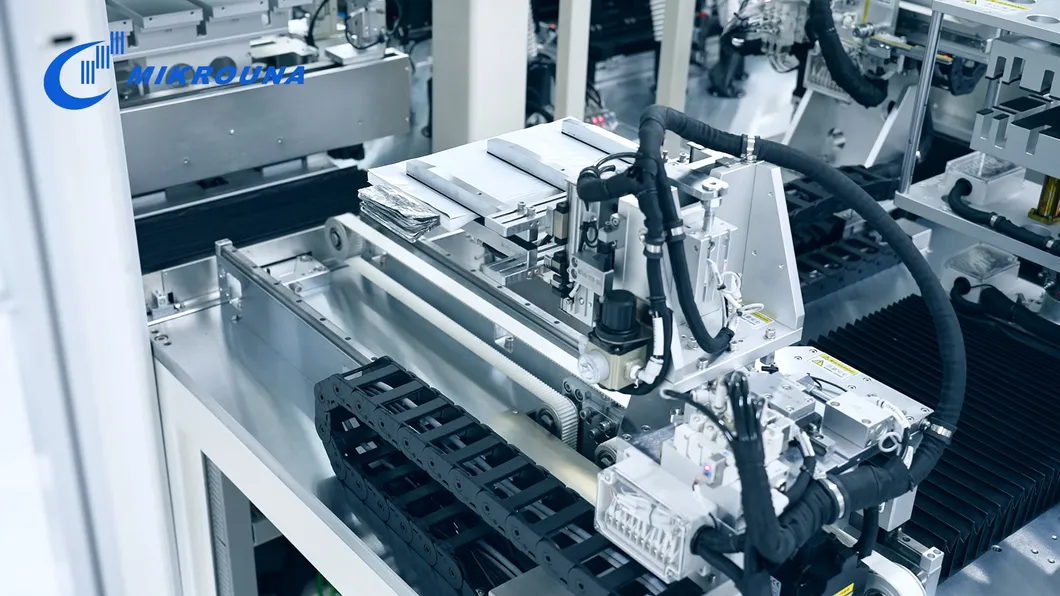

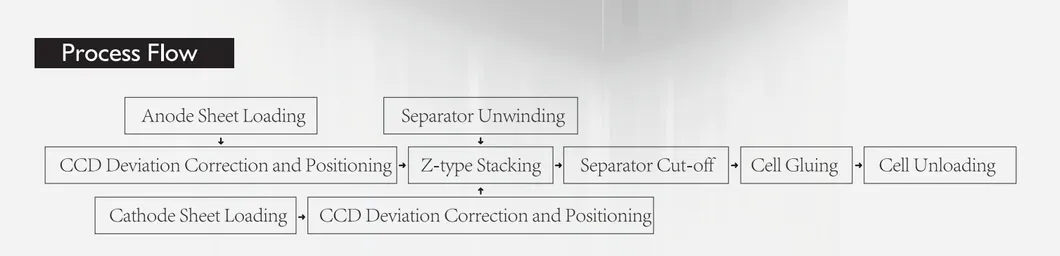

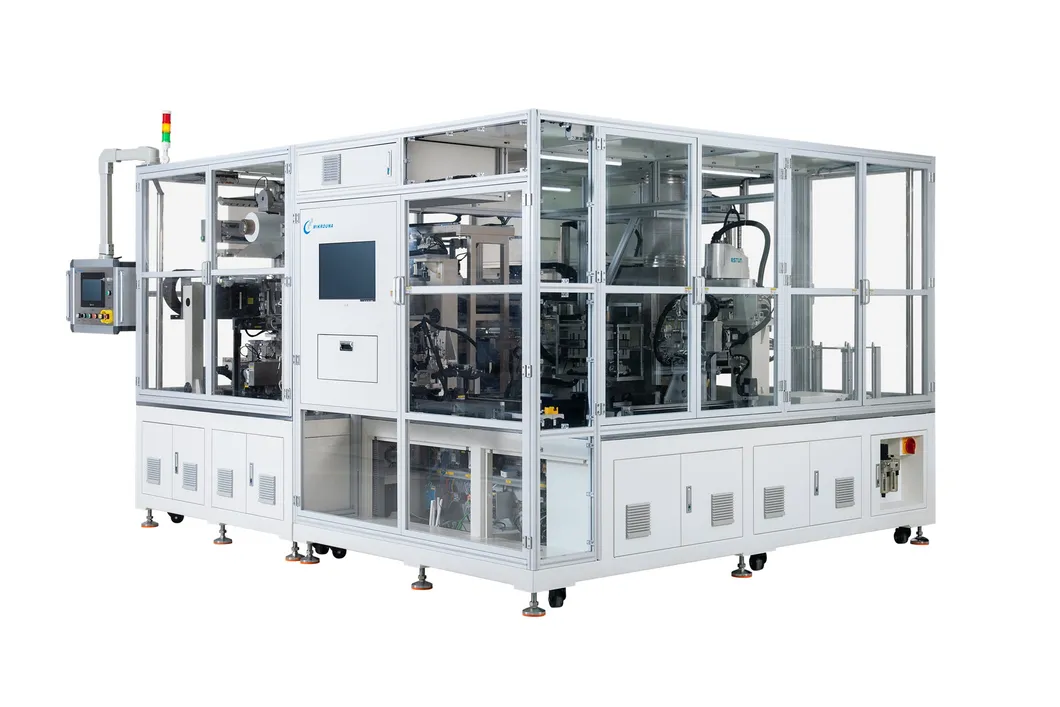

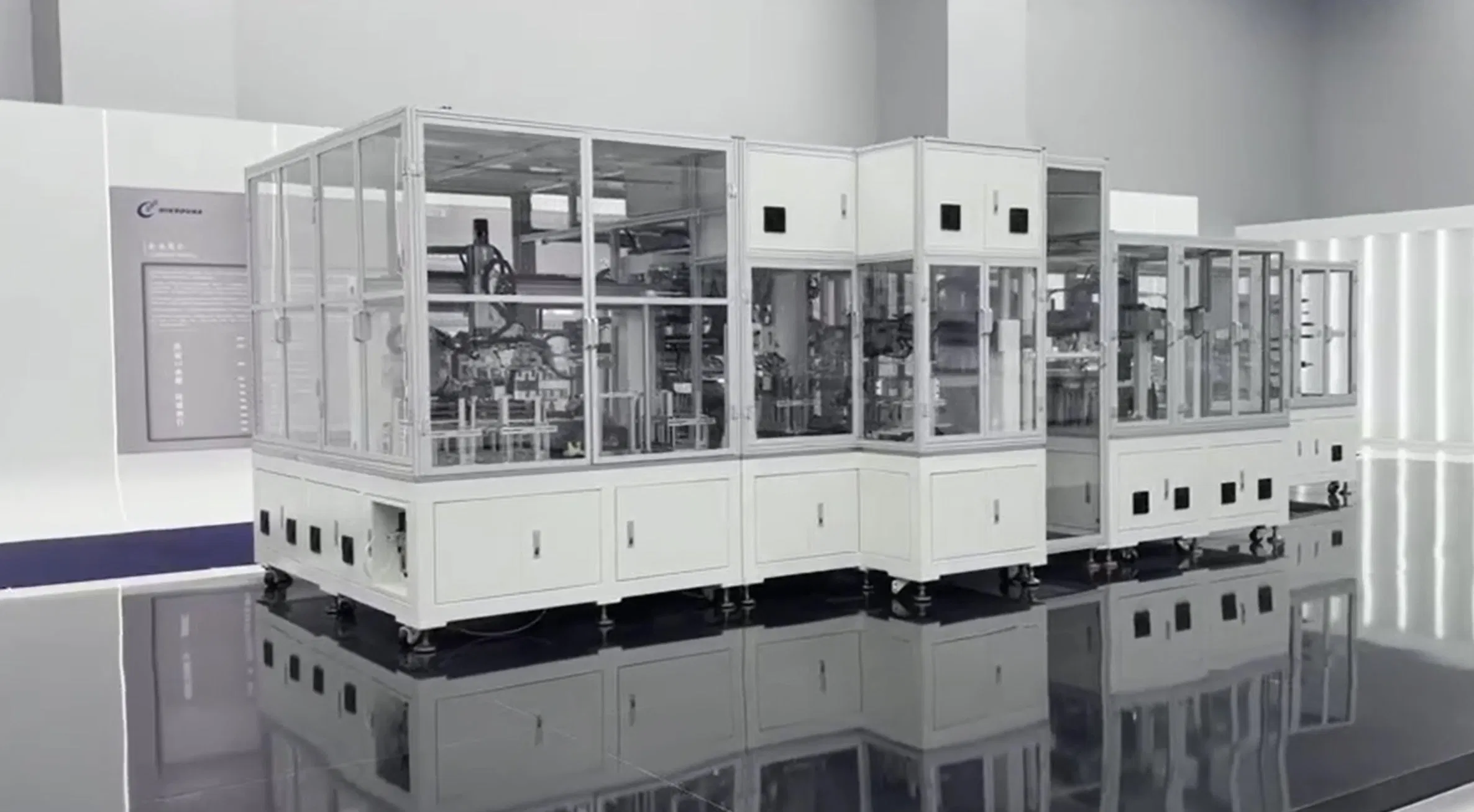

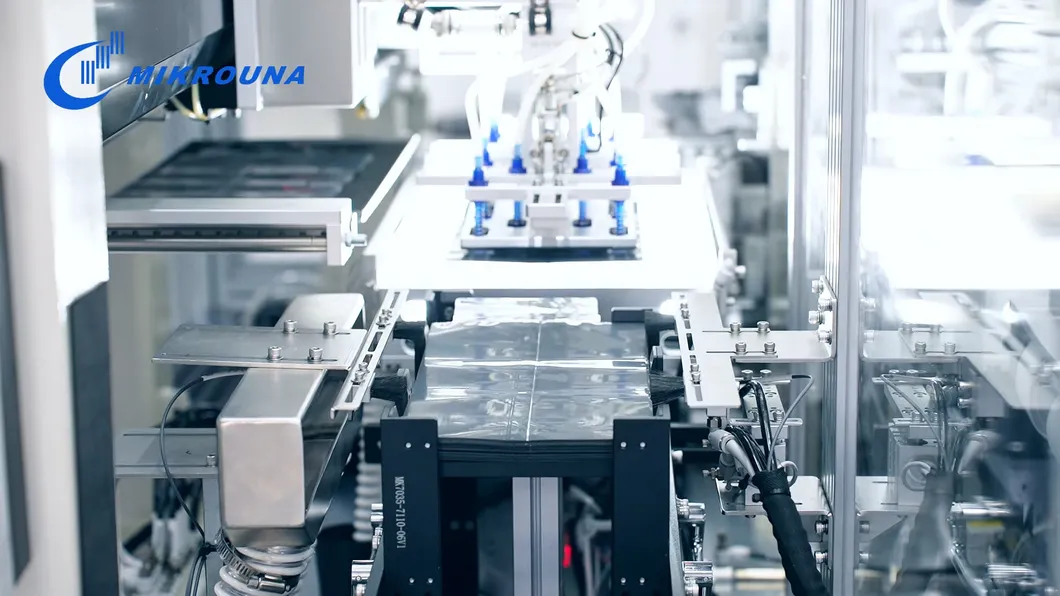

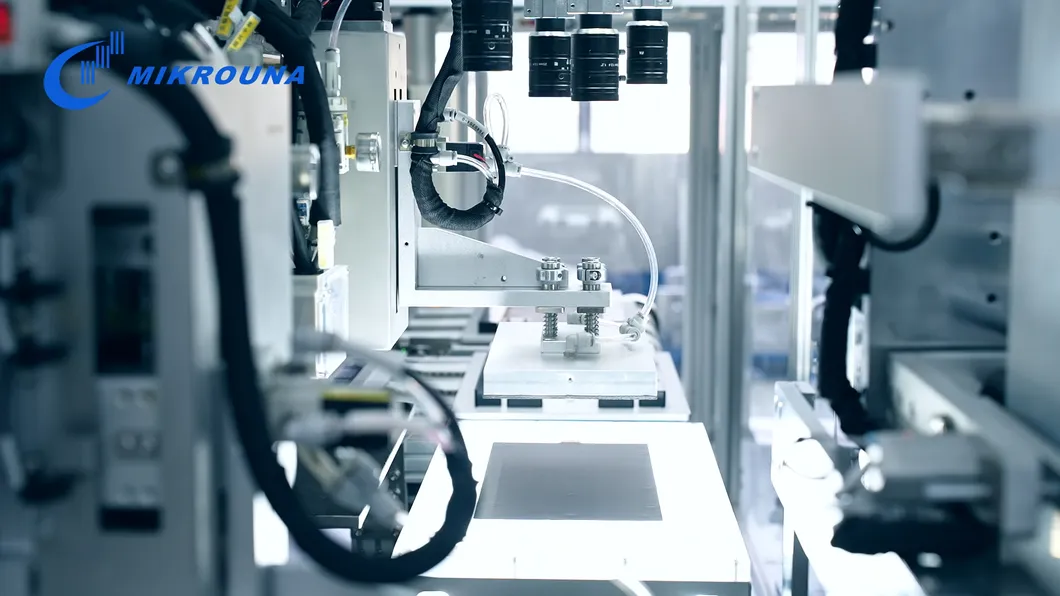

Designed for the manufacturing of lithium metal battery cells, it enables the automatic stacking of cathode, separators, and lithium metal anode. Equipped with a CCD positioning mechanism to ensure the accurate stacking of electrode sheets. The system realizes automated production from material loading to unloading in drying room environments (-45ºC dew point).
| Item | 150 Type Specification |
|---|---|
| Electrode location mode | Mechanical positioning |
| Single piece efficiency | 0.5-1S/PCS |
| Compatible electrode size | L70-150mm / L50-100mm |
| Stacking table structure | Air cylinder pressure claw |
| Ultrasonic & missing Angle detection | Standard |
| Alignment of adjacent electrode | ≤±0.2mm |
| Overall alignment of electrode | ≤±0.4mm |
| Dusting mode | Top equipped with FFU |
| MES function | Docking with MES system available |

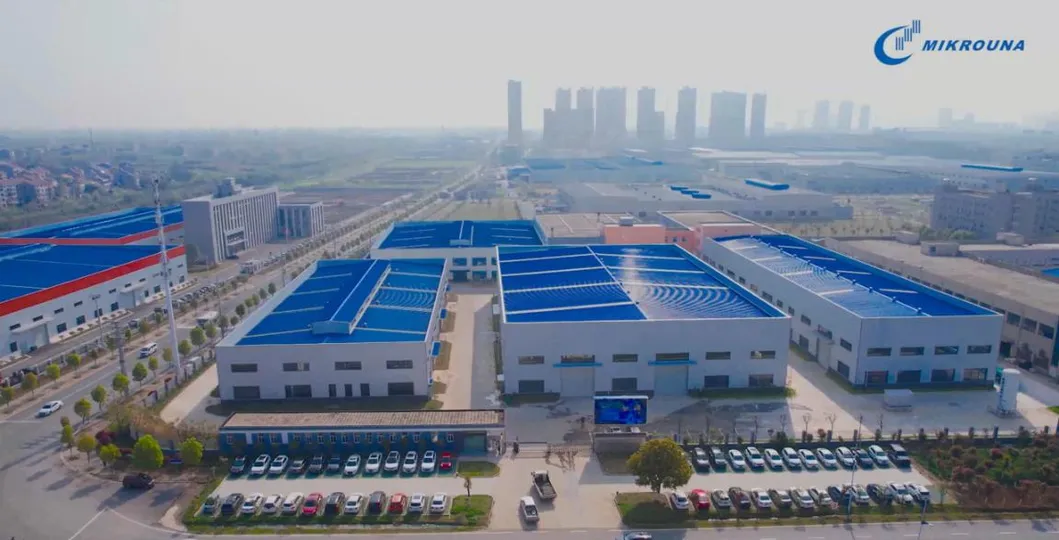

Integrating R&D, manufacturing, sales, and service, our enterprise is a leading LIB intelligent equipment manufacturer. We employ over 700 people, including more than 200 engineering and technical personnel. We serve customers with innovative whole line turnkey solutions.
CE Certification, UL Certification, ISO9001, ISO14001, ISO45001, IATF16949, and over 170 patented technologies.
