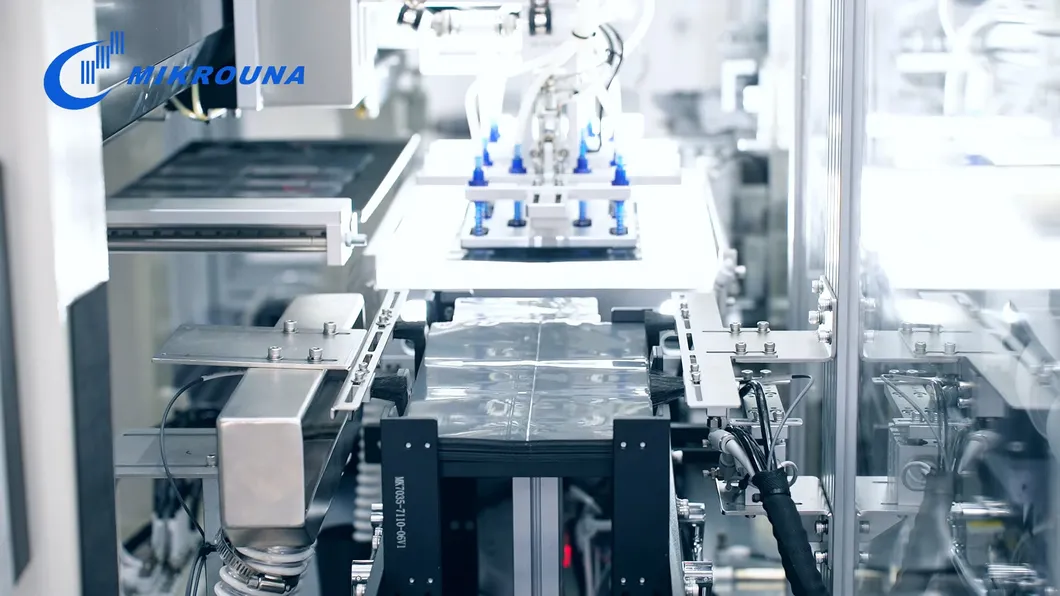

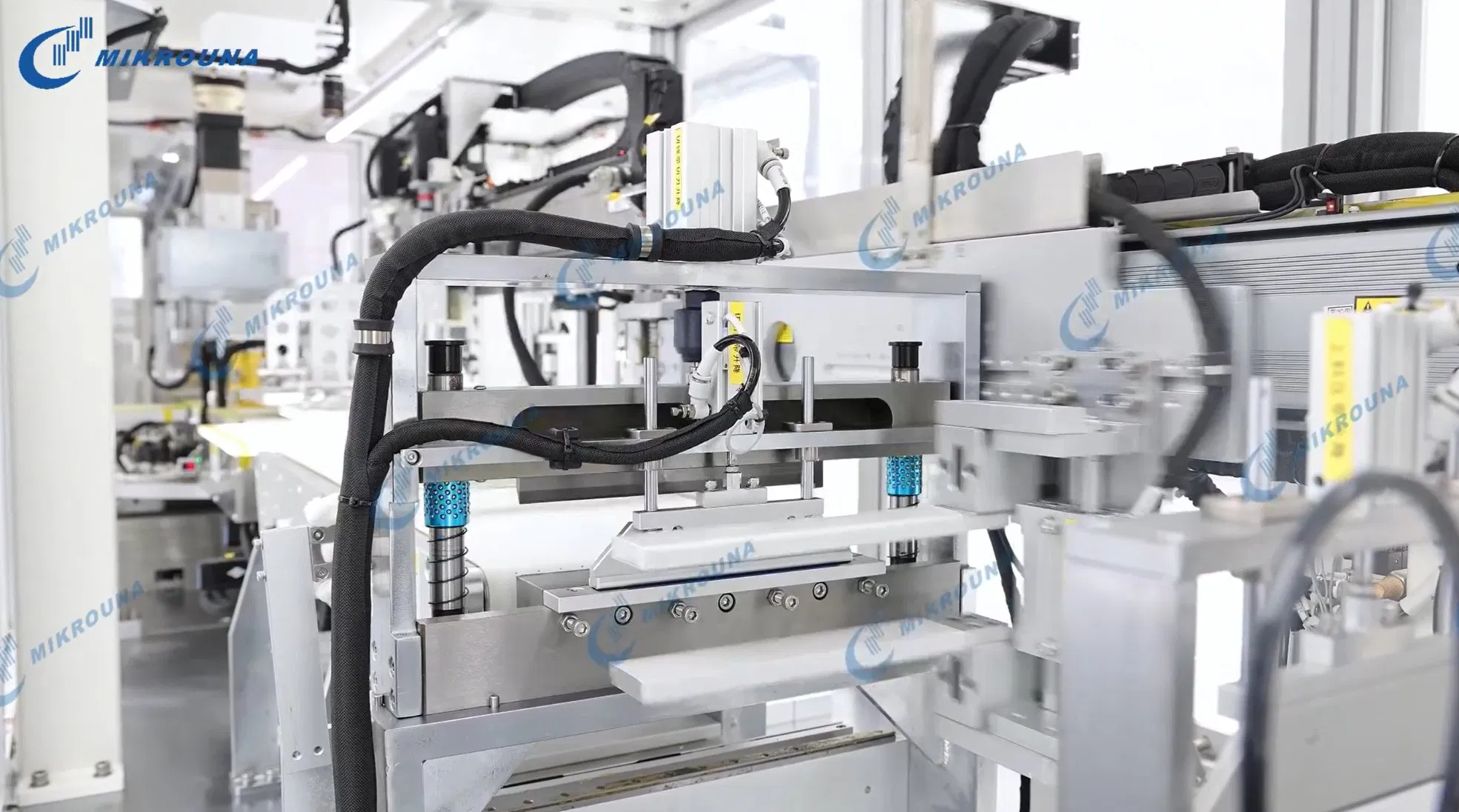

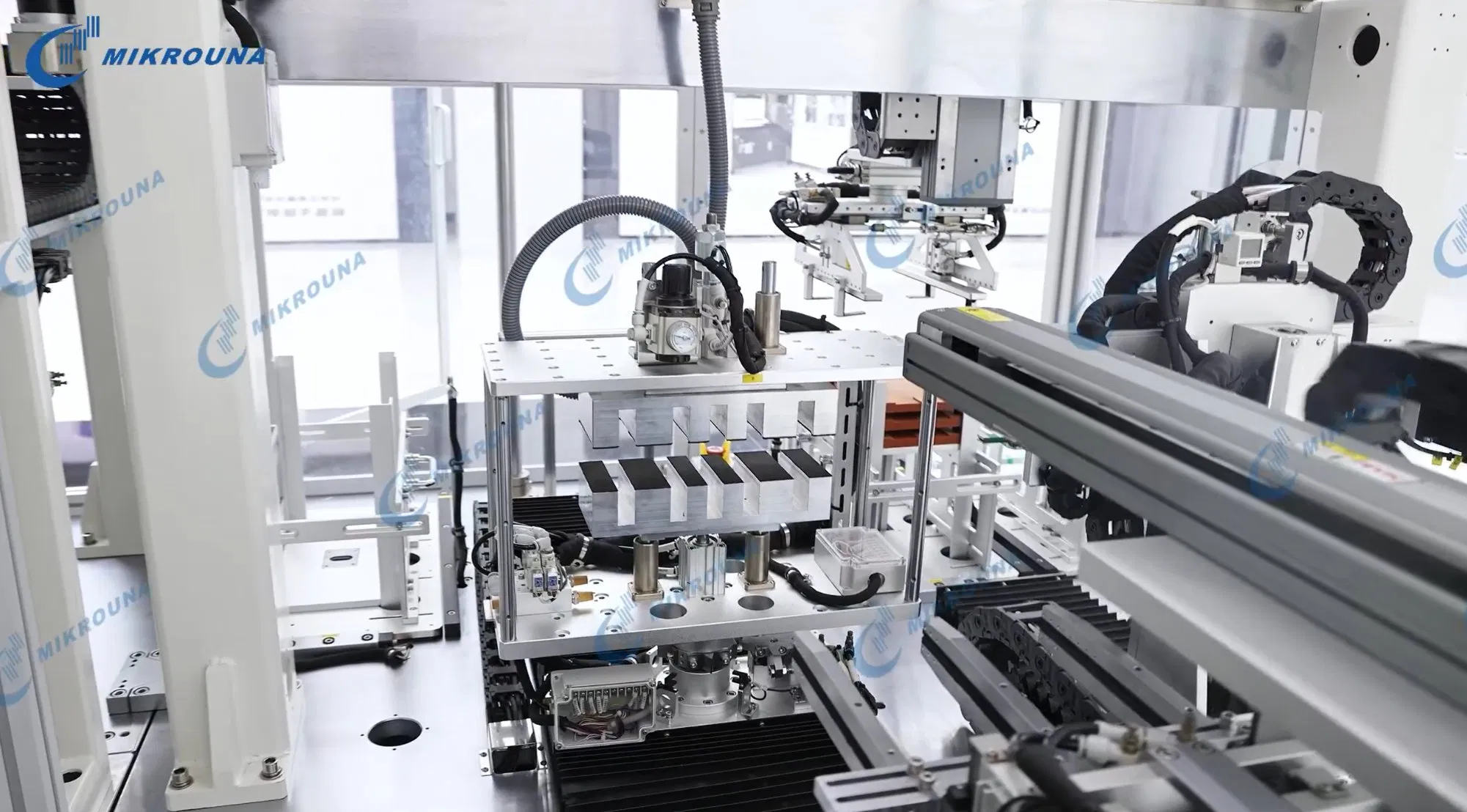

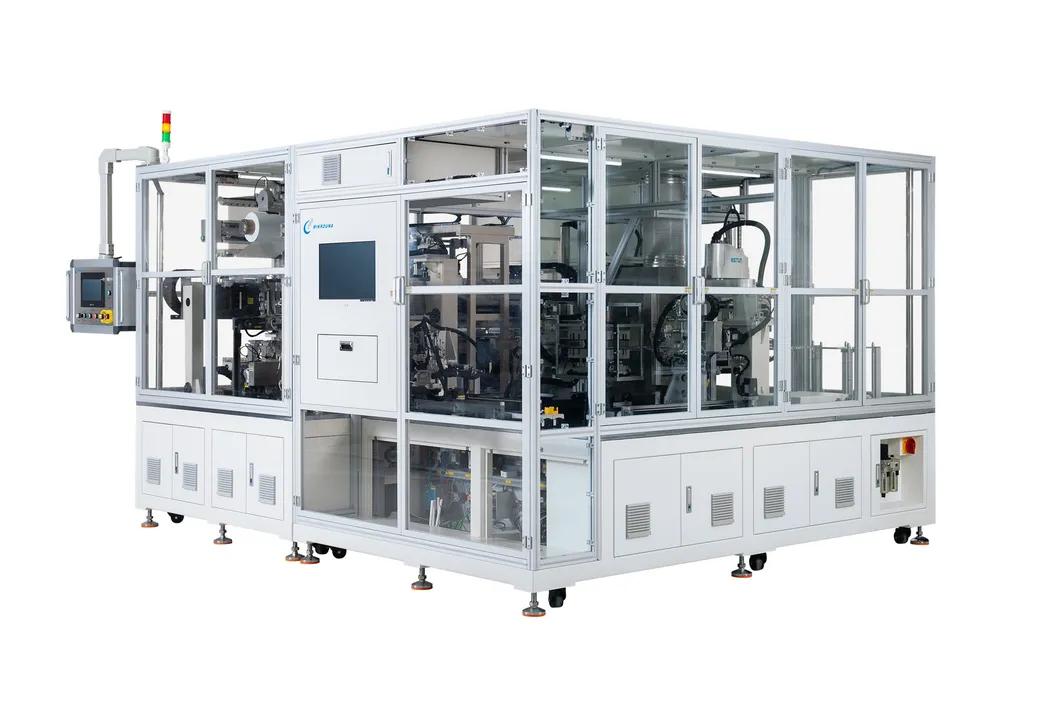

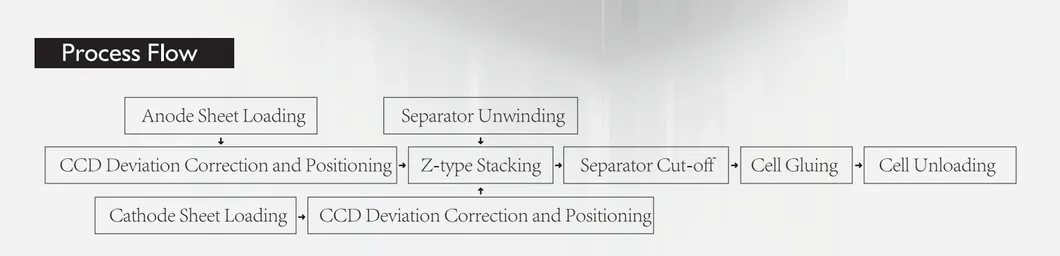

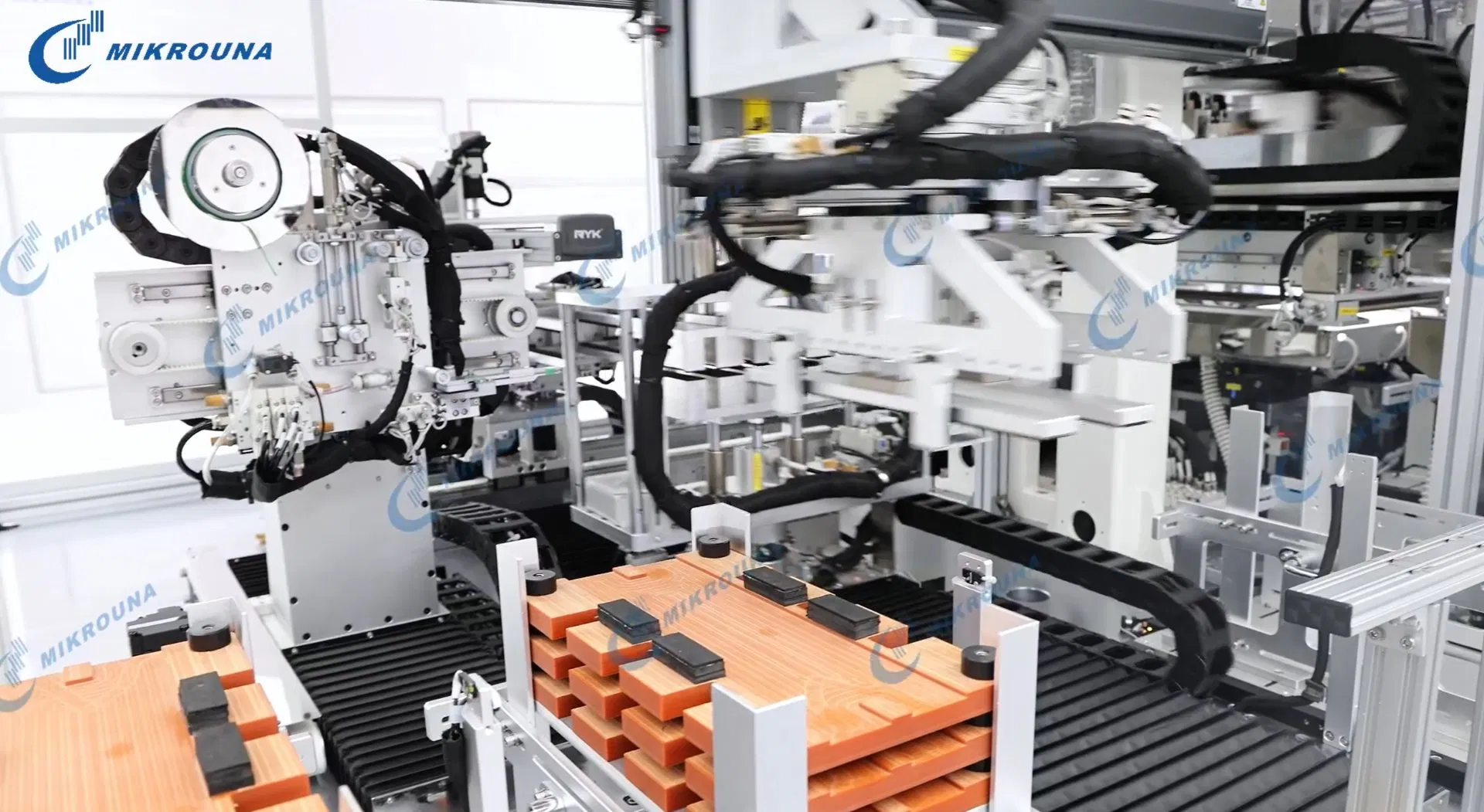

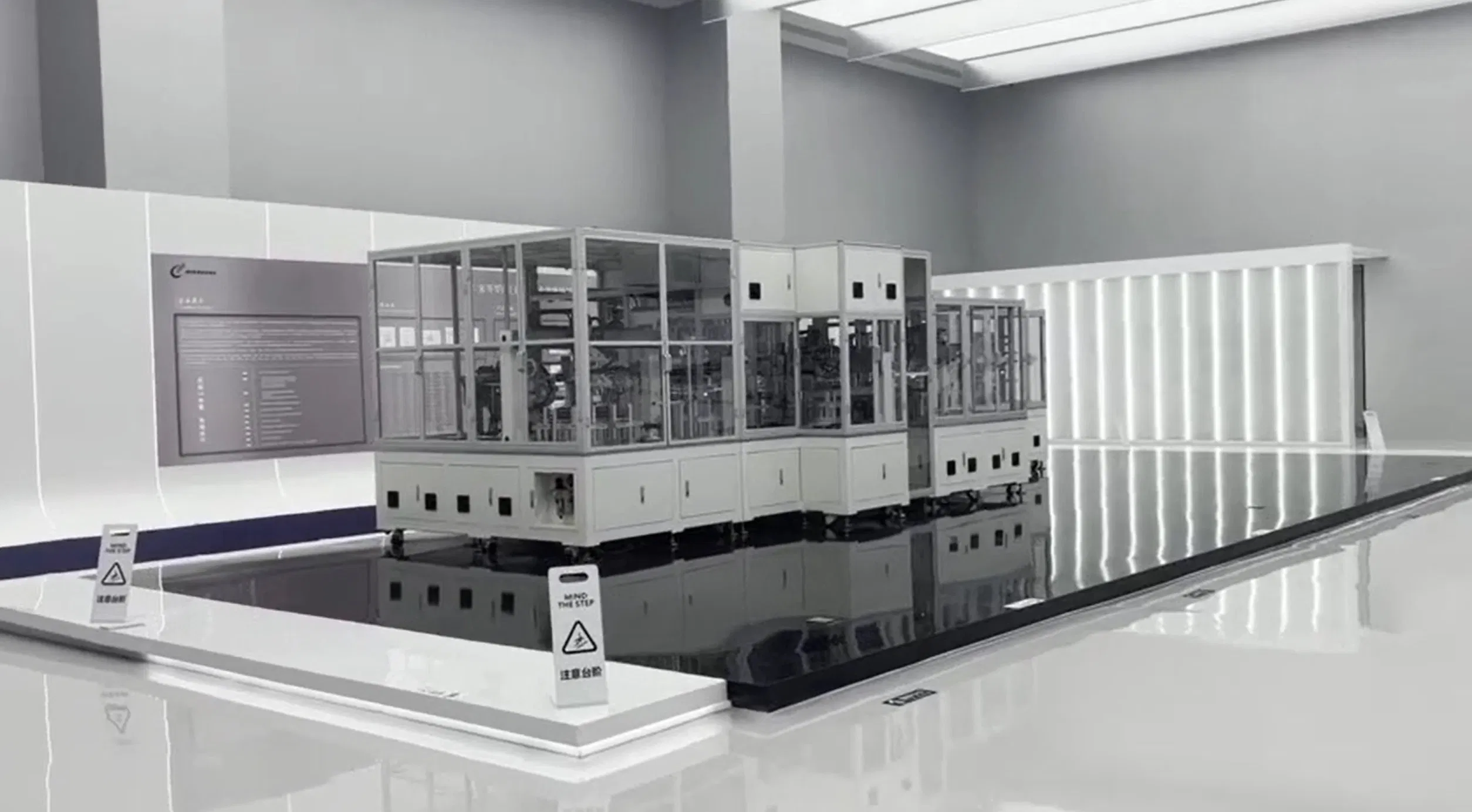

Designed for the manufacturing of lithium metal battery cells, it enables the automatic stacking of cathode, separators, and lithium metal anode.

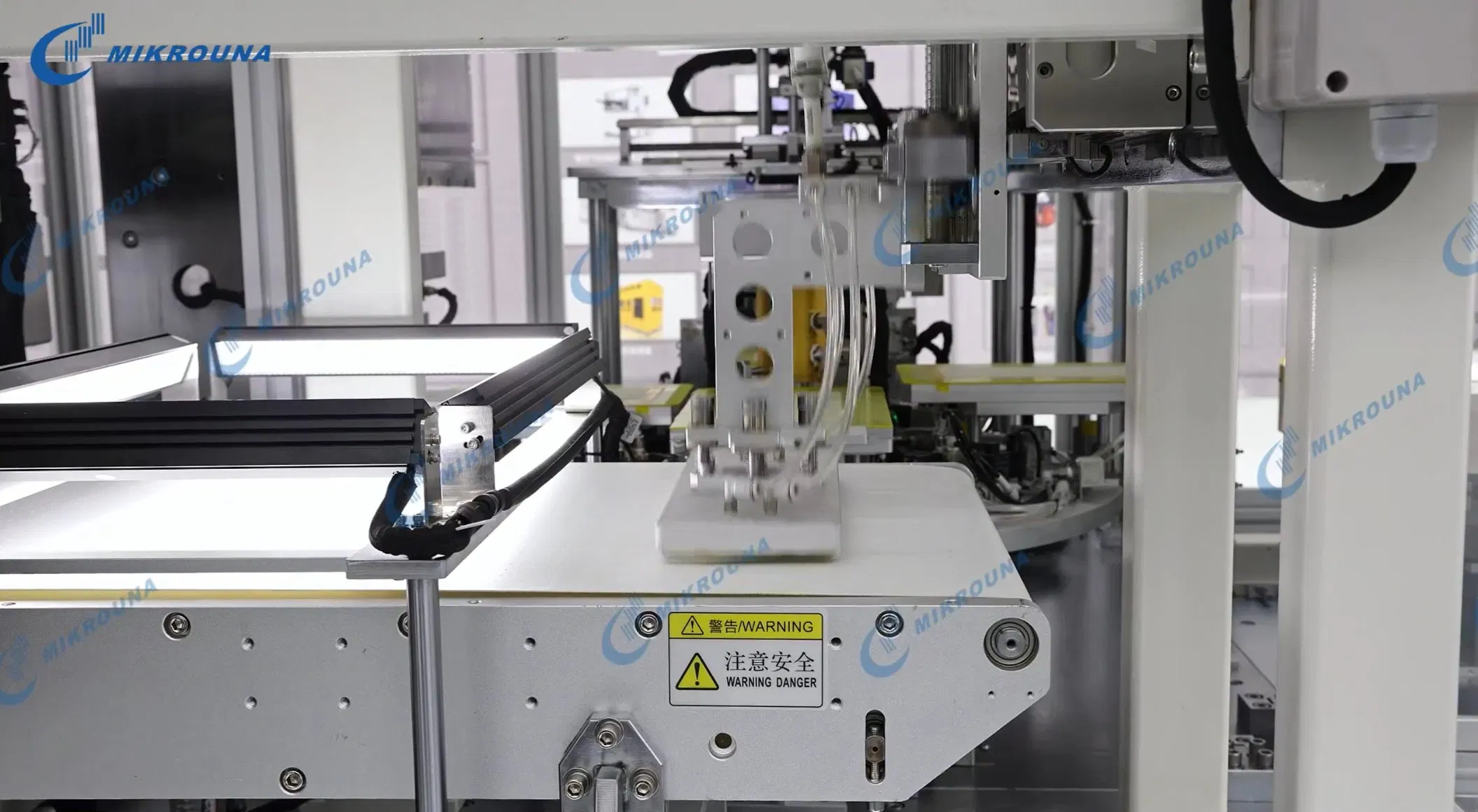

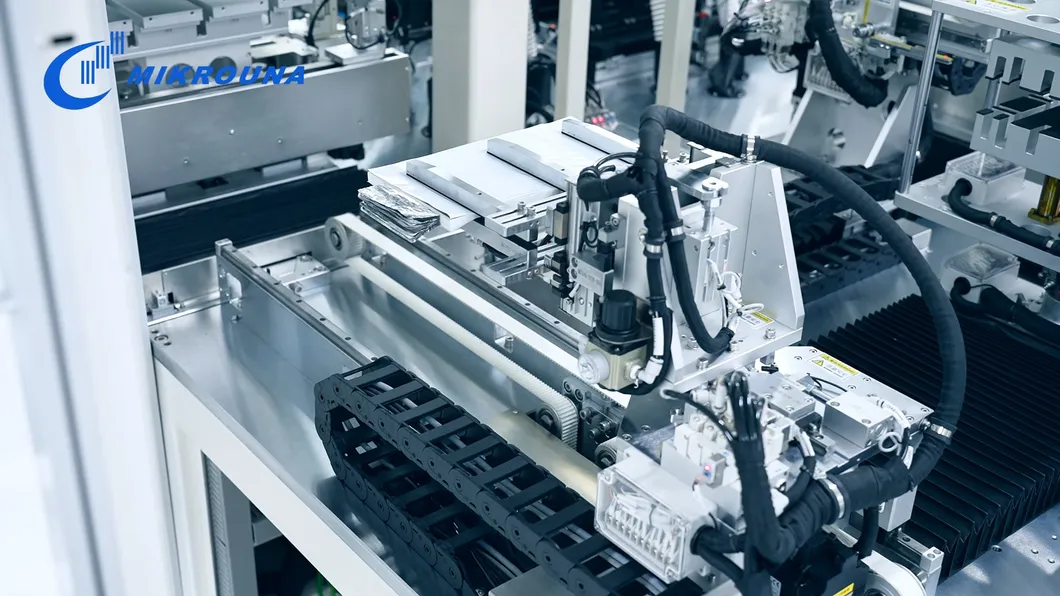

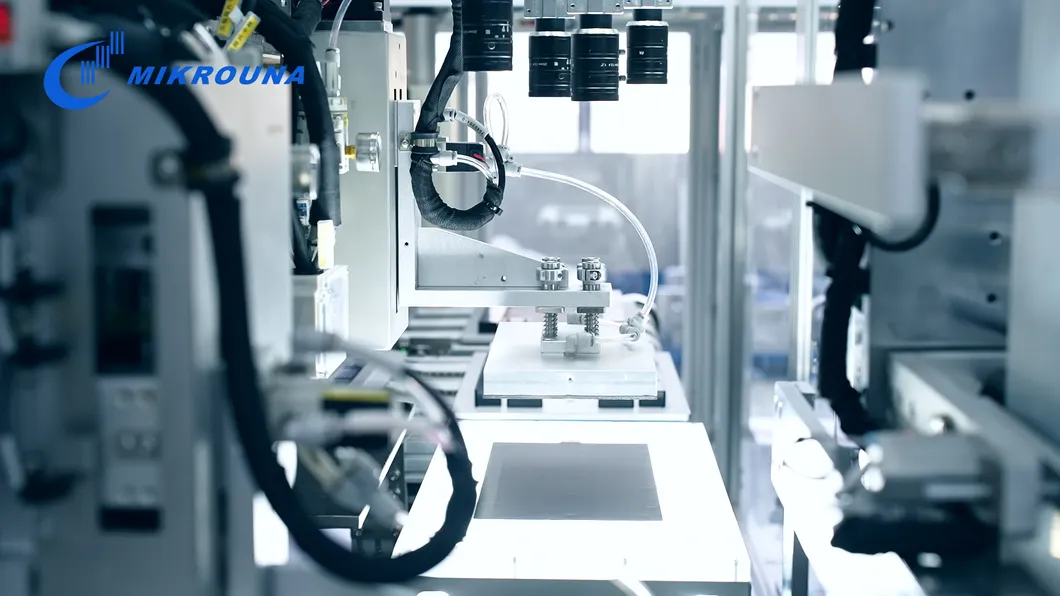

The stacking speed can reach 1pc/1s for lithium metal sheets and 1pc/0.6s for lithium battery electrode sheets. It is equipped with a CCD positioning mechanism to ensure accurate stacking. The system realizes automated production from material loading to unloading of Li-metal battery cells.
The machine operates in drying room environments (-45ºC dew point) and is compatible with Si-C or Graphite cathode cells when used with a sheet-making machine.
| Item | 150 Type Specifications |
|---|---|
| Electrode location mode | Mechanical positioning |
| Single piece efficiency | 0.5-1S/PCS |
| Compatible electrode size | L70-150mm / L50-100mm |
| Stacking table structure | Air cylinder pressure claw |
| Ultrasonic & missing Angle detection | Standard |
| Alignment of adjacent electrode | ≤±0.2mm |
| Overall alignment of electrode | ≤±0.4mm |
| Alignment (Electrode & Separator) | ≤±0.4mm |
| Dusting mode | Top equipped with FFU |
| MES function | Supports docking with MES system |
We are a high-tech enterprise integrating R&D, manufacturing, and service with a registered capital of 107 million RMB. We provide innovative whole-line turnkey solutions for LIB intelligent equipment.

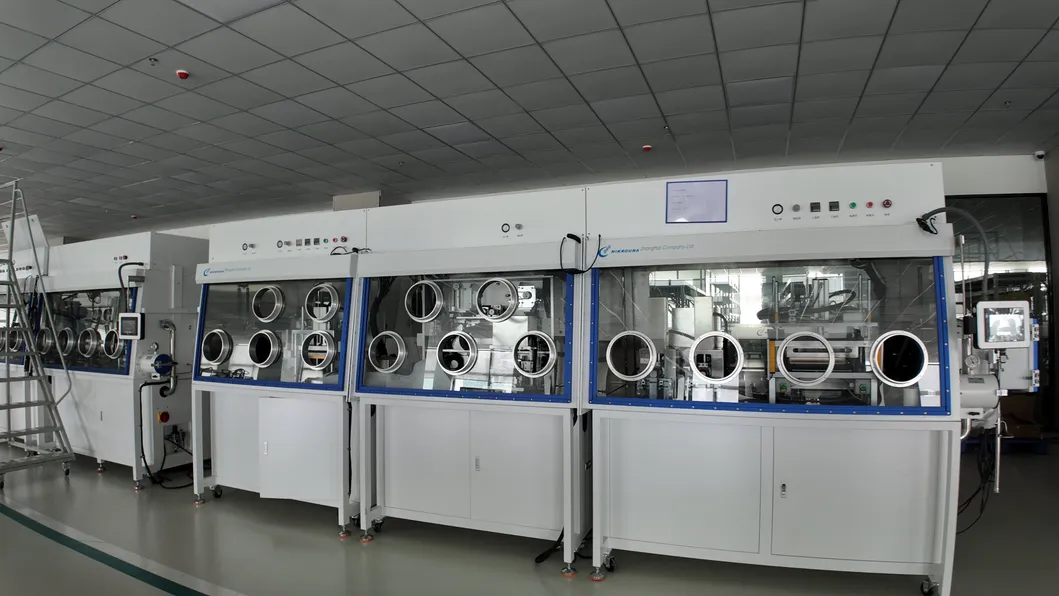

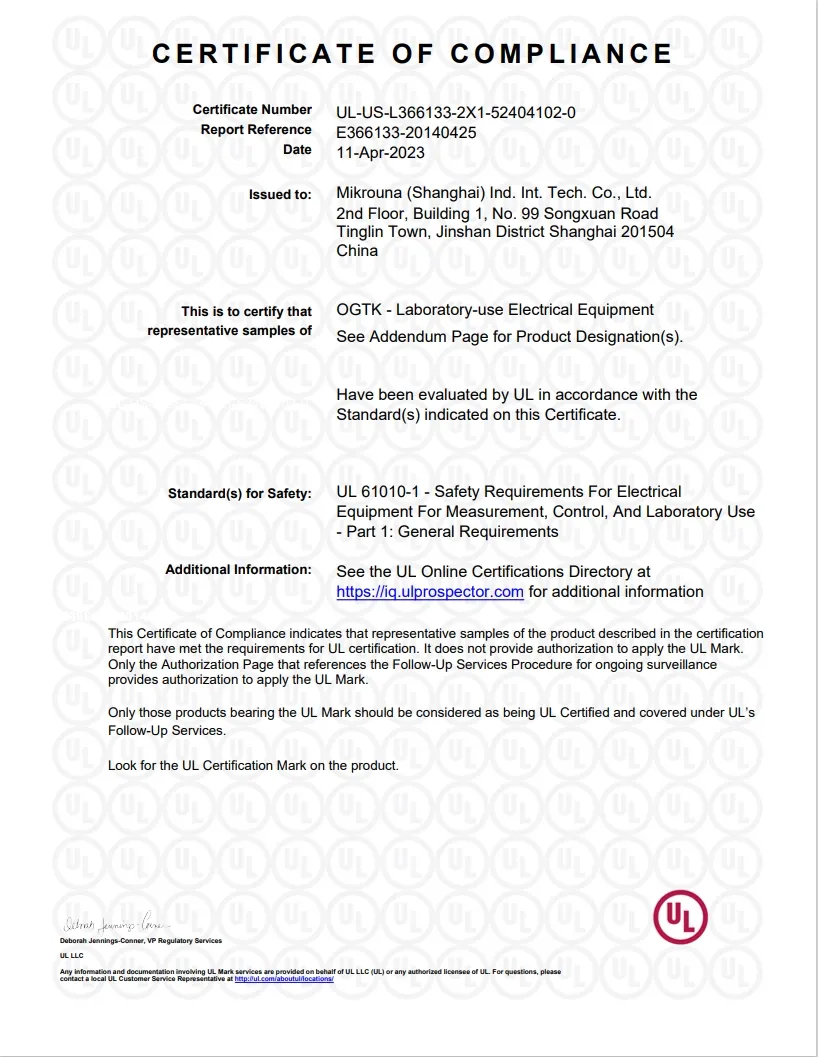

The company holds CE, UL, ISO9001, ISO14001, and IATF16949 certifications. With over 170 patented technologies, we focus on improving internal water content, laser cutting precision, and intelligent glove box control.
We collaborate with industry leaders such as CATL, BYD, LG Energy, EVE, and prestigious universities like Tsinghua and Shanghai Jiao Tong University.
Our equipment is packed using Fumigation-Free wooden boxes and vacuum moisture-proof packaging to ensure perfect condition during transit.
