| Item | Detail |
|---|---|
| Model NO. | MK |
| Applicable Industries | Battery Making |
| Certification | CE, UL, ISO9001 and So on |
| Color | International Warm Grey |
| Output | 12ppm |
| Equipment Excellence Rate | ≥99.6% |
| Single Piece Efficiency | 0.5-1s/PCS |
| Alignment of Adjacent Electrode | ≤±0.2mm |
| Production Capacity | 5000/Year |

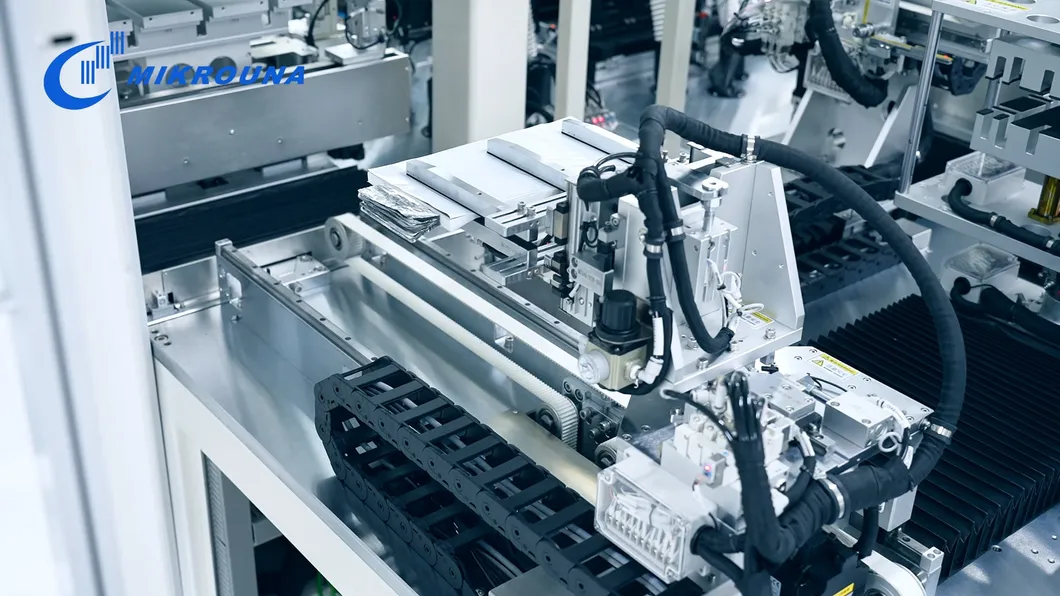

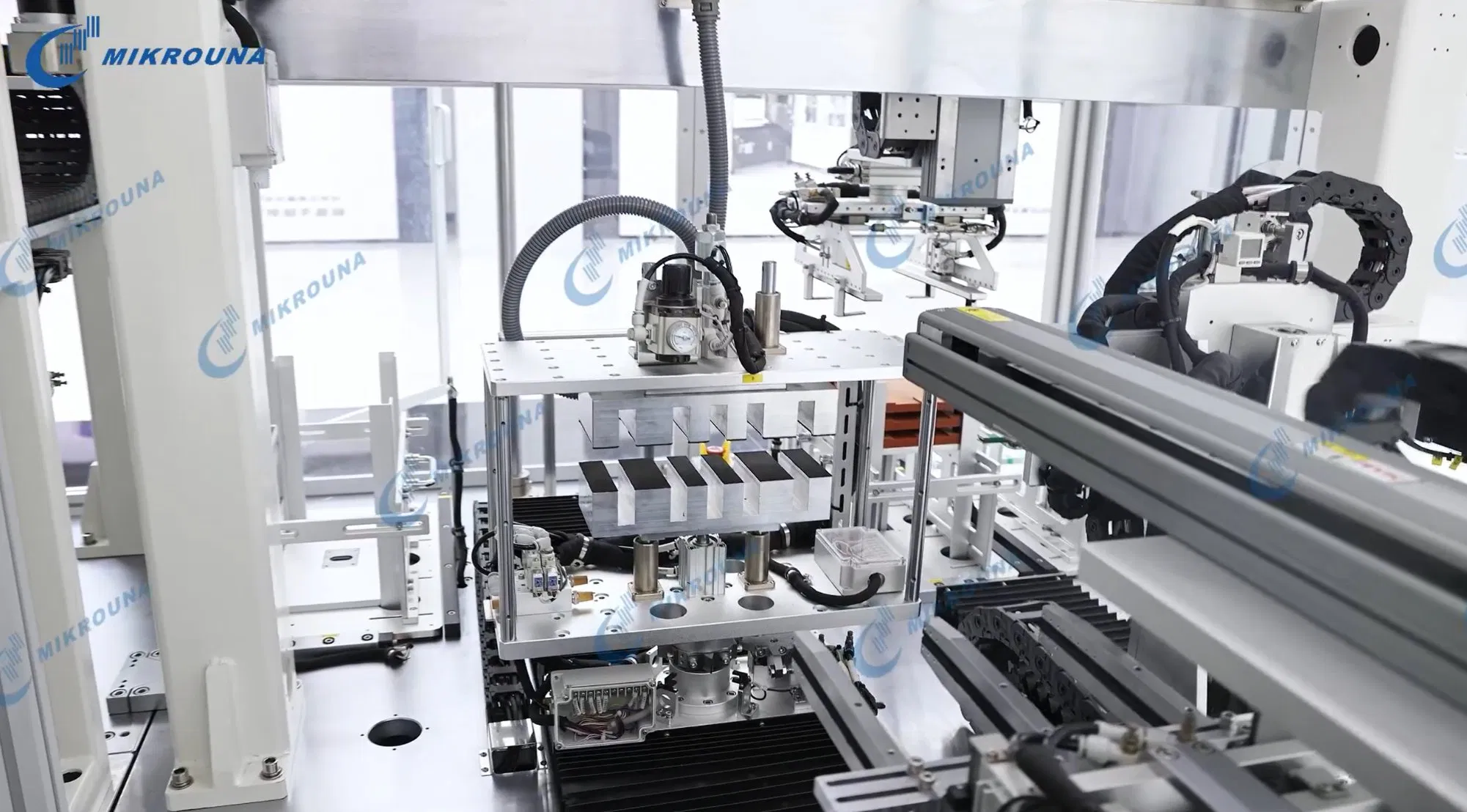

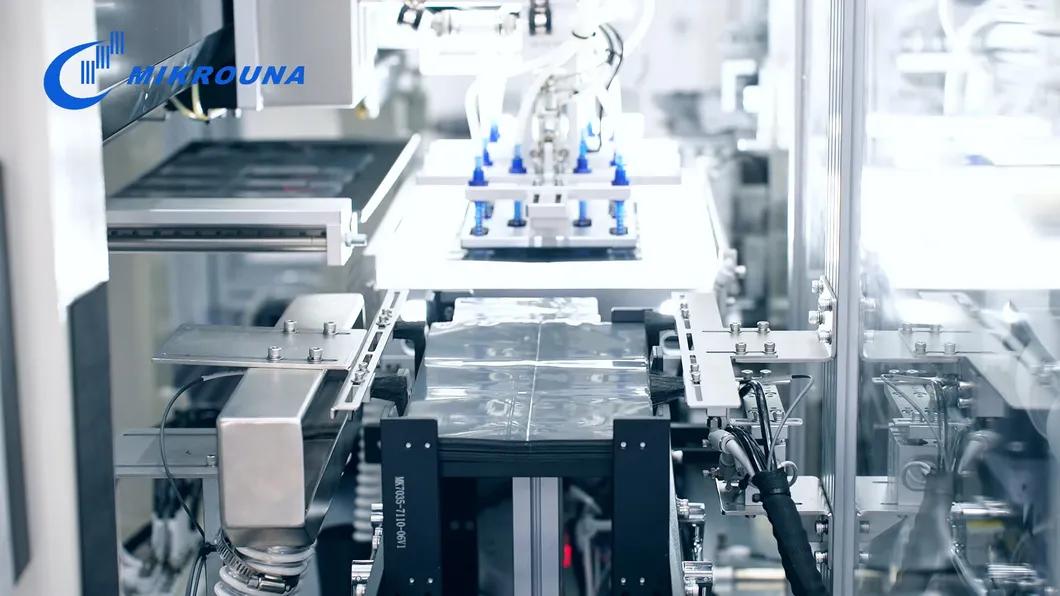

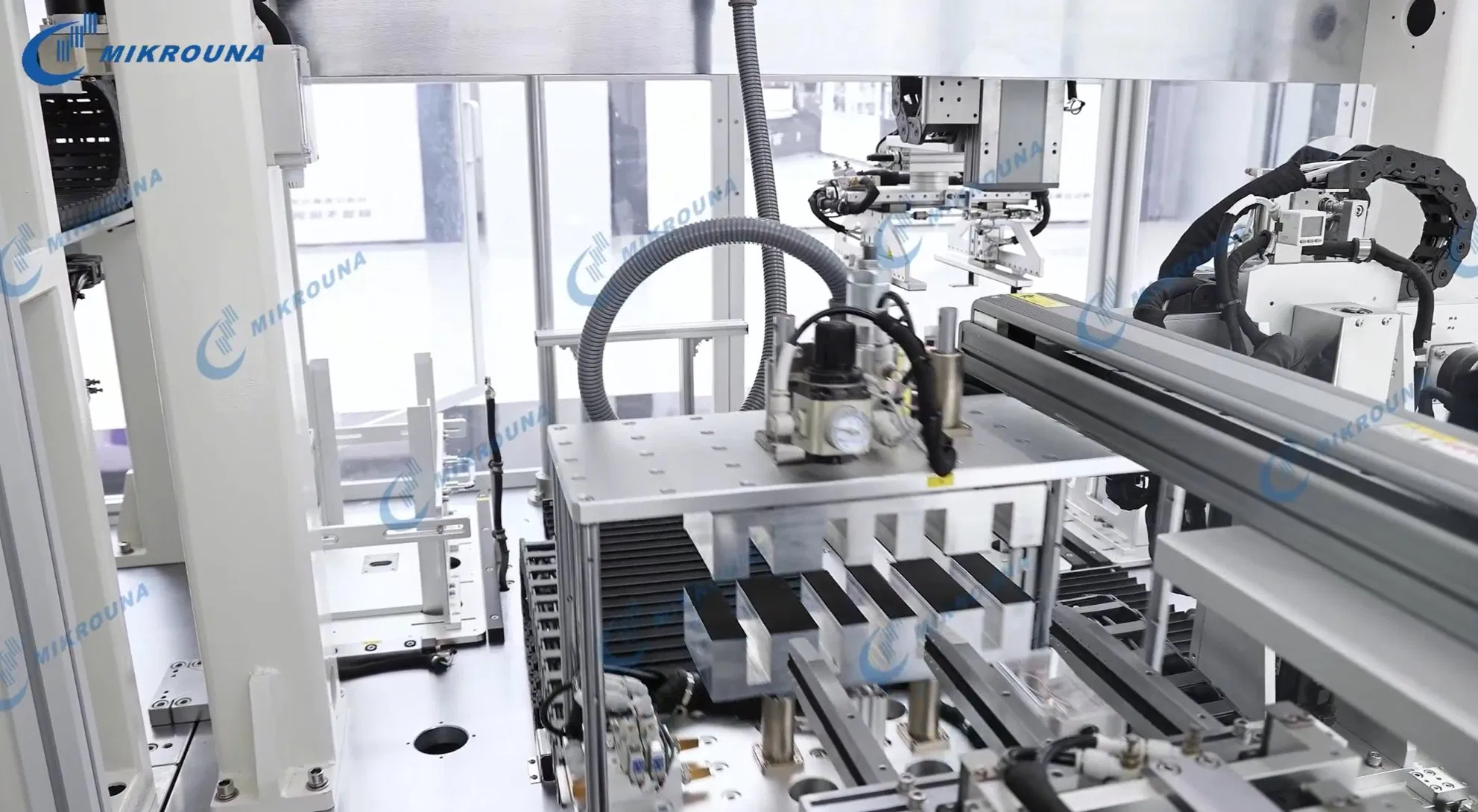

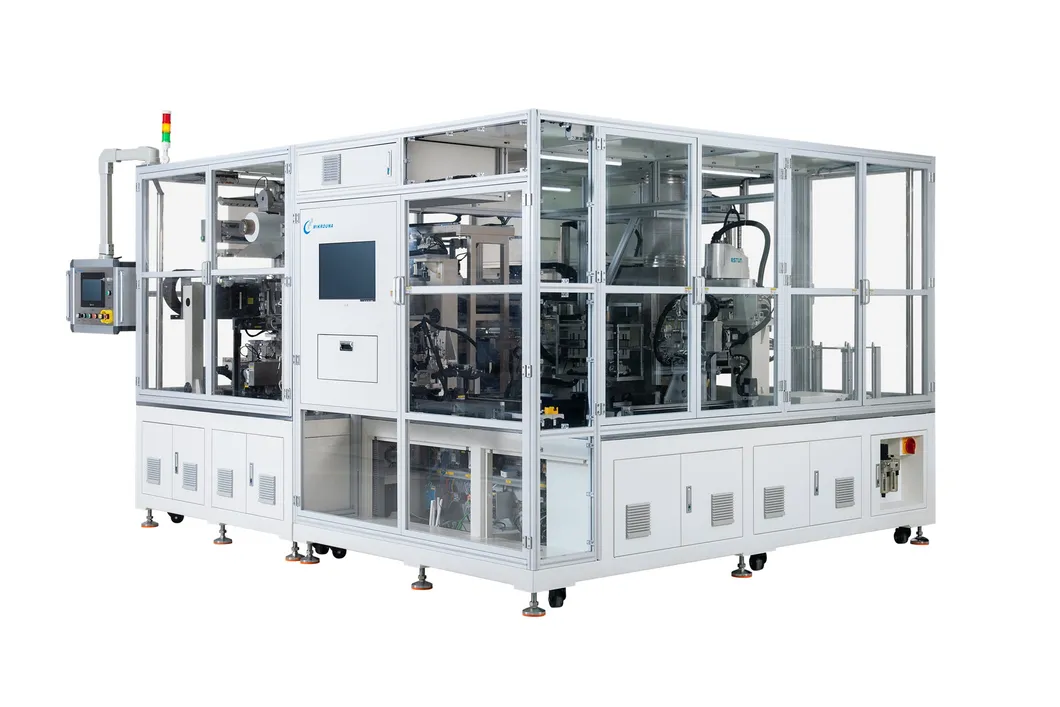

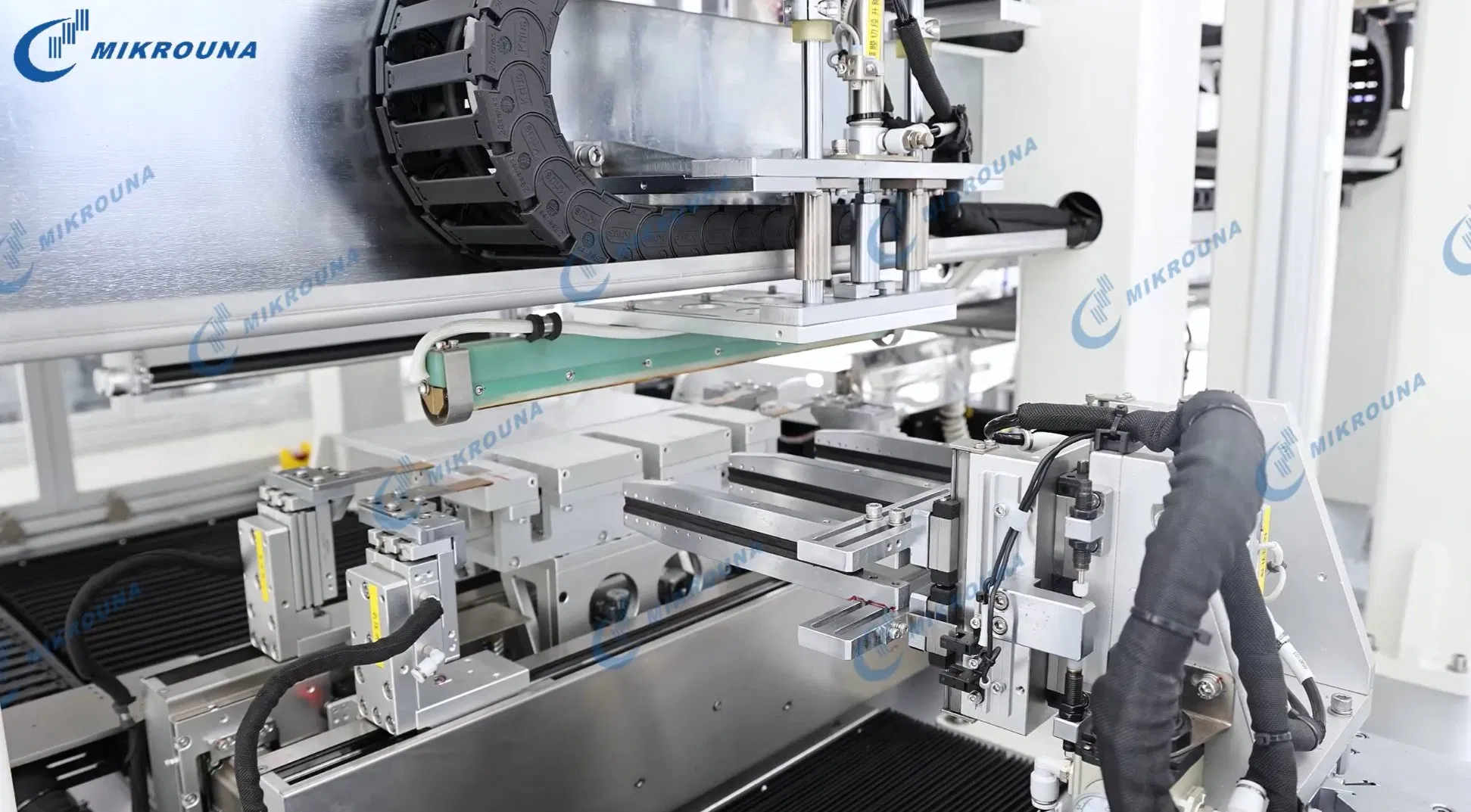

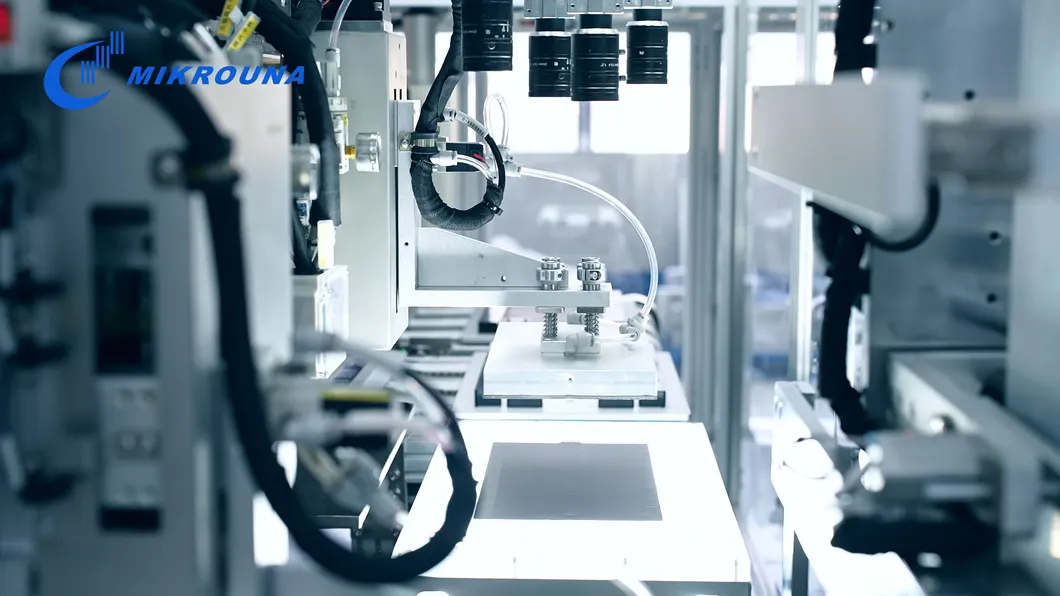

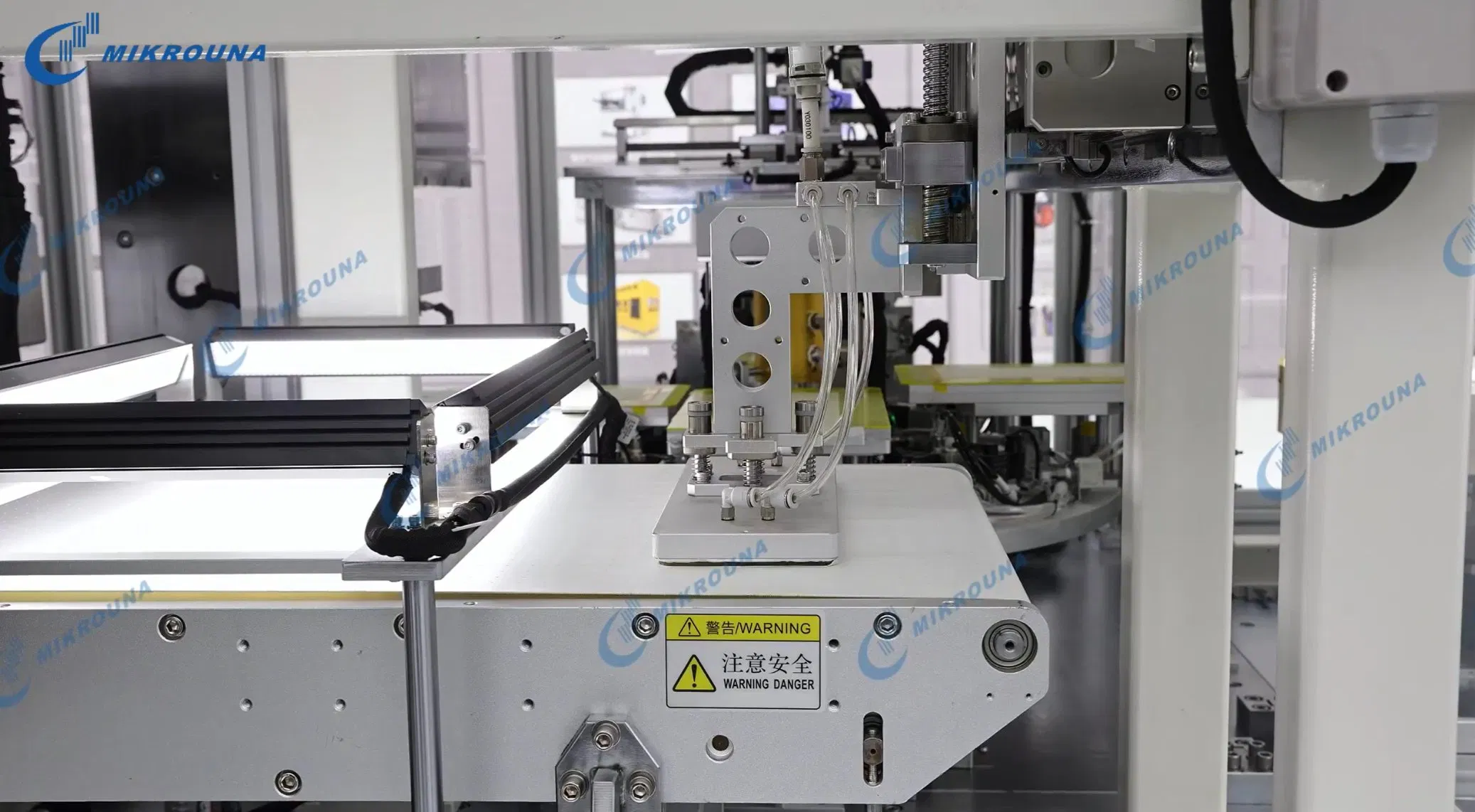

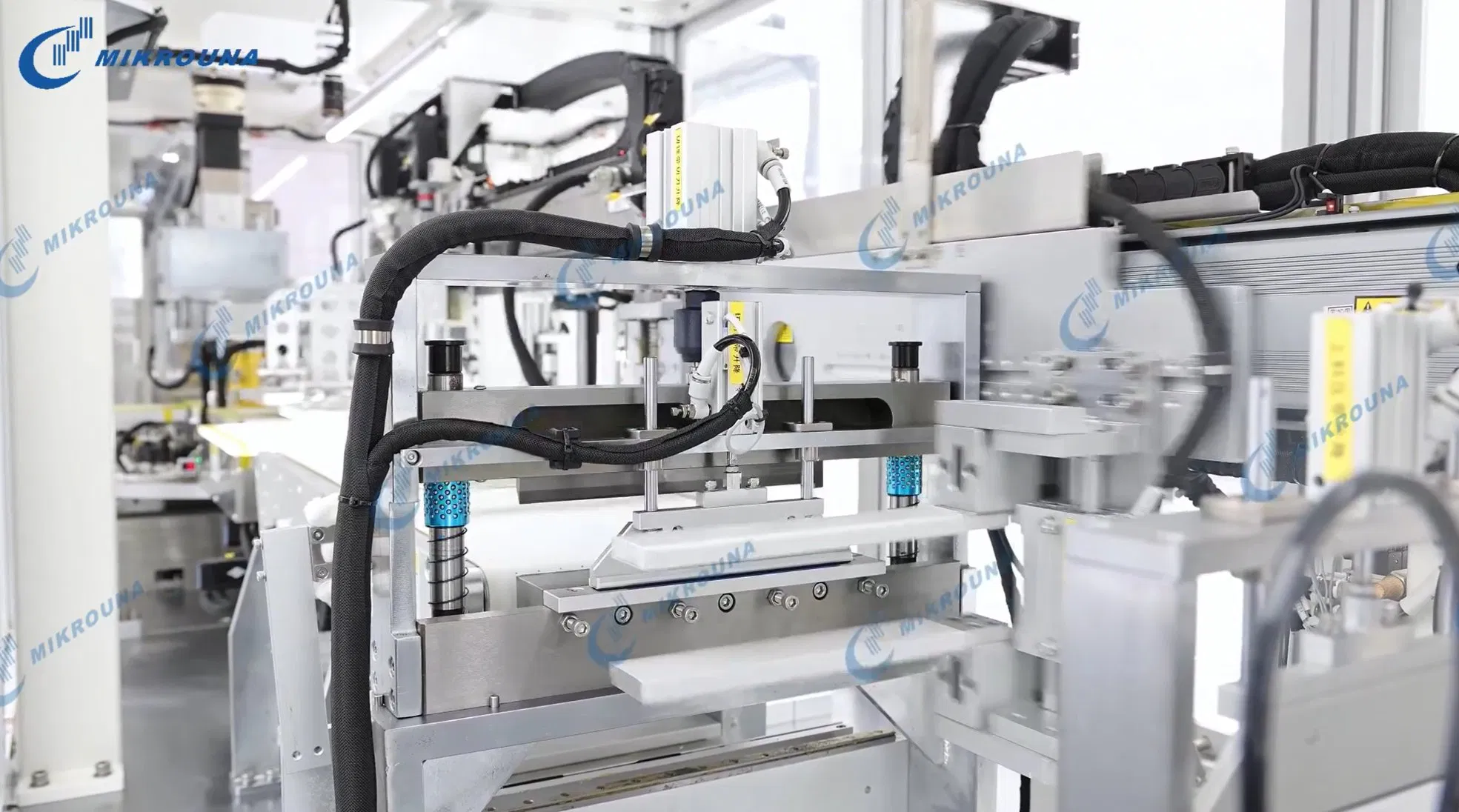

EV Manufacturing Lithium Metal Cutting-Stacking System
Designed for the manufacturing of lithium metal battery cells, it enables the automatic stacking of cathode, separators, and lithium metal anode. The stacking speed can reach 1pc/1s (for lithium metal sheets) and 1pc/0.6s (for lithium battery electrode sheets).

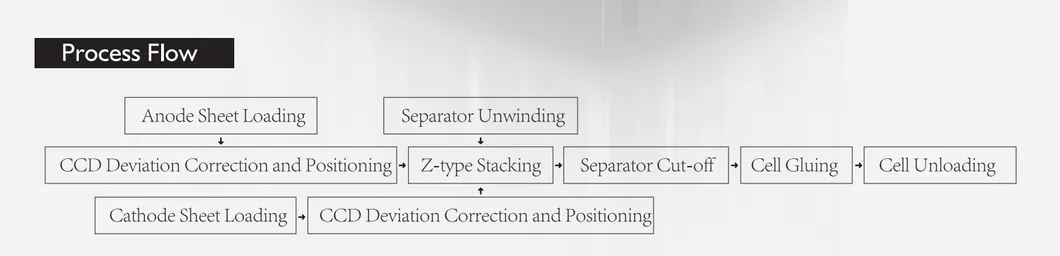

Process Flow:
| Item | 150 Type Specification |
|---|---|
| Electrode location mode | Mechanical positioning |
| Single piece efficiency | 0.5-1S/PCS |
| Compatible electrode size | L70-150mm / L50-100mm |
| Stacking table structure | Air cylinder pressure claw |
| Ultrasonic & missing Angle detection | Standard |
| Alignment of adjacent electrode | ≤±0.2mm |
| Overall alignment of electrode | ≤±0.4mm |
| Separator cut-off and reverse closure | ≤12S |
| MES function | Dockable with MES system |

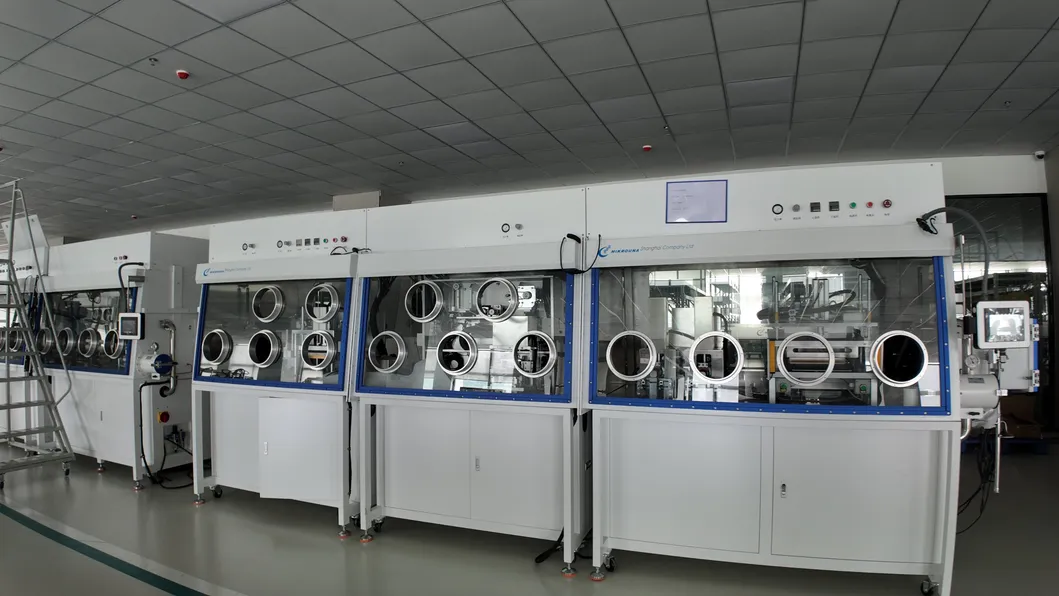

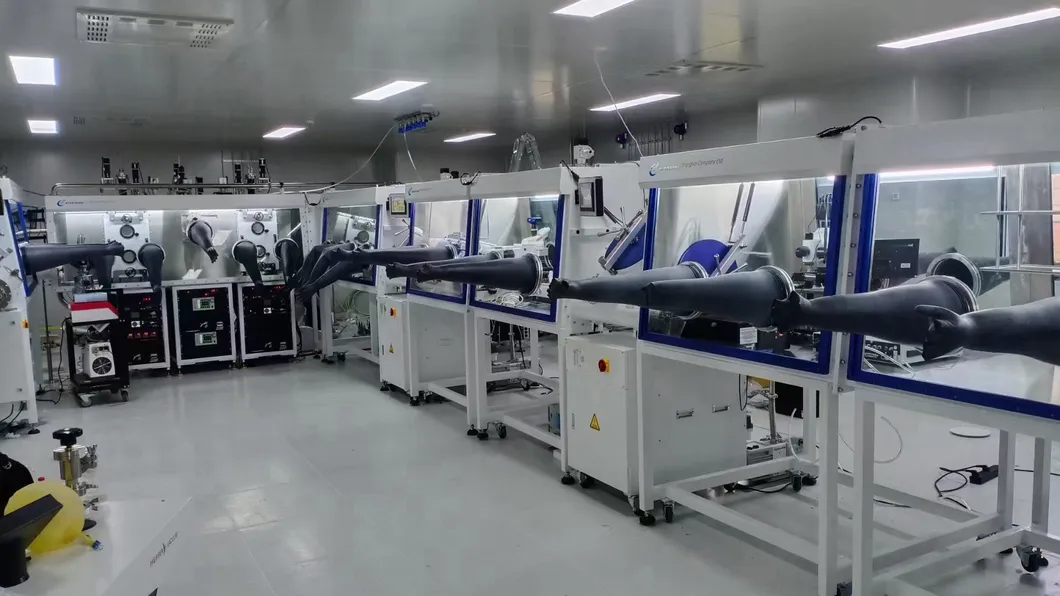

Integrating R&D, manufacturing, sales, and service, we are a leading LIB intelligent equipment manufacturer, providing customers with innovative whole line turnkey solutions. We customize lithium battery equipment and glove boxes according to specific needs.
Workforce & Expertise: Over 700 employees, including over 200 engineering and technical personnel and more than 400 skilled workers. Our core technical team comes from prestigious domestic universities.

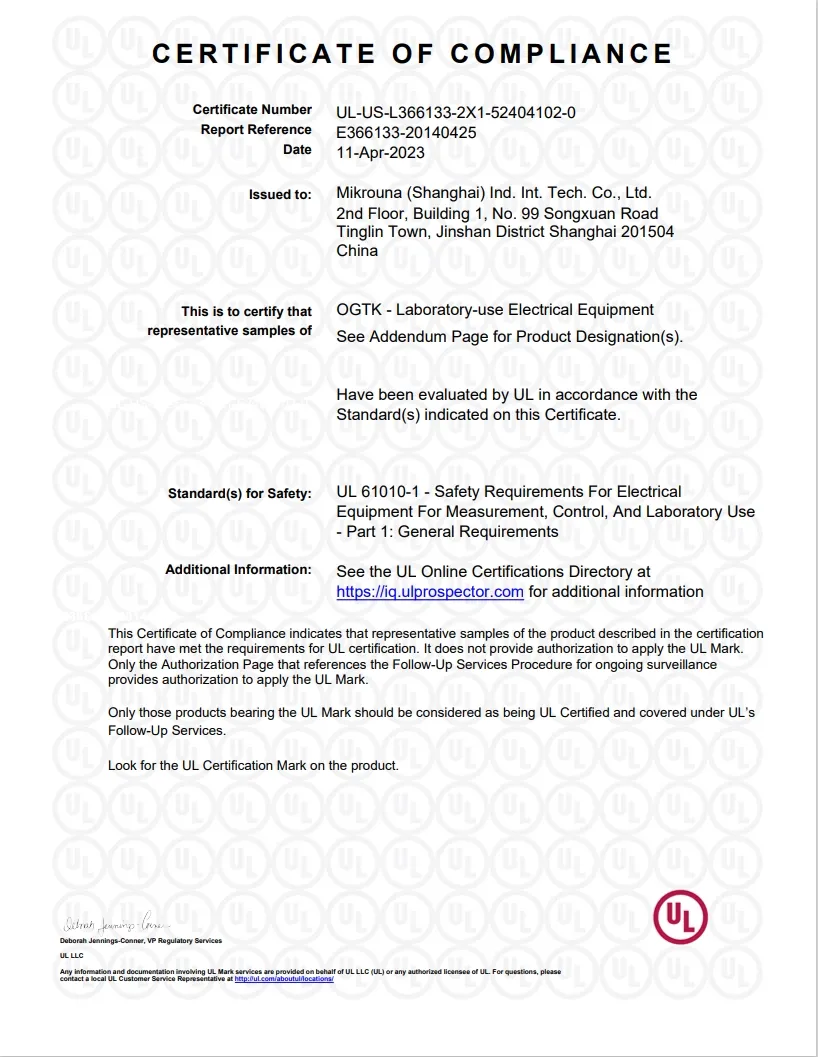

Certifications: CE, UL, ISO9001, ISO14001, ISO45001, IATF16949, and many national advanced technology certifications.
Inventions and Patents: Owning over 170 patented technologies, including laser cutting devices, intelligent glove box control methods, and high-efficiency vacuum structures.
Trusted by major industry leaders including CATL, BYD, WELION, LG Energy, EVE, and top-tier academic institutions like Tsinghua University and Fudan University.
