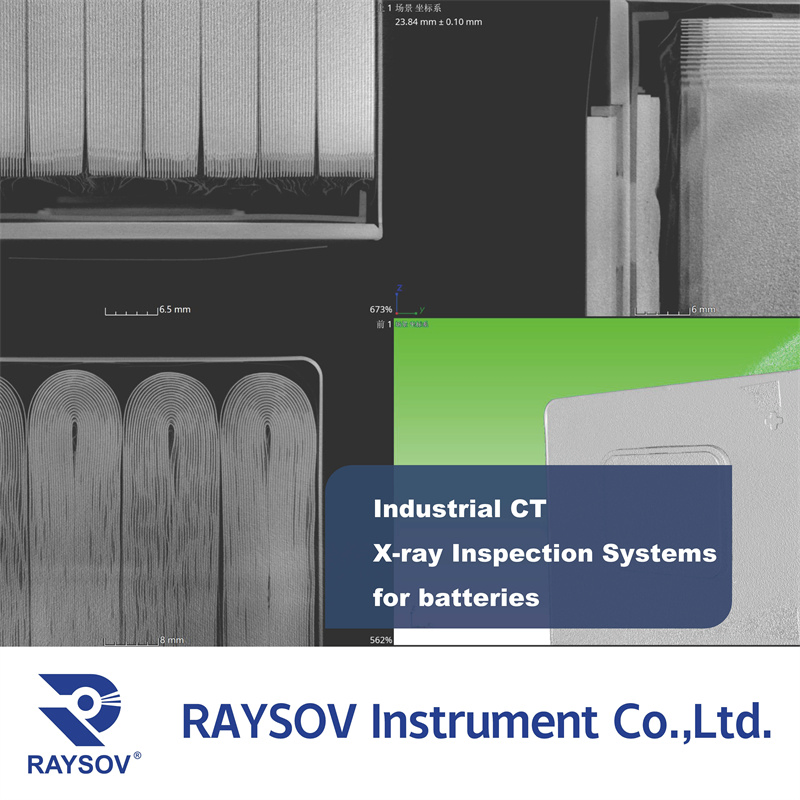

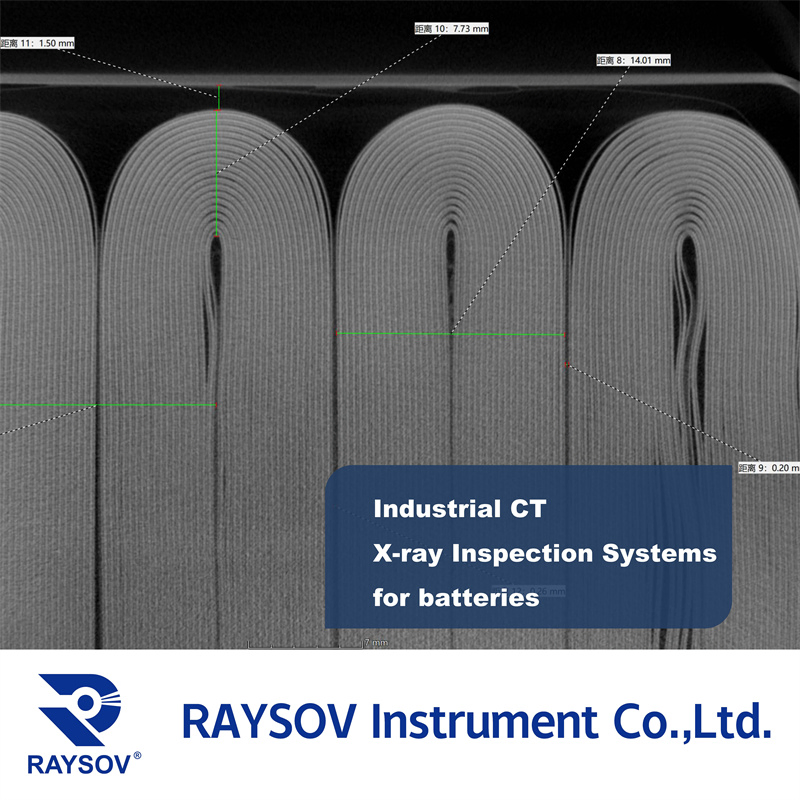

Industrial CT technology provides significant advantages for lithium-ion battery measurement and analysis. It allows for non-destructive inspection of internal structures, material composition, and defect status in either 2D sectional or 3D images.
Check open circuits in electrode ear welding, detect stack alignment of power cells, and measure negative layer overhang beyond the positive length.
Find maximum, minimum, and average shell depth, roll size, and other critical internal geometry data.
Identify welding leaks, dislocation ratios, and core distances to ensure curb-to-market quality of safe batteries.
Detect defects in critical components such as aircraft engine blades, super-alloy composites, and additive manufacturing parts.

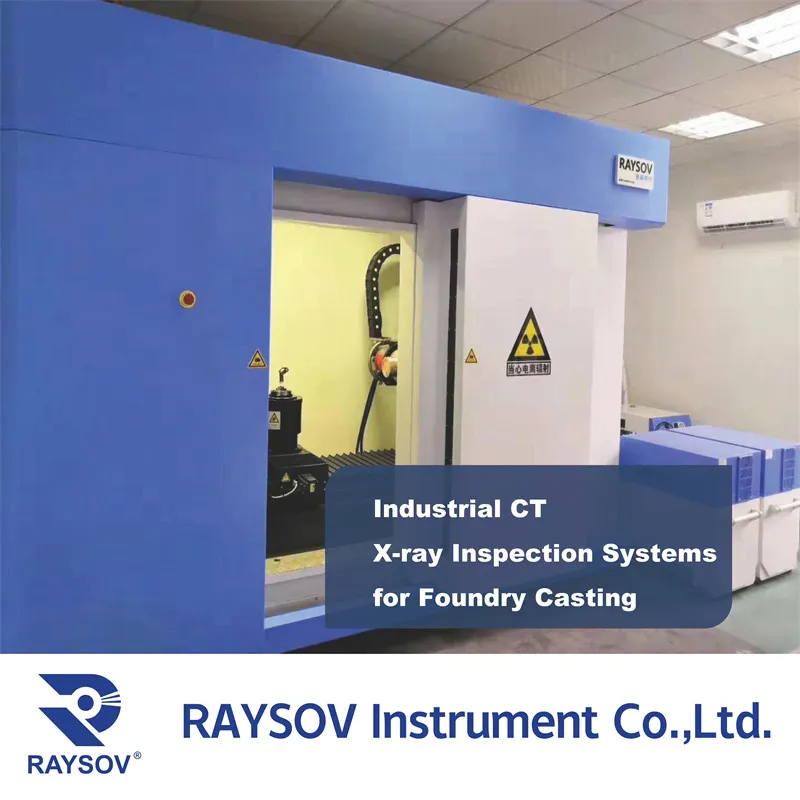

Inspection of blisters and pores inside castings, and quality control for welded structural parts.
High-accuracy detection of electronic component packaging, battery cells, and micro-structures.
Geological structure analysis and composite material research with high-performance data support.

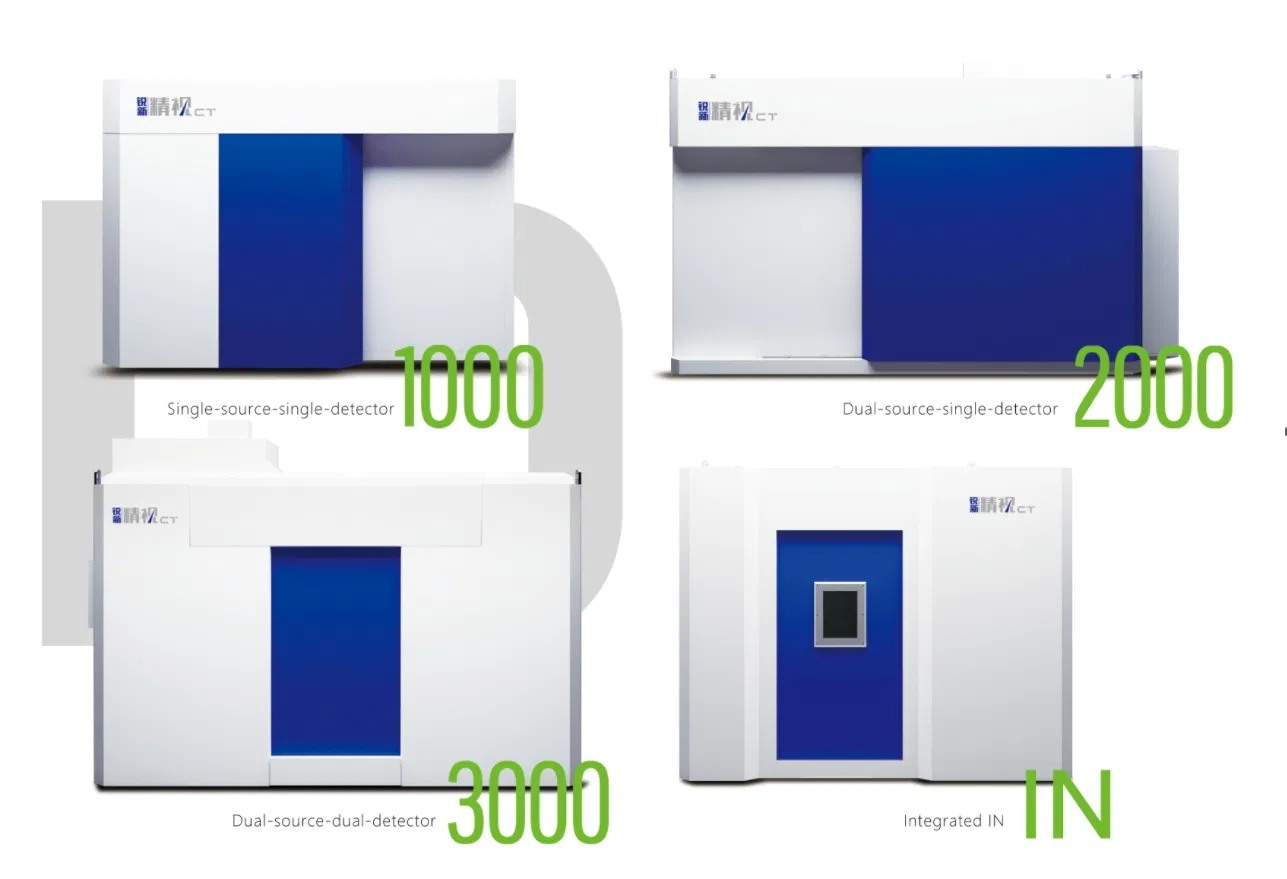

| Model Parameter | ZXVoxel U | ZXVoxel A | ZXVoxel C | ZXVoxel D-IN |
|---|---|---|---|---|
| Standard scan range (mm) | D=100 H=100 | D=250 H=200 | D=250 H=250 | D=330 H=330 |
| Max. object size (mm) | D=200 H=200 | D=400 H=500 | D=500 H=500 | D=550 H=700 |
| X-ray source | 100kV 5μm | 160/225kV 0.4μm | 160/225/300kV 3μm | 160-450kV 0.4mm |
| X-ray detector | 13x13cm 85μm | 25x30cm 100μm | 43x43cm 100μm | 43x43cm 100μm |
| Max. object weight (kg) | 10 | 50 | 50 | 50 |

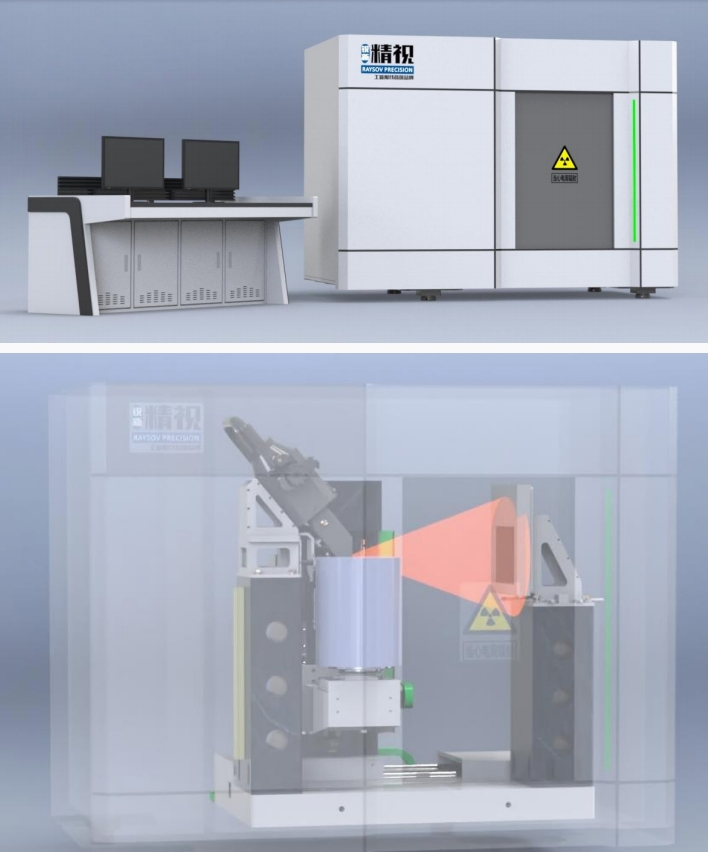

| Description | Benchtop CT | Source fixed, rotation stage movement | Source fixed, rotation stage lift | Integrated IN system |

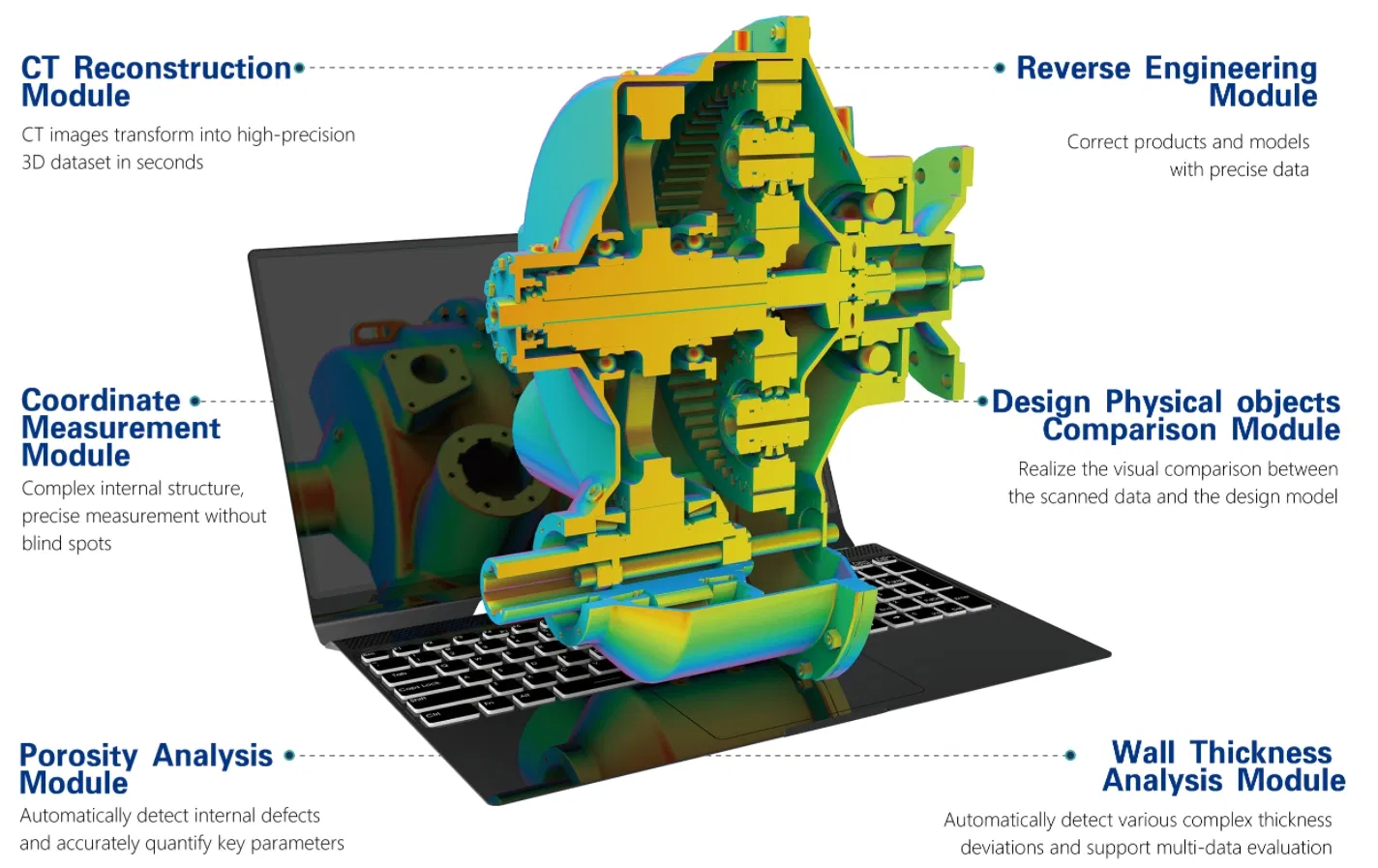

Our powerful data processing software features precise analysis functions with various optional modules:

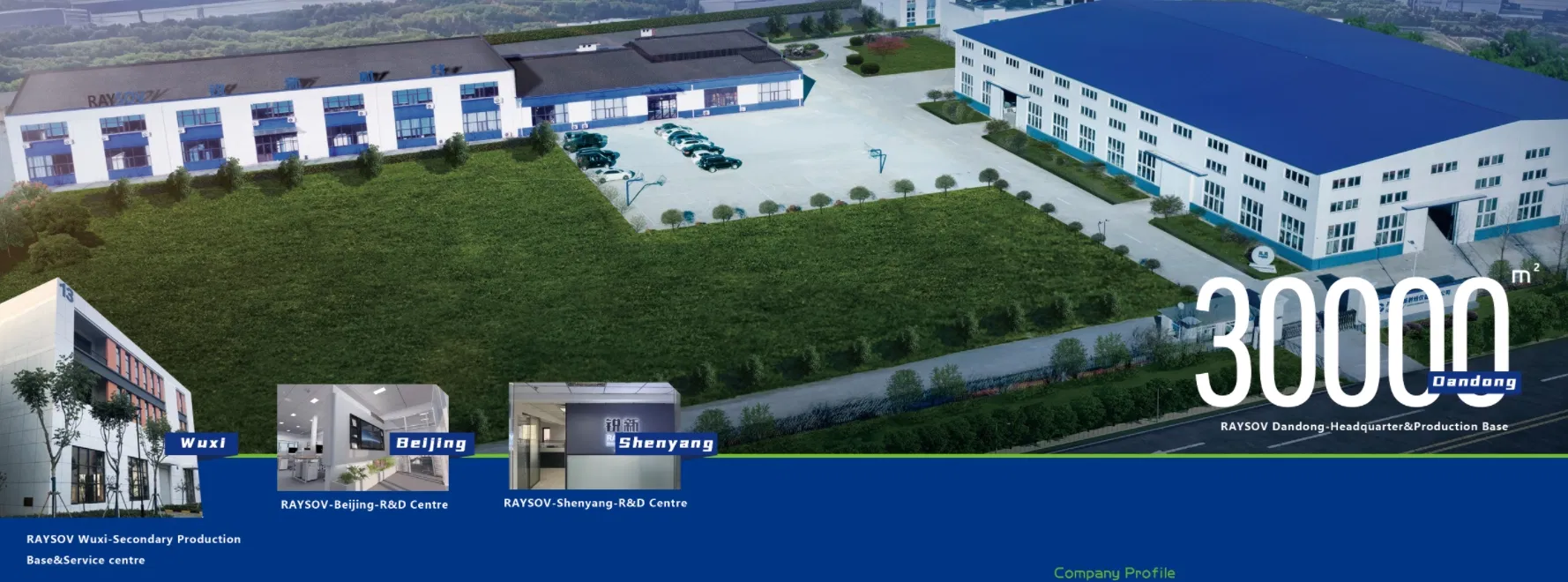

Established manufacturing expertise since 2009 with ISO9001, ISO14001, and ISO45001 certifications.
Complete custom-built solutions including installation, fast shipping, and customs clearance support.
12-months warranty with 24/7 technical assistance and global spare parts supply.
