Advanced X-ray Imaging System for 2D and 3D Analysis

Customization:	Available
After-sales Service:	Lifelong Services
Warranty:	12months

Technical Overview

Model

ZXV CT-3D Tomography

Form

Cabinet Type

Application

Security Check, Industrial NDT

Detection Type

High-definition X-ray Detector

Certification

CE, ISO

X-Ray Tube

Micro/Nano Focus Source

Mechanical

Multi-Axis Movement

Control System

CNC Test Process Program

HS Code

9022909090

Protection

National Standard Lead Shielding

Product Description

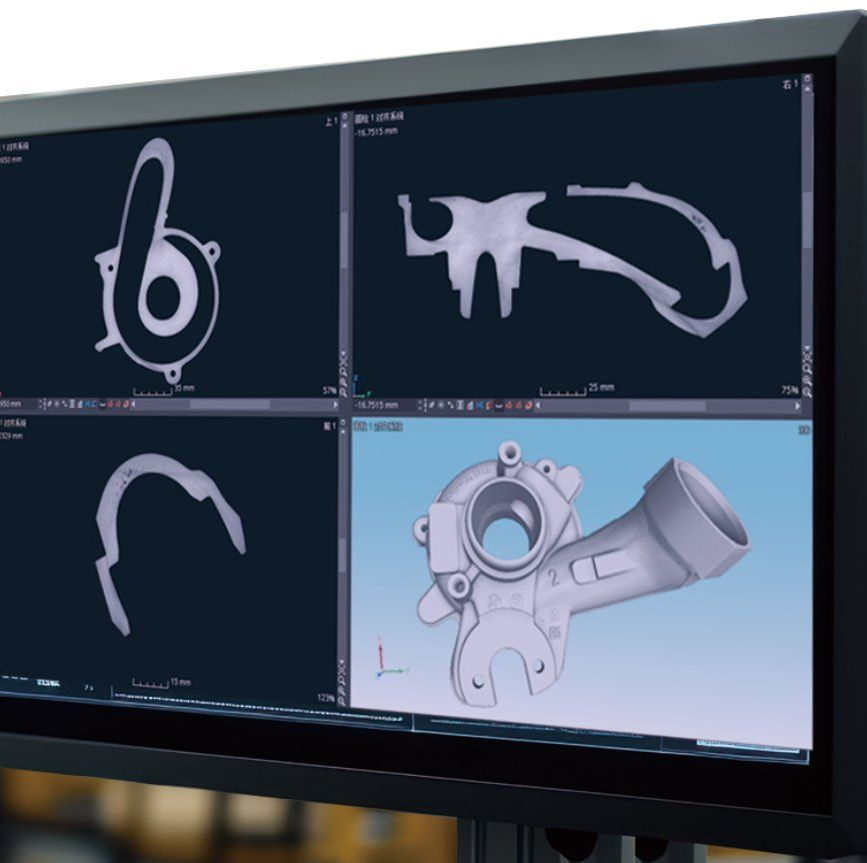

High Precision Industrial CT (Computed Tomography) X-ray 3D Inspection System is designed for advanced lithium-ion battery NDT analysis and industrial component measurement. It intuitively displays internal structures, material composition, and defect status in two-dimensional sectional or three-dimensional images.

⚙️

Battery Analysis

Detect stack alignment, measure negative/positive layer lengths, find min/max gaps, and check electrode ear welding quality.

🔍

Defect Detection

Identify pores, cracks, inclusions, and density distribution in composite materials and precision castings.

📊

Metrology

High-precision dimensional measurement, CAD comparison, and wall thickness analysis for complex geometries.

Technical Specifications

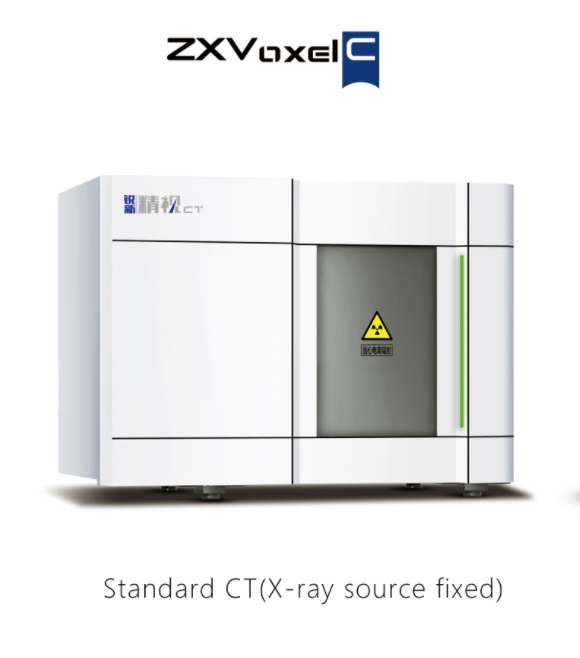

Parameter	ZXVoxel U	ZXVoxel A	ZXVoxel C	ZXVoxel D-IN
Standard Scan Range (mm)	D=100 H=100	D=250 H=200	D=250 H=250	D=330 H=330
Max Object Size (mm)	D=200 H=200	D=400 H=500	D=500 H=500	D=550 H=700
X-ray Source	100kV 5μm	160/225kV 0.4μm	160/225/300kV 3μm	160/225/320/450kV
Detector Resolution	85μm	100μm	100μm	100μm
Max Weight (kg)	10	50	50	50

Why Choose Our Solutions

We are a prominent manufacturer of advanced X-ray non-destructive testing and evaluation instruments. We provide high-end automated industrial DR and CT inspection solutions globally, holding ISO9001, ISO14001, and CE certifications. Our technology is supported by independent intellectual property rights and numerous national invention patents.

Frequently Asked Questions

What is the typical lead time for equipment orders?

Standard models are usually ready within 3 months, while fully customized units require approximately 6 months for engineering and production.

Do you provide international after-sales support?

Yes, we provide global technical assistance, including 24/7 remote support, onsite maintenance, and spare parts supply through our partner network.

Can the CT system be customized for specific battery types?

Absolutely. We offer tailored solutions for Li-ion batteries, blade batteries, cylinders, and soft pack batteries to meet specific inspection requirements.

What certifications do your X-ray systems hold?

All our systems are CE and ISO certified, ensuring compliance with international safety and quality standards for radiation protection and mechanical performance.

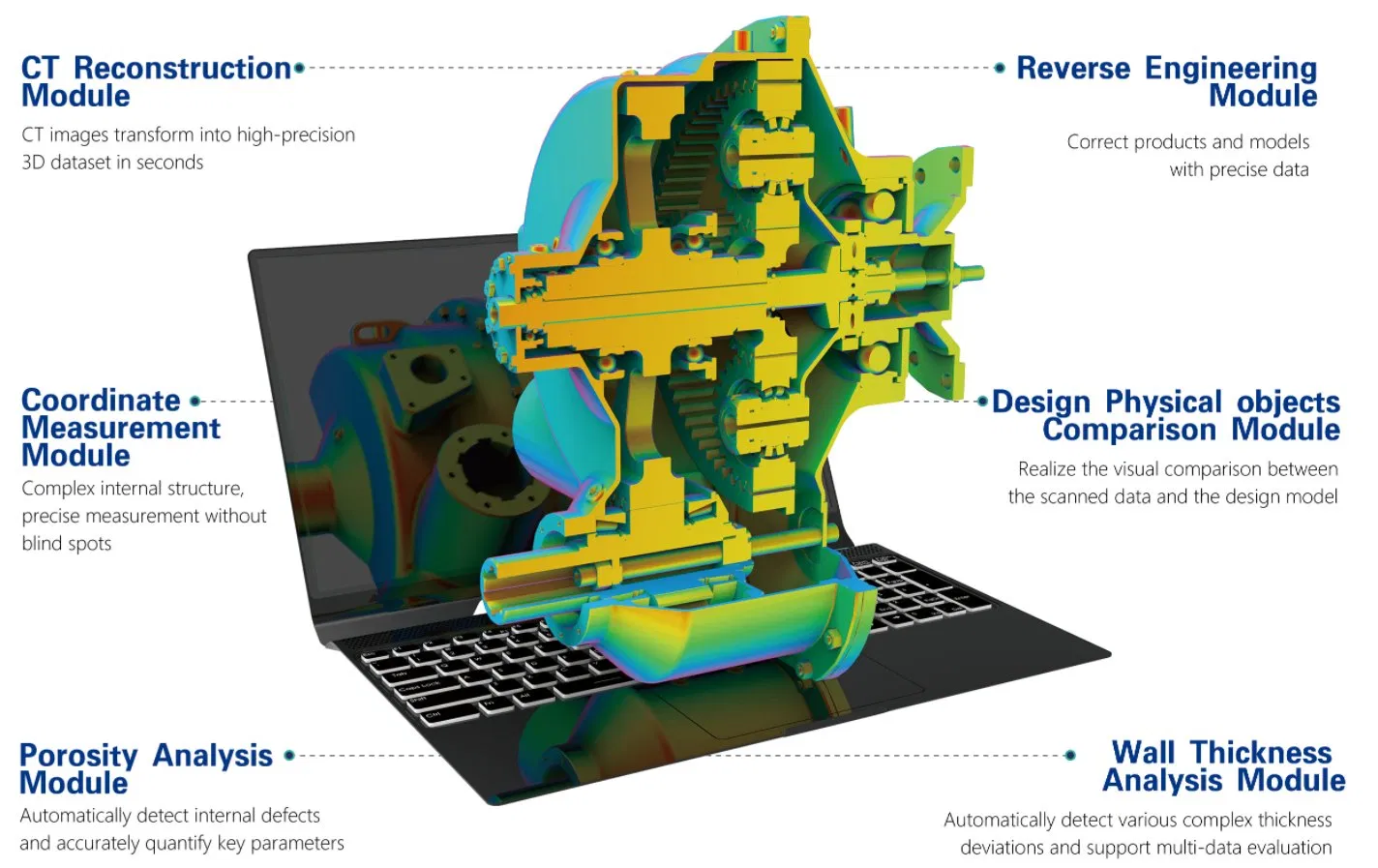

What software capabilities are included for 3D analysis?

Our systems include 3D reconstruction, pore/inclusion analysis, wall thickness analysis, and CAD comparison modules for comprehensive evaluation.

How do I receive a formal quote?

Please provide your technical requirements and sample specifications to our sales team, and we will issue a detailed quotation and project solution.
