Industrial X-ray Microfocus CT Battery Computed Tomography High-Precision Detection System

Customization:	Available
After-sales Service:	Along Lifetime Services
Warranty:	12months

i

Basic Information

Model NO.

ZXVoxel C-Type

Type

Industrial High-definition X-ray Detector

Application

Security Check, Industrial NDT

X-ray Source

Metal Ceramic X-ray Tube / Micro Tube

Penetration Level

160kv to 600kv Optional

Certification

CE, ISO

Mechanical System

High-Precision Griotte Platform

Focus

3/5 micronmeter

✓

Product Description

High-Precision Industrial CT (Computed Tomography) X-ray 3D Inspection System
Industrial CT technology offers intuitive internal structure visualization, material composition analysis, and defect detection in 2D sectional or 3D images. This cutting-edge nondestructive testing (NDT) technology is widely used for composite materials, battery cells, and complex industrial components.

Key Advantages for Lithium-ion Battery Analysis:

Detection of stack alignment in power cells and winding alignment in cylinder batteries.
Measurement of negative layer extension beyond positive plate length.
Identification of open circuits in electrode ear welding and core dislocations.
Analysis of shell depth, roll size, and welding integrity to reduce quality risks.

System Structure

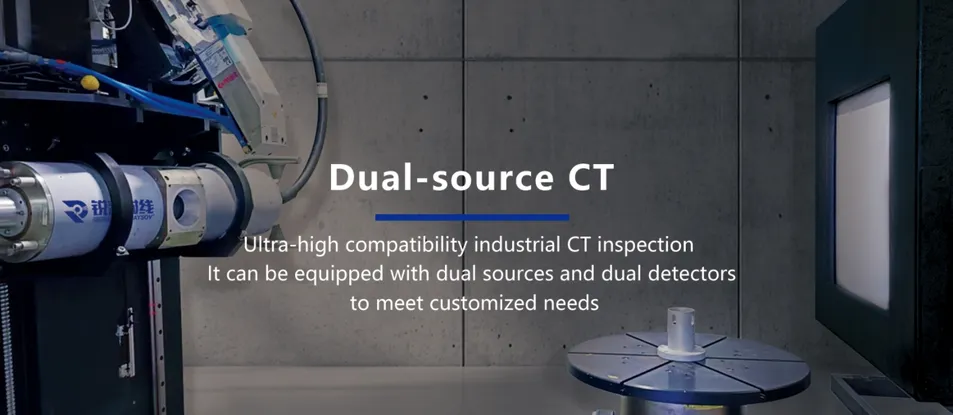

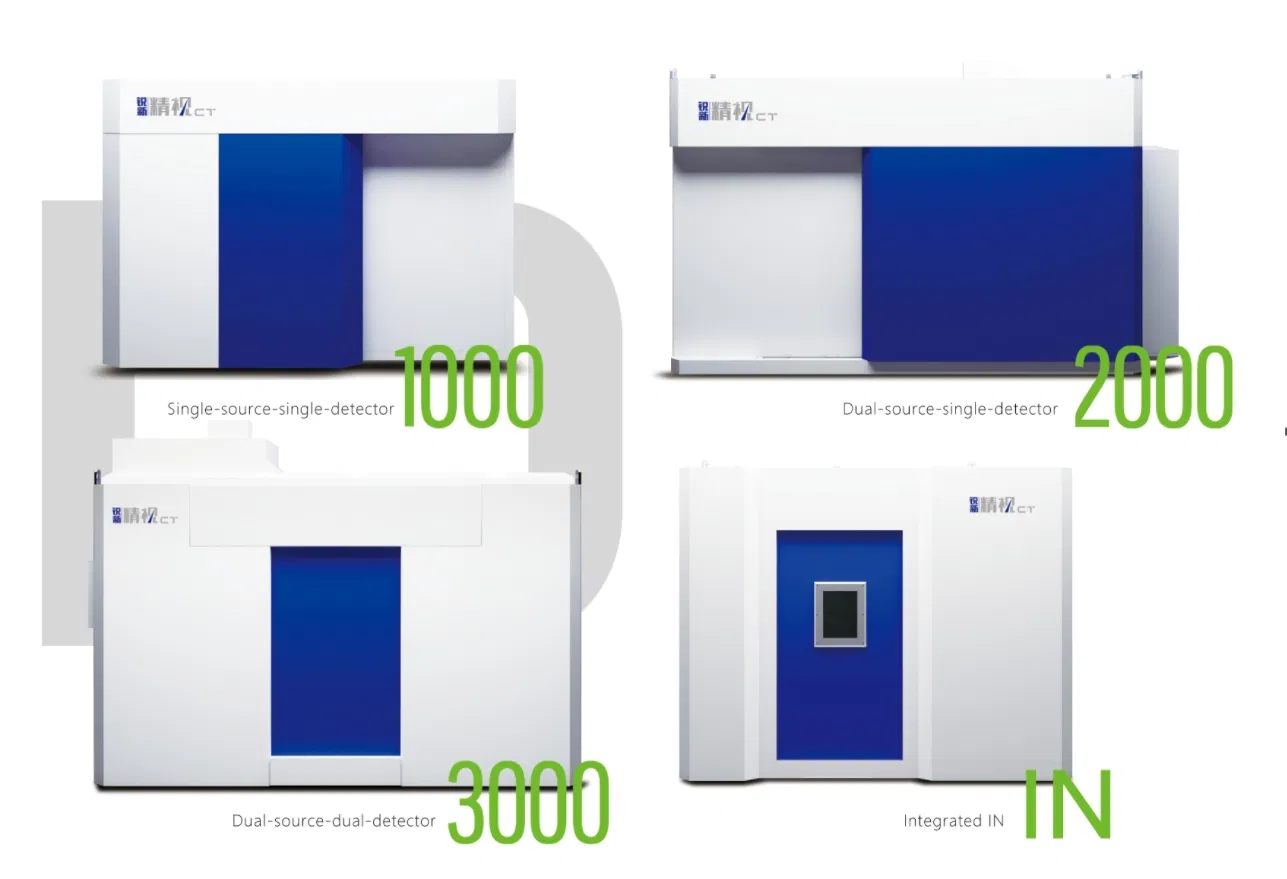

Available in single-source-single-detector (D1000), dual-source-single-detector (D2000), and dual-source-dual-detector (D3000) configurations.

Focus Variations

Support for Nano-CT (sub-microfocus), Micro-CT (microfocus), Standard CT (small focus), and High-energy LINAC CT.

Specific Applications

Optimized for Li-ion batteries, turbine blades, cylinders, additive manufacturing (AM), and precision casting.

★

Industry Applications

Aerospace

Detection of defects in engine blades, super-alloy composites, and 3D printed parts for maximum reliability.

Automotive

Inspecting castings for pores/blisters and ensuring the quality of critical welded parts.

Electronics

Internal inspection of semiconductor packages, battery cells, and micro-structures.

Research

Support for geological analysis, material science, and structural mechanics simulation.

⚙

Technical Specifications

Parameters	ZXVoxel U	ZXVoxel A	ZXVoxel C	ZXVoxel D-IN
Standard Scan Range (mm)	D=100 H=100	D=250 H=200	D=250 H=250	D=330 H=330
Max. Object Size (mm)	D=200 H=200	D=400 H=500	D=500 H=500	D=550 H=700
X-ray Source	100kV 5μm	160/225kV 0.4μm	160/225/300kV 3μm	160/225/320/450kV
X-ray Detector	13x13cm 85μm	25x30cm 100μm	43x43cm 100μm	43x43cm 100μm
Max. Object Weight (kg)	10	50	50	50

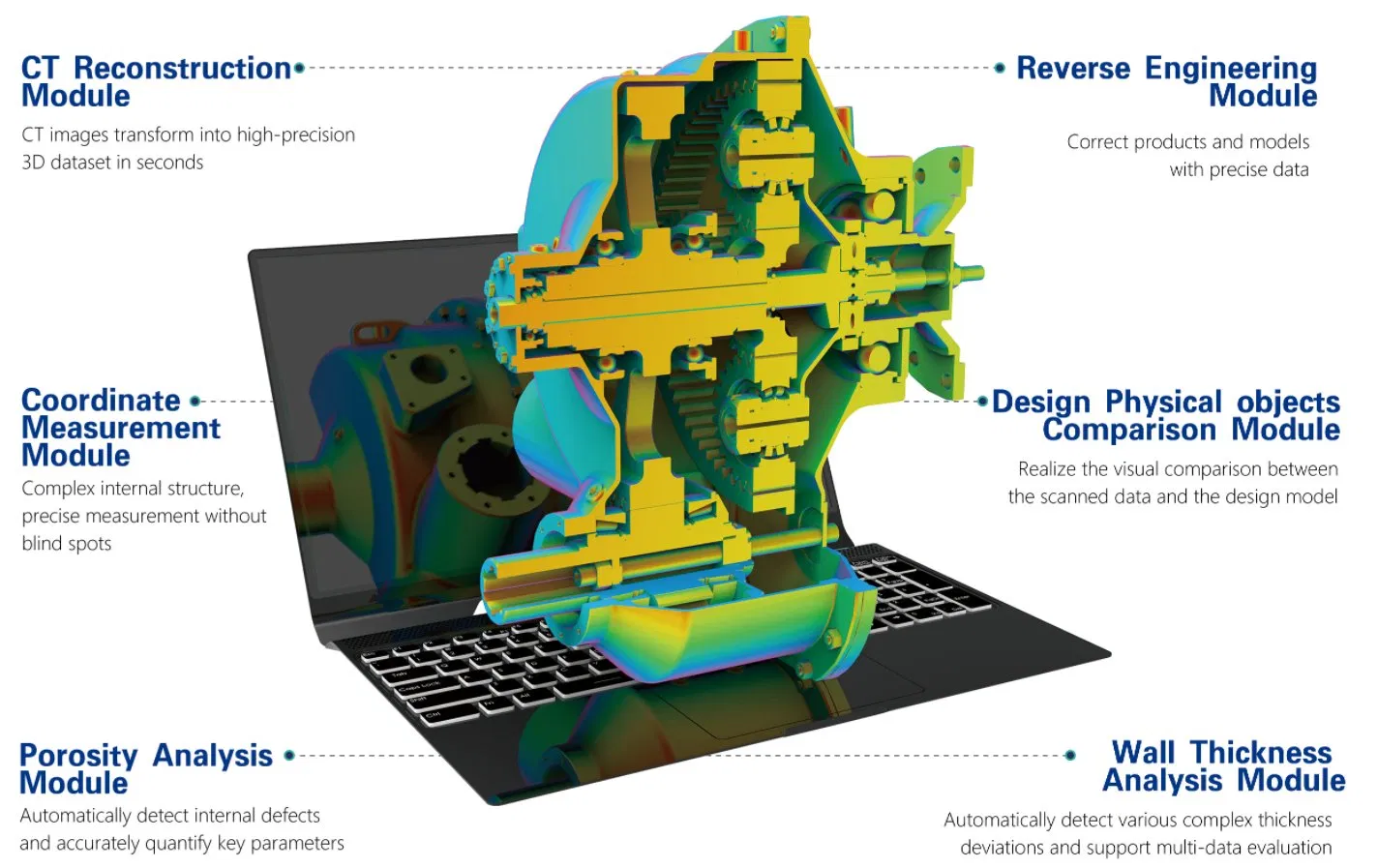

3D Reconstruction & Analysis Software:

Our powerful processing suite includes modules for 3D coordinate measurement, CAD comparison, porosity/inclusion analysis, wall thickness measurement, and structural mechanics simulation. Certified to meet international standards for quality and precision.

?

Frequently Asked Questions

What is the standard lead time for the CT inspection systems?

Standard models typically have a lead time of 3 months, while fully customized units or high-energy systems require approximately 6 months for manufacturing and testing.

Do you provide global after-sales support and training?

Yes, we offer 24/7 technical assistance and have partnered service centers in key international regions to provide maintenance, spare parts supply, and regular operator training.

Can the CT system be customized for specific battery types?

Absolutely. Our systems can be tailored for various battery formats, including lithium-ion pouch cells, cylindrical batteries (like 21700 or 4680), and large-scale power battery modules.

What kind of 3D analysis can the software perform?

The software supports 3D coordinate measurement, nominal/actual comparison (CAD import), porosity analysis, fiber composite analysis, and wall thickness inspection.

What certifications do your X-ray systems hold?

Our industrial CT systems are fully certified with ISO9001, ISO14001, and CE standards, ensuring compliance with international radiation protection and quality safety regulations.

Are turnkey solutions available for new laboratories?

Yes, we provide complete turnkey project solutions including equipment selection, radiation-shielded room design (if required), installation, and workflow optimization.
