The first domestically developed and successfully launched machine has been widely adopted in the new energy industry. Equipped with proprietary technology, its overall performance exceeds that of imported shearing machines.

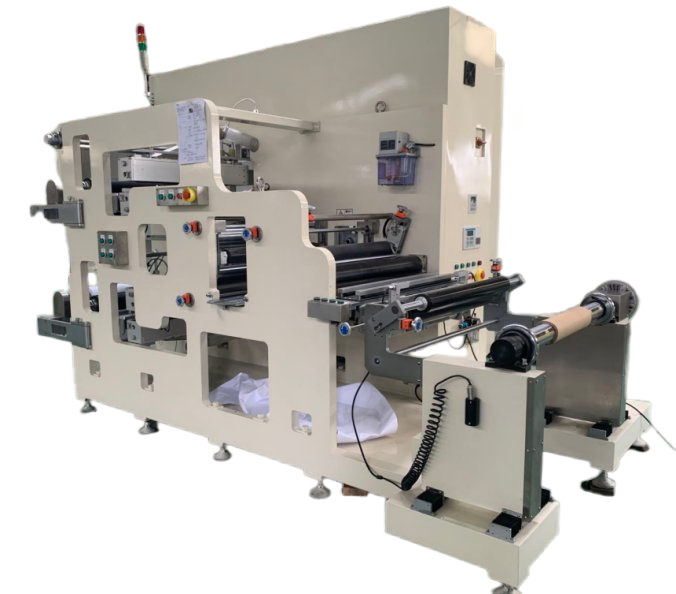

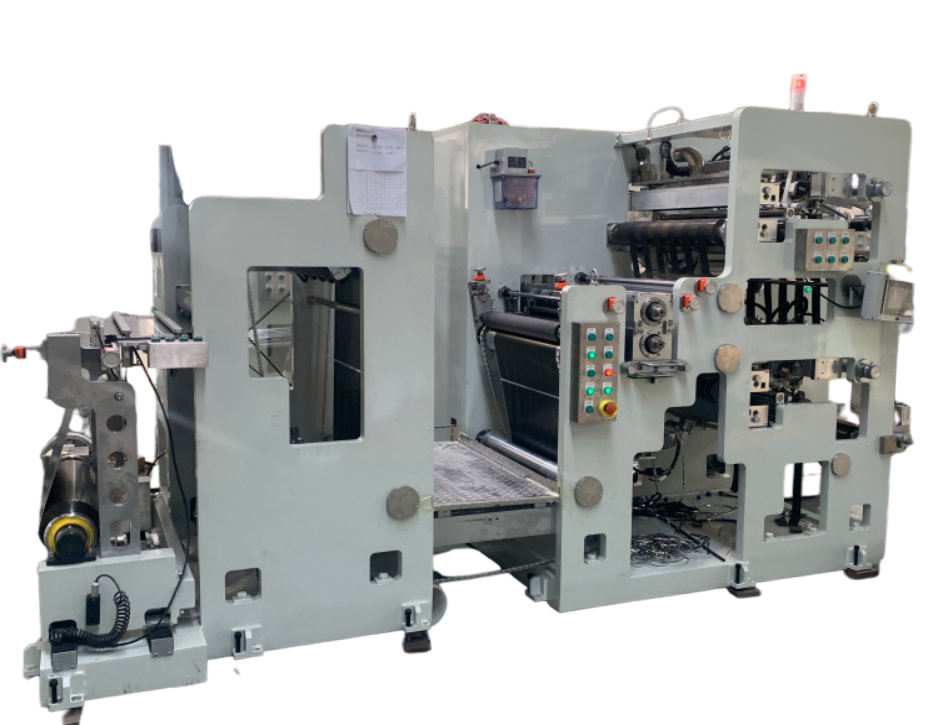

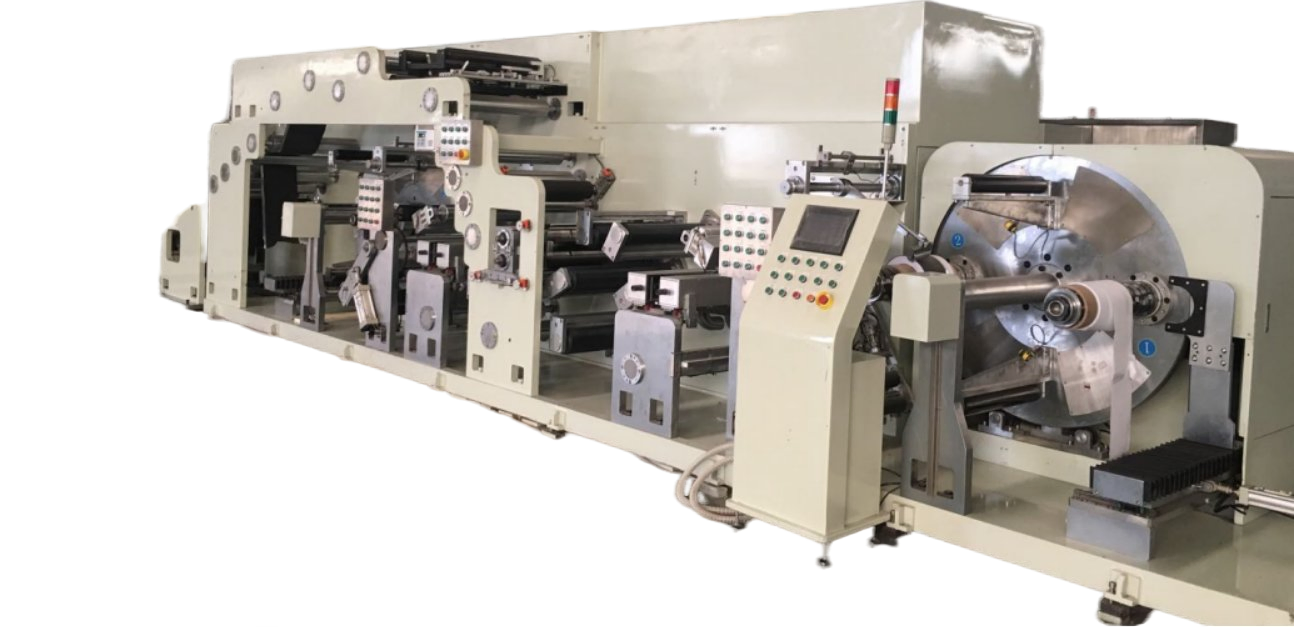

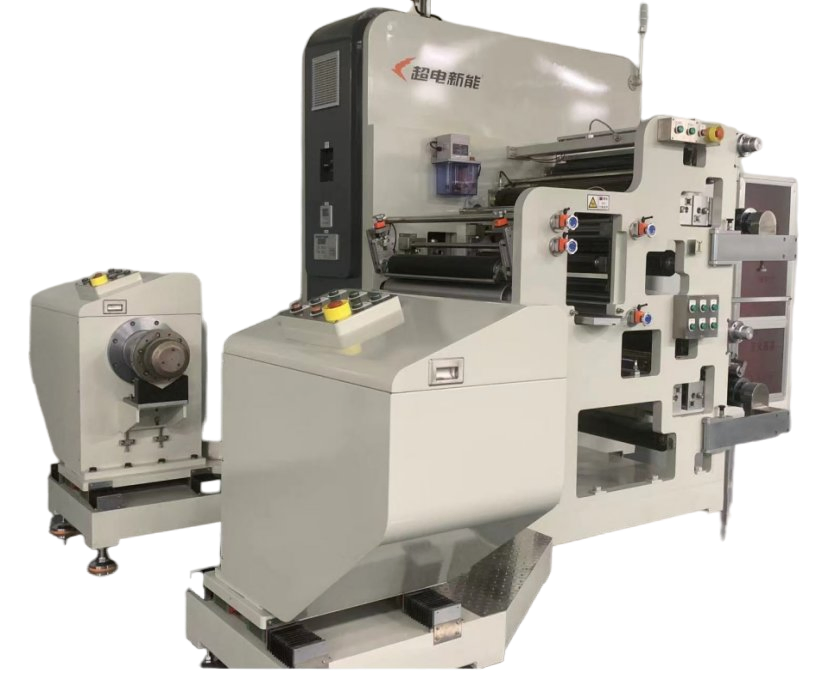

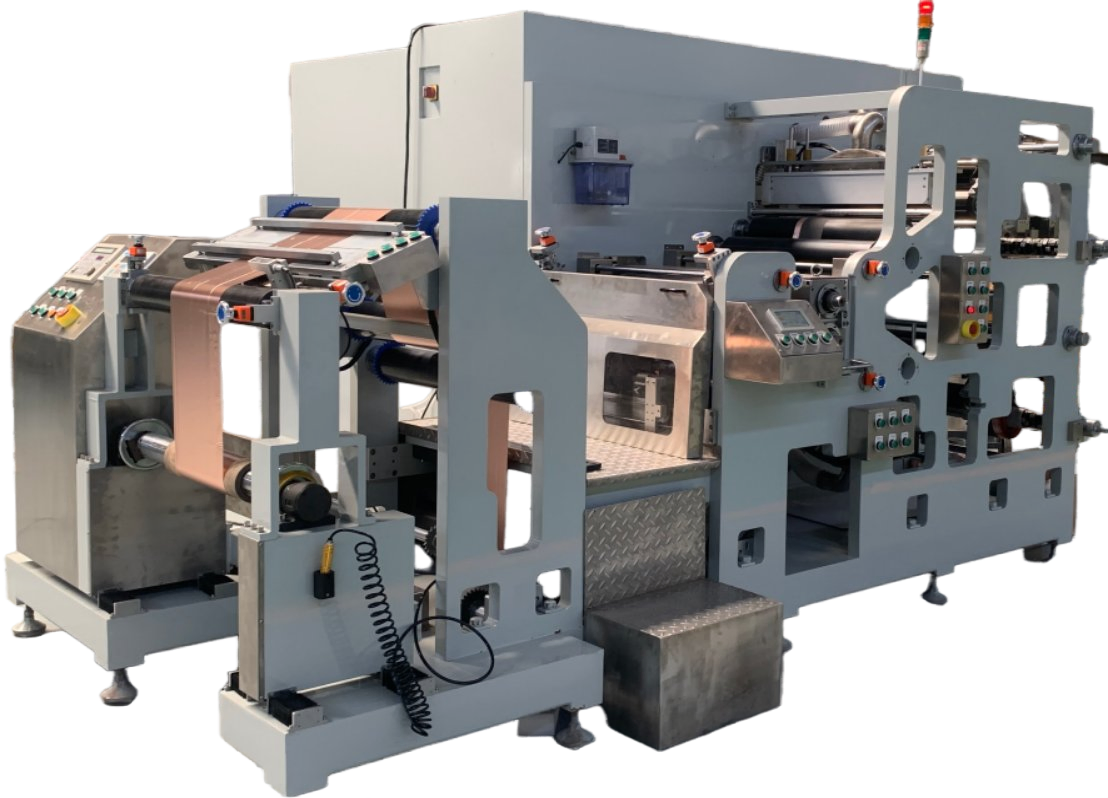

This equipment is designed for continuous cutting and rewinding of intermittent coating positive and negative electrode sheets in lithium-ion battery production, as well as base copper foil, aluminum foil, isolation film, and aluminum-plastic film.
| Design Mechanical Speed | Max. 60m/min (infinite speed regulation) |
| Working Speed Range | 1-50m/min |
| Qualification Rate | ≥ 99.9% (excluding defective incoming materials) | ≤ 1% |
| Equipment Noise | ≤ 70db (detected at 1 meter) |
| Unwinding Tension | 5-200N (Accuracy ± 3N) |
| Winding Tension | 5-100N (Accuracy ± 3N) |
| Base Material Thickness | Copper foil 5-20um; Aluminum foil 8-30um |
| Polar Thickness | 80-250um |
| Incoming Material Width | 200-500mm |
| Maximum Roll Diameter | ≤ 500mm |
| Edge Snake Offset | ≦ 0.1mm/1000mm |
As a pioneer in lithium battery equipment manufacturing since 2000, we provide turnkey solutions for prismatic, cylindrical, and polymer battery production. Our technology combines Japanese precision, American automation, and Korean energy efficiency.
A: It is designed for continuous cutting of lithium-ion battery electrode sheets (including LiFePO4), copper foil, aluminum foil, isolation film, and aluminum-plastic film.
A: The machine offers a mechanical speed of up to 60m/min with a correction accuracy of ≤0.1mm and width accuracy up to ≤±0.05mm.
A: It features a constant tension control system with a custom designed sliding shaft. Tension is automatically tracked and adjusted through a touch screen to ensure stability and prevent material breakage.
A: No. Utilizing advanced roller shear blade technology, the vertical burr is kept under 6um and planar burr under 8um, ensuring clean and high-quality edges.
A: Yes, the machine is engineered for 24-hour daily operation with a design life cycle of not less than 10 years and a utilization rate of ≥99%.
A: Yes, the equipment features a modular blade holder installed on a mobile cart, allowing for fast mechanical positioning and rapid changes for different cutting widths (32-500mm).
