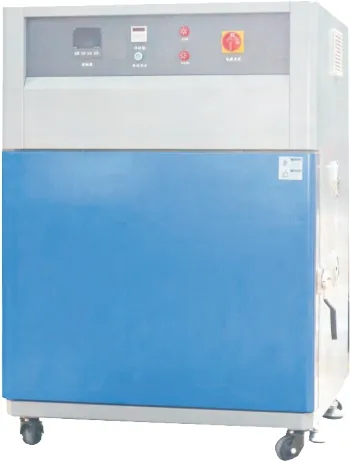

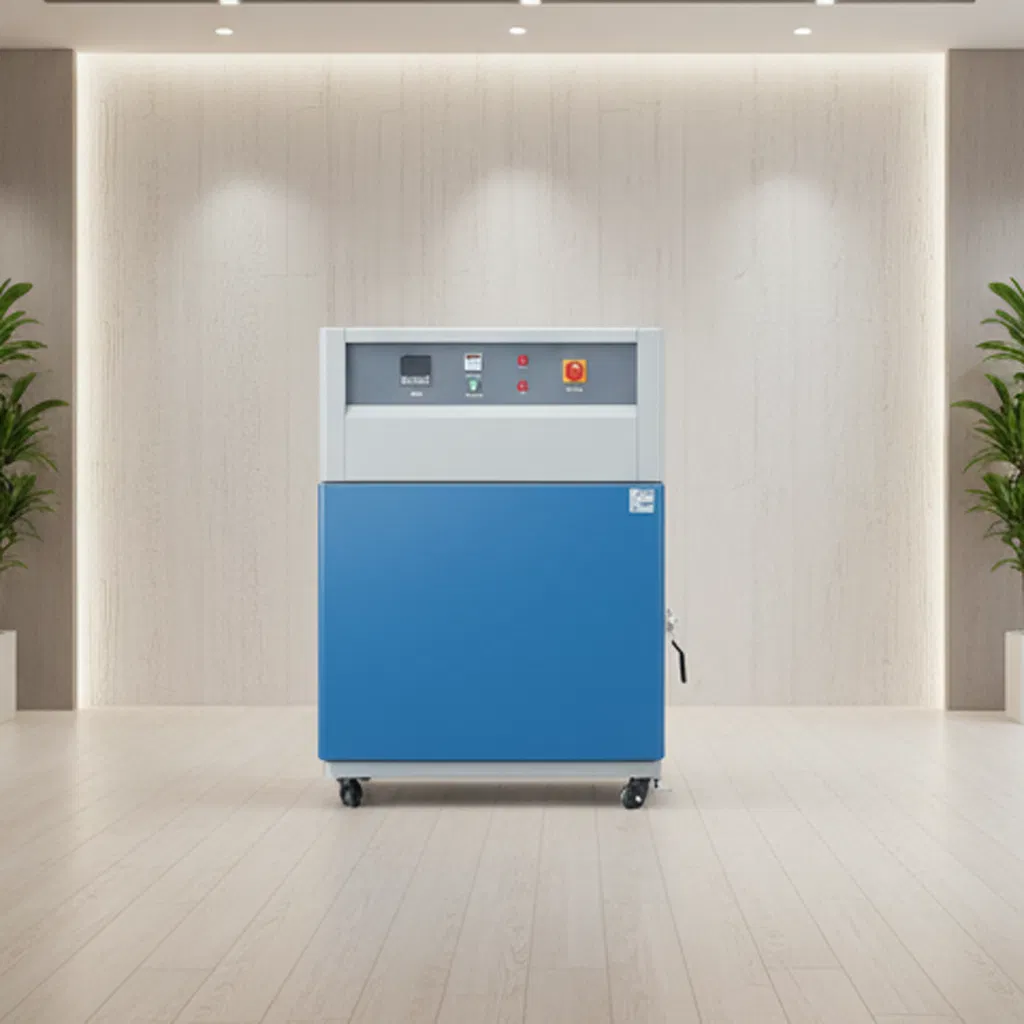

Battery Pack Thermal Abuse Shock Chamber for Lithium Product Reliability Testing Equipment
Meet the standards: IEC 62133-2012, UL 1642, United Nations 38.3 and 31241-2014 Standard heat abuse. After the method is fully charged, put the battery into the test chamber. Test chamber with (5±2)ºC/min heating rate. When the temperature reaches 130ºC ±2ºC, continue for 30min. The battery should not catch fire or explode.
| Model | MBS-RC125 | MBS-RC216 | MBS-RC512 | MBS-RC1000 |
|---|---|---|---|---|
| Inner box size (W*H*D mm) | 500*500*500 | 600*600*600 | 800*800*800 | 1000*1000*1000 |
| Outer box size (W*H*D mm) | 700*1250*600 | 820*1380*800 | 1020*1580*1000 | 1250*1800*1150 |
| Temperature Range | Rt ºC to 150ºC | |||
| Warm-up Time | +RTºC to +150ºC (Approx. 5ºC/min ±2ºC) | |||
| Inner Material | SUS 304 mirror stainless steel | |||
| Outer Material | SECC Steel plate with fine powder baked paint | |||
| Safety Features | Explosion-proof relief device, smoke exhaust device | |||
Note: Custom tailor the dimensions of the chamber to seamlessly align with your operational needs.

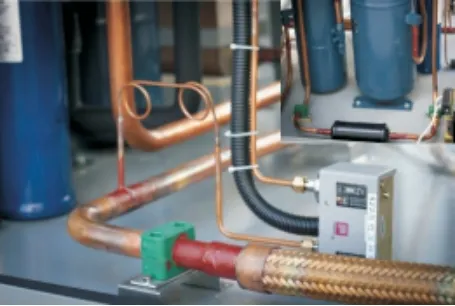

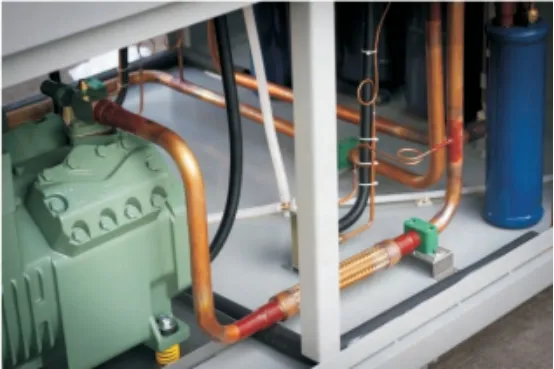

Our equipment utilizes 3D-optimized refrigeration management and frequency conversion control. This allows cooling output to align perfectly with real-time test loads, optimizing energy efficiency and enhancing cooling stability.
Harnessing PID and PWM-driven VRF technology with electronic expansion valves ensures exceptional thermal flow control. Our dual compressor group design optimizes start-stop operations, reducing energy consumption by up to 30% in low-temperature environments.
