| Model NO. | MBS-RC | Certification | CE |
|---|---|---|---|
| Warranty | 1 Year | Origin | China |
| Uses | Battery Thermal Shock Testing | Purpose | Battery Heat Abuse Tester |
| Customize | Acceptable | HS Code | 8419899090 |
| Specification | 50*50*50cm | Trademark | MENTEK |

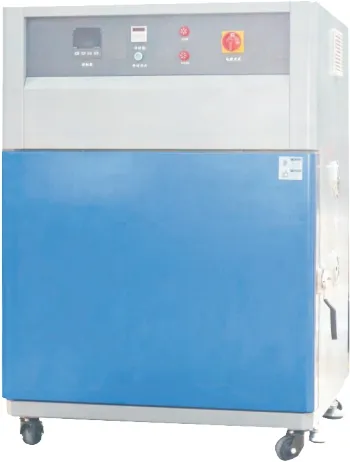

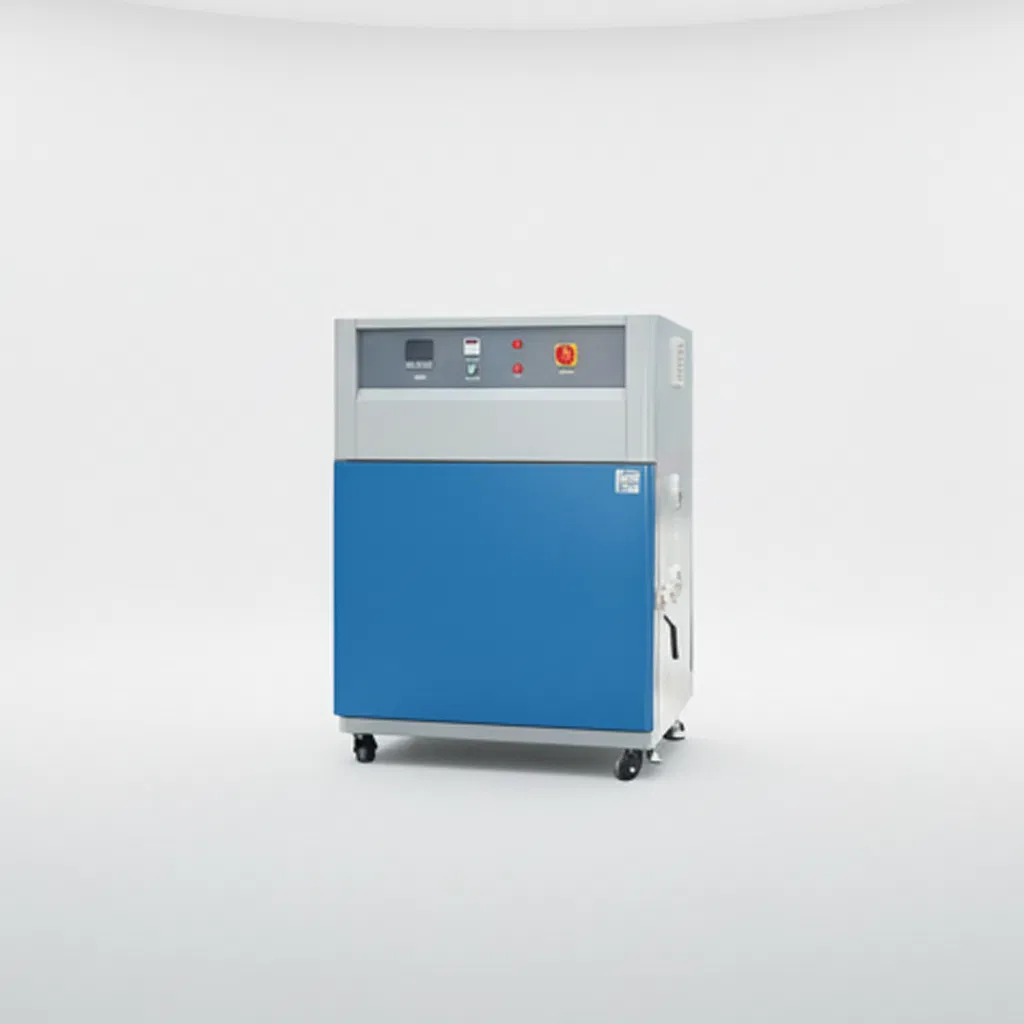

Battery Pack Thermal Shock Heat Abuse Testing Chamber Lithium Impact Tester
Relevant standard test requirements:
Meet the standards: IEC 62133-2012, UL 1642, United Nations 38.3 and 31241-2014.
Standard heat abuse: Put the battery after fully charged into the test chamber. The heating rate is (5±2)ºC/min. When the temperature reaches 130ºC±2ºC, continue for 30min. The battery must not catch fire or explode.
| Model | MBS-RC125 | MBS-RC216 | MBS-RC512 | MBS-RC1000 |
|---|---|---|---|---|
| Inner box size (W*H*D mm) | 500*500*500 | 600*600*600 | 800*800*800 | 1000*1000*1000 |
| Outer box size (W*H*D mm) | 700*1250*600 | 820*1380*800 | 1020*1580*1000 | 1250*1800*1150 |
| Temperature range | Rt ºC to 150ºC | |||
| Temperature fluctuation | ±0.5ºC | |||
| Warm-up time | +RTºC rises to +150ºC about (5ºC/min ±2ºC) | |||
| Observation window | 350*350mm (20mm Explosion-proof glass) | |||
| Auxiliary functions | Explosion-proof pressure relief device, smoke exhaust device | |||
Note: Custom tailor the dimensions of the chamber to seamlessly align with your operational needs.
Structural Technology
Crafted with premium galvanized steel and enhanced with advanced electrostatic powder spray baking paint. The inner box is made from imported SUS #304 stainless steel with full argon arc welding to minimize leakage.

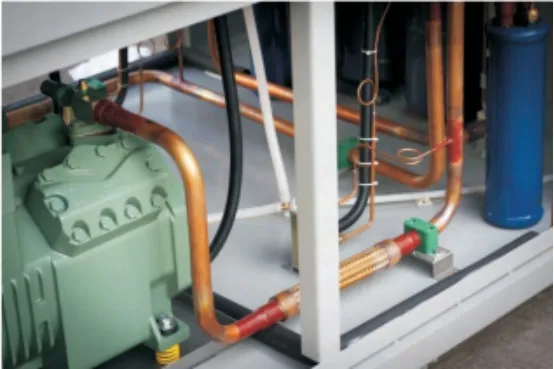

Refrigeration System Technology
3D-optimized management utilizing pioneering frequency conversion control technology. The system adjusts compression speed to align perfectly with real-time test chamber loads, optimizing energy efficiency.
Energy Efficiency
Harnesses advanced PID and PWM-driven VRF technology with electronic expansion valves. Reduces energy consumption by up to 30% in low-temperature scenarios by eliminating the need for auxiliary heating.

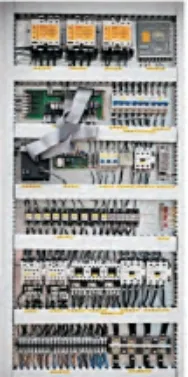

Innovative Cold Circuit Technology
Employs globally renowned electrical components like Omron and Germany Phoenix Terminal. High-quality soft copper wire and standardized torque connections ensure safety and long-term durability.
Standardized Piping Process
Uses Italian imported pipe bending machinery to reduce welding points and oxides. High-quality steel pipe piping and stringent welding standards guarantee unrivaled stability.

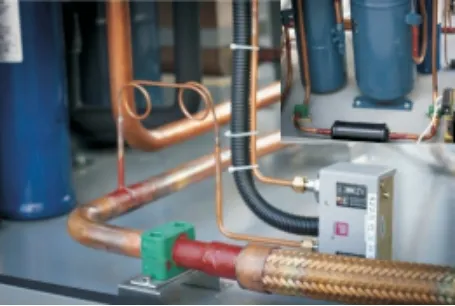

Shockproof Design
Incorporates precision-engineered arc bends and specialized nylon fixed clamps for refrigeration copper pipes to prevent deformation and leakage from vibrations or temperature fluctuations.
