High-Performance Lithium Battery Die-Cutting System for Optimal Production

1 / 5

High-Performance Lithium Battery Die-Cutting System for Optimal Production

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

Send Inquiry

Product Description

Basic Information

Model NO.

SLQ-05-650XB

Condition

New

Automation

Automatic

Maximum Diameter

≤600mm

Winding Edge Alignment

± 0.5mm/Roll

Metal Burr

Vertical ≤ 6um, Planar ≤ 8um

Production Capacity

500 Sets/Year

Transport Package

Wooden Crate

Product Introduction

The first domestically developed and successfully launched machine has been widely adopted in the new energy industry. Equipped with proprietary technology, its overall performance exceeds that of imported shearing machines.

Notable Clients: Our technology is utilized by industry leaders including ATL, BYD, BAK, CATL, Yiwei, and over 200 other battery manufacturers worldwide.

Advantages: In addition to standard lithium electrode cutting, this machine offers exceptional precision for lithium iron phosphate (LiFePO4) electrodes and both ultra-thin and ultra-thick power battery electrodes.

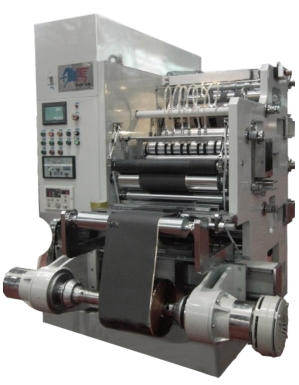

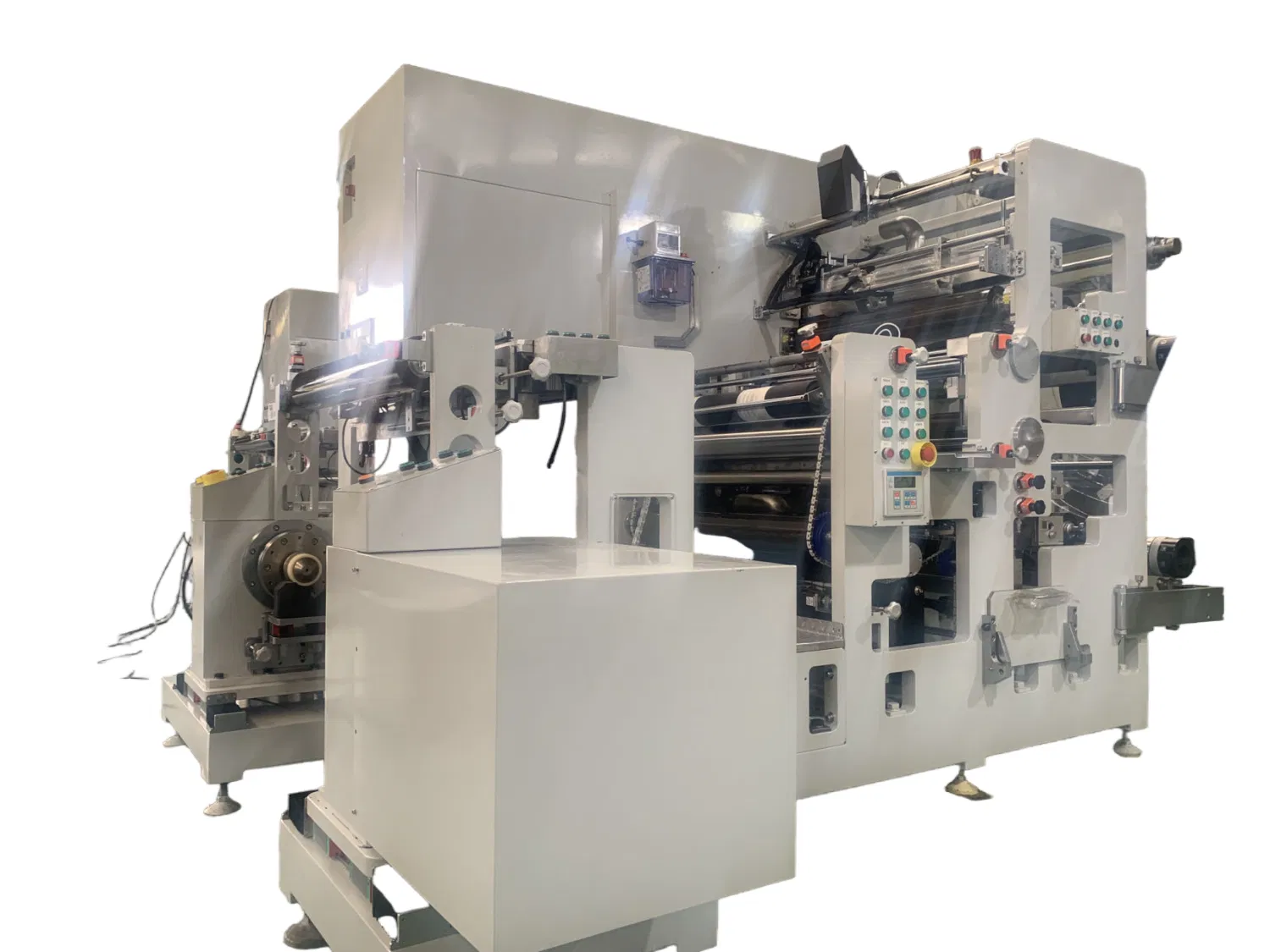

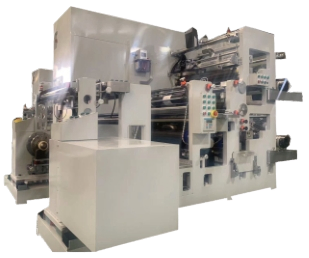

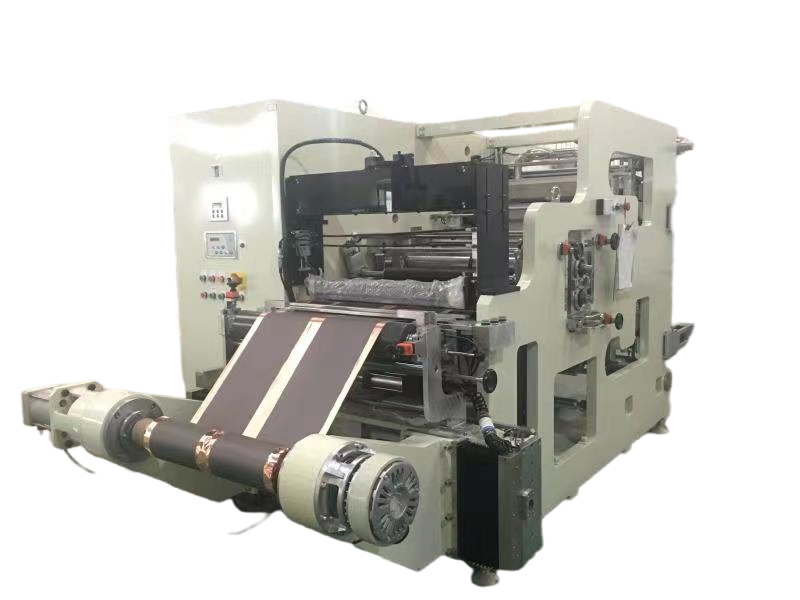

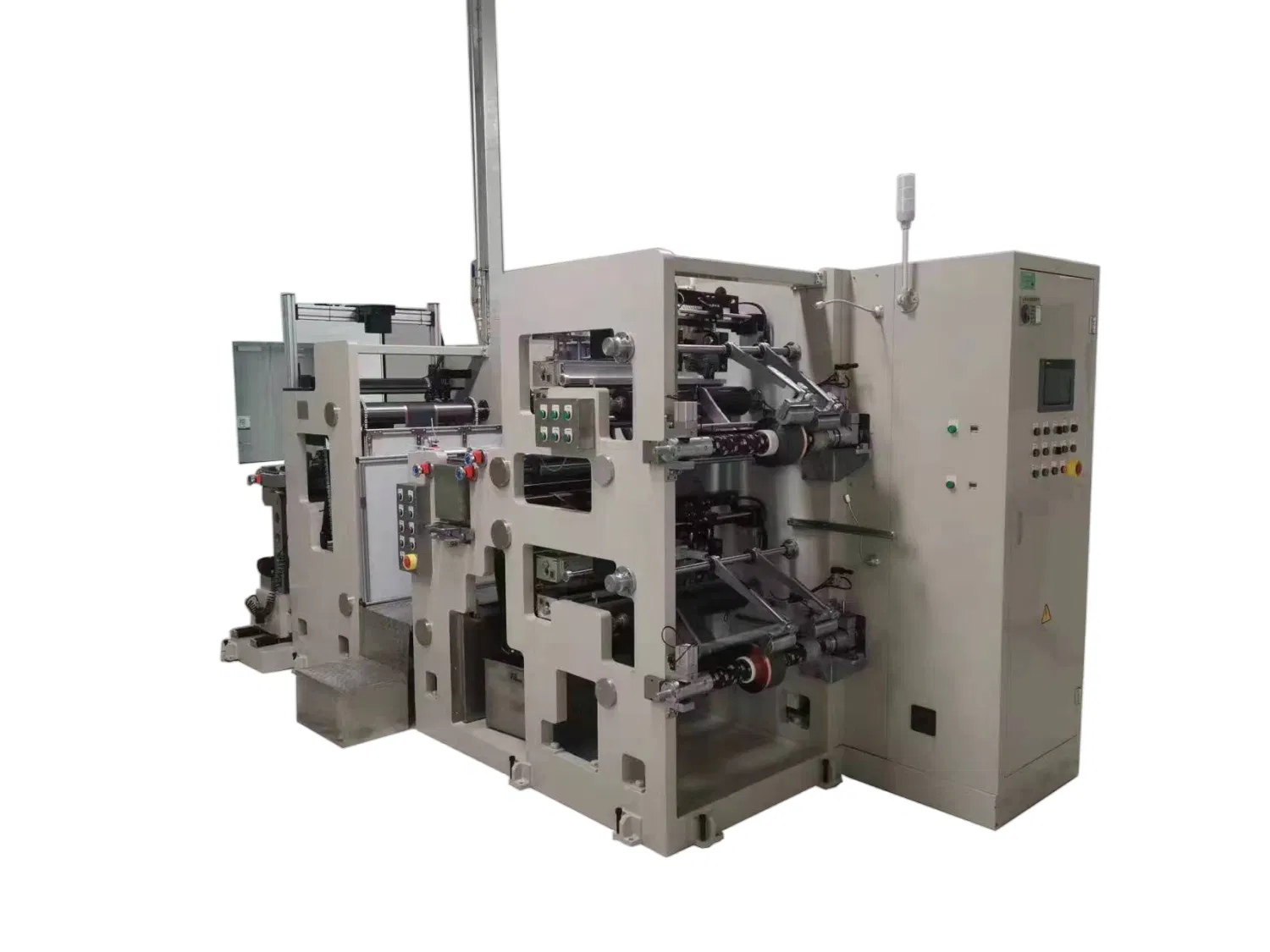

Equipment Overview

Purpose: Designed for continuous cutting and rewinding of intermittent coating electrodes, copper foil, aluminum foil, and isolation films.
Unfolding System: Pneumatic shaft with magnetic powder brake, constant tension control, and photoelectric edge alignment.
Windup System: Custom sliding shaft ensures uniform tension and synchronization, eliminating breakage. Adjustments are managed via touch screen.
Modular Blade Holder: Mobile cart design allows for rapid mechanical positioning and fast blade changes for varying widths.
Advanced Drive: Features servo-motor traction and Mitsubishi inverter-controlled rewinding via PLC programming.
Blade Technology: Globally leading roller shear blades ensure edges are completely free of burrs.

Technical Parameters

Design Mechanical Speed	Max. 80m/min (Infinite regulation)
Working Speed Range	1-70m/min
Qualification Rate	≥ 99.9%
Equipment Failure Rate	≤ 1%
Equipment Noise	≤ 70db
Production Running Time	24 Hours/Day (10+ Years Life Cycle)
External Dimensions	L=4200mm, W=1900mm, H=2300mm
Unwinding Tension	5-300N (Accuracy ± 3N)
Winding Tension	5-200N (Accuracy ± 3N)
Base Material Thickness	Copper 5-20um; Aluminum 8-30um
Polar Thickness	80-250um
Incoming Material Width	200-600mm
Cutting Method	Circular blade rolling cutter
Correction Accuracy	≤ 0.1mm
Cutting Width Accuracy	≤ ±0.3mm

Manufacturing Excellence

High-Performance Lithium Battery Die-Cutting System

Precision. Innovation. Leadership.

As a pioneer in lithium battery equipment manufacturing since 2000, we specialize in turnkey solutions for prismatic, cylindrical, and polymer battery production systems. Our 10,000 square meter smart factory utilizes automated lines and integrated R&D with global battery experts.

Industry Firsts: Developed the inaugural fully automatic slitting machine.
Global Standards: CE-certified equipment meeting ISO 9001:2015 standards.
Performance: 30% higher precision than industry averages and <0.1% defect rates.
Impact: 40% reduction in material waste and 25% increase in production throughput.

Cooperative Partners

Frequently Asked Questions (FAQ)

What materials can this machine process?

The machine is designed for continuous cutting and rewinding of lithium-ion battery electrodes (positive/negative), copper foil, aluminum foil, isolation films, and aluminum-plastic films.

How does the machine prevent material breakage during winding?

It utilizes a custom-designed sliding shaft that ensures uniform tension and synchronization across all strips. Tension is automatically tracked and adjusted via a PLC and touch screen interface.

What is the cutting precision and quality?

The machine offers high cutting width accuracy (≤ ±0.3mm) and advanced roller shear blades that produce edges completely free of burrs (Vertical direction ≤ 6um).

Can the machine handle different production widths?

Yes, it features a modular blade holder installed on a mobile cart, which supports rapid mechanical positioning and fast blade changes for different widths.

Is the equipment suitable for high-intensity industrial use?

Absolutely. It is designed for 24/7 continuous operation with a design life cycle of no less than 10 years and a very low equipment failure rate (≤ 1%).
