Advanced Lithium Battery Die-Cutting Production Line for Efficient Manufacturing

1 / 5

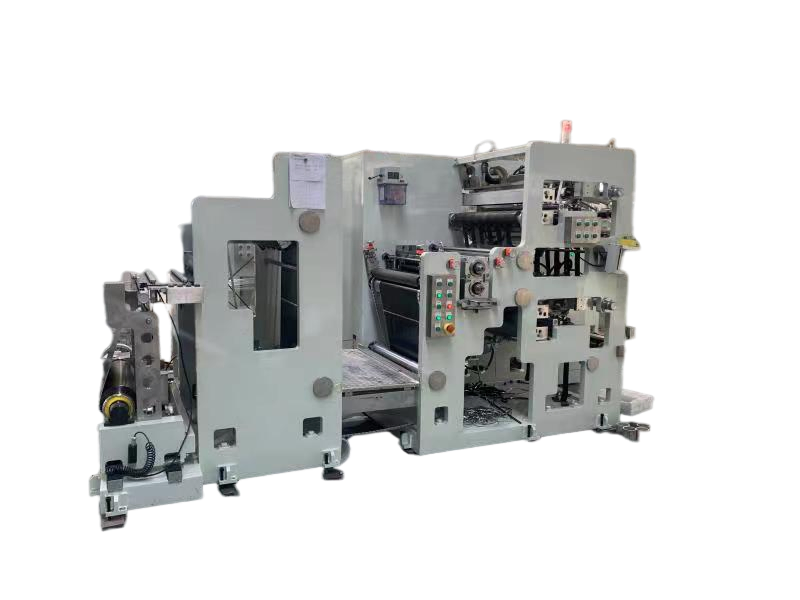

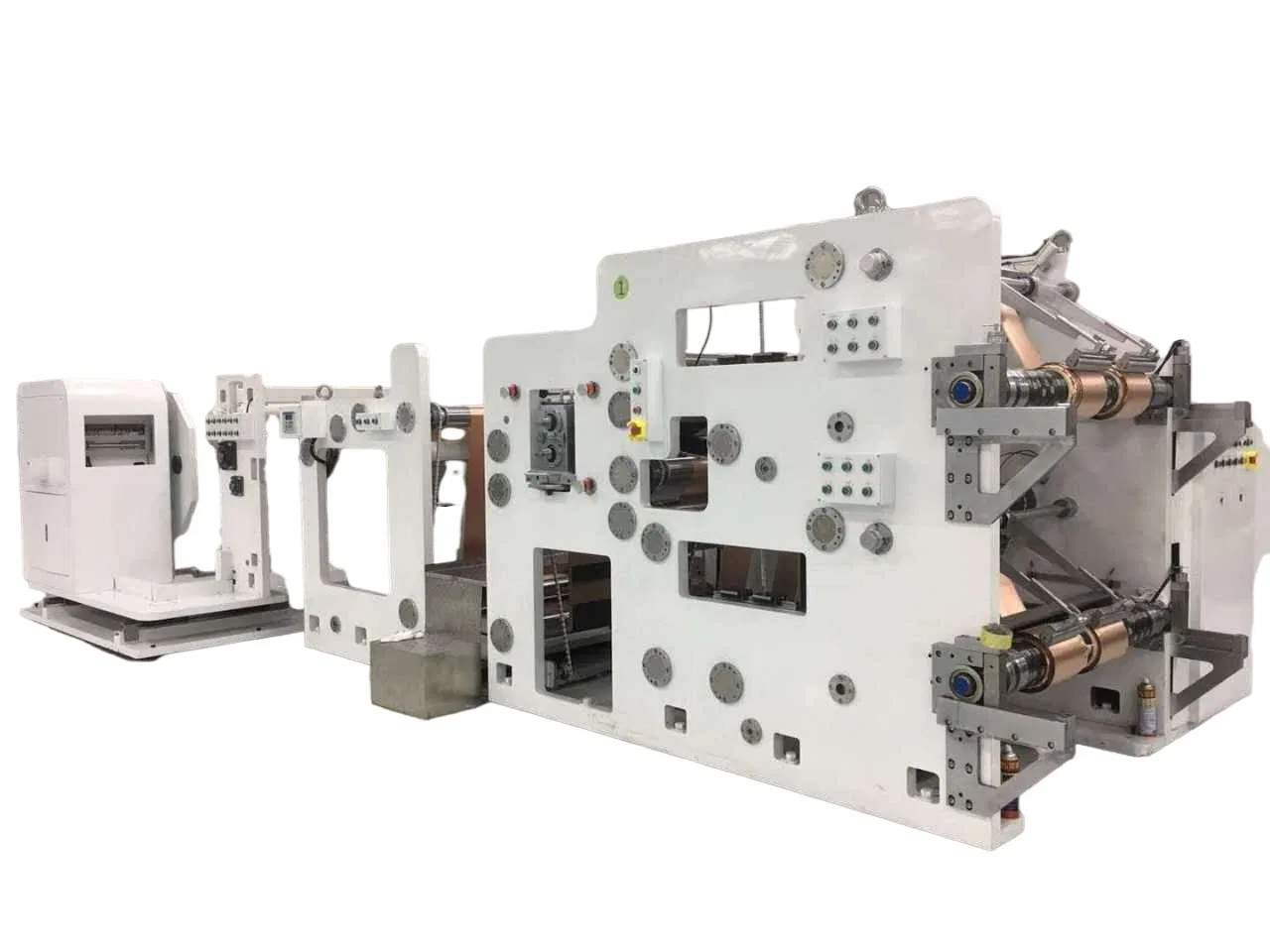

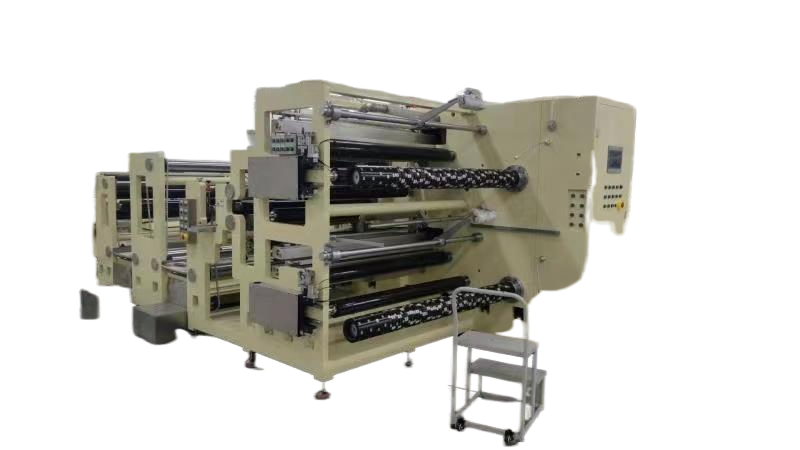

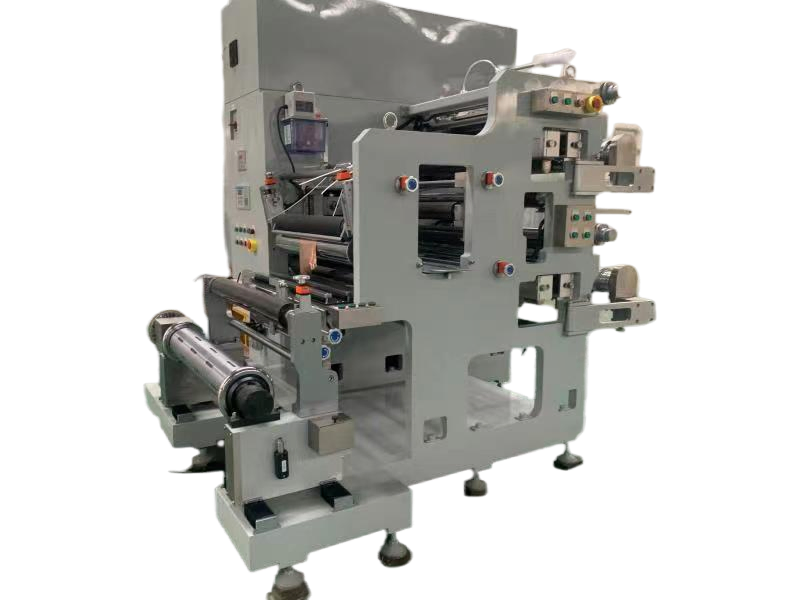

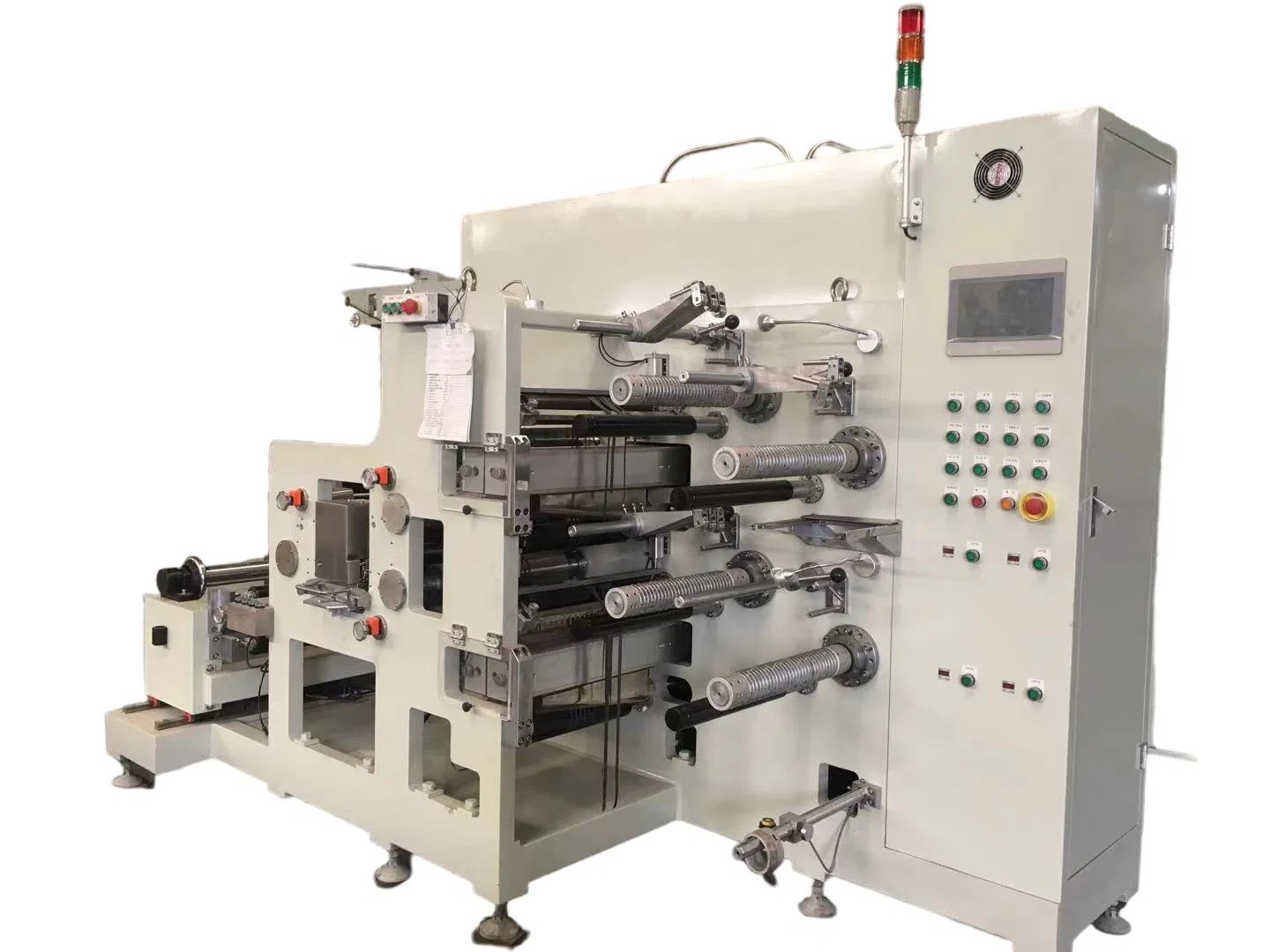

Advanced Lithium Battery Die-Cutting Production Line for Efficient Manufacturing

Customization:	Available
Production Scope:	Parts Production Line
Production continuity:	Continuous

Send Inquiry

Product Description

⚙️

Basic Specifications

Model NO.

SLQ-04-250mini-6

Condition

New

Automation

Automatic

Equipment Noise

≤ 70dB

Life Cycle

≥ 10 Years

Equipment Weight

Material Type

Copper/Aluminum Foil

Production Capacity

500 Sets/Year

🚀

Product Introduction

Advanced Shearing Technology: This machine is equipped with proprietary technology, delivering overall performance that exceeds industry standards. It offers excellent precision in cutting lithium iron phosphate (LiFePO4) electrodes and ultra-thin/ultra-thick power battery electrodes.

✅
Versatile Application: Designed for continuous cutting and rewinding of intermittent coating positive/negative electrode sheets, base copper foil, aluminum foil, isolation film, and aluminum-plastic film.
✅
Constant Tension Control: Features a pneumatic shaft with magnetic powder brake and photoelectric edge alignment for stable unfolding.
✅
Custom Windup System: Sliding shaft ensures uniform tension and synchronization across all strips, eliminating breakage. Settings are fully programmable via touch screen.
✅
Modular Blade Holder: Installed on a mobile cart for fast positioning and rapid blade changes, supporting both high-capacity and low-batch production.
✅
Burr-Free Results: Advanced roller shear blades utilize globally leading technology to ensure cut edges remain free of burrs.

📊

Technical Parameters

Design mechanical speed	Max. 30m/min (infinite speed regulation)
Working speed range	1-20m/min
Qualification rate	≥ 99.9%
Equipment failure rate	≤ 1%
Unwinding tension range	5-200N (Accuracy ± 3N)
Winding tension range	5-100N (Accuracy ± 3N)
Base material thickness	Copper 5-20um; Aluminum 8-30um
Polar thickness	80-250um
Width of incoming materials	≤ 200mm
Cutting method	Circular blade rolling cutter
Correction accuracy	≤ 0.1mm
Cutting width accuracy	≤ ±0.05mm
Metal burr (Vertical)	≤ 8um
Alignment of winding edges	± 0.5mm/roll

💡

Key Advantages

💎

High Precision: 30% higher precision than industry average.

📉

Waste Reduction: 40% reduction in electrode material waste.

📈

Efficiency: 25% increase in production throughput.

🛡️

Reliability: 24/7 remote monitoring system with <0.1% defect rate.

Lithium Battery Die-Cutting Production Line

❓

Frequently Asked Questions

What materials is this machine compatible with?

The machine is designed for copper foil (5-20um), aluminum foil (8-30um), lithium iron phosphate electrodes, and various isolation or aluminum-plastic films.

How accurate is the cutting width?

The machine achieves a cutting width accuracy of ≤ ±0.05mm, ensuring high-quality output for precision battery manufacturing.

Can the machine run continuously?

Yes, the equipment is designed for 24-hour daily operation with a projected life cycle of no less than 10 years.

How is the tension managed during the rewinding process?

It uses a custom-designed sliding shaft and a touch-screen controlled tracking system to maintain constant tension and prevent material breakage.

What is the burr level after shearing?

Thanks to advanced roller shear technology, vertical burrs are kept ≤ 8um and planar burrs ≤ 12um.

Does the machine support quick product changeovers?

Yes, the modular blade holder system is mounted on a mobile cart, allowing for rapid mechanical positioning and fast blade changes for different widths.
