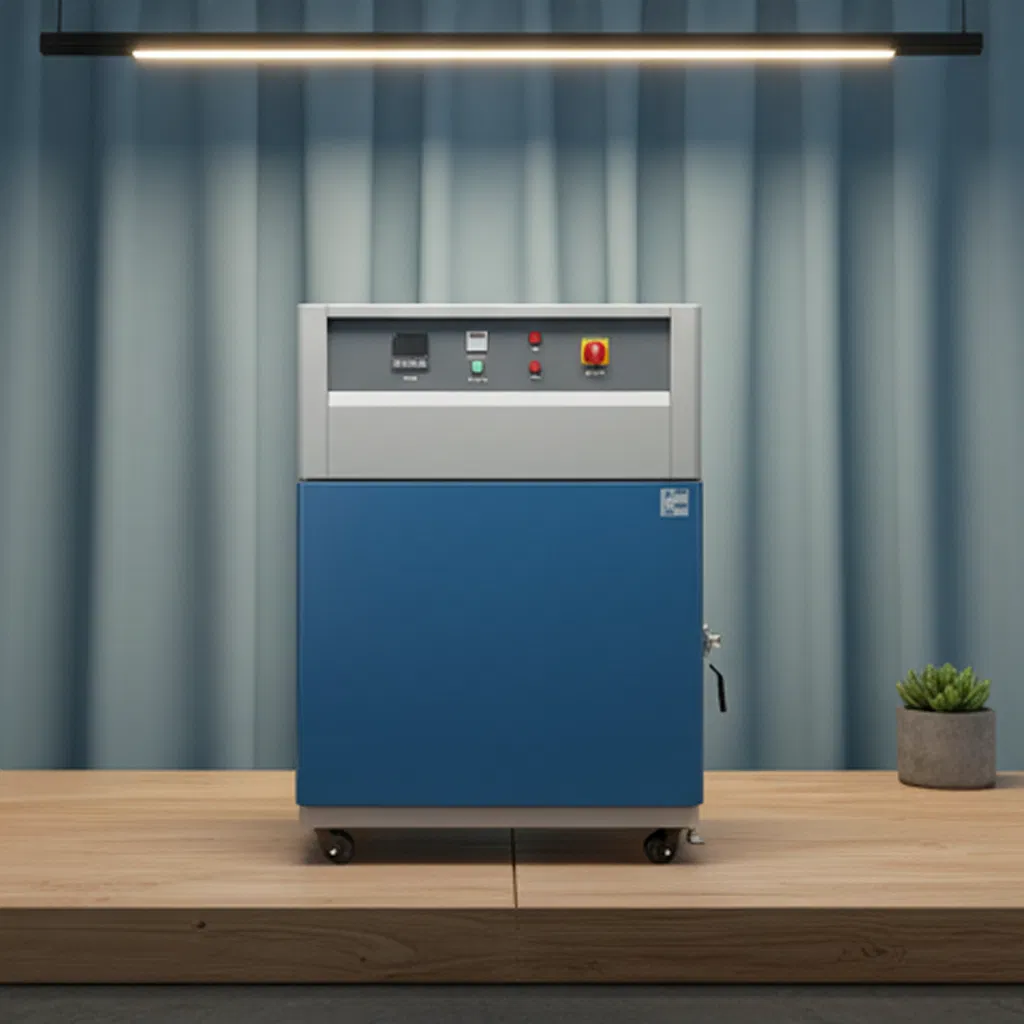

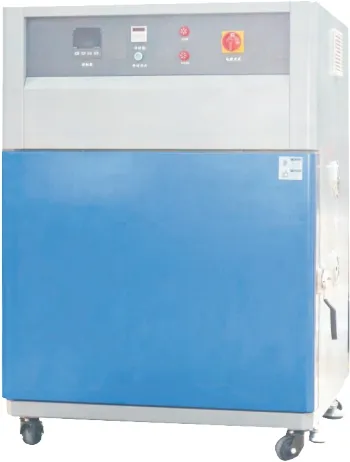

Meets standards: IEC 62133-2012, UL 1642, UN 38.3, and GB 31241-2014. After full charge, put the battery into the test chamber with a heating rate of (5±2)ºC/min. When the temperature reaches 130ºC±2ºC, maintain for 30 min. The battery must not catch fire or explode.
Equipped with an explosion-proof and pressure relief port to release internal pressure and prevent box deformation or door detachment during battery failure.
Includes an explosion-proof chain for the door and a grille for the glass window to prevent splashing or debris in case of an explosion.
Inner box and test rack feature Tef-lon treatment. High temperature resistance and friction protection prevent short-circuits between electrodes and the chamber.
| Model | MBS-RC125 | MBS-RC216 | MBS-RC512 | MBS-RC1000 |
|---|---|---|---|---|
| Inner Size (W*H*D mm) | 500*500*500 | 600*600*600 | 800*800*800 | 1000*1000*1000 |
| Outer Size (W*H*D mm) | 700*1250*600 | 820*1380*800 | 1020*1580*1000 | 1250*1800*1150 |
| Temperature Range | Rt ºC to 150ºC | |||
| Uniformity / Deviation | ≤1ºC / ≤±2ºC | |||
| Heating Rate | +RTºC to +150ºC (approx. 5ºC/min ±2ºC) | |||
| Material (Inner/Outer) | SUS 304 Mirror Stainless / SECC Steel Plate with Power Paint | |||
| Power Supply | 220V 50Hz | |||
| Auxiliary Functions | USB Interface, Smoke Exhaust, Pressure Relief Device | |||
Note: Custom dimensions are available to align with specific operational needs.

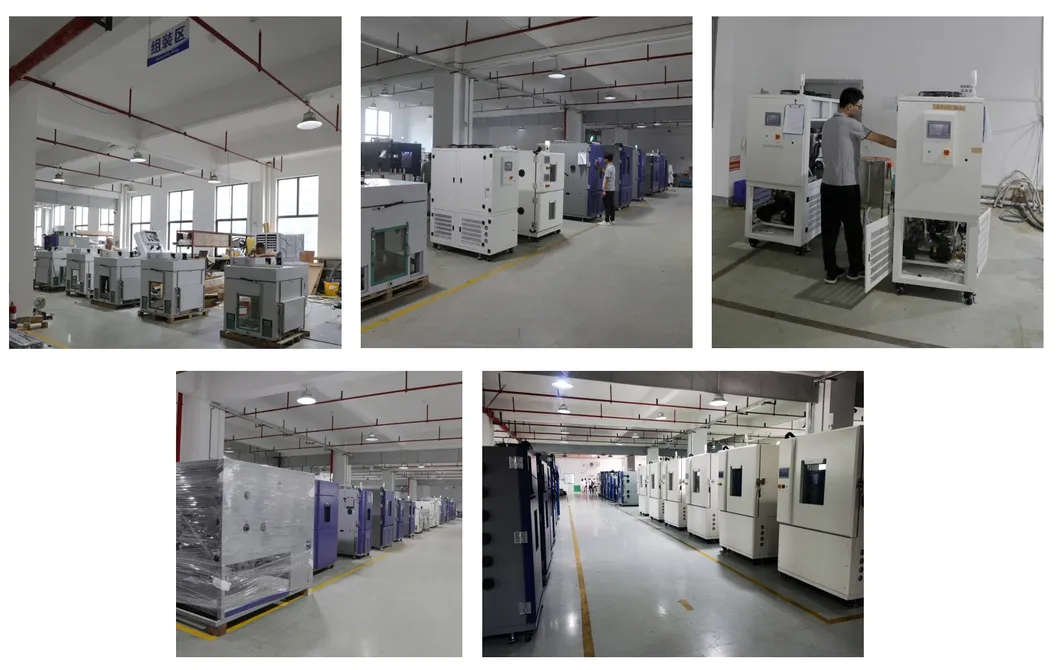

Utilizing high-precision machinery including punching systems and argon welding. 3D software applications ensure perfect sheet metal design and assembly.
3D-optimized management with frequency conversion control. Intelligently aligns cooling output with test loads for maximum energy efficiency and stability.
Advanced PID and PWM-driven VRF technology with electronic expansion valves. Slashes energy consumption by 30% through precise flow adjustment.

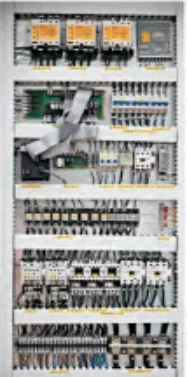

Distribution layouts feature globally renowned electrical components. Clear labeling, premium copper wiring, and sealed ports prevent short circuits and ensure safety.

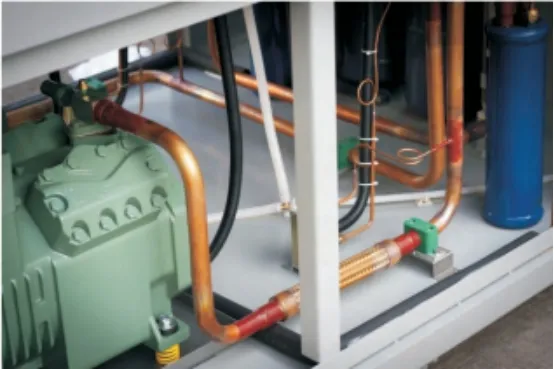

Utilizing Italian-imported pipe bending machinery to reduce welding points. Oxidation-free welding process ensures long-term system reliability.
