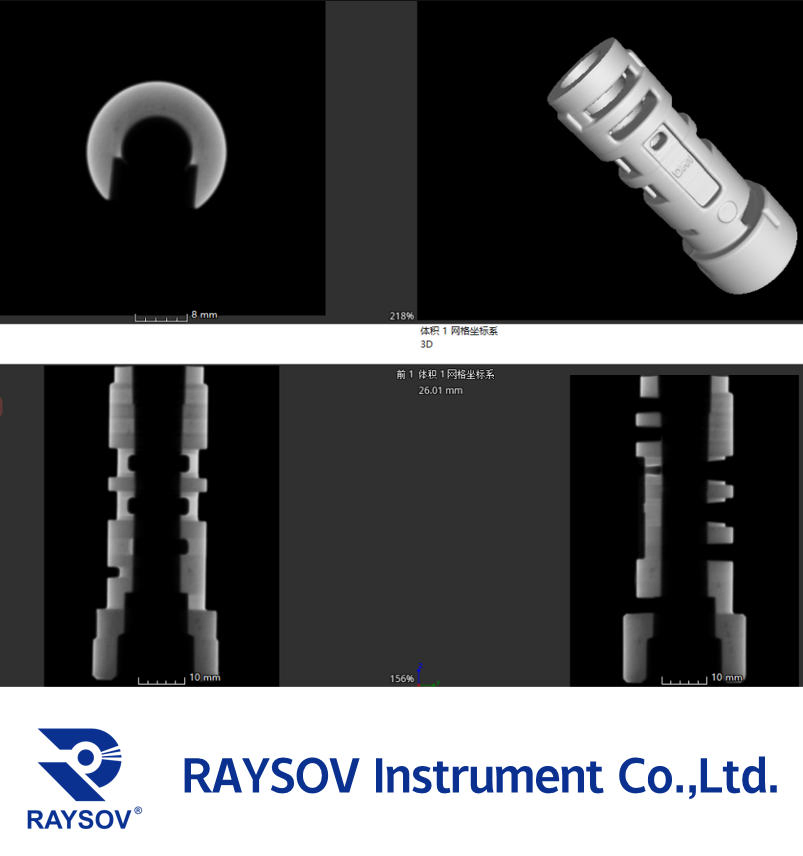

Industrial Computed Tomography (ICT) technology offers significant advantages in non-destructive testing, particularly for lithium-ion battery analysis. It provides an intuitive display of internal structures, material composition, and defect status in 2D sectional or 3D images.

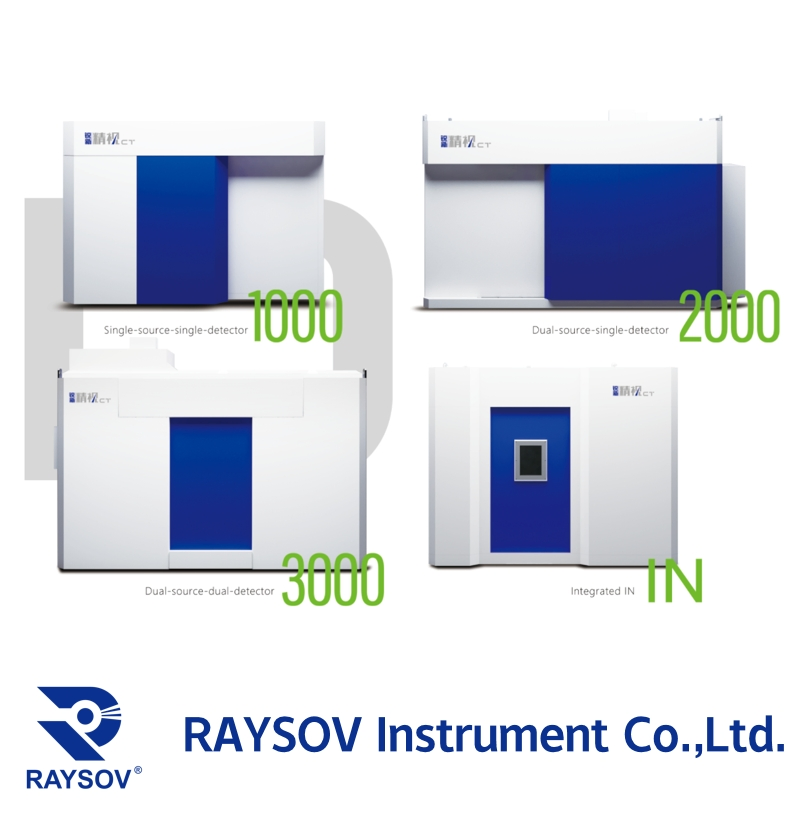

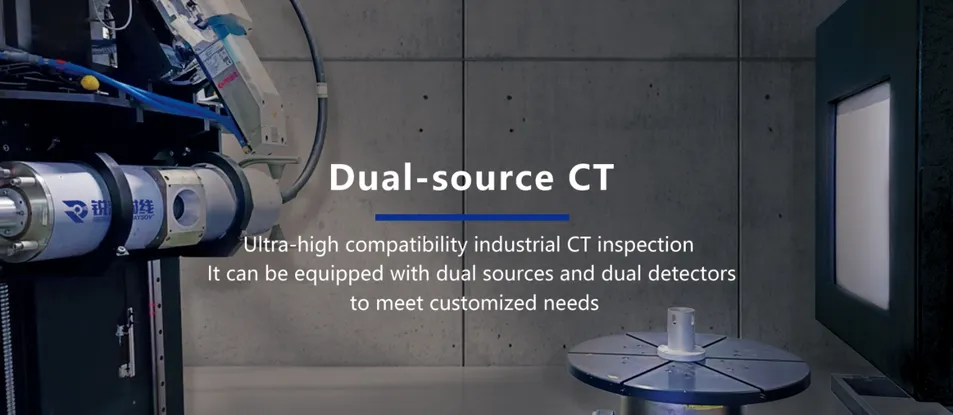

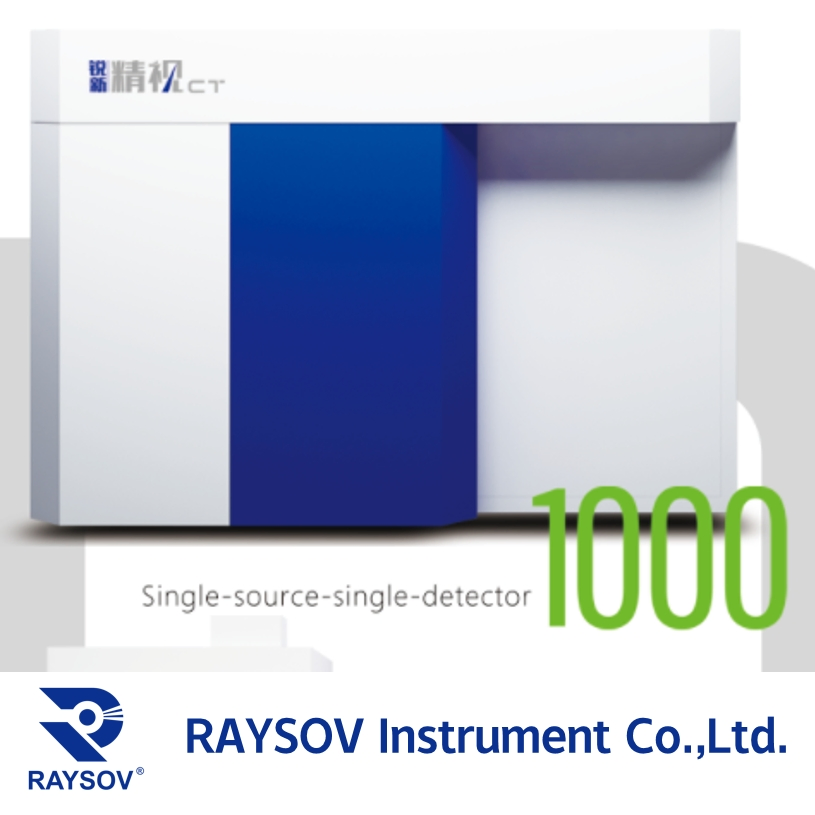

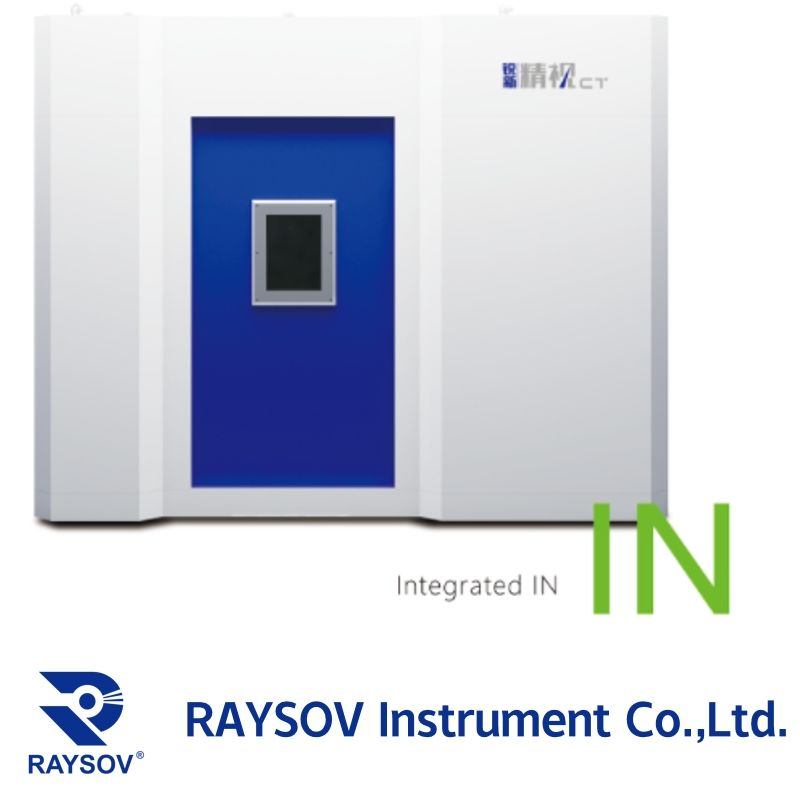

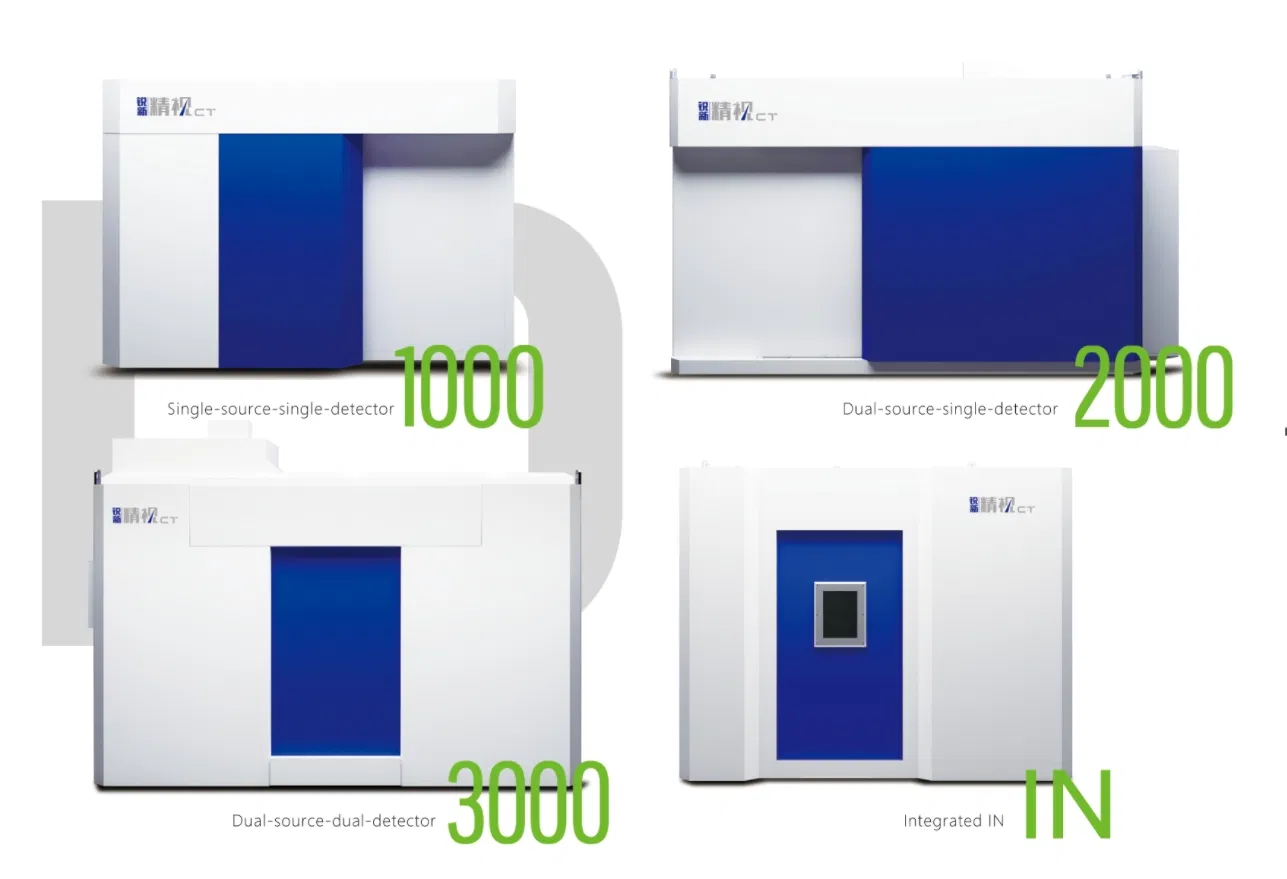

Available in various configurations including Single-source-single-detector (D1000), Dual-source-single-detector (D2000), and Dual-source-dual-detector (D3000).
Ranging from Nano-CT (sub-microfocus) and Micro-CT (microfocus) to Standard CT and High-energy LINAC CT.

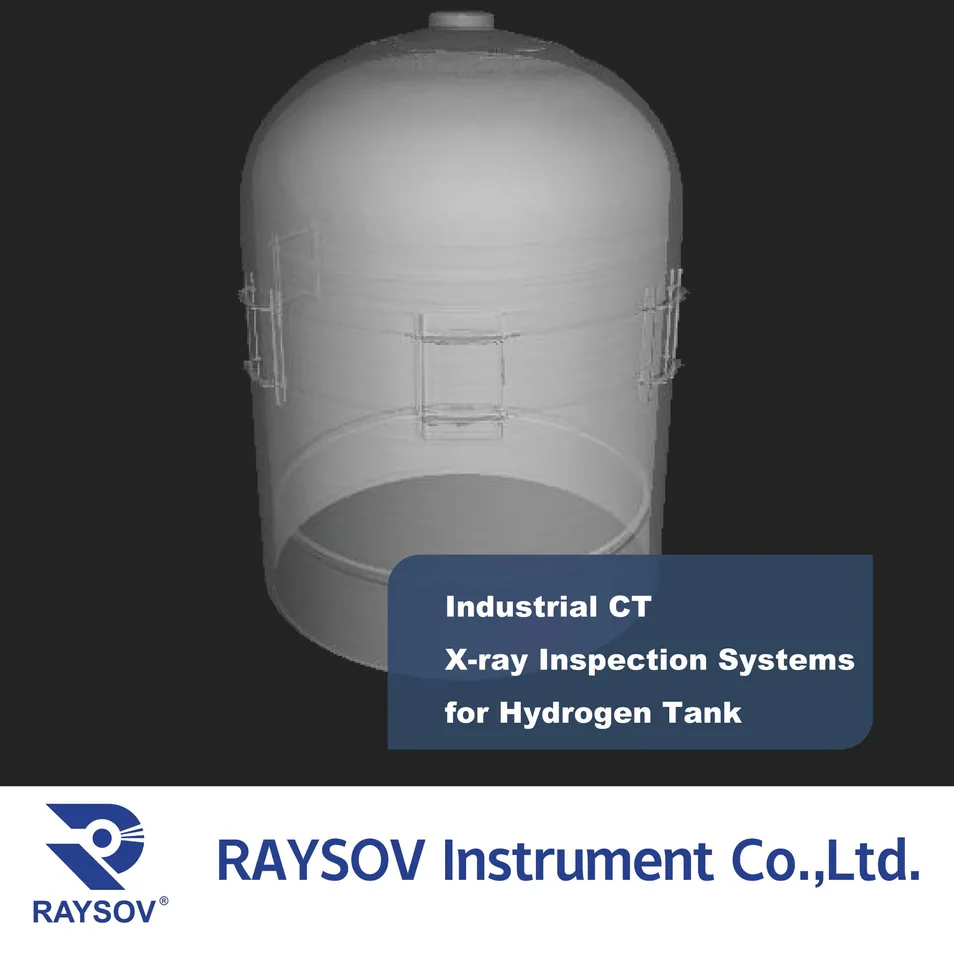

Specialized systems for Li-ion batteries, Turbine blades, Cylinders, Additive manufacturing, and Precision casting.
Aerospace: Detects defects in critical components like engine blades and additive manufacturing parts to ensure high reliability.

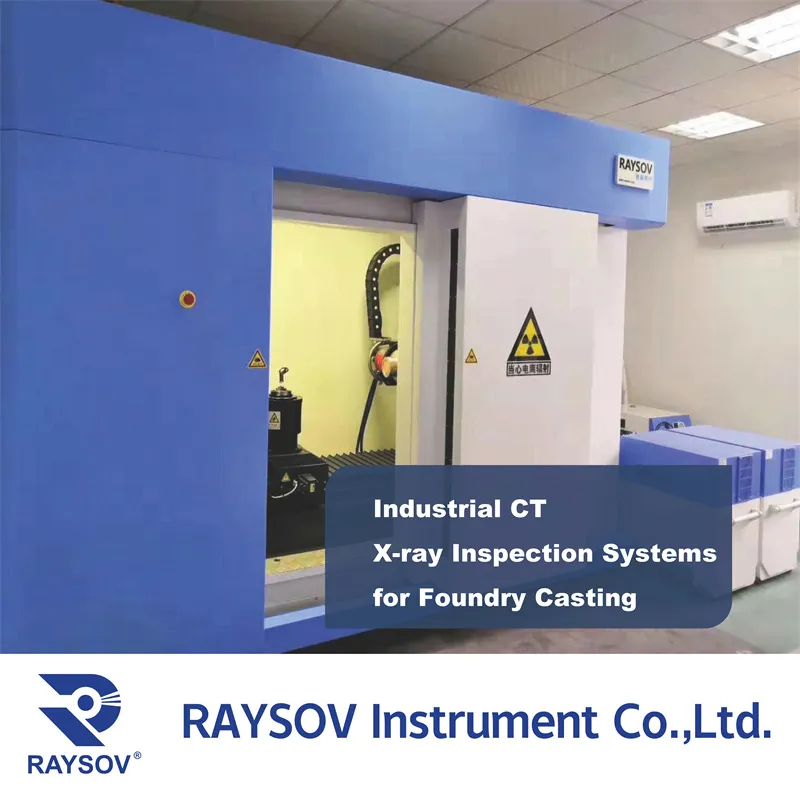

Automobile Manufacturing: Used for detecting blisters, pores in castings, and welding quality to improve safety.
Electronic Components: Performs accurate detection inside packages of tiny structures and battery cells.
Scientific Research: Provides data support for geological structure analysis and composite material research.
| Parameter | ZXVoxel U | ZXVoxel A | ZXVoxel C | ZXVoxel D-IN |
|---|---|---|---|---|
| Standard scan (mm) | D=100 H=100 | D=250 H=200 | D=250 H=250 | D=330 H=330 |
| Max. object size (mm) | D=200 H=200 | D=400 H=500 | D=500 H=500 | D=550 H=700 |
| X-ray source | 100kV 5μm | 160/225kV 0.4μm | 160/225/300kV 3μm | 160/225/320/450kV 0.4mm |
| Detector | 13x13cm 85μm | 25x30cm 100μm | 43x43cm 100μm | 43x43cm 100μm |
| Max. weight (kg) | 10 | 50 | 50 | 50 |

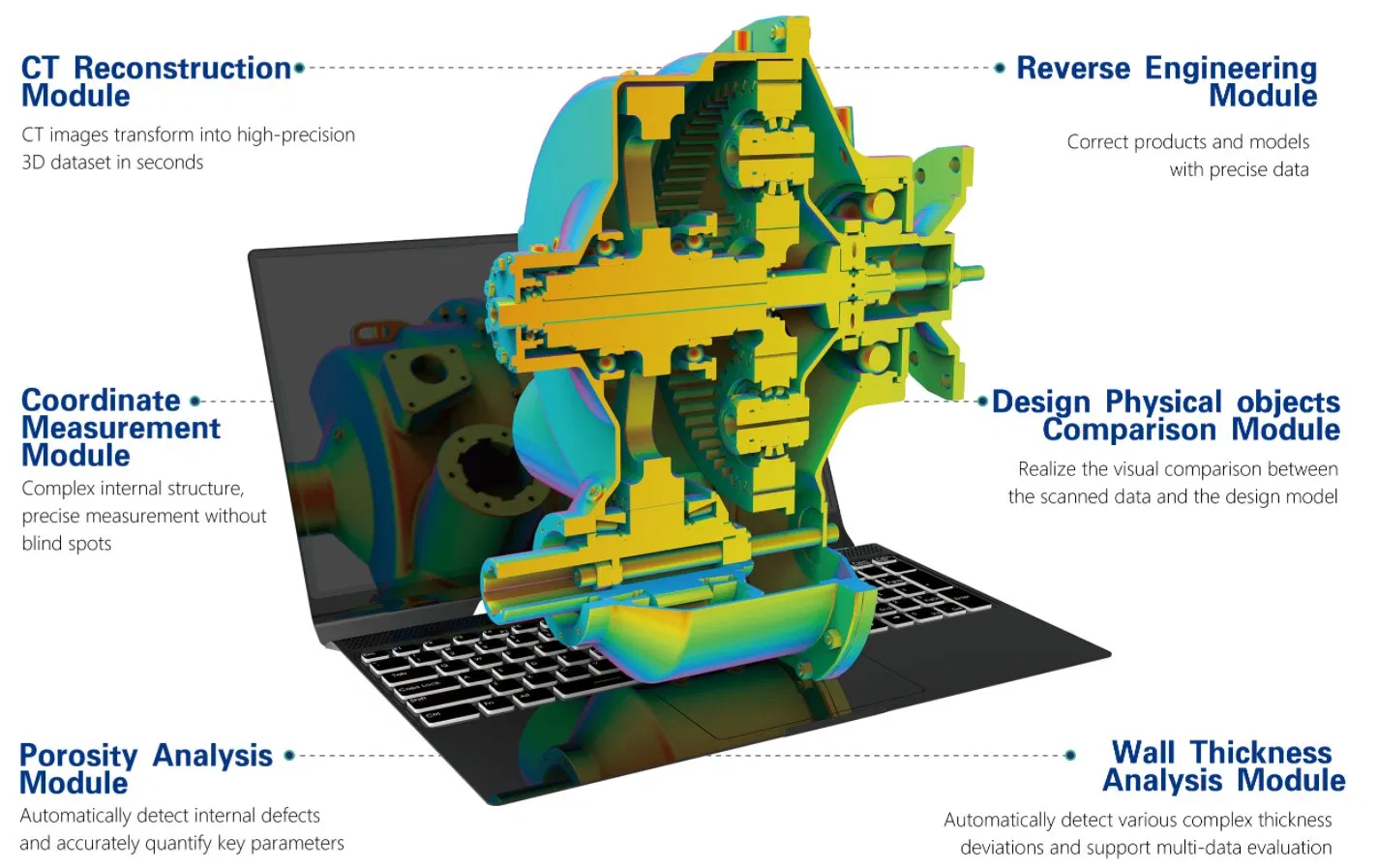

Our powerful software suite features precise analysis functions including: 3D coordinate measurement, design component comparison, pore/inclusion analysis, wall thickness analysis, and structural mechanics simulation. All systems meet high-performance standards for data processing.

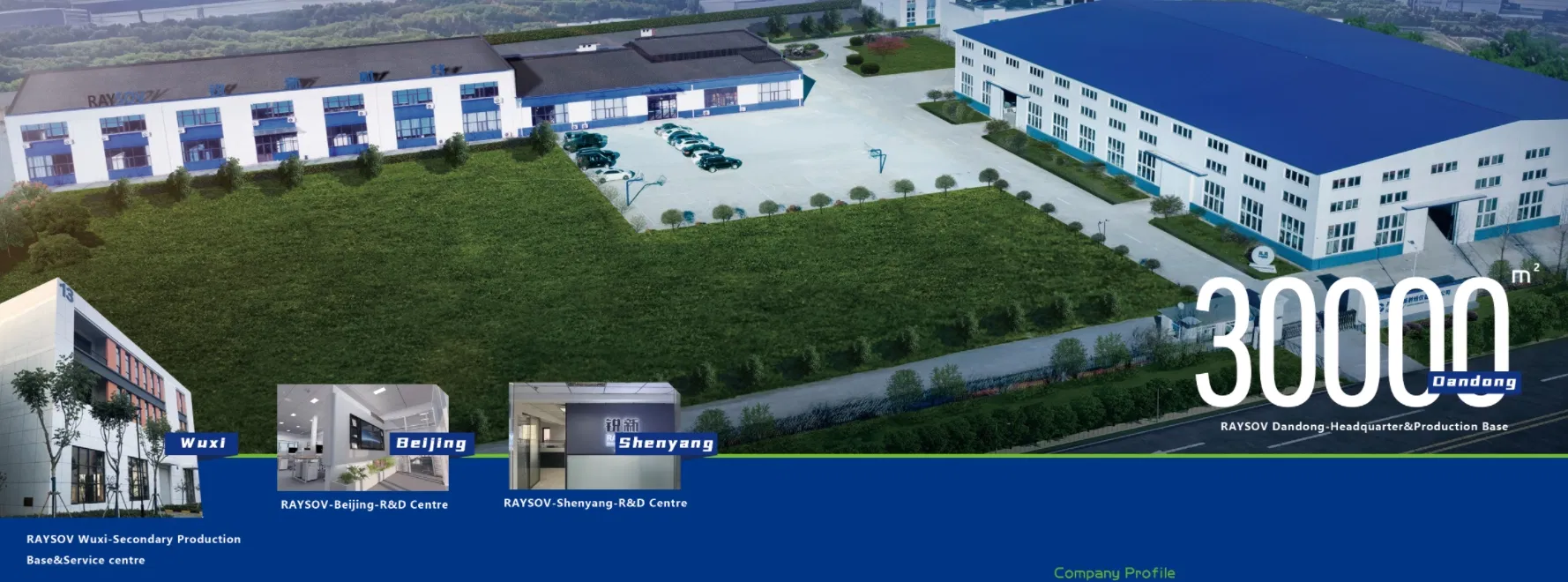

With a focus on advanced X-ray non-destructive testing since 2009, we provide automated industrial DR and CT inspection solutions globally. Our facilities hold ISO9001, ISO14001, and ISO45001 certifications, ensuring strict quality control and environmental standards. We offer custom-built solutions for diverse manufacturing and technology projects worldwide.
