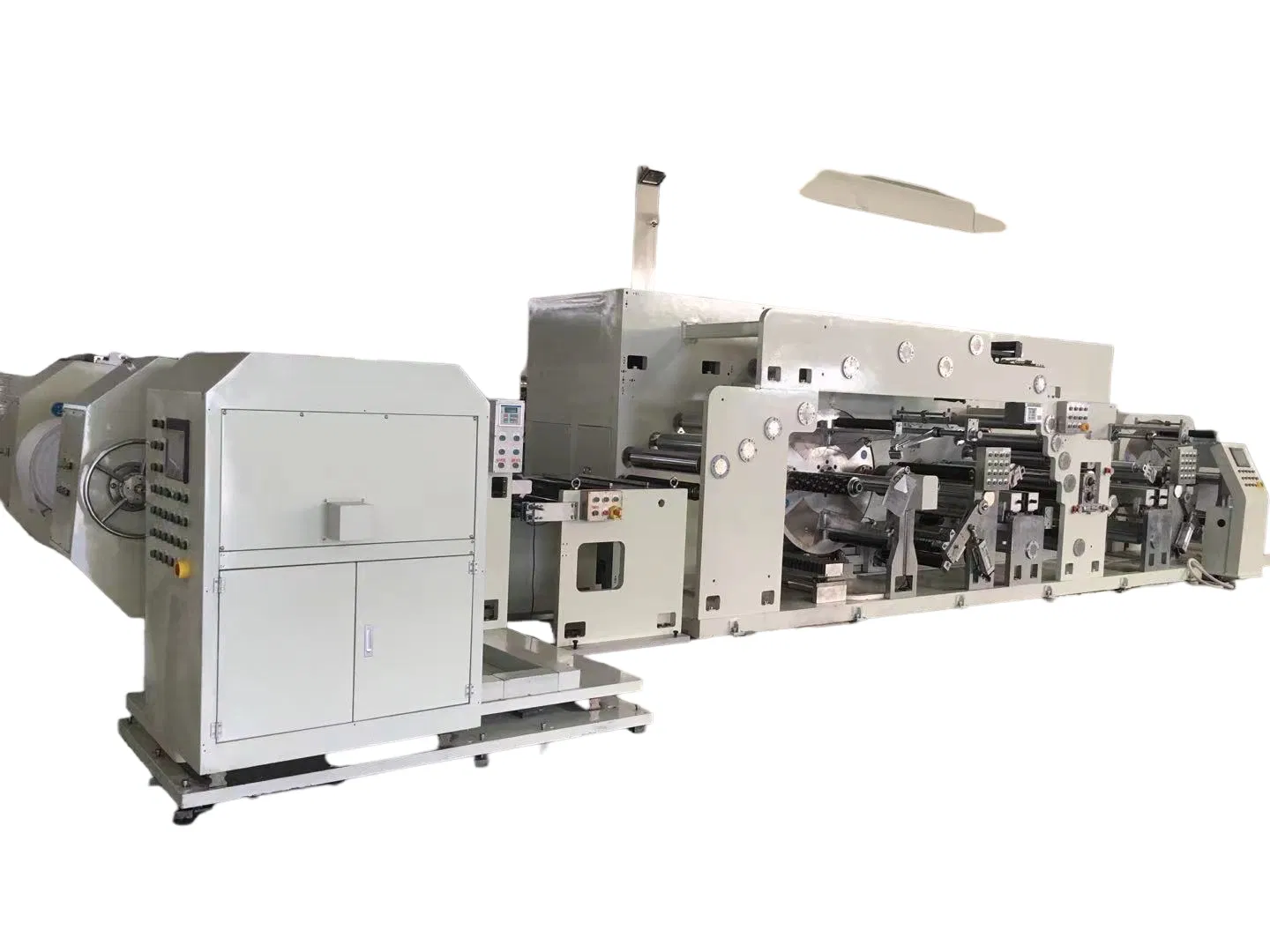

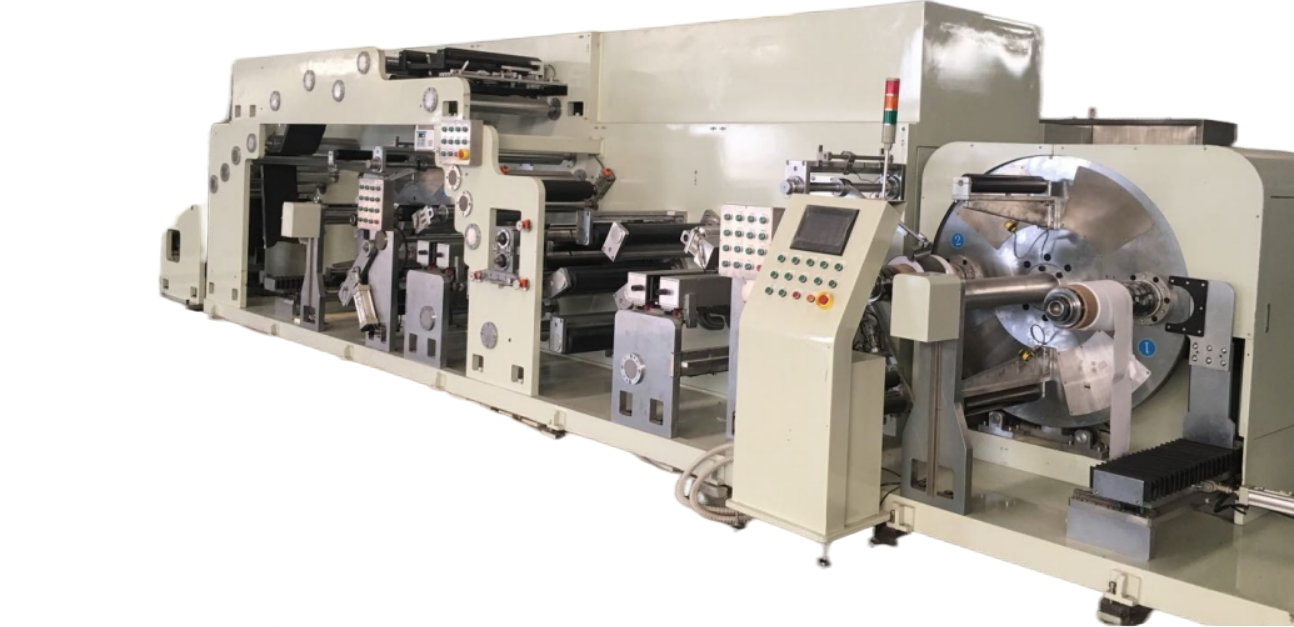

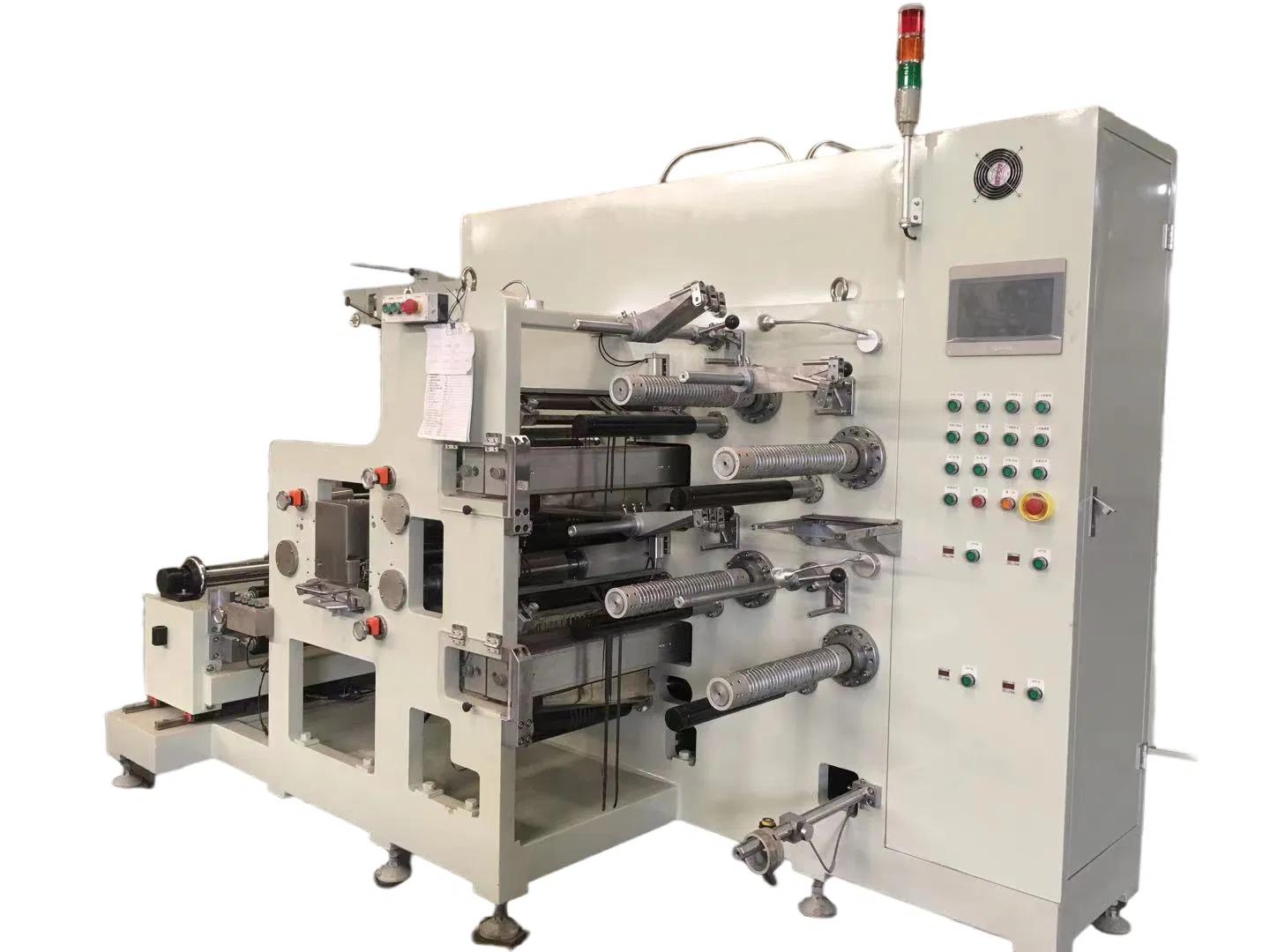

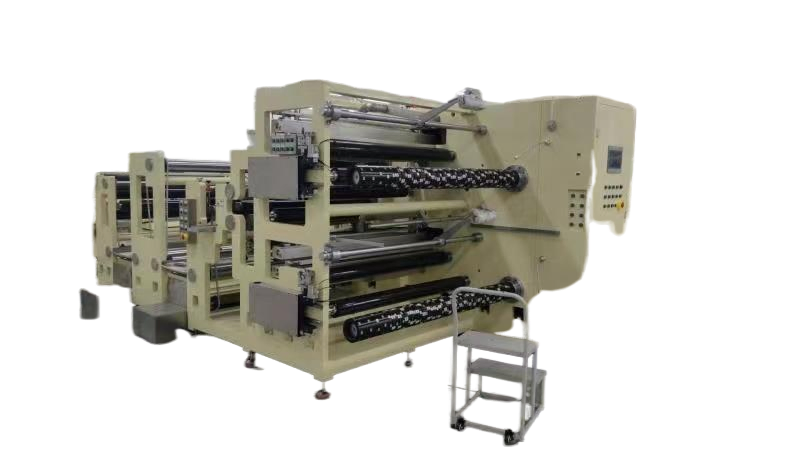

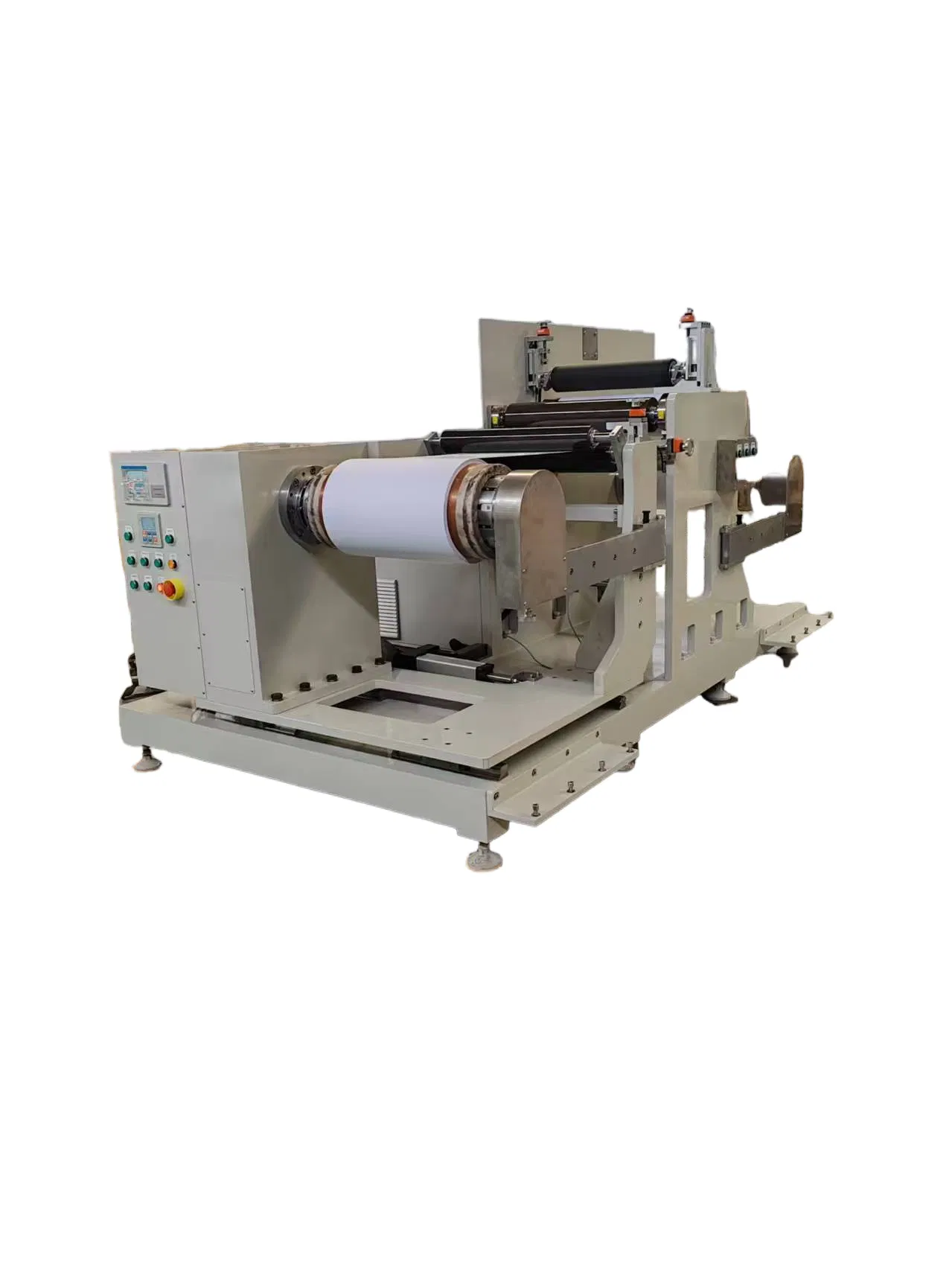

Precision Cutting Machine for Efficient Line Division Solutions

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

Send Inquiry

Product Description

Technical Specification & Basic Info

⚙️

Model NO. SLQ-05-1050XC

🚀

Mechanical Speed Max 60 (100) M/Min

📊

Qualification Rate ≥ 99.9%

🛡️

Failure Rate ≤ 1%

⏱️

Life Cycle Not less than 10 Years

📏

Material Width 500-1000mm

Product Introduction

The first domestically developed and successfully launched machine has been widely adopted in the new energy industry. Equipped with proprietary technology, its overall performance exceeds that of imported shearing machines.

In addition to standard lithium electrode cutting, this machine has excellent precision in cutting lithium iron phosphate (LiFePO4) electrodes and ultra-thin/ultra thick power battery electrodes.

📌 Key Equipment Advantages

Unfolding System: Pneumatic shaft with magnetic powder brake, constant tension control, photoelectric edge alignment.
Windup System: Custom designed sliding shaft ensures uniform tension and synchronization of all strips. Tension is automatically tracked and adjusted through the touch screen.
Modular Blade Holder: Installed on a mobile cart for fast positioning and rapid changes, extending blade life and supporting high-capacity production.
Advanced Drive: Active traction driven by servo motors and rewinding group controlled by Mitsubishi inverters via PLC programming.
Precision Cutting: Advanced roller shear blades (globally leading technology) ensure cut edges are free of burrs.

Detailed Technical Parameters

Working speed range	1-50(80)m/min
Equipment utilization rate	≥ 99% (Excluding external factors)
Equipment noise	≤ 70db (at 1 meter distance)
Equipment weight	5.5T
External dimensions	L=2400mm, W=2100mm, H=2200mm
Unwinding tension	Range 5-200N, Accuracy 1N, Control ± 3N
Winding tension	Range 5-100N, Accuracy 1N, Control ± 3N
Base material thickness	Copper foil 5-20um; Aluminum foil 8-30um
Polar thickness	80-250um
Roll diameter / Weight	Max 700mm / ≤ 600kg
Cutting method	Circular blade rolling cutter
Correction accuracy	<=0.1mm
Cutting width accuracy	≤± 0.3mm or ≤± 0.05mm
Metal burr	Vertical ≤ 6um, Planar ≤ 8um
Edge snake offset	<=0.1mm/1000mm

Manufacturing Excellence & Impact

As a pioneer in lithium battery equipment manufacturing since 2000, our expertise spans prismatic, cylindrical, and polymer battery equipment manufacturing, with particular leadership in power battery slitting technologies.

Industry Firsts: Developed the inaugural fully automatic slitting machine with multiple national patents.

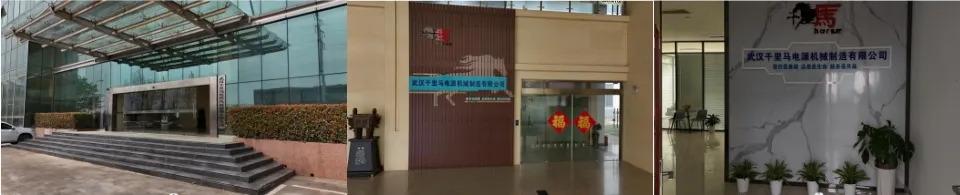

Advanced Manufacturing: 10,000 square meters smart factory with integrated R&D partnerships.
Product Excellence: Slitters with 30% higher precision than the industry average and 24/7 remote monitoring.
Global Impact: 40% reduction in material waste and 25% increase in production throughput.

Packaging & Global Partners

Frequently Asked Questions (FAQ)

Q1: What types of materials can this machine cut? A: It is designed for continuous cutting of positive and negative electrode sheets, copper foil, aluminum foil, isolation film, and aluminum-plastic film.

Q2: How accurate is the cutting width? A: The machine provides high precision with a cutting width accuracy of ≤± 0.3mm or even ≤± 0.05mm depending on requirements.

Q3: Does the equipment support 24-hour production? A: Yes, it is designed for a 24 hours/day production cycle with a total equipment life cycle of no less than 10 years.

Q4: How is the tension controlled during the rewinding process? A: It features an automatic tension tracking and adjustment system controlled through a touch screen and Mitsubishi inverters to ensure stability and eliminate breakage.

Q5: What is the qualification rate for produced materials? A: The equipment maintains a high qualification rate of ≥ 99.9% (excluding defective incoming materials).

Q6: Are there burrs on the cut edges? A: No, our advanced roller shear blades use globally leading technology to ensure cut edges are free of burrs, with vertical burrs ≤ 6um.
