⚙️ Product Description

Model: 1000TDJ-130

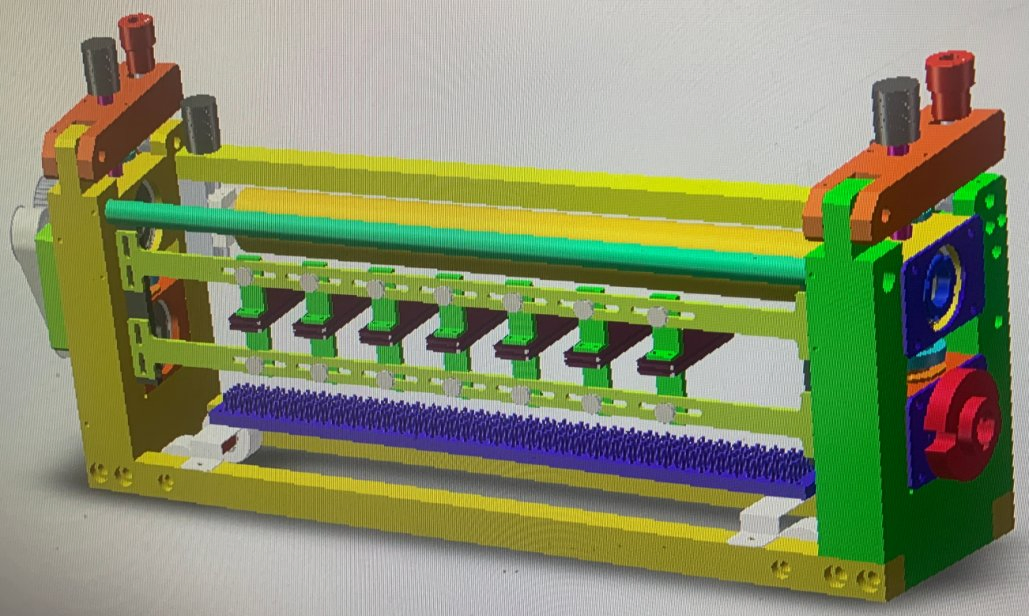

The Adjustable Blade Holder is specifically designed for slitting power battery cell electrode sheets. It features an innovative integrated blade and die design, enabling the slitting of electrode sheets to various widths simply by changing spacer sleeves. This unit is optimized for seamless integration with automatic slitting machines.

🚀 Slitting Method

Utilizes a gap-free, suspended roll shear linear cutting method. Tools are installed and replaced as a complete unit. Blade pad width is customized according to specific process requirements. The system is driven by independent servo motors for both upper and lower shafts, with the blade speed ratio easily adjusted via touch screen parameters.

Adjustments are highly precise: slitting width is managed by spacer sleeves, vertical blade depth via inter-shaft nuts, and horizontal engagement through threaded blade screws.

⚖️ Front/Rear Manual Balancing Mechanism

To ensure optimal slitting quality even with deformed materials, manual adjustment roller devices are installed both before and after the holder. This mechanism guarantees stable and precise material feeding conditions.

📊 Technical Parameters

No.	Item	Parameter
1	Holder Structure	Integrated Adjustable Blade Holder
2	Slitting Method	Circular Blade Linear Rolling Cut
3	Drive Method	Spline Drive, Blade Speed Ratio Adjustable
4	Blade Outer Diameter	130 mm
5	Slitting Materials	Aluminum Foil, Copper Foil, Separator Film, PET Film, Aluminum Mesh, Steel Mesh
6	Material Thickness Range	5 - 250 μm
7	Input Web Width	≤ 300 mm (Up to 1400 mm customizable)
8	Slitting Width Range	32 - 1400 mm
9	Slitting Process	1 into 2 or 1 into 4 strips (Customizable)
10	Slitting Width Accuracy	≤ ±0.3 mm or ±0.05 mm
11	Cut Edge Burr	Vertical: ≤ 6 μm, Horizontal: ≤ 10 μm
12	Dimensions	L=500, W=180, H=220 mm (Customizable)

❓ Frequently Asked Questions

What types of materials can this blade holder process?

This equipment is versatile and can slit Aluminum Foil, Copper Foil, Separator Film, PET Film, as well as Aluminum and Steel Mesh.

How is the slitting width adjusted?

The slitting width is adjusted by changing the spacer sleeves, allowing for different widths based on your process requirements.

What is the slitting accuracy of the 1000TDJ-130?

The machine offers high precision with a slitting width accuracy of ≤ ±0.3 mm or even up to ±0.05 mm depending on the configuration.

What is the range of material thickness it can handle?

The blade holder is designed to process materials within a thickness range of 5 μm to 250 μm.

How does the drive system work?

It utilizes a spline drive system powered by independent servo motors for the upper and lower shafts, with an adjustable blade speed ratio.

How does the machine handle deformed materials?

It features manual balancing mechanisms (roller devices) at both the front and rear to ensure optimal feeding and maintain slitting quality for irregular materials.
