| Items | Parameters |
|---|---|
| Power | 4KW |
| Air Volume | 3000m³/h |
| System Air Pressure | 3300Pa |
| Water Consumption | Around 3.5L/h |
| Material | Powder coating carbon steel (customizable) |
| Dimensions | 2650mm*1203mm*900mm |
| Primary Filtration | Wet settling Filter |

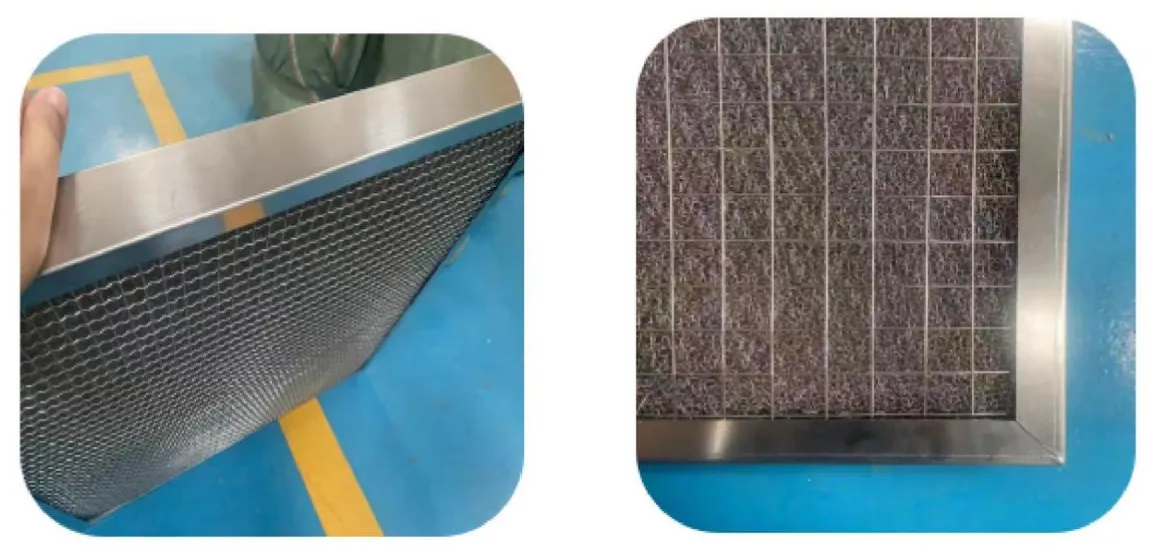

| Secondary Filtration | Metal filter |
It adopts a two-stage purification structure of "impact dust collection + demisting and dehydration": the first stage uses water droplets generated by airflow impacting water to capture large dust particles, and the second stage uses a demister to efficiently separate water vapor from the gas (demister efficiency 98%), avoiding water in the exhaust gas from causing pipeline corrosion.

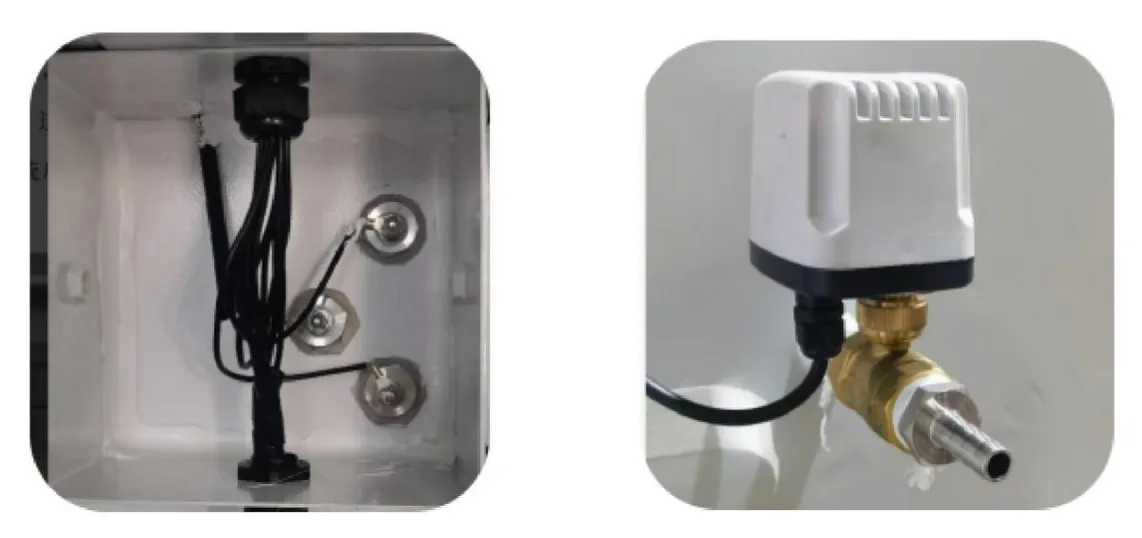

Equipped with three liquid level electrodes (low, medium, and high) with a sensitivity of ≤±1m, monitoring the water level in real time. The automatic solenoid valve replenishes water when the level is low and starts the equipment once optimal levels are reached.

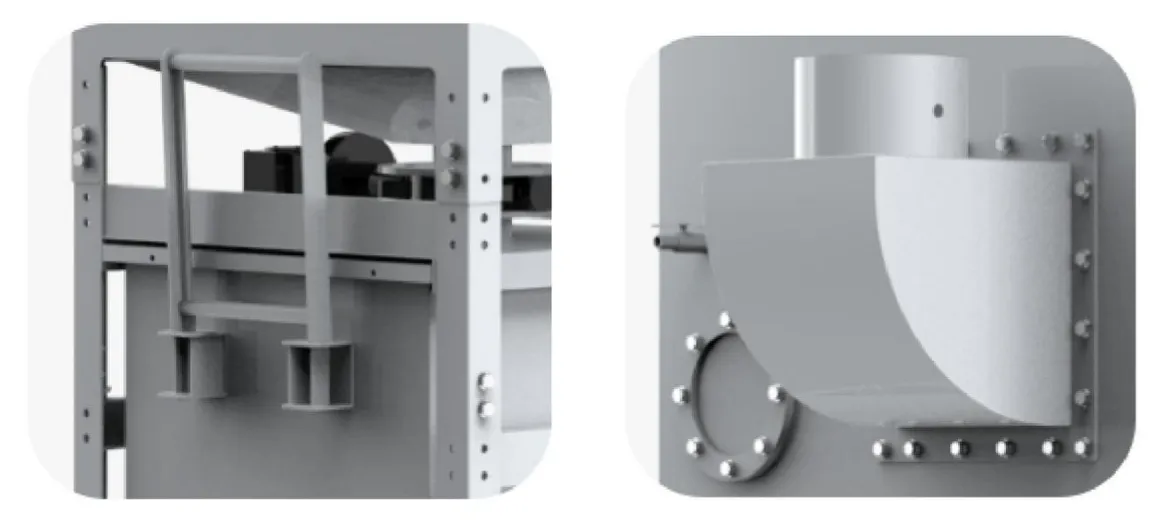

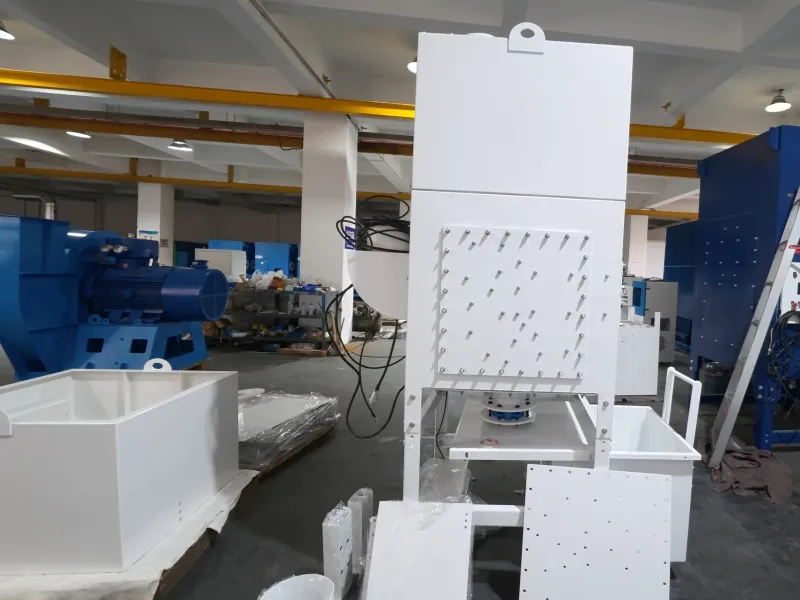

The casing is made of high-strength carbon steel with a powder-coated surface, making it corrosion-resistant and suitable for harsh working conditions. Integrated sealing design ensures leak-proof performance.

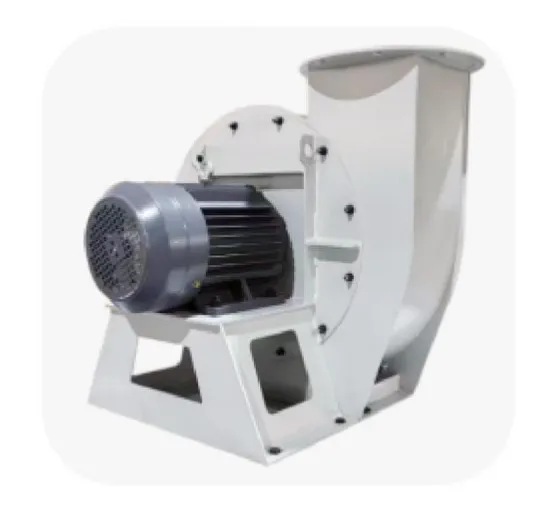

The fan power unit consists of a customized radial centrifugal fan with a direct-drive motor to reduce transmission losses. The control panel supports local, remote, and linkage control modes with automatic fault alarms.

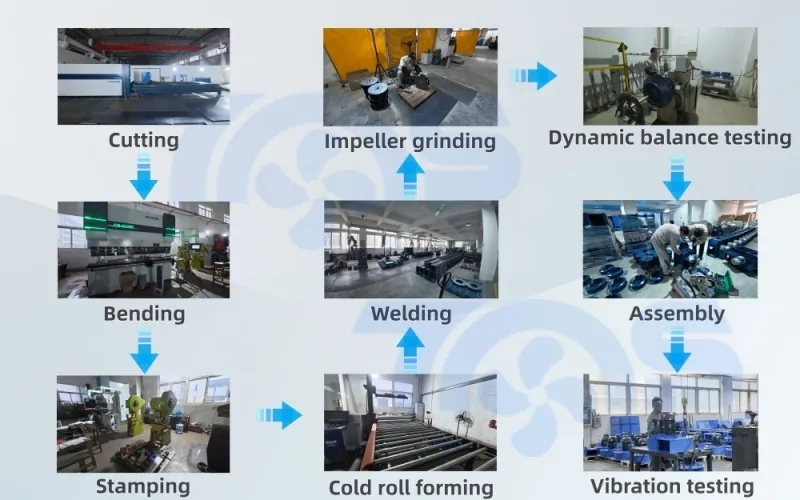

Our production follows a strict manufacturing process: precision cutting, bending, and welding of carbon steel sheets, followed by high-standard installation of motors and water circulation systems. Every unit undergoes rigorous performance testing and leak detection.

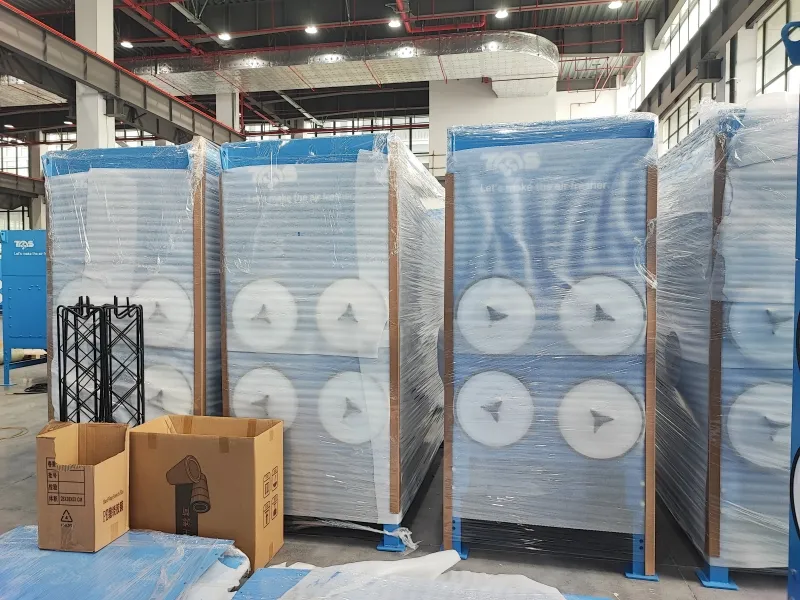

We use plywood, paper corner protectors, and cardboard boxes to ensure safety. Our packaging is professional, environmentally friendly, and efficient.

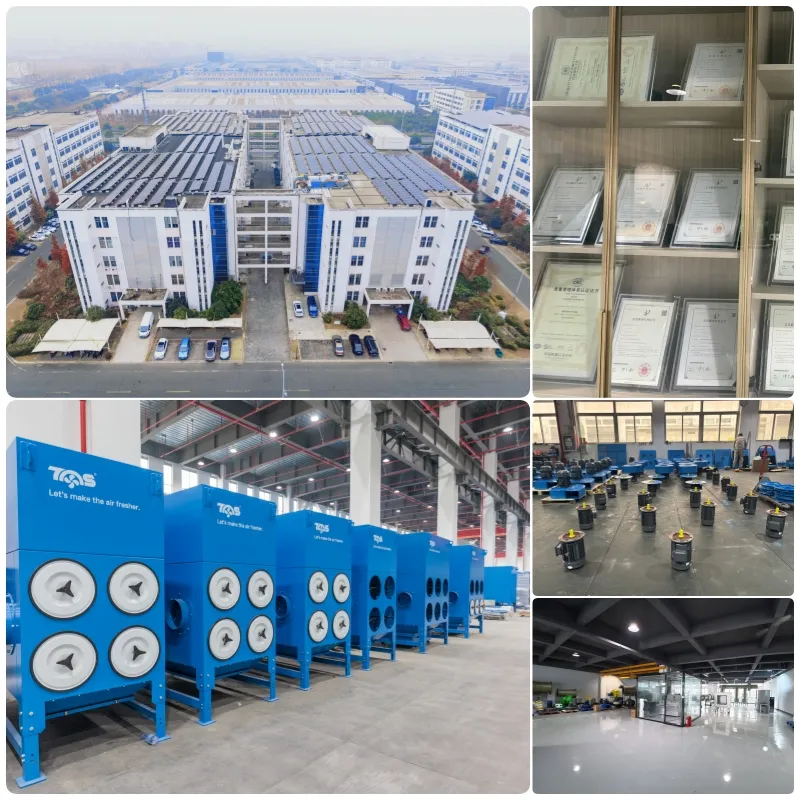

We provide integrated R&D, production, and sales of high-end air supply and exhaust systems. Established in 2005, our core focus is advanced R&D and cutting-edge technologies. We operate professional wind tunnel laboratories to design customized, energy-saving products.
Our core values are energy conservation, environmental protection, and intelligence. We are devoted to building long-term friendly relationships with global customers through quality products and professional services.
